Page 1
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
WMI 2
(wireless module interface)
User manual
Valeo Peiker product IDs:
WMI2-W167 2609-090-203-51 (trucks basic)
WMI2-W205 2609-090-303-51 (W205)
WMI2-W205-M1 2609-090-353-51 (W205 w/o)
WMI2-W167-M1 2609-090-403-51 (W167)
WMI2-W167-M2 2609-090-453-51 (W167 w/o)
WMI2-W167-M3 2609-090-553-51 (W167 Fd)
Revision: 1.5
Date: Jan 2018

________________________________________________________________________________________________________________________________
Page 2
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
Revision History
Date
Revision
Name
Comment
13.12.2017
1.0
Uha
Initial document
15.12.2017
1.2
Uha
19.12.2017
1.3
SSa
Update serial numbers
19.12.2017
1.4
SSa
Update point 3 & 4
11.1.2018
1.5
Uha
Update point 2.3.1

________________________________________________________________________________________________________________________________
Page 3
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
Inhalt
1. Introduction............................................................................................................................................4
1.1 Scope...............................................................................................................................................4
1.2 Audience .........................................................................................................................................4
1.3 Contact information, Support..........................................................................................................4
2. Product Overview...................................................................................................................................5
2.1 Product Variants..............................................................................................................................5
2.2 Technologies...................................................................................................................................5
2.3 Supported Technology/Frequency Bands.......................................................................................5
2.4 Features...........................................................................................................................................7
2.5 Equipment list:................................................................................................................................9
2.6 Technical Setup.............................................................................................................................10

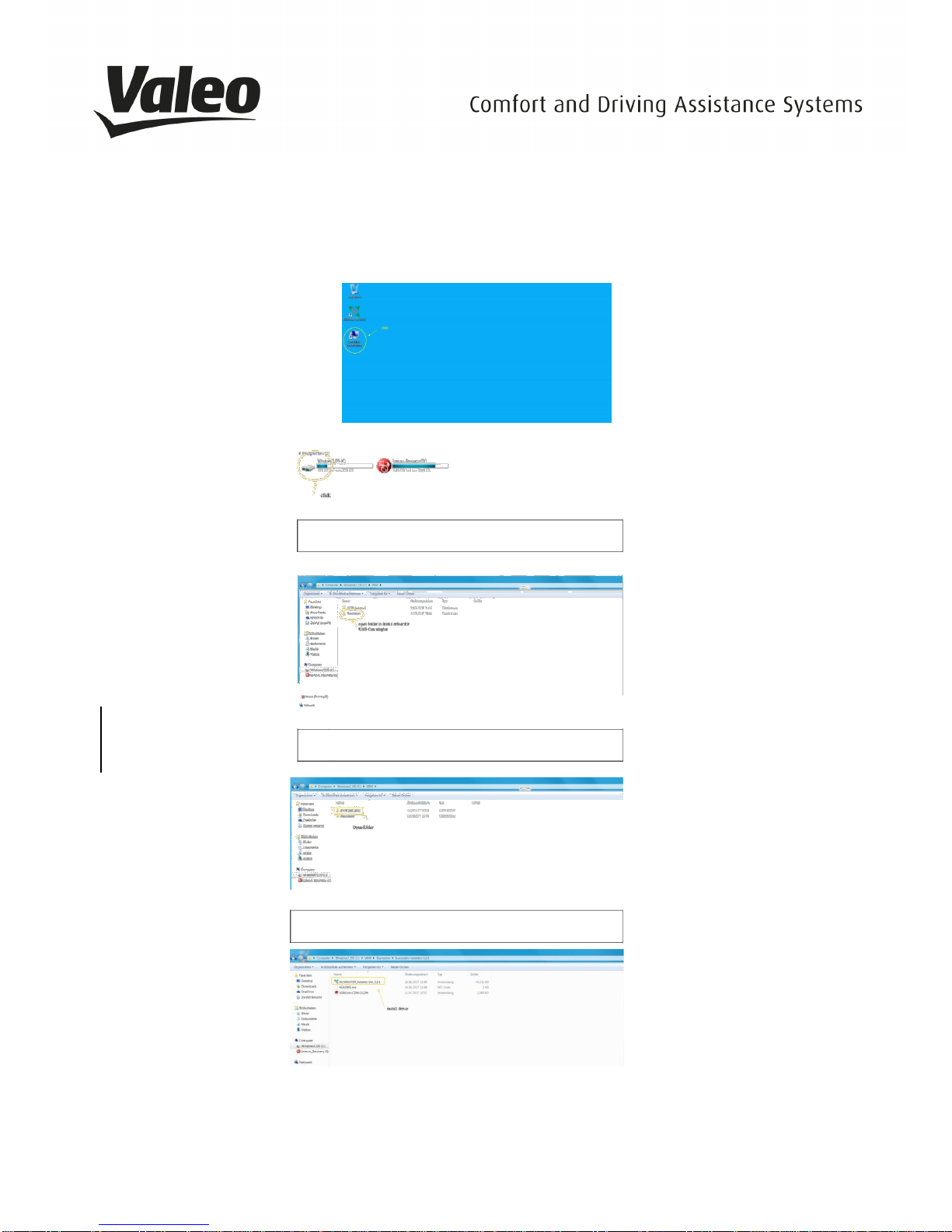

2.7 Computer Setup.............................................................................................................................11

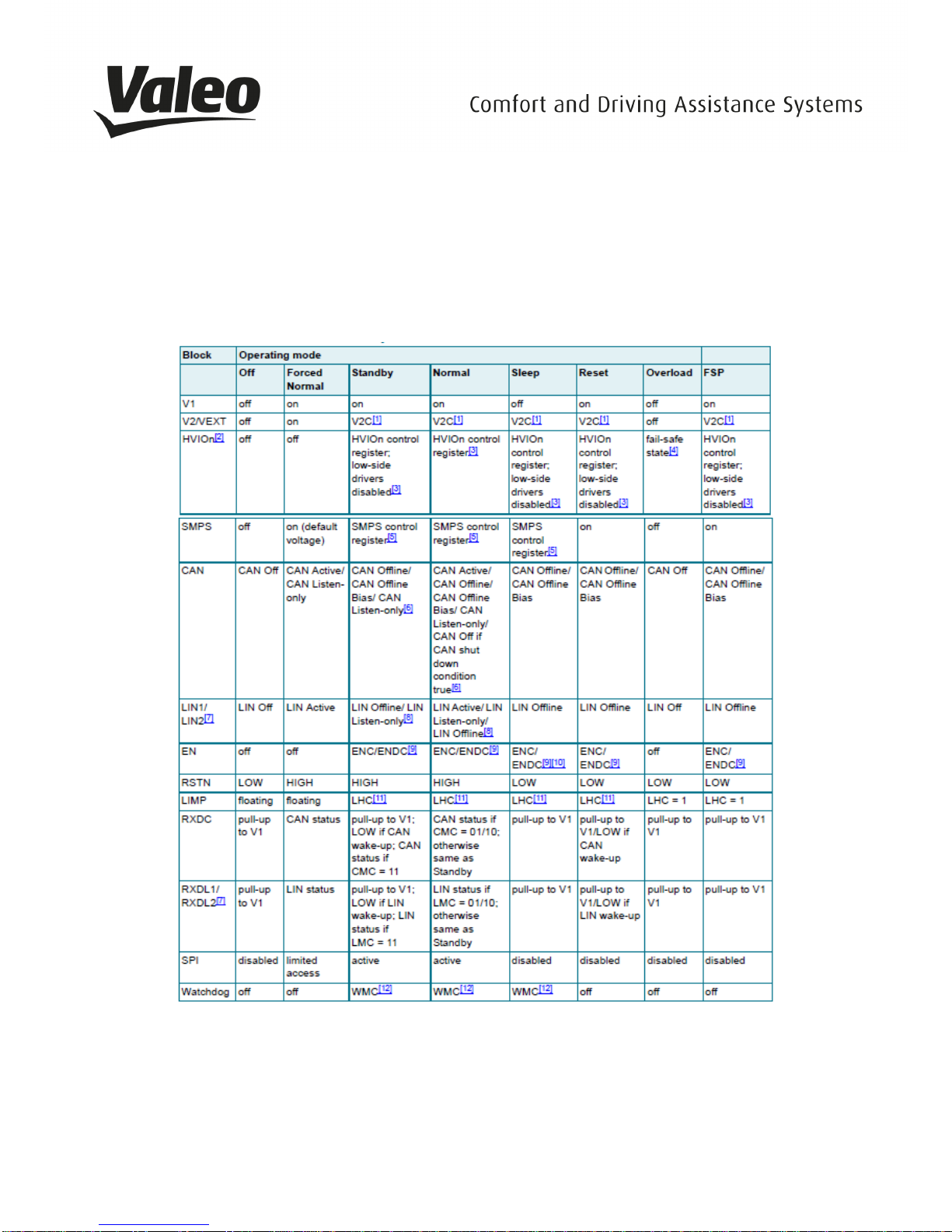

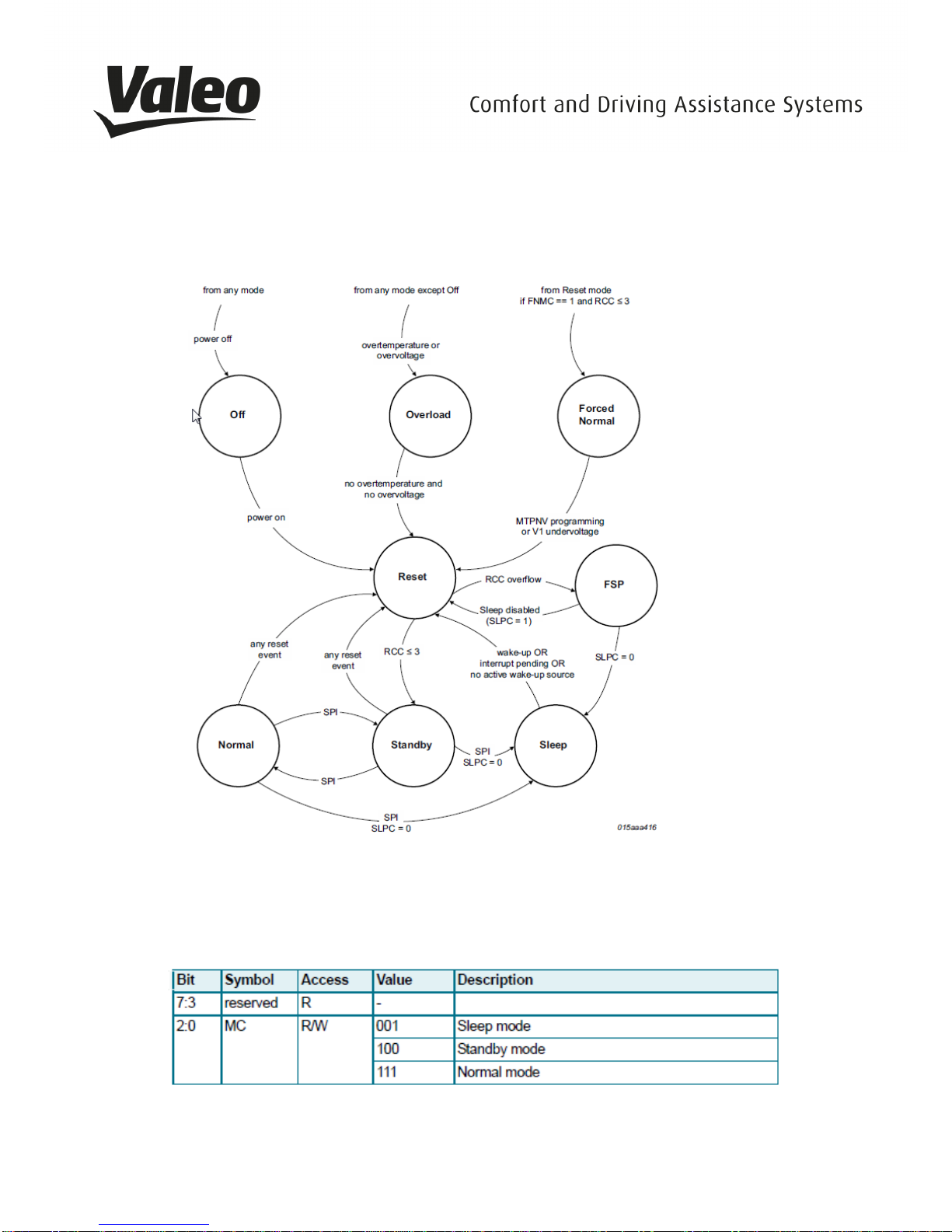

2.8 Operating Modes...........................................................................................................................17
3. Safety Recommendations according to EN62368-1 ............................................................................19
4. RED/FCC/IC Regulatory Notices Modifications.................................................................................20
4.1 Modifications................................................................................................................................20
4.2 Interference ...................................................................................................................................20
4.3 FCC Class B Digital Device .........................................................................................................20
4.4 OEM Responsibilties ....................................................................................................................21

________________________________________________________________________________________________________________________________
Page 4
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
1. INTRODUCTION
1.1 SCOPE
This document gives an overview about electrical, mechanical and functional details of the Valeo peiker
WMI 2 wireless charging modules.
1.2 AUDIENCE
Information to integrate the module in some other applications.
1.3 CONTACT INFORMATION, SUPPORT
peiker acustic GmbH
Max-Planck Street 32
D-61381 Friedrichsdorf / Ts.
Germany
http://www.peiker.de
[email protected]

________________________________________________________________________________________________________________________________
Page 5
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
2. PRODUCT OVERVIEW
2.1 PRODUCT VARIANTS
The WMI 2 module family consists of six variants:
Model-name Valeo Peiker product # Module configuration
WMI2-W167 2609-090-203-51 DAG trucks basic, with couple function
WMI2-W205 2609-090-303-51 DAG W205, with couple function
WMI2-W205-M1 2609-090-353-51 DAG W205, without couple function
WMI2-W167-M1 2609-090-403-51 DAG W167, with couple function
WMI2-W167-M2 2609-090-453-51 DAG W167, without couple function
WMI2-W167-M3 2609-090-553-51 DAG W167, fond variant without couple function
2.2 TECHNOLOGIES
Wireless charging equal to Qi Standard
Connecting to device via NFC
Proximity sensor description
-The device is detected by a ping algorithm via NFC
2.3 SUPPORTED TECHNOLOGY/FREQUENCY BANDS
2.3.1 Frequencies
NFC 13,65 MHz
Magnetic, modulated, according Qi Standard 1.0 125 kHz
oDownlink (from cell-phone/test receiver to WMI)
the receiver is using load modulation of 125kHz modulated with 2kHz to send
information to the WMI.
oUplink (from WMI to cell phone/test receiver)
The WMI is using frequency modulation of the 125kHz to send information to the
receiver.
oConcerning wireless charging there is no other communication channel.
2.3.2 Data Rates
CAN:
-250kBaud

________________________________________________________________________________________________________________________________
Page 6
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
-500kBaud
NFC:
-Modulated 115kBaud
-Modulated 230kBaud
-Modulated 440kBaud
2.3.3 Interfaces, customizable
CAN
SPI (internal)
Contact information, Support
2.3.4 Power level
Charging mode
-Max power consumption 9,25 Watts each coil
-The device charge the mobile device with a power of 5 Watts
-The transfer system includes 3 coils. This includes charging systems that have three coils and
clients that are able to detect and allow coupling only between individual pairs of coils
-Only one coil is active
Ping mode
-Max power consumption 0,25 Watts
2.3.5 Data Rates
CAN:
-250kBaud
-500kBaud
NFC:
-Modulated 115kBaud
-Modulated 230kBaud
-Modulated 440kBaud
2.3.6 Dimension and Weight
-Dimensions: 160mm x 95mm x 27mm
-Weight < 395 grams
2.3.7 Application
Only vehicular environment
The system is installed only in vehicles
2.3.8 Power
Nominal voltage: 12V
Max. current consumption: 0,8A
Operating Voltage Range: 8V –16V

________________________________________________________________________________________________________________________________
Page 7
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
2.4 FEATURES
2.4.1 FBS (exchange of relevant security information)
2.4.2 Charging
2.4.3 Couple Function, passiv only
-Powerful application processor from NXP may contain and run complete application software
and CAN-software
2.4.4 Supply Voltage
Absolute minimum/maximum supply voltages
8V –16V
Nominal supply voltage
12V
Recommended supply voltage
12V
Voltage drop @ GSM power burst (33dBm)
< 100mV
2.4.5 Power Consumption
TA= +25°C, P = 9,25W
2.4.6 Environmental Specification
2.4.7 Temperature Range
Range
Operating temp. range
-20°C … +60°C
Wireless Charging
Extended operating temp. range
-20°C … +80°C
Operational
CAN communication
Storage temp. range
-40°C … +85°C
2.4.8 Connectors, external interfaces
The WMI is connected with a permanent 12V and the CAN bus, various control signals from the
CAN bus control the WMI and thus bring it into different working modes. In terms of driving
readiness, the WMI represents an interface between the head unit (Can with 250kBaud) and a
standard mobile phone from the driver of the vehicle. To support NFC telematics functions
including identification and data transmission to the vehicle head unit, for example for data
exchange with NFC vCards.

________________________________________________________________________________________________________________________________
Page 8
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
To support these functions, there is a coupling antenna in WMI that fulfills the following functions:
• Interface to the GSM mobile phone via the coupling antenna
• Interface to the NFC enabled mobile phone via the internal NFC antenna
• Interface to the vehicle antenna via the GSM plug connection
2.4.9 Module Pin-out
Table 1 Module Pin-out
MWCT1014S
Signal name
(used in the schematic)
Description
Port /
Pin
Selected
function
PTB4 /
28
PTB4
µC2NFC-DWL-REQ
Active state: High level
After a reset the NFC controller NCF3340 starts
the download mode sequence.
Passive state: Low level
After reset no download sequence will be started
by the NFC controller
PTD10 /
36
PTD10
LED-ON-FEHLER
Active state: High level
The LED on the Debug PCB is switched on
Passive state: Low level
The LED on the Debug PCB is switched off
PTD11 /
35
PTD11
LED-ON-LADEN
Active state: High level
The LED on the Debug PCB is switched on
Passive state: Low level
The LED on the Debug PCB is switched off
PTE3 /
18
PTE3
µC2NFC-ANT-CTRL
Active state: High level
The RF input of the NCF controller NFC3340
(IC16) is connected to the external NFC antenna
Passive state: Low level
The RF input of the NCF controller NFC3340
(IC16) is connected to the internal NFC antenna
PTA14 /
88
PTA14
Capsensor2µC-EN
Active state: High level
A change in capacitance on the sensing plates is
detected.
Passive state: Low level
PTE14 /
17
PTE14
SW-MODE
Default state: High level
Alternative state: Low level
Note: Pins should be grounded when not used in design.

________________________________________________________________________________________________________________________________
Page 9
VALEO –Product Line Valeo peiker Telematics - www.valeo.de
2.5 EQUIPMENT LIST:
Wireless Charger USB Can Adapte
Chargeable Wireless Medium
NXP LDO 1500 Test Receiver or
AVID Test Receiver Voltmeter & Power Supply
System Harness

________________________________________________________________________________________________________________________________
Page 10
VALEO –Product Line Valeo peiker Telematics - www.valeo.de

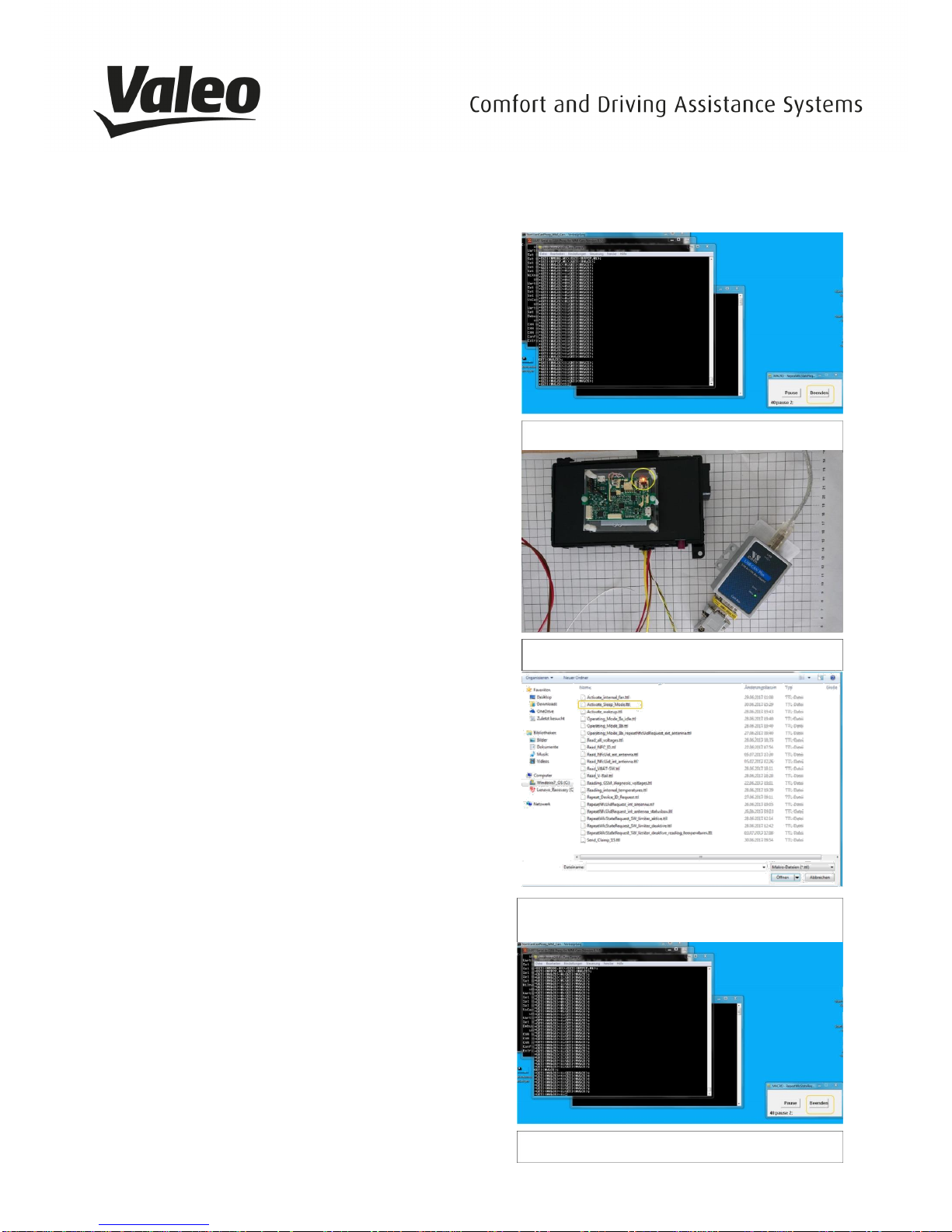

2.6 TECHNICAL SETUP
Pre-Caution:
Before testing the unit make sure that the power supply system
doesn´t exceed a voltage over 12V to avoid short-circuit.
Connect the wireless charger with the power supply system
by using the red and black cables (the yellow cable is
irrelevant).
Connect the wireless charger with the USB Can
adapter via the green/yellow cable.
Connect the USB Can adapter with a computer.
Turn on the power supply system.
Note: The LEDs of the CAN-Adapter are going
on and off several times. This process is uncritical
