VALERII S & M GROUP PREMIUM-HD 0503EC815-20P User manual

Проверил: Р.Ч./18.10.2016г.
1

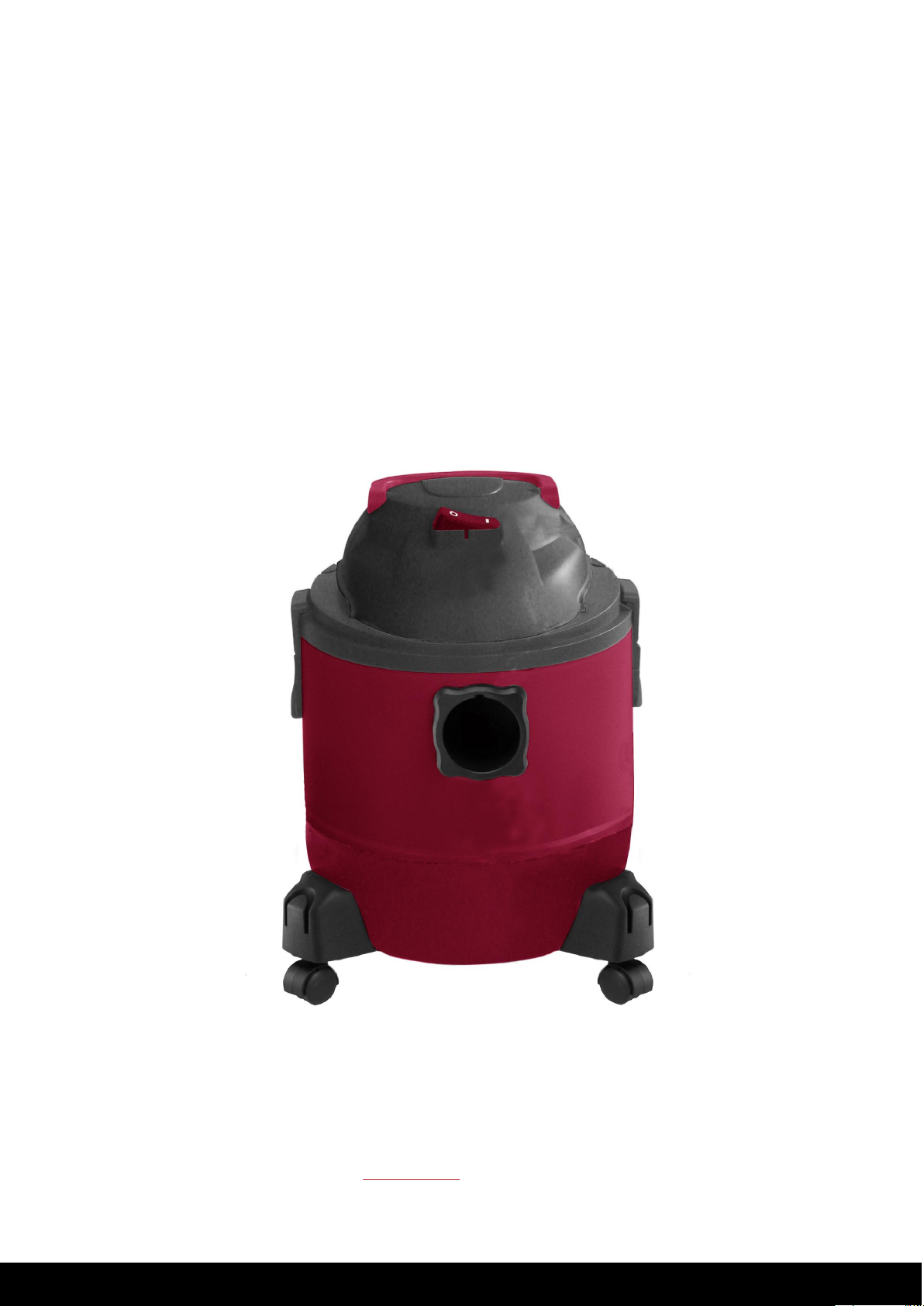

5GAL VACUUM CLEANER
0503EC815-20P
PREMIUM-hd
T h i s i n s t r u c ti o n m a n u a l i s i s s u e d b y t h e m a n u f a c t u r e r : : FRIENDLY
WATER LIMITED , Rm1001-1, 10th floor, Yaojiang Xindu, Building, No.171, Changyang East Road,
Hongtang Area, Jiangbei District, Ningbo city 315000, CHINA

Проверил: Р.Ч./18.10.2016г.
2
Importer for Bulgaria: "VALERII S & M GROUP" AD, Sofia, №44 “Botevgradsko shose" blvd Tel. :02/
942 34 00, Fax: [phone], www.valerii.com
SAVE THESE INSTRUCTIONS
WARNING:To reduce the risk of electric shock, this appliance has a
polarized plug (one blade is wide than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician to install the proper. Do not
change the plug in any way.

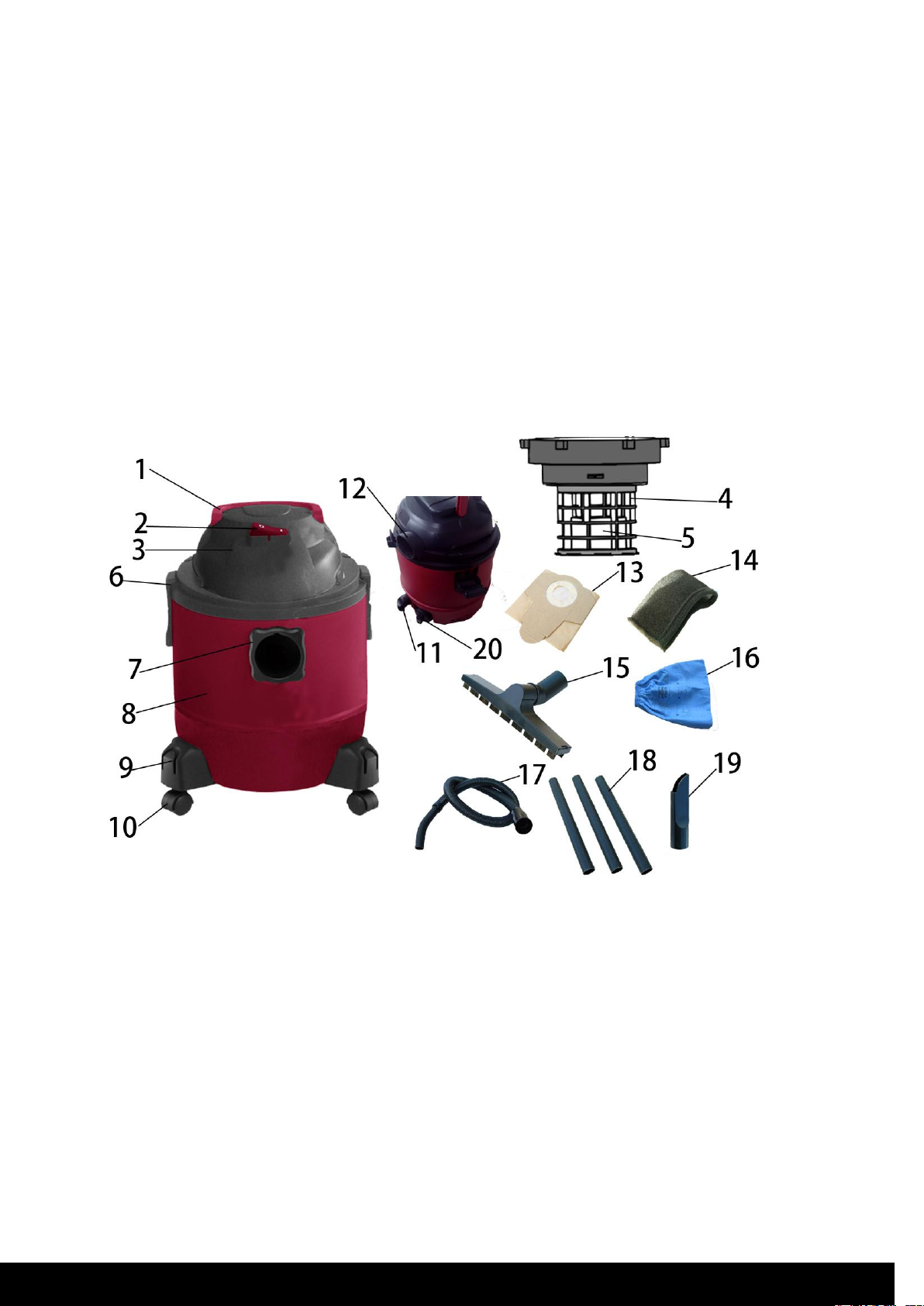

Items supplied：
1、Handle 2、ON/OFF switch 3、Top section 4、Filter basket 5、Safety float
valve 6、Clasp 7、Suction mouth 8、Container 9、Pedestal 10、Rollers
11、Cord hook 12、Blow connection 13、Paper dustbag 14、Sponge filter

Проверил: Р.Ч./18.10.2016г.
3
15、Wet brush 16、Cloth filter 17、Hose 18、Plastic tubes 19、Crevice nozzel
20、Water drain cap
Attention:
If the supply cord is damaged, it must replaced by the manufacturer or it's
service agent to a similarly qualified person in order to avoid a hazard.
Before cleaning or maintaining the appliance, the power plug must be removed
from the socket-outlet.
Check all the accessory before connect and use them to make sure they are in
correct position and there’s no any deffects.

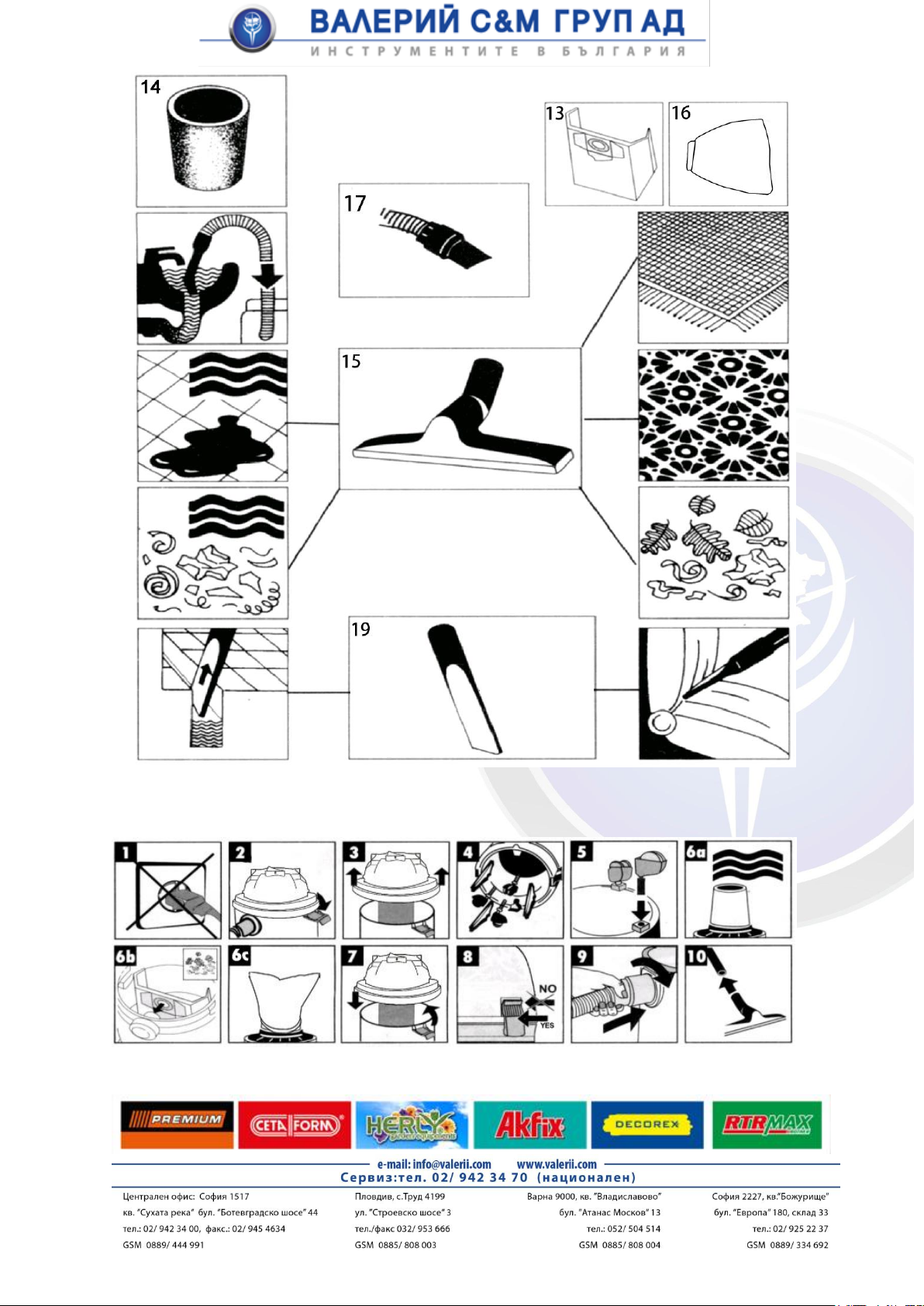

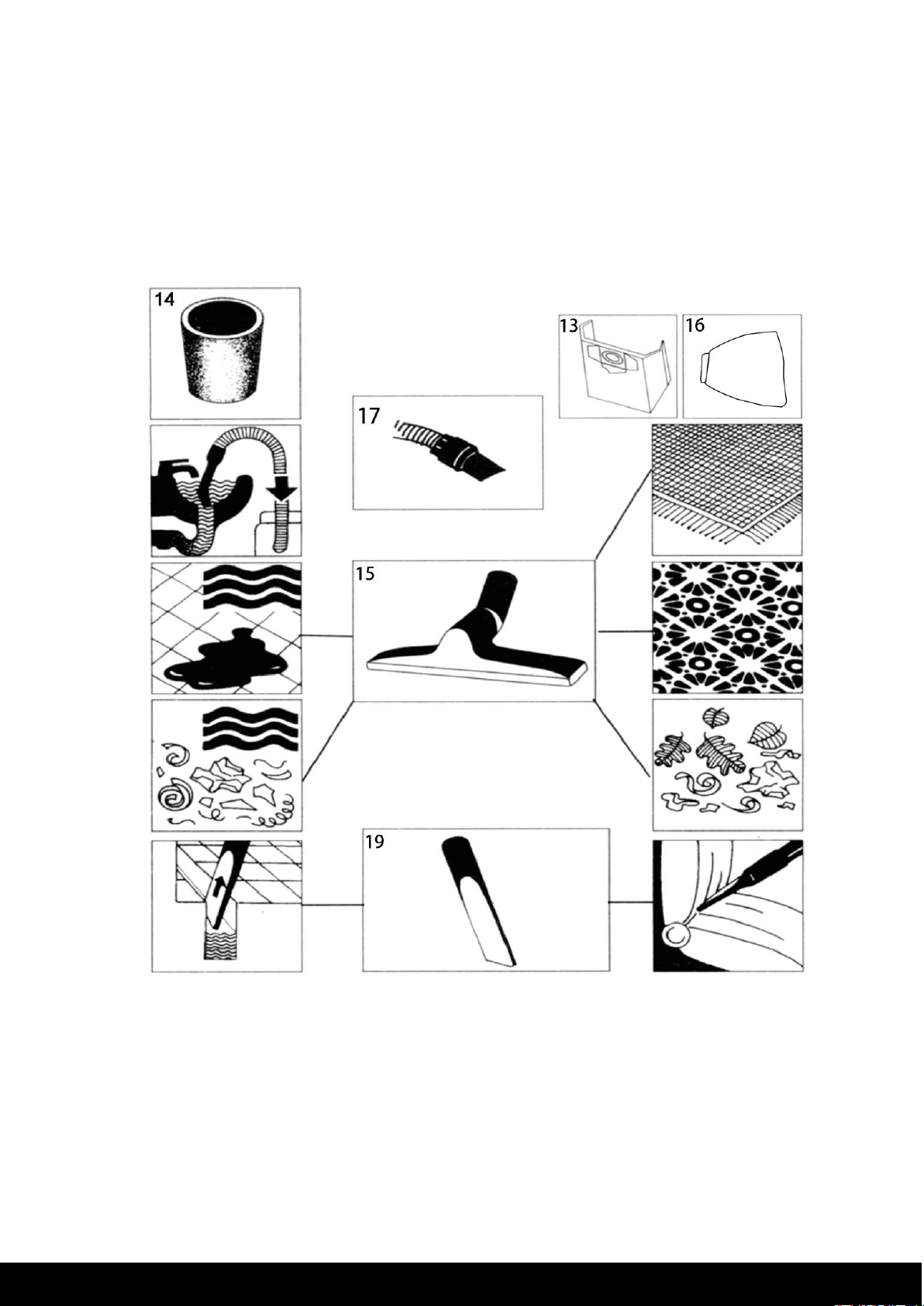

Overview of nozzles

Проверил: Р.Ч./18.10.2016г.
4
Assembly

Проверил: Р.Ч./18.10.2016г.
5
Please Note:
* Figure 6a: Use the supplied sponge filter for Wet vacuum-cleaning
* Figure 6b: Use the supplied paper dustbag for Dry vacuum-cleaning
* Figure 6c:Use the supplied cloth filter for Dry vacuum-cleaning
Wet vacuum –cleaning
Pull the supplied sponge filter over the filter Basket(Figure 2) for wet
vacuum-cleaning.
The dust bag included upon delivery is not suitable for wet
vacuum-cleaning.
Dry vacuum-cleaning-Paper dustbag

Проверил: Р.Ч./18.10.2016г.
6
Slip the dust bag onto the socket (figure 2) for dry vacuum-cleaning.
The dust bag is suitable only for dry vacuum-cleaning.
Dry vacuum-cleaning-Cloth filter
Slip the cloth bag onto the socket (figure 2) for dry vacuum-cleaning.
The cloth bag is suitable only for dry vacuum-cleaning.

Проверил: Р.Ч./18.10.2016г.
7
Blowing
Please note:
when you blowing the dust or ash, please connect the hose on blowing
connection.
Maintenance cleaning
Cleaning the tank:
after working or when the tank is full of dust/liquid,what significantly
decreases the suction power,remove the plug from the electrical
outlet and clean the drum.To do this ,unhook the two locks and
remove the suction unit and the filter.Remove the filter and clean the
dust/liquid from tank
Attention:
1.When push the switch to the “|” shelf, the vacuum cleaner will
work alone.
2.When push the switch to the “O” shelf, the vacuum cleaner will not
work.
3.This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of

Проверил: Р.Ч./18.10.2016г.
8
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
4.Children should be supervised to ensure that they do not play with
the appliance.
Technical data:
Power rating 1250W
Voltage/frequency 230V/50Hz
Capacity 20L
Cable length 2,3 М
Suction force 16 КРА
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact you local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain, damaging your health
and well-being. When replacing old appliances with new ones, the retailer is legally
obligated to take back your old appliance for disposals at least free of charge.
