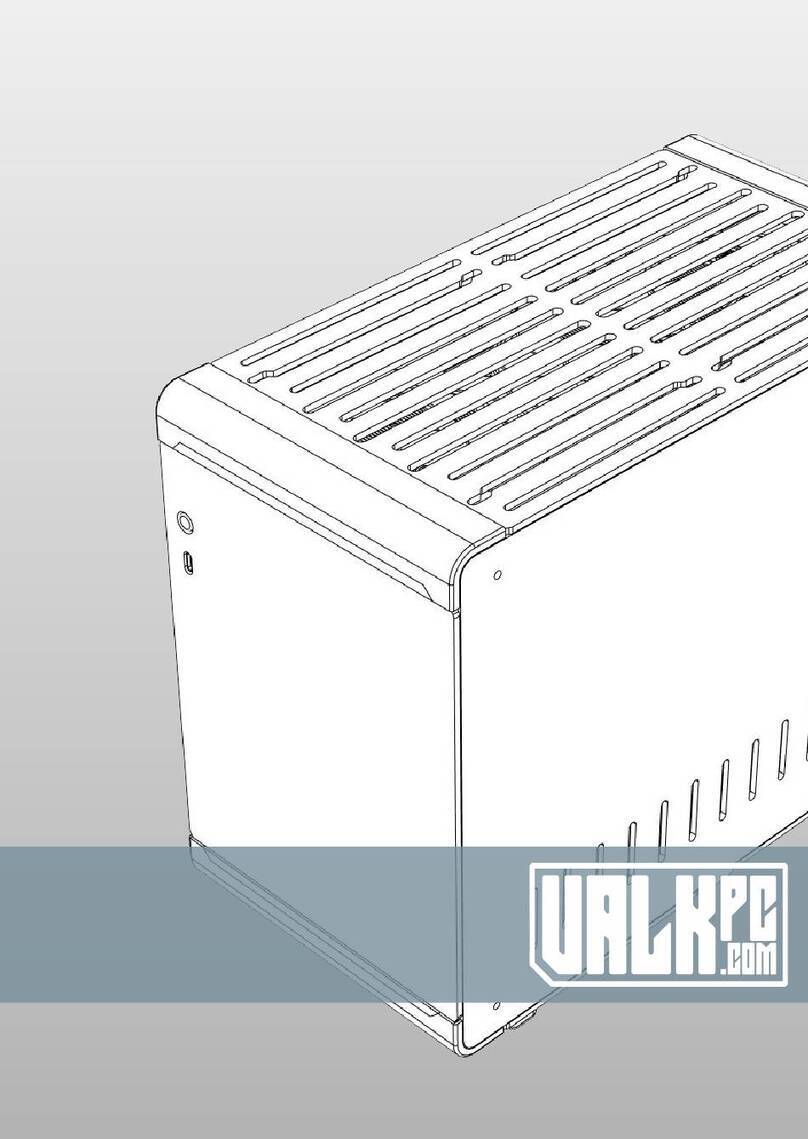

VALKPC VF-1 User manual

VF-1 User Manual v2.2 ©2022 VALKPC

VF-1 User Manual v2.2 ©2022 VALKPC

VF-1 User Manual v2.2 ©2022 VALKPC
VF-1 User Manual
Specifications
Volume
14.8L
Size (L x W x H)
338mm x 258mm x 170mm
Size including feet (L x W x H)
338mm x 273mm x 170mm
Motherboard
Mini-ITX, Mini-DTX
Power supply
SFX
Drives
1 x 2.5" SSD
I/O
1 x USB-C Type-C 3.1 Gen 2, 12mm LED Vandal resistant switch
Fans
2 x 120mm intake fan (up to 25mm)
Additional fans attachment to radiator possible (up to 4 additional)
CPU cooler
Max height: 130mm when side radiator not used
GPU
3-slot GeForce RTX™ 3090 Founders Edition (note only 2-slot opening)
Max length: 318mm
Max height: 149mm
Radiator (Top)
Max thickness (including fan): 36mm when single slot GPU water block used
Max length: 320mm
Max width: 144mm
240mm or 280mm type supported
Radiator (Side)
Max thickness (including fan): 75mm
Max length: 320mm
Max width: 144mm
240mm or 280mm type supported

VF-1 User Manual v2.2 ©2022 VALKPC
VF-1 User Manual
Compatibility
GPU
Graphics card specifications vary by add-in-card manufacturer. Please refer to the following guidelines when
picking your GPU.
Max supported GPU dimension, 318mm x 149mm. Note that if you are installing a water block, they often
have protruding fitting mounts that adds to the height/length.
Up to 3-slot GPU is supported. Please note that the rear IO Panel only has 2 slot openings. This is not a problem
for 3-slot cards like the GeForce RTX™ 3090 Founders Edition as the 3rd slot has no ports.
Max Height
149mm
Max Length 318mm

VF-1 User Manual v2.2 ©2022 VALKPC
Compatibility
CPU
Max height 130mm when side radiator not used.
Radiator
There are 2 positions for mounting radiators, side and top.
Radiator Top Mount - Max 36mm thickness (including fans) when single-slot water block is used for
GPU. Top mount allows for 240 or 280 radiator, slim active or normal passive cooling.
VF-1 User Manual
Top Mounted Active Slim
240mm Radiator With Slim Fans
Top Mounted Passive Standard
280mm Radiator

VF-1 User Manual v2.2 ©2022 VALKPC
Compatibility
Radiator Side Mount - Max 75mm thickness when water block is used for CPU. Side mount allows for 240
or 280 radiator.
Side Mounted Standard 280mm
AIO Radiator/Fan
Side Mounted Standard 240mm
AIO Radiator/Fan
Side Mounted Custom Water
Cooling 240mm CrossFlow
Radiator/Fan
VF-1 User Manual

VF-1 User Manual v2.2 ©2022 VALKPC
Read before assembly
★Study the instructions thoroughly before assembly.
★There are many small screws, nuts and similar parts. Assembly them carefully referring to
the drawings.
★It is advised to assembly each step exactly as shown.
★This product is designed to be easy to assemble. But this is not a toy and should be kept out
of children’s reach.
★It is important to NOT over-tighten screws.
3D printed parts
★This product contains 3D printed parts.
★3D printed parts included are printed at the highest quality settings. But due to the nature
of such parts, small surface blemishes are unavoidable and do not aect performance.

VF-1 User Manual v2.2 ©2022 VALKPC
1
1Base assembly
Shell - Bottom
Flat-head M3x6mm x 4
2
2
Attaching filter frames
Feet x 6
Button-head M3x10mm x 6
Filter Frame
Square Block x 6
Button-head M3x10mm Countersink
side on bottom
!
Square Block
Button-head M3x6mm x 2
Feet
Flat-head M3x6mm Button-head M3x6mm
Filter Frame x 2
Button-head M3x6mm x 8
Button-head M3x6mm

VF-1 User Manual v2.2 ©2022 VALKPC
3
3Intake fan assembly
120mm Fan x 2
(User supplied)
Button-head M3x30mm x 8
4
4Attach motherboard stando
Front
Do not over
tighten screws
!
Button-head M3x30mm
Frame - Back
7mm Stando x 4
Button-head M3x6mm x 4
Button-head M3x6mm
7mm Stando

VF-1 User Manual v2.2 ©2022 VALKPC
5
5Frame assembly
Frame - Front
Button-head M3x6mm x 6
Button-head M3x6mm
From Step 4
6
6
Back panel sub-assembly
ISO 7380 M3x6 A2
From Step 5
Opposite view
Shell - Bottom
Flat-head M3x10mm x 2
IO Panel x 1
IEC320 C14 x 1
M3 Nut x 8
Flat-head
M3x8mm
M3 Nut
Plug
Extension
Flat-head
M3x10mm
Flat-head M3x8mm x 6

VF-1 User Manual v2.2 ©2022 VALKPC
7
7Back panel support
8
8Back panel assembly
Shell - Back Corner
Button-head
M3x6mm
USB-C Assembly
★Install switch and USB port on either side of the frame to your
preference. The mounting points are symmetrical.
From Step 6
Button-head
M3x6mm
Button-head M3x6mm x 2
Flat-head M3x8mm x 1
Flat-head
M3x8mm
Attach
Support
Bracket First
Support Bracket
Support
Bracket
Shell - Back Corner
Button-head M3x10mm
Button-head M3x10mm x 2
Button-head M3x6mm x 2
12mm Switch Assembly

VF-1 User Manual v2.2 ©2022 VALKPC
9
9Power cord routing
GPU
Support
Adjust
Height
Accordingly
Before moving to the
next step, locate a
suitable position for the
power cord
Motherboard and GPU Support
10 10
Button-head M3x6mm x 2
Power
Cord
ITX motherboard
(User supplied)
Button-head
M3x6mm
Adjust position and
apply EVA foam
insulation tape on GPU
Support as suitable.
EVA foam tape
Now would be a good
time to run various
wiring and connections
in the case
!
Button-head M3x4mm x 4
Button-head
M3x4mm
Note shorter
length for use on
motherboard
GPU Support

VF-1 User Manual v2.2 ©2022 VALKPC
Install GPU (Optional: Side Radiator/AIO)
11 11
Top panel sub-assembly
12 12
Install and route side
radiator/AIO at this
point with easy access
to components.
Button-head
M3x6mm
Button-head M3x6mm x 2
Optional: Side
Radiator/AIO
(User supplied)
Shell - Top
Flat-head M3x6mm x 4
Square Block x 4
Square Block
Flat-head M3x6mm
Optional: Install Top Radiator (User
supplied)
Install and route top
radiator/AIO now to
‘Shell - Top’ if this is
your desired
configuration.
Note countersink
side
!

VF-1 User Manual v2.2 ©2022 VALKPC
Top panel assembly
13 13
PSU mount sub-assembly
14 14
Button-head
M3x6mm
Button-head M3x6mm x 4
Flat-head M3x6mm x 2
Triangle Block x 2
Frame - PSU

VF-1 User Manual v2.2 ©2022 VALKPC
PSU and SSD installation
15 15
PSU installation
16 16
Button-head
#6-32x1/4” x 4
Button-head
#6-32x1/4”
SFX PSU
(User supplied)
2.5” SSD
(User supplied)
Button-head M3x6mm x 2
Button-head
M3x6mm

VF-1 User Manual v2.2 ©2022 VALKPC
Front panel assembly
17 17
Window assembly
18 18
Window x 2
Shell - Front
Shell - Front Corner x 2
Button-head M3x6mm x 4
Button-head
M3x6mm
Button-head M3x6mm x 8

VF-1 User Manual v2.2 ©2022 VALKPC
Filter
19 19
Filter x 2
★Clean filters regularly to ensure optimum airflow

VF-1 User Manual v2.2 ©2022 VALKPC
Setting sheet
Motherboard
GPU
CPU
Memory
SSD
PSU
Cooling
VF-1
Notes
Date
