Vallox Vallox 101 MV User manual

Manual
Model
Vallox 101 MV
Type
3741
Document
D5331
Valid from
2.10.2017
Updated
6.10.2018
Ventilation unit
MANUAL

2
INTRODUCTION............................... . 2
Safety ...................................................... 3
Installation ............................................. . . . 3
Guarantee .................................................. 3
Intended use ................................................ 3
Disposal of the ventilation unit ................................ 3
Safety signs used in the instructions .......................... 4
Installation options........................................... 4
Ventilation unit control ....................................... 5
Connecting the ventilation unit to the cloud service ........ . . . 5
Ventilation unit control options. .......................... . . . 5
System description .......................................... 5
Main parts .................................................. 6
INSTALLATION.................................. . 7
Mounting on the wall ......................................... 7
Mounting on the ceiling ...................................... 7
Mounting the ceiling mounting plate...................... . . . 7
Installing the ventilation unit to the ceiling mounting plate . . . . . 8
Attic floor penetration plate.............................. . . . 8
Water seal .................................................. 9
Dimensioning figure and space required for installation of the
Vallox Silent Klick water seal............................. . . . 9
Space required by the alternative Vallox Silent Klick water seal
installation method (elbow) .............................. . . . 9
Dimensions and duct outlets .................................10
MAINTENANCE ................................ 11
Before beginning maintenance work.......................... 11
Replacing the filters (User) ................................... 11
Cleaning the heat recovery cell (User)......................... 12
Condensing water (User) .................................... 12
Cleaning the fans (Installer) .................................. 13
TECHNICAL SPECIFICATIONS ... 14
Internal electrical connection ................................ 15
External electrical connection................................ 16
Duct radiator operation chart ................................ 17
Operation and sample connection ....................... . . 17
Exploded view and parts list ................................. 18
Conformity certificates ......................................19
NOTE
You can register your
Vallox MV ventilation unit
with the MyVallox Cloud
cloud service and sign in
into your MyVallox Cloud
account at
www.myvallox.com.
CONTENTS
INTRODUCTION

3© Vallox Oy - All rights reserved
WARNING
The unit is not intended
for use by children
under 8 or by persons
with reduced sensory,
physical or mental
capabilities, or whose
lack of knowledge
and experience do not
ensure safe operation
of the unit.
Such persons can
use the unit under
supervision, or
by following the
instructions of someone
who is responsible for
their safety.
Children must be
supervised and not be
allowed to play with the
device.
SAFETY
Safe and appropriate handling requires knowledge of the basic safety
regulations, and of the intended use of the ventilation system. Read
this manual before operating the ventilation unit. Retain the manual for
later reference. If you lose the manual, it can be downloaded from our
website.
This user manual contains all the information necessary for safe
operation of the system. All persons who operate and maintain
the ventilation system must follow the instructions provided in this
manual. Furthermore, all local accident prevention regulations must be
observed.
Installation
Installation and setup should be carried out only by qualified experts.
Electrical installations and connections must be carried out only by an
electrician and in compliance with local regulations.
GUARANTEE
The guarantee and liability exclude damage resulting from:
• Inappropriate use of the ventilation system or the control unit
• Incorrect or inappropriate installation, setup or use
• Neglect of instructions concerning transportation, installation, use,
or maintenance
• Structural or electronic modifications or changes made to the
software
INTENDED USE
All Vallox ventilation units have been designed to provide appropriate
and continuous ventilation so as to present no threat to health and to
maintain structures in good condition.
IMPORTANT
In order to ensure that the indoor air presents no harm to
health and remains optimal also for the structures of the
building, ventilation must be kept on without disruptions. It is
recommended that ventilation be left turned on during long
holidays also. This keeps the indoor air fresh and prevents
humidity from condensing in the ventilation ducts and structures.
It also reduces the risk of moisture damage.
DISPOSAL OF THE VENTILATION UNIT
Do not dispose of electronic devices with household waste. Follow
local laws and regulations on safe and ecological disposal of the
product.
NOTE
For further information,
go to www.vallox.com
INTRODUCTION

4
SAFETY SIGNS USED IN THE INSTRUCTIONS
INSTALLATION OPTIONS
• Vallox 101 MV can be mounted either on the wall, or on the ceiling by using a mounting plate (optional).
NOTE
The standard
equipment and
available accessories
vary from country to
country.
DANGER
Indicates a hazard that
will result in death or
serious injury if not
avoided.
WARNING
Indicates a hazard that
can result in death or
serious injury if not
avoided.
IMPORTANT
Indicates a hazard that
can result in damage to
property or loss of data
if not avoided.
CAUTION
Indicates a hazard that
can result in minor or
moderate injury if not
avoided.
NOTE
Indicates essential
information about the
product.
TIP
Provides additional
information about the
use of the product and
its benefits.
INTRODUCTION

5© Vallox Oy - All rights reserved
VENTILATION UNIT CONTROL
Connecting the ventilation unit to the cloud
service
The ventilation unit can be connected to the MyVallox Cloud
cloud service. The cloud service allows for controlling ventilation
remotely also, using e.g. a smartphone or tablet. Also the unit
software is updated automatically through the cloud service.
To connect to the cloud service, the ventilation unit must be
connected to the Internet via LAN and registered with the cloud
service. At the same time you create a MyVallox Cloud account
for yourself. Read more about the service at www.myvallox.com.
Ventilation unit control options.
Operation of the Vallox ventilation unit can be controlled by the
following means:
• Through the control panel installed in the building
• Through the MyVallox Home local area network connection
and the MyVallox Home/Cloud user interface.
• Through the MyVallox Cloud cloud service and the MyVallox
Home/Cloud user interface.
• Through a remote monitoring service or building automation
that uses voltage signals or Modbus messages
In addition to the integrated humidity sensor, ventilation can
also be adjusted automatically using the optional carbon dioxide
and humidity sensors. When these are used, ventilation remains
optimal even when the dwelling is unoccupied.
Each user can use the week clock to adjust the ventilation to fit
their individual lifestyle.
SYSTEM DESCRIPTION
Modbus
1
4
2
3
5
6
MyVallox Cloud
Vallox MV
MyVallox Control
1. Internet
2. WLAN
3. Router
4. WLAN/LAN
5. Additional switch
6. Sensors
INTRODUCTION
NOTE
For the MyVallox Cloud/
Home instructions,
please go to www.
techmanuals.info/
ValloxMV/ENG/
onlinehelp/webhelp

6
Extract air fan
1
Supply air fan
2
Supply air filter F7
3
Heat recovery cell
4
Bypass flap
5
Supply air filter G4
6
Extract air filter G4
7
R model in the figure
MAIN PARTS
Post-heating radiator (in the supply air duct)
8
Safety switch 9
Control panel
10
Carbon dioxide sensor
11
Humidity sensor
12
Internal humidity sensor
13
INTRODUCTION
1
5
3
6
8
9
13
7
2
4
12
11
10
A
N
N
U
A
L
E
F
F
I
C
I
E
N
C
Y
R
A
T
I
N
G
O
F
E
X
T
R
A
C
T
A
I
R
H
E
A
T
R
E
C
O
V
E
R
Y
A+

7© Vallox Oy - All rights reserved
MOUNTING ON THE WALL
NOTE
Avoid mounting the unit on a hollow, echoing partition wall or
on a bedroom wall, or prevent the conduction of sound.
The minimum distance between the top of the unit and the
finished ceiling surface is 30 mm. Note that during mounting the
unit rises 10 mm higher than the final height.
Mount the ventilation unit on the wall with a mounting plate, as shown
in the adjacent figure. Make sure that the unit is horizontally level after
mounting.
MOUNTING ON THE CEILING
Vallox 101 MV can be equipped with an optional ceiling mount plate.
To attach the ceiling mounting plate:
• On rafter frames or other frame structure with M8 thread bars so
that they withstand the weight of the unit.
• Ensure that the installation plate is horizontally level, as this
determines the position of the unit.
• The top edge of the white covering strip of the ceiling mounting
plate can be installed against the ceiling. Alternatively, a concealed
mounting method can be used, in which case the ceiling can be
30 mm below the top of the white covering strip.
Insulate the ducts against condensation also between the unit and the
ceiling mounting plate.
Mounting the ceiling mounting plate
1. Fasten the thread bars on the rafter frames or other frame
structure, and screw the nuts (E) onto the bars.
2. Lift the ceiling mounting plate in place.
3. Push a rubber damper (F) and a washer (G) to each thread bar.
4. Adjust the nuts so that the ceiling mounting plate is level.
5. Shorten the lower ends of the thread bars so that they are no more
than 5 mm below the nuts.
CAUTION
The ventilation unit is very heavy. Do not perform this
procedure alone.
INSTALLATION
INSTALLATION

8
INSTALLATION
Installing the ventilation unit to the ceiling
mounting plate
1. Install the ceiling mounting plate with M8 thread bars so that it
is horizontally level.
NOTE
The end of the thread bars must be 5 mm or less below
the fastening nut. Do not fasten the ceiling mounting plate
too tight to the ceiling. Ensure that the sliding bars move
and restore to their original position by pulling from the
operating levers (A).
The top edge of the white covering strip of the ceiling
mounting plate can be installed against the ceiling.
Alternatively, a concealed mounting method can be used, in
which case the ceiling can be 20 mm below the top of the
white covering strip.
2. Ensure that the insulation washers are in the outlet collars
below the ceiling mounting plate.
3. Remove the door before installing the ventilation unit to the
ceiling mounting plate.
4. Lift the ventilation unit close to the ceiling mounting plate and
feed the cables and the connection box through the hole in
the ceiling mounting plate on top of the ceiling.
NOTE
Remember to make a service door in the ceiling so that
the cables and the connection box can be accessed.
The distance between the service door and the ceiling
mounting plate must be around 500 mm.
Alternatively, the cables can be fed between the ceiling
mounting plate and the ventilation unit to the rear wall. When the
ventilation unit is lifted against the ceiling mounting plate, the
unit locks in place. Where needed, guide the mounting hooks on
the ceiling mounting plate (B) to the grooves on the side panels
of the ventilation unit.
There are operating levers (A) on the front bottom corners of the
ceiling mounting plate. When the levers have been restored to the
same level with the white covering strip of the ceiling mounting
plate, the unit has been locked in place.
5. Where required, the unit can be detached from the ceiling mounting
plate. Remove the door of the unit. Lift the unit slightly upwards and
pull simultaneously from both operating levers (A) of the ceiling
mounting plate to detach the unit from the ceiling mounting plate.
Attic floor penetration plate
The attic floor penetration plate (D) is optional. When an attic floor
penetration plate is used, the tightness of the vapour barrier has
to be ensured.
The attic floor penetration plate can be fastened on the finished
rear wall. The minimum distance of the attic floor penetration plate
from the finished side walls is 15 mm.
1
3
4
5
2
B
B
A
A
D

9© Vallox Oy - All rights reserved
INSTALLATION
38
140
141
75
R
L
291
291
147,5 147,5
53
WATER SEAL
NOTE
The Vallox Silent Klick water seal package is delivered with the unit. Installation
instructions for the water seal are enclosed with the packaging, and can also
be found online at www.vallox.com. When the alternative water seal installation
method is used, the ring seal and the locking part must be moved to the pipe
connection part that is mounted on the wall.
Dimensioning figure and space required for installation of
the Vallox Silent Klick water seal
Space required by the alternative Vallox Silent
Klick water seal installation method (elbow)

10
DIMENSIONS AND DUCT OUTLETS
INSTALLATION
Air flow measurement points
A Supply air
B Extract air
Measurement points after the outlet collar. The fan curves indicate the
total pressure accounted for by duct losses.
136,50
461,50
598
104
322
~ 596
154,50
443,50
125
13
24
598
53
500 447
Main parts
1. Extract air fan
2. Supply air fan
3. Supply air filter F7
4. Heat recovery cell
6. Bypass flap
R model in the figure.
In the L model, the parts are mirrored
7. Supply air filter G4
8. Extract air filter G4
9. Post-heating radiator
(in the supply air duct)
10. Safety switch
Dimensions and duct outlets
Dimensions
Duct outlets
R model
Inner diameter of the female collar: 125mm
1. Supply air from the unit to the apartment
2. Extract air from the apartment to the unit
3. Exhaust air flowing outdoors from the unit
4. Outdoor air to the unit
L model
Inner diameter of the female collar: 125mm
1. Exhaust air flowing outdoors from the unit
2. Outdoor air to the unit
3. Supply air from the unit to the apartment
4. Extract air from the apartment to the unit
1
5
3
6
8
9
13
7
2
4
A
B

11 © Vallox Oy - All rights reserved
BEFORE BEGINNING
MAINTENANCE WORK
The safety switch (S) automatically turns o the power
when the door of the unit is opened.
WARNING
Always disconnect the power plug before starting
the ventilation unit maintenance.
There are two unit models, left- (L) and right-handed (R).
The figure shows the right-handed model.
REPLACING THE FILTERS USER
When the maintenance reminder becomes activated,
check the cleanliness of the filters and replace them if
required.
The Vallox ventilation unit has three air filters:
• Class G4 coarse filter filters insects, heavy pollen
and other relatively large foreign objects out of the
outdoor air.
• Class F7 fine filter filters microscopic pollen and dust
particles out of the supply air.
• Class G4 coarse filter filters the extract air and keeps
the heat recovery cell clean.
The filter replacement interval depends on the ambient
dust concentration. It is recommended that the filters be
replaced every spring and autumn, or at the very least
once a year.
To replace the filters:
1. Disconnect the ventilation unit from the mains
electricity supply.
2. Open door of the Vallox ventilation unit by undoing
the finger screws.
3. Lift the door off.
4. Remove the old filters (A, B, C) and discard them.
CAUTION
The door is heavy.
5. Install the new filters (A, B, C).
6. Close the door of the unit. Ensure that the safety
switch catch of the door is touching the safety switch,
allowing the unit to be turned on.
7. Plug the ventilation unit back into the mains.
The filters have now been successfully replaced.
TIP
Using original Vallox
filters ensures that the
ventilation unit remains
in top condition, giving
the best results.
MAINTENANCE
MAINTENANCE
C
B
S
A

12
CLEANING THE HEAT RECOVERY
CELL USER
Check that the heat recovery cell is clean roughly once a year,
or whenever the filters are being replaced. Clean by washing
as required.
To check and clean the heat recovery cell:
1. Disconnect the ventilation unit from the mains electricity
supply.
2. Open door of the Vallox ventilation unit by undoing the
finger screws.
3. Lift the door off.
CAUTION
The door is heavy.
4. Remove the sealing strip (E) above the HR cell in the
direction of the arrow.
5. Remove the extract air filter (C).
6. Lift and pull the HR cell (D) out of the unit.
7. If the cell is dirty, clean it by immersing it in warm water,
to which a small amount of a mild detergent has been
added.
8. Rinse the cell clean with a water spray. Do not use a high-
pressure cleaner.
9. When all the water has drained from between the layers,
reassemble the ventilation unit as follows:
10. Ensure that the lower support (F) is in place between the
knobs at the bottom of the unit.
11. Push the heat recovery cell in place.
12. Push the sealing strip (E) in place so that the strip is
supported by the corner bracket (G) at the rear.
13. Install the extract air filter (C) in place.
14. Close the door. Ensure that the safety switch catch of the
door is touching the safety switch.
15. Plug the ventilation unit back into the mains.
The heat recovery cell has now been checked and
cleaned.
MAINTENANCE
IMPORTANT
If the unit has an
enthalpy cell, it must
not be washed. Only
aluminium or plastic
cells can be washed.
IMPORTANT
Handle the cell
carefully! For example,
do not lift the cell by the
layers. The cell layers
are very thin and easily
damaged.
CONDENSING WATER USER
In the heating season, the extract air humidity condenses to
water. In new buildings, condensation runo can form rapidly.
Condensed water must be able to freely leave the unit.
At some time before the heating season begins (e.g. during
autumn maintenance), check that the water seal or the
condensing water outlet in the bottom pool are not clogged. To
check this, pour some water into the pool. Clean as required.
NOTE
Some condensing water
may have accumulated
in the bottom pool
of the unit; this is
normal and requires no
corrective action.
WARNING
Water must at all times
be kept out of the
electrical system.
D
C
G
E
F

13 © Vallox Oy - All rights reserved
CLEANING THE FANS INSTALLER
Check the cleanliness of the fans when servicing the filters and the
heat recovery cell. Clean the fans as required.
You can clean the fan blades with compressed air (wear protective
goggles) or by brushing them gently. Do not remove or move the
fan blade balancing weights.
To clean the fan:
1. Disconnect the ventilation unit from the mains electricity supply.
2. Open door of the Vallox ventilation unit by undoing the finger
screws.
3. Lift the door off.
CAUTION
The door is heavy.
4. Remove the extract air filter (C), the sealing strip (E) and the
heat recovery cell (D). See chapters “Replacing the filters” and
“Cleaning the heat recovery cell”.
5. Disconnect the quick connector (H) of the supply air fan (T) and/
or the extract air fan (P) cables.
6. Push the fan cables and the rubber feed through (I) into the fan
chamber.
7. Remove the wing screws used to fasten the fans (J) (3 screws
per fan).
8. Remove the fan from the unit by pulling it forward and by tilting
it slightly backwards at the same time.
9. Remove the mounting screws (K) (4 screws) of the air flow
control grille of the supply air fan and remove the grille. You
can now clean the fan. Put the control grille back in place after
cleaning.
10. Reassemble in reverse order after cleaning. Ensure that the
rubber feed throughs set in place when reinstalling the fan.
11. Close the door. Ensure that the safety switch catch of the door
is touching the safety switch.
12. Plug the ventilation unit back into the mains.
The fan has now been checked and cleaned.
MAINTENANCE
IMPORTANT
The fans are
extremely sensitive
to external shocks. It
is recommended that
the fans be cleaned
in place, i.e. without
attempting to remove
them.
Handle the fan blades
carefully. Do not
remove or move the
fan blade balancing
weights.
TP
D
C
E
I
T
P
H
JJ
K
S

14
FAN INPUT POWER
Product titles
Vallox 101 MV R
Vallox 101 MV L
Product numbers
4102189
4102197
HVAC code
7912119
7912120
Additional heating
radiator
–
Air volumes Supply air
Extract air
90 l/s, 324 m3/h, 100 Pa
98 l/s, 353 m3/h, 100 Pa
Fans Supply air
Extract air
0.115kW, 0.9A EC
0.115kW, 0.9A EC
Electrical connection 230V, 50Hz, 8.3A (power
plug)
Operating efficiencies Annual efficiency
Supply air efficiency
Specific Fan Power (SFP)
70% A
82%
1,0 (38dm3/s)
Enclosure protection
class
IP34 Filters Supply air
Extract air
G4 and F7
G4
Post-heating radiator Power, 1500 W Heat recovery bypass Automatic
Preheating radiator – Weight 50kg
Dimensions (width x
height x depth)
598x447x596mm
Sound power level in the supply air duct
by octave band Lw, dB
Sound power level in the extract air duct
by octave band Lw, dB
Adjustment position 4% 14% 22% 33% 41% 50% 55% 66% 75% 100% 4% 14% 22% 33% 41% 50% 55% 66% 75% 100%
Air flow dm3/s (l/s) 8.6 15 16.9 37.7 45.1 53.5 57.3 67.4 73.3 82.3 11.3 24.4 34.3 45.6 55.6 65.9 72.6 83 91.5 99.2
Air flow m3/h 30.96 54 60.84 135.72 162.36 192.6 206.28 242.64 263.88 296.28 40.68 87.84 123.48 164.16 200.16 237.24 261.36 298.8 329.4 357.12
Medium
frequency
of the
octave
band Hz
63 56 58 63 67 70 72 75 77 79 80 62 53 56 58 61 64 67 68 70 71
125 52 62 63 65 67 69 71 74 76 78 52 58 58 61 64 67 69 70 73 74
250 44 52 57 64 70 66 70 71 72 74 35 45 50 57 60 60 62 62 62 63
500 40 49 53 58 61 64 65 69 71 74 27 34 40 44 48 51 53 55 57 62
1000 32 41 46 51 55 58 60 63 67 68 16 23 28 33 36 39 42 44 46 48
2000 24 34 40 47 51 55 57 61 63 65 14 17 23 29 32 36 38 41 43 44
4000 23 25 31 38 43 48 50 55 57 60 16 16 17 21 24 28 31 34 36 39
8000 21 21 23 30 35 41 44 51 53 56 20 20 20 20 20 21 22 24 26 29
LW, dB
LWA, dB(A)
58 64 67 71 74 75 78 80 82 84 62 59 61 64 67 69 72 73 75 77
41 50 54 60 64 65 67 70 73 75 39 43 45 50 54 55 57 58 59 62
Sound pressure level, in decibels (A) coming through the envelope from the room in which the unit is installed (10m2sound absorption)
ADJUSTMENT POSITION / AIR FLOWS (supply/extract)
Adjustment position 4% 14% 22% 33% 36% 50% 55% 66% 75% 100%
Air flow dm3/s (l/s) 13/15 21/24 29/32 39/41 43/46 55/58 60/62 69/72 76/78 84/85
Air flow m3/h 46.8/54 75.6/86.4 104.4/115.2 140.4/147.6 154.8/165.6 198/208.8 216/223.2 248.4/259.2 273.6/280.8 302.4/306
LpA, dB (A) 21 26 30 36 38 42 43 46 48 50
Input power (total) (W)
Air flow (max) (dm/s)
SFP =
SFP rate (Specific Fan Power)
recommended value <1.8 (kW m3/s)
41%
33%
50%
55%
66%
75%
100%
14%
4%
22%
50
100
150
200
250
300
350
0 10 20 30 40 60 70 80 90 100
SFP: 1,0
50
36 72 1080 144 180 216 252 288 324 360
(l/s)
SFP: 1,5
B
A
SFP: 1,8
50
100
150
200
250
36 72 1080 144 180 216 252 288 324 360
B
A
4% 14% 22%
33% 41%
50%
55%
66%
75%
100%
Volume flow rate
Power (W)
SUPPLY/EXTRACT AIR VOLUMES
SOUND VALUES
TECHNICAL SPECIFICATIONS
Volume flow rate (dm3/s)
Pressure loss in ducts. Total pressure (Pa)
extract air
supply air
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS

15 © Vallox Oy - All rights reserved
MB_A External Modbus A signal
MB_B External Modbus B signal
+24V +24V voltage (DC)
GND Digital and analog ground potential
RS_A Local hardware Modbus A signal
RS_B Local hardware Modbus B signal
NTC External temperature sensor connector
D/I1 Digital input 1
D/I2 Digital input 2
11V1 11.1 V operating voltage
AN/I Analog input 0-10VDC
RM/I 24V relay input
RM/O 24V relay output
TSupply air fan
PExtract air fan
MDamper motor
TK Safety switch
AHS Post-heating control
S/E Fan balance adjustment
RH% Internal humidity sensor
R1
Post-heating radiator with
90°C and
130°C overheating protection
BK Black
BU Blue
BN Brown
WT White
GY Grey
YE Yellow
YEGN Yellow-green
CABLE COLOURS
AMotherboard
B
1. Extract air fan tacho (WT)
2. GND (GN)
3. Extract air fan PWM (YE)
4. Supply air fan tacho (WT)
5. GND (GN)
6. Supply air fan PWM (YE)
C
1. Extract air
2. Outdoor air
3. Supply air
4. Exhaust air
5. Supply air from the cell
DLAN
INTERNAL ELECTRICAL CONNECTION
TK
NTC
GND
P
T
WT
2
3
1
YEGN
YEGN
BN BU
BN
BU
YEGN YE GN
D/I2
7028600
141113 AN
RH%
S/E
AHS
BN
BU
BN
BN
N
L
N
L
N
L
N
230V 50Hz
1 2 3 4 5 6
90
°C
TESTER
M
130
°C
T1 T2
R1
D/I1
BN
YEGN
BU YEGN WT YE GN
+11V1
MB_B
MB_A MB_A
MB_B
+24V
RS_A
RS_B
GND
AN/I
GND
+24V
RS_A
RS_B
GND
RM/I
RM/O
+24V
+24V
+24V
RS_A
+24V
RS_A
RS_B
GND
RS_B
GND
YEGN
BU
BU
L
A
B
C
1
2
3
4
5
D
TECHNICAL SPECIFICATIONS

16
TECHNICAL SPECIFICATIONS
Maximum ≤6W
MyVallox Control 1W
MyVallox RH% transmitter 0.3W
MyVallox CO transmitter 1.2W
Voltage 24 VDC
POWER SUPPLY MB_A External Modbus A signal
MB_B External Modbus B signal
+24V +24V voltage (DC)
GND Digital and analog ground potential
RS_A Local hardware Modbus A signal
RS_B Local hardware Modbus B signal
NTC External temperature sensor connector
D/I1 Digital input 1
D/I2 Digital input 2
11V1 11.1 V operating voltage
AN/I Analog input 0-10VDC
RM/I 24V relay input
RM/O 24V relay output
EXTERNAL ELECTRICAL CONNECTION
3x1,5S
2x2x0,5+0,5
2x0,5
2x0,5
7028350
2014-08-29 JS
2x2x0,5+0,5
2x0,5
2x2x0,5+0,5
2x2x0,5+0,5
2x2x0,5+0,5
2x0,5
2x0,5
CAT
Analog input
two dierent
functions
Potential-free contact
data 24VDC can be
programmed to display
information such as
errors or to control the
valve and pump of the
MLV radiator.
Plug connection
1.2m on top of the unit
MyVallox
Control
MyVallox
Control
REMOTE
MONITORING
Modbus RTU
VENTILATION UNIT INTERNAL
ELECTRICAL CONNECTION
MyVallox
RH%
transmitter
MyVallox
CO2
transmitter
External
temperature
sensor
NTC 4K7
Digital input 1
8 dierent
functions
Digital input 2
8 dierent
functions
Ethernet connection
on top of the unit
RJ45 female
0.3W
1.2W
1W
1W

17 © Vallox Oy - All rights reserved
S
P
V
K
C
IP
B
C
D
E
F
G
H
A
Operation and sample connection
Always follow first and foremost the connection
diagram provided by the HVAC designer or heat pump
manufacturer. Also read the duct radiator manual.
Enclosed is an example of connecting the duct radiator to
the heat collection circuit.
Connect the duct radiator output pipe to the heat collection
circuit return pipe. The fluid returning from the duct radiator
is directed back to the heat collection circuit return pipe.
If the pressure loss inside the heat collection circuit of the
heat pump is known to be high, it is recommended that the
heat pump be bypassed. When this happens the pressure
loss in the one-way bypass valve Y2 must be lower than the
pressure loss in the heat pump.
If the duct radiator is used both for preheating and cooling,
it must be installed in the outdoor air duct before the
ventilation unit. In this case, the pump and the solenoid
valve can be controlled using a Vallox MV ventilation unit,
and no separate thermostats are needed.
NOTE: HEATING
The pump starts
when the outdoor air
temperature drops
below the winter limit
value set at the factory
(-5 °C).
NOTE: COOLING
The value set for the
supply air temperature
of the active profile (e.g.
At home) controls the
startup of the pump.
The pump starts when
the supply air setting is
below the temperature
of the supply air that
is blown into the
apartment.
NOTE
When selecting the
relay (C), take account
of the maximum
allowed combined
power supply (6W) of
the circuit board in the
external MV electrical
box, if the relay power
supply comes from the
circuit board’s +24V
connector.
P
Circulation pump. Not included in the delivery.
The pump must be compatible with the
fluid used in the heat collection circuit, and
its capacity must be correct (for example,
Grundfoss Magna 1 25-80).
V
Solenoid valve. Not included in the delivery. The
valve that is chosen must be compatible with the
heat collection circuit fluid (for example, Danfoss
032U157131, HVAC code 4122106).
KCondensing water tube. Not included in the
delivery.
LSupply air thermometer. Not included in the
delivery.
IP De-aerator. Not included in the delivery.
S External electrical box for the MV.
C
24 VDC relay/contactor for controlling the pump
and the solenoid valve. Not included in the
delivery. (For example, ABB CR-P024DC2)
YOne-way valve. Not included in the delivery.
Y2
One-way valve. Not included in the delivery. The
pressure loss must be less than the pressure
loss of the heat pump.

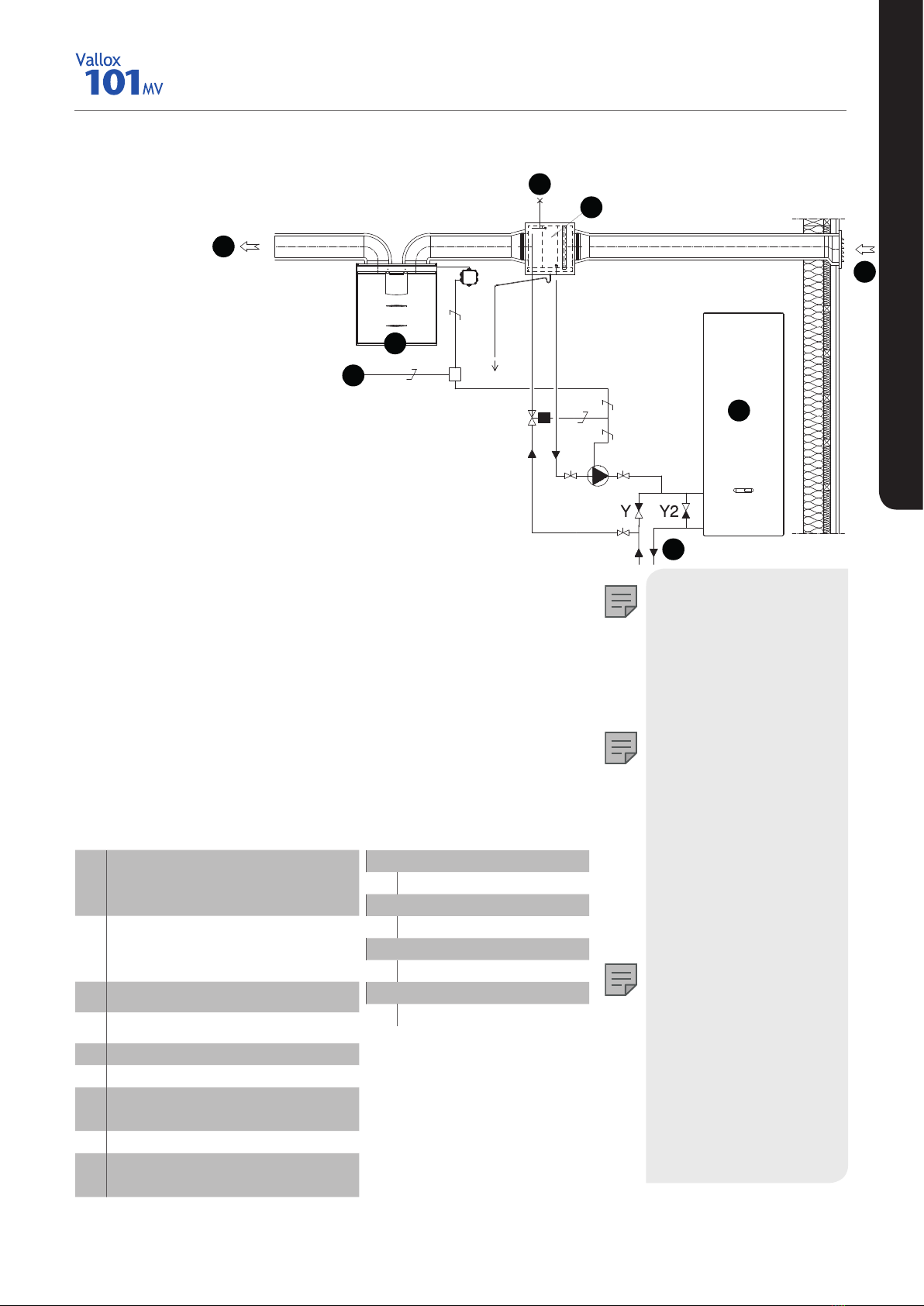

DUCT RADIATOR OPERATION CHART
AVentilation unit
BSupply air
COutdoor air
DFeed from the distribution board
EAir extraction
FDuct radiator (reverse connection)
GHeat pump
HHeat collection circuit
TECHNICAL SPECIFICATIONS

18
1
15
2
10
9
11
12
17
22
23
24
25
3
15 14 8 6
1316192021 18
1
17
2
9
10
11
12
7
5
1
22
23
24
25
4
NO. PART CODE NO. PART CODE NO. PART CODE
1. Supply / extract air fan 935450 11. Bypass flap assembly 4102523 21. RJ45 extension cable 952197
2. Supply air fan
attenuation grid 935451 12. Damper motor 930621 22. Connection box 3526700
3. Wall mounting plate 3080700 13. Post-heating resistor 942220 23. MyVallox Control control
panel 949033
4. Water seal Vallox Silent
Klick 3292500 14. Door 4102334 24. MyVallox humidity sensor (optional) 946149
5. Filter (F7+G4, supply) 978225 15. Mounting screw of the
door 990712 25.
MyVallox carbon dioxide
sensor
(optional)
949111
6. HR cell 933260 16. Motherboard 949032
7. Lower support for the
HR cell 4102504 17. Safety switch 948370
8. Upper support for HR
cell 3467200 18. Glass tube fuse 80mA slow 5x20mm 952488
9. Filter frame (extraction) 978226 19. NTC sensor kit 7033900
10. Filter (G4, extract) 978227 20. Internal humidity
sensor 946148
TECHNICAL SPECIFICATIONS
EXPLODED VIEW AND PARTS LIST

CONFORMITY CERTIFICATES

D5331/6.10.2018/PDF
www.vallox.com
Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND
Customer service [phone] | Aftersales [phone]
