Valore SUMMIT VSU-E30CS Installation guide

Use, Care, and Installation Guide
Model number:
Serial Number:
PLATEAU
VPL-E30AS
VPL-E36AS
SUMMIT
VSU-E30CS
VSU-E36CS
NOV14.0601

1
SAFETY NOTICE................................................................. 2-3
LIST OF MATERIALS....................................................... 4
INSTALLATION
Ducting Calculation Sheet....................................... 5
Mounting Height & Clearance................................ 6
Ducting Options........................................................... 7
+RRG6SHFL¿FDWLRQV ................................................... 8-9
Mounting the Hood VSU.......................................... 10
Mounting the Hood VPL................................. 11
Ductless Recirculating.............................................. 12
FEATURES & CONTROLS
Touch Glass Controls, VSU.................................... 13
Electronic Controls, VPL.......................................... 14
MAINTENANCE
Hood and Filter Cleaning......................................... 15
Light Bulbs..................................................................... 16
TROUBLESHOOTING................................................................ 17
LIST OF PARTS AND ACCESSORIES.............................. 18
Table of Contents

Important Safety Notice
READ AND SAVE THESE INSTRUCTIONS
2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.
WARNING
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning
agents or detergents. Suitable for use in household cooking area.
WARNING
TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:
a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly
on low or medium settings.
E $OZD\VWXUQKRRG21ZKHQFRRNLQJDWKLJKKHDWRUZKHQÀDPLQJIRRG
F &OHDQYHQWLODWLQJIDQVIUHTXHQWO\*UHDVHVKRXOGQRWEHDOORZHGWRDFFXPXODWHRQIDQRU¿OWHU
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
H .HHSIDQ¿OWHUVDQGJUHDVHODGHQVXUIDFHVFOHDQ
f. Use high setting on hood only when necessary.
g. Don’t leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:
D 6027+(5)/$0(6ZLWKDFORVH¿WWLQJOLGFRRNLHVKHHWRUPHWDOWUD\WKHQWXUQRIIWKHEXUQHU%(&$5()8/7235(9(17%8516
,IWKHÀDPHVGRQRWJRRXWLPPHGLDWHO\(9$&8$7($1'&$//7+(),5('(3$570(17
b. NEVER PICK UPA FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
 7KH¿UHLVVPDOODQGFRQWDLQHGLQWKHDUHDZKHUHLWVWDUWHG
 7KH¿UHGHSDUWPHQWLVEHLQJFDOOHG
 <RXFDQ¿JKWWKH¿UHZLWK\RXUEDFNWRDQH[LW
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
D ,QVWDOODWLRQZRUNDQGHOHFWULFDOZLULQJPXVWEHGRQHE\TXDOL¿HGSHUVRQVLQDFFRUGDQFHZLWKDOODSSOLFDEOHFRGHVDQGVWDQGDUGV
,QFOXGLQJ¿UHUDWHGFRQVWUXFWLRQ
E 6XI¿FLHQWDLULVQHHGHGIRUSRZHUFRPEXVWLRQDQGH[KDXVWLQJRIJDVHVWKURXJKWKHÀXHFKLPQH\RIIXHOEXUQLQJHTXLSPHQWWRSUHYHQW
back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National
)LUH3URWHFWLRQ$VVRFLDWLRQ1)3$DQGWKH$PHULFDQ6RFLHW\IRU+HDWLQJ5HIULJHUDWLRQDQG$LU&RQGLWLRQLQJ(QJLQHHUV$6+5$(DQG
the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. NEVER place a switch where it can be reached from a tub or shower.
f. Make sure the power is off before installing, wiring or maintenancing.

Important Safety Notice
3
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
7RUHGXFHULVNRI¿UHDQGWRSURSHUO\H[KDXVWDLURXWVLGH'RQRWYHQWH[KDXVWDLULQWRVSDFHVZLWKLQZDOOVFHLOLQJV
attics, crawl spaces or garages.
OPERATION
$OZD\VOHDYHVDIHW\JULOOHVDQG¿OWHUVLQSODFH:LWKRXWWKHVHFRPSRQHQWVRSHUDWLQJEORZHUVFRXOGFDWFKRQWRKDLU¿QJHUV
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility:
 7RFRQWDFWDTXDOL¿HGHOHFWULFDOLQVWDOOHU
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
,IFRGHVSHUPLWDQGDVHSDUDWHJURXQGZLUHLVXVHGLWLVUHFRPPHQGHGWKDWDTXDOL¿HGHOHFWULFLDQGHWHUPLQHWKDWWKH
ground path is adequate.
Do not ground to a gas pipe.
&KHFNZLWKDTXDOL¿HGHOHFWULFLDQLI\RXDUHQRWVXUHWKHUDQJHKRRGLVSURSHUO\JURXQGHG
Do not have a fuse in the neutral or ground circuit.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to
Electrical Diagram on product.
$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKWDOVREHUHTXLUHGE\ORFDOFRGHV&KHFNZLWKORFDOUHTXLUHPHQWVSXUFKDVH
and install appropriate connector if necessary.
VSU - 410 Watts, 3.5 Amps
VPL - 400 Watts, 3.3 Amps

4
(3) Wire Nuts
(3) M4 x 1-1/2” (2) M4 x 1” (4) M3.5 x 8
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Extension duct cover accessory
- Recirculating kit accessory
HARDWARE PACKAGE CONTENTS
(1) Suction Cup
PARTS SUPPLIED
MODELS: VSU, VPL
1 - Hood with internal blower
1 - Duct cover wall bracket
1 - Duct cover assembly (top and bottom)
1 - 6” round backdraft damper (pre-installed)
2 - 50W GU-10 halogen light bulbs
2 - Aluminum mesh filters
1 - Hardware package
List of Materials

5
Duct pieces To t a l
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
8” Round,
straight
1 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
elbow
15 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.450
elbow
9 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
flat elbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6” Round,
900 elbow
15 Ft. x ( ) = Ft.
6” Round,
450 elbow
9 Ft. x ( ) = Ft.
Ft.
7” Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To t a l
Equivalent number
length x used =
6”- 8”Round
wall cap
with damper
30 Ft. x ( ) = Ft.
Round
wall cap
with damper
30 Ft. x ( ) = Ft.
7” or 8”
Round,
900 elbow
15 Ft. x ( ) = Ft.
7” or 8”
7” or 8”
Round,
450
elbow
9 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”- 8” Round,
roof cap
30 Ft. x ( ) = Ft.
7” or 8”
Round,
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length of a 3 1/ 4” x 10” rectangular 6” or 7”
diameter round duct should not exceed 100 equivalent feet.
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
Installation – Ducting Calculation Sheet

6
DUCTING
A minimum of 6” round duct must be used to
PDLQWDLQPD[LPXPDLUÀRZHI¿FLHQF\
Always use rigid type metal ducts only. Flexible
GXFWVFRXOGUHVWULFWDLUÀRZE\XSWR
Use calculation worksheet to compute total duct
ZRUN3DJH
ALWAYS, when possible, reduce the number of
transitions and turns. If a long duct run is required,
increase duct size from 6” to 7” or 8”.
If turns or transitions are required: Install as far
away from duct opening and as far apart between
the two transitions as possible.

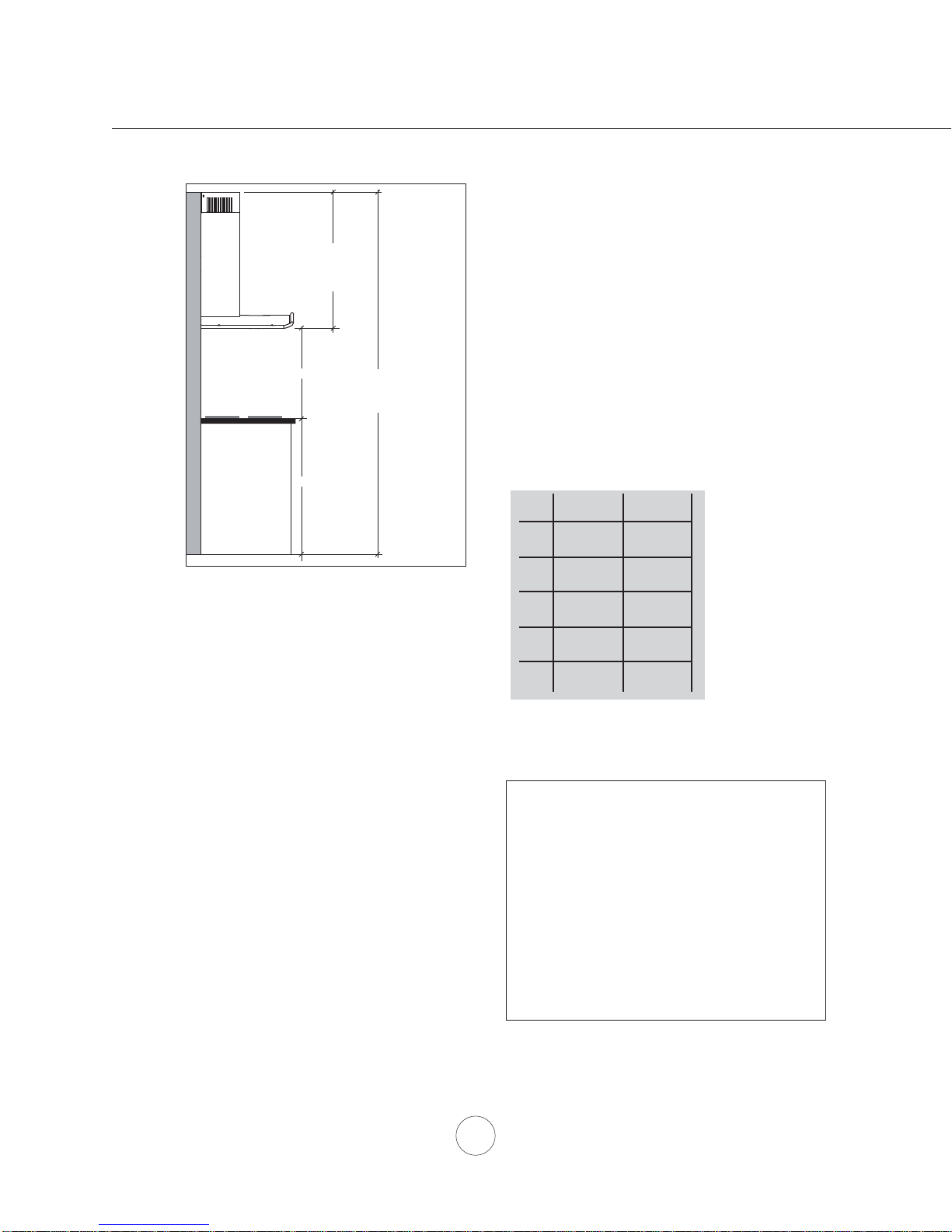

Minimum mount height between range top to hood
bottom should be no less than 26”.
Maximum mount height should be no higher than
34”.
It is important to install the hood at the proper
mounting height. Hoods mounted too low could
UHVXOWLQKHDWGDPDJHDQG¿UHKD]DUGZKLOH
hoods mounted too high will be hard to reach and
ZLOOORRVHLWVSHUIRUPDQFHDQGHI¿FLHQF\
If available, also refer to range manufacturer’s
height clearance requirements and recommended
hood mounting height above range. Always check
your local codes for any differences.
Chart 1
VSU VPL
(A) 27-1/2” 27”
(B) 32” 31”
(C) 42-1/2” 48”
(D) 89-1/2” 89”
(E) 112-1/2” 118”
Duct cover extension kit available for ceiling
heights up to 12 feet. Turn to page 18 for part
number and ordering information.
DAMAGE-SHIPMENT / INSTALLATION:
 3OHDVHIXOO\LQVSHFWXQLWIRUGDPDJHEHIRUH
installation.
 ,IWKHXQLWLVGDPDJHGLQVKLSPHQWUHWXUQWKH
unit to the store in which it was bought for
repair or replacement.
 ,IWKHXQLWLVGDPDJHGE\WKHFXVWRPHUUHSDLU
or replacement is the responsibility of the
customer.
 ,IWKHXQLWLVGDPDJHGE\WKHLQVWDOOHULIRWKHU
WKDQWKHFXVWRPHUUHSDLURIUHSODFHPHQWPXVW
be made by arrangement between customer
and installer.
36”
** Min. (D)
Max. (E)
* Refer to Chart 1 on this page for actual hood heights.
** For minimum recirculating ceiling height add 4”
* Min. ducted (A)
Min. recirc. (B)
Max. (C)
Min 26” - Max. 34”
Installation – Mounting Height & Clearance

7
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
)DVWHQDOOFRQQHFWLRQVZLWKVKHHWPHWDOVFUHZVDQGWDSHDOOMRLQWVZFHUWL¿HG6LOYHU7DSHRU'XFW7DSH
Some Ducting Options
Installation – Ducting Options
side wall cap
w/ gravity damper
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
ductless
recirculating
side wall cap
w/ gravity damper

8

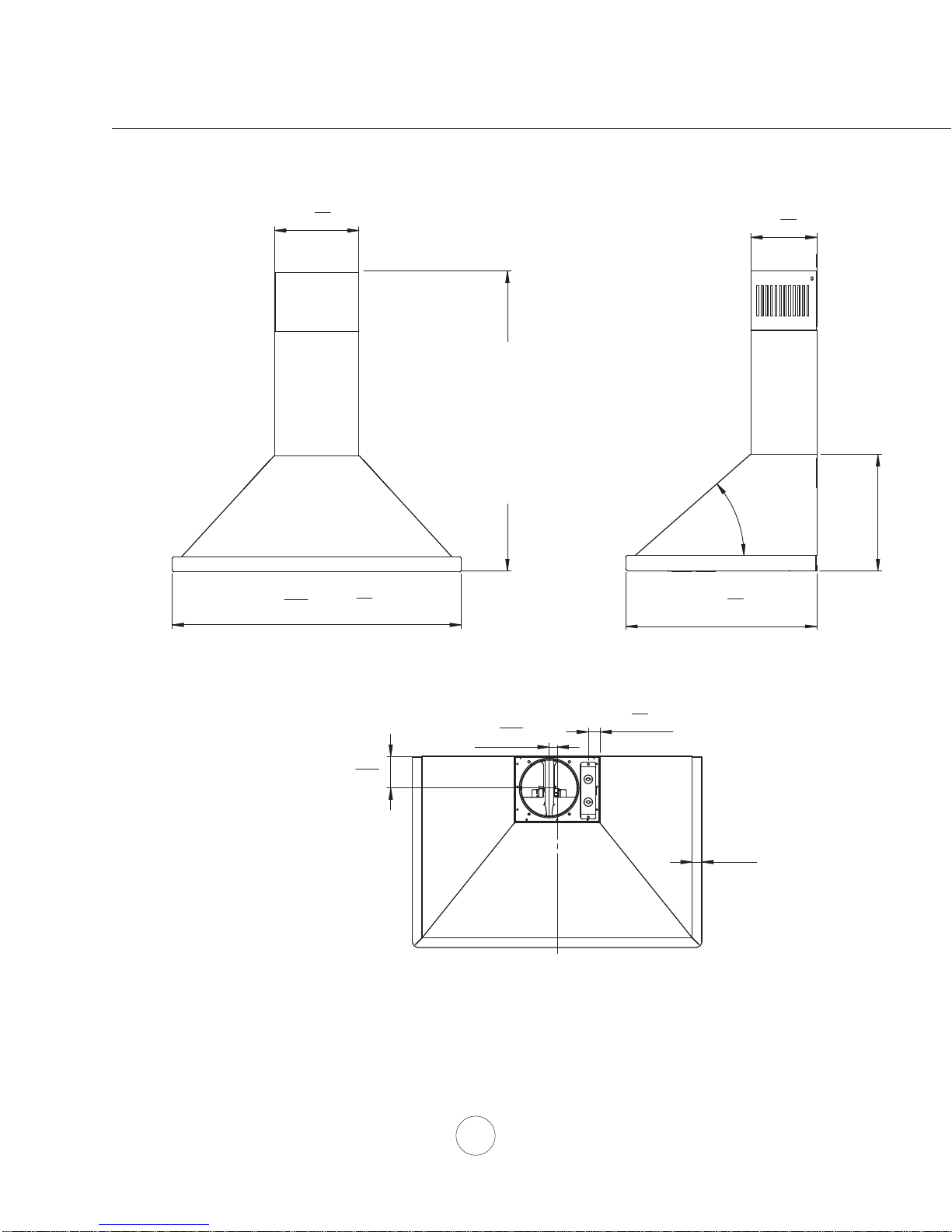

Installation – 968+RRG6SHFL¿FDWLRQV
2#
22
9
#
24
27
#
48
27
#
3:
26
27
#
94
5
#
78
9
#
23#
2:
4
5
#
52/4±
46 8
9
#
-
Standard Duct Cover
Min. ducted 27
1/2 ”
Min. recirc. 32”
Max. ducted 42
1/2 ”
V1C-00SU Extension
Min. ducted 46
1/2 ”
Min. recirc. 50
1/2 ”
Max. ducted 80”

9

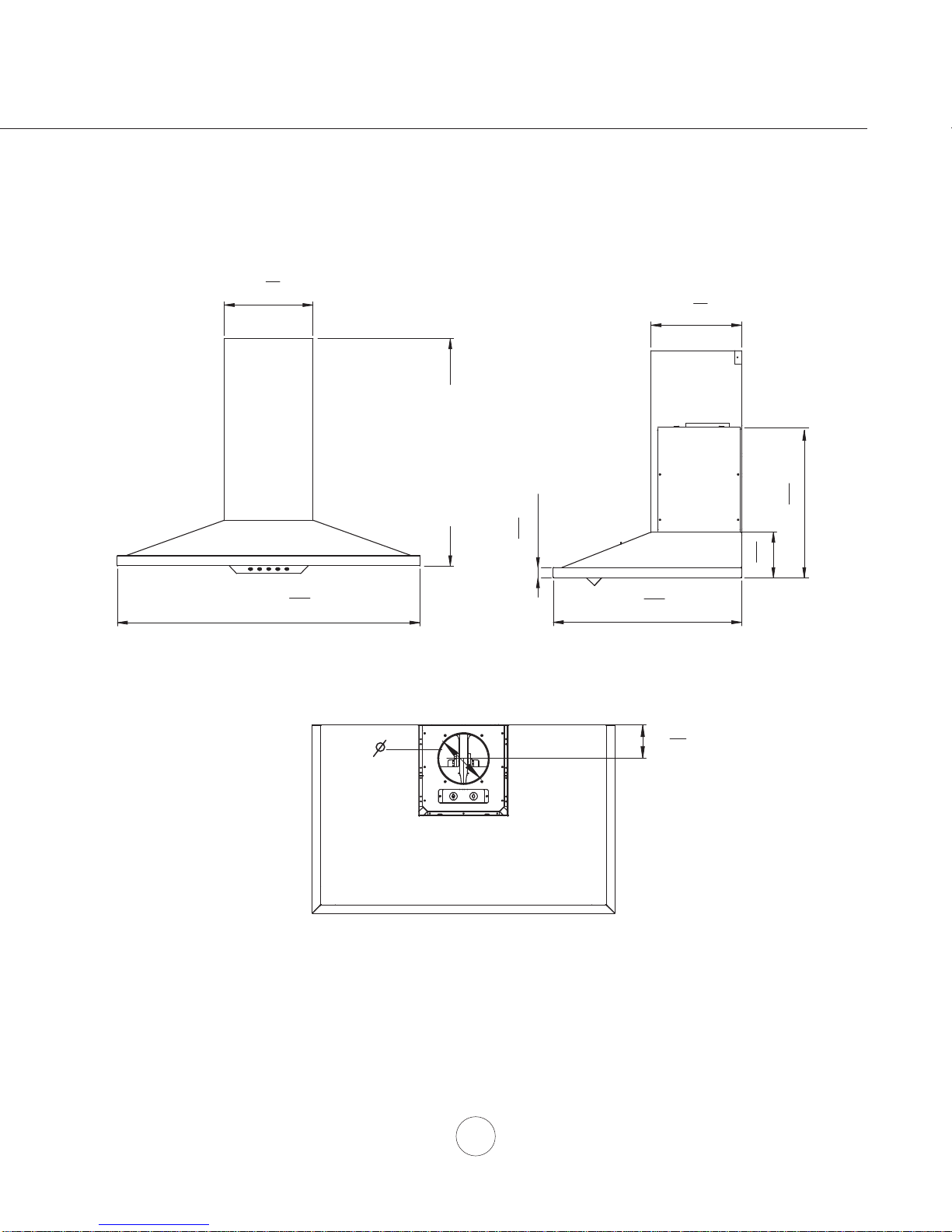

Installation – 93/+RRG6SHFL¿FDWLRQ
48
9
#
7ȹ
21
4
9
#
4641ȹ- 8
27
#
2
4
27
#
21
6
9
#
33
2!ȹ
27
66
27
#
29 8
27
#
Standard Duct Cover
Min. ducted 27”
Min. recirc. 31”
Max. ducted 48”
V1C-00PL Extension
Min. ducted 43
1/2 ”
Min. recirc. 47
1/2 ”
Max. ducted 81”

10
1. Measure from range top to hood bottom and mark line A.
´PLQLPXPIURPUDQJHWRS
2. Plum and mark center line.
 0DUNPRXQWLQJKHLJKWOLQH%´IURPOLQH$
4. Mark mounting spread from C/L on line B. From center
OLQHWROHIWPRXQWPDUN´)URPFHQWHUOLQHWRULJKW
PRXQWPDUN´
 )DVWHQ0[´VFUHZVLQWRVWXGVRQOLQH%'RQRW
fasten screws all the way. Note: wood blocking may
need to be added behind the drywall if no studs are
present. Wall anchors may also be used but check
local codes for compliance. Failure to use suitable
wall anchors and screws to hold the weight of the
hood could result in personal injury or damage to
cooking sureface or counter.
 +DQJKRRGRQWRVFUHZVDQGKDQGWLJKWHQ)LJ$8VH
the last M4x1-1/4” screw to further secure the hood to
the wall from inside the hood.
7. Center and attach duct cover bracket to wall below
FHLOLQJRUVRI¿WXVLQJ0[´VFUHZV
8. Install electrical.
9. *Install duct work and duct tape.
10. Power up hood and check for leaks around duct tape.
11. Place telescopic duct covers onto hood and extend
LQQHUWRSGXFWFRYHUXSZDUGVDQGVHFXUHWRGXFWFRYHU
EUDFNHWXVLQJ0[´VFUHZV
*if using hood in recirculating mode you must secure air
diverter plate onto wall before installing duct work and
duct covers. Turn to page 14 for more details.
A
B
C/L
12 1/4"
C/L
26" min
fig. A
Duct Cover Bracket
2"3-1/2"
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
!
Cable Lock
Cable Lock
$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKW
be required by local codes. Check with local
requirements and codes, purchase and install
appropriate connector if necessary.
CAUTION: At least two installers are
required due to the weight and size of the
hood.
!
Installation – Mounting the Hood VSU

11
1. Measure from range top to hood bottom and mark line A.
´PLQLPXPIURPUDQJHWRS
2. Plum and mark center line.
 0DUNPRXQWLQJKHLJKWOLQH%´IURPOLQH$
 0DUNPRXQWLQJVSUHDGIURP&/´
 )DVWHQ0[´VFUHZVLQWRVWXGVRQOLQH%EXW
do not tighten all the way. Note: wood blocking may
need to be added behind the drywall if no studs are
present. Wall anchors may also be used but check
local codes for compliance. Failure to use suitable
wall anchors and screws to hold the weight of the
hood could result in personal injury or damage to
cooking sureface or counter.
 5HPRYHWKHPHWDOPHVK¿OWHUV
5HPRYHWKHFKDUFRDO¿OWHUEUDFNHWVORFDWHGLQVLGH
WKHKRRRGEHKLQGWKHPHWDOPHVK¿OWHUV(DFKEUDFNHWLV
VHFXUHGZLWK[3KLOLSVKHDGVFUHZVNote: If
you are not recirculating the hood you may discard
the charcoal brackets.
8. Hang hood onto the mounting screws and hand tighten
HDFKVFUHZ¿J$6HFXUHWKLUG0[´VFUHZ
WKURXJKLQVLGHRIKRRGLQWRZDOOIRUH[WUDVXSSRUW¿J$
9. Center and attach duct cover mounting bracket to wall
MXVWEHORZWKHFHLOLQJRUVRI¿WXVLQJ0[´VFUHZV
10. Install electrical and duct work. Seal duct work with
aluminum duct tape.
11. Power up hood and check for leaks around duct tape.
12. Place telescopic duct covers onto hood and extend
LQQHUWRSGXFWFRYHUXSZDUGVDQGVHFXUHWRGXFWFRYHU
EUDFNHWXVLQJ0[VFUHZV6HFXUHERWWRPGXFW
FRYHUWRKRRGERG\E\DOVRXVLQJ0[VFUHZV
* If using hood in recirculating mode you must secure the air
diverter plate onto wall before installing duct work and
duct covers. Turn to page 14 for more details.
18-7/16
Brackets are
pre-installed
fig. A
fig. A2
26” min
CAUTION: At least two installers are
required due to the weight and size of the
hood.
!
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
!
Cable Lock
Cable Lock
$FDEOHORFNLQJFRQQHFWRUQRWVXSSOLHGPLJKW
be required by local codes. Check with local
requirements and codes, purchase and install
appropriate connector if necessary.
Installation – Mounting the Hood VPL

12
Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust
IURPFRRNLQJDUHGUDZQDQG¿OWHUHGE\DVHWRIRSWLRQDOFKDUFRDO¿OWHUV7KHDLULVWKHQSXUL¿HGDQGUH
circulated back within the home.
We recommend toALWAYS exhaust air outside of the home by employing existing or installing new duct
ZRUNLISRVVLEOH7KHKRRGLVPRVWHIIHFWLYHDQGHI¿FLHQWDVDQH[KDXVWKRRG2QO\ZKHQWKHH[KDXVWRSWLRQ
is not possible should you recourse to converting the hood into a recirculating hood.
:KHQFRQYHUWHGWREHDUHFLUFXODWLQJKRRGDVHWRIFKDUFRDO¿OWHUVDUHUHTXLUHGRQWRSRILWVVWDQGDUG0HWDO
Filter set. Order according to its Part number below. The standard Metal Filters are intended to capture
UHVLGXHIURPFRRNLQJDQGWKHRSWLRQDOFKDUFRDO¿OWHUVKHOSWRSXULI\IXPHVH[KDXVWHGIURPFRRNLQJIRUUH
circulation.
RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)
.LWLQFOXGHVFKDUFRDO¿OWHUVDQGDLUGLYHUWHUSODWH
Hood Model Part No. Filters & Brackets in Pkg.
VSU-ExxCS models VRC-01SU 2
VPL models VRC-00PL 2
1. Purchase recirculating kit per the part number above
 6HFXUHDLUGLYHUWHUSODWHWRZDOOEHORZGXFWFRYHUEUDFNHW),*%5XQ´
ducting from top of hood and secure to air diverter plate.
 5HPRYHPHWDOPHVK¿OWHUVIURPKRRG6HFXUHWKHFKDUFRDO¿OWHUEUDNHWRQWRWKH
LQVLGHRIWKHKRRGEHKLQGPHVK¿OWHUVZLWK0[VFUHZV&OLSFKDUFRDO
¿OWHUVRQWRHDFKFKDUFRDO¿OWHUEUDFNHW),*&
5H,QVWDOOPHWDOPHVK¿OWHUV
 &KDUFRDO¿OWHUVPXVWEHUHSODFHGDIWHUHYHU\KRXUVRIXVHRU
approximately every 3 to 4 months based on the average of 1 - 2 hrs. of
GDLO\FRRNLQJWLPH
Charcoal Filter Replacements
Hood Model Part No. Qty to Order
VSU-ExxCS and VPL V0F-C002 2
'2127:$6+&+$5&2$/),/7(56&KDUFRDO¿OWHUVPD\QHHG
to be changed more often depending on cooking habits.
Charcoal Filter Dimensions:
9in x 6-3/8in
228mm x 162mm
Installation – Ductless Recirculating
D
E
Install charcoal filter (plastic side exposed)
into charcoal filter bracket. Insert tab
cut-out side D of charcoal filter into bracket
first. Lock charcoal filter into place by
pushing down on side E with locking tabs.
front of the hood
back of the hood
FIG. C
FIG. B

13
Q 2 3 4
clean filters
1Power / Delay Off 4Lights On/Off
5Delay Off Timer Indicator
6Speed Indicators
8Lights Indicator
Fan Speed Decrease
Fan Speed Increase
Clean Filter Indicator
3
7
1Power / Delay Off Button
- Button will turn power on and off for entire hood (fan and lights.
- Hood will remember the last speed and light level it was last turned off at.
(Example: Press button to turn off hood when on fan speed 3 and high lights.
Press button again and the hood will turn back on at speed 3 and high lights.
Delay Off
- With the fan on, press and hold the button for two seconds. The fan will change to
speed 1 and the 5 minute delay off timer will start.
- Pressing Button while delay off function is enabled will turn the hood off and cancel
the delay off function.
2Fan Speed Decrease Button
- Press this button to decrease fan speed. 4, 3, 2, Q (Quiet).
- If fan is off, press this button to turn on fan at last speed it was turned off at.
3Fan Speed Increase Button
- Press this button to increase fan speed. Fan on, Q (Quiet), 2, 3, 4
- If fan is off, press this button to turn on fan at last speed it was turned off at.
4Lights Button
- Lights are two levels, high and low.
- From off, press one time for high. Press again for low. Press again to power lights off.
5Delay Off Indicator
- When delay off function is activated, delay off indicator light will turn on indicating the
delay off 5 minute timer has started.
- After 5 minutes the fan, lights and delay off indicator will automatically turn off.
6Speed Level Indicators
- Fan is four speed levels. Q (Quiet), 2, 3, and 4.
7Clean Filters Indicator
- After 30 hours of fan usage, the clean fitlers indicator will turn on indicating it is time to
clean the mesh filters.
- To Reset: With hood off: hold the button for three seconds. The clean filters indicator
will turn off confirming the 30 hour timer has been reset.
8Lights Indicator
- When lights are on high or low, lights indicator will illuminate.
Features & Controls - Touch Glass Controls, VSU

14
Blower Speed Selection
Press to cycle through blowers speeds I, II and III
Blower On/Off
1Lights Bright/Dim/Off 3
3Lights Bright/Dim/Off
Blower Speed Selection 2Delay Off Timer
4
Blower On/Off
Press to turn blower on and off. If lights are on they will also
switch off when this button is pressed.
Press to cycle through light levels Bright, Dim and Off
4Delay Off Timer
Press to enable delay off timer, blower will shut down after 5 minutes
Features & Controls - Electronic Controls, VPL

15
SURFACE MAINTENANCE:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent ,
or steel wool/scouring pads which will scratch and damage surface.
For heavier soil use liquid degreaser.
After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and
buff out the stainless luster and grain.Always scrub lightly, with clean cotton cloth, and with the grain.
Do not use any product containing chlorine bleach. Do not use “orange” cleaners.
Metal Mesh Filters
7KHPHWDOPHVK¿OWHUVLQVWDOOHGE\WKHIDFWRU\DUHLQWHQGHGWR¿OWHURXWUHVLGXHDQGJUHDVHIURPFRRNLQJ
They need not be replaced on a regular basis but are required to be kept clean.
Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if
heavily soiled.
'U\¿OWHUVDQGUHLQVWDOOEHIRUHXVLQJKRRG
Removing Metal Mesh Filters
1. Push in on spring loaded handle
3XOOGRZQRQ¿OWHUKDQGHWRUHPRYH¿OWHU
Maintenance – Hood and Filter Cleaning

16
pg uif
REPLACING LIGHT BULBS
CAUTION: Light bulb becomes extremely hot when turned on.
DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious
burns.
Make sure all power is turned off and bulbs are not hot.
5HPRYHE\WXUQLQJEXOEFRXQWHUFORFNZLVH1RWH%XOEGRHVQRWXQVFUHZLWWXUQVGHJUHHV
stops and falls out.
,IEXOEVDUHGLI¿FXOWWRWXUQGXHWRSURORQJHGXVH¿UPO\DWWDFKDJODVVVXFWLRQFXSDSSUR[LPDWHO\WKH
diameter of the bulb or use a rubber/latex glove and turn counter clockwise.
Replacement bulbs are available at specialty lighting stores. Purchase type GU-10 50W halogen.
For part numbers please turn to page 18 of the manual.
Maintenance – Light Bulbs

17
Troubleshooting
TROUBLESHOOTING PROCEDURES FOR VSU AND VPL
Issue Cause What to do
After installation,
the unit doesn’t
work.
1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s
power is ON.
2. The power line and the cable locking connector
is not connecting properly. 2. Check the power connection with the unit is connected properly.
3. The switch board and control board wirings are
disconnected. 3. Make sure the wirings between the switch board and control board are connected
properly.
4. The switch board or control board is defective. 4. Change the switch board or control board.
Light works, but
blower is not
turning.
1. The blower cable is disconnected. 1. Check all wiring from the blower to be sure all
cables are connected properly.
2. The blower is defective, possibly seized. 2. Change the blower.
3. The thermally protected system detects if the
blower is too hot to operate and shuts the blower
down.
3. The blower will function properly after the
thermally protected system cool down.
4. Damaged capacitor. 4. Change the capacitor.
5. The switch board or control board is defective. 5. Change defective part.
The unit is
vibrating. 1. The blower is not secured in place. 1. Tighten the blower in place.
2. Damaged blower wheel. 2. Replace the blower.
3. The hood is not secured in place. 3. Check the installation of the hood.
The speed levels
sound the same. 1. Using the wrong size of ducting. 1. Change the duct pipe size to at least 6” round or higher.
2. Blockage in the duct pipe. 2. Some type of restriction in the duct pipe is not
DOORZLQJWKHDLUWRÀRZRXWVLGH&KHFNWKHGXFW
pipe.
The blower is
working, but the
lights are not.
1. Defective halogen bulb. 1. Change the halogen bulb.
2. The light socket connector is disconnected. 2. Connect the light socket connector.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top. 1. Adjust the distance between the cook top and the bottom of the hood within 26” and 36”
range.
2. The wind from the opened windows or opened
doors in the surrounding area are affecting the
ventilation of the hood.
2. Close all the windows and doors to eliminate
WKHRXWVLGHZLQGÀRZ
3. Blockage in the duct opening or ductwork. 3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to at least 6” or higher
Metal Filter is
vibrating.  0HWDO¿OWHULVORRVH  &KDQJHWKHPHWDO¿OWHU

18
DESCRIPTION PART#
Replacement Parts
/LJKW%XOE*8:HDFK =%
Optional Accessories
5HFLUFXODWLQJ.LW 95&68IRU968([[&6
 95&3/IRU93/
5HSODFHPHQW&KDUFRDO)LOWHUHDFK 9)&
([WHQVLRQ'XFW&RYHU 9&68IRU968([[&6
 9&3/IRU93/
Order replacement parts and accessories by calling 1.888.750.1698
List of Parts & Accessories
