Valore VLA-E30AS Installation guide

Use, Care, and Installation Guide
Model number:
Serial Number:
Lateral Wall
VLA-E30AS
VLA-E36AS
JUN11.0101

1
SAFETY NOTICE ................................................................. 2-3
LIST OF MATERIALS....................................................... 4
INSTALLATION
Ducting Calculation Sheet....................................... 5
Mounting Height & Clearance................................ 6
Ducting Options ........................................................... 7
Hood Specifications ................................................... 8
Mounting the Hood..................................................... 9
Ductless Recirculating .............................................. 10
FEATURES & CONTROLS
Electronic Controls ..................................................... 11
MAINTENANCE
Hood and Filter Cleaning......................................... 12
Light Bulbs ..................................................................... 13
TROUBLESHOOTING................................................................ 14
WIRING DIAGRAMS................................................................... 15
LIST OF PARTS AND ACCESSORIES .............................. 16
Table of Contents

Important Safety Notice
READ AND SAVE THESE INSTRUCTIONS
2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.
WARNING
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service
panel.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning
agents or detergents. Suitable for use in household cooking area.
WARNING
TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:
a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly
on low or medium settings.
b. Always turn hood ON when cooking at high heat or when flaming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, filters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don’t leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:
a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards.
Including fire-rated construction.
b. Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent
back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National
Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and
the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. NEVER place a switch where it can be reached from a tub or shower.
f. Make sure the power is off before installing, wiring or maintenancing.

Important Safety Notice
3
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings,
attics, crawl spaces or garages.
Not for use over an outdoor grill.
OPERATION
Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers
and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
ELECTRICAL REQUIREMENTS
Important:
Observe all governing codes and ordinances.
It is the customer’s responsibility:
- To contact a qualified electrical installer.
- To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the
ground path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure the range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit
protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to

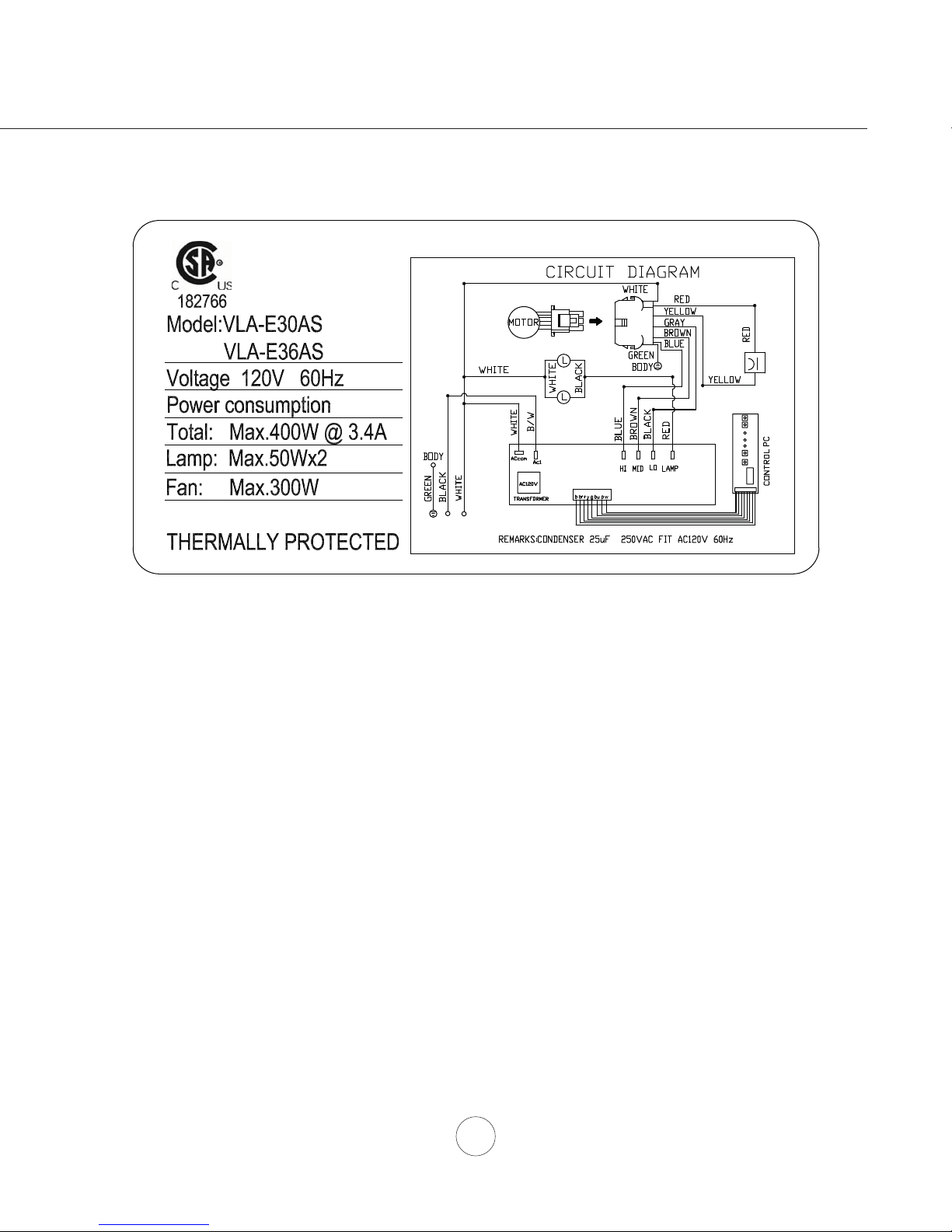

Electrical Diagram on product.
A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase
and install appropriate connector if necessary.
VLA-E30AS, VLA-E36AS - 400 Watts, 3.4 Amps

List of Materials
4
(3) Wire Nuts
(3) M6 x 1-1/2” (2) M6 x 1” (2) M3.5 x 8
PARTS NOT SUPPLIED
- Ducting, conduit and all installation tools
- Cable connector (if required by local codes)
- Extension duct cover accessory - V1C-00LA
- Recirculating kit accessory - VRC-00LA
HARDWARE PACKAGE CONTENTS
(1) Suction Cup
PARTS SUPPLIED
MODELS: VLA-E30AS, VLA-E36AS
1 - Hood with internal blower
1 - Duct cover wall bracket
1 - Duct cover assembly (top and bottom)
1 - Hardware package
1 - 6” round backdraft damper (pre-installed)
2 - 50W GU-10 halogen light bulbs
2 - Aluminum mesh filters

5
Duct pieces To t a l
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
8” Round,
straight
1 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
elbow
15 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.450
elbow
9 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
flat elbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6” Round,
900 elbow
15 Ft. x ( ) = Ft.
6” Round,
450 elbow
9 Ft. x ( ) = Ft.
Ft.
7” Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To t a l
Equivalent number
length x used =
6”- 8”Round
wall cap
with damper
30 Ft. x ( ) = Ft.
Round
wall cap
with damper
30 Ft. x ( ) = Ft.
7” or 8”
Round,
900elbow
15 Ft. x ( ) = Ft.
7” or 8”
7” or 8”
Round,
450
elbow
9 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”- 8” Round,
roof cap
30 Ft. x ( ) = Ft.
7” or 8”
Round,
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length of a 3 1/ 4” x 10” rectangular 6” or 7”
diameter round duct should not exceed 100 equivalent feet.
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.

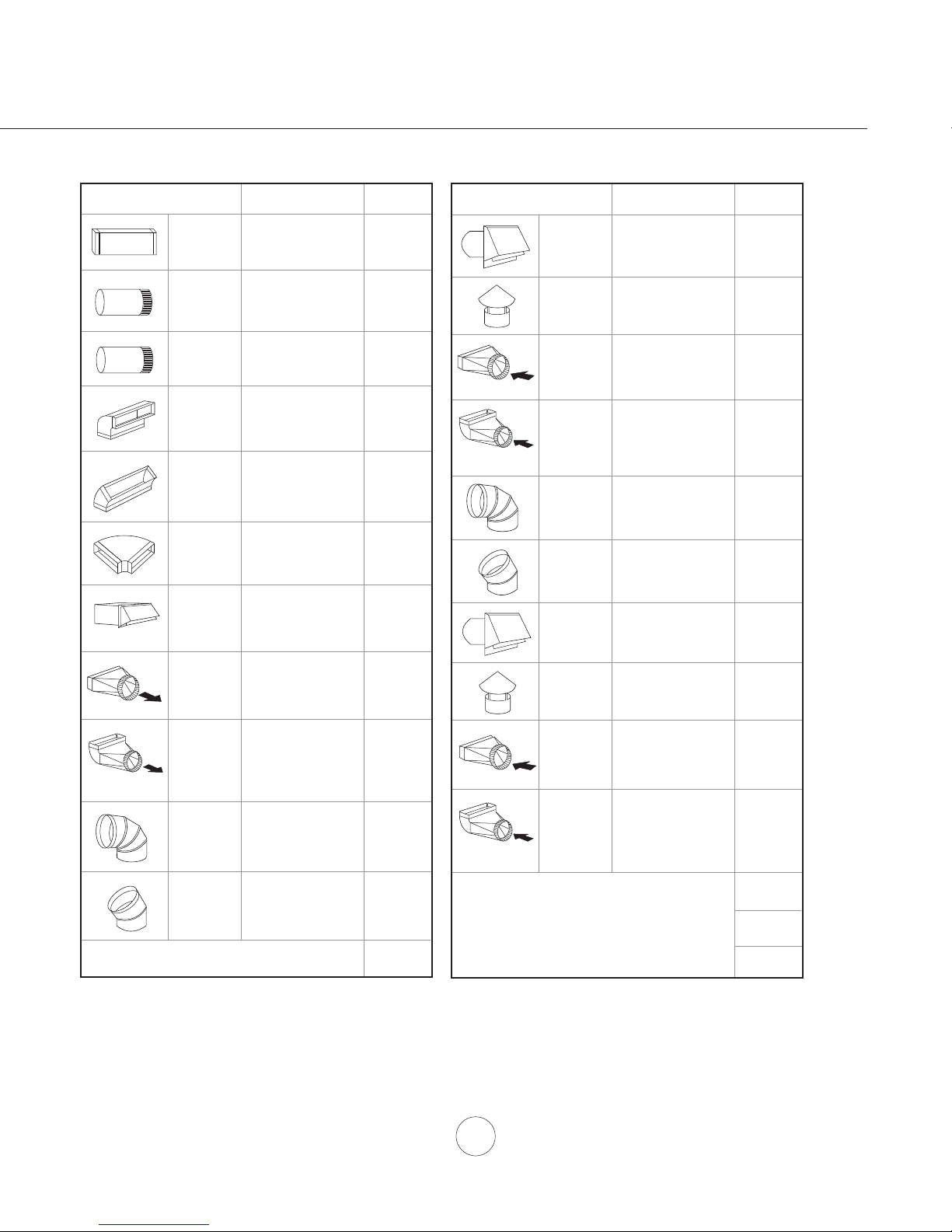

Installation – Ducting Calculation Sheet

Installation – Mounting Height & Clearance
6
DUCTING
A minimum of 6” round duct must be used to
maintain maximum air flow efficiency.
Always use rigid type metal ducts only. Flexible
ducts could restrict air flow by up to 50%.
Use calculation worksheet to compute total duct
work (Page 5).
ALWAYS, when possible, reduce the number of
transitions and turns. If a long duct run is required,
increase duct size from 6” to 7” or 8”.
If turns or transitions are required: Install as far
away from duct opening and as far apart between
the two transitions as possible.
Minimum mount height between range top to hood
bottom should be no less than 26”.
Maximum mount height should be no higher than
34”.
It is important to install the hood at the proper
mounting height. Hoods mounted too low could
result in heat damage and fire hazard; while hoods
mounted too high will be hard to reach and will
loose performance and efficiency.
If available, also refer to range manufacturer’s
height clearance requirements and recommended
hood mounting height above range. Always check
your local codes for any differences.
Duct cover extension kit available for ceiling
heights up to 12 feet. Turn to page 16 for part
number and ordering information.
D
DAMAGE-SHIPMENT / INSTALLATION:
• Please fully inspect unit for damage before
installation.
• If the unit is damaged in shipment, return the
unit to the store in which it was bought for
repair or replacement.
• If the unit is damaged by the customer, repair
or replacement is the responsibility of the
customer.
• If the unit is damaged by the installer (if other
than the customer), repair of replacement must
be made by arrangement between customer
and installer.
26” min.
34” max.
min. A
min. B
max. C
min. D
min. E
max. F
Standard Extension
Hood Heights Duct Cover Duct Cover
minimum ducted (A) 26” 42“
minimum recirculating (B) 31” 46“
maximum (C) 53” 80”
Ceiling Heights
minimum ducted (D) 88” (7’ 4”) 104“ (8’ 8”)
minimum recirculating (E) 93”(7’ 9”) 108“ (9’)
maximum (F) 123” (10’ 3“) 150” (12’ 6”)
36”

7
WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.
Some Ducting Options
Installation – Ducting Options
side wall cap
w/ gravity damper
Soffit or crawl space
Roof Pitch w/
Flashing & Cap
ductless
recirculating
side wall cap
w/ gravity damper

8

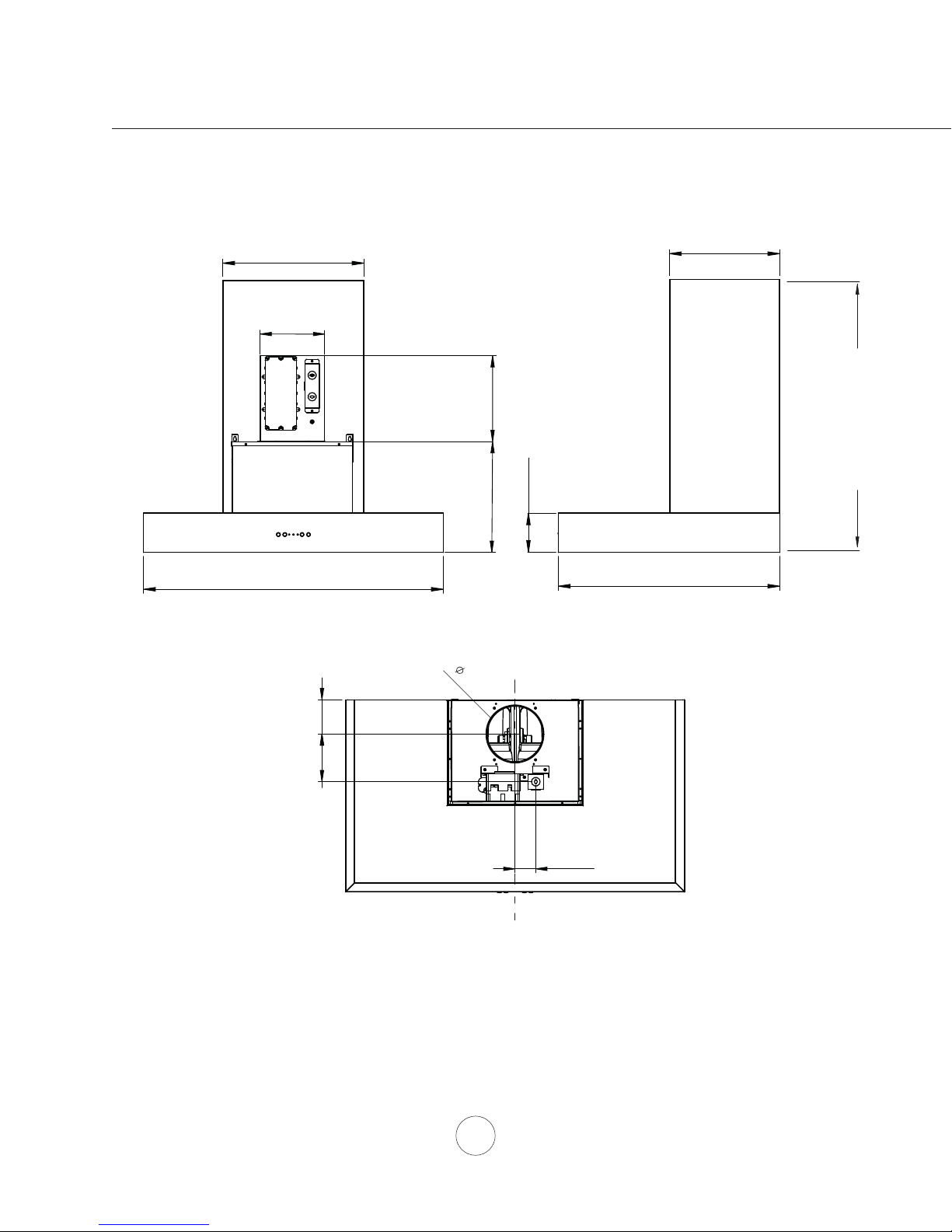

Installation – Hood Specification
6"
CL
29 15/16”, 35 7/16”
14 1/8”
2 13/16”
20 1/16”
STANDARD
min. ducted - 26”
min. recirc. - 31”
max. - 53”
V1C-00LA EXTENSION
min. ducted - 42”
min. recirc. - 46”
max. - 80”
11”
7 1/16”
9 7/16”
10 9/16”
2 3/16”
3 9/16”
5”
TOP
SIDE
FRONT

9

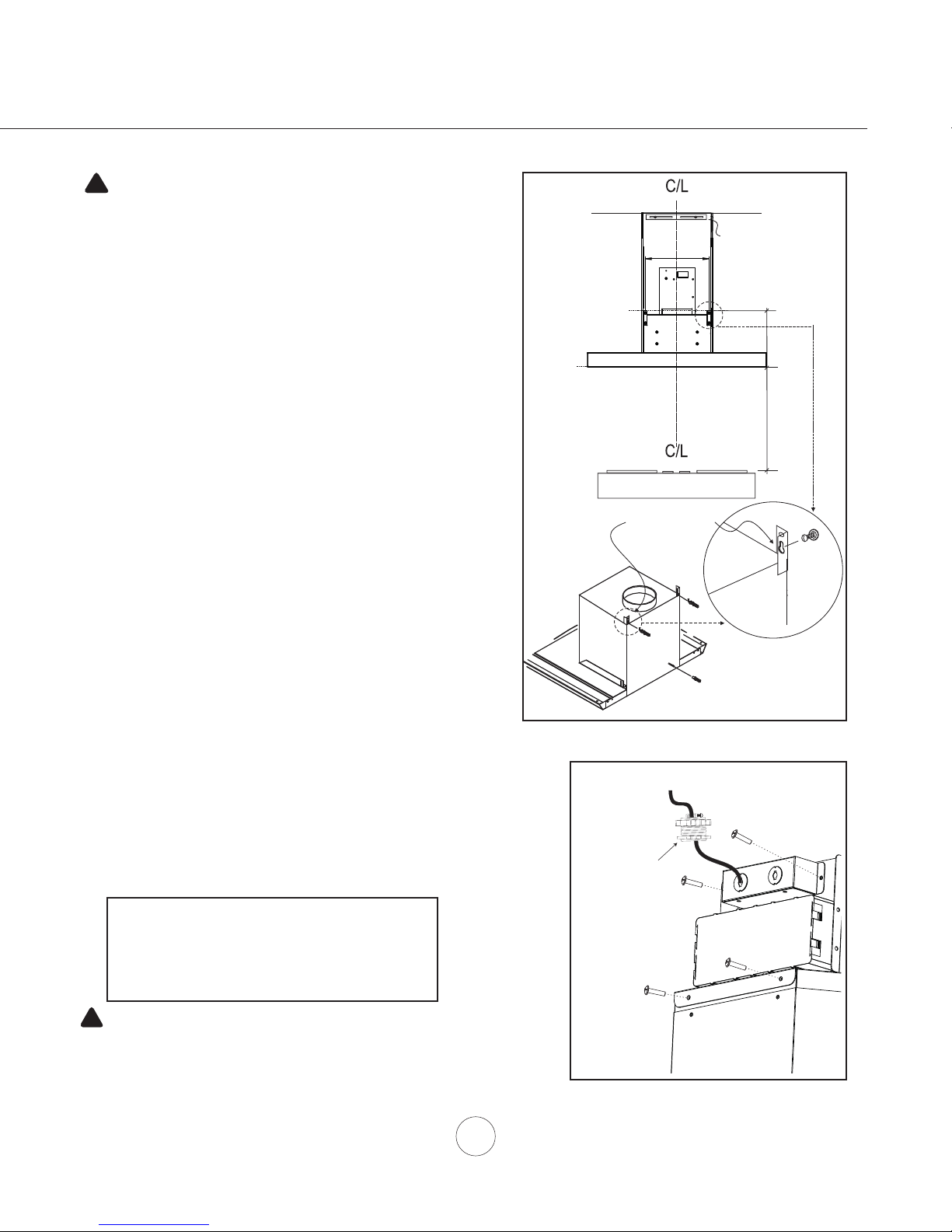

1. Measure from range top to desired hood bottom location and
mark line A. (26” minimum from range top) .
2. Plum and mark center line.
3. Mark hood height line B. (11-1/16” from line A)
4. Mark mounting spread from C/L. (12-5/8” on line B)
5. Fasten (2) M6 x 1-1/2” screws into studs on line B but do not
tighten all the way. Note: Wood blocking may need to be
added behind the drywall if no studs are present. Wall
anchors may also be used but check local codes before
using wall anchors.
6. Remove tape and (2) screws securing electronics mounting
bracket to hood. Reposition electronics mounting bracket as
shown in FIG. B #3) and secure to motor housing using the (2)
previously removed screws.
7. Remove (2) screws securing electrical junction box to
electronics mounting plate. Remove junction box. (FIG. B #1)
8. Remove the (2) aluminum mesh filters. Hang hood onto the
mounting screws and hand tighten each screw. (FIG. A #1)
Secure third M6 x 1-1/2” screw with washer through inside of
hood into wall for extra support. (FIG. A #2)
9. Center and attach duct cover mounting bracket to wall just
below the ceiling or soffit using (2) M6 x 1” screws. (FIG. A #3)
10. Install duct work and seal with aluminum duct tape*. Re-install
junction box with cable lock and install the electrical. (FIG. B #2)
11. Power up hood to verify all functions and check for leaks around
duct tape
12. Place telescopic duct covers onto hood and extend inner (top)
duct cover upwards and secure to duct cover bracket using (2)
M3.5 x 8 screws. Re-install aluminum mesh filters.
* If using hood in recirculating mode you must secure the air
diverter plate onto wall before installing duct work and duct
covers. Refer to page 10 for more details.
11
1/16
”
Brackets are
pre-installed
26” Min.
A
B
3
1
2
Duct Cover Bracket
12
5/8
”
CAUTION: At least two installers are
required due to the weight and size of the
hood.
!
WARNING: Electrical wiring must be done by a qualified person(s) in
accordance with all applicable codes and standards. This range hood must be
properly grounded. Turn off electrical power at service entrance before wiring.
!
Cable Lock
2
1
3
Motor Housing
Cable Lock
A cable locking connector (not supplied) might
be required by local codes. Check with local
requirements and codes, purchase and install
appropriate connector if necessary.
Installation – Mounting the Hood
FIG. A
FIG. B

10
Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed.
When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust
from cooking are drawn and filtered by a set of optional charcoal filters. The air is then purified and re-
circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct
work, if possible. The hood is most effective and efficient as an exhaust hood. Only when the exhaust option
is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
Aluminum Mesh Filter set. Order according to its part number below. The standard Aluminum Mesh Filters are
intended to capture residue from cooking and the optional charcoal filters help to purify fumes exhausted from
cooking for re-circulation.

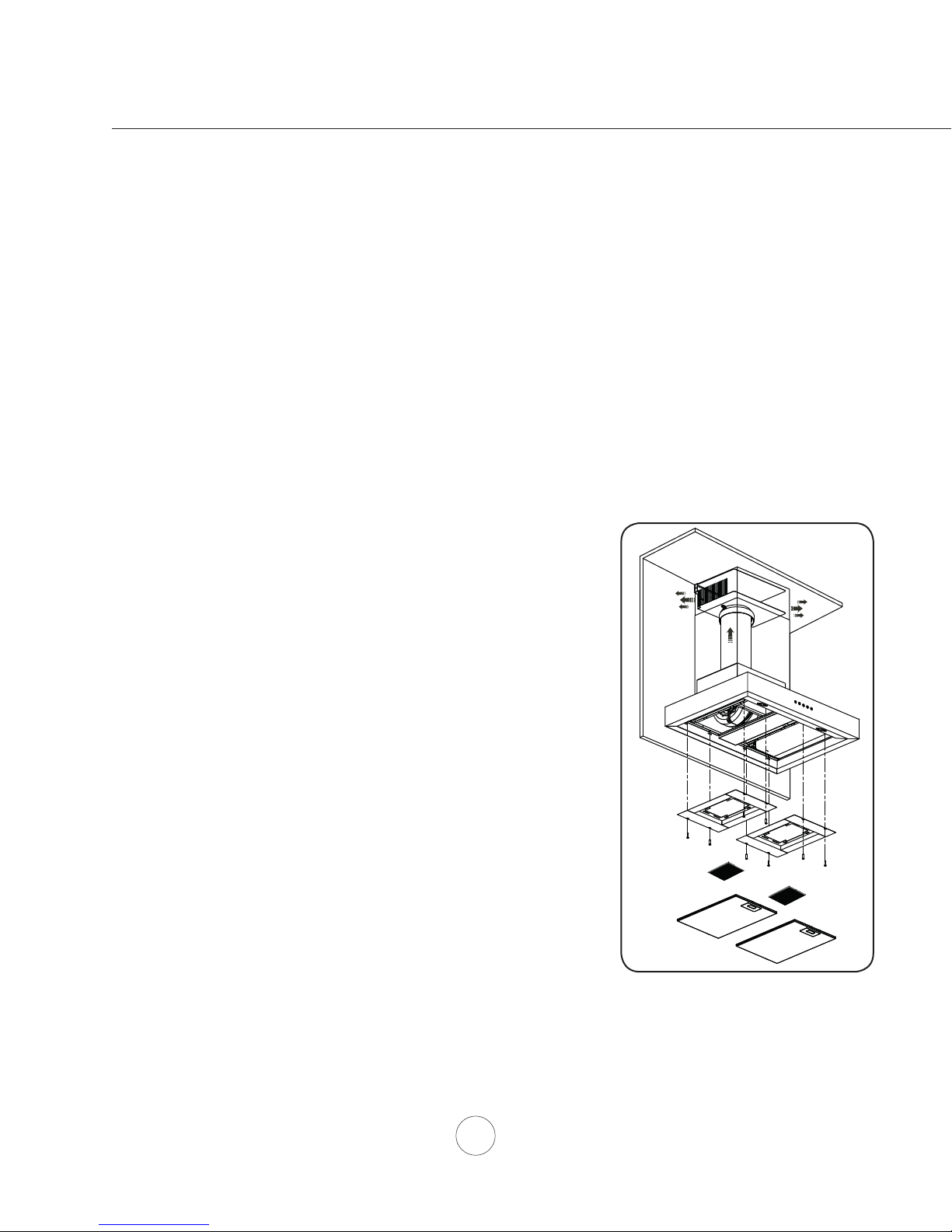

RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)
Kit includes charcoal filters, charcoal filter brackets and air diverter plate.
Hood Models Part No. Filters & Brackets in pkg.
VLA VRC-00LA 2
1. Purchase recirculating kit per the part number above
2. Secure air diverter plate to wall below duct cover bracket. (FIG. C) Run
6” ducting from top of hood and secure to air diverter plate.
3. Remove aluminum mesh filters from hood. Install charcoal filter
brackets inside filter opening. Note: screws to secure charcoal filter
brackets are already pre-installed in the hood and must first be
removed. Clip charcoal filters onto charcoal filter brackets. (FIG. C)
4. Re-Install aluminum mesh filters. For more details refer to manual
included with recirculating kit.
5. Charcoal filters must be replaced after every 120 hours of use (or
approximately every 3 to 4 months based on an average of 1 - 2 hrs. of
daily cooking time).
Charcoal Filter Replacements
Hood Model Part No. Qty to Order
VLA V0F-C002 1
DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need
to be changed more often depending on cooking habits.
Installation – Ductless Recirculating
FIG. C

11

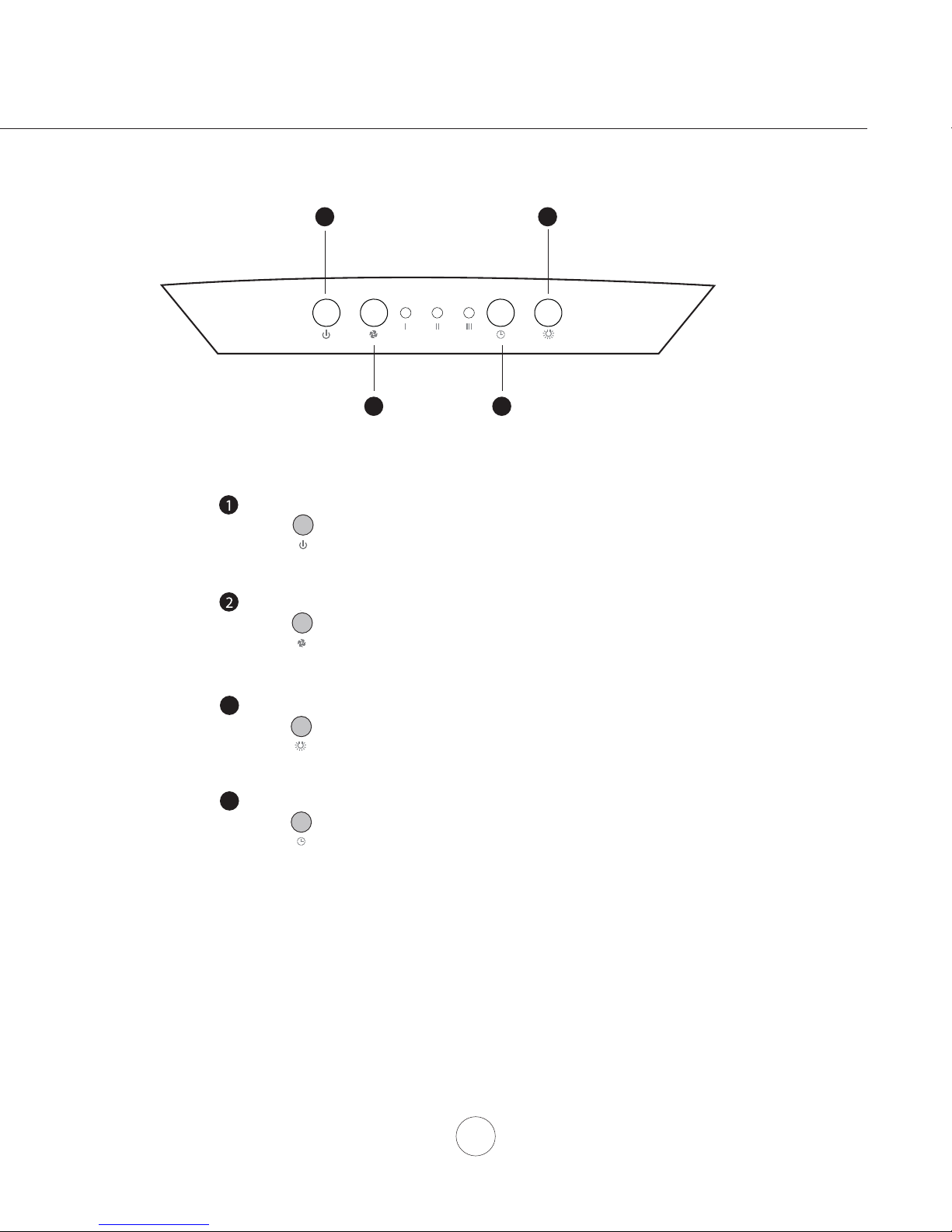

Blower Speed Selection
Press to cycle through blowers speeds I, II and III
Blower On/Off
1Lights Bright/Dim/Off 3
3Lights Bright/Dim/Off
Blower Speed Selection 2Delay Off Timer
4
Blower On/Off
Press to turn blower on and off. If lights are on they will also
switch off when this button is pressed.
Press to cycle through light levels Bright, Dim and Off
4Delay Off Timer
Press to enable delay off timer, blower will shut down after 5 minutes
Features & Controls - Electronic Controls

12
SURFACE MAINTENANCE:
Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or
abrasive detergent, or steel wool/scouring pads which will scratch and damage surface.
For heavier soil use liquid degreaser.
After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and
buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
Do not use any product containing chlorine bleach. Do not use “orange” cleaners.
Aluminum Mesh Filters
The aluminum mesh filters installed by the factory are intended to filter out residue and grease from
cooking. They need not be replaced on a regular basis but are required to be kept clean.
Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if
heavily soiled.
Dry filters and re-install before using hood.
Removing Aluminum Mesh Filters
1. Push in on spring loaded handle
2. Pull down on filter hande to remove filter
Maintenance – Hood and Filter Cleaning

13
REPLACING LIGHT BULBS
CAUTION: Light bulb becomes extremely hot when turned on.
DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns.
Make sure all power is turned off and bulbs are not hot.
Remove by turning bulb counter clockwise. Note: Bulb does not unscrew; it turns 60 degrees,
stops and falls out.
If bulbs are difficult to turn due to prolonged use, firmly attach the included glass suction cup or use a rubber/
latex glove grip and turn the bulb counter clockwise.
Replacement bulbs are available at specialty lighting stores. Purchase type GU-10 50W halogen.
For part numbers please turn to page 16 of the manual.
Maintenance – Light Bulbs

14
Troubleshooting
TROUBLESHOOTING PROCEDURES FOR VLA
Issue Cause What to do
After installation,
the unit doesn’t
work.
1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s
power is ON.
2. The power line and the cable locking connector
is not connecting properly.
2. Check the power connection with the unit is
connected properly.
3. The switch board and control board wirings are
disconnected.
3. Make sure the wirings between the switch
board and control board are connected
properly.
4. The switch board or control board is defective. 4. Change the switch board or control board.
Light works,
but motor is not
turning.
1. The motor is defective, possibly seized. 1. Change the motor.
2. The thermally protected system detects if the
motor is too hot to operate and shuts the motor
down.
2. The motor will function properly after the
thermally protected system cool down.
3. Damaged capacitor. 3. Change the capacitor.
4. The switch board or control board is defective. 4. Change defective part.
The unit is
vibrating.
1. The motor is not secured in place. 1. Tighten the motor in place.
2. Damaged blower wheel. 2. Replace the blower.
3. The hood is not secured in place. 3. Check the installation of the hood.
4. The switch board or control board is defective. 4. Change defective part.
The motor is
working, but the
lights are not.
1. Defective halogen bulb. 1. Change the halogen bulb.
2. The light bulb is loose. 2. Tighten the light bulb.
The hood is
not venting out
properly.
1. The hood might be hanging to high from the
cook top.
1. Adjust the distance between the cook top and
the bottom of the hood within 26” and 34”
range.
2. The wind from the opened windows or opened
doors in the surrounding area are affecting the
ventilation of the hood.
2. Close all the windows and doors to eliminate
the outside wind flow.
3. Blockage in the duct opening or ductwork. 3. Remove all the blocking from the duct work or
duct opening.
4. The direction of duct opening is against the wind. 4. Adjust the duct opening direction.
5. Using the wrong size of ducting. 5. Change the ducting to at least 6” or higher for
the internal blower.
Mesh Filter is
vibrating.
1. Mesh filter is loose. 1. Change the mesh filter.

15
Wiring Diagrams

List of Materials
16
DESCRIPTION PART#
Replacement Parts
Light Bulb GU-10 50W (each) Z0B-0020
Optional Accessories
Recirculating Kit VRC-00LA
Replacement Charcoal Filters (Qty 2) V0F-C002
Extension Duct Cover V1C-00LA
Order replacement parts from us by calling 1.888.750.1698
Accessories can be ordered through Costco.com

1-888-750-1698
STAPLE YOUR RECEIPT HERE
TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call:
Valore (referred to herein as “we” or “us”) warrants to the original consumer purchaser (referred to herein as “you” or
“your”) of Valore products (the “Products”) that such Products will be free from defects in materials or workmanship as
follows:
Two Year Limited Warranty for Parts: For two years from the date of your original purchase of the Products, we will
provide, free of charge, Products or parts to replace those that failed due to manufacturing defects. We may choose, in
our sole discretion, to repair or replace parts before we elect to replace the Products.
One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will
provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to
manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs
associated with this warranty.
Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts
and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and
service required for the Products and consumable parts such as light bulbs, metal and carbon filters and fuses; (b) any
Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installa-
tion contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commer-
cial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Prod-
ucts or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner
products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach
you how to use the Products; or (g) damage to the Products caused by accident, fire, floods or act of God. If you are
outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service
locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Prod-
ucts. After the first year from the date of your original purchase, you are also responsible for all labor costs associated
with this warranty.
Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE
AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSE-
QUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF
THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRAN-
TIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING
THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not
allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential dam-
ages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclu-
sion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period
described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and
shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall
determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in
connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned
parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the
original purchaser and applies in the United States and Canada.
To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or
telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identifi-
cation number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the
request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase
date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documenta-
tion to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.
Please check our website for any revisions, www.valoreusa.com.
Venting Services PO Box 6188 Oakland, CA 94603 | 1-888-750-1698 | [email protected]
Limited Warranty
APR10.0201
Proof of the original purchase
date is needed to obtain
service under warranty
