VALVER MISTLAIR User manual

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
1
CONTENTS
WELCOME . . . . . . . 2
STATEMENT OF COMPLIANCE . . . . . 3
WARRANTY . . . . . . . 4
1. EQUIPMENT DESCRIPTION . . . . . 5
2. TRANSPORT, HANDLING AND STORAGE . . . 6
3. OPERATION . . . . . . . 7
3.1. Safety rules . . . . . . 7
3.2. Starting-up the equipment. . . . . 8
3.3. Calibration . . . . . . 9
4. MAINTENANCE AND CLEANING . . . . 11
5. SAFETY RULES . . . . . . 12
6. DISASSEMBLY CONDITIONS . . . . . 12
MANUAL EXTERNAL MIX SET-UP CHART . . . 13

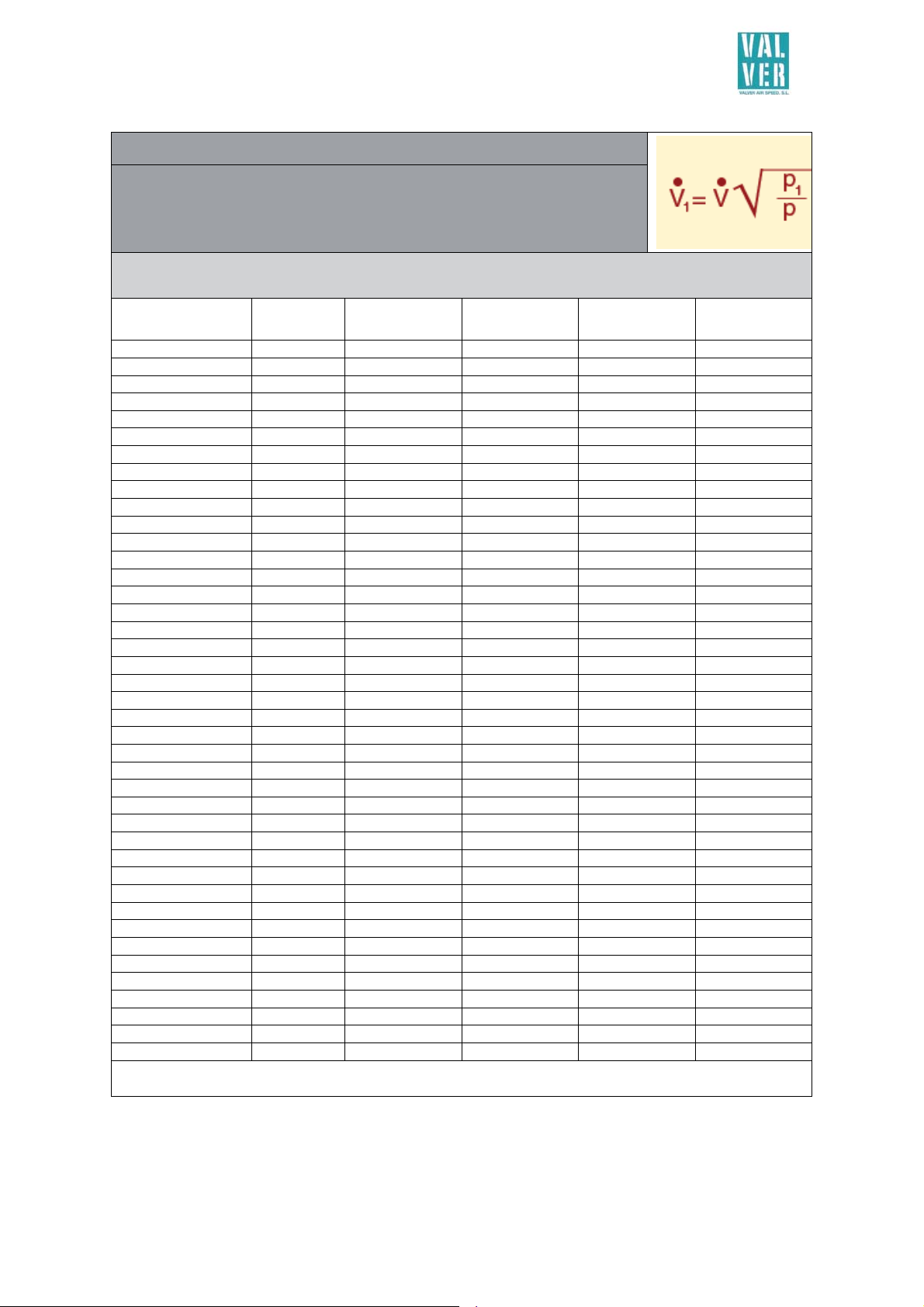

NOZZLE FLOW CHART . . . . . . 16
VISCOSITY EVOLUTION IN ACCORDANCE
WITH SOLVENT-BASED PAINTS TERMPERATURE . . 17
MAINTENANCE OPERATIONS . . . . . 18

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
2
Dear costumer:
Our work at VALVER AIR SPEED involves manufacturing different painting equipment and
application systems for users and companies consuming varnishes and paints.
Specifically, the MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON
PUMP) guarantees absolute compliance with product manufacturers’ instructions. It also
guarantees a correct, uniform mix.
The paint and air mix outside the brush, thus reducing cleaning and saving time, product
and thinners. The mixture is exact and only the solvent to be applied is used. The equipment is
controlled manually.
VALVER AIR SPEED thanks you for your trust in having chosen one of our products and
would like to inform you that if any problem should arise or simply a need for enquiries or
personalised advice, you should please get in touch with our company’s official technical and
maintenance service, as stated below:
TECHNICALSERVICE/ MAINTENANCE
VALVER AIR SPEED, S.L.
Pol. Industrial La Pascualeta
Camino viejo de Picasent s/n
46200 PAIPORTA (VALENCIA) SPAIN
Tel. [phone] / Fax. [phone]

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
3
STATEMENT OF COMPLIANCE
Mr. Ricardo Verdú, as Manager of the company VALVER AIR SPEED, S.L. manufacturer of the equipment for
paint application, whose registered office is at Polígono Industrial La Pascualeta, Cno. Viejo de Picasent, s/n
46200 PAIPORTA (VALENCIA) Spain. Declares at his own sole responsability that the machine:
MARCA:
DESCRIPCIÓN:
VALVER
MODELO: Nº DE SERIE:
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
AÑO DE CONSTRUCCIÓN:
Tal como se describe en la documentación que se adjunta, es conforme con los requisitos esenciales
de las siguientes Directivas Comunitarias.
x98/37/CEE, Directiva sobre Seguridad en Máquinas, que deroga a DC 89/392/CE, 91/368/CEE, 93/44/CEE y
93/68/CEE.
Que en su diseño y fabricación han sido tenidos en cuenta en su totalidad los aspectos recogidos en
las normas armonizadas siguientes:
xUNE-EN 292-1: 93 "Safety of machinery Basic concepts, general principles for design. Part 1: Basic
terminology, methodology."
xUNE-EN 292-2: 93 + A1: 96 + A1 Erratum: 97 "Safety of machinery Basic concepts, general principles for
design. Part 2: principles and technical specifications"
xUNE-EN 983: 96 "Safety of machinery. Safety requirements for systems and components for hydraulic and
pneumatic. Pneumatics."
xUNE-EN 626-1: 95 "Safety of machinery. Reducing health risks from hazardous substances emitted by
machinery."
xPrEN 12621: 96 "Machinery for the supply and circulation of coating materials under pressure"
xUNE-EN 12162: 2001 "pumps for liquids. Safety requirements. Hydrostatic Test Procedure"
xUNE-EN 809: 99 + AC: 2002 "pumps and pump units for liquids. Common safety requirements"
The machine is not in Annex IV. A technical construction file has been constituted for VALVER AIR
SPEED, and for the record on issues relevant purposes in accordance with this declaration.
In Valencia,
, of .
VALVER AIR SPEED, S.L.
Ricardo Verdú

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
4
NAME: _________________________________________________________________________________________
COMPANY NAME: ____________________________________________________________________________
ADDRESS: _________________________________________________________________________________
MODEL OF MACHINE: _______________________________________________________________________
SERIAL NO.: ______________________________________________________________________________
DATE: _________________________________________________________________________________
STAMP AND SIGNATURE:
___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
Description:
Model:
Serial nº:
All equipment has 2 years warranty from the date of the invoice: The warranty covers the replacement or repair
of the machine’s components and Valver Air Speed S.L.’s acknowledgement that they are faulty due to manufacturing
errors, in addition to the labour involved in the replacement and/or repair of parts. Service during the warranty will only
be valid if it is carried out by Valver Air Speed S.L. in its own workshops.
The materials will be sent with the postage paid and once the machinery has been repaired it will be returned
to the client, who must pay for the postage. The warranty does not include our engineers working in the place where the
machine is installed or the dismantling of the machinery. If it is absolutely necessary to send Valver Air Speed S.L. staff
out, it will always be done at their own discretion and an invoice will be issued for the job plus the travelling expenses.
This warranty will only be valid if it is signed, stamped and dated by Valver Air Speed S.L. and it must also be
accompanied by the receipt of purchase for the machine under warranty.
The warranty does not include:
-Compensation for either direct or indirect damage caused by our machines to objects or people. Likewise, it does
not include repairs carried out by the client or by third parties.
-Breakdowns caused by inappropriate use or assembly.
-Breakdowns caused by outside agents.
-Breakdowns due to negligence or insufficient maintenance.
-Damage caused by neglect, incompetence, running wear, not having used the appropriate cleaning solvent or poor
maintenance or use of the machine.
The warranty will lose validity in the event of default on payments or other forms of non-compliance with the
contract. Repairs carried out during the warranty period do not reduce or increase its duration. The warranty will also
lose validity if the machine is handled without our authorisation, or if the machine is dismantled in another workshop.
The guaranty will be void if the serial no. is erased or tampered with, or when the damage arises from inappropriate
operation or use, from negligence, knocks, falls and other reasons that are not a result of its normal operation.
Both parties agree to submit any legal dispute or conflict to the Courts of the city of Valencia, expressly
renouncing any corresponding rights with regard to other jurisdiction.
Valencia, ________________________________________
VALVER AIR SPEED, S.L.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
5
Before using for the first time the machine will read the instructions carefully. The improper
uses eliminate any responsibility to VALVER AIR SPEED.
1. EQUIPMENT DESCRIPTION
The MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT is composed of two pumps.
The first pump is for resin and the type employed can be selected. The second pump for the
catalyser is a pressure tank.
A specially-prepared gun for combining and applying the two products. The two
products are always separated prior to their reaching the gun tip, where they are then mixed
by the air fan. This facilitates cleaning, as the equipment need not be cleaned at the end of
each task, and reduces solvent consumption considerably.
10
8
9
2
14
13
11
12
3
2
1
4
5
6
7

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
6
1. Resin pump
2. Safety valve
3. Resin air pump control
4. Resin outlet
5. Absorption
6. Air gun control
7. Catalyser pump
8. Catalyser pump air intake
9. Catalyser pump air cock
10. Catalyser pump air control
11. Catalyser pump bleed cock
12. Catalyser valve
13. Resin pump air intake
14. Resin pump air intake cock
15. Gun
16. Catalyser head tube
17. TRIMIX® mixer head
18. Gun trigger
19. Gun filter
20. Calibration head
17
16
18
15
19
20

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
7
1.1. Equipment technical characteristics:
You can choose different pumps depending on the mix and their percentage. The
characteristics depends on the models chosen.
For further information about the characteristics and features of the equipment to be
chosen, consult the Valver Air Speed pressure tank or pneumatic piston pump general
catalogue and manuals. The manuals are supplied with the complete equipment.
2. TRANSPORT, HANDLING AND STORAGE
The installation and set-up of the VALVER AIR SPEED, S.L., MISTLAIR MANUAL
EXTERNAL MIX EQUIPMENT is carried out either by the manufacture’s staff or by
authorized distributors.
3. OPERATION
3.1. Safety rules
Before using the equipment it is important to know all the rules of use, operating conditions
and instructions for use.
VALVER AIR SPEED S.L., no se hace responsable en caso de que el operador no cumpla con
las siguientes condiciones, así como no es responsable de cualquier tipo de negligencia al
emplear la instalación.
Con el fin de evitar la ruptura de mangueras o elementos de presión verificar antes de la
puesta en marcha del equipo que:
xAll components are not worn or damaged.
xFittings and joints of the filters are very tight.
xUse the machine with gloves, masks and eye protection and appropriate protective
clothing.
xThe products used in the machine may be highly inflammable. The equipment has not
been designed or manufactured for use in potentially explosive atmospheres, always use
the equipment in well-ventilated places; avoid any kind of activity which could cause
fire such as smoking, producing sparks, or shavings, or any electrical hazards. In
order to avoid the risk of sparks from electrostatic charges, the machine should be
adequately earthed.
xBefore starting, any cleaning or maintenance check electrical disconnection of the
equipment and the discharge pressure of the pneumatic elements.
xAlways use the solvent recommended by the product’s manufacturer for cleaning
the equipment.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
8
xUsing the machine may cause intoxication from possible toxic fumes. The air extraction
system should function properly to ensure it is not used in a place where you can create
explosive atmospheres.
To avoid any risk of fire or explosion:
xNO SMOKING, next to the machine.
xNON-sparking.
In the case of fire or explosion, use extinguishers - do not use water.
Extinguishers:
Class ABC: Dry powder, for LIQUIDS AND GASES
Class E: CO2for ELECTRICAL PARTS
3.2. Starting-up equipment.
1. Make sure that the Resin pump air intake cock (14) (pneumatic piston pump) and
the Catalyser pump air cock (9) (pressure tank) are closed
2. Connect the air supply to the Resin pump air intake (13), which supplies the pumps
and the gun (15).
3. Connect the air supply to the Catalyser pump (7), by Catalyser pump air intake (8).
4. Place the Absorption (5) in the resin and open the Resin pump air intake cock (14)
(PNEUMATIC PISTON PUMP).
5. Remove the TRIMIX® mixer head ® (17) to facilitate the release of this product.
6. Adjust the Resin air pump control (3) (PNEUMATIC PISTON PUMP) until the machine
starts pumping, between 1 to 2 bar.
7. Place the gun in the nozzle of the resin test tube
8. Squeeze the Gun trigger (18) until resin begins to flow from the gun and the circuit
is loaded without air bubbles.
(used for cleaning, bleeding,
recycling and calibration of mix percentage)
9. Place the TRIMIX® mixer head (17).
10. Close the Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP).
11. Make sure that there is no pressure in the catalyser pump (7) (pressure tank). Open
the Catalyser pump bleed cock (11) (pressure tank).
12. Remove the top from the catalyser pump (7) (pressure tank) and fill the catalyser.
13. Replace the pressure tank top, making sure that it is properly closed.
14. Open the Catalyser pump air cock (9) (pressure tank).
15. Adjust the catalyser pump air control (10) (pressure tank) between 1 to 2 bar.
16. Open the catalyser valve (12).
17. Remove the Catalyser head tube (16) of the TRIMIX® mixer head (17), which allows
the output of the product.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
9
18. Place the Catalyser head tube (16) in the nozzle of the catalyser test tube and the
TRIMIX® mixer head (17) in the resin test tube
19. Squeeze the gun trigger (18) until resin begins to flow from the Catalyser head
tube (16). The residual pressure in the resin pump (1) will force resin to flow for a
few seconds (PNEUMATIC PISTON PUMP).
enabled to recycle products.
20. Replace the Catalyser head tube (16) at the TRIMIX® mixer head (17).
21. Open Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP).
The MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT is pressurised with material and ready
for calibration.
Recomendaciones.
Clean the MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT thoroughly after use. Proper
maintenance will extend the equipment’s useful life.
Clean the outside of the TRIMIX® mixture head (17) frequently when working and leave the
gun (15).
The gun should be left immersed in cleaning solvent when not in use. The solvent must not
touch the air valve, in order that the nozzle remain clean.
Always use the solvent recommended by the product’s manufacturer for cleaning the
equipment.
3.3. Calibration.
1. Start-up the equipment.
2. Close the Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP), and close
the catalyser pump air cock (9).
3. Prepare 2 calibrated test tubes
4. Remove the TRIMIX® mixer head (17) with the catalyser head tube (16).
. For maximum accuracy, place each test tube on
scales and weigh. If no scales are available, use the test tubes to calibrate by volume.
5. Remove the nozzle of TRIMIX® mixer head (17) and replace into the Calibration
head (20).
6. Place the Calibration head (20) on the gun.
7. Open the Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP) and open
the Catalyser valve (12).
8. Place the TRIMIX® mixer head (17) in the resin test tube and the Calibration head
(20) with nozzle mounted on the gun in the
9. Squeeze gun trigger (18) and fill the test tubes with required amount.
catalyser test tube
10. Check the proportion of the volume or the weight of the materials using scales.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
10
11. Adjust the proportion using the resin pump air control (3) (PNEUMATIC PISTON
PUMP) and the catalyser pump air control (10) (pressure tank).
12. Once the calibration has been adjusted in accordance with the product
manufacturer’s indications and nozzle recommended. Note down the regulation
parameters in pages 14-15-16-17.
13. Close the Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP) and close
the Catalyser valve (12).
14. Remove Calibration head (20) and the nozzle.
15. Place the TRIMIX® mixer head (17) with the nozzle in the gun.
16. Open the Resin pump air intake cock (14) ) (PNEUMATIC PISTON PUMP)
17. Abrir llave de aire bomba resina (14) (PNEUMATIC PISTON PUMP) and open the
Catalyser valve (12).
The MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT is calibrated and ready for use.
Recomendaciones.
Clean the MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT thoroughly after use. Proper
maintenance will extend the equipment’s useful life.
Clean the outside of the TRIMIX® mixture head (17) frequently when working and leave the
gun (15).
The gun should be left immersed in cleaning solvent when not in use. The solvent must not
touch the air valve, in order that the nozzle remain clean.
Always use the solvent recommended by the product’s manufacturer for cleaning the
equipment.
4. CLEANING AND MAINTENANCE
Cleaning.
1. Close the Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP), and close
the Catalyser pump air cock (9) (pressure tank).
2. Remove the absorption (5) and place in cleaning solvent.
3. Open the catalyser pump bleed cock (11) (pressure tank), release the air an open
the cover of the catalyser pump (7) (pressure tank).
4. Fill the catalyser pump (7) (pressure tank) with cleaning solvent.
5. Replace the catalyser pump (7) cover, making sure that it is properly closed.
6. Open the Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP) and open
Catalyser pump air cock (9) (pressure tank) charged with cleaning solvent.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
11
7. Open the Catalyser valve (12).
8. Squeeze the gun trigger (18) until clean solvent –free of resin and catalyser residue-
is expelled.
9. Close the Resin pump air intake cock (14) (PNEUMATIC PISTON PUMP), and close
the Catalyser pump air cock (9) (pressure tank).
10. Always leave the equipment PRESSURISED. Loaded with pressurized cleaning
solvent.
Maintenance.
1. Clean the TRIMIX® mixer head (17) frequently when in use.
2. Always leave the TRIMIX® mixer head (17) immersed in cleaning solvent. When left
unused for long periods, place in a tightly sealed recipient with solvent. This will
impede the evaporation of the solvent and the catalyser outlets becoming blocked
by any remaining residue.
3. Clean the equipment each day with the cleaning solvent recommended by the
manufacturer and which we applied to the Resin pump (1) (dual membrane or
pressure tank) to avoid blockage from resin residue.
4. Clean the equipment each day with the cleaning solvent recommended by the
manufacturer and which we applied to the Catalyser pump (7) (pressure tank) to
avoid blockage from the catalyser.
5. Check the gun, anti-pulsation chamber or absorption filters between the 1st and the
2nd cleaning.
6. Grease the exchange valves in dual membrane units ONCE PER WEEK when the
equipment is in use.
Recomendaciones.
Clean the MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT thoroughly after use. Proper
maintenance will extend the equipment’s useful life.
Clean the outside of the TRIMIX® mixture head (17) frequently when working and leave the
gun (15).
The gun should be left immersed in cleaning solvent when not in use. The solvent must not
touch the air valve, in order that the nozzle remain clean.
Always use the solvent recommended by the product’s manufacturer for cleaning the
equipment.
For EXTERNAL MIX EQUIPMENT spray equipment, change only used, dirty or old filters.
The equipment contains no other consumable components requiring periodic replacement.
The equipment is to be subjected to an initial revision some 3 months after installation. This
check is to cover all the MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC
PISTON PUMP)’S spray equipment, as well as the correct operation of all the equipment’s

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
12
safety systems. If everything is as it should be after the service check, further service checks
are to be carried out every six months until the end of the guarantee period. After the
guarantee expires, the frequency of service checks will be agreed with the client.
The revisions to be carried out by the maintenance staff of the company responsible for
acquiring the MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON
PUMP) spray equipment are aimed at verifying the correct operation of the equipment and
the early detection of possible problems. We recommend that such revisions be carried out
at least once a week:
Periodic revisions undertaken during the guarantee period will be charged to the customer.
Periodic maintenance:
1. Preventive maintenance every 7 days:
Check air suplly unit.
Check air leakage of pneumatic circuit.
Check filters.
2. Preventive maintenance every 30 days:
Check purges and safety pneumatic valves.
If an abnormality is found during these preventive maintenance, take appropriate measures
to correct them.
5. SAFETY RULES
In the design and manufacture of equipment have been taken into account the essential
safety requirements for machine safety directive 98/37/EEC.
6. DISASSEMBLY CONDITIONS
When you stop using the machine, contact to VALVER AIR SPEED service.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
13
MANUAL EXTERNAL MIX SET-UP CHART
EQUIPMENT IDENTIFICATION Nº: PURCHASE DATE:
DISTRIBUTOR: C
ontact:
CUSTOMER: Contact:
Customer phone: Fax/e-mail:
Factory Testing:
Technical: date:
Comprobación en cliente:
Technical: date:
DeliveryNoteNo
MIX CHARACTERISTICS
Manufacturer: Fund Finishing
Product to: Solvent-based Water-based
Resin Type: (polyurethane, acrylic, polyester, gel coat, etc.)
A Component Reference Viscosity % Formula for TOTAL % Formula for RESIN
Resin
Accelerator
Diluent
Other
B Component Reference Viscosity % Formula for TOTAL % Formula for RESIN
Catalyst
Diluent
Other
Mix formula Comments:
Resin temperature Absortion Viscosity Application Viscosity
ºC ºC
Catalyst temperature Absortion Viscosity Application Viscosity
ºC ºC
Heater Material
Set Tº Reached Tª
Belt ºC ºC
line ºC ºC
Heated hose ºC ºC
Air Heated hose ºC ºC

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
14
MANUAL EXTERNAL MIX SET-UP CHART
EQUIPMENT IDENTIFICATION Nº: PURCHASE DATE:
DISTRIBUTOR: C
ontact:
CUSTOMER: Contact:
MIX SETTING CHART
Resin model equipment Manometer scale
Catalyst model equipment Manometer scale
Gun model
External mix head model
Nozzle type
Gun spray air pressure
Material
Ambient temperature: ºC Ambient humidity: %
BEFORE CALIBRATING AFTER CALIBRATING
TEXT nº Threads
nozlle
Regulator gun
needle laps
Resin
pump
pressure
Catalyst
pump
pressure
Dose
catalyst
(g./ml.)
Dose
resin
(g./ml.)
%
catalyst/resin
1
2
3
4
5
6
7
8
Comments:
TEXT 1
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.
TEXT 2
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
15
PUESTA EN MARCHA MEZCLA EXTERNA MANUAL
TEXT 3
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.
TEXT 4
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.
TEXT 5
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.
TEXT 6
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.
TEXT 7
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.
TEXT 8
Piece dimensions
Weight part without appling g.
Weight part freshly applied g.
Weight part at 30 min g. Weight part at 60 min g.
Drying To contact min.
In package min.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
16
NOZZLE FLOW CHART
Flow (V)
The flow of a nozzle depends on a given fluid pressure nozzle inlet (the fluid
pressure in the nozzle). The rate may change due to pressure changes are
calculated using the formula:
Summary chart
Performance and the equivalent diameter of each nozzle size.
Equivalent
diameter, mm
L/min.
50 bar
L/min.
100 bar
L/min.
150 bar
L/min.
200 bar
L/min.
250 bar
0,13 0,065 0,092 0,112 0,130 0,145
0,18 0,124 0,176 0,215 0,249 0,278
0,23 0,203 0,287 0,352 0,406 0,454
0,28 0,301 0,426 0,521 0,602 0,673
0,33 0,418 0,591 0,724 0,836 0,935
0,38 0,554 0,784 0,960 1,109 1,240
0,43 0,710 1,004 1,230 1,420 1,588
0,45 0,778 1,100 1,347 1,555 1,739
0,48 0,885 1,251 1,532 1,769 1,978
0,53 1,079 1,525 1,868 2,157 2,412
0,58 1,292 1,827 2,237 2,583 2,888
0,63 1,524 2,155 2,640 3,048 3,408
0,66 1,673 2,365 2,897 3,345 3,740
0,68 1,775 2,511 3,075 3,551 3,970
0,73 2,046 2,894 3,544 4,092 4,575
0,78 2,336 3,304 4,046 4,672 5,224
0,84 2,709 3,831 4,693 5,419 6,058
0,89 3,041 4,301 5,268 6,083 6,801
0,94 3,393 4,798 5,876 6,785 7,586
0,99 3,763 5,322 6,518 7,526 8,415
1,04 4,153 5,873 7,193 8,306 9,286
1,09 4,562 6,451 7,901 9,124 10,201
1,14 4,990 7,057 8,643 9,980 11,158
1,19 5,437 7,690 9,418 10,875 12,158
1,24 5,904 8,349 10,226 11,808 13,201
1,29 6,390 9,036 11,067 12,779 14,288
1,32 6,690 9,461 11,588 13,380 14,960
1,35 6,998 9,896 12,120 13,996 15,647
1,40 7,526 10,643 13,035 15,051 16,828
1,45 8,073 11,417 13,983 16,146 18,051
1,50 8,639 12,218 14,964 17,278 19,318
1,55 9,225 13,046 15,978 18,450 20,627
1,57 9,464 13,385 16,393 18,929 21,163
1,60 9,830 13,901 17,025 19,659 21,979
1,65 10,453 14,783 18,106 20,907 23,375
1,70 11,097 15,693 19,220 22,193 24,813
1,75 11,759 16,630 20,367 23,518 26,294
1,80 12,440 17,593 21,548 24,881 27,818
1,83 12,859 18,185 22,272 25,717 28,753
1,85 13,141 18,584 22,761 26,282 29,385
1,91 14,007 19,810 24,262 28,015 31,322
Data base flow of wáter.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
17
VISCOSITY EVOLUTION IN ACCORDANCE WITH SOLVENT-BASED PAINTS TERMPERATURE
We recommend reducing resin viscosity in order to obtain optimum curing of both the
mixture and the final finish. The viscosity and the temperature can be reduced without
adding emission-increasing solvents to the mixture, thus ensuring compliance with the
applicable legislation.
Temperature (ºC)
CF4 VISCOSITY en seconds
2º 4º 6º 8º 10º 12º 14º 16º 18º 20º 22º 24º 26º 28º 30º 32º 34º 36º 38º 40º
27 26 24 23 22 21 21 20 19 18 18 17 17 16 15 15 14 14 14 14
33 31 29 27 26 25 23 22 21 20 19 18 18 17 16 16 15 15 14 14
39 36 34 32 30 28 26 24 23 22 21 20 19 18 17 17 16 15 15 14
46 42 39 36 34 31 29 27 26 24 23 22 21 19 18 17 17 16 15 15
54 49 45 41 38 35 32 30 28 26 24 23 21 20 19 18 17 17 16 15
58 51 47 43 40 36 33 31 29 27 25 23 21 20 20 19 18 17 16 16
61 55 50 46 42 38 35 32 30 28 26 24 22 21 20 19 18 17 16 16
69 63 56 52 46 42 39 35 32 30 28 25 24 23 21 20 19 18 17 16
77 69 62 55 50 46 41 38 35 32 29 27 25 24 22 21 19 18 17 16
84 74 67 61 54 50 44 40 36 34 30 28 26 25 23 22 20 18 17 16
95 84 75 66 60 54 48 44 40 36 33 30 28 26 24 22 20 19 18 17
104 92 81 73 65 58 52 46 42 38 35 31 29 27 24 23 21 20 19 18
112 100 88 76 69 62 54 49 44 40 36 32 30 27 25 23 21 20 19 18
122 108 90 85 75 66 59 53 47 42 38 35 31 28 26 24 22 21 19 18
132 120 102 90 80 70 63 55 50 44 40 36 33 30 27 25 23 22 20 18
142 124 108 95 84 74 65 58 52 46 41 37 34 31 27 25 23 22 20 18
152 132 119 101 90 80 69 61 54 48 43 38 35 31 28 26 24 23 21 18
164 140 123 106 94 83 73 64 56 50 45 40 36 32 29 27 24 23 21 19
If viscosity is 26 s at 18ºC, a drop of 10ºC will produce a viscosity of 34 s, while a rise to 40ºC will produce a
viscosity of 15 s.

INSTRUCTIONS MANUAL
MISTLAIR MANUAL EXTERNAL MIX EQUIPMENT (PNEUMATIC PISTON PUMP)
18 MAINTENANCE OPERATIONS
OPERATION PERIODICITY maintenance personal
DAILY WEEKLY MONTHLY* SEMIANNUAL*
* INDICATE THE DATE.
