VaporFlame VF6b User manual

VF6b Manual
Page of1 12
Rev. 2.0 11/20

1. Getting Started 3
What’s In the Box!3"
“Let’s Unpack That…”!3"
Powering Up!3"
Getting A Hold of Us!3"
2. Safety Instructions 4
3. Meet the VF6b 6
Main Features!6"
Product Description!6"
4. Setup 7
Attach 6b unit to the light source. (FIGS 1 & 2)!7"
Connect Power and Data to the 6b. (FIG 3)!7"
Set the DMX address. (FIG 4)!8"
Set Initial Air/Water Ratio (FIG 5)!8"
Connect air/water supply (FIG 6)!8"
Power the lighting fixture!8"
Adjust Air & Water Ratio (FIG 7)!9"
Nozzles (FIG 8)!9"
Storing the Unit!9"
5. A Few More Things 10
DMX!10"
Air & Water!10"
Warranty!11"
Tips and Tricks!12
Page of2 12
Rev. 2.0 11/20
Table of Contents

1. Getting Started
What’s In the Box
•1 x Really Amazing VF6b VaporFlame Effect Unit"
•1 x Power Cord"
•1 x VF6b Manual"
•1 x VaporFlame Bleeder Hose"
“Let’s Unpack That…”
Hey! Look at that! You are the proud owner of a shiny new VaporFlame fixture. You
now have the power to make “fire” from water- Pretty cool huh? As you unpack your
VaporFlame fixture from its shipping material make sure all the parts are present.
Inspect the unit for damage that may have occurred in transport. The VaporFlame
fixtures are pretty hearty, but sometimes accidents happen. Please keep the original
packing material for inspection. If a fixture must be returned to the factory, it is
important that it is sent in the original packing."
Powering Up
All fixtures must be powered directly offa switched circuit and cannot be run offa
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is
used solely for a 0% to 100% switch. "
The VaporFlame 6b requires an input voltage of 100-240 VAC, and has an internal
auto switching power supply. Be sure the input voltage applied to the fixture matches
these specifications. Irreparable damage may occur if the incorrect is voltage
supplied.
Getting A Hold of Us
If you need more information, or something goes wrong, please contact us at
www.vaporflame.net. We love talking shop and will be happy to troubleshoot any
challenges with you. Really!"
Disclaimer: The information and specifications contained in this document are subject!
to change without notice. VaporFlame Inc. assumes no responsibility or liability for any
errors or omissions that may appear in this user manual. VaporFlame Inc. reserves the
right to update the existing document or to create a new document to correct any errors
or omissions at any time. You can download the latest version of this document from
www.vaporflame.net. %
Page of3 12
Rev. 2.0 11/20

2. Safety Instructions
Please keep this User Guide for future use. If you sell the unit to someone else, be sure
that they also receive this User Guide. "
•ALWAYS make sure that you are connecting to the proper voltage, and that the line
voltage you are connecting to is not higher than that stated on the decal or rear panel
of the fixture. "
•NEVER use any liquid other than water in the unit. ONLY clean potable water should
be used. White vinegar may be added to prevent odors from forming. "
•DO NOT allow water to flow into the air line. This will cause damage to the unit"
•DO NOT allow water to remain in the fixture when not in use. This could cause an
unpleasant odor when used or bacterial growth in the water tubes. "
•In the event of an unpleasant odor the internal water tubes must be cleaned
immediately. "
•It is RECOMMENDED to add 2oz of white vinegar to every 5 gallons of water to clean
internal water tubes."
•ALWAYS bleed remaining water from unit before storing."
•The unit must be installed in a location with adequate ventilation."
•DO NOT place objects directly in the main effect plume as they may get wet. The
main plume is described as the part of the effect closest to the nozzle tip where the
water has yet to atomize. "
•ALWAYS secure unit and lighting fixture using separate safety chains. NEVER carry
the fixture by its head. Be sure the VaporFlame is secured to its light source. "
•PROTECT THE UNIT FROM FREEZING. DO NOT operate at ambient temperatures
lower than 20°F (-6°C) or higher than 104°F (40°C). DO NOT allow water to remain in
the unit with the unit OFF at ambient temperatures lower than 40°F (4°C)."
•In the event of a serious operating problem, stop using the unit immediately. NEVER
try to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts. "
•NEVER connect the device to a dimmer pack.Make sure the power cord is never
crimped or damaged."
Caution! There are no user serviceable parts inside the unit. Do not open the housing
or attempt any repairs yourself. In the unlikely event your unit may require service,
please contact us at at www.vaporflame.net. "
Page of4 12
Rev. 2.0 11/20

Page of5 12
Rev. 2.0 11/20

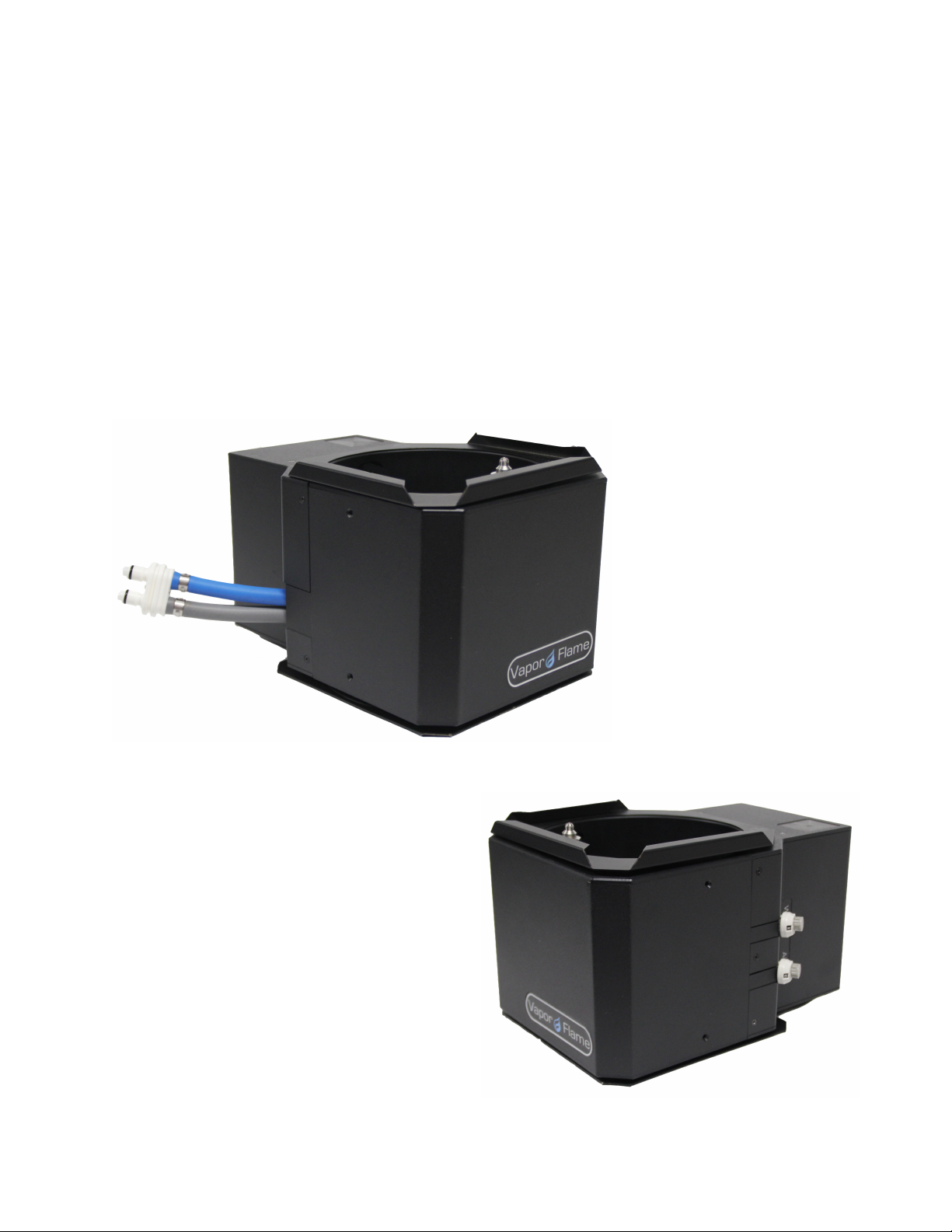

3. Meet the VF6b
Main Features
•5 inch to 5 foot adjustable “flame” effect"
•Adjustable valves for air and water"
•Safe Flame effect"
•Will not wet surrounding area- (when operated correctly.)"
Product Description
The VF6b is a flame effect&that&attaches to the standard 7.5-inch gel frame slot&on&an
LED Leko or Par,&fixture&turning a standard light into a VaporFlame effect fixture. &Our
most&versatile&fixture, the VF6b can create&a range of effects from&a low 5-inch flame to
a 5-foot blaze&and can be mounted at any angle.&"
&"
No heat&or&flammable&material&makes&the&VaporFlame safe to use in close proximity to
artists, gear, and scenic pieces. &"
&"
The VF6b takes 2 channels of DMX, for individual control of the air and water output.
&Adjustment dials allow the user to control the fullness of the flame from the unit,
creating the most realistic fake flame&available. &"
&"
Connected to any potable water line and air supply, the VF6b consumes&only 1/4th
gallon of water per hour and 1&cfm of air. VaporFlame fixtures atomize&their vapor
plumes so as not to collect on gear or surfaces. &"
Using the available adapter, the VF6b can be bolted to a Blizzard Lighting Tournado
fixture.%
Page of6 12
Rev. 2.0 11/20

4. Setup

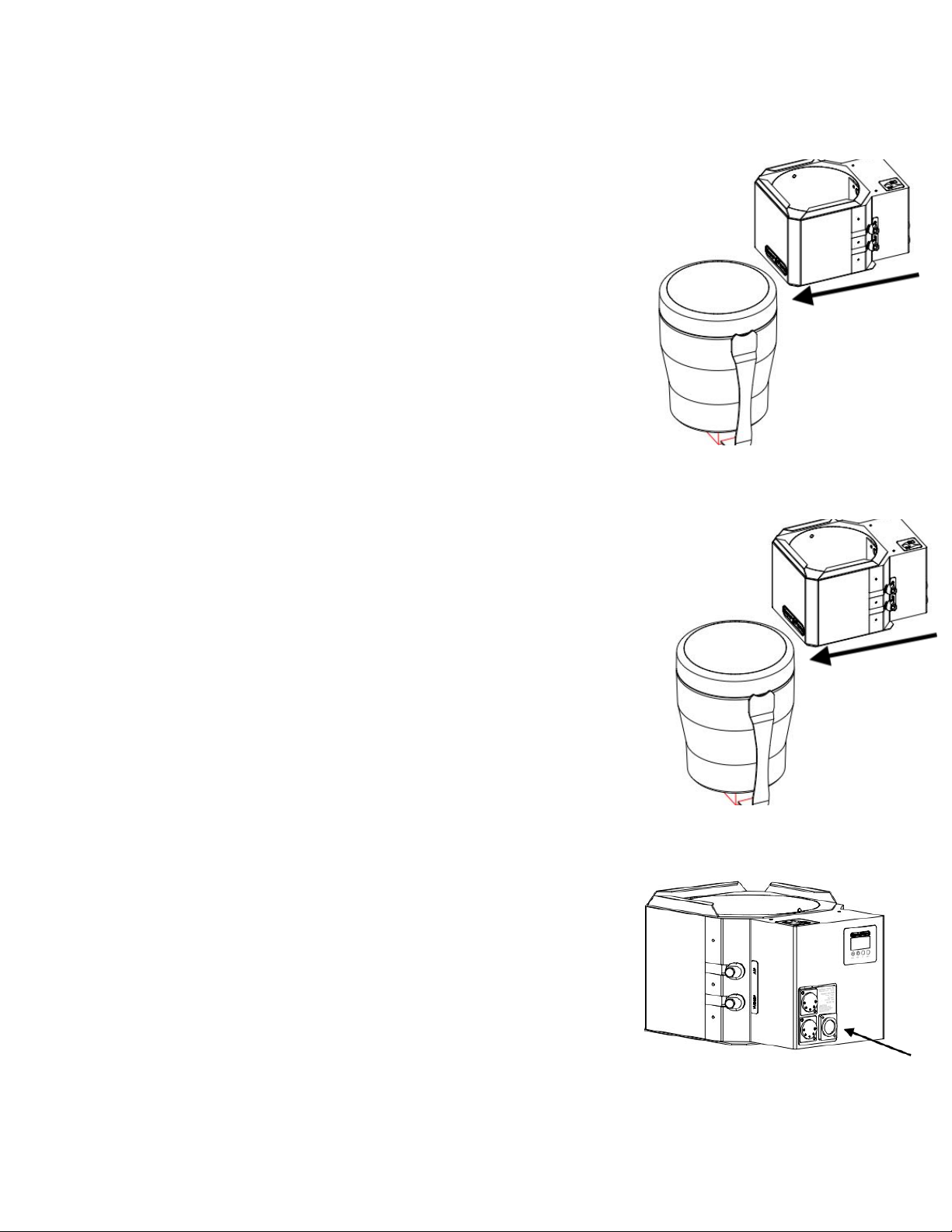

Attach 6b unit to the light source. (FIGS 1
& 2)
The 6b requires a 7.5”gel frame slot or VaporFlame
Mounting Adapter. (Sold Separately.)"
1. The bottom edge of the 6b unit slides into the standard
gel frame slot such as on a standard 6” Leko or many
LED Par fixtures. (outside dimensions of a standard 6
inch frame are 7.5” x 7.5”). FIG. 1"
2. Slide the edges of the 6b chassis all the way into the gel
frame slot."
-OR-
1. Attach the VaporFlame Mounting Adapter to the face of
your lighting unit using appropriate screws. FIG. 2"
2. Attach the VaporFlame chassis to the Mounting Adapter
using pan-head screws and safety nuts"
3. NOTE: VaporFlame Mounting Adapter will only fit
SELECTED units"
Connect Power and Data to the 6b. (FIG 3)
1. The 6b is powered by the included PowerCON True1
connector."
2. “Data In” and “Data Through” are via the 5 pin DMX
connectors."
3. Align the notches on the connector with the notches on
the unit’s power port, push in and turn clockwise until
the connector clicks into place."
4. The 6b requires an input voltage of 100-240 VAC."
5. The 6b draws 2.5 amps @110 VAC."
Page of7 12
Rev. 2.0 11/20
FIG. 2
FIG. 3
FIG. 1

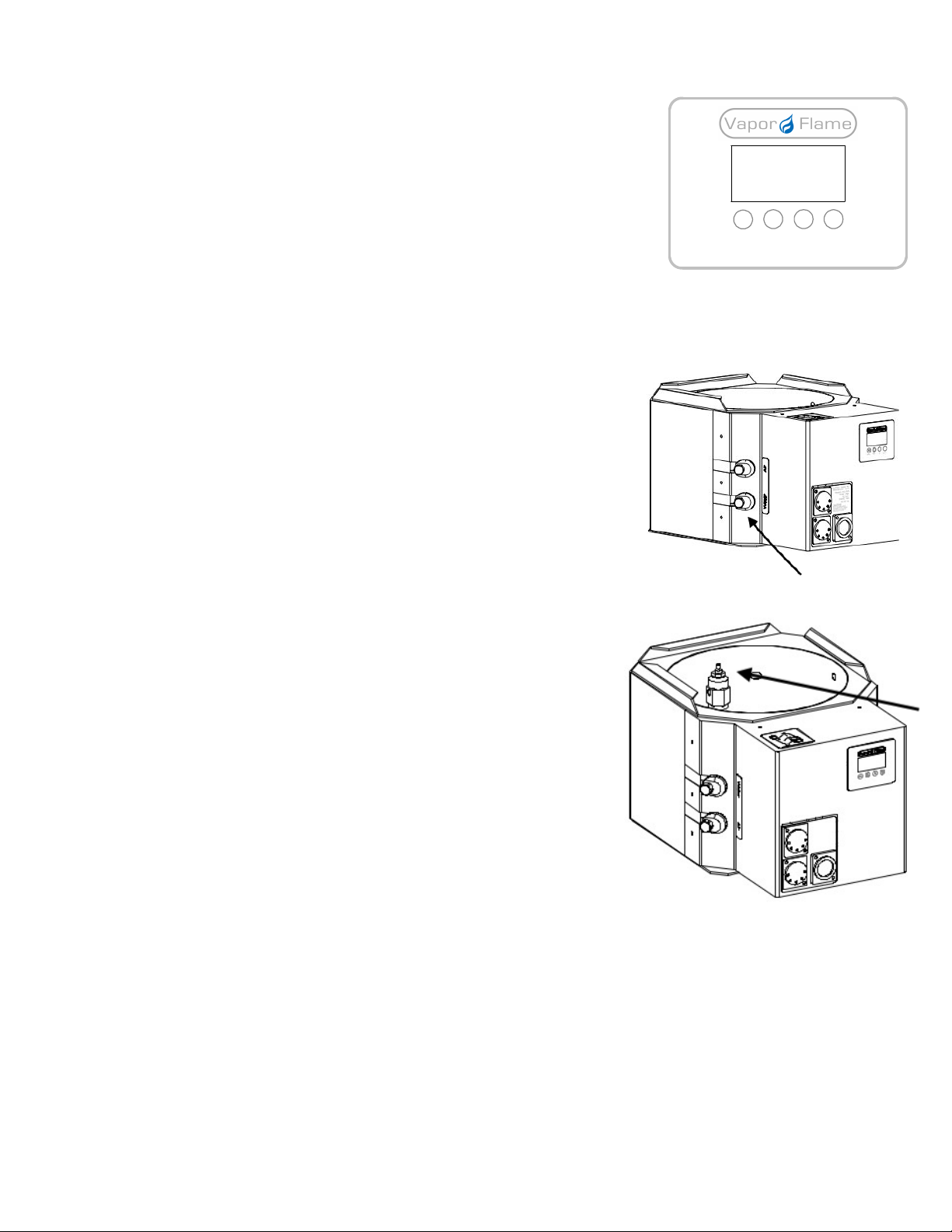

Set the DMX address. (FIG 4)
1. Choose MENU."
2. Use UP/DOWN buttons until D001 is displayed."
3. Choose ENTER"
4. Use UP/DOWN to select the desired start address."
5. Choose ENTER."
6. DMX start address is now set."
"
Set Initial Air/Water Ratio (FIG 5)
1. Set AIR to 7."
2. Set WATER to 2."
3. NOTE: We have found this to be the ratio that works best
to create a full effect plume with little or no water
collecting on the surrounding area. "
"
Connect air/water supply (FIG 6)
1. Prime the Water supply hose by allowing water to
flow freely thus bleeding the air from the water line. "
2. Align the notch on the air/water connector of the
supplied adaptor to the notch on the air/water
connector of the 6b."
3. Firmly seat the connectors until they click, and lock
into place."
4. Air supplied to the unit should be dry and free from air
compressor condensation."
5. NOTE: Do not cross the streams! Air and water
supply must not be reversed, this may cause
irreparable damage to the 6b unit."
6. NOTE: The supplied air should be set to 50psi.
(50-70psi is acceptable)."
7. NOTE: The supplied water should be a nominal sink
tap pressure, free from debris, and can be any potable water. Water line should
have a fine mesh filter to keep debris out of the 6b."
Power the lighting fixture
1. Power the lighting fixture per console manufacturer’s instructions."
2. NOTE: the 6b should be attached to an outdoor rated LED fixture. Conventional
lighting fixtures may heat up and damage the hoses. "
Page of8 12
Rev. 2.0 11/20
Keypad Label
Scale: Actual Size
2
Menu Enter Up Down
63mm
[63.00]
45.2mm
[45.20]
FIG. 4
FIG. 8

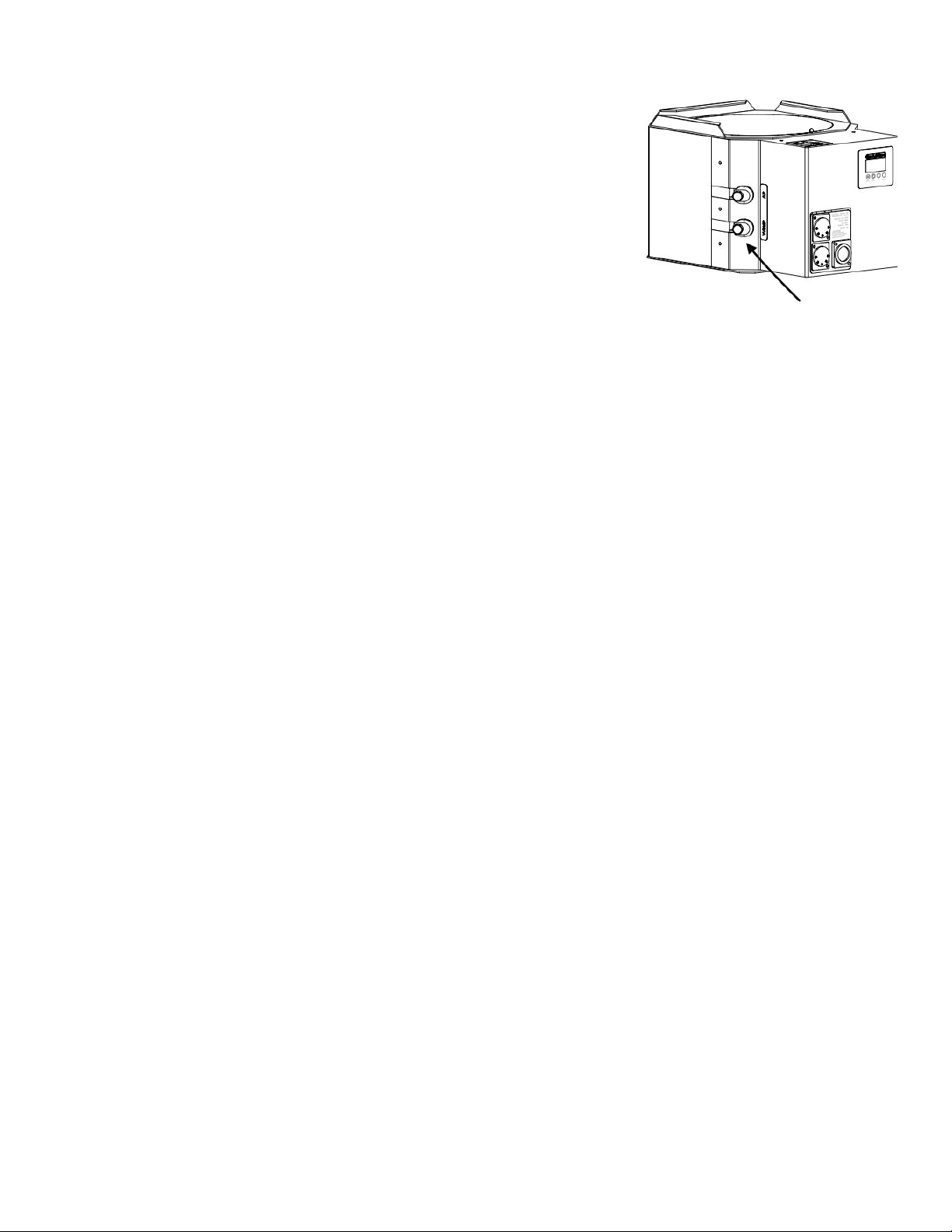

Adjust Air & Water Ratio (FIG 7)
1. Adjust the air and water via the variable valves on the
side of the unit to create the desired effect size and type."
2. Take into account any water accumulation on the
surrounding areas. The 6b is designed to create a full
plume of flame effect while maintaining a dry surrounding
area thus creating an effect that is safe to use near other
equipment. "
3. NOTE: If the Air supply is adjusted too low, the internal
piston mechanism of the 6b’s nozzle will activate and both
air and water output will be stopped. To restore air and water output, increase air
supply."
4. NOTE: Increasing the amount of air in relation to the amount of water will result in a
narrower, thinner effect, and will result in less or no water collecting on the
surrounding area."
5. NOTE: Increasing the amount of water in relation to the amount of air will result in a
wider, thicker effect, but could cause water to collect on surrounding area."
6. NOTE: Due to differences in relative humidity the effect may need to be adjusted for
more or less water. "
Nozzles (FIG 8)
1. Nozzle tips may be changed to create different effects. Use 12mm and 14mm
wrenches to remove and replace nozzle tips."
2. It may be necessary to clear a blockage if the nozzle becomes clogged. Use a
14mm wrench to remove the nozzle tip, and inspect for debris. "
3. A plume that is wide and not particularly tall is a sign that debris has entered the
nozzle and most likely collected on the inside of the tip. Remove the tip to clean
out debris. "
Storing the Unit
Be sure to drain remaining water from the unit before storage.
1. Briefly connect the air supply to the water in on the VF6b unit. This creates a
bubble of air to clear the water line."
2. Disconnect the air supply from the unit and reconnect correctly. Run the unit using
ONLY the air channel. Leave the water channel at 0. Run the unit until all of the
water is cleared from the effect plume. %
Page of9 12
Rev. 2.0 11/20
FIG. 7

5. A Few More Things
DMX
The VF6b uses 2 channels of DMX for control. The internal valves are not variable, they
are either ON or OFF. It is best to set these channels on the console to “NON-DIM”
channels. (See your lighting console manual for information on this.)"
Air & Water
The air compressor used to supply the VF6b with air should be in good working order
and supply clean dry air. Excessive moisture in the air supply can damage the VF6b
unit. If you are in an area with high ambient humidity, an air dryer should be installed
on the air compressor supply line. "
Any clean potable water can be used in the VF6b. In short, if you can drink it, so can
the VF6b! Debris in the water line can clog and damage the VF6b unit. We
recommend installing a filter for debris on the water supply line. "
The VF6b unit can be connected to a building’s water supply line. This will provide
fresh water to the unit. Standard building pressure as is supplied to a sink or faucet is
fine. "
Unpleasant odors can occur if water is left in the unit for extended periods of time.
IMMEDIATELY clean the unit if found odors are present. We recommend a solution of 2
oz of wine vinegar to 5 gallons of water run through the unit for 10-20 minutes. "
The recommended air pressure for the VF6b unit is between 50-70psi. We find the
best effect is when the air supply is set at 60 psi."
The VF6b Unit can be run from a water pump and tank when building water supply is
not feasible. The recommended water pressure supplied from the pump is 3.5 GPH. "
When setting up the unit, remember to prime the water supply hose by allowing water
to flow through the hose and out prior to connecting the water supply hose to the
VF6b. Air trapped in the water line could cause the unit not to function."
The air/water hoses are valved and need to be connected to flow. Connecting a
VaporFlame Bleeder Hose will allow you bleed air from the water hose or drain
remaining water from the hoses.%
Channel 1
AIR ON/OFF
Channel 2
WATER ON/OFF
Page of10 12
Rev. 2.0 11/20

Warranty
VaporFlame provides a limited warranty for all fixtures and engines."
Each fixture (VF6b) has a 2-year warranty, including parts and labor."
Warranty on each fixture is only valid if fixture was operated under normal conditions."
To apply for the warranty, the fixture must be shipped, at owners expense, to
VaporFlame. VaporFlame will then assess the fixture to evaluate the issue and
determine if the issue falls under the warranty. "
If VaporFlame determines the fixture is under warranty, then VaporFlame will correct the
issue and ship back to owner at VaporFlame’s expense. If VaporFlame determines the
fixture is not under warranty, VaporFlame will ship the fixture back to the owner at the
owners expense."
If VaporFlame determines the fixture is not under warranty, but the owner would like to
VaporFlame to correct the issue, the owner will be charged time and materials.
VaporFlame will provide an estimate to the owner to correct the issue and the owner
must pay prior to VaporFlame correcting the issue. Once the issue on the fixture has
been addressed, VaporFlame will ship the fixture back to the owner at the owners
expense."
Warranty for light fixtures falls under the light fixture manufacture’s warranty and not
under VaporFlame."
Page of11 12
Rev. 2.0 11/20

Tips and Tricks
Page of12 12
Rev. 2.0 11/20
VF6b Tips and Tricks
I want a cool flickery effect
1. While the effect is running, bump the water channel (channel 2) on/off
from the control console."
2. Water remaining in the 6b will run through and the plume will die
down."
3. Bumping the water channel on the control console will cause the
plume “flare up”.
I want a tall effect.
1. Set the air valve on the unit to 7"
2. Set the water valve on the 6b to 2-3"
3. Fire the effect
I want a low flame.
1. Set the air valve on the 6b to 5"
2. Set the water valve on the 6b to 0-1
Nothing is coming out of the
nozzle.
1. Check the air supply"
2. Open the air valve on the 6b. Set above “5”"
3. Check to see if the air and water hoses are correctly connected to an
air and water supply"
4. Set the air pressure above 40 psi"
5. Check power"
6. Check data/control
Air is coming out of the nozzle,
but water isn’t coming out of the
nozzle.
1. Check water supply"
2. Open the water valve on the 6b"
3. Check to see if the air and water hoses are correctly connected to an
air and water supply"
4. Pinch your fingers over the nozzle tip sealing the output of air and
then release. This can equalize internal pressure blockages"
5. Remove nozzle tip with a 12mm and 14mm wrench. Check for debris
blockage."
6. Check data/control
I am getting a plume of air/water
vapor, but it is minimal, or low
and wide.
1. Adjust the air to water ratio on the 6b. Too much air in relation to
water can cause a wide low plume"
2. Check air pressure. Air pressure should be 40-70 psi. (45-50 psi Is
ideal!)"
3. Remove nozzle tip with a 12mm and 14mm wrench. Check for debris
blockage.
The plume is really wet!
1. Adjust the ratio of air to water on the 6b. (Turn down the water valve
on the 6b)
The 6b lags when I try to turn it
offfrom the console. It doesn’t
“bump” offquickly.
1. Drain the condensation from your air compressor’s tank. Moisture
can cause the air valve to stick open.
I crossed the streams and now
the 6b won’t work
1. Don’t cross the streams!!"
2. Sending water into the air hose of the 6b will damage the internal air
valve. You can try letting the unit dry out for a few hours."
3. The air valve needs to be replaced by the manufacturer.
