15.0” Enclosed VESA Mount PC
Model VTPC150VHBR / VTPC150VSHBR
User’s Guide
Read these instructions completely before attempting to operate your new VESA Mount PC

19.0 Enclosed VESA Mount PC 486-0013-00-03
2
Revision History
Date Rev No Summary Page
01/07/09 00 First Issue
07/10/09 02 Revised Product Drawing, Detail A 7
08/05/09 03 Added VDC & VSDC versions 5 & 6

19.0 Enclosed VESA Mount PC 486-0013-00-03
3
Safety Instructions
Read the Safety Instructions carefully and keep it for use later.
The chassis metalwork of the module must be installed properly to the main earthing termination
for Class 1 equipment.
Care must be exercised in the application of the system to prevent overheating. Ensure that the
ambient temperature around the system does not exceed 60°C and provide adequate means of
ventilation to achieve this.
When cleaning cut off the electrical supply at all times. Never use liquid or aerosol detergent,
use a soft damp cloth instead.
Never insert anything metallic into the enclosure opening. This may create an electric shock
hazard or hazard from rotating fan blades.
To avoid electric shock, never touch the inside of the system. There are no user adjustable
components inside, only a qualified technician should open the system’s case.
Fins on the rear system enclosure are to allow for cooling. To prevent overheating, these fins
should not be blocked or covered.
If the system does not operate normally – in particular, if there are any unusual sounds or smells
coming from it – disconnect it immediately.
Do not put pressure on the LCD panel screen because it is very fragile.
Always handle the system with care when moving it.
Take care that the system is disposed of correctly at the end of its life. If in doubt refer to your
local ordinances or regulations for proper disposal.
A socket-outlet shall be installed near the equipment and shall be easily accessible.
Cleaning the LCD monitor
To clean the LCD panel:
Wipe the screen gently with a clean lens brush made of camel hair, or a soft, clean, lint free
cloth. This is to remove dust and other particles without scratching the LCD panel.
If it is still not clean, then wipe with a damp lint free cloth and blow on it to dry.
Desirable cleaners are water, IPA (Isopropyl Alcohol) or Hexane.
Do not clean the panel with a Ketone type material (e.g. Acetone), or Ethyl alcohol, Toluene, Ethyl
acid, Methyl chloride. These may permanently damage the polarizer due to chemical reaction.
Do not apply pressure to the LCD panel.

19.0 Enclosed VESA Mount PC 486-0013-00-03
4
Standard Technical Specifications:
LCD Monitor:
Size / Type 15.0” XGA TFT LCD
Native Resolution 1024 x 768
Contrast Ratio 450:1
Viewing Angles Horizontal: 75°
Vertical: 75°
Pixel Pitch 0.294mm
Brightness (typical) 1500 cd/m²
Response Time (typical) 12ms
Colors Supported 16.7 million
Standard Computer System:
Processor Intel® Atom™ N270, 1.6 GHz Processor with a 533 Mhz FSB
System Memory DDR2 533 SO-DIMM 2 GB (system max 2GB)
BIOS AMI BIOS
Hard Drive 500 GB SATA (system max 2x SATA)
Operating System Microsoft XP Professional (SP3)
Expansion Slots 1x PCI Express Mini Card
I/O Ports 1 Power Connector
1 LAN port (2 LAN Optional)
2 RS-232 COM port
2 USB 2.0 ports
1 Audio line-out
Graphics Intel Generation 3.5 integrated GFX Core (133Mhz)
LAN PCIe Realtek 8111CP GbE
Touch Screen Resistive
Touch Screen Interface Serial

19.0 Enclosed VESA Mount PC 486-0013-00-03
5
Dual Core Computer System:
Processor Intel Pentium Dual Core Processor T4500 2.30 GHz 800MHz FSB
System Memory DDR2 533 SO-DIMM 2 GB (system max 4GB)
BIOS AMI BIOS
Hard Drive 500 GB SATA (system max 2x SATA)
Operating System Microsoft XP Professional (SP3)
I/O Ports AC Power Inlet x 1
COMM Port x 2 (RS232)
USB 2.0 Port x 3
RJ45 LAN Port x 1
Graphics Intel GM 45 integrated graphics engine
LAN Realtek RTL8111B
Touch Screen Resistive
Touch Screen Interface Serial
Environmental:
Power Input 100-240 VAC 1.5A 50/60 Hz
Power Consumption
Standard:
Dual Core:
75W
68W
Temperature Operational: 14°F to 113°F -10°C to 45°C
Storage: -4°F to 149°F -20°C to 65°C
Dual Core Processor: 14°F to 104°F -10°C to 40°C
Humidity Operational: 0 to 90% RH NC
Storage: 0 to 95% RH NC
Installation of Your Enclosed VESA Mount PC
Packaged with each carton will be:
1 - VTPC150VHBR or VTPC150VSHBR
1 - Users Guide (Printed or on CD)
Cables Provided (Only cables pertaining to the ordered I/Os will be provided )
1 x AC power cable
1 x USB cable
2 x RS232 cable
2 x LAN cable
* Only one USB cable per order provided. Please inquire about additionally needed usb cables during ordering.

19.0 Enclosed VESA Mount PC 486-0013-00-03
6
BEFORE MAKING ANY CONNECTIONS OR APPLYING POWER,
FIRST READ THROUGH THE ENTIRE MANUAL
Mounting Procedure
VESA Panel Mounting Procedure:
1- Install the enclosure to a 100mm VESA mount pedestal.
2- Secure the enclosure using the screws and lock washers, supplied with the unit.
3- Tighten all mounting hardware to a torque of 15 inch-pounds.
ATTENTION: Mounting hardware must be tightened to a torque of 15 inch-pounds to provide a
proper panel mount and avoid potential damage. Vartech Systems assumes no responsibility for
water or chemical damage to the monitor or other equipment within the enclosure due to
improper installation.
4- Attach the power and system cables to the bottom side of the enclosure if you have not
already done so.

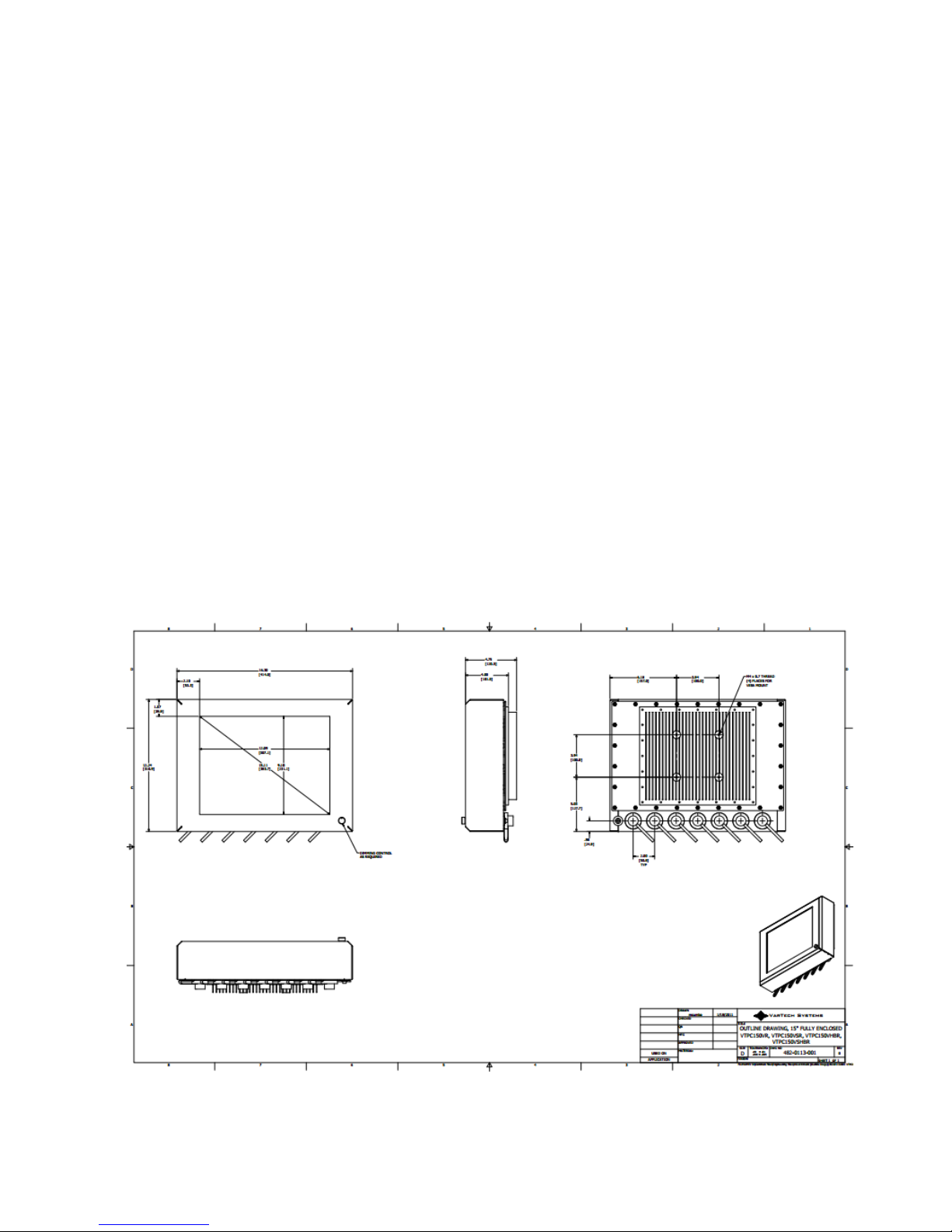

Product Drawing: Detail –A–

19.0 Enclosed VESA Mount PC 486-0013-00-03
7
Connections to the Enclosed PC
Bottom Rear View
- Connector Panel -
Power Connection (Power In)
The Enclosed VESA Mount PC includes an AC line cord which is 10ft long. The power input
receptacle is located on the bottom rear panel of the system.
Serial Connections (COM 1-2)
The Enclosed VESA PC is supplied with a serial connector configured for RS-232. The
connector is a 9 pin female connectors and can be set up for any baud rate from 300 to 19.2
baud. The system is supplied with two 10ft cable with a 9 pin D-shell connector is located on the
rear lower panel of the system.
Ethernet Connections (LAN)
The Enclosed VESA PC is supplied with integrated Ethernet. The interface will support
10/100/1000 BaseT connection to a local area network (LAN). The system is supplied with a
10ft cable with an RJ-45 female connector located on the rear lower panel of the system.
USB Connections (USB 1-2-3)
The Enclosed VESA PC is supplied with three USB 2.0 connectors. The system is supplied with
three 10ft cables with an USB (type B) connector which are located on the rear lower panel of
the system.

19.0 Enclosed VESA Mount PC 486-0013-00-03
8
Turning the system On and Off
Before connecting the Enclosed VESA Mount PC to power, connect any peripheral devices. As
a general rule, any peripheral device should only be connected or disconnected when the
Enclosed PC is off with the exception of any USB peripheral.
The Enclosed VESA Mount PC is turned on using the main power push button switch located on
the rear lower panel. Once the Enclosed PC main switch is turned on the computer power
pushbutton switch must be depressed for Windows to start. Windows must be properly shut
down before the main power switch is turned off to prevent the chance of corrupting files in the
operating system.
The Enclosed VESA Mount PC is rated for continuous duty. However, to extend the life of the
various components and conserve power, it is highly recommended that the system be properly
shut down and power turned off when the Enclosed VESA Mount PC is not in use.
LCD Monitor Warm-up Time
All LCD monitors need time to become thermally stable the first time you turn them on.
Therefore, to achieve more accurate adjustments for parameters, allow the LCD monitor to
warm (be on) for at least 20 minutes before making any screen adjustments.
Maintenance
The Enclosed VESA Mount PC is designed to provide optimum service and performance with
minimal maintenance including the occasional external cleaning. For cleaning the Enclosed
VESA Mount PC enclosure follow the suggested guidelines.
General – NEVER use abrasive cleaners or solvent-based cleaners!! Use a clean soft cloth.
The Enclosed VESA Mount PC should only be opened and serviced by a qualified technician.
Keep the area around the Enclosed VESA Mount PC clear and free of excessive dirt or other
contaminants.
For Additional Assistance
Contact Your VarTech Sales Representative
Vartech Systems, Inc.
11529 Sun Belt Ct.
Baton Rouge, LA 70809
800-223-8050
Fax: [phone]
www.vartechsystems.com
