VAS Furniture Mfg. Inc. AVC9001GB User manual

Model # AVC9001GB
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 1
50”TV Console
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this
item to the Retailer Store. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362 8:30 a.m. - 4:30 p.m. PST, Monday - Friday
ONLINE: www.whalenfurniture.com EMAIL: [email protected]
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
LOT No.:
DATE OF PURCHASE: / /
AVC9001GB

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 2
QUALITY GUARANTEE
We are confident that you will be delighted with your VAS Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use,
we will repair or replace it for up to 1 year from date of purchase. Every VAS Furniture
product is designed to meet your highest expectations. We guarantee that you will
immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which
vary from State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST Monday to Friday
www.whalenfurniture.com
MANUFACTURER: VAS Furniture
CATALOG: 50”TV Console (AVC9001GB)
DATE OF MANUFACTURE: August 2009
MADE IN CHINA
FITS UP TO MOST 56” FLAT PANEL TV’s
MAXIMUM LOAD 135 LBS
MAXIMUM SHELF LOAD 50 LBS
Notes: Flat Panel TV’s with base support should be placed squarely in the center
of the stand with no overhanging on either side.
This unit is intended for use only with the products and
maximum weights indicated. Use with other products or products heavier than
the maximum weights indicated may result in instability causing possible injury.

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 3
Parts & Hardware List
Please read completely through the instructions and verify that all parts listed are
present before beginning assembly.
A- Top Shelf Frame (1) B- Middle Shelf Frame (1)
C- Bottom Shelf Frame (1) D- Back Panel (1) E- Top Glass (1)
F- Glass Shelf (2) G- Front Frame (1)
H- Front Left Support I- Front Right Support J- Back Left Support K- Back Right Support
(2) (2) (1) (1)
(1)- Suction Cup (2)- 3/4”Bolt (24 pcs) (3)- 1 1/4” Bolt (4)- Lock Washer
(22+1 extra) (4 pcs extra for Floater) (9+1 extra) (29+1 extra)
(5)- Flat Washer (6)- Floor Leveler Allen Wrench Tipping Restraint Hardware Kit (1)
(29+1 extra) (2) (1) (Inside Plastic White Bag)
Tools Required: Allen Wrench (provided).

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 4
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts, then go back and
fully tighten all bolts, this will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and parts required.
2. Locate Back Panel (D) and set back face down on a non-abrasive surface as shown in detail
#1.
3. Align and attach three Shelf Frames (A, B & C) onto the Back Panel (D) using the 1 1/4”
Bolts (1) with Washers (4 & 5) through the back rail holes into the threaded inserts on Back
Panel. Make sure the metal tabs for suction on Shelf Frame are up. Fasten all bolts with
Allen Wrench provided. See detail #1.
4. Attach two Floor Levelers (6) to the bottom threaded inserts on the Bottom Shelf Frame (C)
for the necessary adjustment, as shown in detail #1.
Required hardware in this step
Description: (3)- 1 1/4” Bolt (4)- Lock Washer (5)- Flat Washer (6)- Floor Leveler
Sketch
Qty. (7pcs) (7pcs) (7pcs) (2pcs)
Tools Required: Allen Wrench

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 5
Assembly Instructions

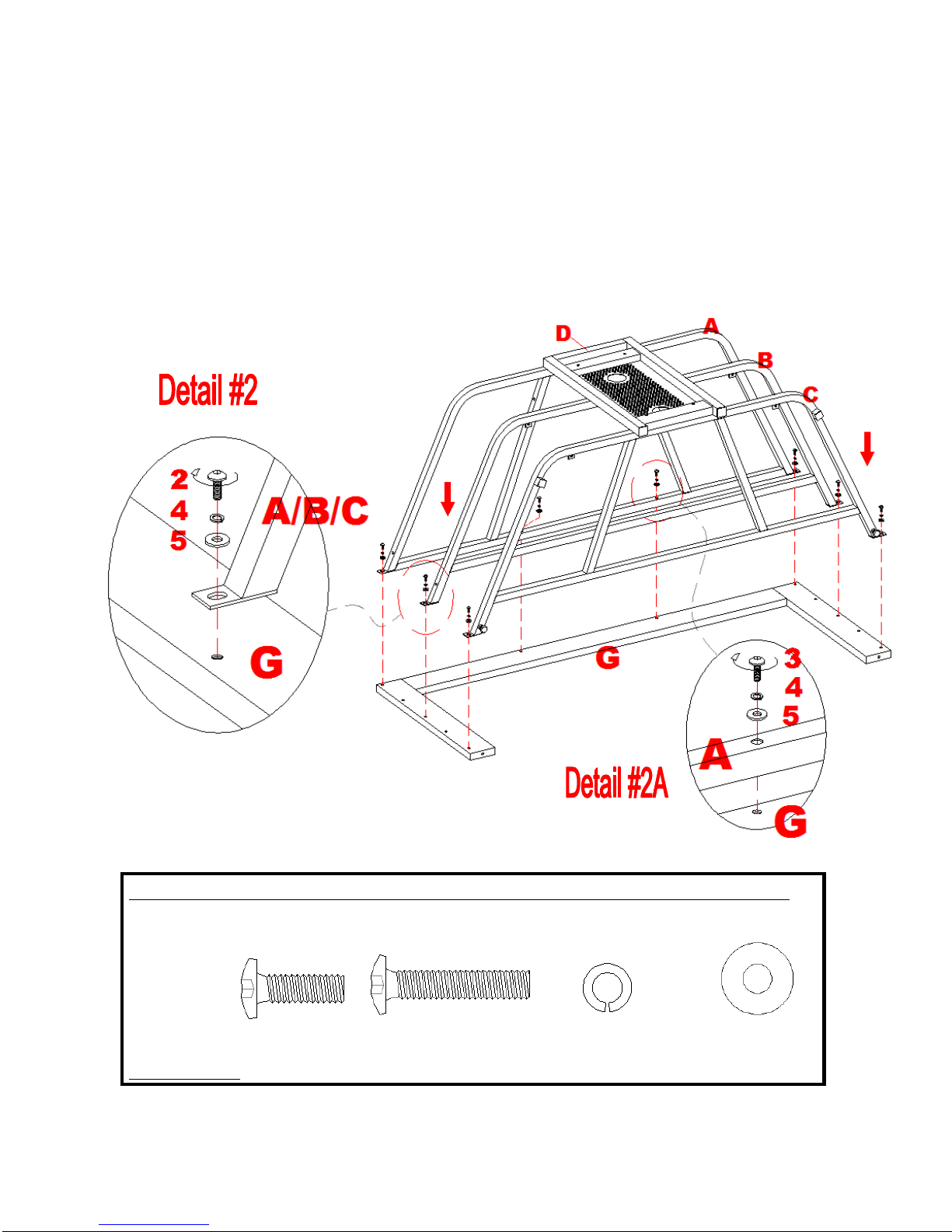

5. Align and attach Front Frame (G) to the Shelf Frames (A, B & C) using six 3/4” Bolts (2) with
Washers (4 & 5) through the end bracket hole into the threaded inserts on the Front Frame.
See detail #2.
6. Secure the Top Shelf Frame (A) with Front Frame (G) by inserting two 1 1/4” Bolts (3) with
Washers (4 & 5) into the pre-drilled holes on the front rail as shown in detail #2A.
Note: Make sure that the Front Frame is flush with the Top Shelf Frame.
Required hardware in this step
Description: (2)- 3/4” Bolt (3)- 1 1/4”Bolt (4)- Lock Washer (5)- Flat Washer
Sketch
Qty. (6pcs) (2pcs) (8pcs) (8pcs)
Tools Required: Allen Wrench

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 6
Assembly Instructions
7. Stand the unit upright.
8. To make the product stable, attach the Back Left Support (J) & Back Right Support (K) to
the Top Shelf Frame (A) and Back Panel (D) in place using the 3/4” Bolts (2) and Washers
(4 & 5), as shown in detail #3. DO NOT fully tighten the bolts.
9. Attach Front Left Support (H) & Front Right Support (I) to connect the Top Shelf Frame (A)
and the Front Frame (G) using the 3/4” Bolts (2) with Washers (4 & 5). See detail #3A.
10.Repeat last procedure with the Middle Shelf Frame (B). Now go back and fully tighten all the
bolts
Required hardware in this step
Description: (2)- 3/4” Bolt (4)- Lock Washer (5)- Flat Washer
Sketch
Qty. (14pcs) (14pcs) (14pcs)
Tools Required: Allen Wrench

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 7
Assembly Instructions

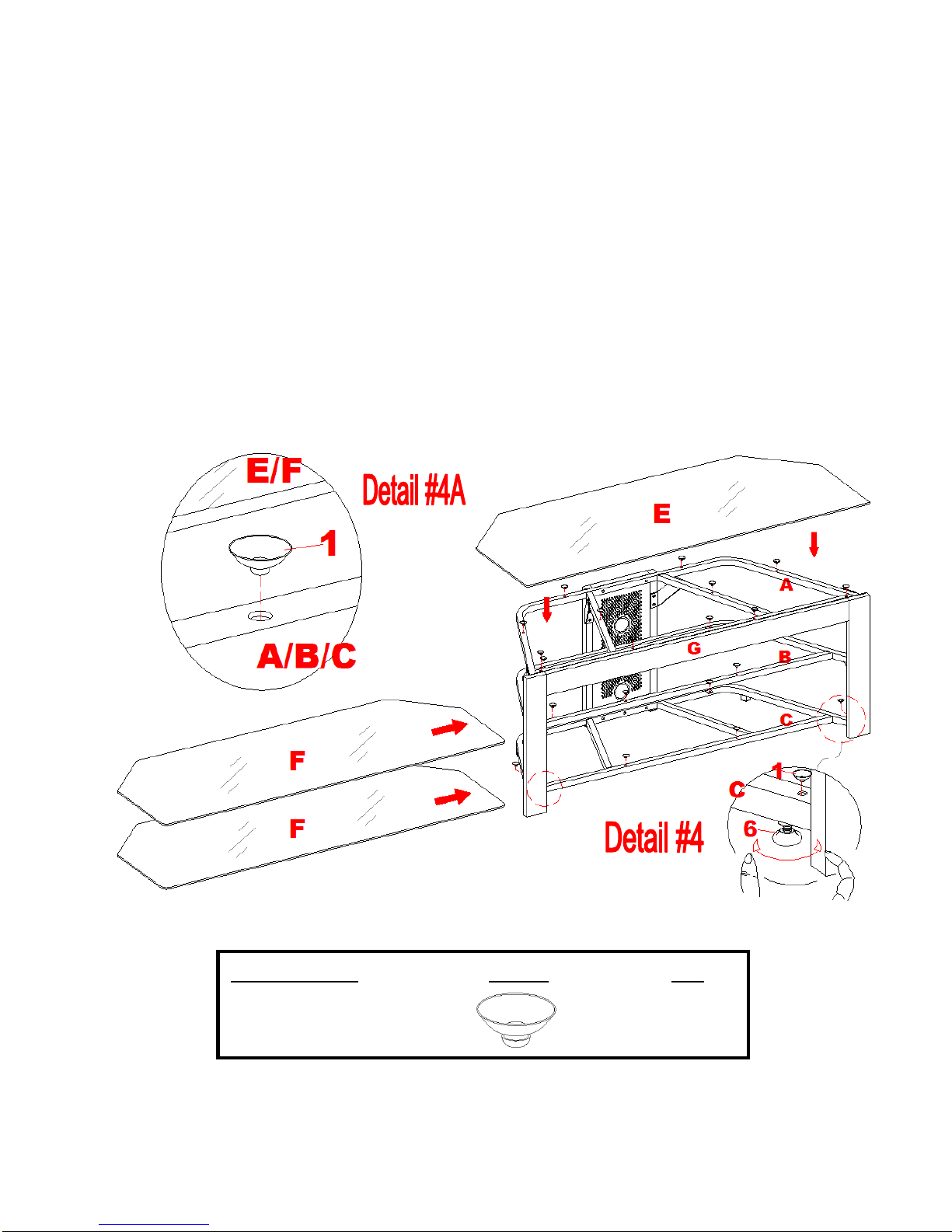

11.In case of uneven floor, simply tilt the unit back and adjust the Floor Levelers (6) attached at
the bottom of Bottom Shelf Frame (C) and correct tilting, until the unit is level. See detail #4.
12.Put the Suction Cups (1) firmly into the top holes of three Shelf Frames (A, B & C) in place.
Make sure the Suction Cups are inserted completely to prevent the glass shelf from falling
and getting damage. See detail #4A.
13.Insert the Top Glass (E) and Glass Shelves (F) in place as shown in detail #4A. Be sure the
Top Glass is centered of the unit.
Note: Make sure that the Glass sits securely on the top of Suction Cups and that the cut
edges of the glass point toward the back side of the unit. When you sliding the shelf in,
the glass shelf must go from the top of the suction cups, this can prevent the suction cups
stop the glass sliding. If glass is scratched you can minimize the damage by using a BLACK
marker and filling in scratched area from underneath.
Parts Provided Sketch Qty
(1) - Suction Cup (22)

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 8
Assembly Instructions
14.Position the assembled console on your desired location against the wall. Now follow the
instructions printed on the plastic white bag in order to mount the Tipping Restraint
Hardware Kit to the Back Panel (D) properly. As shown in detail #5.
NOTE: YOU MUST USE THIS TIPPING RESTRAINT TO ATTACH THIS UNIT TO THE
WALL, TO PREVENT ACCIDENTS AND/OR INJURIES.
15.The console is ready for use now. Be sure to position your TV in center of console with no
overhang on either side.
Tools Required: Allen Wrench (provided), Phillips Screwdriver, Mallet, Power Drill,
and 3/8” Drill Bit.

Model # AVC9001GB
Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg. Inc. Factory No. 33-10944 Page 9
Option #1: AS A TV STAND
You can use this unit as a TV Stand to place your TV or Stereo components.

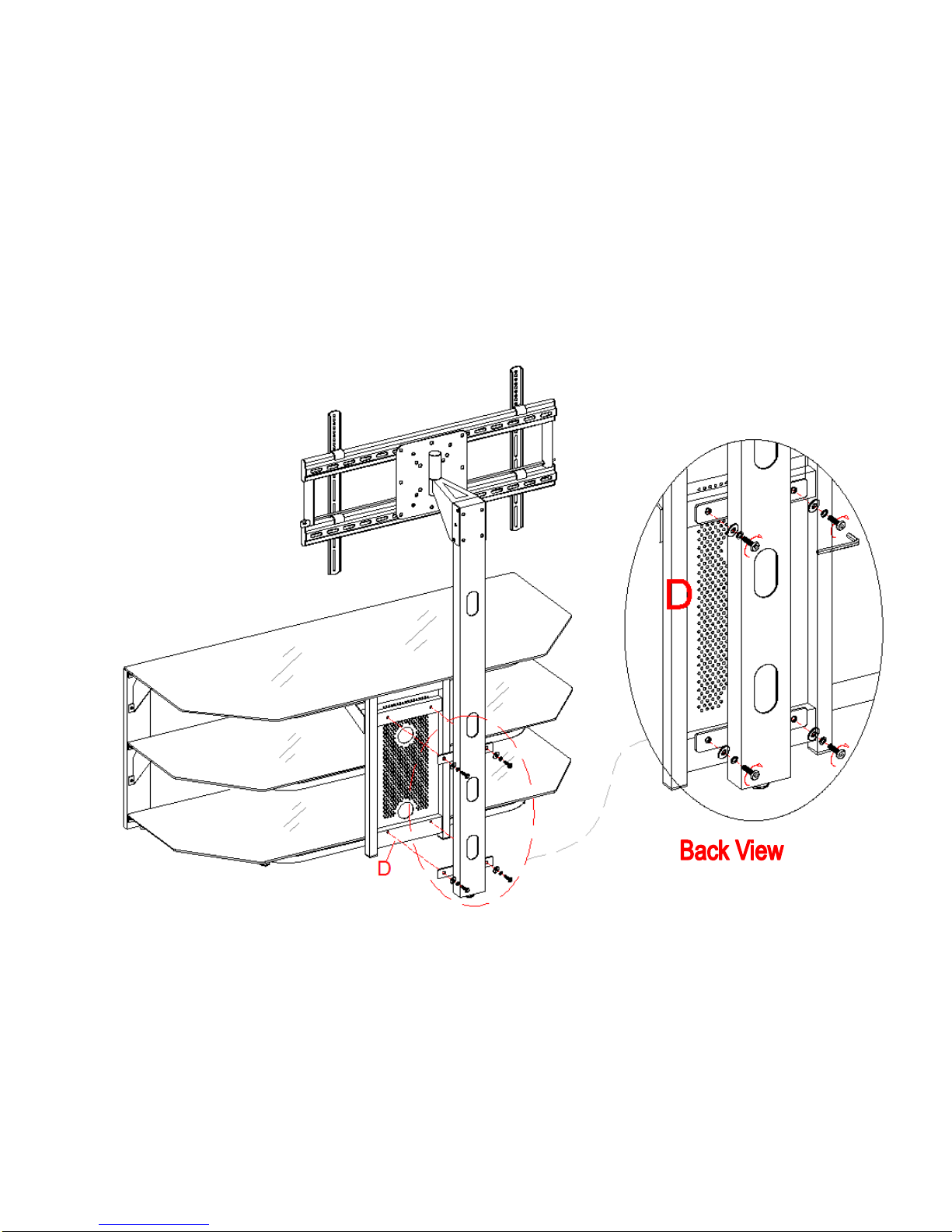

Option #2: TV STAND & SWINGING FLOATER
You can buy our Swinging Floater (sold separately) and combine with the Console. So you can
position your Flat Panel TV above the console and swivel left-or-right for optium viewing control.
Align and attach the metal plates on Swinging Floater Post to the back tubes of Back Panel (D) using four
3/4” Bolts (2) with Washers as shown below. Tighten the bolts with Allen Wrench provided.
Your assembly should now be complete.
Thank you for your purchase.

IF YOU NEED TO REQUEST ANY PARTS PLEASE USE THE LIST BELOW
50" TV CONSOLE (AVC9001GB)
*AVC9001GB-1-TSF Top Shelf Frame *AVC9001GB-12-CH Complete Hardware *AVC9001GB-2-MSF Middle Shelf Frame *AVC9001GB-13-SC Suction Cup *AVC9001GB-3-BSF Bottom Shelf Frame *AVC9001GB-14-3/4B 3/4” Bolt *AVC9001GB-4-FF Front Frame *AVC9001GB-15-1 1/4B 1 1/4” Bolt *AVC9001GB-5-BP Back Panel *AVC9001GB-16-LW Lock Washer *AVC9001GB-6-TG Top Glass *AVC9001GB-17-FW Flat Washer *AVC9001GB-7-GS Glass Shelf *AVC9001GB-18-FL Floor Leveler *AVC9001GB-8-FLS Front Left Support *AVC9001GB-19-AW Allen Wrench *AVC9001GB-9-FRS Front Right Support *AVC9001GB-20-TRHK Tipping Restraint Hardware Kit
*AVC9001GB-10-BLS
Back Left Support *AVC9001GB-21-PEC Plastic End Cap (for 20x20 tube)
*AVC9001GB-11-BRS
Back Right Support
