VAS Furniture Mfg. Inc. Pro-5 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 1
2 ADULTS REQUIRED FOR ASSEMBLING
If you have any questions regarding assembly or if you are missing
parts, do not return this item to Retailer Store
Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
1-866-942-5362
Pacific Standard Time: 8:30 am -4:30 pm Monday to Friday
or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenfurniture.com
or e-mail your request to [e-mail]
MODEL No.: PRO-5
LOT No.:
DATE OF PURCHASE:

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 2
QUALITY GUARANTEE
We are confident that you will be delighted with your VAS Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal
use, we will repair or replace it for up to 1 year from date of purchase. Every VAS
Furniture product is designed to meet your highest expectations. We guarantee that
you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights
which vary from State to State.
Customer Service: 1-866-942-5362
8:30 a.m. - 4:30 p.m. PST Monday to Friday
www.whalenfurniture.com
MANUFACTURER: VAS FURNITURE

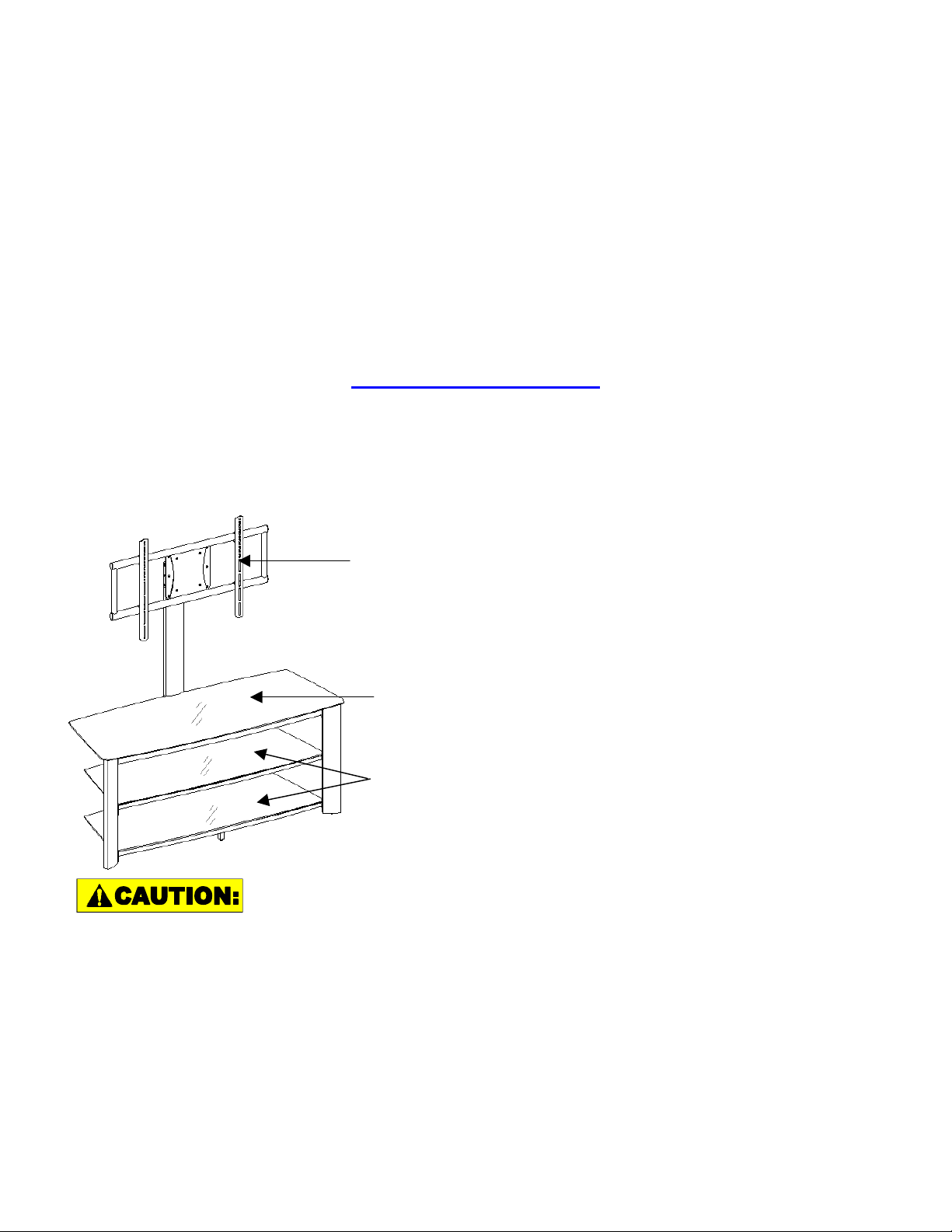

CATALOG: Flat Panel Console with Swinging Floater (PRO-5)
DATE OF MANUFACTURE: April, 2009
MADE IN CHINA
FITS UP TO MOST 56” FLAT PANEL TV’S
MAXIMUM LOAD 135 LBS
MAXIMUM LOAD 95 LBS
MAXIMUM SHELF LOAD 50 LBS
Notes: TV sets with base support should be placed squarely in the center of
the stand with no overhanging on either side.
This unit is intended for use only with the products and
maximum weights indicated. Use with other products or products heavier than the
maximum weights indicated may result in instability causing possible injury.

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 3

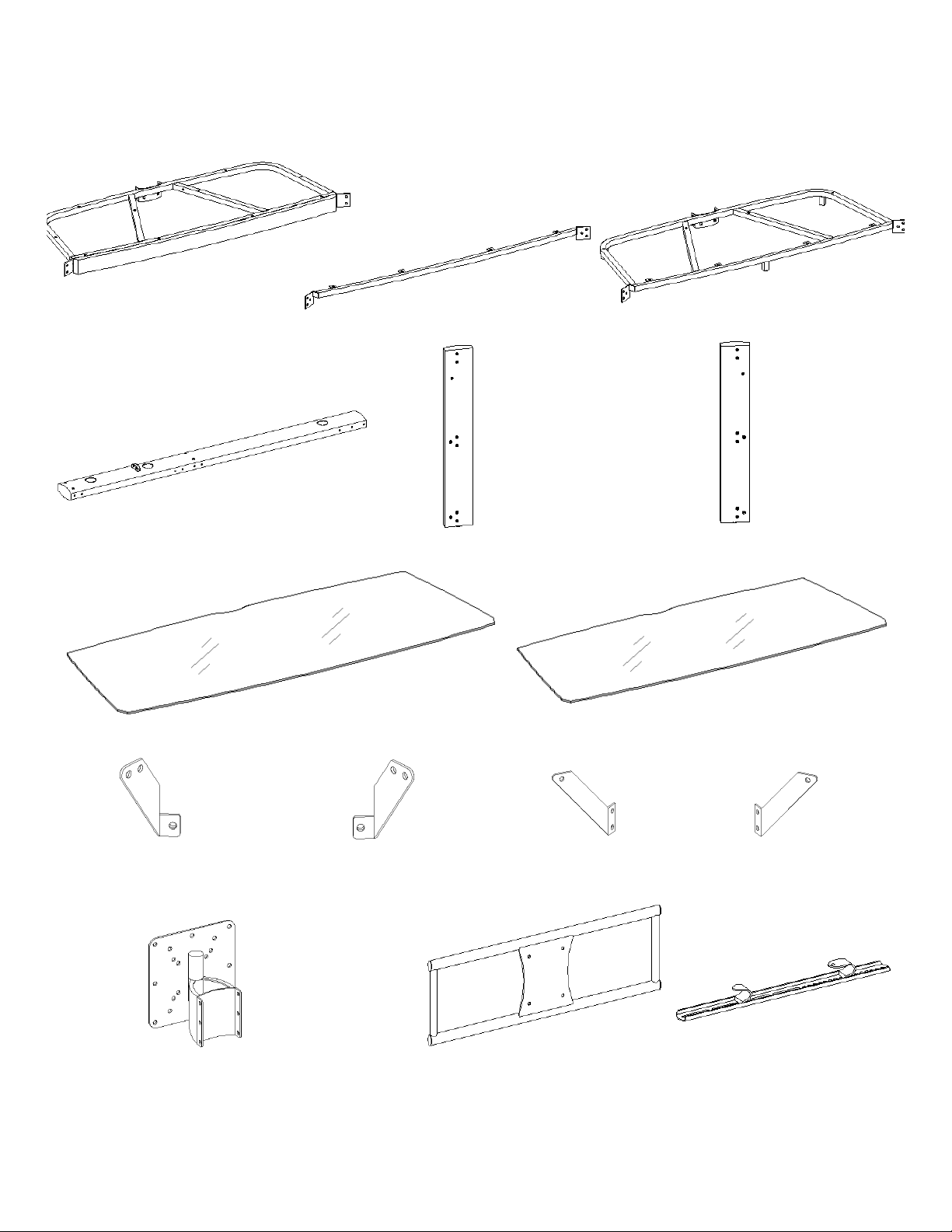

Parts List
Please read completely through the instructions and verify that all parts listed
are present before beginning assembly.
A-Top Shelf Frame (1) B- Middle Stretcher (1) C- Bottom Shelf Frame (1)
D- Spine (1) E- Left Leg (1) F- Right Leg (1)
G- Top Glass (1) H- Glass Shelf (2)
I- Front Left Support J- Front Right Support K- Back Left Support L- Back Right Support
(1) (1) (1) (1)
M- Deluxe Bracket with VESA Plate (1) N- XYZ Mounting Frame (1) O- Monitor Bracket (2)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 4

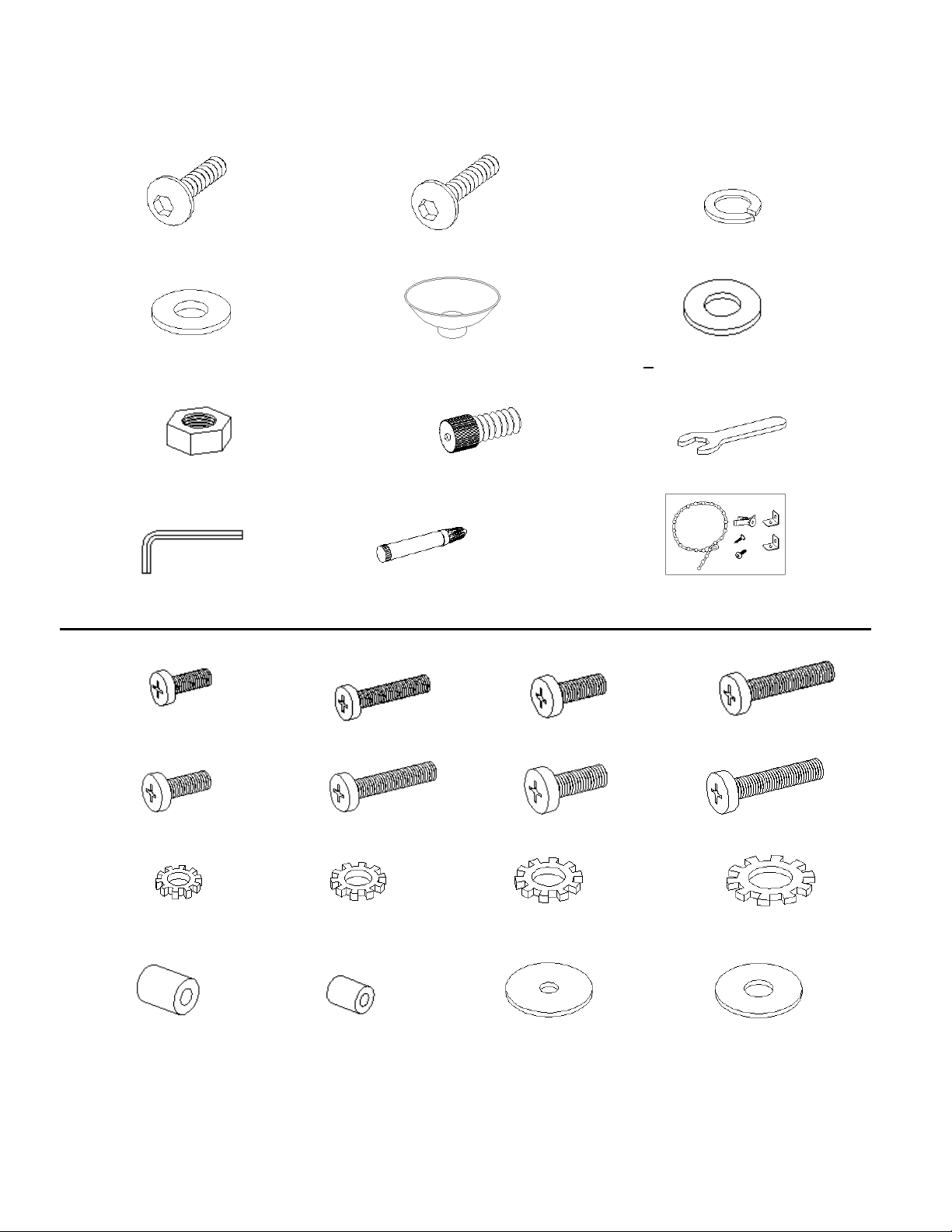

Hardware List
Please read completely through the instructions and verify that all parts listed
are present before beginning assembly.
(1)-5/8” Bolt (48+2 extra) (2)- 3/4” Bolt (4+1 extra)(3)- Lock Washer (50+2 extra)
(4)- Flat Washer (5)-Suction Cup (6)- Large Flat Washer
(46+2 extra) (22+1 extra) (8+1 extra)
(7)-Nut (4+1 extra) (8)- Set Screw (2pcs) Open Wrench (1pcs)
Allen Wrench (1) Touch Up Pen (1) Tipping Restraint Hardware Kit (1)
(Inside Plastic White Bag)
TV Mounting Kit
M4 x 12 Bolt (4)M4 x 30 Bolt (4) M5 X 12 Bolt (4) M5 x 30 Bolt (4)
M6 x12 Bolt (4) M6 x 35 Bolt (4) M8x16 Bolt (4) M8 x40 Bolt (4)
M4 Lock Washer M5 Lock Washer M6 Lock Washer M8 Lock Washer
(4) (4) (4) (4)
Large Spacer (4) Small Spacer (4) M4/M5 Flat Washer (8) M6/M8 Flat Washer (4)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 5
Tools Required: Allen Wrench (provided), Open Wrench (provided) and Phillips
Screwdriver.
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts, then go
back and fully tighten all bolts, this will make it easier during assembly of unit.
1. Unpack the unit and confirm that you have all the hardware and required parts listed.
2. Locate the Spine (D) and set back face down on a scratch free surface as shown in
detail #1.

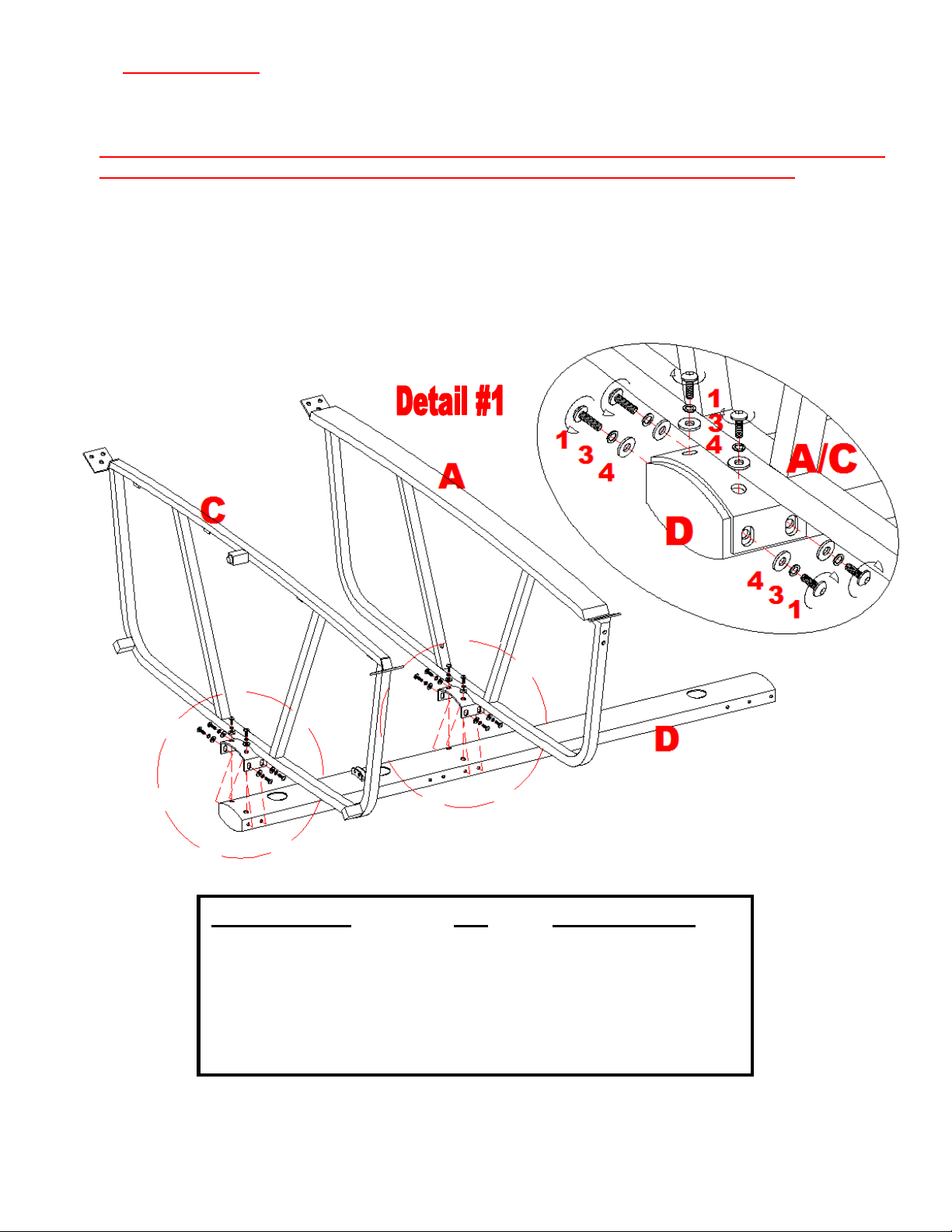

3. Align the “U” shape plate holes of Top and Bottom Shelf Frames(A & C) with the
threaded inserts onthe Spine (D) in place, attach with 5/8" Bolts (1) and Lock
Washers & Flat Washers (3& 4), six bolts per shelf frame. See detail #1.
Parts Provided Qty Tools Required
A- Top Shelf Frame (1) Allen Wrench
C- Bottom Shelf Frame (1)
D- Spine (1)
(1) - 5/8” Bolt (12)
(3) - Lock Washer (12)
(4) – Flat Washer (12)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 6
Assembly Instructions

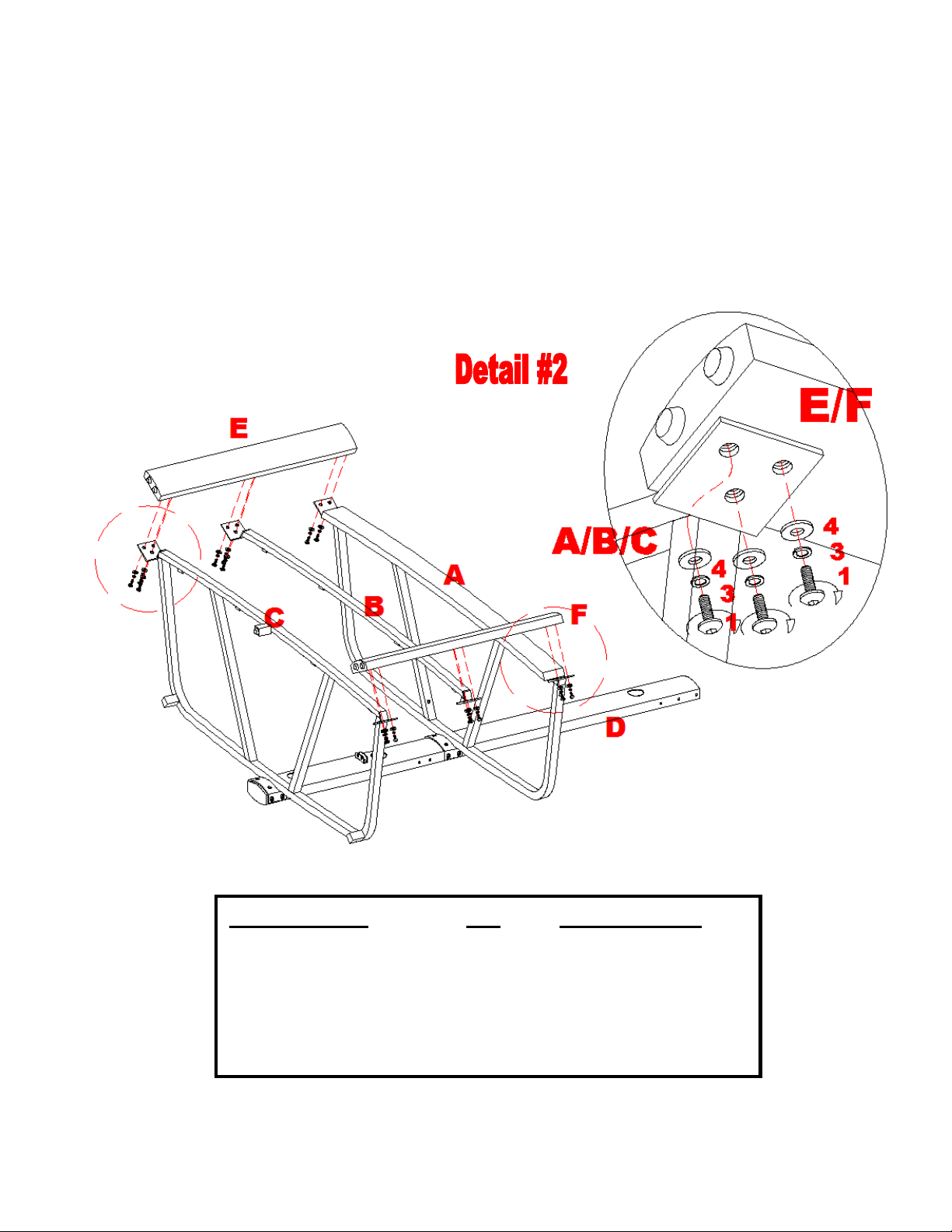

4. Attach Left Leg and Right Leg (E & F) to the Shelf Frames (A & C) using 5/8” Bolts (1)
with Washers (3& 4) through the end bracket holes as shown in detail #2. DO NOT
tighten the bolts. Make sure the gap and offsets between the wooden front rail of Top
Shlef Frame (A) and the Legs are the same. Loosen the bolts on the wooden front rail
and adjust if necessary.
5. Now align and attach the Middle Stretcher (B) between the Left and Right Leg (E & F)
in place using six 5/8” Bolts (1) and Washers (3& 4). See detail #2.
Parts Provided Qty Tools Required
B – Middle Stretcher (1) Allen Wrench
E –Left Leg (1)
F –Right Leg (1)
(1) - 5/8” Bolt (16)
(3) - Lock Washer (16)
(4) – Flat Washer (16)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 7
Assembly Instructions
6. Stand the unit upright.
7. For a stable structure, align and attach the Front Left & Right Support (I & J)in place
to connect the Top Shelf Frame (A) with both Legs (E & F) using 5/8” Bolts (1) with
Washers (3& 4), as shown in detail #3.
8. Align and attach the Back Left and Back Right Support (K & L) to the Top Shelf Frame
(A) and Spine (D) with the 5/8” Bolts (1) with Washers (3& 4), as shown in detail #3.
Parts Required Qty Tools Required
I- Front Left Support (1) Allen Wrench
J - Front Right Support (1)
K –Back Left Support (1)
L –Back Right Support (1)
(1) - 5/8” Bolt (12)
(3) -Lock Washer (12)
(4) -Flat Washer (12)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 8
Assembly Instructions
9. Go back and securely tighten all the bolts with Allen Wrench provided.
10.In case of uneven floor, Floor Levelers are provided at the bottom of Legs (E& F) and
front rail of Bottom Shelf Frame (C). Simply tilt the unit back and raise or lower floor
leveler by hand to correct tilting. As shown in detail #4.
Parts Required Tools Required
Pre-attached Floor Leveler No tool required

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 9
Assembly Instructions to attach Deluxe Bracket w/ VESA Plate
11.Attach Deluxe Bracket with VESA Plate (M) to the top of Spine (D) using six 5/8” Bolts
(1) with Lock Washers & Flat Washers (3& 4) as shown in detail #5.
Parts Required Qty Tools Required
M – Deluxe Bracket with VESA Plate (1) Allen Wrench
(1) – 5/8” Bolt (6)
(3) - Lock Washer (6)
(4) – Flat Washer (6)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 10
Assembly Instructions
Note: There are two mounting options included in this swinging floater TV console:
1. VESA Plate;
2. XYZ Mounting Frame to accommodate random hole patterns.

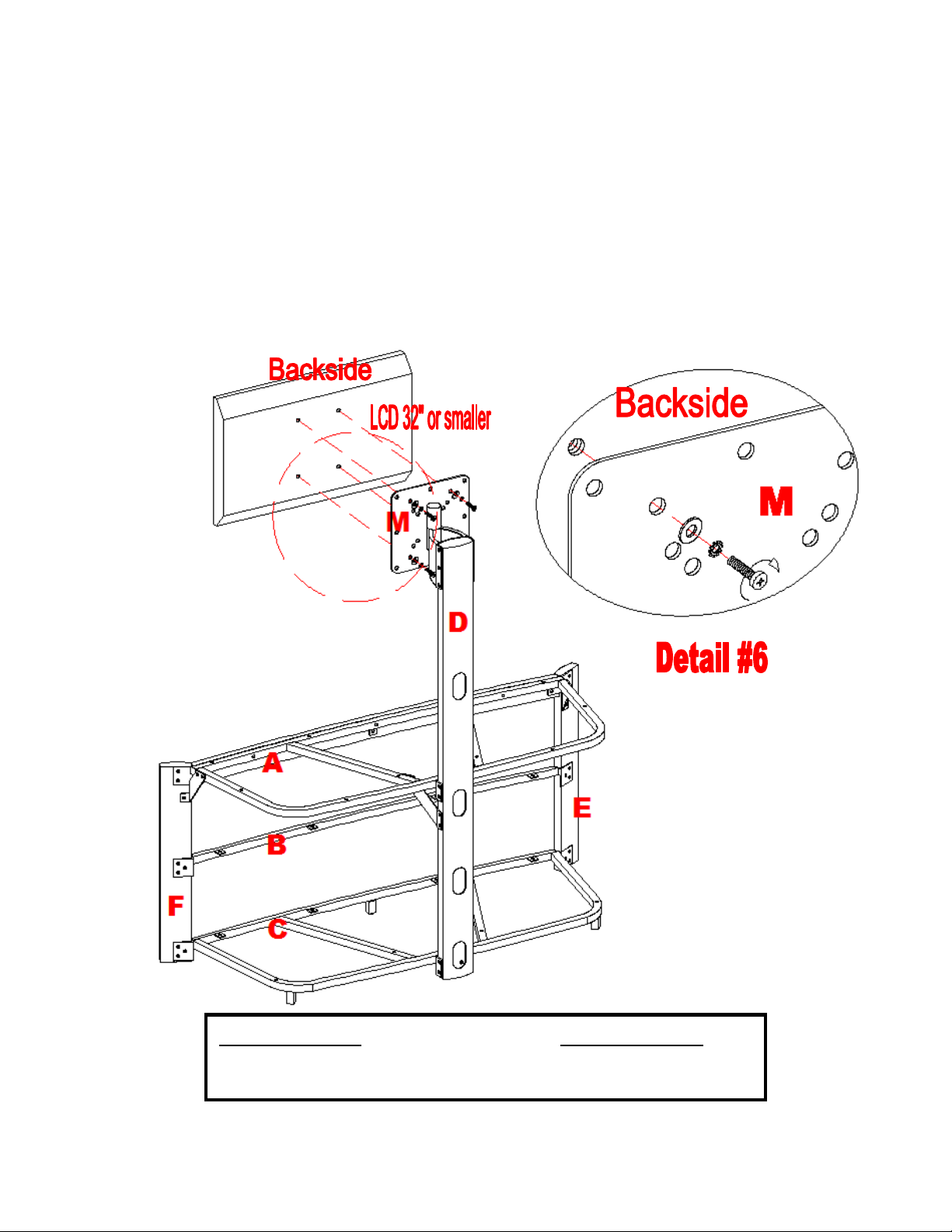

12.For LCD 32”or smaller you can mount your LCD directly to the Deluxe Bracket with
VESA Plate (M), using the appropriate Bolts through the Lock Washers and Flat
Washers through the proper holesof VESA Plate and then into the TV. See detail #6.
Note: Hand threading the bolt in the TV Mounting Kit included into the threaded insert on
the back of the TV to determine correct size bolt you will require. If you are unable to find
the correct one, consult a local hardware store.
Parts Required Tools Required
See TV Mounting Kit Phillips Screwdriver

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 11
Assembly Instructions
Note: For Plasma and LCD TVs larger than 32”, you must use the XYZ Mounting Frame (N)
provided. The XYZ Mounting Frame will accommodate large LCD without VESA Hole
Patterns and Plasma TV’s with Random Hole Patterns.
13.Attach XYZ Mounting Frame (N) to the Deluxe Bracket with VESA Plate (M), using 3/4”
Bolts (2) with Large Flat Washers(6) through the mounting plate and appropriate hole
set on VESA Plate, through the other Large Flat Washers (6) and Lock Washers (3)
then secure with Nut (7), as shown in detail #7.
Parts Provided Qty Tools Required
N – XYZ Mounting Frame (1) Allen Wrench
(2) – 3/4” Bolt (4) Open Wrench
(3)– Lock Washer (4)
(6) – Flat Washer (8)
(7) – Nut (4)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 12
Mounting Monitor Bracket to a television with a flat back
Note: For televisions with a curved back or recessed back proceed directly to step #17.

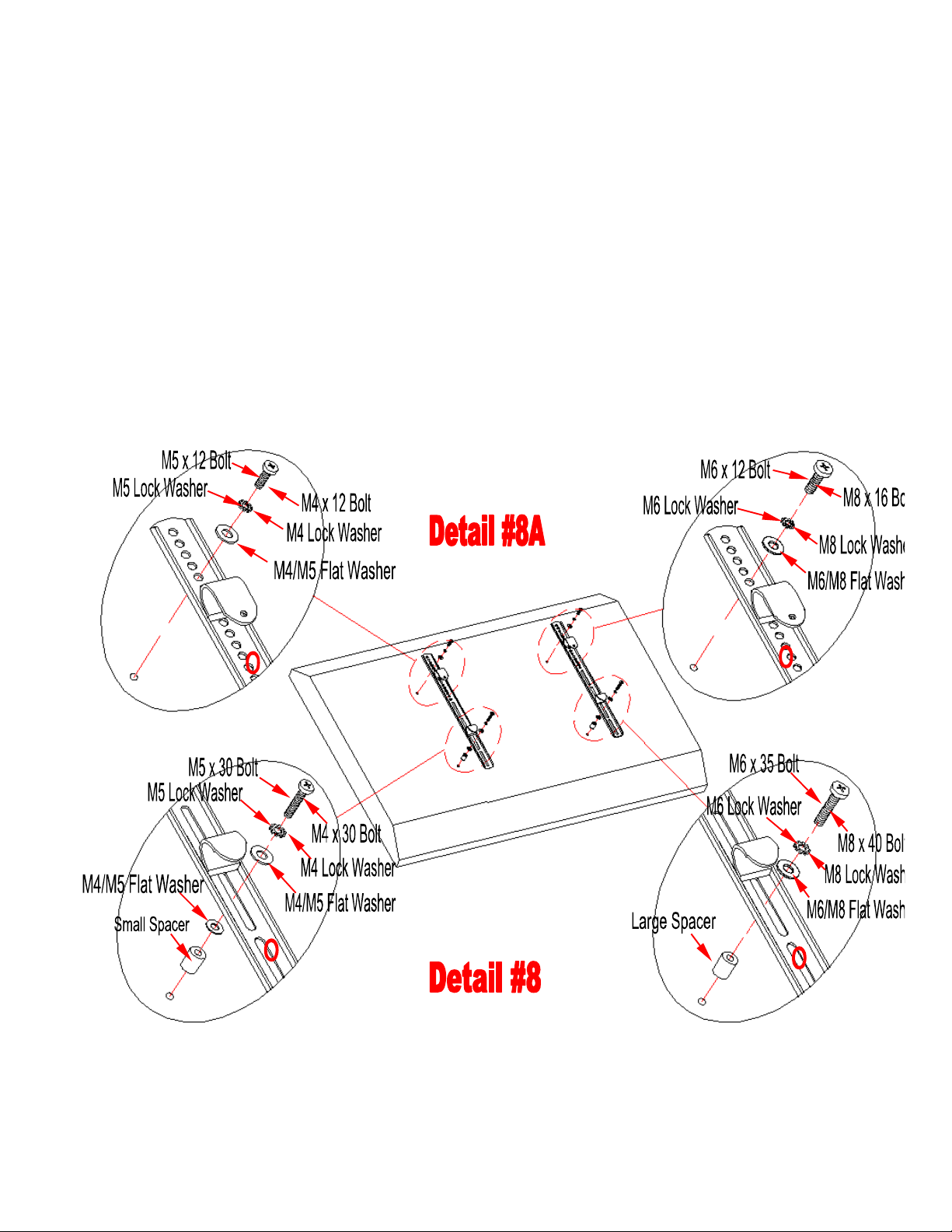

14.Please refer to detail #8& 8A to determine the correct size bolt your TV requires by
several try. If you are unable to find the correct bolt, consult a local hardware store.
15.Once you have determined the correct diameter Bolt, please follow the appropriate
Diagram below; Insert the selected short Bolt with Washersinto the upper holes of
TV. As shown in detail #8A.
Note: Lean the TV up against a wall or other solid surface when attaching with the
Monitor Brackets (O). DO NOT place the TV face down on the glass this may cause
permanent damage.
16.Proceed to insert the selected longer Bolt with Washers and Spacer into the bottom
holes of TV as shown in detail #8. Make sure the Monitor Brackets (O) are centered
and level with each other. Tighten the bolts securing the Monitor Brackets (O) to the
TV.

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 13
Mounting Monitor Bracket to a television with a curved / recess back

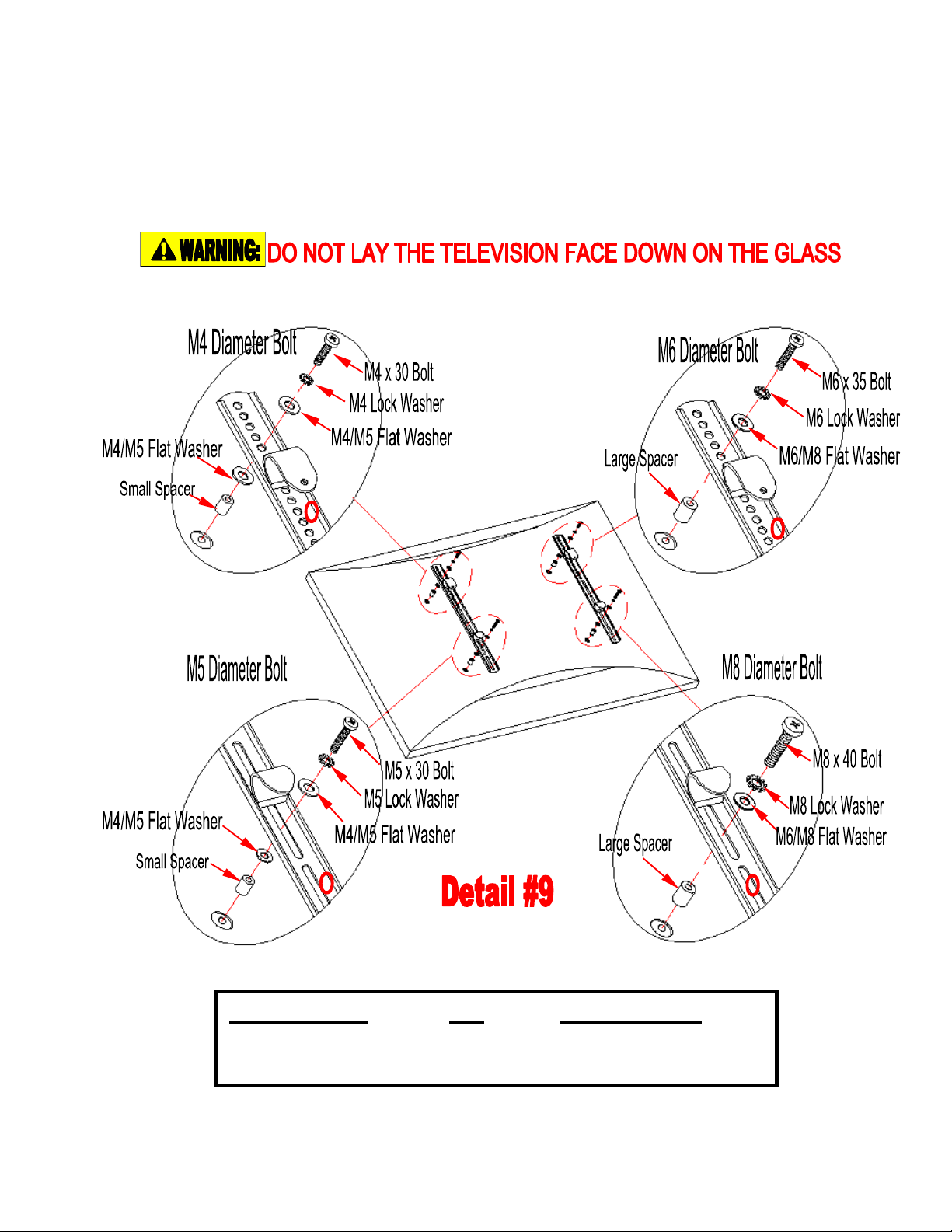

17.Please refer to detail #9to determine the correct size bolt your TV requires by several
try. If you are unable to find the correct bolt consult a local hardware store.
18.Once you have determined the correct size of Bolt, please follow the appropriate
Diagram below, and insert the longer bolt with appropriate Washers & Spacer as
shown in detail #9.
19.Make sure the Monitor Brackets (O) are vertically centered and level with each other.
Tighten the bolts securing the Monitor Brackets (O) to the TV.
Parts Provided Qty Tools Required
O – Monitor Bracket (2) Phillips Screwdriver
TV Mounting Kit

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 14
Assembly Instructions
20.Now you can hang your Plasma onto the XYZ Mounting Frame (N). For additional
safetyplease screw two 5/8”Bolts (1) into the upper hooks of Monitor Brackets (O) to
prevent TV from falling. See detail #10.
Parts Provided Qty Tools Required
(1) – 5/8” Bolt (2) Allen Wrench

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 15
Assembly Instructions

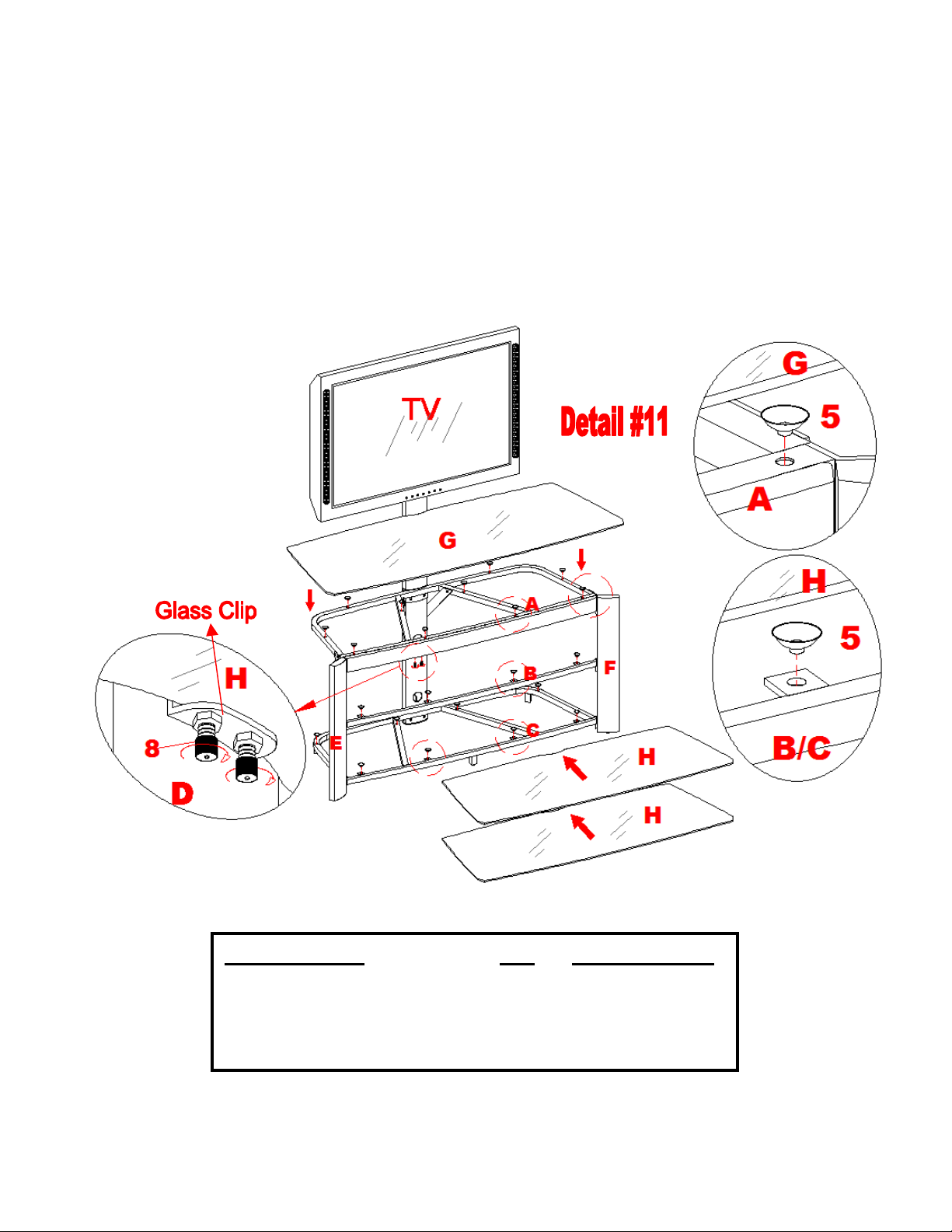

21.Insert the Suction Cups (5) into the top holes of Top & Bottom Shelf Frames (A & C)
and Middle Stretcher (B). Make sure theygo all the way in. See detail #11.
22.Insert the Top Glass & Glass Shelves (G& H) in place.Make sure the Glass Shelf sits
correctly and goes all the way against the Spine to prevent falling easily and getting damage.
Once the Middle Glass Shelf (with plastic filler over the back curve) is inserted all the way
into the “U” shape Glass Clip on the Spine, screw two Set Screws (8) into the Glass Clip to
secure the shelf in place. See detail #11.
Note: If glass is scratched you can repair by using a BLACK marker and filling in
scratched area from underneath.
Parts Provided Qty Tools Required
G- Top Glass (1) No Tool Required
H- Glass Shelf (2)
(5)- Suction Cup (22)
(8)- Set Screw (2)

Please call for replacement parts or assistance: 1-866-942-5362
VAS Furniture Mfg., Inc.
Factory No. 33-10944
Page # 16
TIPPING RESTRAINT HARDWARE
Note: We have included one Tipping Restraint Hardware bag for this Unit.
When properly installed, this restraint can provide protection against the unexpected
tipping of the Unit due to small tremors, bumps or climbing. We strongly recommend
mounting this hardware to a wall stud and your Unit when assembling and using
your console.
Please carefully read the instructions printed on the plastic white bag.
Note: You must install the Tipping Restraint Hardware with the unit in use to prevent
any accidents or damage to the unit.
Tools Required: Allen Wrench (provided), Phillips Screwdriver, Mallet,
Power Drill, and 3/8” Drill Bit.
A Touch-Up Pen has been provided to repair any small nicks or scratches that may
occur during assembly or shipping.
Your assembly should now be complete.
Thank you for your purchase.

IF YOU REQUIRED TO ORDER PARTS PLEASE USE THE LIST BELOW
Flat Panel Console with Swinging Floater (PRO-5)
*PRO-5-1-S Spine *PRO-5-27-M8LW M8 Lock Washer
*PRO-5-2-TG Top Glass *PRO-5-28-M4x12B M4 x 12 Bolt
*PRO-5-3-GS Glass Shelf *PRO-5-29-M4x30B M4 x 30 Bolt
*PRO-5-4-LL Left Leg *PRO-5-30-M5x12B M5 X 12 Bolt
*PRO-5-5-RL Right Leg *PRO-5-31-M5x30B M5 x 30 Bolt
*PRO-5-6-DBWP Deluxe Bracket w/VESA Plate *PRO-5-32-M6x12B M6 x 12 Bolt
*PRO-5-7-MB Monitor Bracket *PRO-5-33-M6x35B M6 x 35 Bolt
*PRO-5-8-MF Mounting Frame *PRO-5-34-M8x16B M8 X 16 Bolt
*PRO-5-9-PC Plastic Cover *PRO-5-35-M8x40B M8 x 40 Bolt
*PRO-5-10-5/8B 5/8” Bolt *PRO-5-36-TRHK Tipping Restraint Hardware Kit
*PRO-5-11-3/4B 3/4” Bolt *PRO-5-37-TUP Touch Up Pen
*PRO-5-12-SS Set Screw *PRO-5-38-1 3/4CA 1 3/4” Concrete Anchor
*PRO-5-13- SFW Small Flat Washer *PRO-5-39-2 1/2LB 2 1/2” Lag Bolt
*PRO-5-14- LW Lock Washer *PRO-5-40-CH Complete Hardware
*PRO-5-15-SC Suction Cup *PRO-5-41-FL Floor Leveler
*PRO-5-16-N Nut *PRO-5-42-RPG Round Plastic Grommet
*PRO-5-17-LFW Large Flat Washer *PRO-5-43-OPG Oval Plastic Grommet
*PRO-5-18-OW Open Wrench *PRO-5-44-MS Middle Stretcher
*PRO-5-19-AW Allen Wrench *PRO-5-45-BSF Bottom Shelf Frame
*PRO-5-20-SS Small Spacer *PRO-5-46-PEC Plastic End Cap
*PRO-5-21-LS Large Spacer *PRO-5-47-TSF Top Shelf Frame
*PRO-5-22-M4M5FW M4/M5 Flat Washer (for TV mounting) *PRO-5-48-WFR Wooden Front Rail
*PRO-5-23-M6M8FW M6/M8 Flat Washer (for TV mounting) *PRO-5-49-FLS Front Left Support
*PRO-5-24-M4LW M4 Lock Washer *PRO-5-50-FRS Front Right Support
*PRO-5-25-M5LW M5 Lock Washer *PRO-5-51-BLS Back Left Support
*PRO-5-26-M6LW M6 Lock Washer *PRO-5-52-BRS Back Right Support
