Data specific to your vehicle
Please enter your vehicle’s data here to keep it easily accessible.
This information is available under the section "Technical data" as well as on the identification plate.
Fuel
Designation
Engine oil
Grade
Viscosity
Tyre inflation pressure
Tyre size with up to 3 persons with full load
Summer tyres Front Rear Front Rear
Winter tyres Front Rear Front Rear
Weights
Permissible gross vehicle weight
– ECkerbweight
=Loading
Level control
Bumper Height see page 92

1
Your Corsa
Developed to the latest findings of vehicle research, it offers technical sophistication and exceptional comfort.
Your vehicle represents an ideal synthesis of advanced technology, outstanding safety, environmental compatibility and economy in
operation.
It now lies with you to drive your vehicle safely and to see it performs perfectly.
This Owner's Manual provides you with all the necessary information to that end.
The Owner's Manual should always be kept in the vehicle: ready to hand in the glove compartment.
Make use of the Owner's Manual:
zIts “In brief” section will give you an initial overview.
zIts index will help you find what you want.
zIt will familiarize you with the sophisticated technology.
zIt will increase your pleasure in your vehicle.
zIt will help you to handle your vehicle expertly.
The Owner's Manual is designed to be clearly laid-out and easily understood.
This symbol:
6signifies: continue reading on next page.
3The asterisk signifies equipment options not in all vehicles (model variants, engine options, models specific to one country, optional
equipment, Genuine Vauxhall Parts and Accessories).
Yellow arrows in the illustrations serve as points of reference or indicate some action to be performed.
Black arrows in the illustrations indicate a reaction or a second action to be performed.
We wish you many hours of pleasurable driving
Your Vauxhall team
Text highlighted in yellow in particular indicates possible risk of accident and
injury. Disregard of these notes can lead to injuries which may be fatal. Vehicle
passengers must be informed accordingly.

2

Contents
3
Commitment to customer
satisfaction:
Our aim: to keep you happy with your
vehicle. All Vauxhall Authorised Repairers
offer first class service at competitive
prices. Experienced, factory-trained
technicians work according to factory
instructions.Your Authorised Repairer can
supply you with GENUINE VAUXHALL-
APPROVED PARTS, which have undergone
stringent quality and precision checks, and
of course useful and attractive
VAUXHALL-APPROVED ACCESSORIES.
Our name is your guarantee!
For details of the
Vauxhall Authorised Repairer Network
please ring this number; 01582 - 427200
In brief ....................................................... 4
Instruments ............................................. 29
Keys, doors, bonnet ............................... 44
Seats, Interior .......................................... 56
Safety systems ........................................ 70
Lighting ................................................... 91
Windows, sun roof, folding top ............. 95
Climate control ..................................... 104
Easytronic ............................................ 116
Automatic transmission ...................... 122
Driving hints ......................................... 128
Saving fuel,
protecting the environment ............. 130
Fuel consumption, fuel, refuelling ...... 132
Catalytic converter, exhaust gases .... 134
Drive control systems .......................... 138
Brakes .................................................... 142
Wheels, tyres ......................................... 146
Roof racks,
caravan and trailer towing ............. 150
Self-help ................................................ 158
If you have a problem .......................... 194
Maintenance, Inspection system ....... 196
Vehicle care .......................................... 207
Technical data .................................... 212
Index ...................................................... 244

4
In brief
Key numbers,
code numbers
Remove key number from keys.
The key number is specified in the vehicle
documents and in the Car Pass 3.
Alloy wheels 3, towing equipment 3: make
a note of the key identifier codes.
Electronic immobiliser, radio 3: the code
numbers are specified in the Car Pass and
Radio Pass 3respectively.
Do not keep the Car Pass and Radio Pass in
the vehicle.
6Further information – see pages 44, 45.
Unlock driver’s door:
Turn key in driver’s door lock,
lift door handle
To unlock using radio frequency remote
control 3: Aim remote control at vehicle,
push button q, lift door handle.
Locking from the inside: press lock buttons.
6Door locks, child safety locks 3–
see page 44,
electronic immobiliser – see page 45,
radio frequency remote control 3 –
see page 46,
central locking system 3 – see page 48,
Vauxhall alarm system 3– see page 53.

5
To unlock luggage compartment:
Turn key clockwise as far as it will go
In order to avoid being locked out, the key
cannot be removed.
Position of key slot in lock:
– Horizontal Tailgate is
locked
and unlocked
together with the central
locking system 3.
– Vertical Tailgate is always
locked.
radio frequency remote control 3 –
see page 46,
central locking 3 – see page 48,
Vauxhall alarm system 3– see page 53.
Seat adjustment 3:
Pull handle,
slide seat,
release handle,
allow seat to audibly latch into
position
Never adjust the driver’s seat whilst driving.
It could move in an uncontrolled manner
when the handle has been pulled.
6Seat position – see page 56.
Adjusting seat backrest:
Turn handwheel
Move seat backrest to suit seating position.
Do not lean on seat backrest whilst
adjusting it.
6Seat position – see page 56.
Important: Do not sit nearer than 10
inches (25cm) from the steering wheel, to
permit safe airbag deployment.

6
Adjusting seat height 3:
Pull lever at side
Lift lever and remove weight from seat to
raise it or press down on seat with body
weight to lower it.
Never adjust the driver’s seat whilst driving.
It could move in an uncontrolled manner
when the lever has been pulled.
6Seat position – see page 56.
Folding down the seat backrests 3:
Raise release lever
To enter and leave the rear seat area, tilt
front seat backrest forwards.
6Seat position – see page 56.
Adjusting head restraint height:
Tilt forwards to release,
hold firmly and adjust height,
then release
6Head restraint position – see page 56,
further information, removal – see page 57,
rear head restraints 3 – see page 57.

7
Adjusting interior mirror:
Swivel mirror housing
Swivel lever on underside of mirror housing
to reduce dazzle at night.
Adjusting automatic anti-dazzle
interior mirror 3:
Swivel mirror housing
Dazzle at night is automatically reduced.
The mirror does not reduce dazzle when:
zThe ignition is switched off,
zreverse gear is engaged or selector lever
set to R,
zinterior lighting has been switched on.

8
Adjusting exterior mirror:
Swivel handle in any direction from
inside
6 Further information,
aspherical exterior mirror 3– see page 90.
Electrically adjustable exterior
mirrors 3:
Four-way switch in driver’s door
Toggle switch to left or right: four-way
switch moves appropriate mirror.
6Additional information,
aspherical exterior mirror 3 – see page 90,
heated exterior mirror 3– see page 19.

9
Fitting seat belt:
Draw seat belt smoothly from
inertia reel,
guide over shoulder
and engage in buckle
The belt must not be twisted at any point.
The lap belt must lie snugly against the
body. The backrest must not be tilted back
too far (recommended tilting angle
approx. 25°).
To release belt, press red button on belt
buckle.
6 Seat belts – see pages 71 to 75,
airbag systems 3– see page 76,
seat position – see page 56.
Disengaging steering column lock:
To release the lock,
move the steering wheel slightly
and turn the key to position I
Positions:
o= Ignition off
I= Steering released, ignition off
II = Ignition on,
with diesel engine: Pre-heat
III = Start (transmission in neutral)
6Starting – see page 23,
electronic immobiliser – see page 45,
remove key and lock steering wheel –
see page 24.
Steering wheel adjustment 3:
Swivel lever down,
adjust height,
swivel lever up,
engage
Adjust steering wheel only when vehicle is
stationary and steering column lock is
released.
6 Airbag systems – see page 76.

10

11

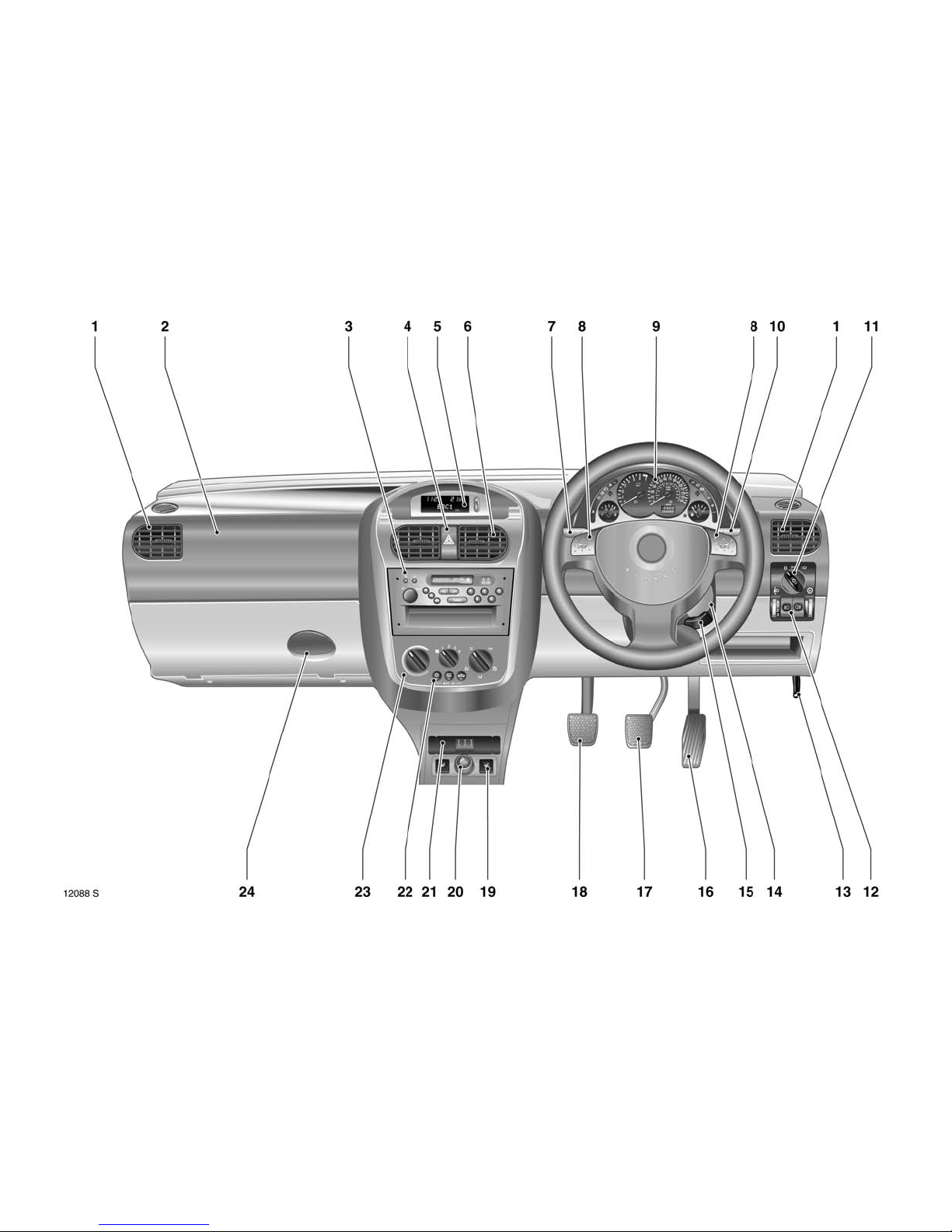

Page
1Side air vents ................................. 107
2Front passenger airbag 3.............. 76
3 Radio 3,
Infotainment system 3................... 42
4Hazard warning lights .................... 17
LED for
Vauxhall alarm system 3 ................ 53
5Display 3of time, date,
outside temperature,
radio 3,
Infotainment system 3................... 37
6Centre air vents .............................. 107
7Turn signals, headlight flash,
dipped and main beam ................. 15
Cruise control 3.............................. 140
8 Horn .................................................. 17
Page
9Instruments ...................................... 29
10 Stalk for windscreen wiper
and wash system,
headlight wash system 3and
rear window wash system 3........... 17
11 Light switch ................................ 15, 91
12 Headlight range adjustment 3 ...... 92
Fog tail light ..................................... 93
Front fog lights 3 ............................. 93
Instrument illumination ................... 93
13 Bonnet release lever ........................ 55
14 Ignition switch
with steering wheel lock ................... 9
15 Steering wheel adjustment 3........... 9
16 Accelerator pedal ................. 128, 129
17 Brake pedal ........................... 128, 142
18 Clutch pedal .................................. 129
Page
19 Heated seats 3............................. 107
20 Accessory socket or
cigarette lighter .............................. 67
21 Ashtray 3 ........................................ 68
22 Air conditioning system 3............ 106
Heated rear window 3 ............ 19, 106
Air recirculation system 3 ............ 106
23 Heating and ventilation ............... 104
Electronic air conditioning
system 3......................................... 111
24 Glove compartment ........................ 69
with telematics unit 3..................... 42
11

12
Control indicators
XSeat belt 3:
see page 29.
q Headlight range control 3:
see page 92.
>Front fog lights 3:
see pages 29, 93.
A Engine electronics,
immobiliser 3,
automatic transmission 3,
Easytronic 3,
fault:
see pages 29, 45, 136.
Z Exhaust emission 3:
see pages 30, 136.
v Airbag systems 3,
belt tensioners:
see pages 72, 81.
IOil pressure:
see page 30.
OTurn signal lights:
see pages 16, 31.
P Main beam:
see pages 15, 31.
!Glow plugs 3:
see page 31.
1 Automatic transmission 3,
sporty driving programme:
see page 124.
TAutomatic transmission 3,
Easytronic 3,
winter programme:
see pages 118, 124.
r Fog tail light:
see pages 31, 93.
pAlternator:
see page 31.
RBrake system,
clutch system:
see page 32.
u Anti-lock Brake System 3:
see page 144.
S Oil level 3:
see pages 32, 198.
EPS Electric power-assisted steering 3:
see page 32.
v Traction Control system 3,
Electronic Stability Programme 3:
see page 138.
g Trailer turn signal 3:
see page 32.
Y Fuel level:
see pages 32, 36, 158.
ySeat occupancy recognition 3:
see pages 81, 82.

13
Lighting
Light switch,
stalk positions:
see pages 15, 91.
7Lights off
8Parking lights
9Dipped and main beam
0Courtesy light:
see page 93.
PMain beam:
see page 15.
OTurn signal lights:
see page 16.
>Front fog lights 3:
see page 93.
r Fog tail light:
see page 93.
kInstrument illumination:
see page 93.
?Headlight range adjustment 3:
see page 92.
¨Hazard warning lights:
see page 17.
Heating, ventilation,
air conditioning system 3,
electronic air conditioning system 3
xAir flow:
see pages 105, 114.
Air distribution:
see pages 105, 113,
Vto windscreen and
front door windows,
Jto windscreen, front
door windows
and footwell,
Kto footwell,
Lto head area and footwell,
Mto head area.
Ü Heated rear window 3:
see pages 106, 113.
n Air conditioning system 3:
see page 106.
4Air recirculation system 3:
see page 106.
AUTO Automatic mode 3:
see page 112.
ECO Operation without cooling 3:
see page 113.
ß Heated seats 3:
see page 107.

14
Sun roof 3
lSun roof
opening / lowering:
see page 98.
\Sun roof
closing / raising:
see page 98.
Folding top 3
\Folding top
opening:
see pages 99, 101.
lFolding top
closing:
see pages 99, 101.
Windscreen wiper
Stalk positions:
see page 17.
§Off
$Interval operation or
automatic wiper with rain sensor 3
%Slow
&Fast
Date, time, radio
Information display 3:
see page 37.
ÖOn button for date
and time
;Setting buttons for date and time
Remote control for radio and
Infotainment system 3:
see page 26.
Miscellaneous
p Central locking system 3
locking:
see page 48.
q Central locking system 3:
unlocking:
see page 48.
)Cigarette lighter:
see page 67.
jHorn:
see page 17.
/Bonnet:
see page 55.
TWinter programme,
automatic transmission 3,
Easytronic 3:
see pages 118, 124.
+First Aid kit 3:
see page 162.
¨Warning triangle 3:
see page 162.

15
Light switches:
7= Off
8= Parking lights
9= Dipped or main beam
Push 0= Courtesy light
Push r= Fog tail light
Press >= Front fog lights 3
6 Further information – see page 91,
headlight warning device – see page 24,
headlight range adjustment 3–
see page 92,
daytime running lights – see page 91.
Switch on dipped or main beam:
Main beam = Move stalk forward
Dipped beam = Move forward
again
Headlight flash:
Pull stalk towards steering wheel

16
Operating door-to-door lighting1) 3:
Key to oand remove,
open driver’s door,
pull turn signal stalk towards
steering wheel
The dipped beam remains on for a further
30 seconds after closing the driver’s door.
If the driver’s door is left open, the lights will
go out after two minutes.
The door-to-door lighting can be cancelled
by inserting the key in the ignition switch or
by pulling the turn signal stalk to steering
wheel again.
Operating turn signal lights:
Stalk in rest position
Right = Up
Left = Down
When the steering wheel is turned back, the
stalk automatically returns to its original
position. This will not happen when making
a minor steering manoeuvre such as
changing lane.
When lane changing, move stalk to
resistance point. When released, the stalk
will spring back.
Operating cruise control 3:
Press buttons on stalk
Switch on: tap button I.
Switch off: tap button §.
Resume at stored speed: tap button R.
6Cruise control 3– see page 140.
1) "Door-to-door" light function.

17
Hazard warning lights:
On = Press ¨
Off = Press ¨again
To aid location of the pushbutton, the red
surface is illuminated when the ignition
switched on. When the button is pressed,
its control indicator flashes in time with the
hazard warning lights.
Horn operation:
Press j
6 Airbag systems 3– see page 76,
remote control for radio and
Infotainment system 3– see page 26.
Windscreen wiper:
Stalk up
§= Off
$= Adjustable interval
%= Slow
&= Fast
Setting wiper interval to a value between
2 and 15 seconds:
Stalk to interval switching $,
stalk to §,
wait for desired interval,
stalk back to interval switching $.
The interval remains stored until the next
change or until the ignition is switched off.
Switching the ignition off and moving the
stalk to $ sets the interval to 7 seconds.

18
Automatic wiper with rain sensor 3:
Move stalk up
§= Off
$= Automatic wiper
with rain sensor
%= Slow (constant)
&= Fast (constant)
Automatic wiping $: The rain sensor
detects the amount of water on the
windscreen and automatically regulates
the windscreen wiper.
Push stalk down to switch off.
If necessary, the positions % or &can be
selected manually.
Operating windscreen and
headlight wash systems 3:
Pull stalk towards steering wheel
The wiper will swipe for a few strokes.
The headlight wash system 3can be
operated when the lights are on.
On vehicles fitted with rain sensor 3, keep
the sensor area clean.
6Further information –
see pages 204, 210.
Operating rear window wiper and
wash systems 3:
Wiper on = Push stalk forward
Wiper off = Pull stalk towards
steering wheel
Wash = Push stalk forward
and hold
The rear window wiper swipes in timed
interval mode.
The wiper will swipe for a few strokes when
washing.
6Further information –
see pages 204, 210.
