Vax Energise Pulse U86-E2e Series Installation instructions

Energise Pulse
Let’s get started
vax.co.uk
U86-E2e Series

Thank you for buying this Energise Pulse.
Taking care of your carpets
The Engerise Pulse is designed to make vacuuming carpets regularly, as eective and ecient as
possible and this user guide will help you get the most out of your machine.
Maintaining your carpets will ensure they keep their appearance for longer. You’ve chosen carpets
for your home for a reason and Vax will help you take good care of them.
Taking care of your Energise Pulse
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets.
Basic safety precautions
Don’ts
Do’s
Let’s talk safety
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0844 412 8455 (ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the vacuum cleaner before calling.
Alternatively, you can write to us at:
Vax Ltd. Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
Let us know what you think @VaxUK
Please keep instructions for further use and use only as
instructed in this guide
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use
• Only use the vacuum cleaner indoors on dry surfaces and
keep the area your cleaning well lit
• Keep ngers, hair and loose clothing away from moving
parts and openings whilst using the vacuum cleaner
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision
• Only Vax recommend tools should be used with this
vacuum cleaner
8Don’t use this vacuum cleaner if it has been dropped,
damaged or left outdoors
8Don’t run over the power cord or use vacuum cleaner if the
power cord or plug is damaged. Please contact our
customer care line
8Don’t handle the plug or use the vacuum cleaner with
wet hands
8Don’t pull or carry this vacuum cleaner by the power cord.
Don’t use the Power cord as a handle, pull the power cord
around corners, sharp edges or close a door over the
Power cord. Don’t unplug vacuum cleaner by pulling on
the power cord
8Don’t vacuum up any ammable or combustible materials
(lighter uid, petrol, kerosene etc.) or use the vacuum
cleaner in an area with explosive vapours or liquid
8Don’t vacuum up any ammable or combustible materials
(lighter uid, petrol, kerosene etc.) or use the vacuum
cleaner in an area with explosive vapours or liquid
8Don’t vacuum up hot coals, cigarette butts, matches or
smoking hot burning items or use in an area where there
may be harmful uids (chlorine, bleach, and ammonia
drain cleaner)
8Don’t attempt to remove blockages with sharp objects as
this may cause damage to your vacuum cleaner
8Don’t vacuum up hard or sharp objects such as glass,
nails, screws or coins etc
8Don’t use the vacuum cleaner with incorrect voltage as
this may result in damage or injury to the user. The correct
voltage is listed on the ratings label.
3Turn o all controls on the vacuum cleaner before
disconnecting or connecting the power cord
3Always keep the power cord away from the brushes whilst
using your vacuum cleaner. After use always wrap the power
cord around the cord clips provided
3Always make sure both the pre-motor/post motor lters are
in place before use
3Always make sure the brushbar is set to hard oor when
using your vacuum on the stairs and take extra care when
positioning the vacuum cleaner on the stairs
3Always switch o the vacuum cleaner before disconnecting
or connecting the hose and accessories
3Keep all openings clear and free from debris as this may
aect the airow/suction
3Always replace the fuse in the plug with a British 13amp
fuse. Always protect the power cable from heated surfaces
and open ames
3Use only CE approved 13amp extension cords, non-approved
extension cords may overheat. Care should be taken to
arrange the extension cord as it could be a trip hazard
3Store the vacuum cleaner in a cool, dry area. If lters have
been cleaned as per user the guide instructions ensure they
are thoroughly dry before storing away

Contents Getting to know your machine
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
What to do if it goes wrong
Getting in touch
Accessories
Handle
TurboTool holder (hidden)
Post-motor lter cover
Hose to
machine connector
Floor type adjustor
Handle release button
Separator
Dirt container
Hose holder
Dirt container
release button
Extension tube
Power on/o button
Hose
Power cord
Quick release
cord hook
Energise Pulse
3 in 1 crevice, dust
and upholstery tool
Included with
your machine
Pre-motor lter
Post-motor lter
TurboTool
Name Energise Pulse
Voltage 220-240V~50Hz
Wattage 700W
Cord length 8m
Weight 7kg
Technical Specication
Subject to technical change without notice.
Filter Kit (Type 98)*
1-1-134233-00
Belt Kit (Type 1)*
1-1-130669-01
Consumables
*To purchase consumables and accessories, please visit vax.co.uk
+ Energise Pulse Pet
+ Energise Pulse Reach
Hard oor adaptor
Tool connector
Stretch hose
Initial Setup for normal operation
1. Use the base accessories.
– Shortest hose
– Extension tube set to shortest practicable length.
2. Clean lters installed.
3. Dust receptacle empty.
4. All Bleeds must be closed.
5. Variable Power set to Maximum.
6. Floor heads/tools set to Carpet Mode for carpet cleaning.
7. Mechanical Agitation turned ON for carpet cleaning.
8. Floor heads/tools set to Hard Floor Mode for hard oor cleaning.
9. Mechanical Agitation turned OFF for hard oor cleaning.

Twist the quick release
cord hook to release the
power cord
How to use
Assembling your upright
Before you begin cleaning
• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments, or
removing and emptying the dirt container
• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the
thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug
from electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the
vacuum cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters to
fully dry before putting back into the vacuum)
• Filters require cleaning at least every 3 months
• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage
• When using the accessories always make sure the brushbar is switched to the o position
IMPORTANT: When the vacuum cleaner is stood in the upright position or when using on stairs and the hose/tools,
the brushbar height adjust dial must be set to hard oor.
Getting started Using your machine
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
Insert the back panel into
the oorhead
Insert the lower quick release
cord hook into the hole at the
bottom of the back panel
Now take the small clip and
push it down between the post
motor lter cover and back
panel, over the quick release
cord hook to lock into place
Insert the short end of the
hose into the tube at the
back of the machine and
connect the hose end to the
oorhead
Attach hose clip to the
air inlet tube
Place the dirt container onto
the machine and push until it
clicks into place
Insert the extension tube into
the handle
Push handle into the top of
the machine until it clicks
into place
Plug in and switch on
your machine
Push turbotool holder
on to the handle.
Clip turbotool into position
Choose your desired carpet
height or hardoor setting
Plug in your machine and
push ON/OFF button to
switch on
Don’t over ll the dirt
container to avoid clogging
your lter
TIP
To ensure the Hard Floor Adaptor
is correctly tted, the wheels
should be towards the back of
the oor tool when attached to
vacuum cleaner.
Lie vacuum cleaner on its
back exposing brush bar
Align Hard Floor Adaptor
with base of vacuum
cleaner, push until its clicks
into place
Using the Hard Floor Adaptor
Apply the Hard Floor Adaptor for optimum results on hard oors.
The Hard Floor Adaptor can be used on any oor setting.

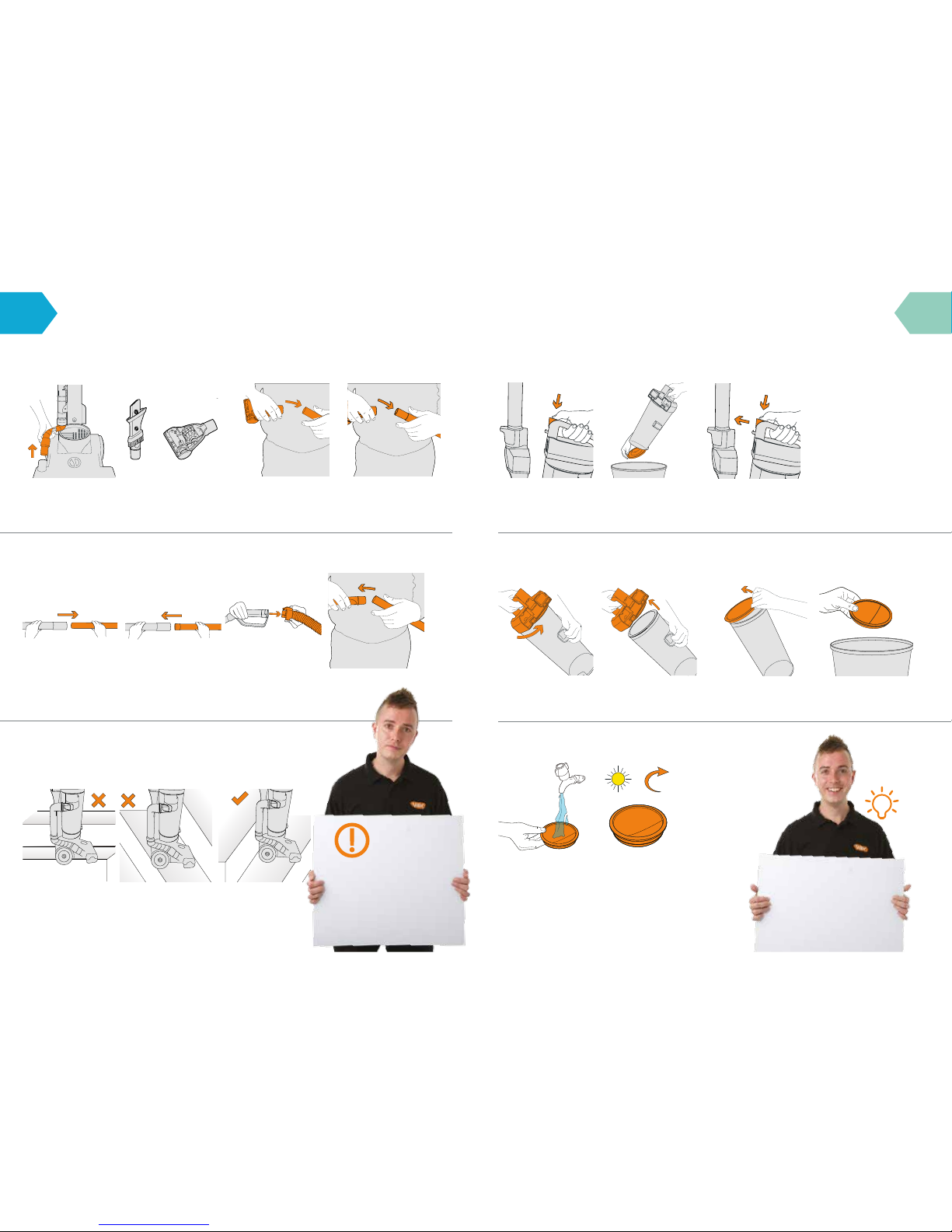

Emptying and cleaning the dirt container
Press dirt container
release button to remove
the dirt container
Hold dirt container over a bin
and unclip the lock on the
bottom of the dirt container,
allowing the dirt to fall out
Close the base of the dirt
container, align the dirt container
base back onto the machine and
push until it clicks back into place
Using your machine Taking care of your machine
Extension tube
Remove extension tube
from inside the handle
Turn the extension tube and
attach to the handle
Using accessories
Cleaning the pre-motor lter
Remove hose end from
the oorhead
Turn the dirt container
lid anti-clockwise
to remove
Lift the dirt container lid
to remove
TIP
Wash lters with warm
water (MAX 40°C) at least
every 3 months
Tap the lter over a bin to
remove the dirt
MAX
40˚C
24hr
Wash the lter under
running water
(40°C max)
Leave to fully dry for a least
24 hours before placing
back in the machine
Tap the lter over a bin
to release and dirt
Attach hose to the top of
the handle
Push accessory on to
the extension tube
Choose an accessory Attach accessory adapter
to hose end
If required use tool
connector
Hold the machine to steady when using on the stairs.
Always make sure the brushbar is overhanging the stair tread during use
Using your machine on the stairs
This machine has a constantly
rotating brushbar. When using the
machine on stairs, ensure the height
adjuster dial is set to hard oor and
the brushbar is overhanging the
stair tread (as pictured). Always take
extra care when cleaning stairs
WARNING

Taking care of your machine Let’s talk technical

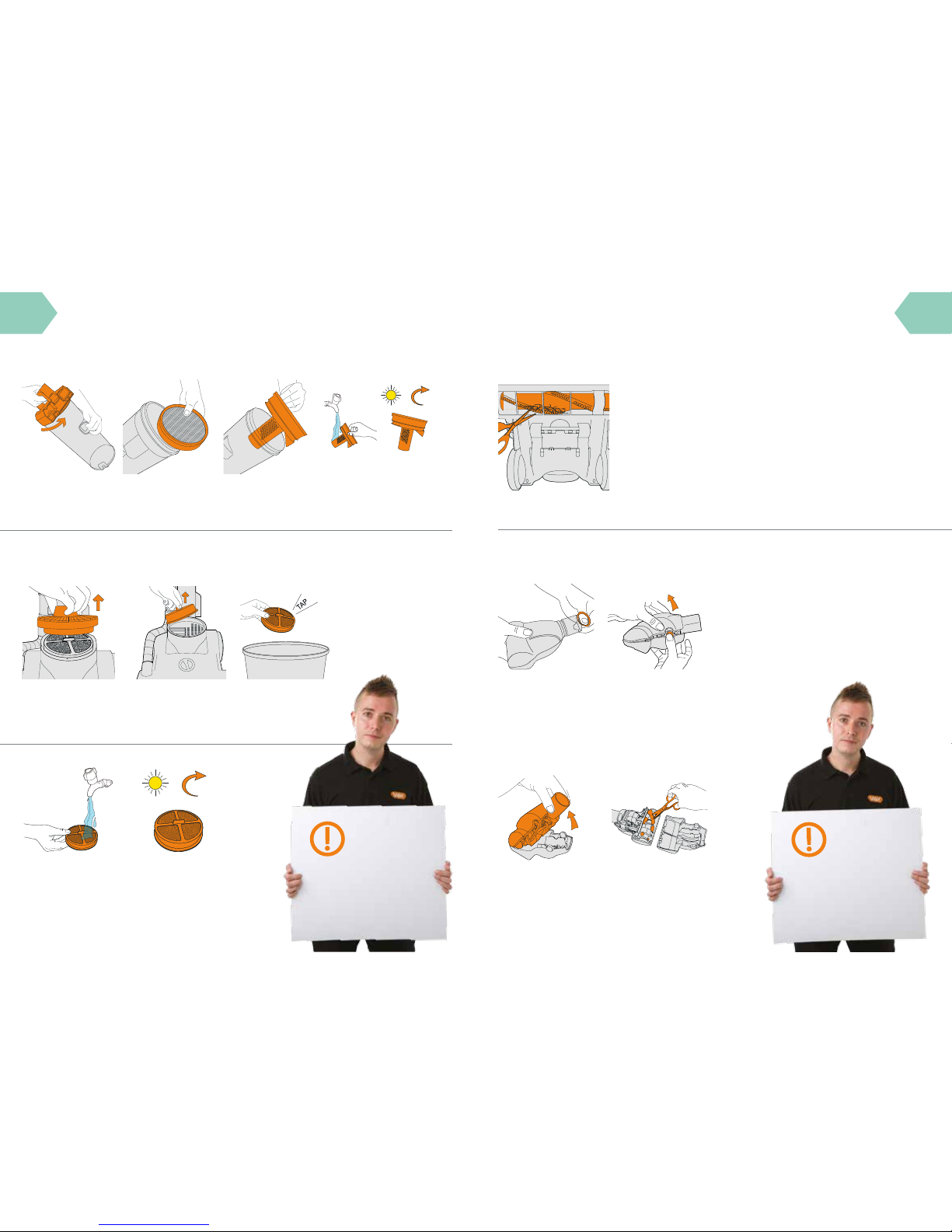

Cleaning the shroud
Turn the dirt container
lid anti-clockwise and lift
to remove
24hr
MAX
40˚C
Remove the pre-motor
lter to allow access to
the shroud
Tap the shroud over a bin to
remove dirt and debris
Wash the shroud under
running water and leave to
fully dry before placing back
into the machine

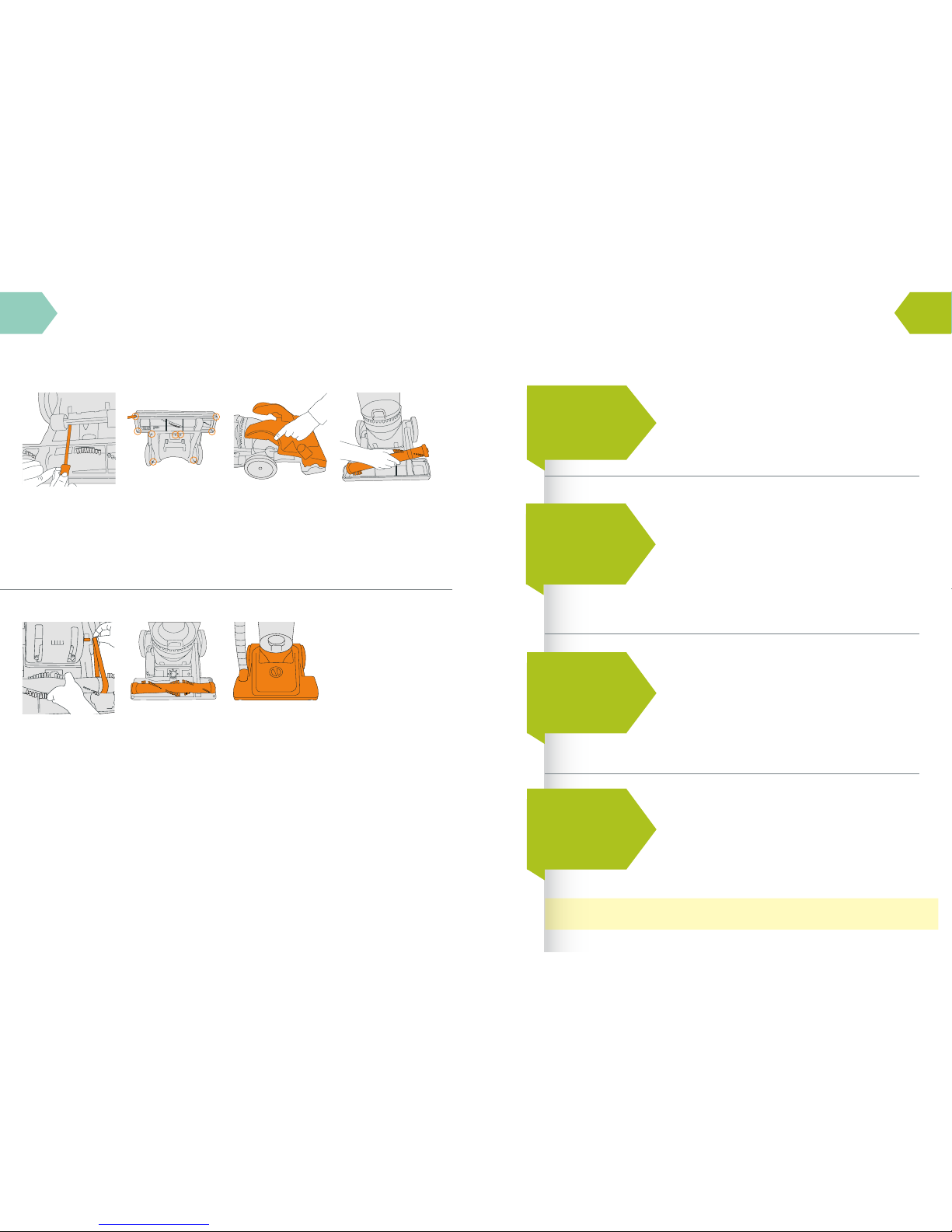

Removing debris from the brushbar
Switch o your vacuum
cleaner at the main socket.
Using a pair of scissors cut
any hair or debris free from
around the brushbar
Removing blockages from the TurboTool
Push both buttons to
open the turbo tool
If the air inlet, hose or telescopic
tube is blocked, switch o the
vacuum cleaner and remove the
blockage(s) before re-starting the
vacuum cleaner
WARNING
Using a pair of scissors,
cut any hair or debris free
from around the brushes
Cleaning the post-motor lter
Twist post motor lter
cover anti-clockwise and lift
to remove
Remove the lter
Always switch the machine o
and unplug before carrying out
any maintenance
WARNING
Remove the rubber ring
Wash the lter under
running water (40°C max)
24hr
MAX
40˚C
Wash the lter under
running water (40°C max)
Leave to dry for 24 hours
and then replace before
using your vacuum

Changing the belt
Let’s talk technical What to do if it goes wrong
Switch o your vacuum
cleaner at the main socket
and unplug. Unclip the 2
small wheels from the base
of the vacuum to enable you
to remove the screws from
behind. Note: The screw for
the height adjuster dial is
located here
Remove the 9 screws from
the base of the oorhead
cover
Remove the oorhead cover Lift the brushbar from the
machine to remove the belt.
Note: To remove debris from
the brushbar see ‘Lets talk
technical’ on the previous
page
Place the brushbar through
the belt and hook the belt
onto the metal spindle
Once the belt has been
replaced attach the brushbar
back onto the vacuum
Replace the oorhead
cover, 2 small wheels and
height adjuster dial by
screwing back into place
• Check the ‘This pack contains’ panel on the box to make sure the part
is included with your machine
• There may be a blockage in the hose. Please remove the hose from
the vacuum cleaner, check and clear any blockages
• Empty the dirt container and clean lters.
Go to the ‘Taking care of your machine’
• The brushbar may not be turning. Go to my brushbar isn’t
turning below
• If the accessory/tool will not pick up, check and clear any blockages
• The plug may not be fully pushed into the electrical socket
• Check the fuse in the plug if this needs replacing, always replace with
a British 13amp fuse
• The motor thermostat may have tripped. If this has happened, unplug
the vacuum cleaner. Remove and empty the dirt container and check
the hose for blockages.
• Clean the lters and allow the vacuum cleaner to cool for
approximately 1 hour (if you have washed the lters you will need to
wait 24 hours for the lters to fully dry before putting them back into
the vacuum cleaner)
• The brushbar may be clogged, check the brushbar and clear any hair
or debris Go to ‘Let’s talk technical’
• The belt may be broken, Go to ‘Let’s talk technical’
SolutionProblem
Warning: To reduce the risk of personal injury, unplug the vacuum before performing maintenance
/troubleshooting checks.
There is an
accessory missing
Why does my
vacuum cleaner
have no power?
Why won’t the vacuum
cleaner pick up?
My brushbar
isn’t turning?

* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the vacuum cleaner
before calling.
Let’s talk technical Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
TurboTool
Use the TurboTool for vacuuming your stairs,
upholstery and car interiors. It’s great for picking up
stubborn pet hair.
3 in 1 Tool
1-1-129167-00
3-in-1 tool includes crevice tool for awkward areas
and corner, dusting brush for areas such as skirting
and an upholstery tool for cleaning sofas, curtains,
chair seats and car interiors.
Flexi Crevice Tool
1-1-131393-00
A handy long, exible tool for getting far behind and
around furniture.
Fur and Flu Tool
1-1-131392-00
Specically designed to remove extra stubborn pet
hair from upholstery, furniture and carpets.

Vax Ltd. Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK
email: inf[email protected] website: vax.co.uk
Version 1.0
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility,
declare that the U86-E2e series is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
© 2014 All rights reserved. VAX®, VAX Lozenge, are trade marks or registered trade marks of Techtronic Floor Care Technology Ltd.
@VaxUK
