Vax ONE PWR CORDLESS BLADE 4 Series User manual

CLSV-B4KS
CLSV-B4BS
USER GUIDE

SAFETY GUIDE 2
support.vax.co.uk
SAFETY GUIDE
This machine is intended for
household use only and NOT for
commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR
FURTHER USE AND USE ONLY AS
INSTRUCTED IN THIS GUIDE.
DON’TS
• Don’t leave the charger plugged in
when unattended.
• Don’t use the machine if it is faulty
or has been dropped, damaged or
left outdoors.
• Don’t use the machine to pick up any
ammable or combustible materials
(lighter uid, petrol, kerosene etc.)
or use the machine in an area with
explosive vapours or liquid.
• Don’t use the machine to pick up hot
coals, cigarette butts, matches or
smoking hot burning items or use in
an area where there may be harmful
uids (chlorine, bleach and ammonia
drain cleaner).
• Don’t handle the charger, battery or
use the machine with wet hands.
• Don’t unplug the charger by pulling
on the power cord.
• Don’t use the charger if the power
cord or plug is damaged.
• Don’t attempt to remove blockages
with sharp objects as this may cause
damage to the machine.
• Don’t use the machine with the
incorrect battery or charger as this
may result in damage or injury to the
user. The correct battery charger
information is listed on the battery
pack ratings label.
• Don’t charge the battery outdoors, or
leave the charger connected to the
mains when not in use.
• Don’t use the machine with a
damaged battery. If the battery is
damaged contact us on: 08000
927737.
• Don’t over ll the dirt container to
avoid blocking the air ow through
the machine.
• The brushbar in the powered head
constantly rotates when switched
on. Never use the powered head on
one spot for an extended period of
time as the brushbar may damage
the oor surface.
DO’S
• Only VAX ONE PWR batteries
(BV15020/BV15030/BV25040) and
charger (BV05100UK) should be
used with this machine.
• Only VAX ONE PWR recommended
tools and accessories should be
used with this machine.
• Always remove the battery from the
machine before carrying out any
maintenance or if storing unused for
a long period of time.
• Keep all openings clear and free
from debris as this may aect the
airow/suction.
• Turn o all controls on the machine
before disconnecting or connecting
the battery.
• Always protect the charger power
cord from heated surfaces or near
open ames.

SAFETY GUIDE 3
support.vax.co.uk
• Only use the machine indoors on dry
surfaces and keep the area you’re
cleaning well lit.
• The machine can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the machine
in a safe way and understand the
hazards involved. Children shall not
play with the machine. Cleaning and
user maintenance shall not be made
by children without supervision.
• Keep ngers, hair and loose clothing
away from moving parts and
openings whilst using the machine.
• Store the machine in a cool, dry
area. Keep the machine away from
rain and moisture.
• Use only CE approved 13amp
extension cords, non-approved
extension cords may overheat.
Care should be taken to arrange the
extension cord as it can be a trip
hazard.
• Take extra care when using the
machine on the stairs.
• Always turn the powered head
brushbar o when cleaning hard
oors. To prevent any damage being
sustained, test on an inconspicuous
area of the ooring rst.
• Always make sure the separator
and lter are tted correctly before
using your machine and only use the
machine with the lter and separator
in place.
• Always check the powered head and
accessories are free from damage,
dirt and debris before using.
• This machine does not stay upright
without constant support. Between
uses, lie at on the oor in a suitable
location so that it does not become a
trip hazard or can be stepped on.
BATTERY SAFETY PRECAUTIONS
• Replace the battery with a VAX
ONE PWR battery only. Use of
another battery may present a risk
of re or explosion.
• Do not attempt to disassemble the
battery, remove any component
projecting from the battery terminals
and do not dispose of in a re.
The battery and charger have no
user serviceable parts. Fire or injury
may result.
• Prior to disposal, protect exposed
terminals with heavy insulating tape
to prevent shorting. The battery is to
be disposed of safely at your local
battery recycling centre.
• When the battery pack is not in
use, keep it away from other metal
objects that can make a connection
from one terminal to another.
Shorting the battery terminals
together may cause burns or a re.
• In case of battery leakages, avoid
any contact with skin and contact us
on: 08000 927737.

SAFETY GUIDE 4
support.vax.co.uk
WARRANTY
If a VAX ONEPWR machine is used
in the way it is intended and it breaks
down within the guarantee period, it’s
our responsibility to repair or replace it.
Here’s what isn’t covered:
• Normal wear and tear of consumable
items, for example: belts, lters,
brushbars, fuses etc.
• Batteries which have become faulty
as a result of improper handling.
• Batteries which have a reduced
service life as a result of normal wear.
• Accidental damage
- Damage as a result of use not in
accordance with the product
user guide.
- Damage caused by not carrying out
regular maintenance.
- Damage to the charger cable.
- Blockages caused by misuse.
• Faults caused by:
- Negligent use, misuse, neglect or
careless operation of the machine.
- Use of the machine cleaner which
is not in accordance with the
user guide.
- Use of a VAX ONEPWR machine
for anything other than normal
domestic household purposes
in the country in which it was
purchased.
- Use of parts, accessories and
consumables, which are not
genuine VAX components.
- Faulty installation or repairs –
unless carried out by a qualied
electrician or engineer.
TECHNICAL
EU Statement of Compliance: Manufacturer/EU importer: VAX Limited, hereby on
our own responsibility, declare that the VAX ONEPWR Blade 4 is manufactured in
compliance with the following Directives:
Safety: 2014/35/EU Low Voltage Directive.
EMC: 2014/30/EU Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
© 2019 VAX Limited. All rights reserved. The VAX trade mark and VAX lozenge
are the property of Techtronic Floor Care Technology Ltd and are registered in
the EU and may be pending or registered in other countries.
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.

5
support.vax.co.uk
GETTING TO KNOW YOUR MACHINE
1
2
5
3
4
6
7
8
9
10
11
12
1Carry handle
2Dirt container
3Filter cover and lter
4Dirt container release latch
5Dirt release button
6Power ON/OFF
7Brushbar ON/OFF
8Boost ON/OFF
9Battery level indicator light
10 Reach wand
11 Powered head
12 Brushbar
13 Battery dock
14 Filter cover release tab
(hidden)
15 ONEPWR Battery*
16 ONEPWR Charger*
17 Crevice tool
18 Dusting brush
19 Crevice tool storage caddy
20 Wall mount
screws and wall plugs
13
14
Subject to technical change without notice. Images are illustrative only.
TECHNICAL SPECIFICATION
VAX ONEPWR Blade 4
Weight (without battery pack) 2.8kg
Dirt bin capacity 0.6L
Run time and charge time dependent on battery pack
and power mode used.
*Included with model CLSV-B4KS only.
15 16
19 2017 18

6
support.vax.co.uk
GETTING STARTED
ATTACHING THE WALL MOUNT
Without the handheld attached to the
reach wand and powered head, push the
wall bracket onto the top and back of the
reach wand.
Choose a location for the machine to be stored, preferably near to a mains supply
although not directly above or below a mains socket. Stand the machine powered
head and wand against the wall, ensuring the powered head is at on the oor.
Holding the wall bracket securely against
the wall, make a small mark for each
screw. Secure the wall bracket to the
wall using the wall plugs and screws.
The dusting brush can be tted onto the
wall bracket.
Fully assemble the machine and rmly
press the machine into the wall bracket
to secure. Always ensure the machine is
securely locked into place.
ASSEMBLY
To assemble the dirt container, line up the arrow on the dirt
container connection with the arrow on the handle. Push the
dirt container onto the handle until it clicks into place.
Attach the handheld to the reach wand until it clicks into place.
Attach the reach wand to the powered head until it clicks into
place. Push the tool caddy onto the reach wand and slot the
crevice tool into place.

7
support.vax.co.uk
GETTING STARTED
CHARGING THE BATTERY
Slide the battery down on to the charger. The charger light will flash white to
show when the battery is charging.
The light on the charger will stop
flashing and go off when the battery
is fully charged.
Once fully charged, slide the battery off
the charger to remove.
To check the battery charge
level press the battery symbol.
THIS MACHINE IS ONLY TO BE USED WITH VAX ONEPWR BATTERIES AND CHARGER.
PLEASE READ THE SAFETY GUIDE BEFORE USE.
NOTE: Before rst use, ensure the battery is fully charged. Failure to fully charge the battery
before rst use may result in poor battery performance. The life expectancy of the battery will vary
depending on the usage of the machine.
OPERATION
Place your foot on the powered head. Pull the handle backwards to recline.Slide the battery into the handheld until
it clicks into place.
WARNING: The brushbar in the powered head constantly rotates when switched on. Never use the
powered head on one spot for an extended period of time as the brushbar may damage the oor
surface. Always turn the powered head brushbar o when cleaning hard oors. To prevent any
damage being sustained, test on an inconspicuous area of the ooring rst.

8
support.vax.co.uk
GETTING STARTED

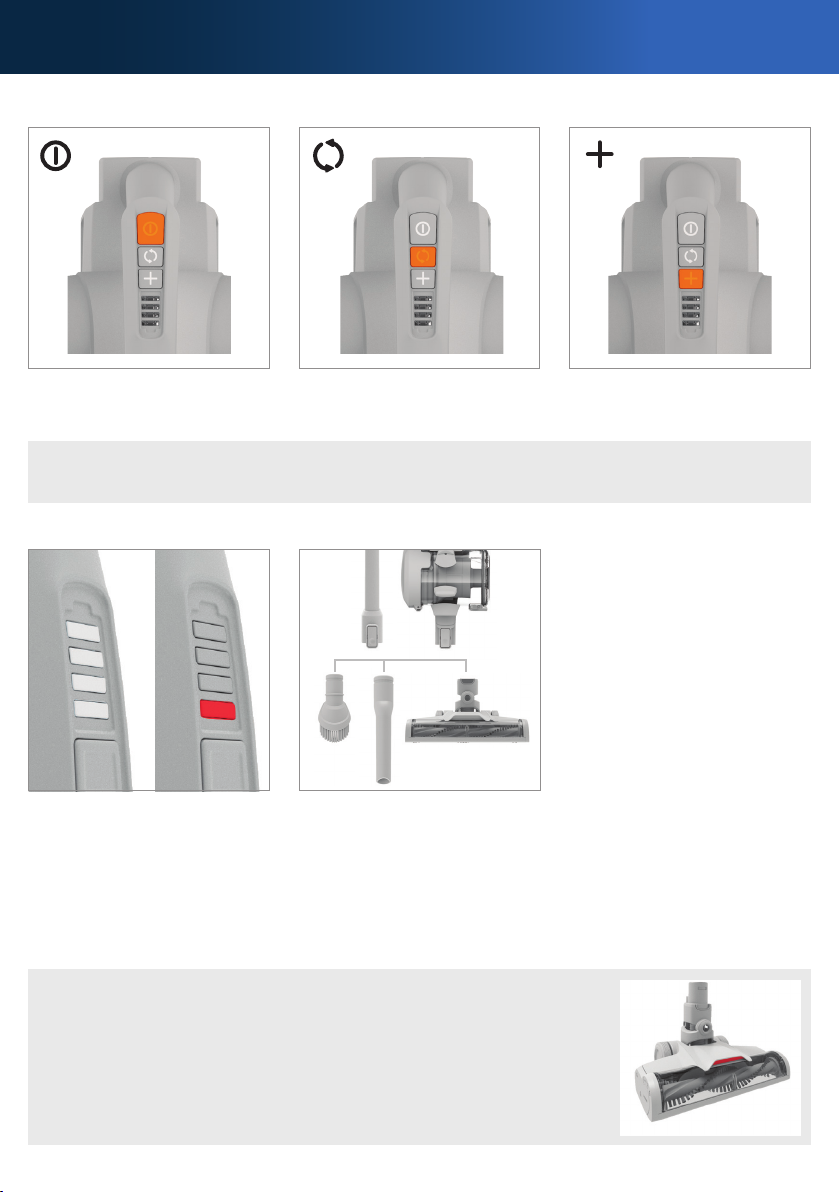

Press the brushbar on/off button to
switch the brushbar on.
Press the boost button on to increase
the suction for particularly dirty areas.
Press the on/off button to switch the
machine on.
CAUTION: If the brushbar in the powered head has been obstructed,
the brushbar motor protection sensor may have been activated. The
brushbar will stop, the light on the powered head will illuminate red
and the machine may switch o. To reset remove the powered head
from the reach wand/handheld and clear any obstruction. Wait 1
minute before retting the powered head tool, switch the machine on
and press the brushbar ON/OFF button.
OPERATION
NOTE: The powered head brushbar should be ON for carpets and OFF for hard oors.
Constant use of the boost mode and brushbar will reduce the battery run time.
When the machine is in use the battery
level indicator lights will illuminate
indicating how much charge is
remaining. When less than 20% charge
is remaining the bottom light will ash
red indicating the battery is running low
and charging is required.
All of the accessories, including the
powered head can be attached directly
onto the handheld or the reach wand.
The crevice tool and dusting brush
can be used for hard to reach places
and at dierent heights for above oor
cleaning.

9
support.vax.co.uk
REMOVING AND REFITTING THE DIRT CONTAINER
EMPTYING THE DIRT CONTAINER
WARNING: Always remove the battery before carrying out any maintenance or troubleshooting.
CAUTION: Don’t over ll the dirt container to avoid blocking the air ow through the machine.
For best cleaning results, empty the dirt container after every use. Filters should be tapped over a
bin every 4-6 uses to remove dirt and debris and washed every 3 months. Filters should be replaced
every 6-9 months depending on the level of use.
1. Squeeze the latch on the dirt
container to release.
2. Tilt and lift to remove from the
handheld.
1. Squeeze the latch on the dirt
container to release.
2. Tilt and lift to remove from the
handheld.
Hold the dirt container over a bin and
press the dirt release button to allow dirt
and debris to fall out.
To close, push the dirt release door until
it clicks into place.
To ret, line up the dirt container
connection with the handheld handle.
Push the dirt container back onto the
handle until it clicks into place.
When correctly tted all 3 connection
points will be aligned and will sit ush.
CLEANING & MAINTENANCE
2
1
2
1

10
support.vax.co.uk
CLEANING THE FILTER AND SEPARATOR
Push the tab on the lid of the dirt container and lift the cover to access the lter. Lift the lter and separator from the
dirt container.
Tap the separator over a bin to remove
dirt and debris and wipe over the metal
shroud with a dry cloth.
Pull the tab on the lter to remove from
the separator.
Tap the lter against the bin to remove
any dirt and debris.
Wash the lter under running water
(40°C max). Leave for at least 24hrs or
until fully dry before replacing.
24hr
40°C
MAX
CLEANING & MAINTENANCE
CAUTION: Ensure both
the lter and separator are
retted before use.

11
support.vax.co.uk
CLEANING AND REPLACING THE POWERED HEAD BRUSHBAR
Pull the brushbar out from the brushbar
housing.
To remove any threads or hair, slide
the blade of a pair of scissors into the
groove on the brushbar and cut along
the groove.
Clear any dirt/debris from the end caps
and inside the housing of the powered
head.
CLEANING & MAINTENANCE
Ret the brushbar into the oorhead. Align the arrow on the brushbar cover so it
points north, rmly push and twist clockwise to lock.
Using a coin, push and turn the brushbar lock anticlockwise to release the brushbar.Press the oorhead release button to
remove the oorhead from the machine.

12
support.vax.co.uk
CLEANING & MAINTENANCE
To test for a blockage in the reach wand,
drop a small ball of paper into the wand.
The paper will drop through if the wand
is clear. Use a broom handle or similar
blunt object to remove any blockage.
CHECKING FOR BLOCKAGES
Press the handheld release button and
remove the reach wand. Check and clear
any dirt and debris from the handheld
connection point.
Press the dirt container release button
and remove the dirt container. Check
and clear any dirt and debris from
behind the dirt container ap.
Check the powered head for any
blockages and use a blunt object to
remove the blockage.

13
support.vax.co.uk
TROUBLESHOOTING
THERE IS AN ACCESSORY MISSING
Check the contents on the back of the box.
WHY DOES THE MACHINE HAVE NO POWER?
• The battery is not tted correctly. See OPERATION page 7.
• The battery has no charge. See CHARGING THE BATTERY page 7.
• The motor thermostat may have tripped. Empty the dirt container and check for blockages.
Clean the lters and allow the machine to cool for approximately 1 hour. If you have washed
the lters, wait 24 hours to fully dry before placing back on the machine.
See CLEANING THE FILTER AND SEPARATOR page 10.
• The brushbar motor sensor has been activated. To reset remove the powered head from the
reach wand/handheld and clear any obstruction. Wait 1 minute before retting the powered
head, switch the machine on and press the brushbar ON/OFF button. See OPERATION page 8.
WHY WON’T THE MACHINE PICK UP?
•The dirt container may not be correctly tted. See REMOVING AND REFITTING THE DIRT
CONTAINER page 9.
•The dirt container may be blocked. Check the dirt container and handheld inlet for blockages.
See EMPTYING THE DIRT CONTAINER page 9.
•The lters may be clogged. See CLEANING THE FILTER AND SEPARATOR page 10.
•There maybe a blockage. See CHECKING FOR BLOCKAGES page 12.
•The brushbar on the powered head has not been activated. See OPERATION page 8.
•The powered head may be blocked. See CLEANING AND REPLACING THE POWERED
HEAD BRUSHBAR page 11.
•The machine, powered head and reach wand may not be correctly tted.
See ASSEMBLY page 6.
WHY IS THERE A RED LIGHT?
•Battery charge is running low (<20%). See CHARGING THE BATTERY page 8.
WHY IS THERE A RED LIGHT ON THE POWERED HEAD?
•The powered head brushbar has been obstructed. See CLEANING AND REPLACING THE
POWERED HEAD BRUSHBAR page 11.
WHY WON’T THE BRUSHBAR TURN?
•The brushbar on the powered head has not been activated. Go to OPERATION page 8.
•The tool/brushbar may be obstructed. See CLEANING AND REPLACING THE POWERED
HEAD BRUSHBAR page 11.
•The machine, powered head and reach wand may not be correctly tted. See ASSEMBLY
page 6.
