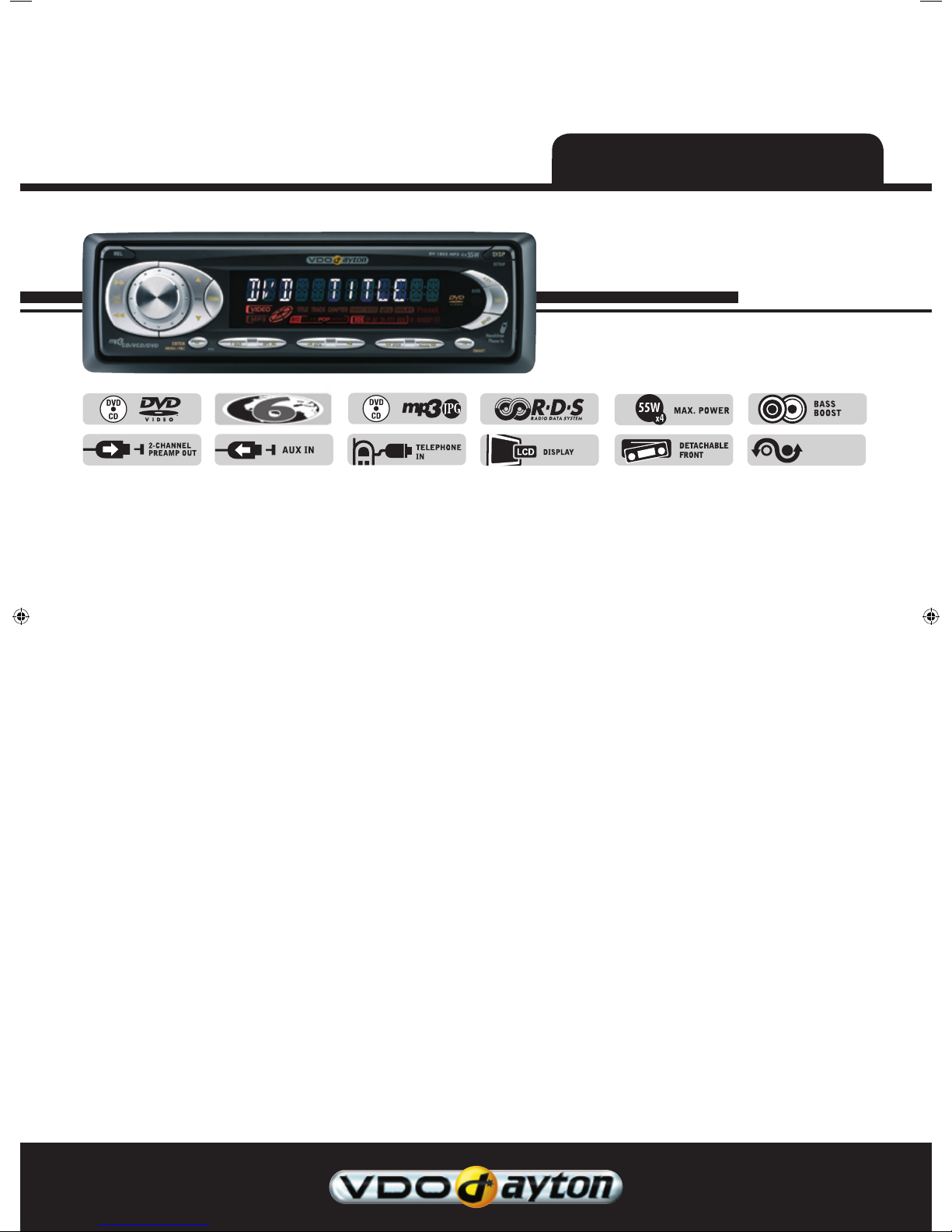

VDO DV 1805 MP3 User manual

DVD/CD MP3 Player / Bass Boost
DV 1805 MP3 Product Information
DVD/CD MP3 Player
The enhanced DVD/CD drive is compatible with regular
shaped 12 cm disks in DVD/VCD/SVCD Video format or CD
Audio, CD-R and CD-RW format, but also capable of playing
DVDs and CDs containing MP3 files. If available, ID3 tags for
DIRECTORY, ARTIST, ALBUM and TITLE can be displayed.
Copy protected CDs which do not comply with international
audio CD standards (Red Book) may not be supported.
Bass Boost
Boosts the bass out of the set! This function is selected via a
direct key access. Three levels of effect can be chosen accor-
ding to your preference.
Telephone In/Mute
The Phone In connection allows for safer driving whilst
corresponding to many country’s legislation. What‘s more, you
gain improved sound quality through front loudspeakers and a
handsfree kit can be connected.
DVD Smart Mode
This functionality gives you the possibility to listen to radio
via the front speakers and at the same time playing the disc
source e.g. CD or DVD. The sound will be audible via RCA out-
put jacks and video will be displayed via monitors to the rear
passengers at the same time.
2 Channel Preamp Out
The 2 Channel Line Out multiplies the sound power combina-
tions and pre-amplifier connections. In order to optimize at its
maximum the signal to noise ratio and increase the dynamic,
outputs are supplied at 2V.
Colour LCD
Animations and graphics are provided in a coloured LC
Display.
Software Access Menu (SAM)
„Software Access Menu“ is an easy way to personalize your
car radio according to your choice and install all possible
optional applications.
Detachable Flipdown Front
For theft protection, the complete front of this car radio is
detachable and flips down to access the drive for inserting
and changing a CD/DVD.
Aux In
With the Aux In you can connect additional audio sources to
your car‘s Hi-Fi system.
*Only applies to certain vehicle models
**Additional adaptor cable necessary
CD
CD
CD
• 4 x 55 Watts max. Power
• 2 Channel Preamp Out
• Colour LCD
• Detachable Flipdown Front
• Telephone In
• Aux In
• DVD Smart Mode
• Switchable Key Illumination
SWITCHABLE
ILLUMINATION
INFRARED
CONTROL
SWITCHABLE
ILLUMINATION
INFRARED
CONTROL
DV1805mp3_UK.indd 1 18.05.2006 8:41:36 Uhr

Connections
A: General + Power Supply (ISO)
B: Loudspeaker (ISO)
C1: 2 Channel Preamp Out: Cable
(mini ISO) to RCA Cables
C2: Aux In: Cable to RCA for Aux In
C3:
D1: Tel Mute High
E: Aerial Plug (ISO)
F: Fuse
G: RCA Out
Video = yellow + smart mode
Audio = red + white)
Tel In (fly lead)
Tel Mute (fly lead)
Break Signal (fly lead)
Artikelnummer
DV1805MP3
EAN-Number
4103590905383
Produkt Design
• Black/silver Finish
• Detachable Flipdown Front
• Colour LCD
• Switchable Key Illumination
• Security LED
• Pilot Light
Tuner
• RDS Tuner
• FM with RDS Traffic, News
• MW, LW
• RDS PTY
• TA EON
• RDS Clock
• Preset Buttons
FM: 18, MW: 12, LW: 6
DVD/CD Player
• DVD MP3 Player
• Support of following formats: DVD/CD/
VCD/SVCD/Photo CD
• Scan/Random Tracks
• Previous/Next/Fast
• Fast Forward/Fast Rewind
• CD-R/CD-RW
• Multi Session CD
• MP3 Specific Data
- ID3 Tag (Version 1 & 2) only via OSD
- Max. 30 Characters per Name
- Bit Rate 8-320 kbps
- Sampling Frequency 8 - 48 kHz
Internal Amplifier
• Max. Power: 4 x 55 Watts
• RMS Power: 4 x 27 Watts
• 2 Channel 2V Preamp Out
• Aux In (Output equal to 0dB
when under level 3 and 700mV input)
• DVD Smart Mode
• 6 Sound Presets
• Bass Boost
• Volume Mute
General
• Telephone In
• Telephone Mute
• Infrared Remote Control included
• Mounting angle: +30° / -10°
• Dimensions (w x h x d):
180 x 55 x 150 mm
• Power Supply:
- 12 V DC
- Voltage Range: +9V ... +16 V
- Off state current consumption:
less than 10 mA
Options
• Amplifier
• Speakers
• Handsfree Kit
E
DV 1705 MP3
B
F
A
C1 C2 C3
D1
E
DV 1805 MP3
B
F
A
C1 C2 C3
D1
G
G
DVD/CD MP3 Player / Bass Boost
DV 1805 MP3 Technical Information
03/2006 • DV 1805 MP3 • Subject to modification • VU26-0013-08 355 02
