1
ROTARY HAMMER
BH1600, BH1700, BH2150, BH2150N, BH2200, BH2350
OPERATING MANUAL
Rotary hummer T.I.P. - a reliable tool that can operate in three modes:
drilling, drilling with impact, hammer drilling. The tool is intended for
breaking, drilling, scraping in concrete and other similar materials, such as
piping, cables, installation of plumbing products, other materials.

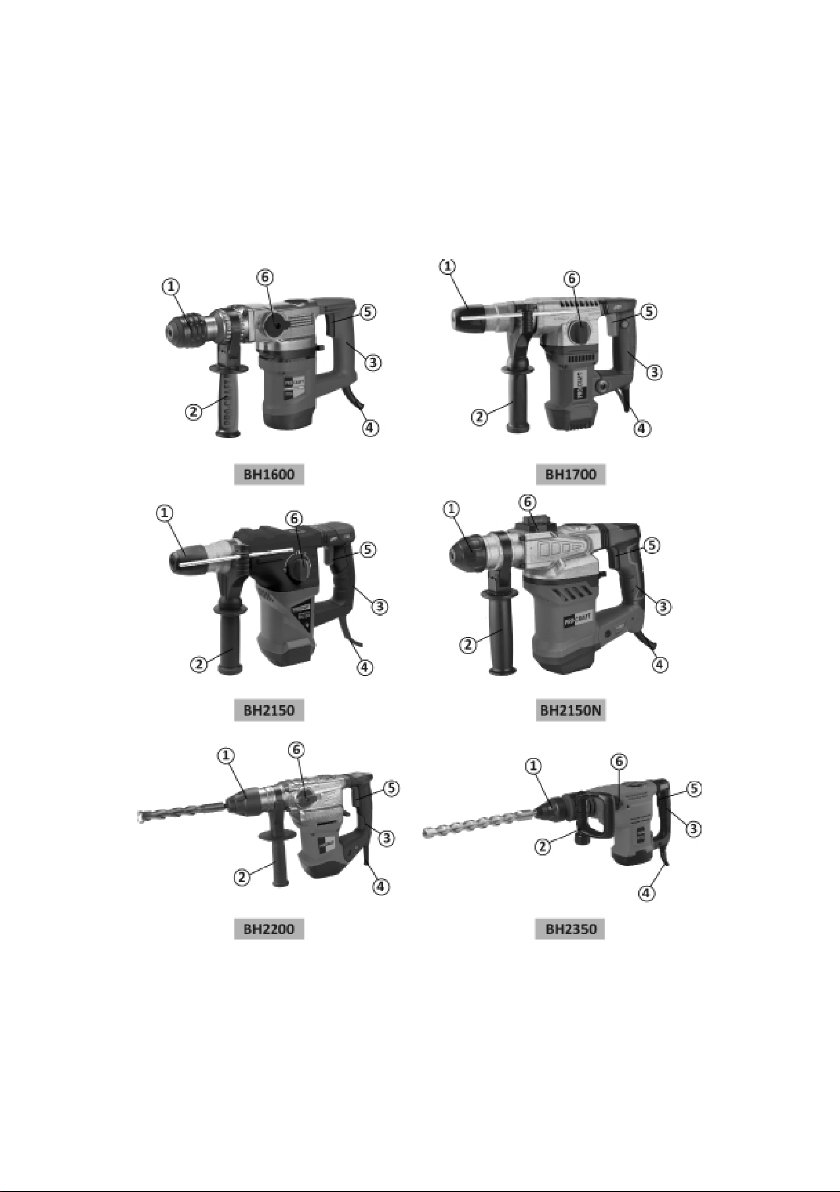

Fig. 1
1 – closing sleeve;
2 – side stick;
3 – rear handle;
4 – power cord;
5 – power switch;
6 – mode switch "impact",
"drilling", "drilling with impact".

EN|ENGLISH
2
SAFETY
WARNING!
Carefully read all instructions. Failure to follow all the instructions mentioned
below, can cause electric shock, fire and / or serious personal injury.
1. Keep your work area clean and well lit. Cluttered surfaces and darkened
room may be the cause of the accident.
2. Do not use the instrument in an explosive atmosphere, ie, in the pres-
ence of explosive liquids, gases and dust. Power tools create sparks which
may ignite the dust or fumes.
3. Keep visitors and children away from the place of use of power tools.
Distraction from work can lead to loss of control.
4. Do not overtax the power cord. Never use the cord to carry the power
tool. Keep the cord away from heat, oil, sharp edges or moving parts. Re-
place damaged cord immediately. Damaged cords increase the risk of
electric shock.
5. Working with a power tool outdoors, use an extension cord designed for
outdoor use, labeled «WA» or «W». These types of cords designed for
outdoor use and reduce the risk of electric shock.
6. Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jeweleiy or
long hair can be caught in moving parts.
7. Avoid inadvertent inclusion. Make sure that switch is "OFF" before turn-
ing into an outlet.
8. Remove the key settings or wrenches before turning the tool. The key is
left in the moving parts of the tool may be the cause personal injury.
9. Use special protective gear for safety. Always wear safety goggles.
10. Do not use excessive force when operating the tool. Use only a sharp
edged tool. He will perform the job better and safer if will work with the
power to which it was designed.
11. Disconnect the plug from the power source before you make a setting
change of accessories or tool to keep in storage. Store idle tools in places
inaccessible to children.
12. Maintain tools. Keep cutting tools sharp and clean. Carefully maintained
tools with sharp cutting parts will not bind and are easier to control.
13. Check the alignment tool, and seizure of moving parts, breakage of parts
and any other conditions that may affect the operation tool.

EN|ENGLISH
3
14. Use only accessories recommended by the the manufacturer for your
model. Spare parts that fit a single instrument can be dangerous for an-
other.
ADDITIONAL SAFETY RULES
1. Always wear a safety helmet (helmet), goggles and / or face shield, and is
recommended to use a dust mask, ear protectors and thick cotton gloves.
2. Before starting work, make sure that the drill bit is securely fastened in
the holder.
3. Before operating, check the degree of tightening the screws. In normal
operation, the machine vibrates.
4. Screws can come in a weakened state, and this can cause an accident or
an accident.
5. In the cold season or after long storage before work give Hammer a few
minutes to work with no load, it will loosen grease without which the
work is in the mode of attack would be impossible.
6. Always watch footing. When working at height, ensure the absence of
someone under you.
7. Hold the tool firmly in hand. Always use the side handle.
8. Do not touch the rotating parts of the instrument.
9. Do not point the hammer in the direction of living objects.
10. Do not leave the tool running unattended. Produce included only when it
is in their hands.
11. When working in walls and floors, which can be conductive objects do
not touch the metal parts of the instrument in order to avoid electric
shock when in contact with conductive objects hold the tool only for the
isolated surface.
POWER SUPPLY
The instrument must be connected to the voltage corresponding to the
voltage indicated on the marking label. Using a low voltage current can
overload the tool. Type of current - AC, single phase. In accordance with
European standards, the tool has a dual degree of protection against electric
shock and, therefore, can be connected to an ungrounded outlet.

EN|ENGLISH
4
Model
BH1600
BH1700
BH2150
BH2150N
BH2200
BH2350
Power
1600 W
1700 W
2150 W
2150 W
2200 W
2350 W
Voltage
220 V
220 V
220 V
220 V
220 V
220 V
Current
frequency
50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
Frequency
of idling 780 rpm
0-820
rpm
0-850
rpm 0-800 rpm 950 rpm 350 rpm
Impact
energy
4J 4 J 4,5 J6 J 6 J 25 J
Weigh
6.0 kg
4.5kg
4,8 kg
7.0 kg
5.2 kg
11.5 kg
OPERATING INSTRUCTIONS
To install the tool:
Fig. 2

EN|ENGLISH
5

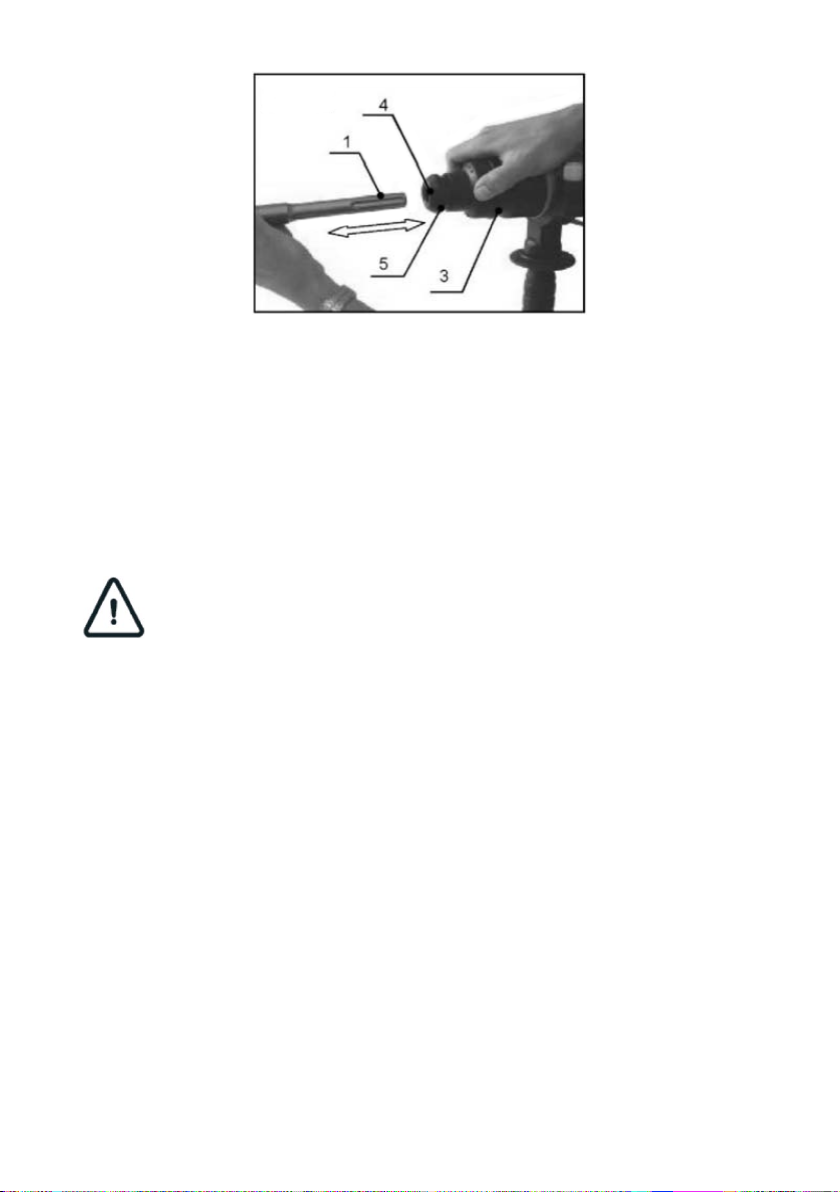

Fig. 3
1. Clean the tool shank (item 1. Figure 2) and lightly grease with grease
grease (Item 2, Figure 2).
2. Pull back the locking sleeve (item.2. Figure 3)
3. With the simultaneous rotation of the tool in the tool, enter the slot
(Item 4. Figure 3) until it stops.
4. Loosen the locking sleeve.
5. Check the strength of the planting tool.
6. Check for damage dust cover (item.5. Figure 3).
WARNING!
If the dust cover is damaged, it must necessarily replaced!
To remove the tool take away the locking sleeve (Item.2. Figure 3) back and
pull out the tool.
Your hammer can be operated in two modes:
1. Rotation with a bang - This mode is designed for drilling concrete,
brick, stone and foam.
2. Strike - This mode is intended for demolition work on the brick and
masonry materials and concrete-containing chipping tiles.
Rotation with a bang.

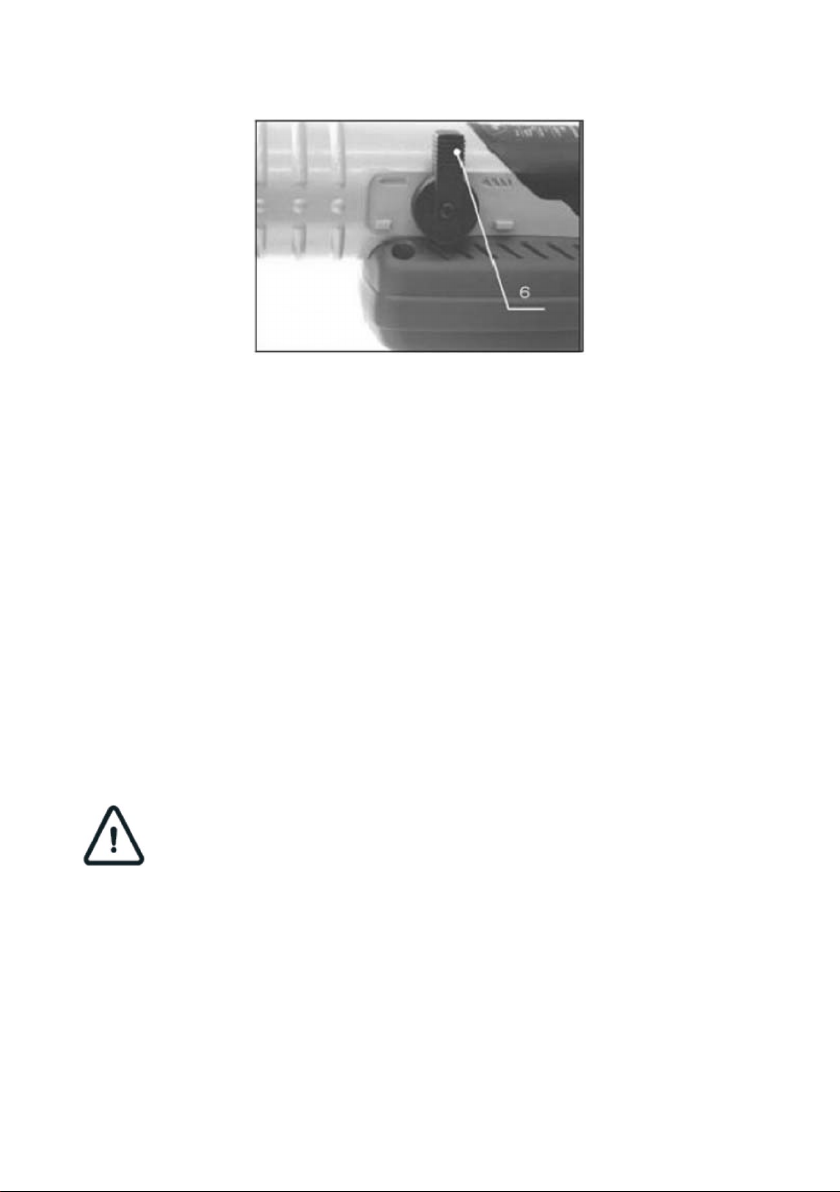

To set the hammer drilling must be the lever (Item 6. figure 4) rotate the
firing mechanism on the symbol "drill."

EN|ENGLISH
6
Fig. 4
ATTENTION!
•Switch mode can only be in a position to a full stoppunch.
•In the process of drilling, hammering action is prohibited to put a lot of
effort hammer, it can only slightly be sent. The increased effort does not
increase the force of impact, and only creates unnecessary extra load on
the engine!
•For maximum performance in drilling, hammering action should be to
work at maximum speed.
•In order to avoid rapid wear of the striking mechanism, make sure that
the switch lever was always fixed in either of two operating positions.
•mode of attack
•To set the stroke to the lever (pos.6. Figure 5) the impact mechanism to
rotate the symbol "chisel."
ATTENTION!
If you feel that the gears are not included in the link, turn the chuck by
hand. Do not apply excessive force to the switch.

EN|ENGLISH
7
Fig. 5
Fig. 6
Setting the bit
Before you install the bit, make sure that the drill is turned off and
unplugged.
The lever mechanism of the shock set in an intermediate position. Now, the
bitYou can manually rotate to the desired position. Then againset the lever
mechanism of the shock to position "bit." Chisel locks into position.
If the switch is latched in this position, a littlerotate the drill bit by hand.
The lever mechanism of the shock must be accurately set in position. Not use
a hammer as a scrap! After working in the mode of attack should be allowed
to work in the hammer drilling mode to break up grease.
Bounce only small particles of material, so your work will be more
productive.
When chiseling work before you start be sure to check out securely whether
the bit is fixed in the working position.
Install of the side handle
ATTENTION!
To ensure safe drilling always set a sideknob (position 7, Figure 7).
To hold any position in the punch when drilling side handle can be mounted
on the hammer in any position. Loosen the knob by turning it
counterclockwise. Then set it in position and tighten by turning clockwise.

EN|ENGLISH
8
Fig. 7
USING THE TOOL
The inclusion of punch
ATTENTION!
Before operating the tool, always check the efficiency ofswitch, after
releasing it should easily return to the position"Off'
Fig. 8
Fig. 9

EN|ENGLISH
9
To activate the tool, simply click on the switch (position 8, Figure 8). To turn
off the machine release the switch (position 8,9).
ATTENTION!
As soon as the dutch worked, immediately turn off the machine. This will
allow You to avoid overload of the motor.
The work of a jackhammer
Put the lever mechanism of the shock to the "bit". Keep the car firmly with
both hands. Turn on the machine and apply a slight effort to keep the
machines in the selected impact location. Much pressure on the drill is not
necessary, since it does not give the best results.
Fig. 10
Depth stop
Depth stop is used for drilling holes of uniform depth. Loosen the clamp
button, located on tire side of the handle and insert tire depth gauge into the
hole at the base of tire clamp. Adjust the depth stop to the desired depth and
tighten tire clamp button.
CARE OF TOOLS
Cleaning
Engine running (when you press tire switch) blow dirt and dust from all the
vents.
External plastic parts can be cleaned with a damp cloth and light detergent.
Never use a solvent.
ATTENTION!
Prior to the use of cleaning solutions, disconnect the tool from the network.

EN|ENGLISH
10
MAINTENANCE
Always before performing preventive maintenance work and ensure that the
tool is switched off and unplugged from the outlet.
For safe and reliable operation of the instrument, keep in mind that the
repair. Maintenance and adjustment of the instrument should be in service
centers using only original spare parts and consumables.
.

EN|ENGLISH
11
CE DECLARATION OF CONFORMITY
We Vega Trade Company Limited as the responsible manufacturer declare
that rotary hammer TM Procraft:
BH1600, BH1700, BH2150, BH2150N, BH2200, BH2350
are of series production and сonfirm to the following European Directives:
2006/42 / EС
and are manufactured in accordance with the following standards or
standardized documents:
EN 55014-1:2017, EN55014-2:2015, EN IEC61000-3-2: 2019, EN 61000-3-
3:2013/A1:2019, EN 62841-1:2015+AC:2015, EN 62841-2-1:2018+A11:2019
Technical documentation has been supported by: VEGA TRADE COM-
PANY LIMITED, add.: Room 1009, Distrii Zhangjiang Keyuan Office: 6-11
/ F, No.5 Bibo Road, Zhangjiang Innopark, Pudong, Shanghai.
Made in P.R.C
