Velleman K8018W User manual

Connect to your computer and create
your own 3D LED effect.
K8018W (White LED)
K8018B (Blue LED)
RK8018W RK8018B
ILLUSTRATED ASSEMBLY MANUAL H8018IP’1
K8018
3D LED CUBE
5x5x5

Forum
Forum
Participate our Velleman Projects Forum
Subscribing our newsletter?, visit www.vellemanprojects.eu

Features
• LEDs:5x5x5=125LEDs
• userprogrammableviaUSB(creationofanimation/scenes)
• largeamountofuserprogrammableframes
• framesareseparatelydimmable
• 4transitionspeeds
• availableframes:3200
• 5levelsLEDdimmingavailable
• nocodingskillsrequired
• regulatedpowersupply:9VDC
Build your 3D led cube and created unlimited 3D effects. The unit
comes standard loaded with effects. Connect to your computer
(USB) and create your own!
It is advised to start with the
mini 3D LED cube MK193.
View the assembly movie of
MK193 as guideline for
assembly of the LEDs.
Expert soldering
skills required!
For software, visit www.vellemanprojects.eu

Supplyvoltage(V)-ledvoltage(V)
requiredcurrent(A) =seriesresistance(ohms)
required current (A) = series resistance (ohms)
Required resistor power handling=
voltage over resistor x current passed trough resistor
9V-1.7V
0.005A =1460ohm
9V-(3x1.7V)
0.005A =780ohm
(9V - 1.7V) x 0.005A = 0.036W
closest value :
use a 1k5 resistor
use an
820 ohm resistor
a standard 1/4W resistor
will do the job
Supply voltage (V) - (number of leds x led voltage (V))
How to Calculate the series resistor:
Example: operate a red led (1.7V) on a 9Vdc source.
Required led current for full brightness: 5mA (this can be found in the datasheet of the led)
LEDs in series:
Example: 3 x red led (1.7V) on 9V battery
Required led current for full brightness: 5mA
(this can be found in the datasheet of the led)
Ledsfeatureaspecicvoltage
drop,dependingontypeand
colour.Checkthedatasheetfor
exactvoltagedropandrated
current!
Neverconnectledsinparallel
Leds and how to use them
Anopencollectoroutputcanbecomparedtoaswitchwhichswitchesto
groundwhenoperated
Example:HowtoswitchanLEDbymeansofanopencollectoroutput
open collector outputs

assembly
hints
-5-

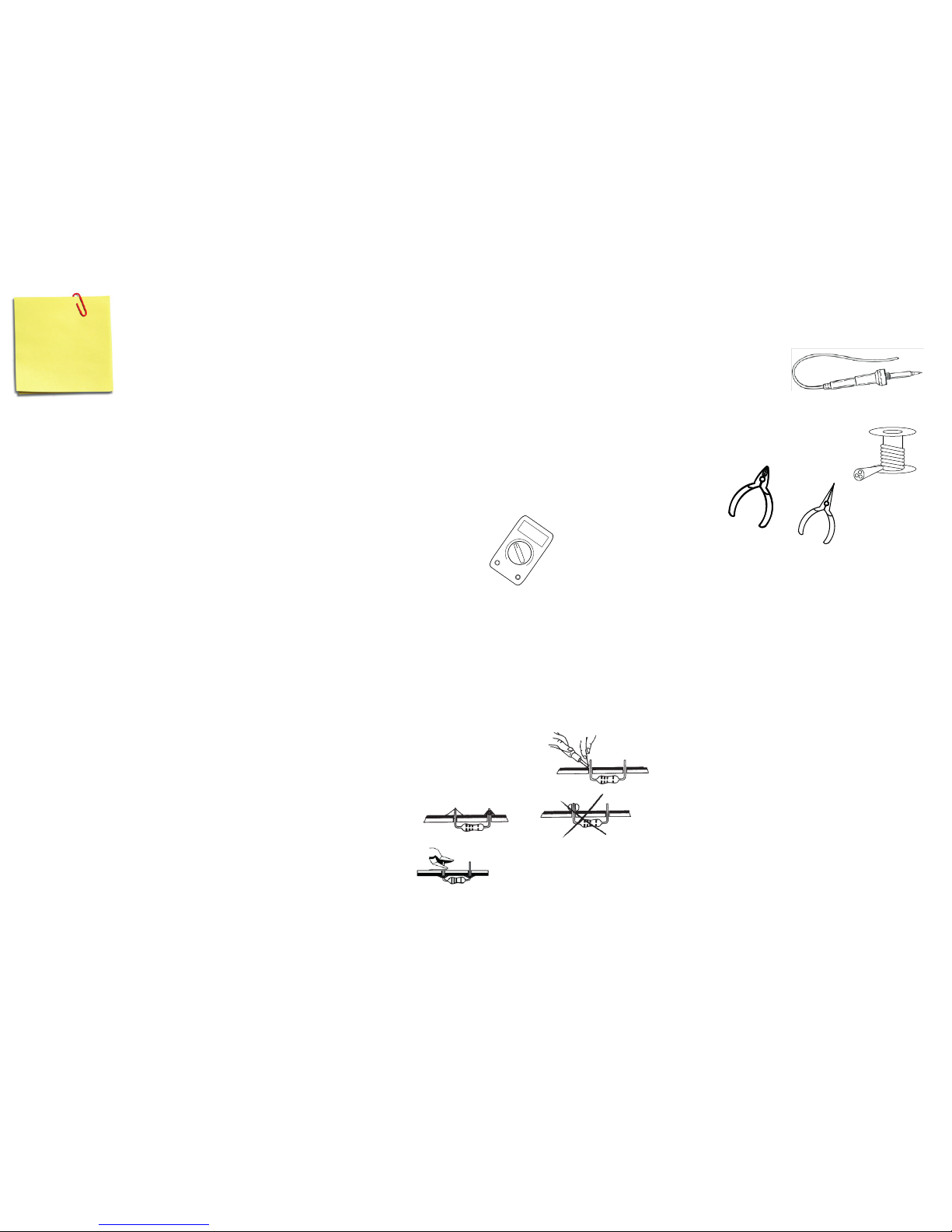

1. Assembly (Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.
1.1 Make sure you have the right tools:
• A good quality soldering iron (25-40W) with a small tip.
• Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and
will protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.
• Thinraisin-coresolder.Donotuseanyuxorgrease.
• Adiagonalcuttertotrimexcesswires.Toavoidinjurywhencuttingexcessleads,holdtheleadsotheycannot
ytowardstheeyes.
• Needle nose pliers, for bending leads, or to hold components in place.
• SmallbladeandPhillipsscrewdrivers.Abasicrangeisne.
)For some projects, a basic multi-meter is required, or might be handy
1.2 Assembly Hints :
• Makesuretheskilllevelmatchesyourexperience,toavoiddisappointments.
• Follow the instructions carefully. Read and understand the entire step before you perform each operation.
• Perform the assembly in the correct order as stated in this manual
• Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.
• Values on the circuit diagram are subject to changes, the values in this assembly guide are correct*
• Usethecheck-boxestomarkyourprogress.
• Please read the included information on safety and customer service
*Typographicalinaccuraciesexcluded.Alwayslookforpossiblelastminutemanualupdates,indicatedas‘NOTE’onaseparateleaet.
1.3 Soldering Hints :
1. Mount the component against the PCB surface and carefully solder the leads
2. Make sure the solder joints are cone-shaped and shiny
3. Trimexcessleadsascloseaspossibletothesolderjoint
0.000

-6-
DO NOT BLINDLY FOLLOW THE ORDER OF THE
COMPONENTS ONTO THE TAPE. ALWAYS CHECK THEIR
VALUE ON THE PARTS LIST!

- 7 -

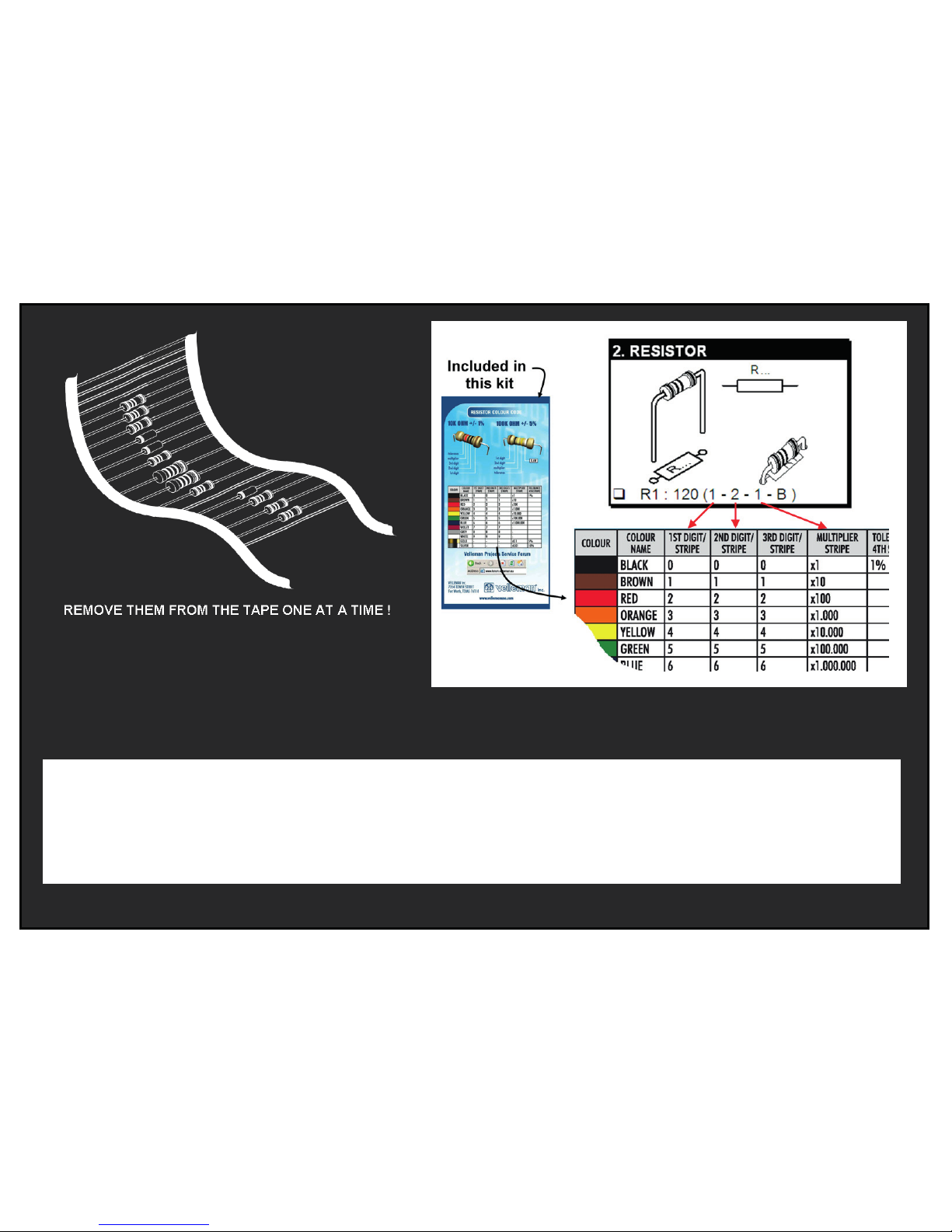

Construction
R...
R1,R2 :2K2 (2-2-2-B)
R3 :10 (1-0-0-B)
R4...R8 :390 (3-9-1-B)
R9 :4K7 (4-7-2-B)
R10 :470 (4-7-0-0-1)
R11 :1K1 (1-1-0-1-1)
Resistors
CeramicCapacitors
C2..C6,C8:100nF (104)
Diodes(Checkpolarity!)
CATHODE
D...
D1...D3:1N4007
4
2
1
SMDIC
3
Quartzcrystal
5
X1:12MHz
X1
IC2,IC3:STP16CP05
Watchthepositionofthenotch!
ICsocket
6
IC1:28p
COLOR=2...5
LD...
CATHODE
LD1:3mmRED
Watchthe
polarity!
LED
7
SW1: Mode
SW2:SPEED
Pushbuttons
8
CeramicCapacitors
9
c...
C7 :470nF(474)
C10 :10nF (103)
C11,C12:22pF (22)
1
ICSP SERVICE
ONLY USB
SK4
WWW.VELLEMAN.EU
P8018'1 3D LED CUBE
5x5x5 = 125 LEDS
MODESPEED
9V DC
USB

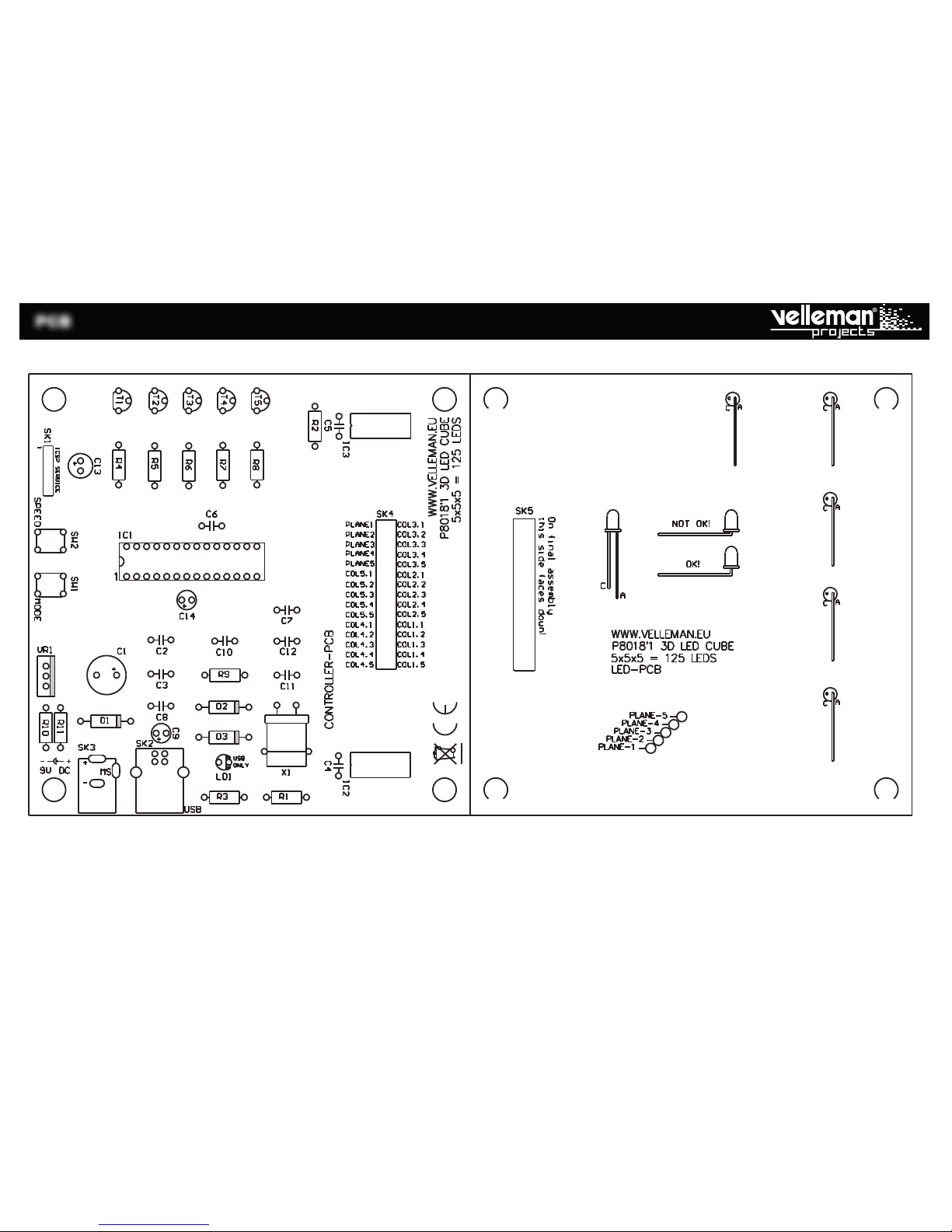

CONTROLLER-PCB
5x5x5 = 125 LEDS
P8018'1 3D LED CUBE
WWW.VELLEMAN.EU
this side faces down!
On final assembly
OK!
NOT OK!
A
C
SK5
C
A
C
A
C
A
C
A
C
A
LED-PCB
PLANE-1
PLANE-2
PLANE-3
PLANE-4
PLANE-5
R11
R3
C14
IC1
C1 C2
C3
C4C5
C6
C7
C8
C9
C10
C11
C12
C13
COL1.1 COL1.2 COL1.3 COL1.4 COL1.5 COL2.1 COL2.2 COL2.3 COL2.4 COL2.5
COL3.1 COL3.2
COL3.3 COL3.4 COL3.5
COL4.1 COL4.2 COL4.3 COL4.4 COL4.5 COL5.1 COL5.2 COL5.3 COL5.4 COL5.5
D1
D2 D3
IC3
PLANE1 PLANE2 PLANE3 PLANE4 PLANE5
R1
R2
R4
R5
R6
R7
R8
R9
SK1
SK2
SK3
SW1SW2
T1
T2
T3
T4
T5
X1
IC2
LD1
R10
VR1
1x3mm
P8018-TOP
!
Watchthepositionof
thenotch!

- 8 -
Construction
C...
FemaleHeader
10
Watchthe
polarity!
C9 :4,7µF
C13:100µF
C14:10µF
C1 :470µF
J ...
J ...
SK4 : 30pins
Transistors
11
T1...T5: BC640
DC-Jack
12
SK3 :9VDC
USBconnector
13
SK2
Electrolyticcapacitors
14
IC
13
Watchtheposition
ofthenotch!
IC1:VK8018 (programmedPIC18F27J53ISP)
!
P8018-BOTTOM
1
ICSP SERVICE
ONLY
USB
SK4
WWW.VELLEMAN.EU
P8018'1 3D LED CUBE
5x5x5 = 125 LEDS
MODESPEED
9V DC
USB
CONTROLLER-PCB
5x5x5 = 125 LEDS
P8018'1 3D LED CUBE
WWW.VELLEMAN.EU
this side faces down! On final assembly
OK!
NOT OK!
A
C
SK5
C
A
C
A
C
A
C
A
C
A
LED-PCB
PLANE-1
PLANE-2
PLANE-3
PLANE-4
PLANE-5
R11
R3
C14
IC1
C1 C2
C3
C4C5
C6
C7
C8
C9
C10
C11
C12
C13
COL1.1
COL1.2
COL1.3
COL1.4
COL1.5
COL2.1
COL2.2
COL2.3
COL2.4
COL2.5
COL3.1
COL3.2
COL3.3
COL3.4
COL3.5
COL4.1
COL4.2
COL4.3
COL4.4
COL4.5
COL5.1
COL5.2
COL5.3
COL5.4
COL5.5
D1
D2
D3
IC3
PLANE1
PLANE2
PLANE3
PLANE4
PLANE5
R1
R2
R4 R5
R6 R7 R8
R9
SK1
SK2
SK3
SW1SW2
T1
T2 T3 T4 T5
X1
IC2
LD1
R10
VR1
1x3mm
J ...
MOUNTONTOP-
OVERLAYSIDE
T ...
VR1: LM317
Voltageregulator
15

- 9 -
Construction

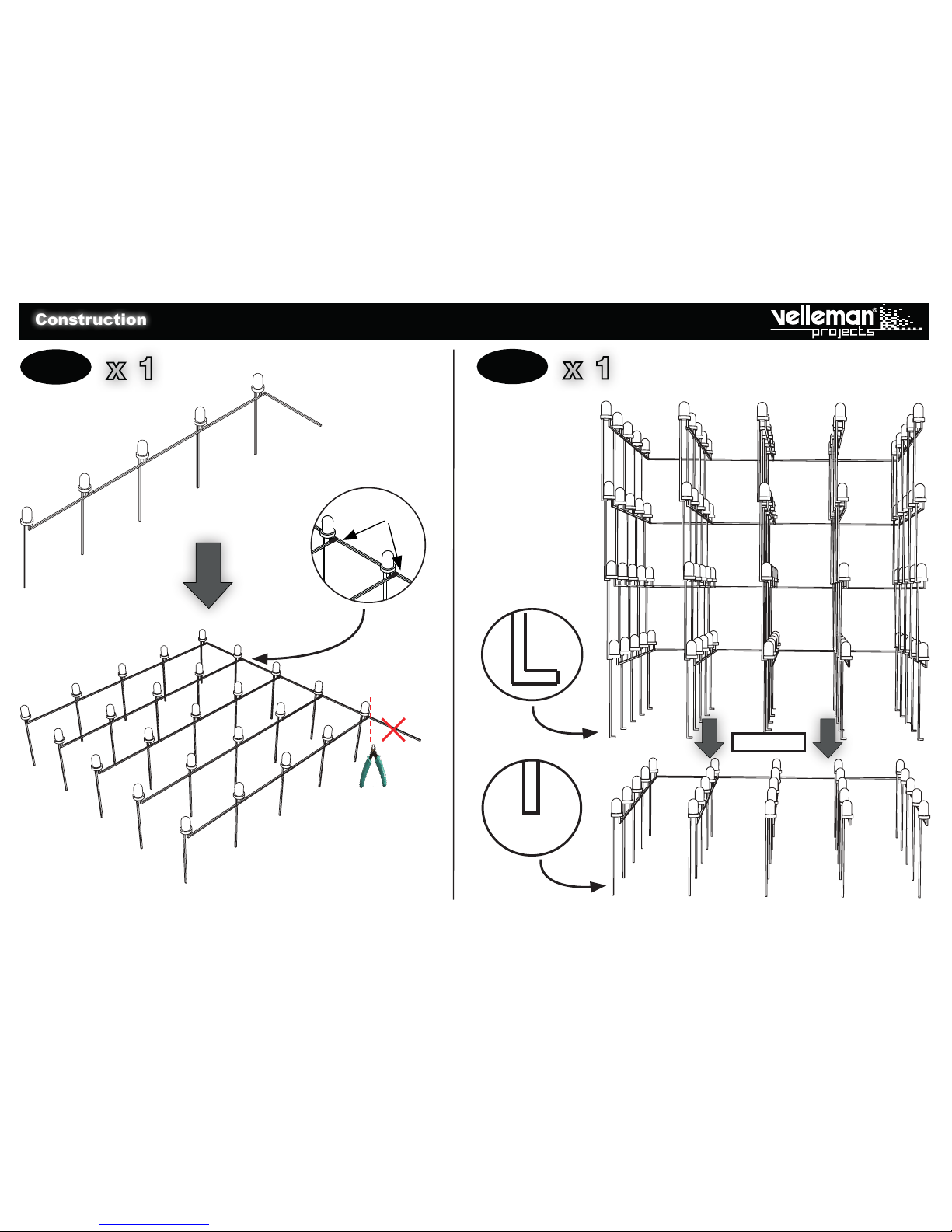

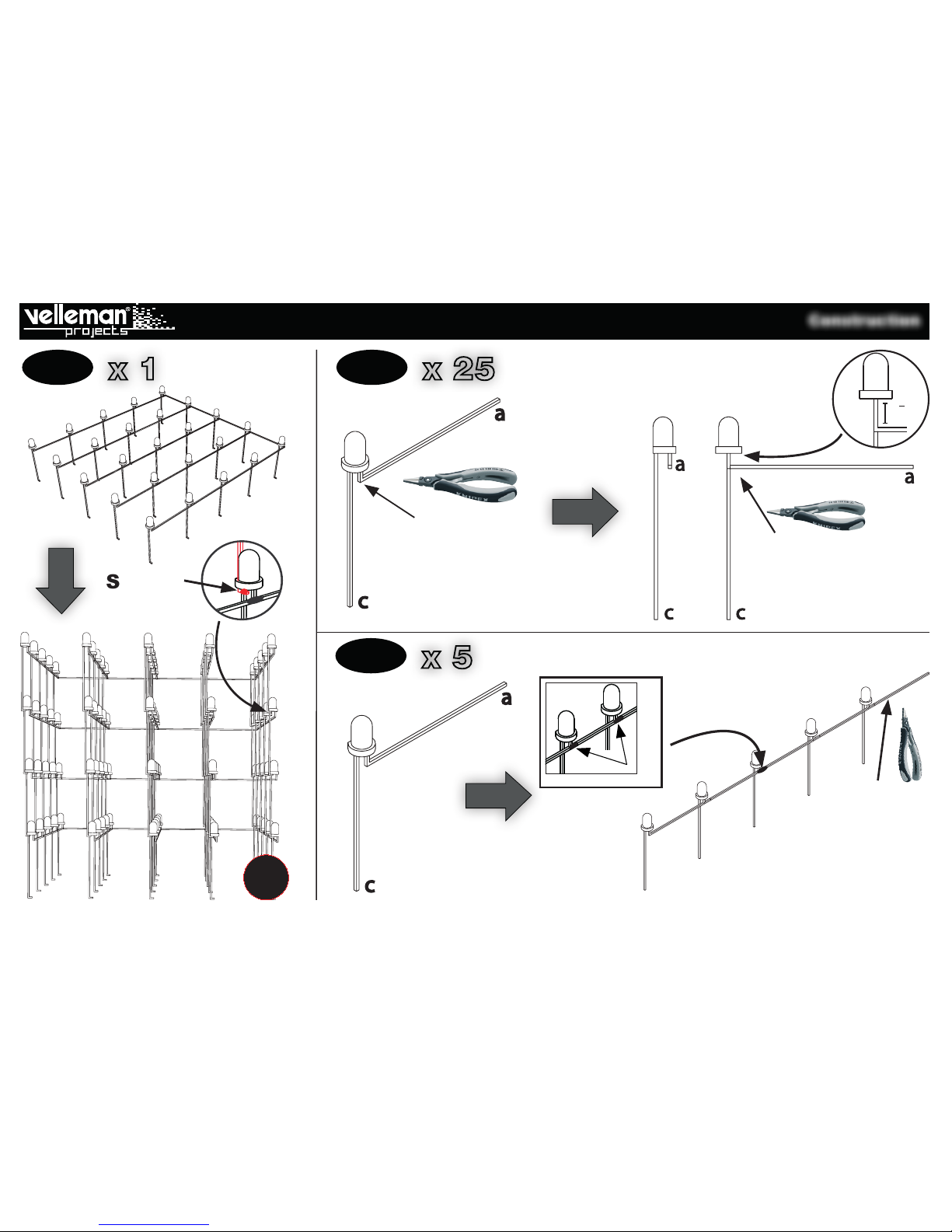

ASSEMBLY OF THE LEDS
Step 1 x 100
Bend
a
+
2mm
C
+2mm
C
Step 2 x 20
Solder
!Bend
Step 3 x 4
Solder
CUT
ViewtheassemblymovieofMK193as
guidelineforassemblyoftheLEDs.
COLOR=2...5
LD...
CATHODE

- 10 -
Construction
Bend
Solder
Step 4 Step 5
Step 6
x 1 x 25
x 5
A
Bend
a
+
2mm
C
Solder
!Bend

- 11 -
Construction
Solder
CUT
Step 7 Step 8
x 1 x 1
Solder
C
!
C

- 12 -
Construction
Step 9 Step 10
Solder
Step 11

- 13 -

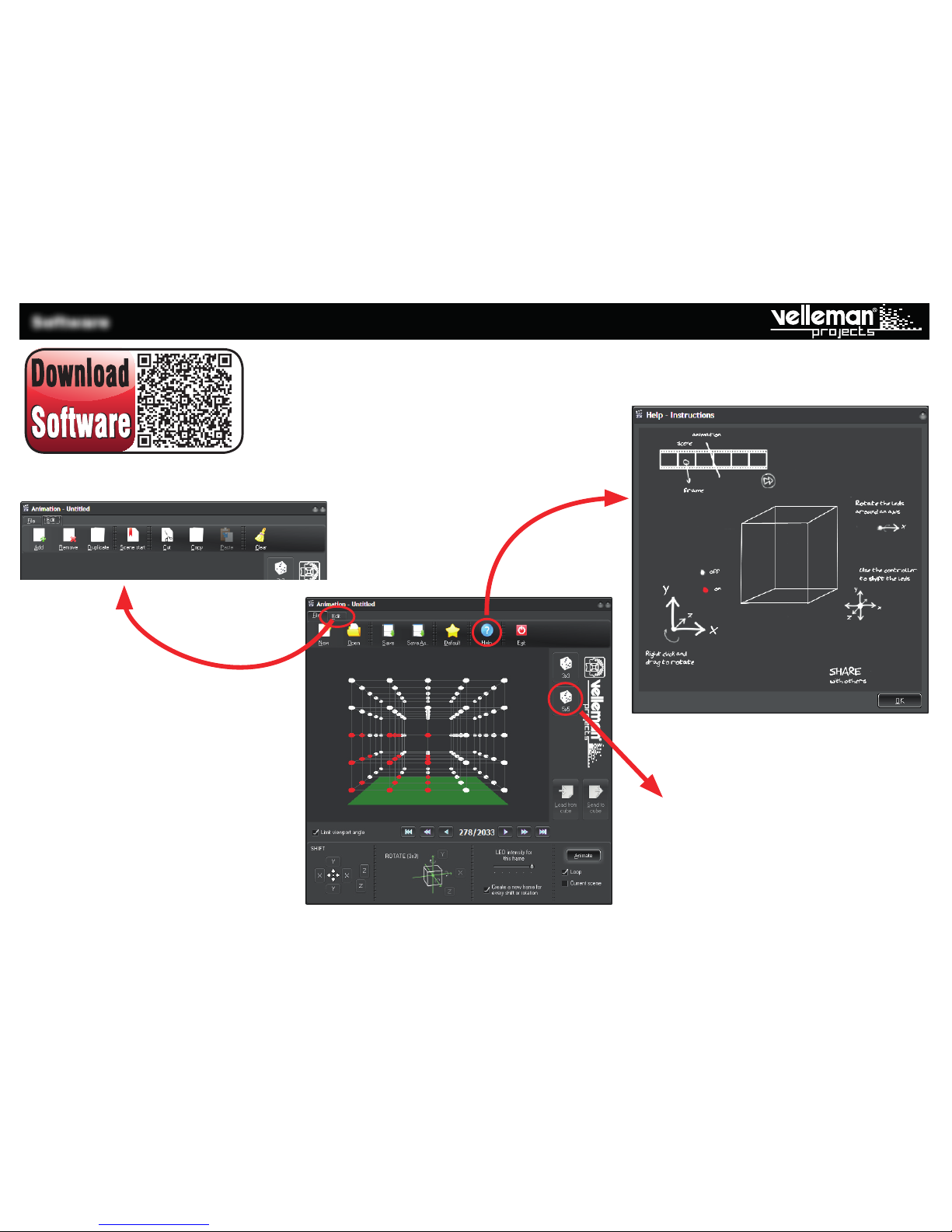

Software
DownloadtheLEDcubesoftwareonourwebsitewww.velleman.eu
Create,editorremoveyourown
animation
Helpinstructions
Choose5x5tosendorreadthe
animationsofyour5x5x5LED
cube.
For software, visit www.vellemanprojects.eu
