Velleman VMA105 User manual

VMA105
ATMEGA32U4 WEARABLE DEVELOPMENT BOARD
USER MANUAL

VMA105
V. 01 –28/06/2018 2 ©Velleman nv
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could
harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it
should be taken to a specialized company for recycling. This device should be returned to your
distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman®! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
This device can be used by children aged from 8 years and above, and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning the use of the device in a
safe way and understand the hazards involved. Children shall not play with the device.
Cleaning and user maintenance shall not be made by children without supervision.
Indoor use only.
Keep away from rain, moisture, splashing and dripping liquids.
3. General Guidelines
Refer to the Velleman®Service and Quality Warranty on the last pages of this manual.
Familiarise yourself with the functions of the device before actually using it.
All modifications of the device are forbidden for safety reasons. Damage caused by user
modifications to the device is not covered by the warranty.
Only use the device for its intended purpose. Using the device in an unauthorised way
will void the warranty.
Damage caused by disregard of certain guidelines in this manual is not covered by the
warranty and the dealer will not accept responsibility for any ensuing defects or
problems.
Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary,
incidental or indirect) –of any nature (financial, physical…) arising from the possession,
use or failure of this product.
Due to constant product improvements, the actual product appearance might differ from
the shown images.
Product images are for illustrative purposes only.
Do not switch the device on immediately after it has been exposed to changes in
temperature. Protect the device against damage by leaving it switched off until it has
reached room temperature.
Keep this manual for future reference.
4. What is Arduino®
Arduino®is an open-source prototyping platform based in easy-to-use hardware and software. Arduino®boards
are able to read inputs –light-on sensor, a finger on a button or a Twitter message –and turn it into an output
–activating of a motor, turning on an LED, publishing something online. You can tell your board what to do by
sending a set of instructions to the microcontroller on the board. To do so, you use the Arduino programming
language (based on Wiring) and the Arduino®software IDE (based on Processing).
Surf to www.arduino.cc and www.arduino.org for more information.

VMA105
V. 01 –28/06/2018 3 ©Velleman nv
5. Overview
VMA105
This wearable development board can be used on textiles as well as sensors, actuators and similarly mounted
power supplies.
microcontroller: ATmega32U4
operating voltage: 2.7 to 5.5 V DC
input voltage: 2.7 to 5.5 V DC
digital I/O pins: 9
PWM channels: 4
analogue input channels: 4
DC current per I/O pin: 40 mA
flash memory: 32 kB (of which 4 kB used by bootloader)
SRAM: 2.5 kB
EEPROM: 1 kB
clock speed: 8 MHz
dimensions: diameter 50 mm
6. Important Remark
The VMA105 module requires a power supply of 3.3 V. However, as the VMA105 contains a 3.3 V regulator it
can be connected by using the 5 V micro USB.
The I/O pins of the VMA105 communicate with 3.3 V only as they do not tolerate 5 V. If interfacing with
5 V I/O pins is needed, we recommend using our VMA410 level shifter.
7. Pin Layout

VMA105
V. 01 –28/06/2018 4 ©Velleman nv
1
micro USB port
2
transmitting/receiving LEDs
3
charging LED
4
ATMega32U4 chip
5
reset button
6
on-off-charge switch
7
JST LiPo battery connection (3.3 V)
8
ground pin (-)
9
3.3 V pin (+)
10
general purpose input and output (GPIO) pins
8. Installation
1. Download and install the latest Arduino®IDE (https://www.arduino.cc/en/Main/Software).
2. Start the Arduino®IDE and open Tools Boards Manager.
3. Select LilyPad Arduino USB.

VMA105
V. 01 –28/06/2018 5 ©Velleman nv

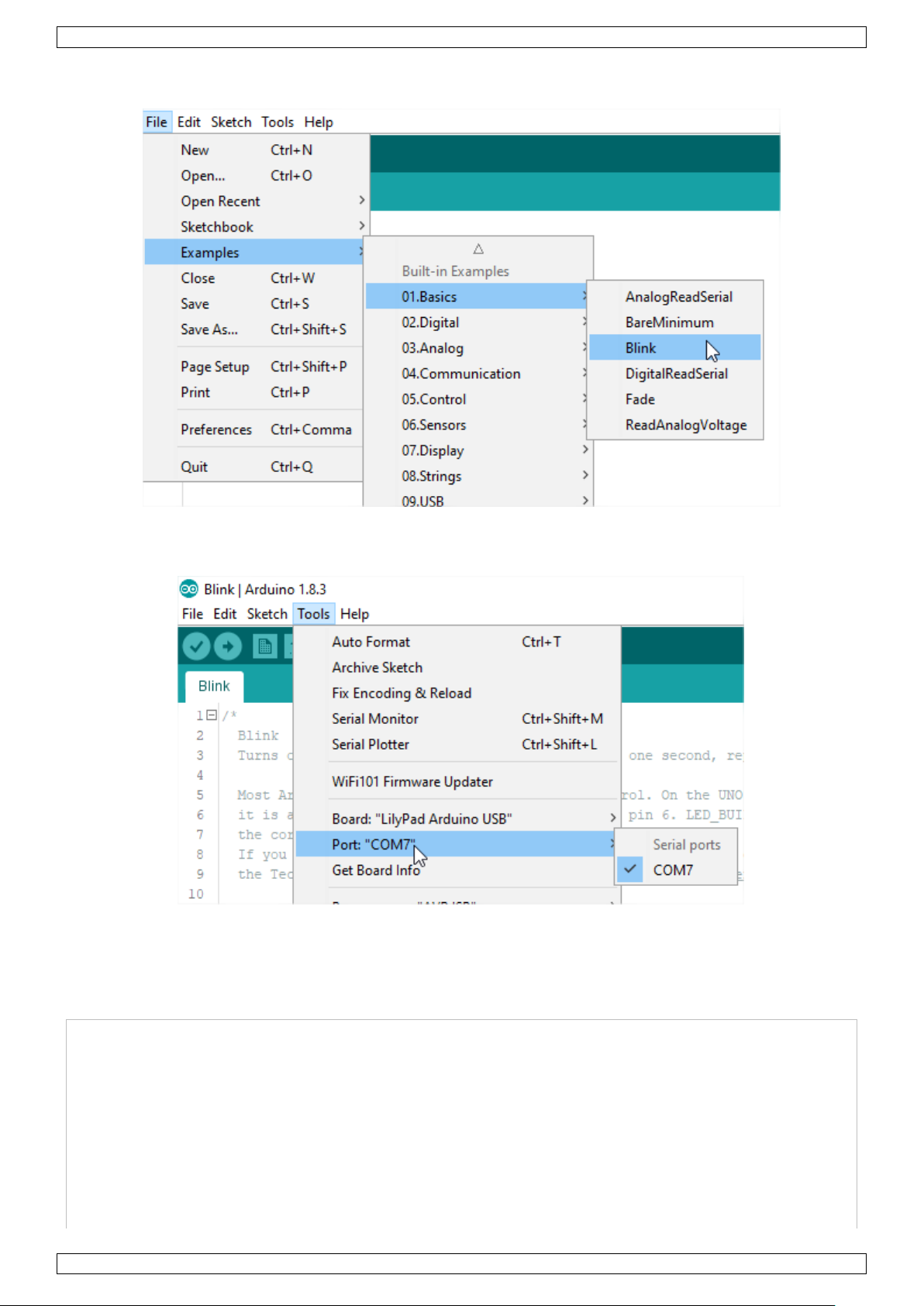

4. Now go to File Examples 01.Basics Blink.
5. Connect your VMA105 via micro USB and select the communications port of your computer.
6. Compile and send the code to your VMA105, and enjoy the flashing LED.
9. Example
/* CODE BEGIN
Blink
Turns on an LED on for one second, then off for one second, repeatedly.
Most Arduinos have an on-board LED you can control. On the UNO, MEGA and ZERO
it is attached to digital pin 13, on MKR1000 on pin 6. LED_BUILTIN is set to
the correct LED pin independent of which board is used.
If you want to know what pin the on-board LED is connected to on your Arduino model, check

VMA105
V. 01 –28/06/2018 6 ©Velleman nv
the Technical Specs of your board at https://www.arduino.cc/en/Main/Products
This example code is in the public domain.
modified 8 May 2014
by Scott Fitzgerald
modified 2 Sep 2016
by Arturo Guadalupi
modified 8 Sep 2016
by Colby Newman
*/
// the setup function runs once when you press reset or power the board
void setup() {
// initialize digital pin LED_BUILTIN as an output.
pinMode(LED_BUILTIN, OUTPUT);
}
// the loop function runs over and over again forever
void loop() {
digitalWrite(LED_BUILTIN, HIGH); // turn the LED on (HIGH is the voltage level)
delay(1000); // wait for a second
digitalWrite(LED_BUILTIN, LOW); // turn the LED off by making the voltage LOW
delay(1000); // wait for a second
}
10. More Information
Please refer to the VMA105 product page on www.velleman.eu or click this link
http://www.instructables.com/lesson/Introducing-the-Microcontroller-Arduino/ for more information.
All registered trademarks and trade names are properties of their respective owners and are used only for the
clarification of the compatibility of our products with the products of the different manufacturers.
Use this device with original accessories only. Velleman nv cannot be held responsible in the event
of damage or injury resulting from (incorrect) use of this device. For more info concerning this
product and the latest version of this manual, please visit our website www.velleman.eu. The
information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this
manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the
prior written consent of the copyright holder.
