Velleman VMA107 User manual

VMA107
NODEMCU V2 LUA BASED ESP8266 DEVELOPMENT BOARD
USER MANUAL

VMA107
V. 01 –25/04/2018 2 ©Velleman nv
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could
harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it
should be taken to a specialized company for recycling. This device should be returned to your
distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman®! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
This device can be used by children aged from 8 years and above, and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning the use of the device in a
safe way and understand the hazards involved. Children shall not play with the device.
Cleaning and user maintenance shall not be made by children without supervision.
Indoor use only.
Keep away from rain, moisture, splashing and dripping liquids.
3. General Guidelines
Refer to the Velleman®Service and Quality Warranty on the last pages of this manual.
Familiarise yourself with the functions of the device before actually using it.
All modifications of the device are forbidden for safety reasons. Damage caused by user
modifications to the device is not covered by the warranty.
Only use the device for its intended purpose. Using the device in an unauthorised way
will void the warranty.
Damage caused by disregard of certain guidelines in this manual is not covered by the
warranty and the dealer will not accept responsibility for any ensuing defects or
problems.
Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary,
incidental or indirect) –of any nature (financial, physical…) arising from the possession,
use or failure of this product.
Due to constant product improvements, the actual product appearance might differ from
the shown images.
Product images are for illustrative purposes only.
Do not switch the device on immediately after it has been exposed to changes in
temperature. Protect the device against damage by leaving it switched off until it has
reached room temperature.
Keep this manual for future reference.
4. What is Arduino®
Arduino®is an open-source prototyping platform based in easy-to-use hardware and software. Arduino®boards
are able to read inputs –light-on sensor, a finger on a button or a Twitter message –and turn it into an output
–activating of a motor, turning on an LED, publishing something online. You can tell your board what to do by
sending a set of instructions to the microcontroller on the board. To do so, you use the Arduino programming
language (based on Wiring) and the Arduino®software IDE (based on Processing).
Surf to www.arduino.cc and www.arduino.org for more information.

VMA107
V. 01 –25/04/2018 3 ©Velleman nv
5. Overview
VMA107
The NodeMcu is an open-source firmware and development kit that helps you to prototype your IOT product
within a few Lua script lines.
operating voltage ................................................................................................... 5 VDC (USB)
dimensions .................................................................................................... 5.8 x 3.2 x 1.2 cm
weight ..............................................................................................................................12 g
6. Warning
The ESP8266 module requires a power supply of 3.3 V. However, as the VMA107 contains a 3.3 V regulator, it
can be connected by using the 5 V micro USB or the 5 V VIN pin of the board.
The I/O pins of the VMA107 communicate with 3.3 V only. They do not tolerate 5 V. If interfacing with 5 V I/O
pins is needed, we recommend using our VMA410 level shifter.
7. Pin Layout

VMA107
V. 01 –25/04/2018 4 ©Velleman nv
8. Installing the VMA107
Download and install the latest Arduino®IDE on https://www.arduino.cc/en/Main/Software.
Start the Arduino®IDE and open the preference window (File Preferences).
Enter http://arduino.esp8266.com/versions/2.4.0/package_esp8266com_index.json in the Additional Boards
Manager URL’s field.
Close and re-start the Arduino®IDE.
Open the Boards Manager and select the “NodeMCU 1.0(ESP-12E Module)”.
Open the Boards Manager again and install the ESP8266 software.

VMA107
V. 01 –25/04/2018 5 ©Velleman nv
Restart the Arduino®IDE again.
Connect your VMA107 by using the micro USB and select the communications port of your computer.

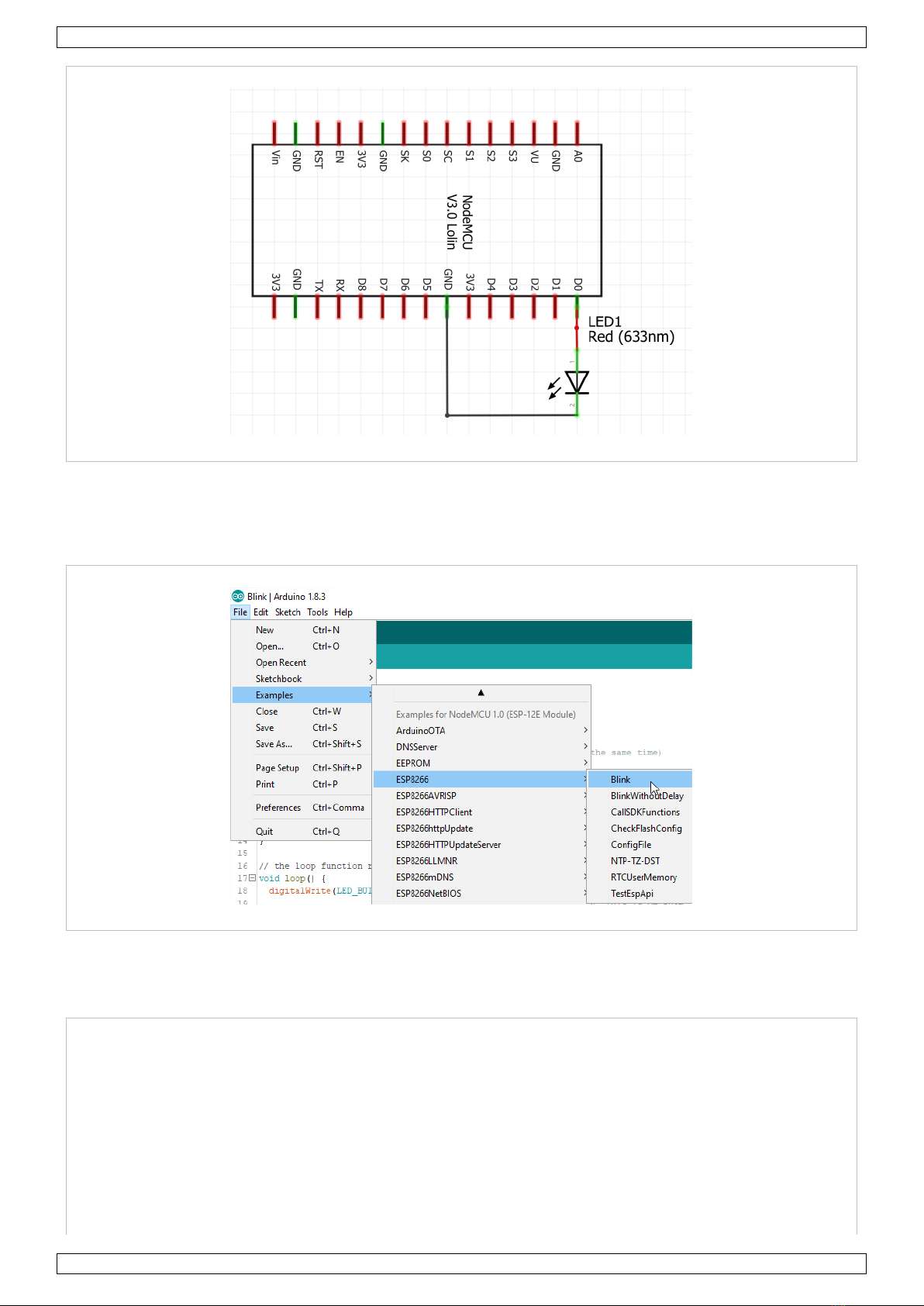

9. Wiring and Software for the Blink Example
Connect an LED to your VMA107. A resistor is not needed as the I/O’s of the VMA107 are current-limited.
The LED can be replaced by for example the VMA331 so a relay can be controlled.

VMA107
V. 01 –25/04/2018 6 ©Velleman nv
The sketch for this Blink example is integrated in the ESP8266 board information, which you already installed in
the Arduino®IDE.
In your Arduino®IDE, open the examples and select ESP8266 and the example Blink.
Now, the following code is loaded in your IDE. Please take note that the VMA107 has no on-board LED.
Compile and send the code to your VMA107, and enjoy the flashing LED!
/* CODE BEGIN
Blink the blue LED on the ESP-01 module
This example code is in the public domain
The blue LED on the ESP-01 module is connected to GPIO1
(which is also the TXD pin; so we cannot use Serial.print() at the same time)
Note that this sketch uses LED_BUILTIN to find the pin with the internal LED
*/

VMA107
V. 01 –25/04/2018 7 ©Velleman nv
void setup() {
pinMode(LED_BUILTIN, OUTPUT); // Initialize the LED_BUILTIN pin as an output
}
// the loop function runs over and over again forever
void loop() {
digitalWrite(LED_BUILTIN, LOW); // Turn the LED on (Note that LOW is the voltage level
// but actually the LED is on; this is because
// it is active low on the ESP-01)
delay(1000); // Wait for a second
digitalWrite(LED_BUILTIN, HIGH); // Turn the LED off by making the voltage HIGH
delay(2000); // Wait for two seconds (to demonstrate the active low LED)
}
10. More Information
For more information, please follow these links:
www.esp8266.com
https://www.esp8266.com/wiki/doku.php
http://www.nodemcu.com
Use this device with original accessories only. Velleman nv cannot be held responsible in the event
of damage or injury resulting from (incorrect) use of this device. For more info concerning this
product and the latest version of this manual, please visit our website www.velleman.eu. The
information in this manual is subject to change without prior notice.
