Vello Nobel Gene 350 User manual

Instruction Manual
PROFESSIONAL SHOW LIGHT

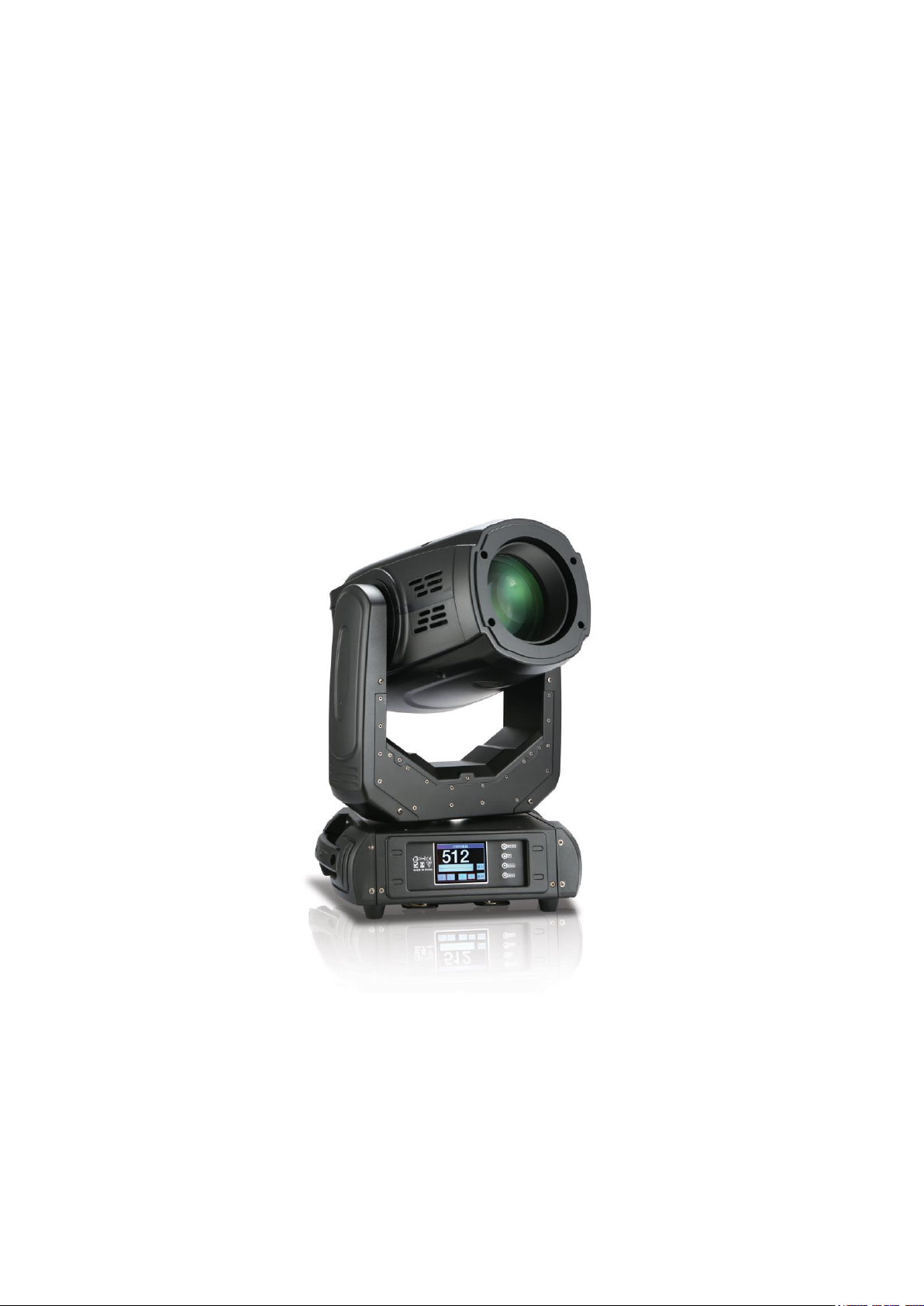

Nobel Gene350 moving head
Beam+Spot+Wash
------------------------------ 2015 Ver4.11-----------------------------------

1
Unpacking: Thank you for purchasing Gene350 (Beam+Wash+Spot) fixture. Every unit has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit
has arrived intact. In the case damage has been found or parts are missing, please contact the manufacturer or your dealer for further
instructions. Do not return this unit to your dealer without first contacting.
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING THE
FIXTURE. SAVE IT FOR FUTURE REFERENCE.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufactures
warranty. In the unlikely event your unit may require service please contact the manufacturer or your dealer.
PLEASE recycle the shipping carton when ever possible.
General Instructions: To optimize the performance of this product, please read these operating instructions carefully to familiarize you
with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this
unit.
Safety Precautions
⚫To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
⚫Do not spill water or other liquids into or on to your unit.
⚫Be sure that the local power outlet match that of the required voltage for your unit.
⚫Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove or break off the ground
prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
⚫Disconnect from main power before making any type of connection.
⚫Do not remove the cover under any conditions. There are no user serviceable parts inside.
⚫Never operate this unit when it’s cover is removed.
⚫Never plug this unit in to a dimmer pack.
⚫Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm) between this device and a
wall.
⚫Do not attempt to operate this unit, if it becomes damaged.
⚫This unit is intended for indoor use only; use of this product outdoors voids all warranties.
⚫During long periods of non-use, disconnect the unit’s main power.
⚫Always mount this unit in safe and stable matter.
⚫Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
⚫Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See “Cleaning” for details.
⚫Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
PLEASE consider that damages caused by manual modifications to the device are not subject to warranty.

2
C. The appliance has been exposed to rain or water.
⚫D. The appliance does not appear to operate normally or exhibits a marked change in performance.
Technical Specifications
Electrical
Power supply:……………….…electronic auto-ranging
Input voltage range:……………supply 100-250V, 50/60Hz
Power consumption:……………550W
Optic
Light source: YODN HRI 350W Lamp
LED life expectancy: 2200 hours
Lens: High precision optical lens
Strobe: Dual lens strobe (0.5-9times/second)
Dimmer: Smooth dimmer from 0-100%
Feature
Color: Wheel: 13 color+white
Rotating gobo wheel: 12 glass gobos+ white
Static gobo wheel: 17 fixed gobos+white
Prism :12 -facets circular rotating prism
Zoom: 2.5°-35°
Focus: Linear adjustment
Motorized
Pan/Tilt
Pan movement range: 540°
Tilt movement range: 270°
8bit/16 bit movement solution, optional
Automatic Pan/Tilt position correction
Pan movement 0°-540°at max…….
Tilt movement 0°-270°at max……..
LCD operation
Built-in demo sequences
Silent fans cooling
Strong two-phase motors
Stand-alone operation
Supported protocols: DMX512
2 DMX modes (16/24 control channels)
Connection
DMX data in/out: Locking 3-pin and 5-pin XLR
AC power input: 1.5m power cord with plug
Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature: 45℃

3
Maximum housing temperature: 75℃
Minimum distances
Min. distance from flammable surfaces: 3.0m
Min. distance to lighted object: 2.0m
Dimension: 386(L) x 365(W) x 589(H) mm
Weight (net): 19kg
Warranty: 1 Year ……………………………
Set Up:
Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for unit, The model
is Auto power supply, It is workable in 100-250V/50~60Hz. Please make sure your unit voltage matches the wall outlet voltage before
attempting to operate you fixture.
Connection to the mains
For protection from electric shock, the fixture must be earthed!
Install a suitable plug on the power cord, note that the cores in the power cord are colored according to the following table. The earth
has to be connected!
If you have any doubts about proper installation, consult a qualified electrician.
Core (EU)
Core (US)
Connection
Plug Terminal Marking
Brown
Light blue
Yellow/Green
Black
White
Green
Live
Neutral
Earth
L
N
DMX512 connection
The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The sockets are wired in parallel.
Only use a shielded twisted-pair cable designed for RS-485 and 3-or 5-pin XLR-plugs and connectors in order to connect the controller
with the fixture or one fixture with another.
DMX-output DMX-input
XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):

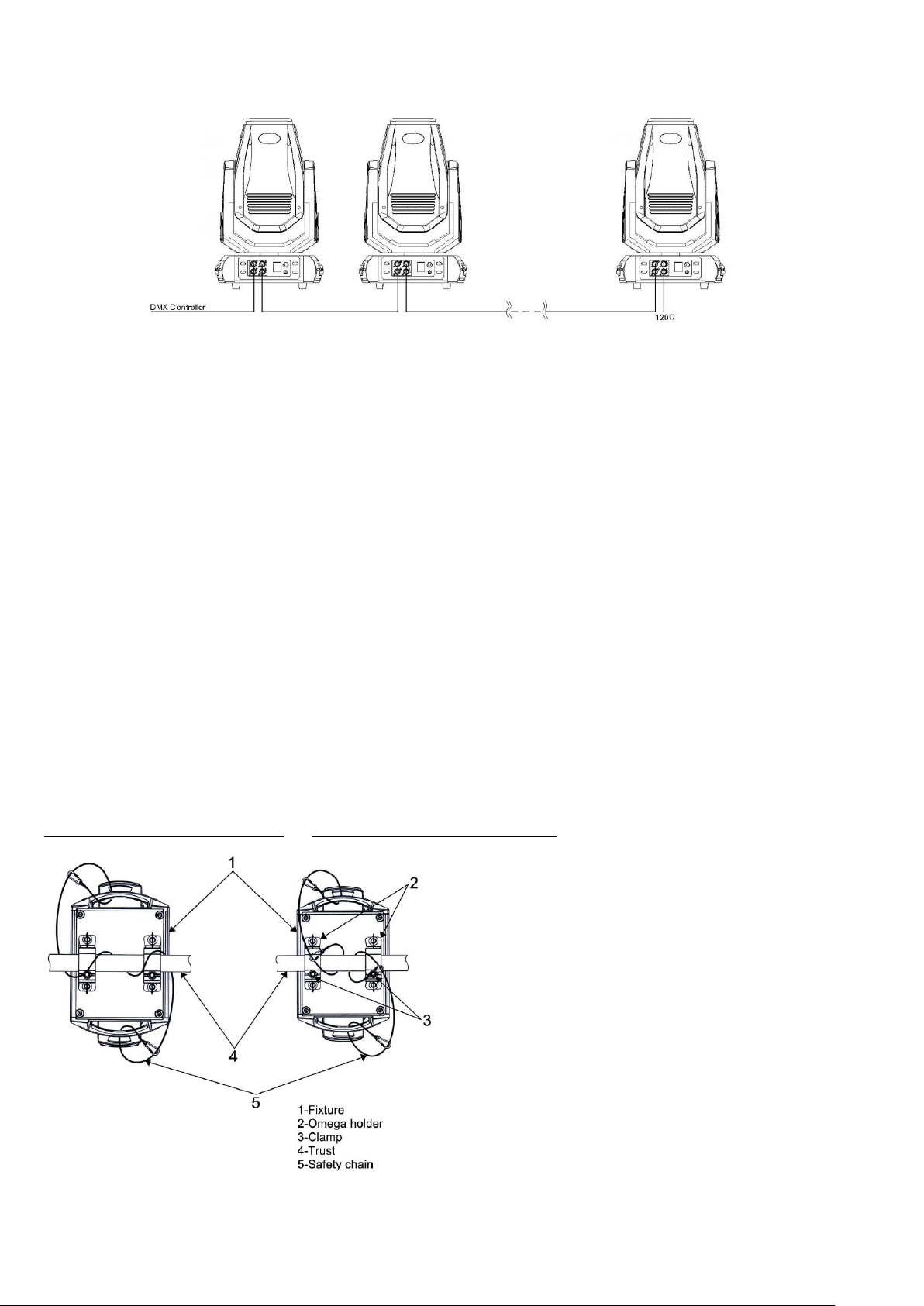

DMX Linking: To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible.
The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned a DMX
address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned
a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the
DMX chain.
Building a serial DMX-chain:
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always connect one output with the
input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120Ω resistor between Signal (－) and

4
Signal (＋) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Operating Modes: You can use the fixture in 3 ways:
⚫Auto Mode - The unit will automatically chase through the different colors and built-in programs.
⚫Slave Mode –The unit will run under slave mode.
⚫DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512 controller.
⚫
DMX Mode: Operating through a DMX controller give the user the freedom to create their own programs tailored to their own individual
needs. This function also allows you to use your fixtures as spot lights.
1. This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
2. The fixture has 16/24 two DMX channels to operate. Please see “DMX Values and Functions” for the DMX traits.
3. To run your fixture in DMX mode, plug in the fixture via the XLR connections to any standard DMX controller. Set your desired DMX
address following the setup specifications that come with your DMX controller.
Hanging Drawing:
CAUTION!
Use an appropriate clamp to ring the fixture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure.
Securing the fixture via one safety wire Securing the fixture via two safety wires

5
Menu Map

6
DMX Chart:
Standard Mode
Reduced Mode
DMX Value
Function
Description
1
1
0－255
Pan
Pan
2
*
0－255
Pan Fine
Pan Fine
3
2
0－255
Tilt
Tilt
4
*
0－255
Tilt Fine
Tilt Fine
5
3
0－255
Pan/Tilt Speed
Pan/Tilt Speed Fast-Slow
6
4
0－19
Macro
No Function
20－24
Energy Saving Mode（280W）
25－30
Power Recovery
31-129
No Function
130－139
Lamp On
140－149
X/Y Reset
150－189
Effect Reset
190－199
No Function
200－209
Fixture Reset
210－229
No Function
230－239
Lamp Off
240－255
No Function
7
5
*
Color Wheel
Color Index
0
White
9
Deep Red
18
Deep Blue
27
Yellow
37
Green
46
Fuchsine
55
Sky Blue
64
Red
73
Deep Green
82
Amber
91
Blue
101
Orange
110
CTO
119
Fluorescence Blue
Full Color
128－129
White
130－134
Deep Red
135－138
Deep Blue
139－143
Yellow
144－147
Red
148－152
Fuchsine
153－157
Sky Blue
158－161
Red
162－166
Deep Green

7
167－171
Amber
172－176
Blue
177－180
Orange
181－185
COT
186－189
Purple
190－220
Forwards color wheel rotation from
fast to slow
221-225
Stop
226-255
Backwards color wheel rotation
from slow to fast
8
*
0-255
Color Wheel Fine
Color wheel fine
9
6
0-255
Effect Speed
Effect - Speed
Selection rotation gobo wheel speed
Fast-Slow(0-25.5s)
10
7
0-5
Static Gobo Wheel
White
6-11
Gobo 1
12-17
Gobo 2
18-23
Gobo 3
24-29
Gobo 4
30-35
Gobo 5
36-41
Gobo 6
42-47
Gobo 7
48-53
Gobo 8
54-59
Gobo 9
60-65
Gobo 10
66-71
Gobo 11
72-77
Beam 1
78-83
Beam 2
84-89
Beam 3
90-95
Beam 4
96-101
Beam 5
102-108
Beam 6
109-113
Gobo 1 Shake Slow-Fast
114-119
Gobo2 Shake
120-125
Gobo3 Shake
126-131
Gobo4 Shake
132-137
Gobo5 Shake
138-143
Gobo6 Shake
144-149
Gobo7 Shake
150-155
Gobo8 Shake
156-161
Gobo 9 Shake
162-167
Gobo10 Shake
168-173
Gobo11 Shake
174-179
Beam1 Shake
180-185
Beam2 Shake

8
186-191
Beam3 Shake
192-197
Beam4 Shake
198-203
Beam5 Shake
204-210
Beam6 Shake
211-233
Forwards rainbow effect fast-slow
234-255
Backwards rainbow effect slow-fast
11
8
0-7
Rotating Gobo Wheel
White
8-15
Gobo 1
16-23
Gobo 2
24-31
Gobo 3
32-39
Gobo 4
40-47
Gobo 5
48-55
Gobo 6
56-63
Gobo 7
64-71
Gobo 8
72-79
Gobo 9
80-87
Gobo 11
88-95
Gobo 12
96-103
Gobo 13
104-111
Gobo 1 Shake
112-119
Gobo2 Shake
120-127
Gobo3 Shake
128-135
Gobo4 Shake
136-143
Gobo5 Shake
144-151
Gobo6 Shake
152-159
Gobo7 Shake
160-167
Gobo8 Shake
168-175
Gobo 9 Shake
176-183
Gobo10 Shake
184-191
Gobo11 Shake
192-199
Gobo12 Shake
200-228
Backwards rainbow effect fast-slow
229-255
Forwards rainbow effect slow-fast
12
9
0-127
Rot. Gobo indexing and
rotation
Gobo index
128-190
Backwards rotation fast-slow
191-192
Stop
193-255
Forwards rotation slow-fast
13
*
0－255
Rot. Gobo indexing and
rotation-fine
Fine indexing(rotation)
14
10
0-19
Prism
No function
20-255
Prism
15
11
0-127
Prism rotation and
indexing
Prism index
128-190
Backwards rotation fast-slow
191-192
Stop

9
192-255
Forwards rotation slow-fast
16
12
0－64
Frost
No function
65－255
Frost
17
13
0－255
Zoom
Zoom
18
*
0－255
Zoom Fine
Zoom Fine
19
14
0－255
Focus
Focus
20
*
0－255
Focus Fine
Focus Fine
21
*
0-255
Auto Focus
Auto Focus
22
15
0－31
Strobe
Shutter off
32－63
Shutter open
64－95
Strobe effect slow-fast
96－127
Shutter open
128－143
Closing pulse in sequences
Fast-Slow
144－159
Opening pulse in sequences
Slow - Fast
160－191
Shutter Open
192－223
Random Strobe Slow-Fast
224－255
Shutter Open
23
16
0－255
Dimmer
Linear dimmer 0-100%
24
*
No Function
Dimension(mm):
Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light
output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew).

10
Unit not responds to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some other DMX devices pin 5 may
be ‘hot’). Also, check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are
connected.
PLEASE Note: All information is subject to change without prentice !
TROUBLE SHOOTING: Listed below are a few common problems the user may encounter, with
solutions.
