Vemer TUO GSM VE771800 User manual

Digital
Chronothermostat
TUO GSM
User Manual

English
- 41 -
TUO GSM Chronothermostat User Manual
Index
■Safety warnings Pagina 43
■Dimensions Pagina 43
■Device description Pagina 44
■Connection diagram Pagina 45
■Installation and initial configuration Pagina 46
■Device remote control Pagina 48
■Operating mode Pagina 59
■Configuration menu description Pagina 61
■CLOCK menu - Date and time setting Pagina 62
■PROG menu - Programs setting Pagina 64
■SET menu - Temperatures T1, T2, T3 setting Pagina 66
■TIMER menu - Timing setting Pagina 67
■ADV menu - Advanced parameters setting Pagina 68
- operating mode Pagina 68
- Type of regulation Pagina 69
- parameters for regulation type Pagina 69
- antifreeze temperature Pagina 70
- adjustment of the measured temperature Pagina 70
- GSM connection configuration Pagina 71
- minimum/maximum settable temperature Pagina 72
- password for key lock Pagina 72
- operating hour meter Pagina 73
- display backlighting Pagina 73
- language selection Pagina 73
■Other functions of the device Pagina 74
- display of minimum/maximum daily temperature Pagina 74
- display of relative humidity Pagina 74
- keypad unlock Pagina 74
■Device reset Pagina 74
■Regulation types Pagina 75
■Technical characteristics Pagina 76
■Reference standards Pagina 77
■Winter programs Pagina 78
■Summer programs Pagina 79

English
- 42 -
TUO GSM Chronothermostat User Manual
GSM wall-mounting chronothermostat powered by mains (230 V~), suitable for the
control of heating and air-conditioning systems.
The device, through the bistable relay, acts on the control circuit of the burner or the
circulation pump (heating), or on the control circuit of the air conditioner (conditioning),
in order to guarantee the desired temperature.
The integrated GSM module allows the remote control of the device via your
smartphone or tablet. It is sufficient to insert a SIM card enabled for telephone traffic in
the appropriate slot: the remote control occurs by sending to the device certain types
of SMS messages, described in this user manual.
Security is guaranteed by the fact that the command messages are interpreted by the
device only if the sender number is saved in the device address book or if they are
accompanied by the SMS protection password.
Every time the device receives a valid command, after executing it, it sends a
confirmation message to the sender.
It is also available an app for iOS or Android devices that allows you to control the
device without having to manually write the text of the command messages.
The device also displays the relative humidity value thanks to the built-in probe.
The colour of the display backlighting can be chosen by the user among the 48
selectable shades. You can even set the backlighting to be variable according to the
difference between the measured temperature and the set one.
The backlighting can be always switched off if the device is installed for example in
bedrooms.
Code Model Description
VE771800 Tuo GSM Bianco Weekly chronothermostat white colour
VE771900 Tuo GSM Nero Weekly chronothermostat black colour

English
- 43 -
TUO GSM Chronothermostat User Manual
■During installation and operation of the product, it is necessary to comply
with the following instructions:
1) The device must be installed by a skilled person, in strict compliance with the
connection diagrams.
2) Do not power on or connect the device if any part of it is damaged.
3) After installation, inaccessibility to the connection terminals without
appropriate tools must be guaranteed.
4) The device must be installed and activated in compliance with current electric
systems standards.
5) Before accessing the connection terminals, verify that the leads are not live.
6) In the electrical system of the building where the device must be installed, a
protection device from the overcurrents must be present.
7) The device performs actions of 1B type and is suitable for environments
with pollution degree 2 and overvoltage category III (EN 60730-1).
DIMENSIONS
SAFETY WARNINGS
130
85
28

English
- 44 -

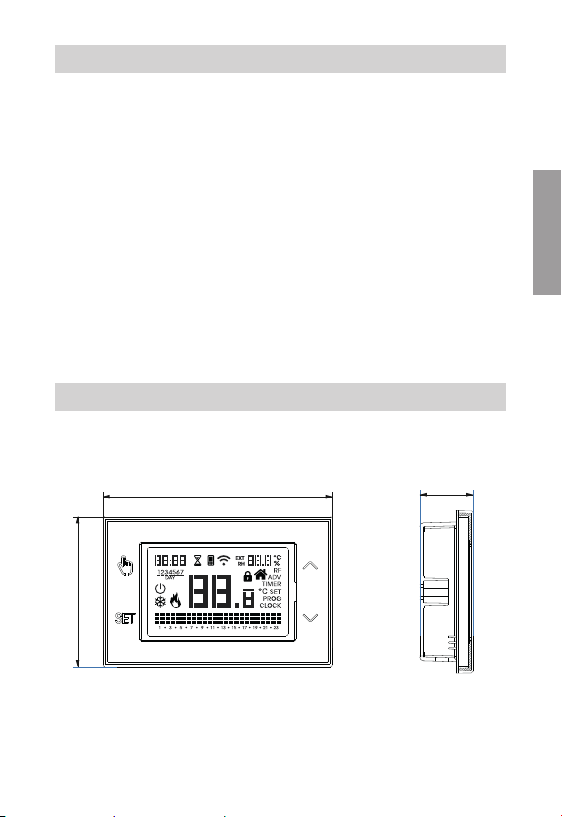

TUO GSM Chronothermostat User Manual
a Clock
b Day of the week
c Off operation
d Active load (conditioning mode)
e Active load (heating mode)
f Measured temperature
g Running daily program divided into 24 histograms, one for each hour of the day.
Each hour is associated with one of the 3 temperatures:
Temperature T1 Temperature T2 Temperature T3
h Active timed operation
Receiving a command in progress
Connection to the active GSM network
Measured relative humidity
Configuration menu:
RF (not used)
ADV advanced parameters of the device
TIMER timings
SET automatic operating temperatures T1, T2, T3
PROG automatic operating programs
CLOCK date and time
(not used)
Active keypad lock
DEVICE DESCRIPTION

English
- 45 -
TUO GSM Chronothermostat User Manual

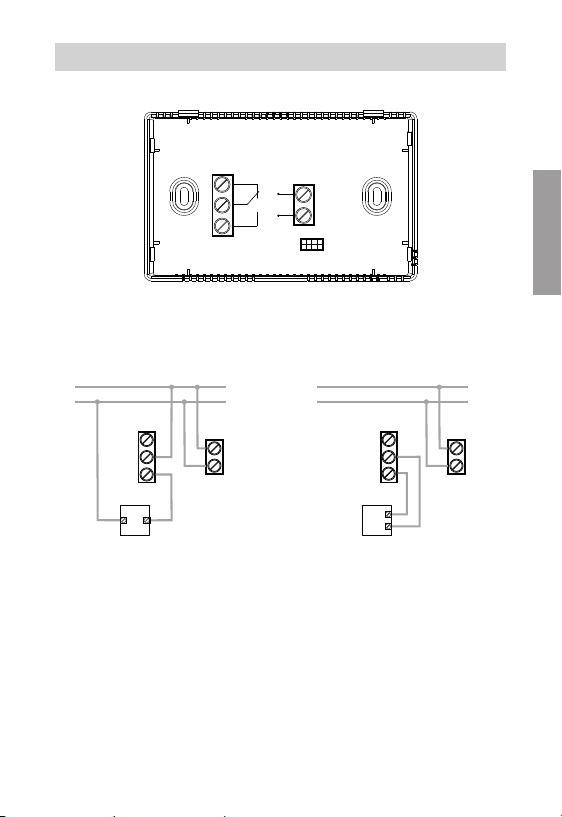

CONNECTION DIAGRAM
L
N
NC
NO
C
L
N
L
N
NO
C
NC
NO
C
NC
U
U
L
N
L
N
NO
C
NC
NO
C
NC
U
U
Connection diagram for the control
of the boiler, heat pumps, etc.
Connection diagram for the supply
of circulation pumps, solenoid valves,
etc. at 230V ~

English
- 46 -
TUO GSM Chronothermostat User Manual
INSTALLATION AND INITIAL CONFIGURATION
The device can be installed on the wall or to cover the 3-module flush-mounting box
(type 503).
We recommend positioning at a height of 1.5 meters from the floor, in an area that
respects as much as possible the average temperature conditions of the entire
environment. Make sure the area is covered by the GSM signal to guarantee
a stable communication. In this regard, the device allows verifying the intensity of the
signal of each operator (see page 47).
Avoid installation near doors or windows, in niches, behind doors and curtains or
in positions with excess or total lack of ventilation, to avoid that the reading of the
temperature measured by the probe is in some way offset.
Device installation
1
3
5
1
1
2
click
2
4
6
push-push
SIM

English
- 47 -
TUO GSM Chronothermostat User Manual
Check the signal quality of telephone operators
The device allows you to check the GSM signal strength of each operator to allow you
to choose one that guarantees good coverage.
To check the GSM signal strength, proceed as follows:
1. make sure that no SIM card is inserted in the appropriate slot
2. power the device: when the display shows all the segments on, press the keys
and simultaneously until FLd appears.
SET
3s
After a few moments (at maximum one minute) the display will show the identifier of
the first operator detected with the relative intensity:
operator identifier
signal intensity %
progressive operator
3. press the keys and to scan the detected telephone operators and display the
intensity of each one. The device displays the signals of 5 operators at maximum.
4. to exit the function, press the keys and simultaneously until RES appears
SIM card requirements
Use a SIM card of mini SIM type. Make sure that the PIN request, the voice mail and
any call forwarding are disabled. To disable the PIN request or the voice mail,
insert the SIM in a smartphone and proceed accordingly.
The status of the connection to the GSM network is indicated as follows:
on fixed: connected to the GSM network
on flashing: SIM card not inserted, GSM network missing/searching
Identier (MNC) Operator
1 - 43 - 48 Tim
10 - 06 Vodafone
88 - 44 Wind
99 - 33 3
50 Iliad

English
- 48 -
TUO GSM Chronothermostat User Manual
Once properly installed and powered, the device can be remotely controlled by sending
simple SMS messages.
For this to be possible, the sender of the command (SMS) must be registered on your
TUO GSM device.
It is also possible to send commands without being registered: in this case, however, it
is necessary to know the SMS commands protection password.
However, it is advisable to register at least one number in the phonebook.
This is because the device allows you to report any alarm situations (power failure or
exceeding a preset temperature) and, if they occur, it does so by sending an SMS to
one or more numbers saved in your phonebook.
On pages from 49 to 58 is described the procedure to memorize one or more numbers
in the phonebook of TUO GSM and the commands to be sent to control it.
GENERAL NOTES
A command SMS is structured as follows:
[password] [command] [parameter 1] … [parameter n]
- the words must be separated by one or more empty spaces
- the password can be omitted if the sender of the command is stored in the
phonebook
- it is possible to link several commands in a single message up to a
maximum of three
- to insert numbers with decimal part (ex. 12.6) the separator must be
the point (and not the comma)
- it is possible to write indifferently in lower case or upper case
If the command is correct, the sender receives a reply sms, whose structure is
similar to the command itself, with the addition of the symbol“=” to indicate the
current status.
DEVICE REMOTE CONTROL
