Venmar Jazz VJ70524SS User manual

INSTALLATION GUIDE
MODELS VJ70524SS, VJ70530SS, VJ70536SS
READ AND SAVE THESE INSTRUCTIONS
09075 rev. B
CHIMNEY RANGE HOODS
!
INTENDED FOR DOMESTIC COOKING ONLY
!
INSTALLER: LEAVE THIS GUIDE WITH THE HOMEOWNER.
HOMEOWNER: OPERATION AND CARE INFORMATION ON PAGES 7-8.
REGISTER YOUR PRODUCT ON LINE AT: www.venmar.ca
HB0097

!
TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSON(S) OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the
address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock service disconnecting means to prevent
power from being switch on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified
personnel in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA), the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local
code authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any other solid-state speed control
device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. To provide protection against electric shock, connect to
properly grounded outlets only.
11. When applicable local regulations comprise more restrictive
installation and/or certification requirements, the aforementioned
requirements prevail on those of this document and the
installer agrees to conform to these at his own expenses
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
cooking flaming foods (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSON(S) IN
THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off the burner.BE CAREFUL TO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN – You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels –
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you
know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
WARNING
CAUTION
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or
unbalanced impeller, keep drywall spray, construction dust,
etc. off power unit.
4. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated.
The motor will restart when it will cool down. If the motor
continues to shut off and restart, have the hood serviced.
5. The bottom of the hood MUST NOT BE LESS than 26” and
at a maximum of 30” above cooktop for best capture of
cooking impurities. For a gas range, the bottom of the hood
MUST NOT BE LESS than 30” above cooktop.
6. Two installers are recommended because of the size of this
hood.
7. To reduce risk of fire and to properly exhaust air, be sure to
duct air outside. Do not exhaust air into spaces within walls
or ceilings or into attics, crawl spaces, or garages.
8. Because of the high exhausting capacity of this hood, you
should make sure enough air is entering the house to
replace exhausted air by opening a window close to or in
the kitchen.
9. Please read specification label on product for further
information and requirements.
-2-
IMPORTANT SAFETY INSTRUCTIONS

-3-
1. INSTALL DUCTWORK
Decide where the ductwork will run between the hood and the outside.
A straight, short duct run will allow the hood to perform most efficiently.
Long duct runs, elbows and transitions will reduce the performance of the hood. Use
as few of them as possible. Larger ducting may be required for best performance with
longer duct runs.
Install wall cap or roof cap. Connect round metal ductwork to cap and work back
towards the hood location. Use duct tape to seal the joints between ductwork sections.
WARNING
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
!
To reduce the risk of fire, use only metal ductwork.
2. MEASURE THE INSTALLATION
The minimum hood distance above cooktop MUST NOT BE less than 26”.
A maximum of 30” above cooktop is highly recommended for best capture
of cooking impurities.
NOTE: For a 9 feet high ceiling, the bottom of the hood MUST BE located
at least at 30” above a 36-inch high cooktop.
Distances over 30” are at the installer and users discretion; providing that
ceiling height permit.
HH0122A
HOOD
13½”TO CENTER
OF BRACKET HOLES
*FOR AGASRANGE:
NOT LESS THAN 30”
ABOVE COOKTOP
ROUND ELBOW
HOOD MOUNTING
BRACKET
26”TO 30”
ABOVE COOKTOP*
3¼”
DECORATIVE FLUE
6”ROUND DUCT
ROOF CAP
WALL CAP
6”
ROUND DUCT
ROOF CAP
ROUND
ELBOW
26”TO 30”ABOVE
COOKING SURFACE
WALL CAP
HOOD
DECORATIVE
FLUE
HH0121A
WARNING
!

-4-
3. PREPARE THE INSTALLATION
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must
be plugged into an outlet that is properly installed and grounded.
Set the electrical power supply within the space covered by the decorative flue.
Position the outlet offset so that the power cord will not interfere with the round
duct. Place the outlet at a maximum distance of 33 7/16” from where the cord exits
from the hood (see illustration alongside). Make sure this does not interfere with
a mounting bracket fastening area or with the decorative flue (where the flue
touches the wall).
4. WIRING INSTALLATION
WARNING
Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards.This range
hood must be properly grounded.Turn off electrical power at service entrance before wiring.
!
HE0086
WARNING
Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions
are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not use an
extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.
!
337⁄16” MAX.

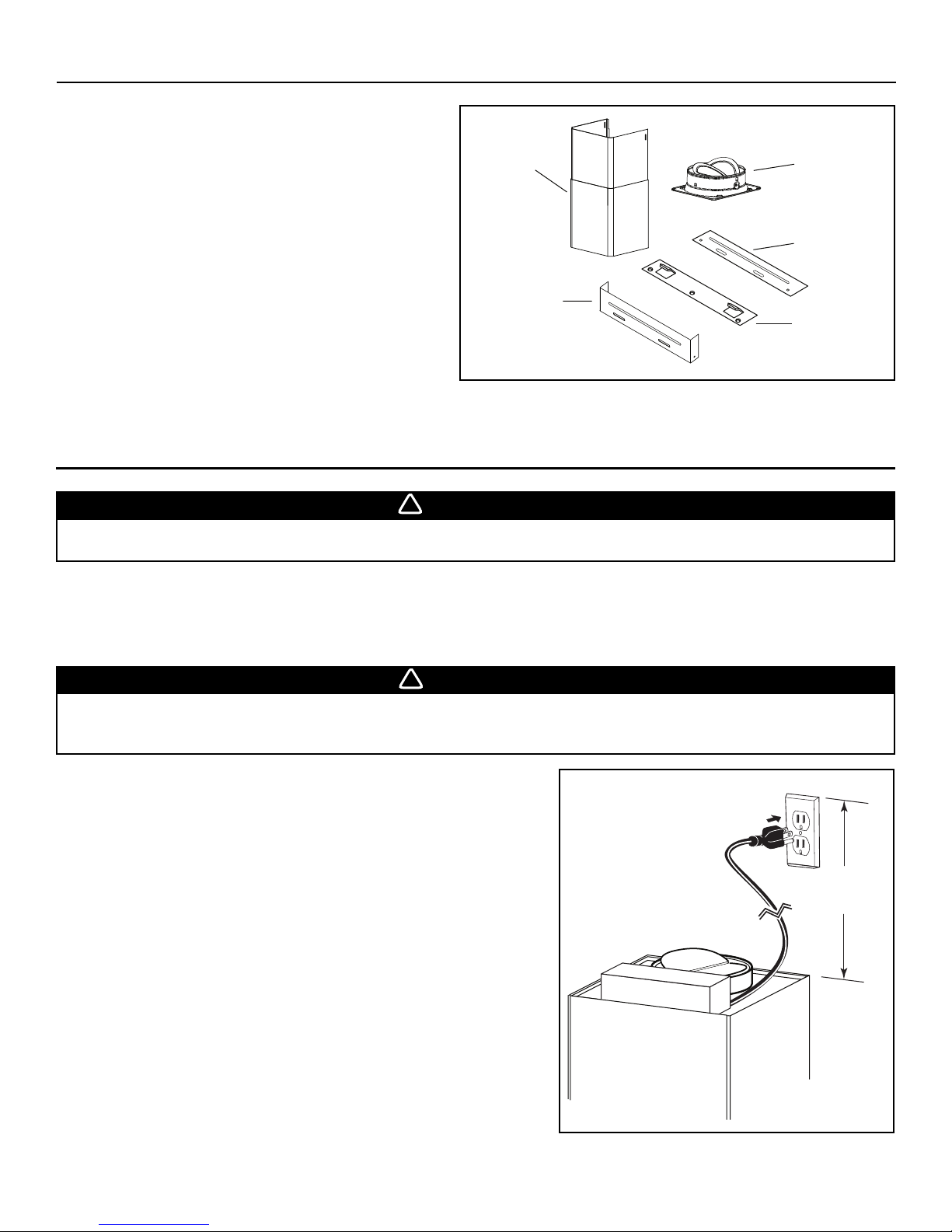

Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly (lower and upper flues)
1 - Lower Flue Mounting Bracket
1 - Hood Mounting Bracket
1 - Upper Flue Mounting Bracket
1 - Parts Bag containing:
10 - Mounting Screws (no. 8 x 7/16”)
7 - Mounting Screws (no. 8 x 1½”)
9 - Drywall Anchors
2 - Washers
2 - Mounting Screws (no. 8 x 1¼”)
NOTE: If need be, discard extra screws.
2 - Aluminum Grease Filters
1 - 6” Round Adapter/Damper
1 - Installation Manual
HR0031A
DECORATIVE
FLUE
LOWER FLUE
MOUNTING BRACKET
HOOD
MOUNTING BRACKET
UPPER FLUE
MOUNTING BRACKET
6”ROUND
ADAPTER/DAMPER

Make sure power is switched off at service panel before
starting installation.

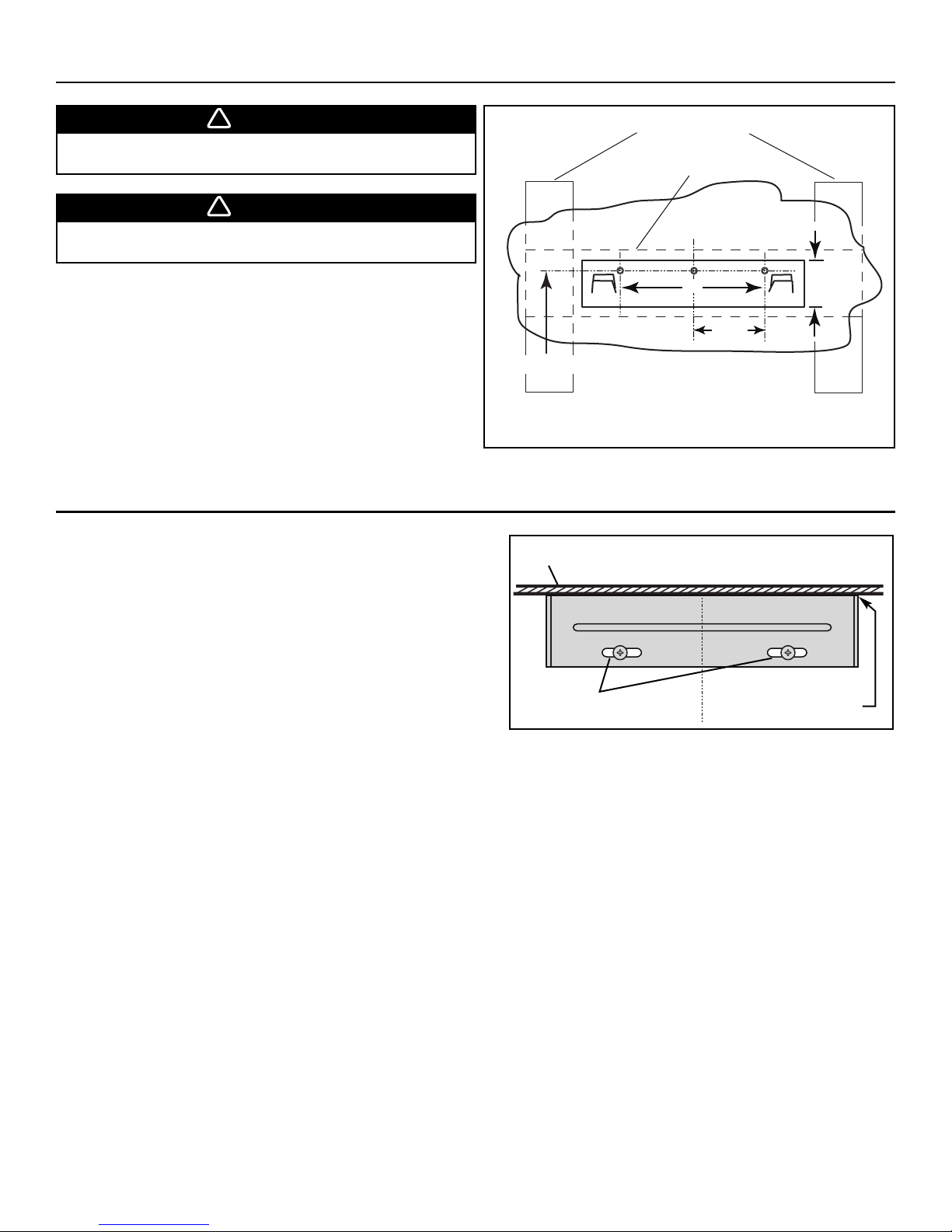

1. Construct wood wall framing that is flush with surface of wall
studs.
Make sure:
a) the framing is centered over installation location.
b) the height of the framing will allow the mounting bracket to be
secured to the framing within the dimensions shown.
2. After wall surface is finished, carefully center and level the hood
mounting bracket, secure it to wall framing with (3) no. 8 x 1½”
mounting screws. Tight the screws completely.
-5-
WARNING
!
WARNING
When cutting or drilling into wall, do not damage electrical
wiring and other hidden utilities.
!
6. INSTALL UPPER FLUE MOUNTING BRACKET
Center the bracket over the hood location and place it flush with the ceiling.
Make sure that the slots of the upper flue bracket point down. Use the
upper flue mounting bracket as a template to mark the position of its
screws.
Drill both screw holes using a 5/16” drill bit. Insert the included drywall
anchors into the drilled holes (one per hole).
Secure the upper flue bracket to the wall using (2) no. 8 x 1½” mounting
screws. Make sure that the bracket is tight against the wall.
C
L
HD0247
C
L
39½” = BOTTOM OF HOOD 26” ABOVE COOKTOP
43½” = BOTTOM OF HOOD 30” ABOVE COOKTOP
9”
39½” TO 43½” ABOVE COOKTOP
4 ½”
HD0347A
WALL STUDS
FRAMING BEHIND DRYWALL
1 9/16”
5. INSTALL HOOD MOUNTING BRACKET
CENTER OF
INSTALLATION
CEILING
UPPER FLUE MOUNTING
BRACKET SLOTS
MOUNTING BRACKET
FLUSH WITH CEILING

HO0104
BE CAREFUL when installing the decorative flue and hood, they may have sharp edges.
1. Lay the back side of the hood flat on a table. Use a piece of cardboard to avoid
damaging the table or the hood.

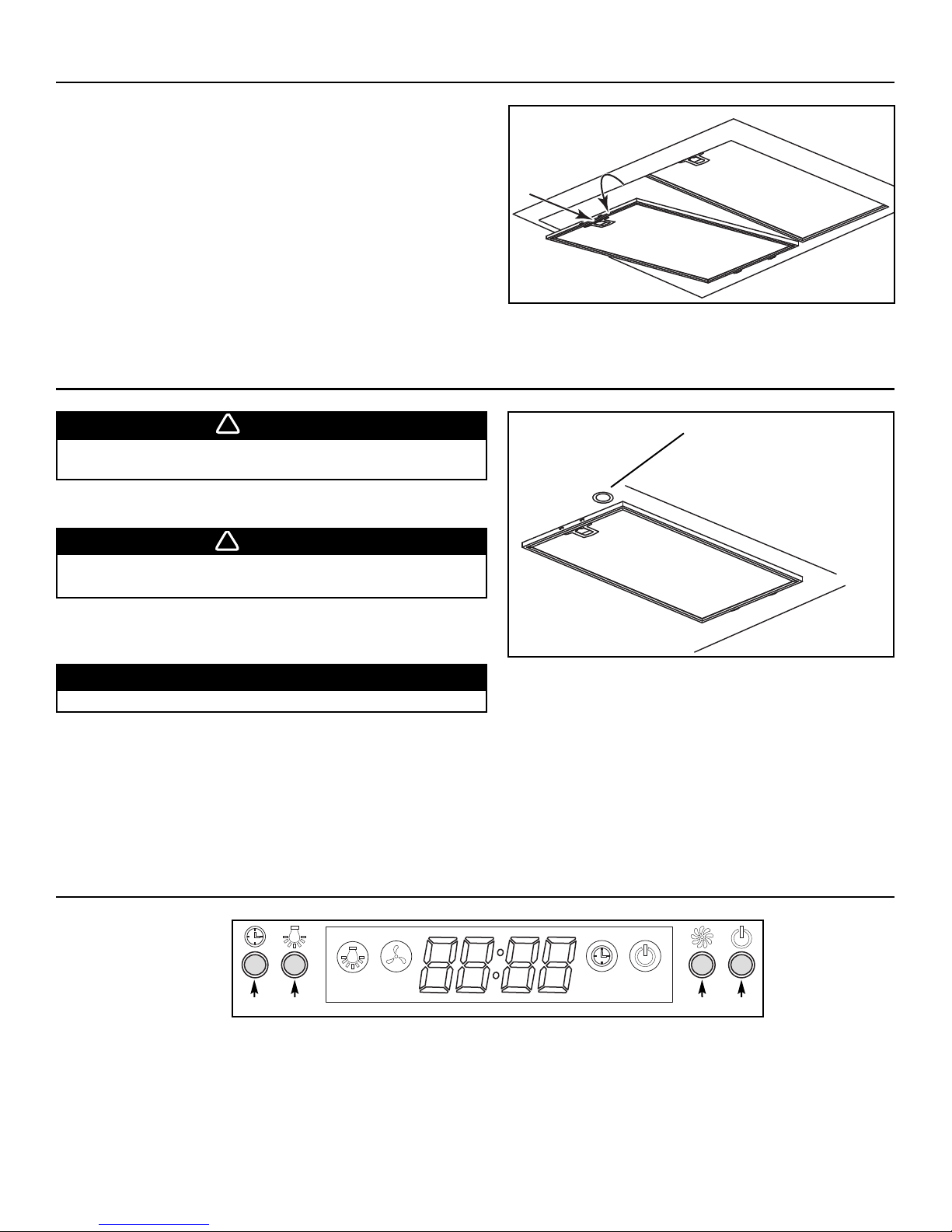

2. Remove the grease filters by pulling down the metal latch tab and
tilting filters downward to remove.
3. Align the hood and center it above the hood mounting bracket.
Gently lower the hood until it securely engages the bracket.
4. With the hood hanging in place, drill through both holes located in the
inside lower back of hood (Fig. 1) using a 5/16” drill bit. Insert the included drywall
anchors into the drilled holes (one for each hole). Install (2) washers and
(2) no. 8 x 1¼” mounting screws into the drywall anchors. Verify that the hood is
centered and leveled. Tighten all screws completely.
5. Reinstall grease filters by aligning rear filter tabs with slots in the hood.
Pull down the metal latch tab, push filter into position and release.
Make sure filters are securely engaged after installation.
6. Install 6” round adapter/damper on top of the hood using (4) no. 8 x 7/16” mounting screws.
7. Remove protective plastic film covering the lower flue only.
8. Install the lower flue bracket to its flue using (2) no. 8 x 7/16” mounting screws, make
sure that the slots point up (Fig. 2).
9. Carefully place both flues into the recessed area of hood top. Slightly slide up the
upper flue to avoid any damage while placing the lower flue to the hood top.
10. Slide a 6” steel round duct over the adapter/damper (Fig. 3). Use duct tape to seal
the joint.
11. Plug hood power cord into the outlet.
12. Slide up the upper flue until it is aligned with its mounting bracket. The bracket
should be inside the flue. Secure the upper flue to its bracket using
(2) no. 8 x 7/16” mounting screws (Fig. 4).
13. Remove protective plastic film covering the upper flue and the hood.
7. INSTALL THE HOOD
CAUTION
DO NOT REMOVE the protective plastic film covering the decorative flue (upper and lower) and the hood yet.
-6-
6”
ROUND
DUCT
HJ0012A
Fig. 3 Fig. 4
WARNING
!
HD0348AHOLESLOCATION
10”
Ø 5/16”TYP.
MOTOR/BLOWER
ASSEMBLY
SIDE VIEW
INSIDE BACK
OF THE HOOD
Fig. 1
UPPER FLUE MOUNTING BRACKET
FRONT VIEW
UPPER
FLUE
HO0114
Fig. 2 LOWER FLUE MOUNTING BRACKET
BACK VIEW
LOWER
FLUE
SLOTS UP

8. GREASE FILTERS
-7-
9. LIGHT BULBS
10. OPERATION
This range hood requires two UL approved halogen bulbs (Type JC,
12 V, 20 W Maximum, G-4 Base).
To change bulbs:
1. Gently push the rim upward and turn counterclockwise to disengage
the light bulb cover.
2. Replace with Type JC, 12 V, 20 W Maximum, G-4 Base halogen
bulb.
3. Replace the light bulb cover by pushing the rim upward and rotating
the light bulb cover clockwise.
WARNING
Always switch off the electrical supply before carrying out
any operation on the appliance.
!
HD0257
WARNING
In order to prevent the risk of personal injury, the halogen
lamps must be cooled down before removing them.
CAUTION
Do not touch replacement bulb with bare hands!
!
LIGHT BULB COVER
1. To remove the grease filters, pull down on the metal latch tab and
tilt each filter downward to remove.
2. To install the grease filters, align rear filter tabs with slots in the
hood. Pull down the metal latch tab, push each filter into position
and release. Make sure filters are securely engaged after
installation.
HD0256
Lamp Power
Speed
HC0048
Timer
1
1) Time/Delay push button 3) Blower push button
2) Lighting push button 4) ON/OFF push button
2 3 4
The hood is operated using the push buttons located on the front panel.

Grease Filters
Grease filters should be cleaned monthly. Remove grease filters by pulling down on the metal latch tab. This will disengage the filter from
the hood. Tilt the filter downward and remove. Use a warm detergent solution to clean the filters. Let them dry and reinstall them.
Hood Cleaning
Stainless Steel Cleaning: How to maintain its «BRIGHT LOOK» and help prevent corrosion.
Dos:
- Regularly wash surfaces with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
- Always clean in the direction of original polish lines.
- Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
- You may also use a specialized household stainless steel cleaner.
Don’t:
- Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
- Use any harsh or abrasive cleansers.
- Allow dirt to accumulate.
- Let plaster dust or any other construction residues reach the hood. During construction or renovation, cover the hood to make sure
no dust sticks to stainless steel surface.
Avoid: when choosing a detergent
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
-Anycombustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never
be used close to a range.
11. CARE
WARNING
Before servicing or cleaning the unit, switch power off at service panel and lock service panel to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
!
-8-
10. OPERATION (continued)
1. TIME/DELAY (2 Functions):
-Time Setting: This button is used to set time when lighting and blower are not in use. Time is displayed in 24 hour cycle. To set time,
press the push button (1) for 3 seconds.The first two digits will flash. Use the blower push button (3) to increase and the lighting push
button (2) to decrease. Press the time/delay push button (1) again, the last two digits will flash. Use the blower push button (3) to
increase and the lighting push button (2) to decrease. Press the time/delay button (1) again to confirm and exit time setting mode.
-Delay Setting: When blower is in use, this button is the delay setting button. To set delay, press the push button (1). The delay is
factory set at 5 minutes, but can be set from 1 up to 60 minutes. Use blower push button (3) to increase and lighting push button (2) to
decrease. Countdown will be displayed on the LCD screen and blower symbol will be activated. Blower will continue to operate for the
programmed minutes and then will stop automatically (delay setting mode does not affect lighting as it works independently). The last
time used will be memorized. To cancel delay function, press time/delay push button (1) again, the blower will continue to operate and
won’t stop until ON/OFF push button (4) is pressed. To turn delay function and blower OFF at once, press ON/OFF push button (4).
NOTE: Delay will be reset if blower speed is modified during delay setting mode.
2. LIGHTING: Pressing the lighting push button (2) once will turn the LCD screen on. To turn the lights on, press the lighting push
button (2) once more. Press it again to turn the lights OFF. The LCD screen will turn automatically off after 15 seconds of inactivity
(blower and/or lights).
3. BLOWER: The blower push button (3) turns the blower on to three speed settings: LOW, MEDIUM or HIGH. Press the blower (3) or
ON/OFF (4) push button once to turn the LCD screen on. Pressing the blower (3) or ON/OFF (4) push button once more will turn the
blower on at the last selected speed and blower symbol will be activated. To change the blower speed, press the blower push button (3)
until the desired speed is obtained. Press the ON/OFF push button (4) to turn the blower OFF. The last speed used will be memorized.
NOTE: When blower is turned on, 100% of power level is activated during 1 to 2 seconds acting as a “kick-start”. It will then operate
at the previous setting.

12. SERVICE PARTS
KEY NO. PART NO. DESCRIPTION QUANTITY
109076 Decorative upper and lower flues 1
207243 Motor & Blower assembly 1
307244 Light assembly (set of 2) 1
409071 LCD Control interface 1
509077 Aluminum grease filters for VJ70524SS (set of 2) 1
07758 Aluminum grease filters for VJ70530SS (set of 2) 1
09078 Aluminum grease filters for VJ70536SS (set of 3) 1
609072 Transformer for LCD Control interface 1
7* 08486 Bracket kit (set of 3) 1
8* 09073 PC Board & plastic enclosure 1
9* 07242
Parts bag including: (10) mounting screws (no. 8 x 7/16”),
(7) mounting screws (no. 8 x1½”), (9) drywall anchors, (2) washers,
(2) mounting screws (no. 8 x1¼”).
1
-9-
*Parts not illustrated.
HL0131
1
2
3
4
3
5
6

VENMAR JAZZ RANGE HOOD
1-YEAR LIMITED WARRANTY
Venmar Ventilation inc. warrants to the original consumer purchaser of its products, that such products will be free from defects in
materials or workmanship for a period of one (1) year from date of original purchase. This warranty includes in-home service for the first 90 days and
workshop service for the remaining warranty time. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. VENMAR VENTILATION INC. WILL
NOT BE HELD RESPONSIBLE FOR ANY CLAIMS OVER THE ORIGINAL PURCHASE PRICE OF A VENMAR JAZZ RANGE HOOD, NOR HELD
RESPONSIBLE FOR SUBSEQUENT DAMAGE OR INCIDENT.
During the period stated above, Venmar Ventilation inc. will, at its option, repair or replace, without charge, any product or part which is found to be
defective under normal use and service.THIS WARRANTY DOES NOT EXTEND TO ANY LIGHT BULBS AND FILTERS.This warranty does not cover
a) normal maintenance and service b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or
repairs made by other than Venmar Ventilation inc., or c) a faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the 1-year period as specified for the express warranty. Some provinces do not allow limitation on
how long an implied warranty lasts, so the above limitation may not apply to you. VENMAR VENTILATION INC. OBLIGATION TO REPAIR OR
REPLACE AT VENMAR VENTILATION INC. OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.
VENMAR VENTILATION INC. SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN
CONNECTION WITH PRODUCT USE OR PERFORMANCE. SOME PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. This warranty gives you
specific legal rights and you may also have other rights, which vary from one province to another. This warranty supersedes all prior
warranties. To contact Venmar Ventilation inc. Warranty Service call 1-800-567-3855 (in Canada). In order to qualify for a warranty claim, the owner of
a Venmar Jazz range hood must have the model and serial number along with a proof of the original purchase date. At the time of
requesting service, describe the nature of any defect in the product or part. In case of discrepancies between the English version of the warranty and
the French version, the English version will prevail.
Venmar Ventilation inc., 550 Lemire Blvd., Drummondville, Quebec CANADA J2C 7W9
Tel.: [phone] Fax: [phone]
www.venmar.ca
WARRANTY
