Venstar T0140 User manual

Venstar Inc. 05/08
Digital
Thermostat
Digital
Thermostat
residential
T0140
THERMOSTAT
OWNER’S
MANUAL
OWNER’S
MANUAL
Use with most 1 or 2 Stage Heat Pump Heat and 1 stage Heat Pump Cool units
Stages: 2-Heat, 1-Cool
Battery or System Powered
Auxiliary Heat Indicator
Fahrenheit or Celsius
PROGRAMMABLE
NON-
PROGRAMMABLE
NON-
up to
& 1-cool
up to
& 1-cool
2-heat
2-heat
HEAT
PUMP
HEAT
PUMP
Bi-Color LED (when system powered)

Page 2
Contents Page #
Remove Old Thermostat
Safety Warnings
Front Panel
Display
Normal Operation
Preparation
Battery Replacement
Warranty
Test Operation
Troubleshooting
Wire Connections
Fahrenheit or Celsius
Aux Heat
OWNER'S MANUAL
T0140

CAUTION Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER -
AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
WARNING
Page 3
Safety Warnings
CAUTION
The two Alkaline “AA” batteries must be replaced at
least once every 12 months to ensure proper
operation. The “Low Battery” icon will appear on the
thermostat display when it is time to replace the
batteries. If the thermostat is connected to 24v power,
the batteries should still be installed, but are not
required.
When “Low Battery” is displayed the batteries must be
replaced immediately. The manufacturer cannot be
liable for improper operation of the thermostat if the
batteries are not immediately replaced.
Annual battery replacement is especially critical in
locations subject to freezing temperatures. The
thermostat will be unable to turn on the heating system
if the batteries are exhausted.
P/N T0140
OWNER'S MANUAL
T0140

70

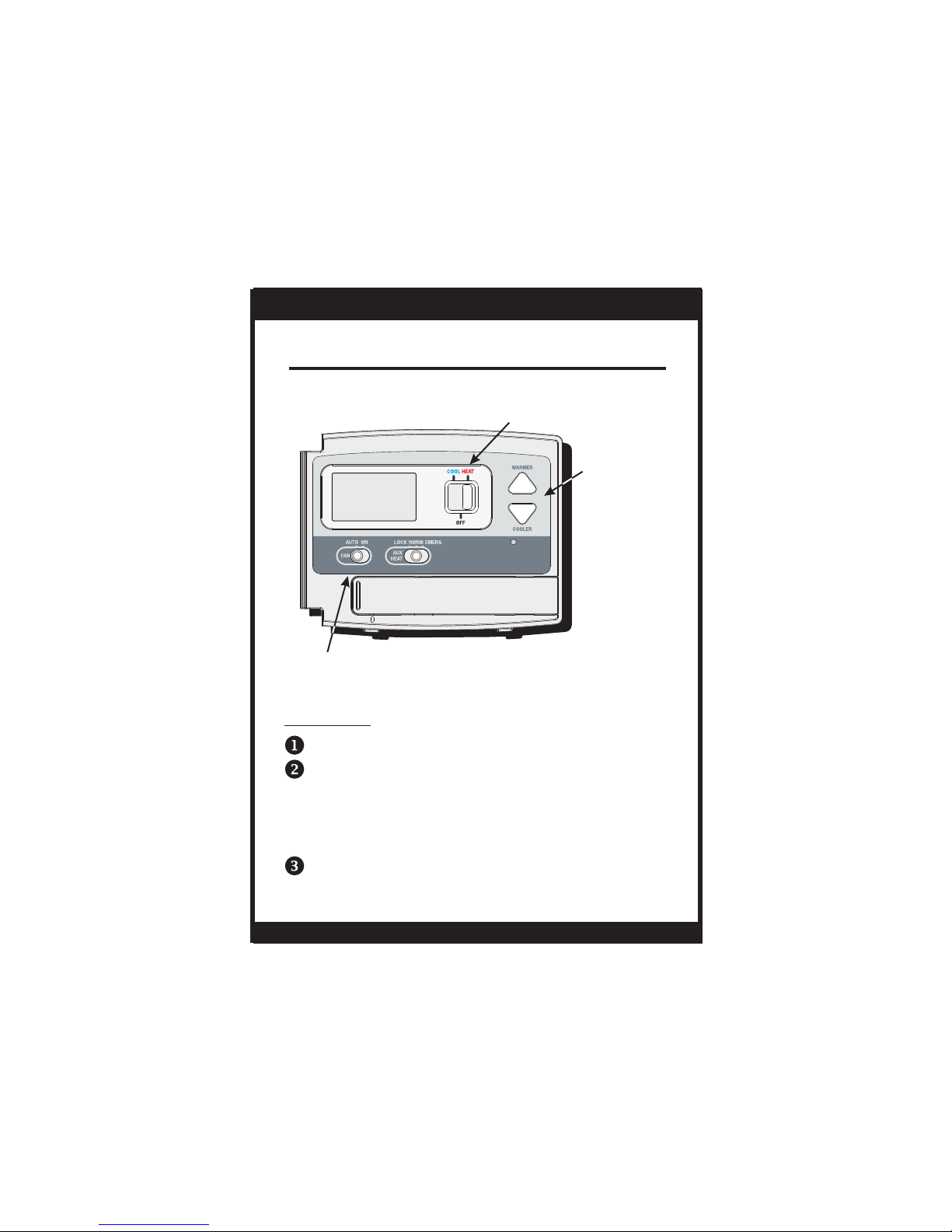

Front Panel
Page 4
Emergency
Normal
Lockout
AUX HEAT
SWITCH
OWNER'S MANUAL
T0140
BATTERY
DOOR
COOLER &
WA R M E R
BUTTONS
MODE SWITCH
Cool, Off or Heat
On or Auto
FAN SWITCH
DISPLAY
BI-COLOR LED
Heat or Cool demand
indicator when system
powered: Red = Heat
Green = Cool

88
SET TEMP
HEAT
AUX
COOL
LOW
BATTERY
Page 5
Display
Indicates auxiliary heat is energized.
Desired set temperature indicator.
When this indicator is on, the large numbers represent
the desired room temperature. Pressing the
COOLER or WARMER button during normal operation
will cause the large numbers to switch from the current
room temperature to the desired set temperature.
Current room or set temperature.
Indicates battery life is low; it is recommended to
replace the batteries at this time.
OWNER'S MANUAL
T0140
Heat and Cool indicators.
In normal operation, Heat or Cool appears, depending
on the Mode Switch position. When heat or cool is
energized, the Heat or Cool indicator will flash. If the
thermostat is system powered the bi-color LED will
also illuminate (red for heating and green for cooling).

70
HEAT
Page 6
Normal Operation
Operation
Select Cool or Heat with the Mode Switch.
Normally leave the fan switched to Auto.
In Fan Auto, the fan will turn on only with a heat
or cool demand. When Fan On is selected, the
fan will run continuously.
Adjust the desired set temperature with the
COOLER or WARMER buttons.
OWNER'S MANUAL
T0140
On or Auto
FAN SWITCH
COOLER &
WA R M E R
BUTTONS
MODE SWITCH
Cool, Off or Heat

70
HEAT
Page 7
Aux Heat
Normal - Aux Heat is allowed to run, if necessary,
along with the heat pump to satisfy the
heat demand.
Lockout - Aux Heat will never turn on
regardless of the heat demand.
When the Aux Heat switch is in the Emergency position the
compressor will also be locked out during cooling operation.
*
AUX HEAT
SWITCH
OWNER'S MANUAL
T0140
Emergency - Disables all compressor
functions* and energizes only Aux
Heat to satisfy the heat demand.

24
HEAT
Page 8
Fahrenheit or Celsius
Operation
Select Off with the Mode Switch.
Press and hold the COOLER and WARMER
buttons at the same time until the temperature
is displayed in degrees Celsius.
Repeat this process to display the temperature
in degrees Fahrenheit.
OWNER'S MANUAL
T0140
COOLER &
WA R M E R
BUTTONS
MODE SWITCH
Cool, Off or Heat

Page 9
These tools will be required:
Flat Blade
Screwdriver
Wire cutter
& Stripper
Carefully unpack the thermostat.
Save the screws and instructions.
Proper installation of the thermostat will be
accomplished by following these step
by step instructions. If you are unsure
about any of these steps, call a qualified
technician for assistance.
Preparation
Make sure your Heat Pump is working
properly before beginning installation
of the thermostat.
OWNER'S MANUAL
T0140
Turn off the power to the Heat Pump
system at the main fuse panel.
70
HEAT
70
HEAT
70
HEAT
70
HEAT
70
HEAT

Remove the cover of the old thermostat.
If it does not come off easily check for
screws.
Loosen the screws holding the thermostat
base or subbase to the wall, and lift away.
Disconnect the wires from the old
thermostat. Tape the ends of the wires
as you disconnect them, and mark them
with the letter of the terminal for easy
reconnection to the new thermostat.
Keep the old thermostat for reference
purposes, until your new thermostat is
functioning properly.
Remove & Replace
Old Thermostat
Page 10
OWNER'S MANUAL
T0140
70
HEAT
70
HEAT
70
HEAT
70
HEAT

70
HEAT
Page 11
Battery Replacement
OWNER'S MANUAL
T0140
The batteries must be replaced immediately when
the thermostat displays the Low Battery icon.
The batteries are easily accessible from the battery
slot located on the front of the thermostat (fig. 1). To
open the battery slot, press down on the battery
cover (fig. 1) and pull out (fig. 2).
Place the bottom hook of the battery cover into the
slot and snap closed (fig. 4).
Remove the old batteries and replace with the new
AA alkaline batteries (fig. 3).
FIG. 1 FIG. 2
Press
down
Pull out
Battery
slot
FIG. 3
Old
batteries
out
New
batteries
in
FIG. 4
Snap closed
Bottom
Hook
(Bottom View)
(Bottom View)

Wire Connections
If the terminal designations on your old
thermostat do not match those on the
new thermostat, refer to the chart below
or the wiring diagrams that follow.
Wire from the
old thermostat
terminal marked Function
Install on the
new thermostat
connector marked
(Energize to Heat)
C
Rc, R, M, Vr, A
Y1 or Y
W1, W or H
G or F
B
O
Common
Power
Cooling
Auxiliary Heat
Fan
Rev. Valve
Rev. Valve
C (optional)
R
Y
W
G
B
O
(Energize to Cool)
Page 12
OWNER'S MANUAL
T0140
70
HEAT

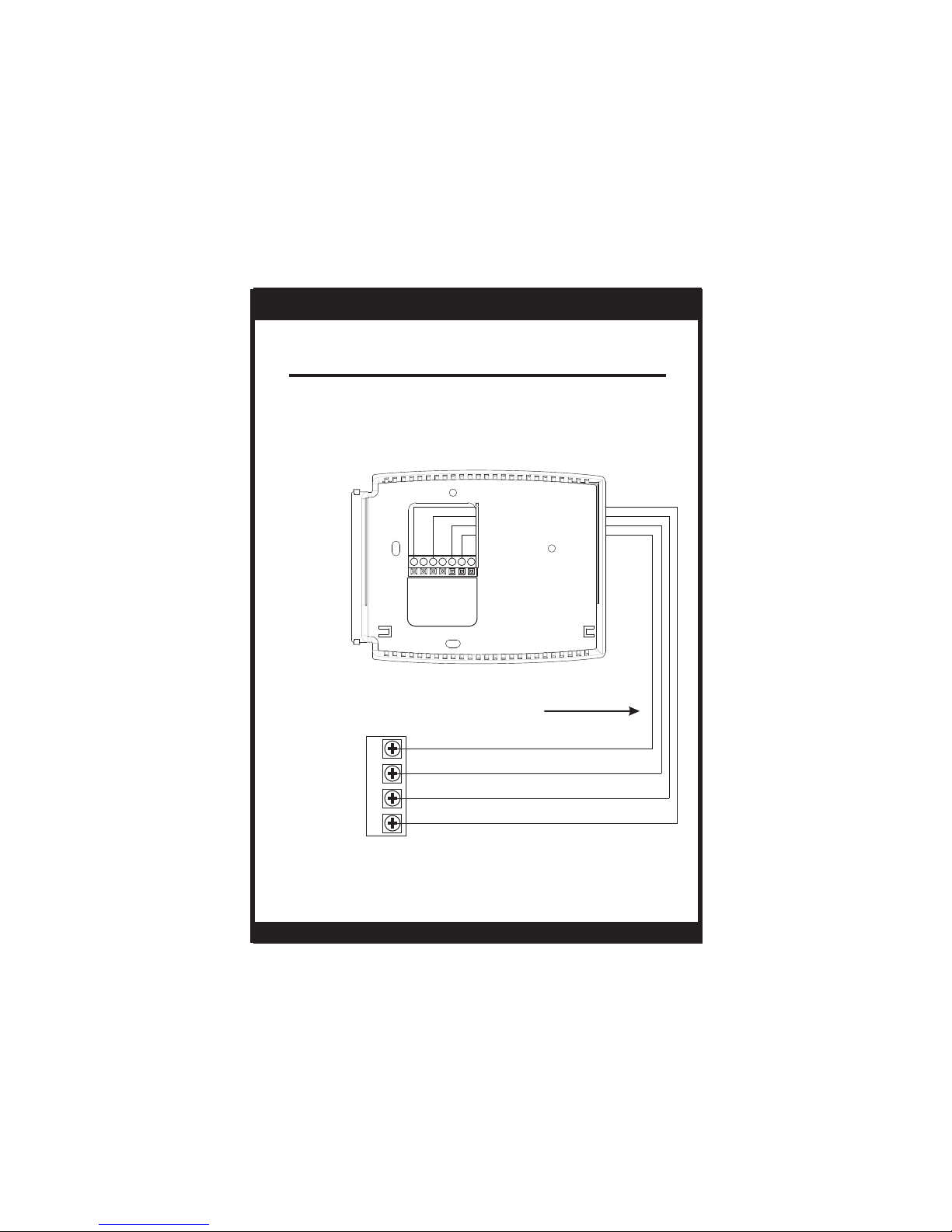

Sample Wiring Diagrams
4 Wire, 1 Stage Cooling, 1 Stage Heat-Heat Pump with O reversing valve.
Residential Heat Pumps, split systems & package units, with no auxiliary heat.
Page 13
*Common wire is optional in all installations. If a common wire is not used the
thermostat must be powered by two AA alkaline batteries. These batteries
must be replaced (page 11) each year or when the Low Battery indicator is displayed
(page 3).
OWNER'S MANUAL
T0140
POWER
R
REVERSING VALVE
O
COMPRESSOR
Y
4 Conductor 18 to 22 gauge
unshielded cable from the
thermostat to the equipment.
Common wire optional*
G
FAN
O B G W Y R C

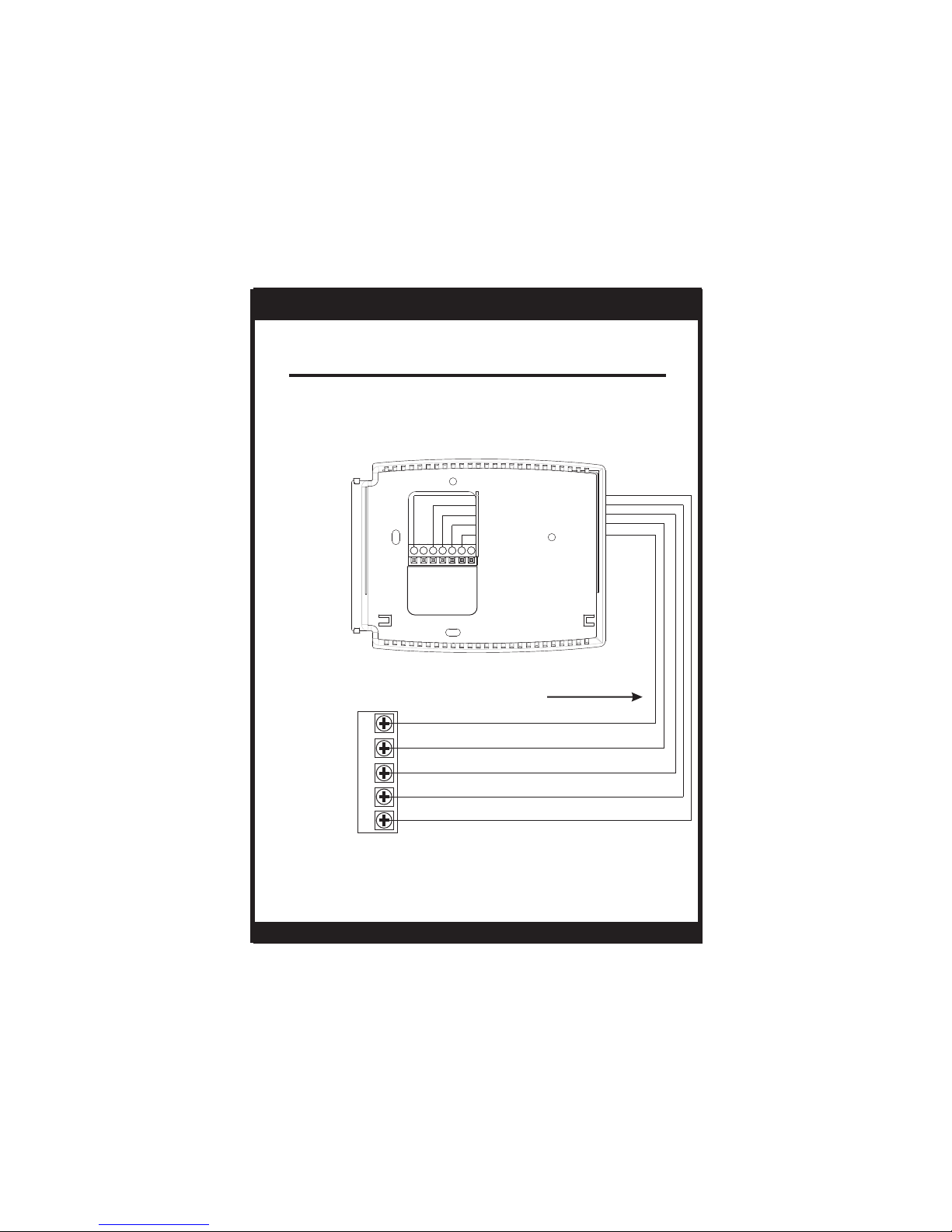

Sample Wiring Diagrams
5 Wire, 1 Stage Cooling, 2 Stage Heat-Heat Pump with O reversing valve.
Residential Heat Pumps, split systems & package units, with auxiliary heat.
Page 14
*Common wire is optional in all installations. If a common wire is not used the
thermostat must be powered by two AA alkaline batteries. These batteries
must be replaced (page 11) each year or when the Low Battery indicator is displayed
(page 3).
5 Conductor 18 to 22 gauge
unshielded cable from the
thermostat to the equipment.
FAN
G
POWER
RO
REVERSING VALVE
COMPRESSOR
Y
AUXILIARY HEAT
W
OWNER'S MANUAL
T0140
Common wire optional*
O B G W Y R C

Sample Wiring Diagrams
4 Wire, 1 Stage Cooling, 1 Stage Heat-Heat Pump with B reversing valve.
Residential Heat Pumps, split systems & package units, with no auxiliary heat.
Page 15
*Common wire is optional in all installations. If a common wire is not used the
thermostat must be powered by two AA alkaline batteries. These batteries
must be replaced (page 11) each year or when the Low Battery indicator is displayed
(page 3).
OWNER'S MANUAL
T0140
POWER
R
REVERSING VALVE
B
COMPRESSOR
Y
4 Conductor 18 to 22 gauge
unshielded cable from the
thermostat to the equipment.
Common wire optional*
G
FAN
O B G W Y R C

Sample Wiring Diagrams
5 Wire, 1 Stage Cooling, 2 Stage Heat-Heat Pump with B reversing valve.
Residential Heat Pumps, split systems & package units, with auxiliary heat.
Page 16
*Common wire is optional in all installations. If a common wire is not used the
thermostat must be powered by two AA alkaline batteries. These batteries
must be replaced (page 11) each year or when the Low Battery indicator is displayed
(page 3).
OWNER'S MANUAL
T0140
5 Conductor 18 to 22 gauge
unshielded cable from the
thermostat to the equipment.
FAN
G
POWER
RB
REVERSING VALVE
COMPRESSOR
Y
AUXILIARY HEAT
W
Common wire optional*
O B G W Y R C

Page 17
Turn on the power to the Heat Pump.

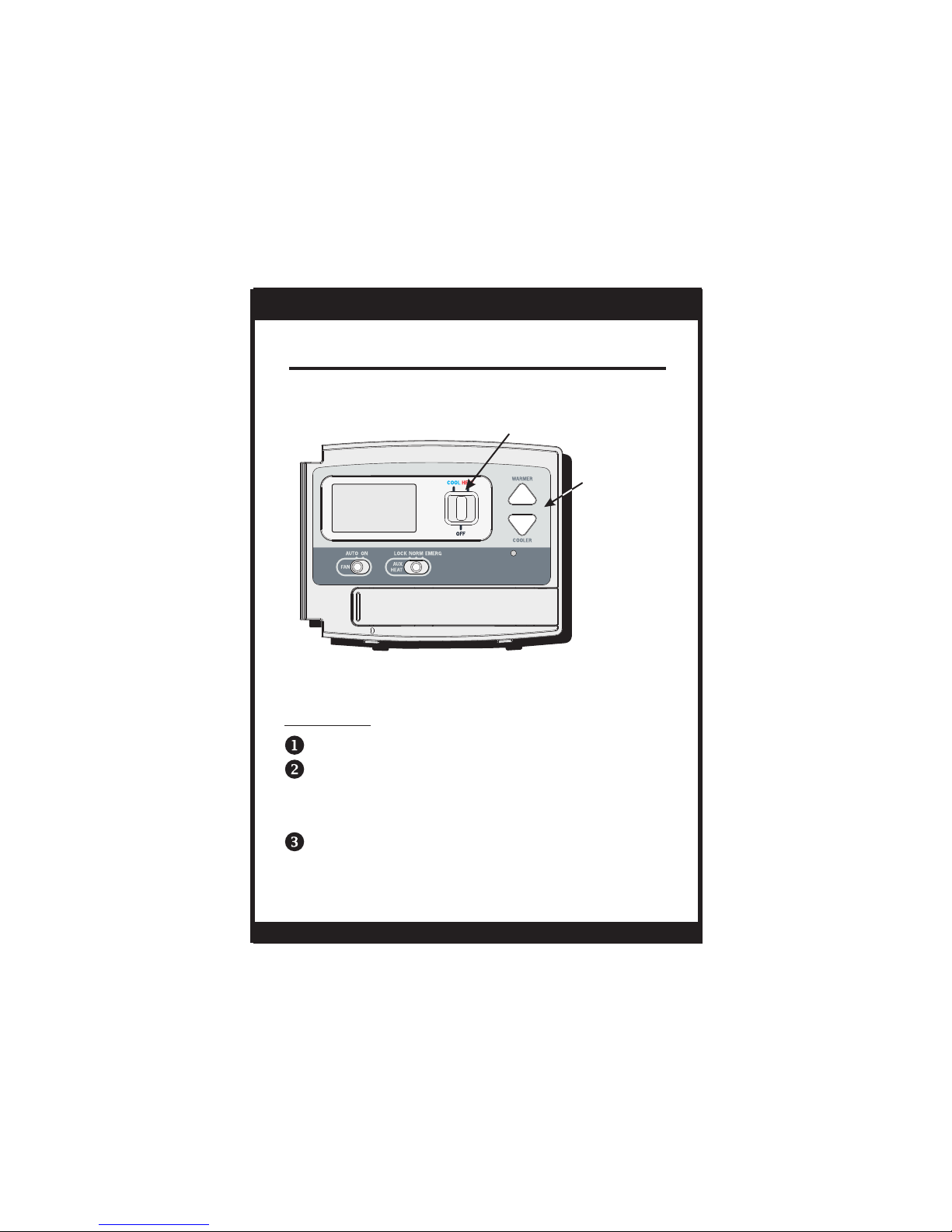

Test Operation
On the thermostat, slide the Mode Switch
to HEAT. Press the COOLER or WARMER
button until the set temperature is 10 degrees
above room temperature. The HVAC unit
should energize in the heating mode.
Note: You may need to wait up to five minutes
for heating to energize due to the compressor
lockout feature. There is a two minute min-
imum run-time for first stage heating.
On the thermostat, slide the Aux Heat
Switch to the NORMAL position. The
Aux Heat icon will appear indicating that
the thermostat has energized Aux Heat
(page 7).
TWO STAGE OPERATION - The 2nd stage
of heat (auxiliary heat) is turned on when
the room temperature is equal to or less
than: the setpoint minus the 1st stage
deadband (one degree, non-adjustable),
minus the 2nd stage deadband (two
degrees, non-adjustable).
Heat or Cool
Setpoint
Deadband Deadband
db 1db 2
1st Stage
turn on
2nd Stage
turn on
Heating
(non-adj. 2 )
Deadband
db 1
1st Stage
turn on
Cooling
(non-adj. 1 ) (non-adj. 1 )
OWNER'S MANUAL
T0140
70
HEAT
70
HEAT
70
HEAT

Page 18
Test Operation
On the thermostat, slide the Mode Switch
to COOL. Press the COOLER or WARMER
button until the set temperature is 10
degrees below room temperature. The
HVAC unit should energize in the cooling
mode (Page 6). Note: You may need to wait
up to five minutes for cooling to energize due
to the compressor lockout feature.
On the thermostat, slide the Mode Switch to
OFF. Slide the Fan Switch to Fan On. The
fan should turn on and run continuously
(Page 6).
OWNER'S MANUAL
T0140
70
HEAT
70
HEAT

Page 19
SYMPTOM: The Air Conditioning does not
attempt to turn on.
CAUSE: The cooling setpoint is set too
high, the Mode Switch is not set for
Cool, the batteries are too weak, or the
Aux. Heat Switch is set for Emergency.
REMEDY: Consult the Normal Operation
section in this manual to:
Lower the cooling setpoint (Page 6).
Correct the Mode Switch position (Page 6).
Replace the batteries (Page 10).
Adjust the Aux Switch to Normal (page 7).
Trouble Shooting
SYMPTOM: The slide switches on the thermostat
are very difficult to move.
CAUSE: The backplate of the thermostat is
screwed too tightly into a wall that is not
perfectly flat.
REMEDY: Loosen the screws holding the
thermostat into the wall.
SYMPTOM: The fan does not turn on even though
the compressor has energized.
CAUSE: The Fan Switch is not completely in the
On or Auto position.
REMEDY: Slide the Fan Switch firmly into the On
or Auto position.
OWNER'S MANUAL
T0140
70
HEAT
70
HEAT
70
HEAT

Page 20
Trouble Shooting
SYMPTOM: Aux Heat does not turn on.
CAUSE: The Aux Heat Switch is set for
Lockout.
REMEDY: Consult the Aux Heat section
of this manual to slide the Aux
Heat Switch to Normal (Page 7).
SYMPTOM: The Heating does not attempt
to turn on.
CAUSE: The heating setpoint is set too
high, the Mode Switch is not set for
Heat, the batteries are too weak, or the
Aux Heat Switch is set for Emergency.
REMEDY: Consult the Normal Operation
section in this manual to:
Raise the heating setpoint (Page 6).
Correct the Mode Switch position
(Page 6).
Replace the batteries (Page 11).
Adjust the Aux Switch to Normal (Page 7).
P/N 88-635
Rev. 3
OWNER'S MANUAL
T0140
4Z95
70
HEAT
70
HEAT
