Ventis HEI350 User manual

CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN THE AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD INSERT. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
2021-09-16
46255A
ENGLISH
2.5 g/h
<
≤
EPA
Safety tested according to
ULC S628, UL 1482 and
UL 737 by an accredited
laboratory.
US Environmental Protection
Agency phase II certified
wood insert compliant with
2020 cord wood standard.
HEI350
INSERT
(VB00021 Model)
Wood Insert
Owner's Manual
Part 2 of 2
INSTALLATION AND
OPERATION REQUIREMENTS

ONLINE WARRANTY REGISTRATION
If the unit requires repairs during the warranty period, proof of purchase must be provided. The
purchase invoice must be kept. The date indicated on it establishes the warranty period. If it can
not be provided, the warranty period will be determined by the date of manufacture of the product.
It is also highly recommended to register the warranty online at
https://www.occanada.com/us/en/warranty-registration/
Registering the warranty will help to quickly find the information needed on the unit.
Dealer:
Installer:
Phone Number:
Serial Number:

ENGLISH
CERTIFICATION PLATE

Page 4 Product Specication Manual - HEI350
ENGLISH
TABLE OF CONTENTS
1. General Information ................................................................................................................ 6
1.1 Performances ............................................................................................................. 6
1.2 Specifications............................................................................................................. 7
1.3 Dimensions ................................................................................................................ 8
1.4 EPA Loading..............................................................................................................10
2. Clearances to Combustible Material.................................................................................... 11
2.1 Minimum Masonry Opening and Clearances to Combustibles .......................................11
2.2 Floor Protection .........................................................................................................12
2.3 R Value .....................................................................................................................13
3. Installing Options on Your Product and Replacing Parts.................................................... 15
3.1 Replacement and Adjustment .....................................................................................15
3.2 Blower and Ash Lip Installation ...................................................................................17
3.3 Faceplate and Trims Installation ..................................................................................18

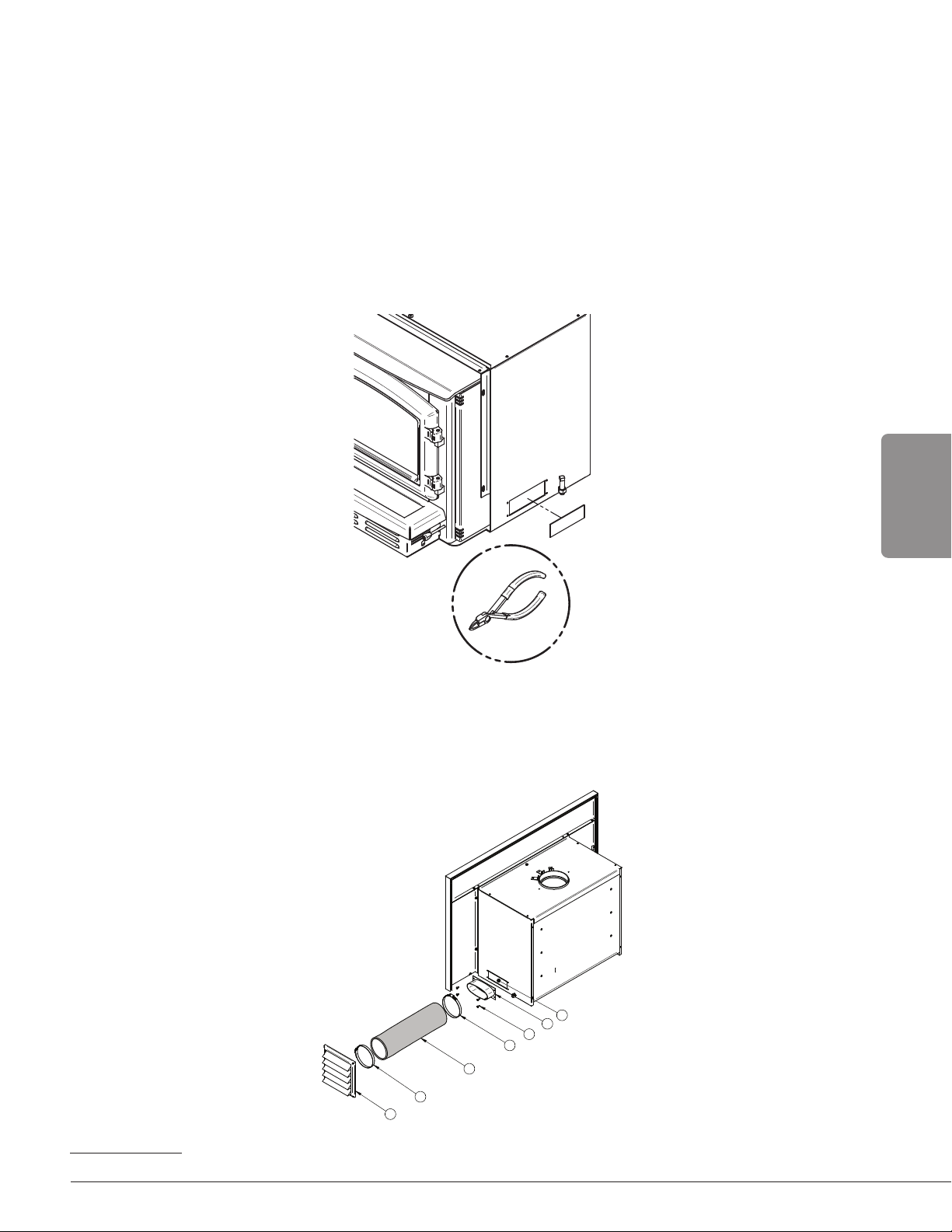

3.4 Optional Fresh Air Intake Kit Installation.......................................................................20
3.5 Log Retainers Installation ...........................................................................................21
3.6 Optional Fire Screen Installation..................................................................................22
3.7 Air Tubes and Baffle Installation ..................................................................................23
3.8 Removal Instructions..................................................................................................26
3.9 Exploded Diagram and Parts List ................................................................................27
4. VENTIS LIMITED LIFETIME WARRANTY ............................................................................. 30

Page 5
Product Specication Manual - HEI350
ENGLISH
1. General Information
1.1 Performances
Values are as measured per test method, except for the recommended heating area, firebox volume,
maximum burn time and maximum heat output.
Models HEI350 (VB00021)
Fuel Type Dry Cordwood
Combustion technology Non-catalytic
Recommended heating area (sq. ft..)1 1,000 to 2,700 ft2(93 to 251 m2)
Overall Firebox Volume 3.5 ft3(0.099 m3)
EPA loading volume 2.84 ft3(0.080 m3)
Maximum burn time110 hours
Maximum heat output (dry cordwood)2 110,000 BTU/h (32.2 kW)
Overall heat output rate (min. to max.)2 3 18,100 BTU/h to 49,500 BTU/h
(5.3 kW to 14.5 kW)
Average overall efficiency3
Dry cordwood 71 % (HHV)4 76 % (LHV)5
Optimum overall efficiency6 77 %
Optimum heat transfer efficiency776 %
Average particulate emissions rate8 1.32 g/h (EPA / CSA B415.1-10)9
Average CO10 92 g/h
1Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type
and other variables. The recommended heated area for a given appliance is dened by the manufacturer as its capacity to maintain a minimum
acceptable temperature in the designated area in case of a power failure.
2The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft3and 20 lb/ft3. Other performances are based on
a fuel load prescribed by the standard. The specied loading density varies between 7 lb/ft³ and 12 lb/ft3. The moisture content is between 19%
and 25%.
3As measured per CSA B415.1-10 stack loss method.
4Higher Heating Value of the fuel.
5Lower Heating Value of the fuel.
6Optimum overall efciency at a specic burn rate (LHV).
7The optimum heat transfer efciency is for the low burn rate and represents the appliance’s ability to convert the energy contained in the wood logs
into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
8This appliance is ofcially tested and certied by an independent agency
9Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17 based on the ATM send by EPA
on October 12th, 2017.
10 Carbon monoxide.

Page 6 Product Specication Manual - HEI350
ENGLISH
1.2 Specifications
Recommended log length 16 in (406 mm) east-west
Maximum log length11 22 in (560 mm) east-west
Flue outlet diameter 6 in (150 mm)
Recommended connector pipe diameter 6 in (150 mm)
Type of chimney ULC S635, CAN/ULC-S640, UL 1777
Baffle material Vermiculite
Approved for alcove installation Not applicable
Approved for mobile home installation12 No
Type of door Simple, glass with cast iron frame
Type of glass Ceramic glass
Blower Included (Up to 144 CFM)
Particulate emission standard13 EPA / CSA B415.1-10
USA Standard (Safety) UL 1482, UL 737
Canada Standard (Safety) ULC-S628
11 North-south: ends of the logs visible, East-west: sides of the logs visible.
12 Mobile homes (Canada) or manufactured homes (USA): The US Department of Housing and Urban Development describes “manufactured homes”
better known as “mobile homes” as follows; buildings built on xed wheels and those transported on temporary wheels/axles and set on a permanent
foundation. In Canada, a mobile home is a dwelling for which the manufacture and assembly of each component is completed or substantially
completed prior to being moved to a site for installation on a foundation and connection to service facilities and which conforms to the CAN/CSAZ240
MH standard.
13 Tested and certied in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and draft ASTM WK47329-14 based on the ATM send
by EPA on October 12th, 2017.

Page 7
Product Specication Manual - HEI350
ENGLISH

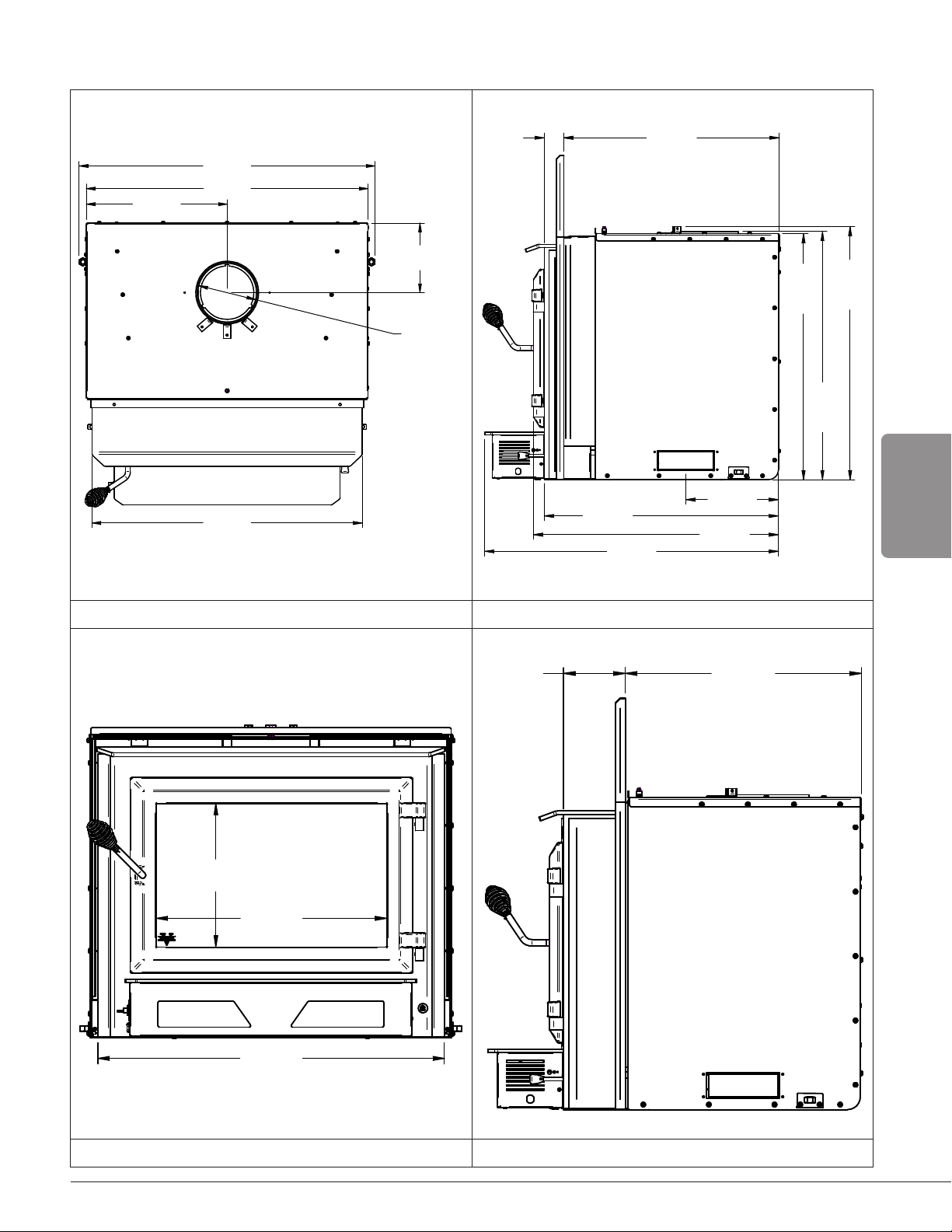

1.3 Dimensions
14 1/2"
368mm
29"
737mm
30 1/2"
773mm
7 1/8"
182mm
O
6"
153mm
27 3/4"
706mm
9 1/8"
232mm
24 1/4"
615mm
24 1/2"
621mm
24 7/8"
633mm
1 7/8"
49mm
MIN.
21 1/4"
539mm
MAX.
29"
735mm
24 1/8"
614mm
23 1/8"
586mm
Figure 1 : Top View Figure 2 : Side View - Minimum Insert Projection
11 1/2"
291mm
18 3/8"
467mm
27 5/8"
701mm
18 3/8"
466mm
MIN.
4 3/4"
122mm
MAX.
Figure 3 : Front View Figure 4 : Side View - Maximum Insert Projection

Page 8 Product Specication Manual - HEI350
ENGLISH
19"
483mm
9 1/4"
236mm
Figure 5 : Door Opening
22 7/8"
581mm
20 1/8"
510mm
12 7/8"
326mm
5/16"
8mm
3/16"
5mm
Figure 6 : Front View - Combustion Chamber Figure 7 : Side View - Combustion Chamber

Page 9
Product Specication Manual - HEI350
ENGLISH
1.4 EPA Loading
For EPA Certification testing, wood logs were 16 ± 1 inches long and the specie used was
beech.

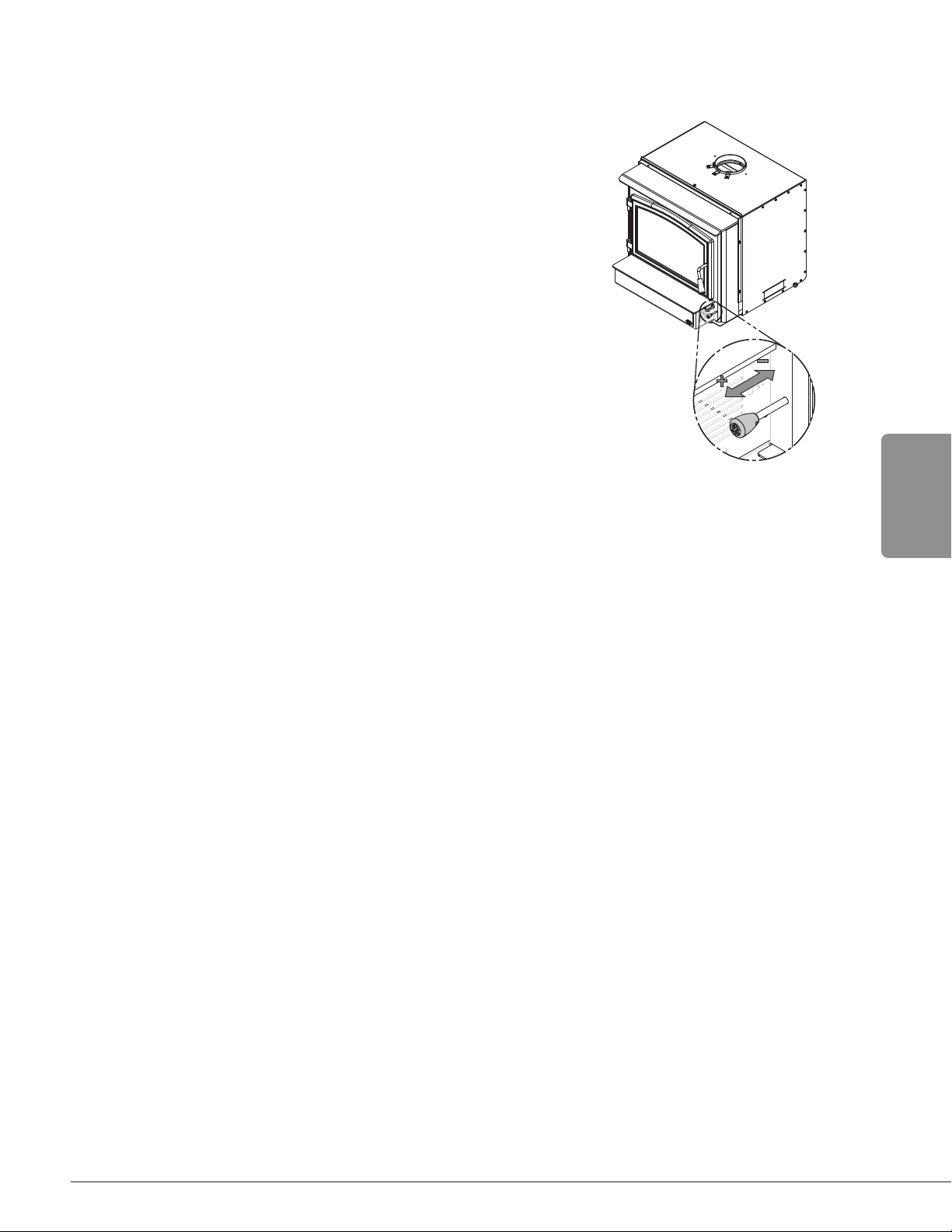

1.4.1 Air control
The air control is located underneath the ash shelf.
To open the air control, push the air control handle
completely to the left (High). This will increase the
burn rate. To close the air control, push the air control
handle completely to the right (Low). This will decrease
the burn rate.
1.4.2 High burn rate
Open the air control completely. Place eight small
pieces (2"x2") of wood in the firebox crossing
them at the greatest possible angle. Criss cross
15 kindling wood pieces on the small pieces
of wood in three to four layers at the greatest possible angle. Tie knot with five sheets of paper
and place them on top of the kindling wood. Light up the paper and let the door ajar at 90° until
all the kindling wood is on fire. Close the door. When there is no more fire in the front of the
firebox and there are only faint flames on the wood in the back of the firebox, break ashes, level
the coal bed and put six logs in the firebox of approximatively 4"x4" or 3"x3". Add the load in an
East-West configuration divided in 3 columns: 2 smallest logs in the back, 2 logs in the middle
and 2 logs in the front. Leave one inch of air space between the rear bricks and the first column,
another one inch between the first two columns, and finally leave no space between the second
and the third column. Let the door ajar to leave a space of one inch on the door handle’s side
for 3 minutes and then close the door.
1.4.3 Medium and low burn rate
On a 2" coal bed that is still slightly red, place six logs of approximatively 4"x4" or 5"x5" Add the
load in an East-West configuration divided in 3 columns: 2 logs in the back, 2 logs in the middle
and 2 logs in the front. The distance between the logs and the rear brick shall be approximately
1 inch. There should be one inch of air space between all the columns. Let the door ajar at 90°
for approximately 6 min. Then, close the door with the primary air control open. Leave to burn
with the primary air control open for approximately 5 more minutes, then close the primary air
control halfway. After another 5 minutes, close the primary air control completely for the low
burn rate and leave it halfway for the medium burn rate.

Page 10 Product Specication Manual - HEI350
ENGLISH
2. Clearances to Combustible Material
When the insert is installed so that its surfaces are at or beyond the minimum clearances
specified, combustible surfaces will not overheat under normal and even abnormal operating
conditions.
NO PART OF THE INSERT MAY BE LOCATED CLOSER TO THE COMBUSTIBLE THAN THE
MINIMUM CLEARANCE FIGURES GIVEN.

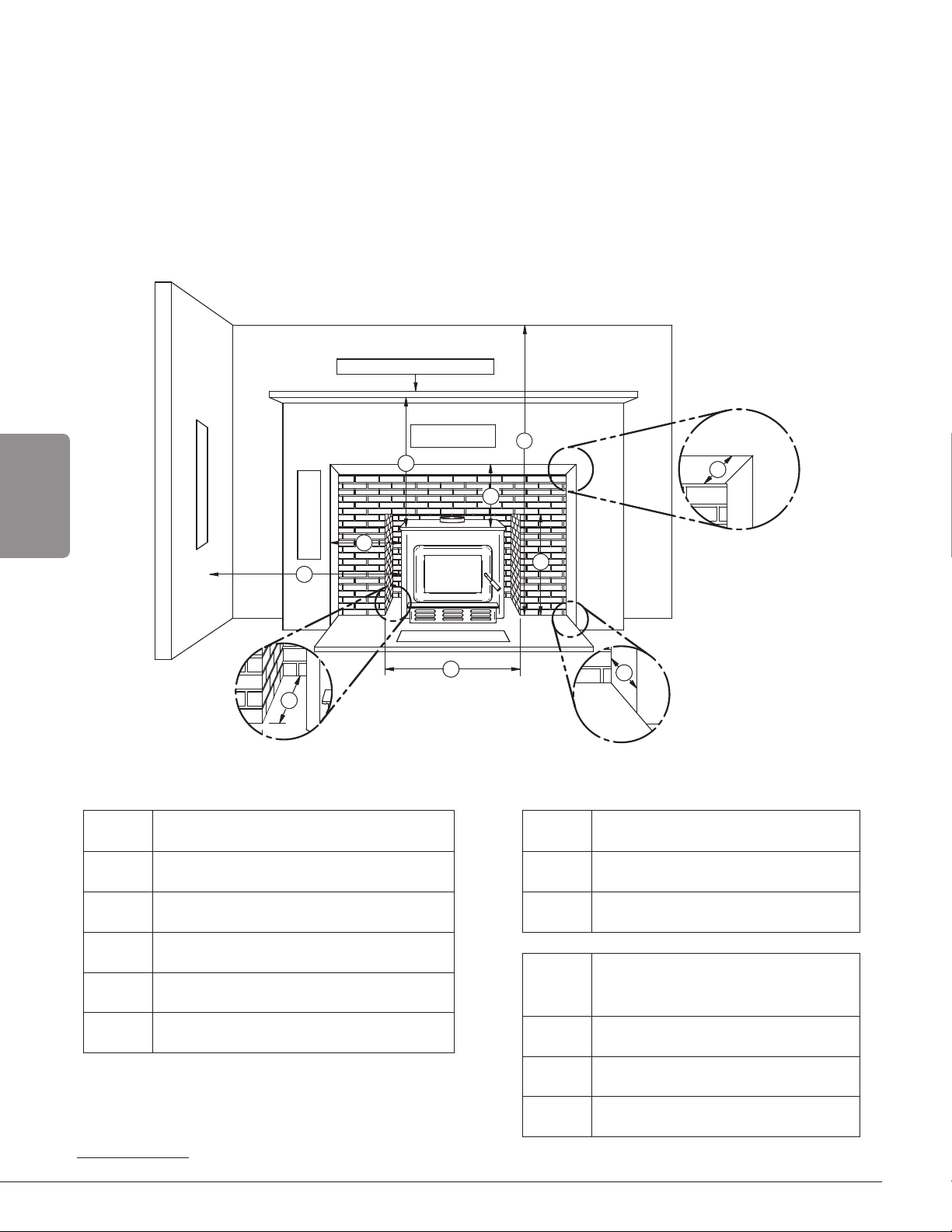

2.1 Minimum Masonry Opening and Clearances to Combustibles
COMBUSTIBLE MANTEL SHELF
COMBUSTIBLE
TOP SURROUND
COMBUSTIBLE
SIDE SURROUND
ADJACENT SIDE WALL
FLOOR PROTECTION
J
I
H
Q
G
F
K
L
O
P
Masonry Opening and Clearances
MINIMUM CLEARANCES
F19" (483 mm)
G9" (229 mm)
H27" (686 mm)
I27" (686 mm)
Q84" (213 cm)
MAXIMUM THICKNESS
O5" (127 mm)
P12" (305 mm)
MINIMUM MASONRY
OPENING
J26 ¼" (660 mm)
K14 31" (787 mm)
L18 3/8"(457 mm)
14 If a fresh air intake is required, it is recommended to add at least 4" to the width of the minimum opening of the hearth.

Page 11
Product Specication Manual - HEI350
ENGLISH

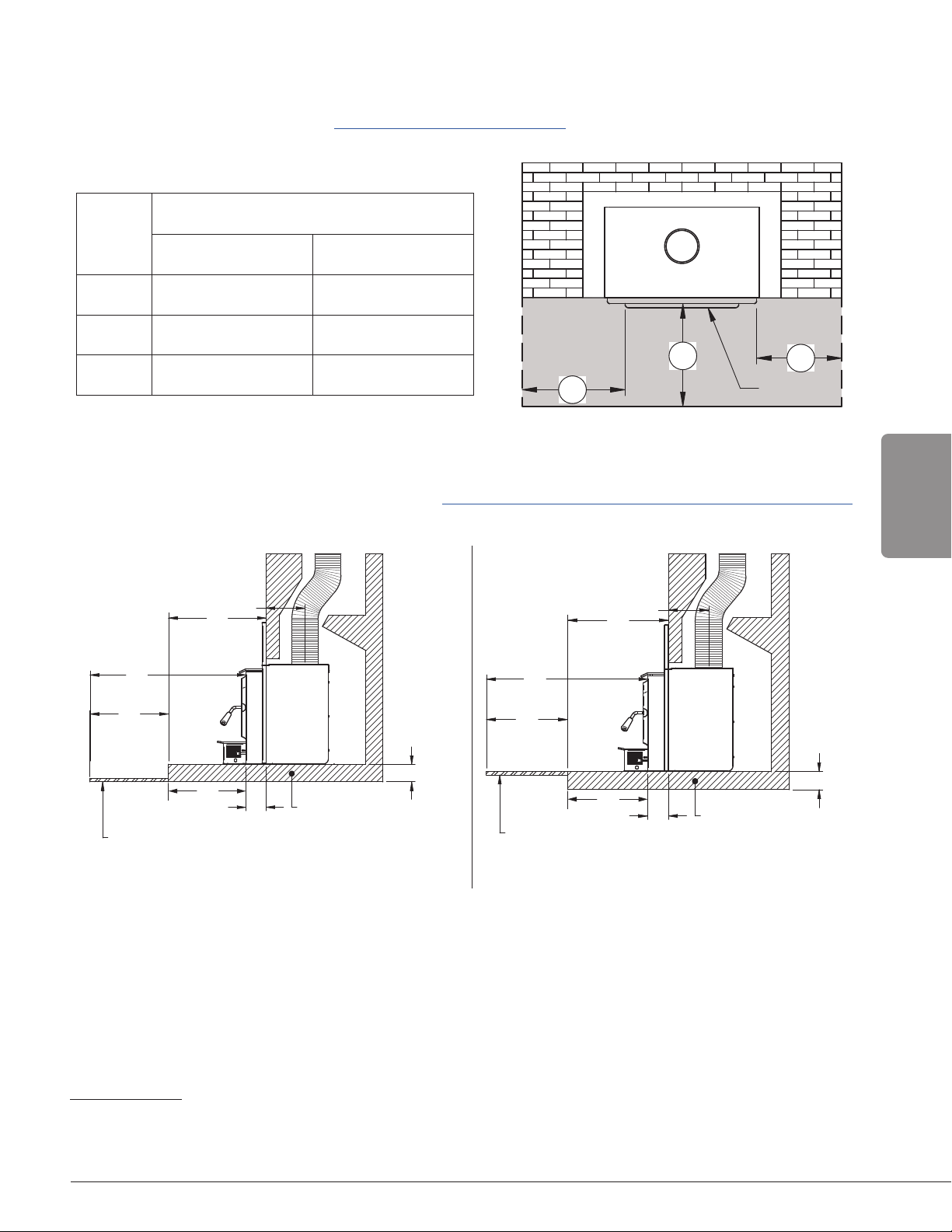

2.2 Floor Protection
t is necessary to have a floor protection made of non-combustible materials that meets the
measurements specified in the «Table 3 : Floor Protection» below.
Table 1 : Floor Protection
FLOOR PROTECTION
Canada USA
B15 18" (457 mm) 16" (406 mm)
M8" (203 mm) N/A
NN/A 8" (203 mm)
N
M
B
DOOR
Floor Protection
To determine the need to add floor protection (D) beyond the hearth extension (A), the following
calculation must be done using the data in «Table 4 : Data for Floor Protection Calculation» of
this section: D = B - G, where G = A-C.
HEARTH SLAB:
NON-COMBUSTIBLE MATERIAL
FLOOR PROTECTOR:
NON-COMBUSTIBLE MATERIAL
B
C
D
E
F
A
G
HEARTH SLAB:
NON-COMBUSTIBLE MATERIAL
FLOOR PROTECTOR:
NON-COMBUSTIBLE MATERIAL
B
C
D
E
F
A
G
Additional Floor Protection - Raised Installation Additional Floor Protection - Not Raised Installation
15From door opening. The depth of the hearth extension in front of the insert is included in the calculation of the oor protector’s dimensions. The
masonry hearth should be at least 6" (152 mm) higher than the combustible oor in front of it and a oor protection must extend at least 16"
(406 mm USA) and at least 18" (457 mm Canada) without an R value. If the hearth elevation is lower than 6" (152 mm), the non-combustible (B)
oor protection in front of the insert should have an R value equal or greater than 2.00 and shall extend 27" (686 mm) in front of the unit.

Page 12 Product Specication Manual - HEI350
ENGLISH
Table 2 : Data for Floor Protection Calculation
A B C D E Air Jacket
Maximum
Extended
Dimension
of the hearth
extension
See section
9.2.1 and
9.2.2
3 ⅝"
(93 mm)
G = (A-C)
D=B- G
7 ⅛"
(181 mm)
Back from
fireplace
facing 1 ⅜"
Minimum
Extended
Dimension
of the hearth
extension
See section
9.2.1 and
9.2.2
2 ¼"
(57 mm)
G = (A-C)
D=B- G
8 ½"
(216 mm)
Back from
fireplace
facing 2 ¾"
If the value (D) is negative or zero, additional floor protection in front of the unit is not needed
because the masonry fireplace hearth extension is long enough. If the value (D) is positive, an
additional floor protection in front of the hearth extension at least equivalent to the result (D)
must be added.
2.2.1 Installation Raised of 6" (152 mm) and Less
If non-combustible material floor protection needs to be added in front of and level with the
hearth extension of the masonry fireplace (F = 6" [152 mm) or less), an R-value equal to or
greater than 2.00 is required and should extend at least 27" (686 mm) in front of the unit (B).
Refer to «Additional Floor Protection - Not Raised Installation»
2.2.2 Installation Raised of More Than 6" (152 mm)
If the extension of the masonry hearth is raised at least 6" (152mm) from the floor protection, a non-
combustible material, without an R-value, must extend at least 16" (406 mm in USA) or 18" (457 mm
in Canada) in front of the unit (B). Refer to «Additional Floor Protection - Raised Installation».
2.3 R Value
There are two ways to calculate the R-value of the floor protection. First, by adding the R-values of
materials used, or by the conversion if the K factor and thickness of the floor protection are given.
To calculate the total R value from R values of the materials used, simply add the R-values of
materials. If the result is equal to or greater than the R-value requirements, the combination is
acceptable. R-values of some selected materials are shown below.

Page 13
Product Specication Manual - HEI350
ENGLISH
Table 3 : Thermal Characteristics of Common Floor Protection Materials16
MATERIAL CONDUCTIVITY (K)
PER INCH
RESISTANCE (R)
PER INCH THICKNESS
Micore® 160 0.39 2.54
Micore® 300 0.49 2.06
Durock® 1.92 0.52
Hardibacker® 1.95 0.51
Hardibacker® 500 2.3 0.44
Wonderboard® 3.23 0.31
Cement mortar 5.00 0.2
Common brick 5.00 0.2
Face brick 9.00 0.11
Marble 14.3 – 20.00 0.07 – 0.05
Ceramic tile 12.5 0.008
Concrete 1.050 0.950
Mineral wool insulation 0.320 3.120
Limestone 6.5 0.153
Ceramic board (Fibremax) 0.450 2.2
Horizontal still air (1/8" thick)17 0.135 0,920**
Exemple:
Required floor protection R of 1.00. Proposed materials: four inches of brick and one inch of
Durock® board:
Four inches of brick (R = 4 x 0,2 = 0,8) plus 1 inch of Durock® (R = 1 x 0.52 = 0.52).
0.8 + 0.52 = 1.32.
This R value is larger than the required 1.00 and is therefore acceptable.
In the case of a known K and thickness of alternative materials to be used in combination,
convert all K values to R by dividing the thickness of each material by its K value. Add R values
of the proposed materials as shown in the previous example.
Exemple:
K value = 0.75
Thickness = 1
R value = Thickness/K = 1/0.75 = 1.33
16 Information as reported by manufacturers and other resources.
17 Horizontal still air can’t be «stack» to accumulate R-values; each layer must be separated with another non-combustible material.

Page 14 Product Specication Manual - HEI350
ENGLISH
3. Installing Options on Your Product and Replacing Parts
3.1 Replacement and Adjustment
3.1.1 Door
Note: The images shown are for guidance only and may be different from your product, but
the assembly remains the same.
In order for the insert to burn at its best efficiency, the door must provide a perfect seal with the
firebox. Therefore, the gasket should be inspected periodically to check for a good seal. The
tightness of the door seal can be verified by closing and latching the door on a strip of paper.
The test must be performed all around the door. If the paper slips out easily anywhere, either
adjust the door or replace the gasket.
3.1.2 Adjustment
The gasket seal may be improved with a simple latch mechanism adjustment:
1. Remove the split pin by pulling and turning it using pliers.
2. Turn the handle one counterclockwise turn to increase pressure.
3. Reinstall the split pin with a small hammer.
Figure 8 : Removing the split pin Figure 9 : Installing the split pin

Page 15
Product Specication Manual - HEI350
ENGLISH
3.1.3 Door Alignment
To align, open the door and loosen the pressures screws located on the lower and upper hinges
of the door using a 3/32” Allen key to free the adjustable hinge rods.
Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the
doors. Tighten all door hinge pressure screws when they are at the desired positions.
Configurations 1-2-3-4-5-6, show in which direction these act on the adjustment of the door.
3/32"
5
6
3
2
A
B
1
4
4
2
A
B
1
3

Page 16 Product Specication Manual - HEI350
ENGLISH
3.1.4 Gasket
It is important to replace the gasket with another having the same diameter and density to
maintain a good seal.
1. Remove the door and place it face-down on something soft like a cushion of rags or a piece of
carpet.
2. Remove the old gasket from the door. Use a screwdriver to scrape the old gasket adhesive from
the door gasket groove.
3. Apply a bead of approximately 3/16" (5 mm) of high temperature silicone in the door gasket
groove. Starting from the middle, hinges side, press the gasket into the groove. The gasket must
not be stretched during installation.
4. Leave about ½″(10 mm) long of the gasket when cutting and press the end into the groove. Tuck
any loose fibers under the gasket and into the silicone.
5. Close the door. Do not use the insert for 24 hours.
3.2 Blower and Ash Lip Installation
Note: The images shown are for guidance only and may be different from your product, but
the assembly remains the same.
1. Install the ash lip (A) on the insert with
three screws (B).
2. Center the blower on the ash lip and push
it against the firebox. Then push the blower
into the clips located underneath the ash lip.

Page 17
Product Specication Manual - HEI350
ENGLISH
3.3 Faceplate and Trims Installation
Note: The images shown are for guidance only and may be different from your product, but
the assembly remains the same.
1. Remove the faceplate extension (K) secured between the firebox and the convection air jacket.
2. Lay the panels on a flat and non abrasive surface. Align the top panel holes (L) with the left (N)
and right (M) panels. Secure together using the four bolts (P) and nuts (O) provided.

Page 18 Product Specication Manual - HEI350
ENGLISH
3. Align the holes of the faceplate extension (K) with the holes in the faceplate panels and
screw them using bolts (P) and nuts (O) provided.
4. Center the insert into the fireplace opening.
If necessary, adjust the height of the insert using the levelling bolts (T) on each side of
the insert until the faceplate is properly seated on the floor of the hearth extension.
5. Align the notch in the faceplate extension with the bolt (Q) welded to the air jacket located and
slide the faceplate assembly just over the bolt’s head and washer (R). Then push towards the
fireplace.
6. Once the faceplate is in place, secure the assembly by tightening nuts (S) using a 7/16"
(11 mm) open end wrench.

Page 19
Product Specication Manual - HEI350
ENGLISH
3.4 Optional Fresh Air Intake Kit Installation
Note: The images shown are for guidance only and may be different from your product, but
the assembly remains the same.
The fresh air intake kit may be installed on the right or left end side of the unit. The unused
side must be covered by the plate provided in the user manual kit.
1. Using pliers, remove the rectangular metal plate retained by the micro-gaskets to clear the
opening for the outside air intake.
2. Install the fresh air intake adapter (B) with four screws (C) then secure the flexible pipe18 (E) (not
included) to the adapter using one of the pipe clamps (B). Secure the other end of the pipe to
the outside wall termination (F) using the other pipe clamp. The outside wall termination must
be installed outside of the home.
A
B
C
D
E
D
F
18The pipe must be HVAC type, insulated, and must comply with ULC S110 and/or UL 181, Class 0 or Class 1.

Page 20 Product Specication Manual - HEI350
ENGLISH
3.5 Log Retainers Installation
1. 2.
3.
2"
MIN
2"
MIN
