Vents-us TT SILEN KIT 100-1 TT SILEN KIT 100-1L User manual

MIU_71(bathroom_exhaust_kits)-01
vents-us.com
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: [phone], Fax: [phone]
E-mail: [email protected]
INSTALLATION GUIDE
BATROOM EXHAUST KITS
TT SILEN KIT 100-1/100-1L/100-1H
- TT Silent 100 (110 CFM)
- D-Box (no light)/100L (LED light)/100H (Halogen light)
Screw (2 pcs.)
Hole for optional screw
mounting (4 pcs.)
Nail (4 pcs.)
Bottom edge
of framing
Typical installation of the TT Silnet Kit 100-1L
One box diffuser kit
Two box diffuser kit
INSTALLATION
Tools required
Pencil Drill Screwdriver Dowel (4 pcs.) Screws (4 pcs.)
MOUNTING

MIU_71(bathroom_exhaust_kits)-01
vents-us.com
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: [phone], Fax: [phone]
E-mail: [email protected]
INSTALLATION GUIDE

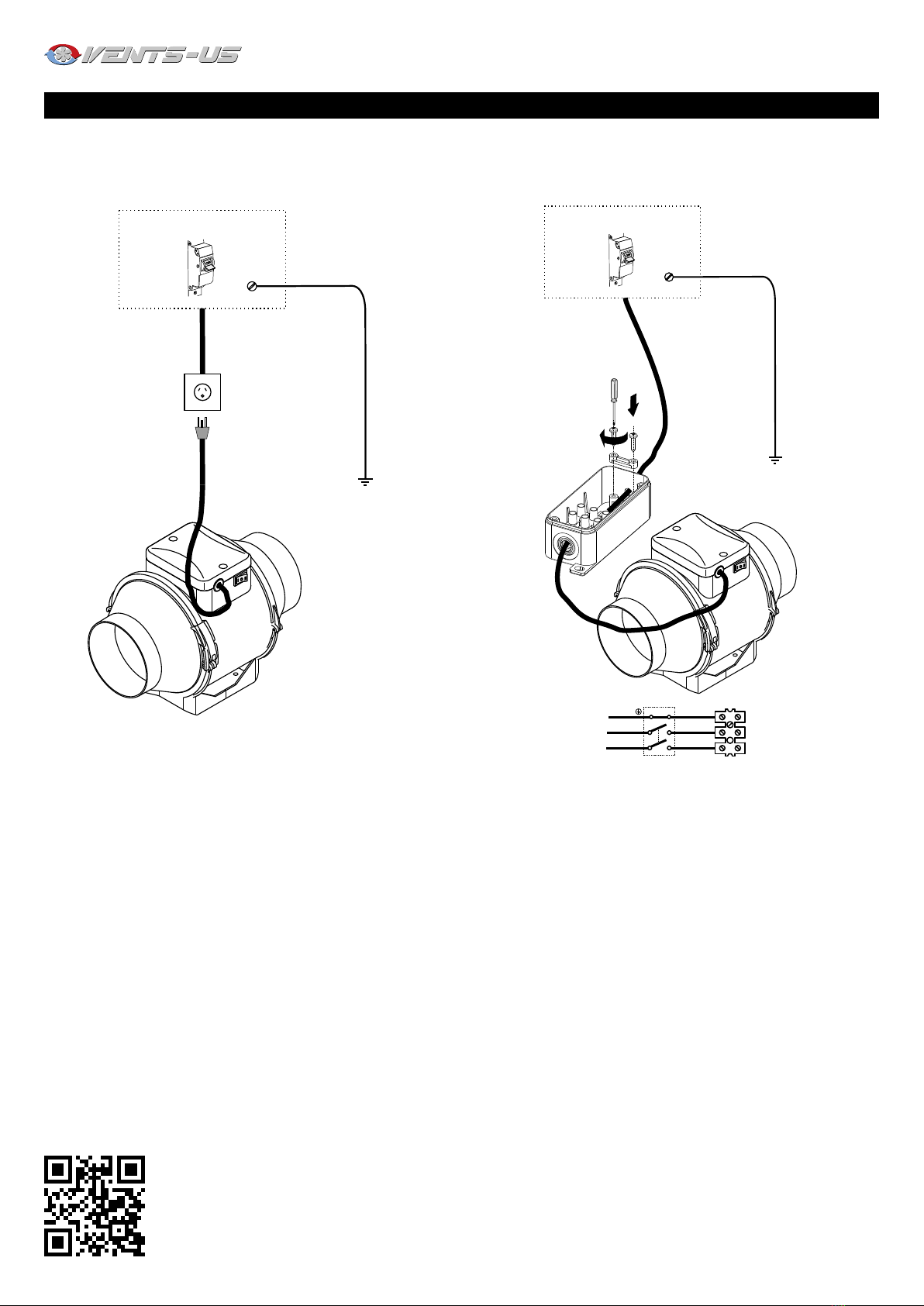

Connection of the TT Silnet Kit 100-1L and standard wall socket The fan must be connected using durable, insulated and heat-resistant cables
and wires.
Connect the cables according to the wiring diagram.
120VAC, 60Hz
BREAKER
GREEN
GROUND
SCREW
BREAKER BOX
EARTH
FAN
WALL SOCKET
N
L
N
L
QF X
~120V 60Hz
PE
120VAC, 60Hz
BREAKER
GREEN
GROUND
SCREW
BREAKER BOX
EARTH
FAN
Connection of the D-Box 100 L (LED light)
For fan with light and night light
Available with optional LED MR-16 trim. 6W,GU-10 lamp,
4100K, 410 lumens, with a 30,000 hour rated life.
