veoneer NB24G20V0 User manual

User Manual for Product Model: NB24G20V0
PUBLIC
24 GHz NB Radar Sensor
User Manual
Product Model: NB24G20V0
Veoneer US, Inc.
26360 American Drive
Southfield, Michigan 48034 USA
Phone: [phone]
Fax: [phone]

User Manual for Product Model: NB24G20V0 Page 2of 7
PUBLIC
Table of Contents
1ABBREVIATIONS 3
1.1 LIST OF TERMINOLOGY AND ACRONYMS 3
2PRODUCT OVERVIEW 3
2.1 PRODUCT DESCRIPTION 3
2.2 PRODUCT APPLICATION EXAMPLES 3
3TYPICAL INSTALLATION 4
4HARDWARE DESCRIPTION 4
5SENSOR GENERIC SPECIFICATIONS 5
6SENSOR FEATURES 5
7CONFORMANCE STATEMENTS 6
7.1 USA 6
7.2 CANADA 6
7.3 RADIO FREQUENCY EXPOSURE INFORMATION 6
7.4 EUROPE 6
8REVISION HISTORY 7
Table of Figures
FIGURE 1: TYPICAL INSTALLATION POSITIONS ........................................................................................................................................... 4
FIGURE 2: GENERIC SENSOR ................................................................................................................................................................. 4
List of Tables
TABLE 1: SENSOR SPECIFICATIONS ......................................................................................................................................................... 5
TABLE 2: REVISION HISTORY................................................................................................................................................................. 7

User Manual for Product Model: NB24G20V0 Page 3of 7
PUBLIC
1 Abbreviations
1.1 List of Terminology and Acronyms
BSD Blind Spot Detection
CAN Controller Area Network
DSP Digital Signal Processor
EMC ElectroMagnetic Compliance (regulatory standards)
FM Frequency Modulation
GHZ Giga-Hertz (10^9)
HP Host Processor
LCA Lane Change Assist
MMIC Monolithic Microwave Integrated Circuit
MCU MicroController Unit
NB Narrow Band
PCB Printed Circuit Board
RADAR RAdio Detection and Ranging
RCTA Rear Cross Traffic Alert
RF Radio Frequency (or Microwave)
2 Product Overview
2.1 Product Description
The products described here are part of a family of radars offered by Veoneer. They are intended for
automotive use, operating in the 24.050 - 24.250GHz band.
The radars are integrated into a vehicle to enhance vehicle safety systems. They can be integrated as a
standalone sensor or sensors, or as part of more complex system that also may include cameras, lidar,
and other type of sensors to provide features like Automatic Cruise Control, Automatic Emergency Break,
Free Space Detections and other Autonomous Driving functions.
2.2 Product Application Examples
The product can be used, but is not limited to the following applications:
•Blind Spot Detection
•Rear Cross Traffic
•Lane change warning
•Rear collision prevention systems
•Automatic lane change systems
•Pedestrian and Bicycle collision prevention

User Manual for Product Model: NB24G20V0 Page 4of 7
PUBLIC

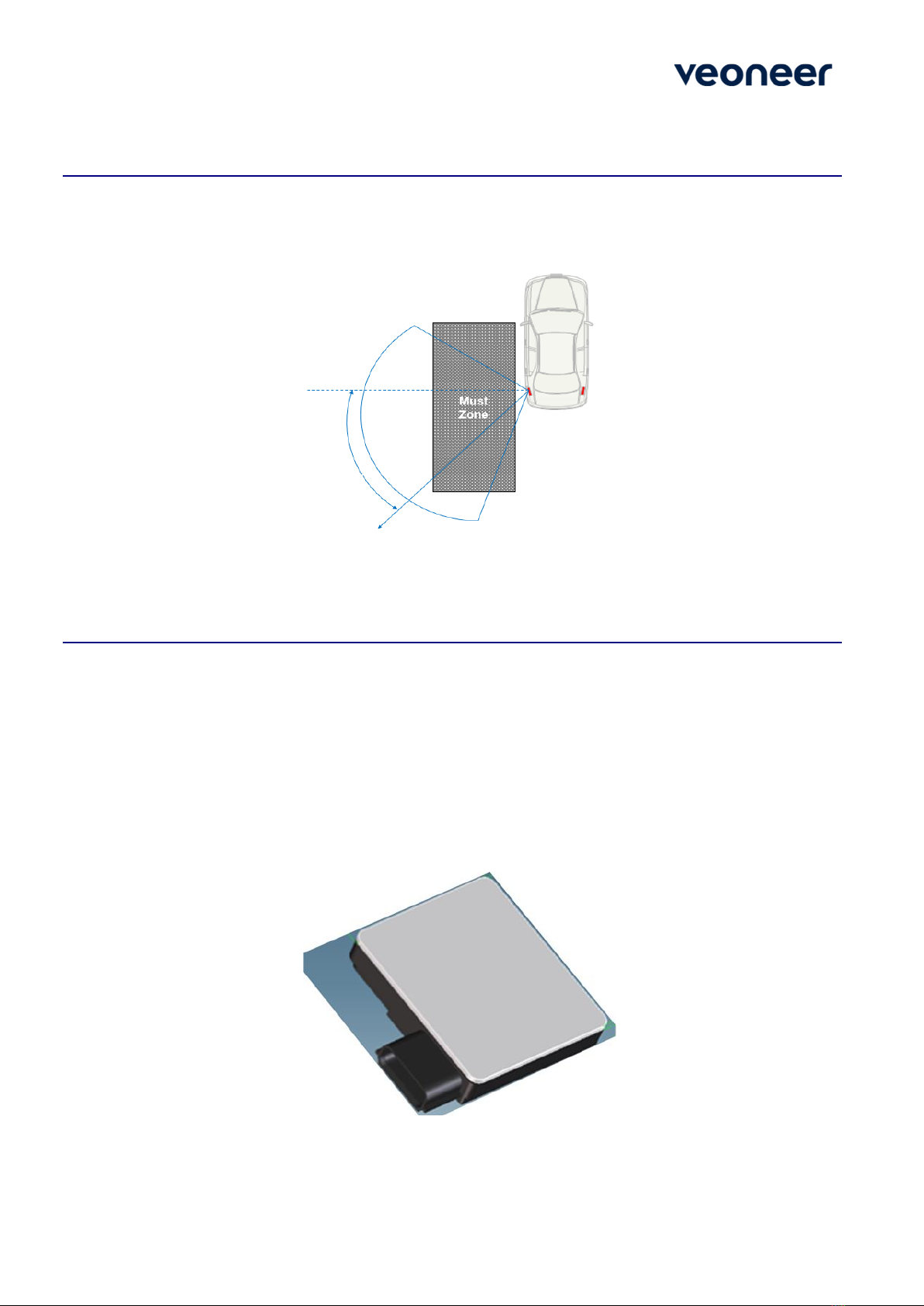

3 Typical Installation
The radar is typically installed in the positions of the vehicle depicted in Figure 1 often mounted behind a
bumper or emblem.
Figure 1: Typical Installation Positions
4 Hardware Description
The NB RADAR is a fully integrated 24GHz radar sensor with both RF and DSP modules on the same
PCB. The design supports a combination of pulsed Doppler and chirped FM waveforms that can detect
moving or stationary vehicles in a high clutter environment.
The sensor’s DSP – a multicore processor - controls all signal processing, diagnostics and
communications. The RF module generates, transmits, receives and demodulates radar signals using two
Veoneer MMICs. Software algorithms calculate target parameters such as range, speed and angle and
this information is sent out to the vehicle over the CAN bus.
The components are assembled into a plastic housing that is laser welded together. The sensor has no
serviceable parts and can’t be opened without permanent damage.
Figure 2: Generic Sensor

User Manual for Product Model: NB24G20V0 Page 5of 7
PUBLIC
5 Sensor Generic Specifications
Sensor Specifications & Functions
Value
Unit
Operating Conditions
Frequency Band
24.050 –24.250 (ISM)
GHz
Vehicle Network Interface
CAN 2.0B
-
Operating Temperature
-40C to +85
C (External Ambient)
Input Operating Voltage
8.0-16.0
VDC
RF Output Power (EIRP)
13.26
dBm
Operating Life
15
yrs.
Waveform Parameters
Cycle Time
81.62
ms
Bandwidth
<200
MHz
Physical Parameters
Size
72 x 63 x 16
mm (excluding connector)
Weight
<75
g
Vehicle Physical Interface
Standard is 6 Pin DUAL
CAN
-
Table 1: Sensor Specifications
6 Sensor Features
The BSD algorithm detects and reports “Objects of Interest" on either side of the vehicle, within a
specified “blind spot” zone. The feature generates a signal which is used to drive a visual display placed
in the outside view mirror to alert the driver to the presence of objects of interest within the defined
SBZA zone.
The LCA algorithm detects and reports to the driver that a vehicle is rapidly approaching the host
vehicle in one of the adjacent lanes. The feature generates a signal which is used to drive a visual
display placed in the outside view mirror and/or request a chime or vibrating seat cushion, to alert the
driver to the approach of objects of interest within the defined LCA zone.
The RCTA algorithm detects and reports “Objects of Interest” behind the host vehicle, withinaspecified
RCTA coverage zone. The feature generates a signal which is used to drive a visual display to alert the
driver of the presence of objects of interest that may cause a collision with the host vehicle within the
defined RCTA zone.

User Manual for Product Model: NB24G20V0 Page 6of 7
PUBLIC
7 Conformance Statements
7.1 USA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. CAUTION TO USERS Changes or
modifications not expressly approved by the party responsible for compliance could void the user`s
authority to operate the equipment.
Additionally, it should be mentioned, that the integrator is advised to have this statement in their user
manual as well.
CAUTION TO USERS
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
7.2 Canada
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two
conditions: (1) This device may not cause interference. (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
L’metteur/rcepteur exempt de licence contenu dans le prsent appareil est conforme aux CNR
d’Innovation, Sciences et Dveloppement conomique Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorise aux deux conditions suivantes : 1) L’appareil ne doit pas produire
de brouillage; 2) L’appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est
susceptible d’en compromettre le fonctionnement.
7.3 Radio Frequency Exposure Information
This equipment should be operated at a minimum distance of 20 cm from the user.
This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm between
the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de
20 cm de distance entre la source de rayonnement et votre corps. Ce transmetteur ne doit pas etre place
au meme endroit ou utilise simultanement avec un autre transmetteur ou antenne.
7.4 Europe
Hereby, Veoneer US, Inc declares that the radio equipment type NB24G20V0 is in compliance with
Directive 2014/53/EU.
Operational frequency band: 24.050 –24.250GHz
Maximum radio-frequency output power: < 20dBm peak eirp
The full text of the EU declaration of conformity is available at the following internet address:
https://www.veoneer.com/en/regulatory

User Manual for Product Model: NB24G20V0 Page 7of 7
PUBLIC
8 Revision History
The revision number in table below is the PLM revision and version number. The Description/Comment
is the same description that is found in PLM in check comment.
Revision
Date
Author(s)
Description/comment
000 v1
2021-01-07
Harsha Deshpande
Initial release
000 v2
2021-04-12
Harsha Deshpande
Added FCC 15.21 conformance statement
Table 2: Revision History
