FCC Notice
FCC Notice:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio and
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
CE Notice:
If the product suddenly has no response or power off, it may be caused by
electrostatic discharge. If this circumstance, please follow the procedures
below for recovery:
- Switch off the unit, if the unit has no response.
- Turn on the unit again
For Customers in Europe
This product conforms to the following European Directives:
89/336/EEC (EMC Directive)
This product complies with EN55022/A1:2000 and EN 55024/A1:2001 for use
in the following areas: residential, commercial and light industrial

4
Handling Precaution
Before using this device, please carefully read and understand the safety
instructions listed below.
1. Read carefully all the attached user’s materials, and fully understand the
operation guide and warnings of this device.
2. Check if the contents in the packaging of the device are consistent to the
packing list.
3. When it is left unused for a long period of time, the battery should
be removed. If liquid leakage from the battery is detected and
the device works abnormally, please do not dismantle the device for
cleaning, this may lead to damage to the device. In irreparable cases,
please contact Verbatim technical support. Verbatim shall take no liability
for damages resulting from battery liquid leakage and resulting damage.
4. This device is a hi-tech electronic product, which should be kept away
from heat, cold and moisture when being used. Special care should be taken
to observe the following points:
a) The device should not be exposed to strong sunlight, and should be kept
away from heat sources.
b) Avoid using the device outdoor at low temperature for a long period
of time.
c) The device should not be placed in the environment of extra-humidity;
Care should be taken so that water and other liquids are not spilled onto
the device. If it happens, the device should be switched off immediately.
d) The device should not be used in dusty environments.
e) Do not clean the device with any type of detergent containing chemical
elements or other solutions in order to avoid damage from corrosion or
moisture. If necessary, please clean using a soft cloth.
5. Do not use the device in strong magnetic eld, strong electric charge or
electromagnetic interference environment in order to prevent data from
being lost.

5
6. Do not subject the device to drops or hard impacts which may lead to
damage.
7. The device should be opened under no circumstances. The manufacturer
takes no liability for damages resulting from unauthorized tampering.
Handling Precaution

6
Product Features
- Supports WMA and MP3 le formats
- Bit rates supported 32kbps - 320kbps constant & variable
- Windows Media DRM 9 support
- Negative LCD Display with LED back light
- ID3 Tag: Song title and Artist
- Voice recorder with built in microphone
- 6 EQ modes: Normal, Rock, Jazz, Classic, Pop & Custom
- 5 Play modes: Normal, Repeat, Repeat all, Shufe, & Repeat Shufe
- Preset sleep timings
- Sleep memory function
(restart resumes to where the device was last powered off)
- Built in USB plug to connect directly to the PC
- USB2.0 Full speed data transfer
- Compatible with USB1.1 & USB2.0 ports
- 1 x AAA battery
- Battery life up to 10 hours

7
Package Contents
1. Store ‘n’ Play MP3 Player VM-01 (x1)
2. Stereo Earphones
3. USB Extension Cable
4. AAA Battery
5. Carry Strap
6. Quick Start Guide
7. CD containing Win 98SE driver and Users Manuals

8
Product Diagrams and Function Buttons
12 Product diagrams and function buttons
Earphone jack
Play/pause button
A-B Repeat section
Volume +
Volume -
Lock button
MIC jack
Fast forward button
Menu button
Fast backward button
USB jack Battery Housing
LCD display screen description
EQ display
Volume level display
Song name
Mode display
Playing status display
Play elapsed time display
A-B Repeat section display
Playing mode display
Sleep preset display
Function button lock display
Song playing display

9
Product Diagrams and Function Buttons
13
Operating method
Battery installation
Product diagrams and function buttons

10
Product Diagrams and Function Buttons

11
Product Diagrams and Function Buttons

12
Connecting to the Computer
Computer system requirement
1. Microsoft Windows 98SE/Me/2000/XP
2. CD-ROM drive
3. Pentium CPU above 233MHz
4. With RAM memory above 32MB(if the operating system is Windows XP,
the RAM should be above 64MB)
5. Hard disk space should be above 20MB
6. Port should be USB1.1 or above
7. Connecting to internet (necessary only when the software needs
to be updated)

13
USB Connection Display
This player is a mass storage device. It does not need driver installation for
PC connection. However for windows 98SE OS you need to install the driver.
The driver is contained on the enclosed CD or download the driver from the
following website: www.verbatim-europe.com
www.verbatim.com
For USB connection,the device can be plugged in the USB port of the
computer, Press “Play/Pause” button to connect.

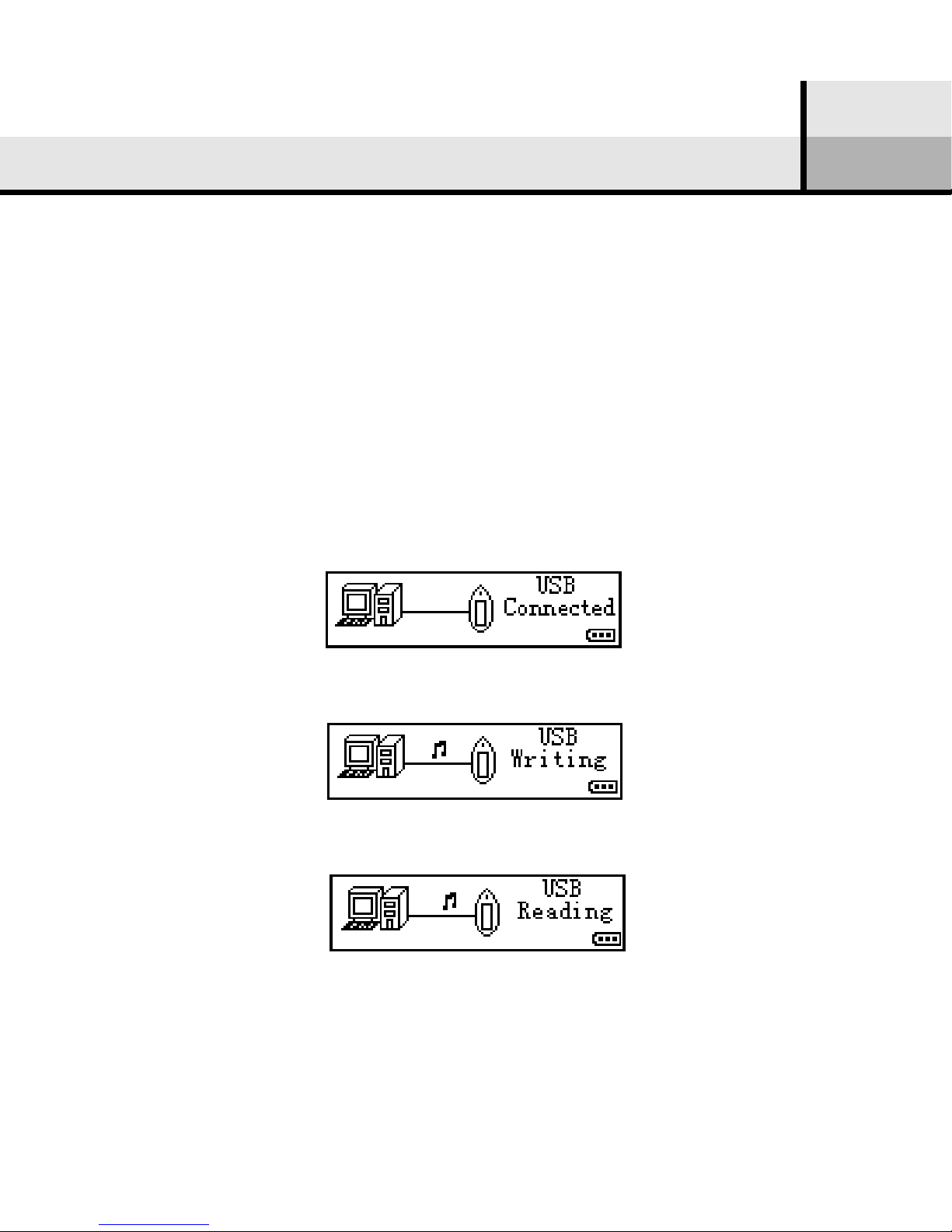

When the device is connected to computer, and the operation begins, LCD will
display the following icon
USB connected
files uploading
files downloading

14
File Upload and Download
After the device is connected to the computer to upload/download les, no
special operation other than simple “drag-drop” is needed.
1. Double click “my computer” in Windows, you will nd a new
icon “removable disk”, which represents your digital audio player
2. If you want to download les to the device from computer, just drag the
desired les to “removable disk”, which represents your digital audio player
3. You can also drag the les in your digital audio player to your computer
(upload)
4. The device can store all types of les in addition to music les.
5. During uploading / downloading, keep the MP3 player connected to
the computer
Notes:
1. Since the device will play according to the download sequence of the les, it
is suggested to download les in desired sequence.
2. To disconnect from the USB port Double-Click the “Unplug or Eject
Hardware” symbol in the Windows task bar. When the “Safely Remove
Hardware” window appears, select the device you wish to remove and click
stop. From the next window, select the appropriate device and click ok.
The MP3 player is now ready to disconnect.
3. During uploading / downloading, keep the MP3 player connected to
the computer

15
Shuttin
g
downÖ
An Introduction to Basic Functions
Power on/off
Power on
Press “play/pause” button to start the device
Start gure
The following picture (gure) has been set in the device before it left factory.
Power off
1. Long press “play” button, the device will be shut down, as the progress bar
displayed below.
2. When the progress bar is full, the device will be shut down automatically.
3. If releasing the “play” button before the progress bar is full, the device will
resume to the former status. Designed in this way, the device will not be shut
down accidentally.

16
An Introduction to Basic Functions
Volume setting
Adjust the volume by using “VOL+”and” VOL-” on the main device
1. Volume can be selected among 0-10 sections.
2. Press the button to adjust the volume section by section; long press on the
button to adjust the volume continuously.

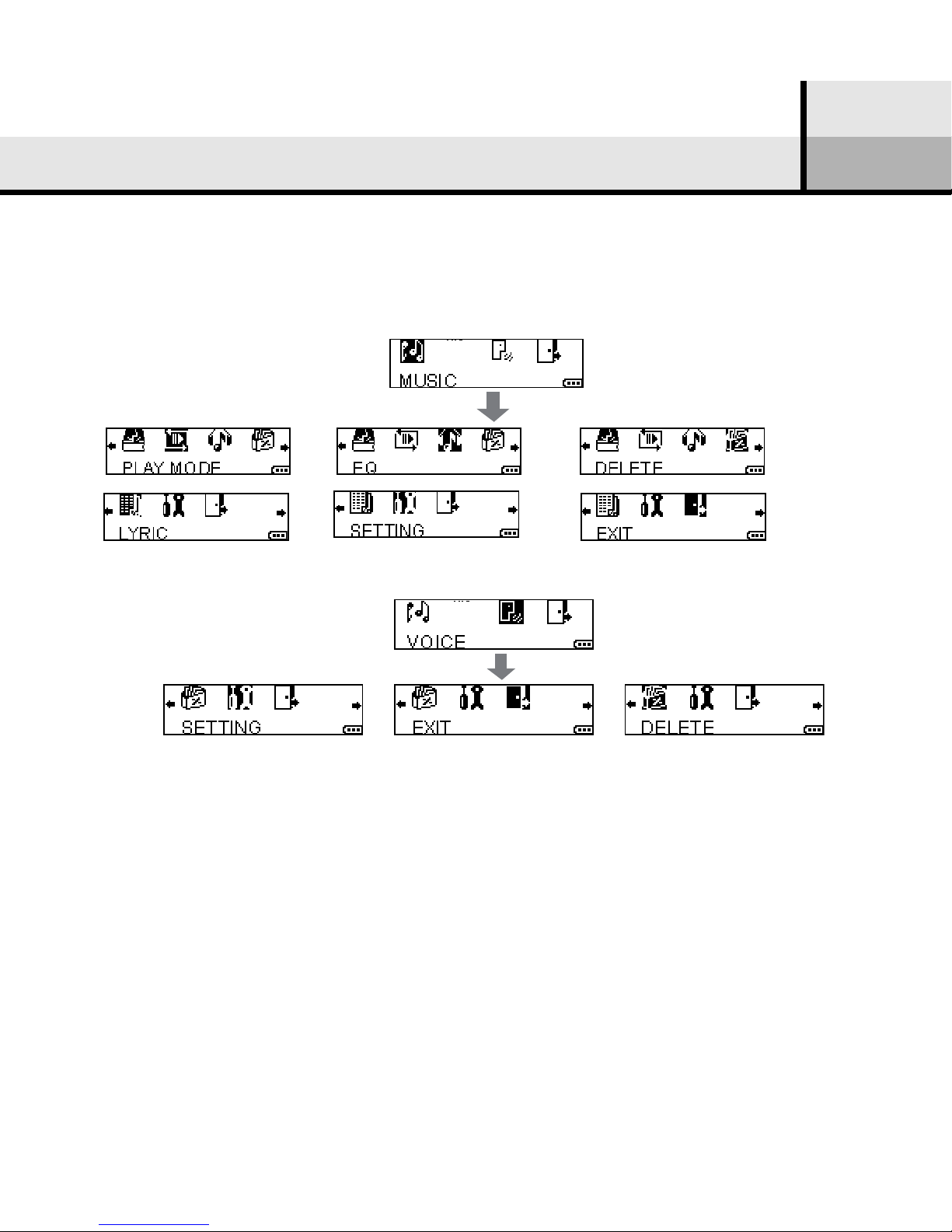

Mode switch
This device has two working modes: music mode and voice mode.
Press and Hold MENU to enter mode selecting menu, and then select desired
mode by using “fast forward “button or “fast backward” button or select “exit”
to keep the original mode, press “MENU” button again to enter that mode.

17
An Introduction to Basic Functions
Mode menu setting
Music (music mode), voice (voice mode) or exit (keep the mode selected
before) are available.
menu setting in music mode
menu setting in voice mode

18
An Introduction to Basic Functions
Lock function
When switching on “HOLD” lock button, all the functions cannot be operated.
Switch on the device when it is shut down, “locked” will be displayed. When it
is playing, there will be an icon of “locked” on the upper right of LCD.
Play music
Play/pause
The device will enter music mode or voice mode when it is normally started,
press “play/pause” button to begin playing; when it is playing, press “play/
pause”
button to pause playing; The le is in STOP status when the device is normally
started.
1. Select play le
1) When it is pause/stop, press “fast forward” button or “fast backward”
button to select les in the memory.
2) When it is playing, press “fast forward” button to play the next le, while
press “fast backward” button to play the previous le
2. Fast forward/fast backward
Press “fast forward” button or “fast backward” button for more than one
second to begin fast forward or fast backward.

19
An Introduction to Basic Functions
Voice record
In voice mode, you can record voice via the built-in Mic
1) Press “Rec/A-B” button to begin recording
2) Press “Rec/A-B” button again to stop recording
3) Recorded les are stored as default les VXXX.WAV, XXX, begins with 001
Play record
Voice les recorded in the device can be played in voice mode. The
operation is identical to playing music les in music mode.
