Verine Meridian MK2 Mounting instructions

Meridian M 2
BA ANCED F UE OG EFFECT GAS FIRE
Installation, Maintenance & User Instructions
Hand these instructions to the user
Model No’s NBF **RN2 is only for use on Natural Gas (G20) at a
supply pressure of 20 mbar in G.B. / I.E.
** denotes cosmetic variant

CONTENTS
PAGE
Section 1 Information and Requirements
1.0 Appliance Information 3
1.1 Conditions of Installation 4
1.2 Fireplace surround & suitability 4
1.3 Flue Terminal Position 5
1.4 Shelf position 6
1.5 Hearths 6
Section 2 Installation of Fire
2.1 Unpacking the fire 6
2.2 Fireplace opening 7-8
2.3 Preparation of the wall 8-9
2.4 Preparation of the flue hole 9
2.5 Installation of the gas supply 10
2.6 Preparation of the flue duct 11
2.7 Securing the firebox to the opening 12-13
2.8 Making the gas connection / pressure testing 13
2.9 Fitting the terminal guard 13
2.10 Removal & refitting of the glass frame 14-16
2.11 Fitting the batteries to the reciever and handset 17
Section 3 Assembling Fuel Bed and Commissioning
3.1 Fitting the log fuel bed 18-22
3.2 Lighting the appliance 23-24
3.3 Removal & re-fitting the fascia assembly & cosmetic trim 25
Section 4 Maintenance
4.1 Removal of the burner assembly 27
4.2 Removal of the gas valve 27
4.3 Removal of the pilot assembly 28
4.4 Removal of the receiver 28
Parts shortlist 29
Section 5 User Instructions
5.1 Installation Information / about your fire 30-31
5.2 Operating your fire 32-33
5.3 Removal / replacing the glass frame 34-35
5.4 Removal / replacing the log fuel-bed 36-40
5.5 Cleaning instructions 40-41
5.6 Replacement of batteries in the receiver and handset 41
5.7 Removal & re-fitting the fascia assembly & cosmetic trim 42
User replaceable parts 43
This appliance is manufactured by :-
BFM Europe Ltd.
Trentham Lakes,
Stoke-on-Trent, ST4 4TJ.
2

SECTION 1
INFORMATION AND REQUIREMENTS
1.0 APP IANCE INFORMATION
Model NBFL**RN2
** denotes cosmetic variant of product
Gas Type G20
Main injector (1 off) Size 380
Pilot Type Black Technigas “Polidoro” G27.2
Max. Gross Heat Input : 5.7 kW
Min. Gross Heat Input : 4.4 kW
Gas Rate : 0.529 m3/hr
Cold Pressure : 20.0 +/-1.0 mbar
Ignition : 6V Battery Ignition
Electrode Spark Gap 4.0mm
Packed Weight 30 kg
Gas Connection : 8mm Compression (supplied with fire)
Fig. 1
3
228mm
358mm Min, 651mm Maximum with
standard flue duct. A cost option
extended flue duct (part no. CV-
MA LT) can be purchased to
increase this dimension to 1021mm
120mm
752mm
715mm
150mm

INSTA ATION REQUIREMENTS
Efficiency Declaration
The efficiency of this appliance has been measured as specified in
BS EN 613 : 2001 and the result after conversion to Gross using the
appropriate factor from Table 4 of SAP 2009 is 76%. The test data from which it
has been calculated has been certified by BSI. The efficiency value may be used
in the U Government’s Standard Assessment Procedure (SAP) for energy rating
of dwellings.
1.1 CONDITIONS OF INSTA ATION
It is the law that all gas appliances are installed only by a GAS SAFE Registered
Installer, in accordance with these installation instructions and the Gas Safety
(Installation and Use) Regulations 1998 as amended. Failure to install appliances
correctly could lead to prosecution. It is in your own interest and that of safety to
comply with the law.
The installation must also be in accordance with all relevant parts of the Local and
National Building Regulations where appropriate, the Building Regulations
(Scotland Consolidation) issued by the Scottish Development Department, and all
applicable requirements of the following British Standard Code of Practice.
1. B.S. 5871 Part 1 Installation of Gas Fires
2. B.S. 6891 Installation of Gas Pipework
3. B.S. 5440 Parts 1 & 2 Installation of Flues and Ventilation
4. I.S 813 : 1996 Domestic Gas Installation, issued by the National Standards
Authority of Ireland.
1.2 FIREP ACE / SURROUND SUITABI ITY
This product is designed to fit fireplaces with a minimum 1” / 25mm rebate. The
fire must only be installed on a hearth it must not be installed directly onto
carpet or other combustible floor materials. The fire is suitable for fitting to
non-combustible fire place surrounds and proprietary fire place surrounds with a
temperature rating of at least 150 degrees celcius (Class “O”).
Soft wall coverings such as blown vinyl, wall paper etc. could be affected by
the rising hot air and scorching and/or discoloration may result. Due con-
sideration should be made to this when installing or decorating.
4

1.3 F UE TERMINA POSITION
The minimum acceptable dimensions from the flue terminal to obstructions
and ventilation openings are shown below and listed in the table
It is important that the position of the flue allows the free passage of air
across it at all times. The minimum acceptable space from the flue terminal
to obstructions and ventilation openings are specified below (Fig. 2)
Fig. 2
DIMENSION TERMINA POSITION MINIMUM DIMENSION
A Directly below an opening, air brick, 300mm (12in)
opening window
B Above an opening, air brick, 300mm (12in)
opening window
C Horizontally to an opening, air brick, 300mm (12in)
opening window etc.
D Below gutters, soil pipes or drain pipes 300mm (12in)
E Below eaves 300mm (12in)
F Below balconies or car port roof 600mm (12in)
G From a vertical drain pipe or soil pipe 300mm (12in)
H From an internal or external corner 600mm (24in)
I Above ground roof or balcony level 300mm (12in)
J From a surface facing the terminal 600mm (24in)
K From a terminal facing the terminal 600mm (24in)
From an opening in the car port 1200m (48in)
M Vertically from a terminal on the same wall 1500mm(59in)
N Horizontally from a terminal on the 300mm (12in)
same Wall
O NOT APP ICAB E N/A
P NOT APP ICAB E N/A
Q NOT APP ICAB E N/A
5

1.4 SHE F POSITION
The fire may be fitted below a combustible shelf providing there is a minimum
distance of 200mm above the top of the fire and the shelf does not project more
than 150mm. If the shelf overhangs more than 150mm the distance between the
fire and the shelf must be increased by 15mm for every 25mm of additional
overhang over 150mm.

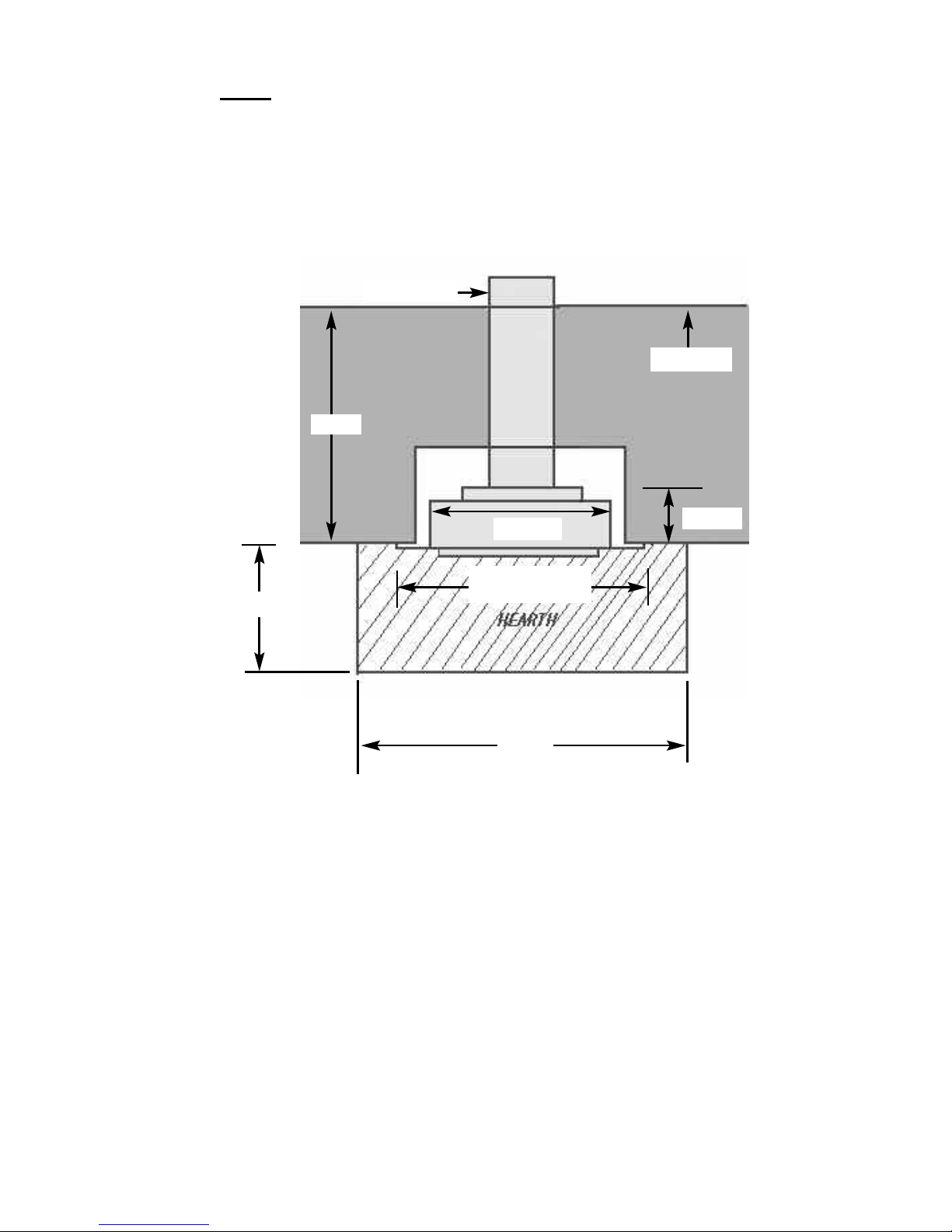

1.5 HEARTHS
This appliance must only be installed on to a concrete or non-combustible hearth.
The hearth material must be a minimum thickness of 12mm with the top surface at
least 50mm above the floor. The hearth must be fitted symmetrically about the fire
opening and have a minimum width of 900mm and a minimum projection of
300mm forwards from the fire opening.
SECTION 2
INSTA ATION OF FIRE
2.1 UNPACKING THE FIRE
Carefully lift the fire out of the carton. Remove the loose item packaging carefully
from the front of the appliance. Check the contents as listed :-
Packing Check List - All Models
1 off Firebox / burner assembly
1 off Boxed ceramic log effect fuel-bed (packed inside combustion chamber)
1 off Cosmetic trim
1 off Loose items bag inc handset, 4 off 1.5V batteries & 1 off 9V battery
1 off Flue terminal / pipe unit
1 off Flue terminal guard
1 off Fascia (colour / finish dependent upon model chosen)
1 off Installation / user book (combined)
1 off Length of aluminium foil tape (packed in loose items pack)
6

2.2 FIRE P ACE OPENING
2.2.1 The front opening of the fire place must be between 550 and 565mm
wide, and between 720 and 730mm high. If the opening exceeds these
dimensions then a surround must be constructed from suitable non-
combustible material to produce a suitable sized opening. Any surround
must be suitably sealed to the fire place to prevent leakage.
See fig. 3 below
Fig. 3
2.2.2 The minimum / maximum sized distances between the firebox mounting
flange and outside wall are shown below in Fig. 4
Fig. 4
7
550mm minimum,
565mm maximum
Fire Opening
720mm minimum,
730mm maximum
Minimum Flat
Sealing Area
10mm
Minimum Installation
Depth 358mm
Maximum Installation Depth
651mm
Maximum Installation Depth
1021mm with extended flue duct
(cost option extra)

2.2.3 NOTE : WHEN MEASURING ENGTH BETWEEN FIREBOX AND
THE OUTER WA TAKE INTO ACCOUNT THE REBATE ON ANY
FA SE CHIMNEY BREAST, SURROUND OR BOTH THAT IS TO BE
USED
Fig. 5
2.2.4 The appliance must be fitted into a fireplace or false chimney
constructed of non-combustible materials, minimum width 550mm,
minimum height 720mm.
2.3 PREPARATION OF THE WA
2.3.1 The appliance and flue pipes must be installed at right angles to the
mounting wall. The appliance itself should be installed vertically against
a flat wall. Where an uneven wall surface is found, appropriate action
should be taken to ensure that the appliance is not stressed or does not
distort when installed.
Ensure that the floor surface onto which the appliance is mounted onto
is flat. The minimum height from the floor to the centre of the flue is
shown on fig. 6 overpage.
8
900mm
550mm 228mm
Outer Wall
600mm Including
Firebox Flanges
300mm
Cavity
Flue Terminal

Fig. 6

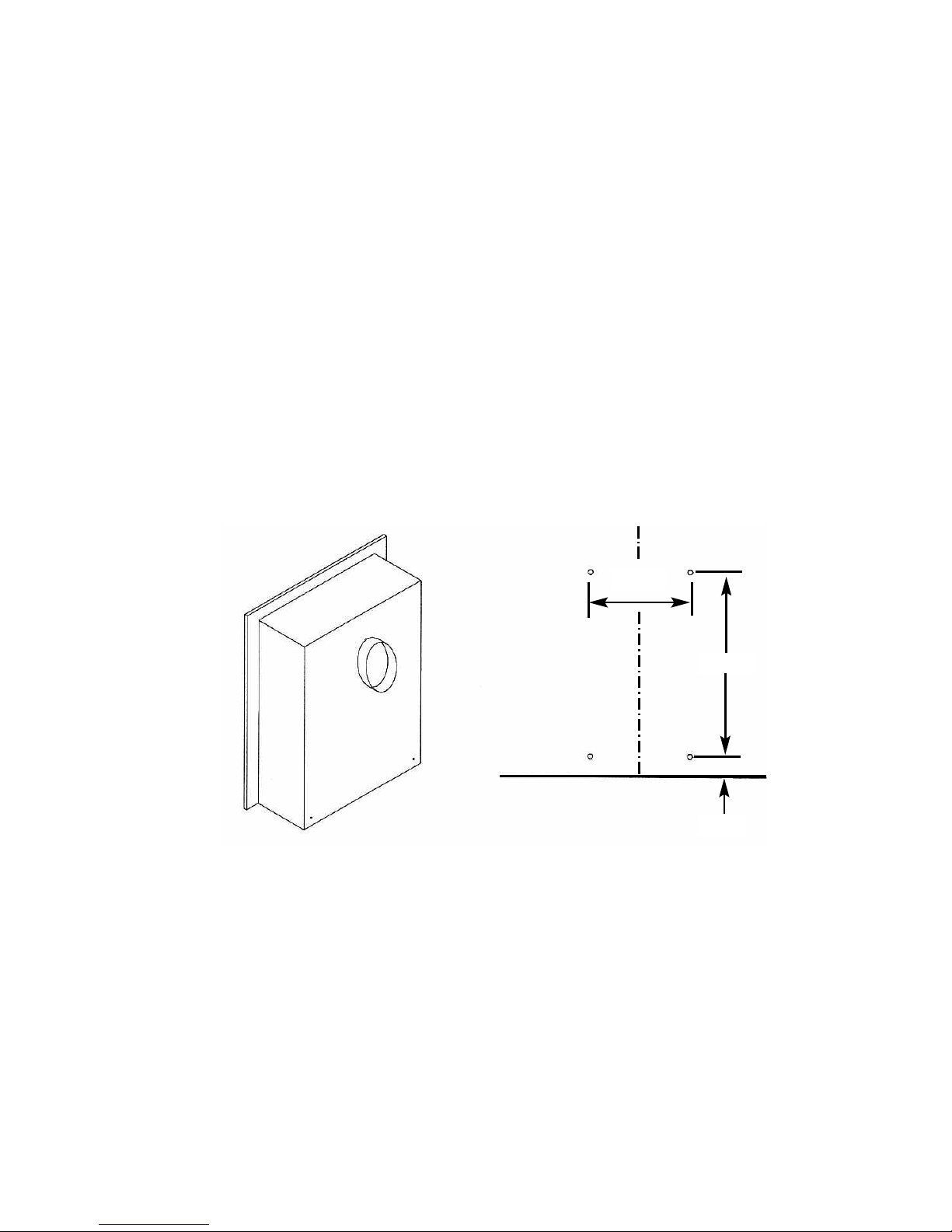

2.4 PREPARATION OF THE F UE HO E
2.4.1 Mark the position of the centre of the flue on the inner wall.
2.4.2 Cut hole for outer flue pipe. There are two possible methods to achieve
this, either core drill or via hammer and chisel.
2.4.3 To core drill, proceed as follows :-
Drill a pilot hole through the wall, in position as specified in figure 6.
Using a 6” core drill, drill the flue hole.
To Hammer and chisel, proceed as follows :-
Mark the position of the centre of the flue pipe as specified in figure 6.
Mark the position of the hole around this point.
Chisel out the area as marked on the wall.
2.4.4 We then recommend that a cardboard cylinder is placed around the flue
pipe and inserted in the chiselled out hole whilst making good.
NOTE :- If the appliance is to be installed into a building under
construction, it is recommended that a non-corrosive metal
tube of 6” diameter be inserted into the position of the hole.
9
150mm diameter
582mm

2.5 INSTA ATION OF THE GAS SUPP Y
2.5.1 Before installing the firebox, decide from which side or if a rear
connection to the gas supply is required. Plan the pipe run to enter the
firebox from the left, right or rear and connect to the inlet elbow. See
below :-
2.5.2 If concealed pipe work is required plan the pipe run to enter the fire box
through the openings in the rear of the fire box and connect to the inlet
elbow. See Fig. 7 & 8 below for a suggested concealed pipe layout.
Fig. 7
Fig. 8
Note : Before breaking into the gas supply a pressure drop test should be
carried out to establish that the existing pipework is sound. Always re-fit the
gas inlet plate to the rear entry point and secure with the screws provided.
10
Firebox
Fireplace
Gas Supply
Firebox
Approx.
525mm Fireplace
Gas Supply
Approx.
100mm

2.6 PREPARATION OF THE F UE DUCT
2.6.1 Place the firebox into the fire opening with fire surround correctly
secured in the final position. From the outside of the house measure
from the face of the outside wall to the rear panel of the firebox through
the flue hole. Cut the flue duct to this size.
IMPORTANT : ENSURE THE PIPES ARE CUT SQUARE Y.
2.6.2 The joint between the firebox and the flue duct as shown below in Fig. 9
must be secured with screws and sealed with the foil tape as supplied.
In order to do this, the wall plate must removed from the flue pipe /
termination.
Fig. 9
2.6.3 Due to the varying lengths of flue that will be required via differing
installations it will be necessary to drill the flue pipe using the 3 off holes
in the mounting flange on the rear of the combustion chamber as a
guide for positioning. When the holes have been drilled and the screws
fitted, wrap the joint with the foil tape supplied.

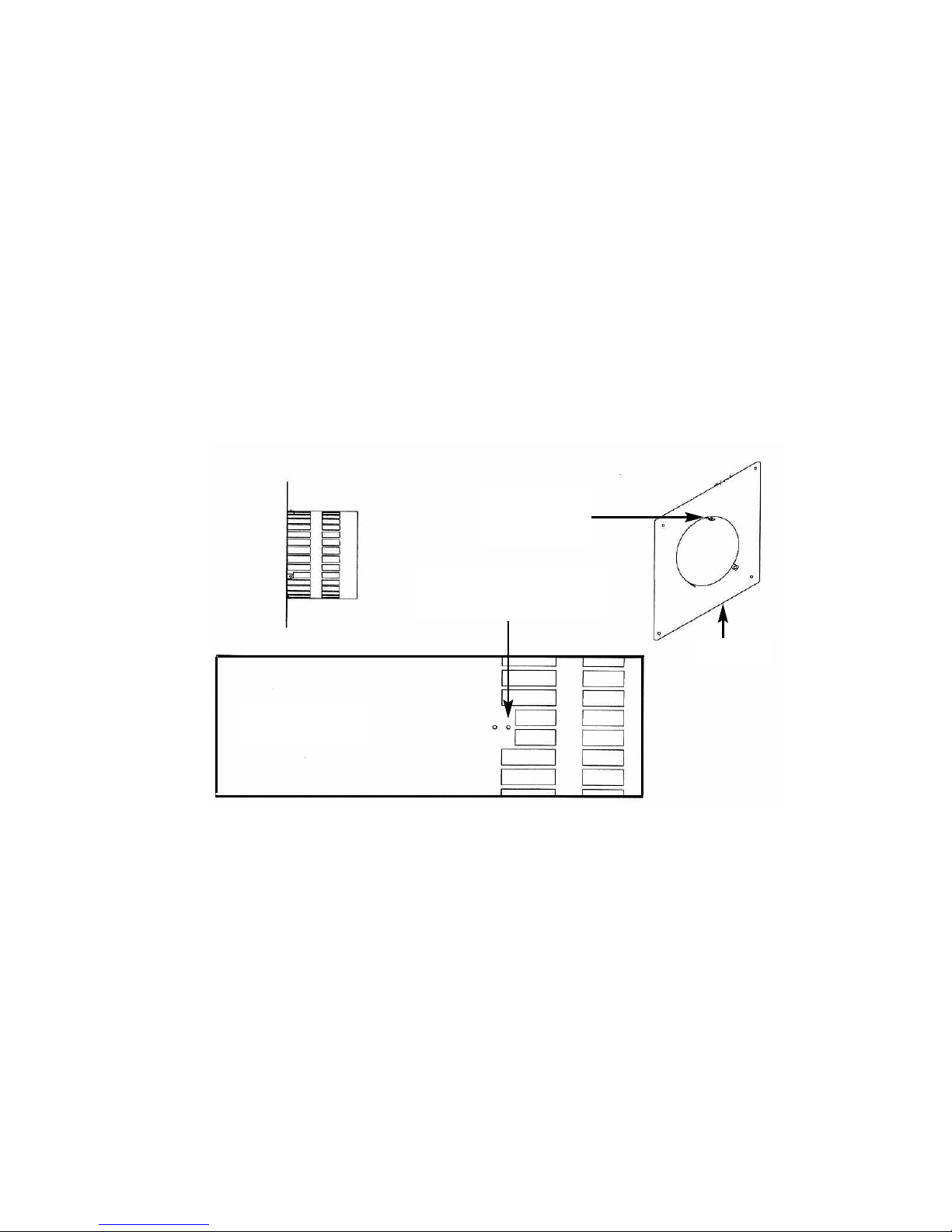

2.6.4 Re-fit the wall plate ensuring the outer set of holes as indicated above
in Fig. 9 are used. Use a high temperature sealant to secure the wall
plate to the outside wall of the property before securing with the screws
and rawlplugs supplied to ensure a mechanical fix.
Lug as shown
should be fitted
uppermost
Wall Plate
Flue
Termination / Pipe
Use the outer set of holes to
secure the wall plate to the
flue pipe / termination
11

2.7 SECURING OF FIREBOX TO THE OPENING
2.7.1 There is a choice of methods of fixing the firebox that are provided to
enable the installer to deal with any type of installation. The preferred
method of fixing the appliance is the cable fixing method, which is
described in detail in the following section.
2.7.2 If the standard firebox fixing flange is to be used, the firebox may be
secured using the cable method, but in installations where the cable
method is not suitable, e.g.insufficient space behind the firebox, or
loose masonry, the firebox can be fitted directly to either the front of the
fireplace via the flange with the four off screws provided. The firebox will
require sealing to the fireplace, regardless of the method used.
2.7.3 To secure the fire using the preferred cable method, proceed as follows
below :-
2.7.4 Mark out and drill 4 off No 14 6mm holes in the rear face of the fire
opening in the positions as shown in Fig. 10 below.
Fig. 10
2.7.5 Fit the wall plugs provided and screw the fixing eyes securely into the
rear of the fire opening. Remove the glass frame and burner assembly
as detailed in section 2.10 / 2.11.
2.7.6 Uncoil the two fire fixing cables and thread one end of the each of the
cables through the ears in the top of the fire box lid, and through each
fixing eye at the top. Thread both cables through the fixing eye’s at the
bottom, then the holes at the bottom of the firebox
2.7.7 Thread the cables through the rear of the firebox, insert the flue pipe /
terminal through the hole in the rear of the opening and offer the firebox
up to the fireplace.
12
360mm
500mm
50mm

2.7.8 Thread a tensioning screw over both of the cables and ensure that the
tensioning nut is screwed fully up against the hexagon shoulder of the
tensioning screw (this provides maximum travel for the tensioning nut).
2.7.9 Fit a screwed nipple on to each of the cables and pull hand tight up
against the tensioning screw, then secure each nipple with a
screwdriver.
2.7.10 Before making the final gas connection, thoroughly purge the gas
supply pipework to remove all foreign matter, otherwise serious
damage may be caused to the gas control valve on the fire.
Failure to purge the gas supply will invalidate the guarantee.
2.8 MAKING THE GAS CONNECTION / PRESSURE TESTING
2.8.1 The gas connection should be made to the appliance inlet elbow to
using 8mm rigid tubing.
2.8.2 Remove the pressure test point screw from the inlet elbow and fit a
manometer.
2.8.3 Turn on the main gas supply and carry out a gas tightness test.
2.8.4 Light the fire (see pages 19-20 for instructions).
2.8.5 Check that the gas pressure is 20.0 mbar (+/- 1.0mbar) 8.0 in w.g.(+/-
0.4 in w.g.). Turn off the fire, remove the manometer and refit the
pressure test point screw. Check the pressure test point screw for gas
tightness with the appliance turned on using a suitable leak detection
fluid or detector.
2.9 FITTING THE TERMINA GUARD
2.9.1 With the flue terminal in position, place the terminal guard over the top
of the flue terminal and mark the position of the holes on the outer wall.
2.9.2 Remove the terminal guard and drill the 4 off 6 mm holes.
2.9.3 Insert the raw plugs into the drilled holes, replace the terminal guard
over the top of the flue terminal and attach to the wall using the No.12 x
40mm screws provided with the terminal guard.
NOTE : In England & Wales, building regulations require that a terminal
guard should be fitted if the terminal could come into contact with
people near the building or be subject to damage. BFM Europe
td. also recommend the fitting of a flue terminal guard where
regulations do not demand that it be fitted. A suitable flue terminal
guard is supplied with the appliance.
13

2.10 REMOVING & REFITTING OF THE G ASS FRAME.
2.10.1 Remove the glass panel by undoing the retaining clips at the base of
the glass frame as shown below in Fig. 11
Fig. 11
2.10.2 Remove the glass frame assembly by tilting forwards then lifting as
shown in Fig. 12 below. Re-assemble in reverse order, ensuring a
consistent seal between the combustion chamber and glass frame.
Fig. 12
14
Unclip left and
right hand glass
frame assembly
retaining clips at
base of glass
frame assembly
Lift clear
Tilt forwards

2.11 REMOVA OF THE BURNER ASSEMB Y
2.11.1 Remove the burner. To allow burner removal, the ceramic support
panel must be removed to allow access to the burner fixings. Remove
the 4 off ceramic support retaining screws as shown below in Fig. 13
Fig. 13
2.11.2 Remove the 7 off screws that hold the burner in position, see Fig. 14
below.
Fig. 14
15
Four off ceramic
support retaining
screws
Viewed from Top
Viewed from Top
Seven off burner retaining
screws

2.11.3 Remove the burner by lifting clear from the combustion chamber as
shown below in Fig. 15, take care to also lift out the receiver unit and
wiring loom, (the receiver unit is held in position with velcro).
Fig. 15
2.11.4 Store the burner unit in a safe position.
2.11.5 Re-assemble in reverse order.
16

2.12 FITTING THE BATTERIES TO THE RECEIVER UNIT & HANDSET
2.12.1 4 off AA 1.5V batteries (found in the loose items pack) are to be fitted to
the battery holder located on the base of the fire below the combustion
chamber.
2.12.2 To remove the receiver unit, remove it from the velcro strips with which
it is secured.
2.12.3 Slide off the cover from the receiver unit.
2.12.4 Fit the 4 off AA batteries to the unit, then re-fit the cover.
2.12.5 Replace the receiver into it’s velcro strips at the base of the fire.
2.12.5 Fit the 1 off 9V battery to the handset by removing the rear cover,
connecting the battery then replacing the cover.
17

SECTION 3

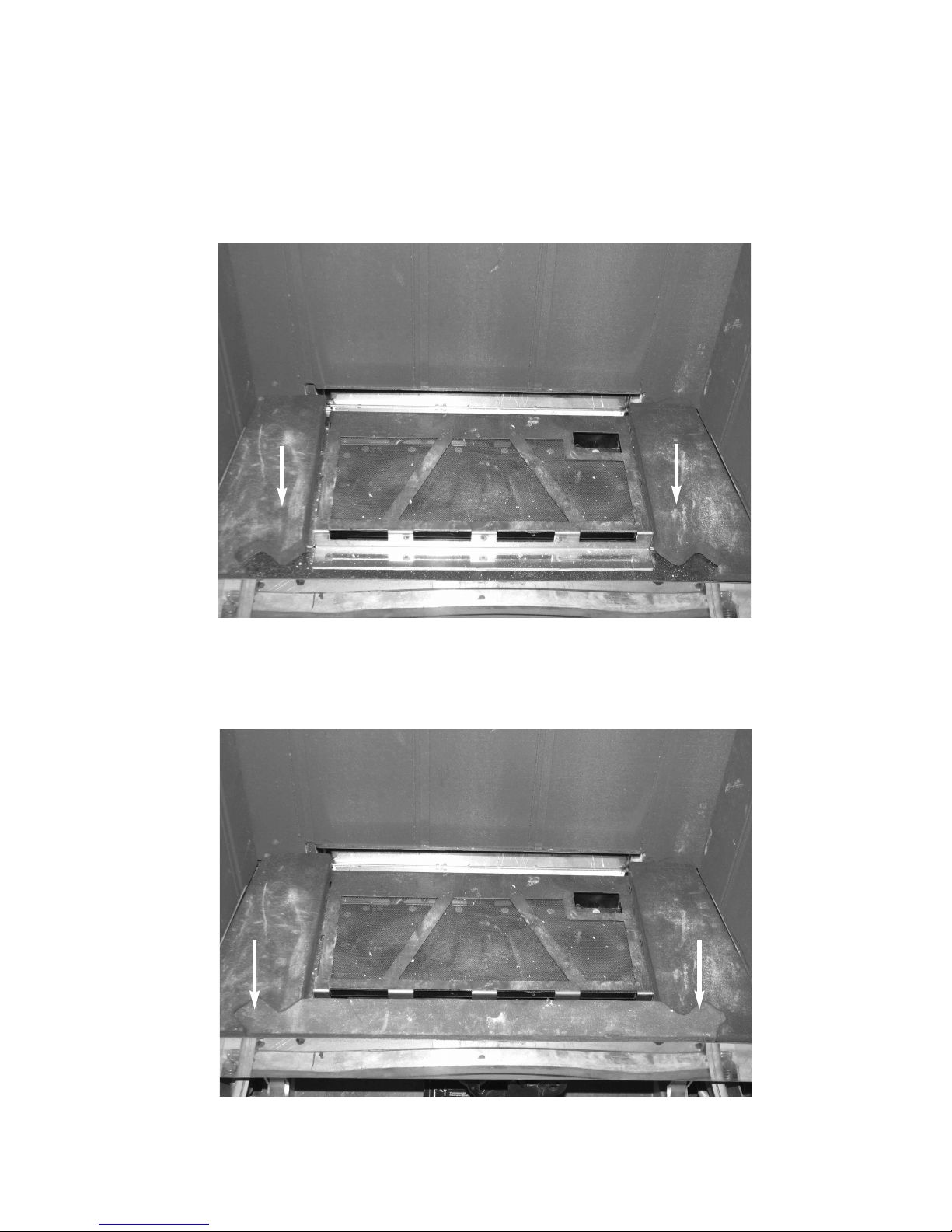

3.1 ASSEMB ING THE OG FUE -BED
3.1.1 Place the L/H and R/H ceramic base pieces onto the ceramic support
panel as shown below in Fig. 16
Fig. 16
3.1.2 Place the front ceramic base piece onto the ceramic support ensuring
the location tabs fit into the L/H & R/H ceramic base pieces as shown
below in Fig. 17
Fig. 17
18

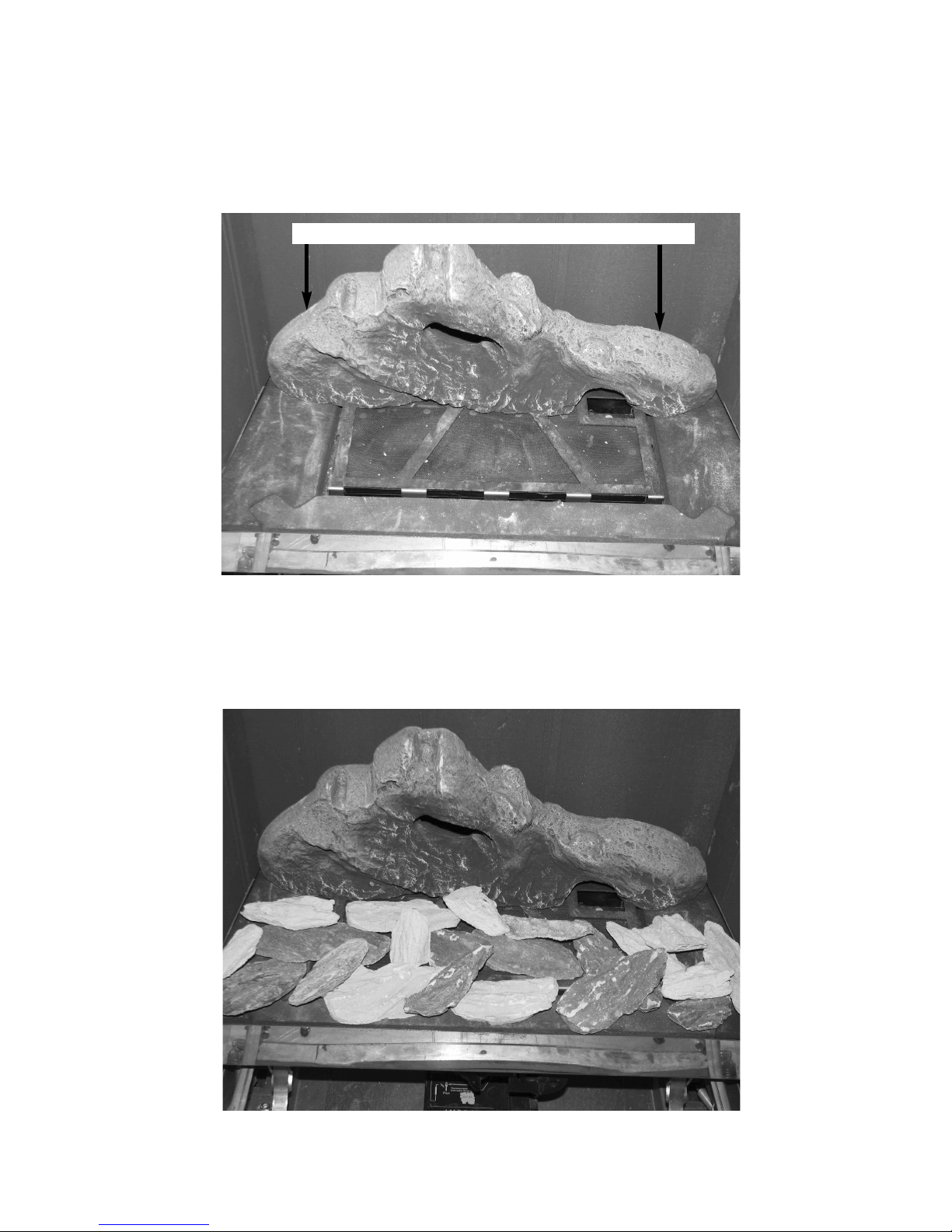

3.1.3 Place the base log onto the ceramic support panel as shown below in
Fig. 18, ensuring the spacer locating blocks on the rear face are fitted
flush up against the rear panel.
Fig. 18
3.1.4 Cover the burner and fuel-bed base ceramic in a single, even layer of
bark chippings as shown below in Fig. 19
Fig. 19
Ensure spacer blocks are fitted flush to the rear panel
19

3.1.5 Position log “H” onto the base log using the location lug on the back
face of log “H” and the groove on the base log to find the correct
location, as shown below in Fig. 20
Fig. 20
3.1.6 Position log “E” onto the base log using the location lug on the back
face of log “E” and the groove on the base log to find the correct
location as shown below in Fig. 21
Fig. 21
Log H
20
Log E
