Verint Nextiva HDR 1800 User manual

November 2010
Nextiva HDR 1800 v1.0
User Guide

Coyright Notice
© 2010 Verint Systems Inc. All Rights Reserved Worldwide. www.verint.com/videosolutions
Unauthorized use, duplication, or modification of this document in whole or in part without the written consent of Verint Systems Inc. is
strictly prohibited. By providing this document, Verint Systems Inc. is not making any representations regarding the correctness or
completeness of its contents and reserves the right to alter this document at any time without notice. Features listed in this document are
subject to change.
Verint Systems Inc. does not warrant, guarantee or make any representation regarding the use or the results of the use of the information,
links, tools, and materials in terms of the accuracy, reliability, quality, validity, stability, completeness, currentness, or otherwise of its
content or products. The entire risk as to the use, results and performance of information, links, tools and materials provided or referenced
herein is assumed by the user. Verint Systems Inc. shall not be liable for damages resulting from the use, misuse or unlawful use of the
information, links, tools, and materials contained or referenced herein.
The Verint Systems Inc. products are protected by one or more of the following U.S., European or International Patents: USPN 5,659,768;
USPN 5,689,442; USPN 5,790,798; USPN 6,278,978; USPN 6,370,574; USPN 6,404,857; USPN 6,510,220; USPN 6,724,887; USPN
6,751,297; USPN 6,757,361; USPN 6,782,093; USPN 6,839,667; USPN 6,952,732; USPN 6,959,078; USPN 6,959,405; USPN 7,047,296;
USPN 7,149,788; USPN 7,155,399; USPN 7,203,285; USPN 7,216,162; USPN 7,219,138; USPN 7,254,546; USPN 7,281,173; USPN
7,284,049; USPN 7,325,190; USPN 7,466,816; USPN 7,478,051; USPN RE40,634; and other provisional rights from one or more of the
following Published US Patent Applications: US 11/394,408; US 11/771,499; US 11/396,514; US 11/772,440; US 11/565,943; US 11/
565,946; US 11/565,948; US 11/540,739; US 11/540,086; US 11/541,313; US 11/541,252; US 11/540,282; US 11/529,947; US 11/
540,785; US 11/540,736; US 11/540,904; US 11/540,353; US 11/608,340; US 11/608,350; US 11/608,358; US 11/567,808; US 11/
692,983; US 11/693,933; US 11/693,923; US 11/693,828; US 11/567,852; US 11/608,440; US 12/015,621; US 11/540,322; US 11/
924,201; US 11/616,490; US 11/621,134; US 11/752,458; US 11/712,933; US 11/824,980; US 11/729,185; US 11/804,748; US 11/
831,260; US 11/395,992; US 11/359,319; US 11/359,195; US 11/359,357; US 10/832,509; US 11/742,733; US 11/831,257; US 11/
831,250; US 11/691,530; US 11/479,267; US 11/529,942; US 11/768,349; US 11/540,281; US 10/633,357; US 11/693,899; US 11/
479,056; US 11/529,132; US 11/540,320; US 11/037,604; US 11/529,842; US 11/540,171; US 11/478,714; US 11/529,946; US 11/
868,656; US 11/776,659; US 11/090,638; US 11/410,004; US 10/771,315; US 10/771,409; US 11/540,900; US 11/528,267; US 12/
118,781; and other U.S. and International Patents and Patents Pending.
VERINT, the VERINT logo, ACTIONABLE INTELLIGENCE, POWERING ACTIONABLE INTELLIGENCE, WITNESS ACTIONABLE
SOLUTIONS, STAR-GATE, RELIANT, VANTAGE, X-TRACT, NEXTIVA, ULTRA, AUDIOLOG, WITNESS, the WITNESS logo, IMPACT
360, the IMPACT 360 logo, IMPROVE EVERYTHING, EQUALITY, CONTACTSTORE, and CLICK2STAFF are trademarks or registered
trademarks of Verint Systems Inc. or its subsidiaries. Other trademarks mentioned are the property of their respective owners.
Compliance
United States Statement for FCC
These equipments has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Industry Canada Statement
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Europe EN 55022 Statement
This is to certify that the Nextiva S1808e and S1816e Ethernet video servers are shielded against the generation of radio interference
in accordance with the application of Council Directive 2004/108/EC. Conformity is declared by the application of EN55022 Class
A (CISPR 22).
RoHS Declaration of Compliance
Verint believes in the importance of conducting our business in a manner that will help protect the environment as well
as our employees, customers and the public. To that end, we are committed to bringing our existing and future product
lines into EU RoHS Directive compliance.
Thus, the S1808e and S1816e Ethernet video servers are compliant with the DIRECTIVE 2002/95/EC OF THE
EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 (RoHS) regarding the restriction of the use
of certain hazardous substances in electrical and electronic equipment.
The S1808e and S1816e products will not exceed the maximum concentrations of 0.1% by weight in homogenous materials for Lead (Pb),
Hexavalent chromium (Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenyl ether (PBDE), and 0.01% for
Cadmium (Cd). In addition, the S1808e and S1816e products will qualify for the “lead in servers solders” exemption as set forth in the
Directive.
This declaration is provided based on reasonable inquiry of our suppliers and represents our actual knowledge based on the information
provided by our suppliers.
WEEE Directive
The European Union has enacted a Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE Directive). This
directive is applicable in the European Union member states.
The WEEE marking on this product or its documentation indicates that the product must not be disposed of together with
household waste. To prevent possible harm to human health and/or the environment, the product must be disposed of in an
approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact
the product supplier, or the local authority responsible for waste disposal in your area. Business users should contact the product
supplier for information on how to dispose of this product correctly. This product should not be mixed with other commercial waste.

Verint Video Intelligence Solutions i
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Contacting Verint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Contacting Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Summary of Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii
Revision 2 — October 2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Revision 1 — April 2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Chapter 1: Overview of the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Monitor Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Frame Rate and Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Chapter 2: Installing the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting the Network and Power Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting a CCTV Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Powering On the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Contents
www.verint.com/video_solutions
ii
Chapter 3: Configuring the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Discovering the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Configuring Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Configuring Monitor Output Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Registering the HDR 1800 with Nextiva VMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adding the HDR 1800 to Physical and Logical Groups . . . . . . . . . . . . . . . . . . . . . . 27
Viewing and Configuring Physical Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Viewing General Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Viewing Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Setting Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Configuring Serial Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Configuring the HDR 1800 in Virtual Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Assigning Monitor IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Assigning Startup Video Sources to Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Adding a CCTV Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Customizing On-screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Resetting the HDR 1800 to Partially Discovered State . . . . . . . . . . . . . . . . . . . . . . . 43
Restoring Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Appendix A: Specifications and Configuration . . . . . . . . . . . . . . . . . . . . . 49
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Verint Video Intelligence Solutions iii
Safety
Always observe the following precautions to reduce the risk of injury and equipment damage:
The Nextiva HDR 1800 is for indoor use only.

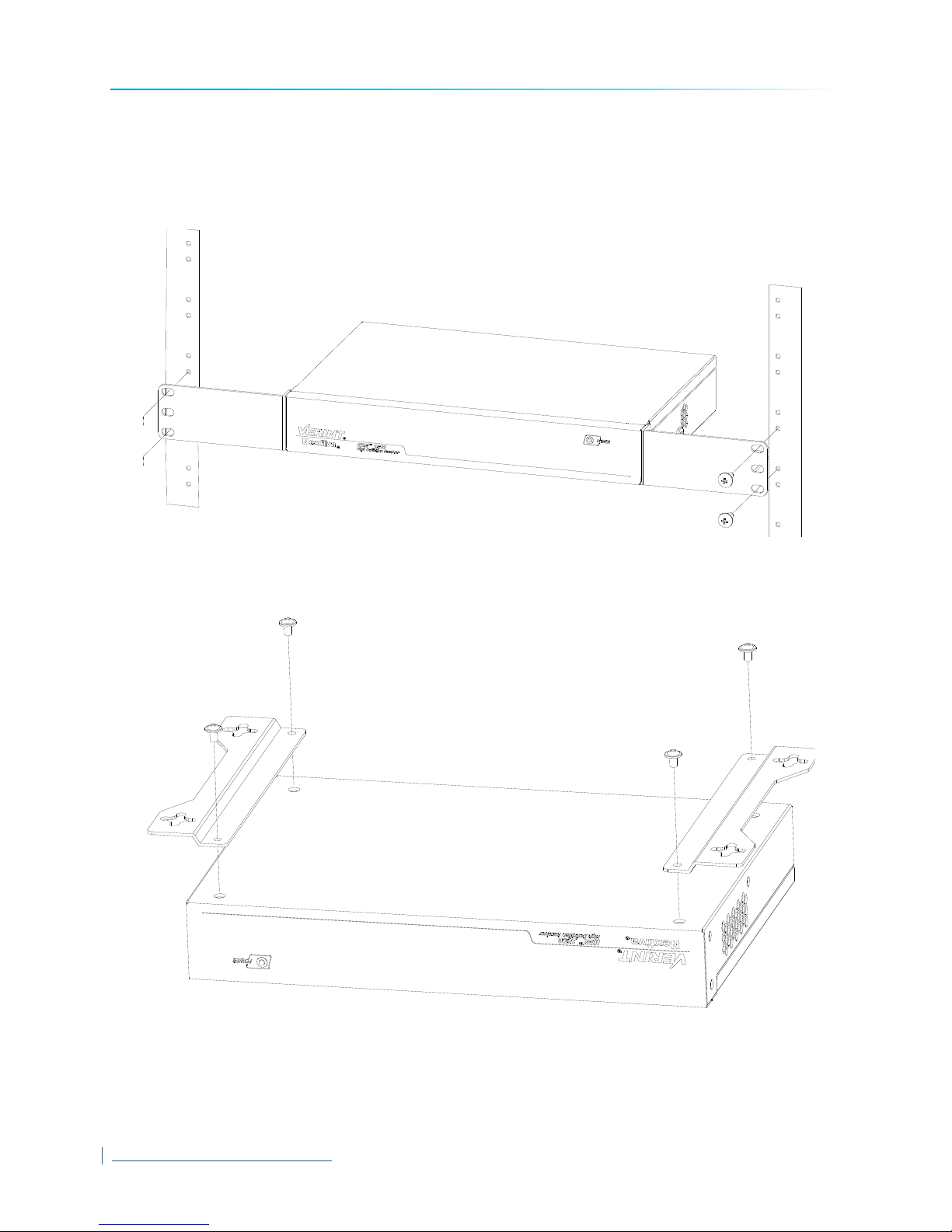

The Nextiva HDR 1800 should be placed on a secure flat surface or mounted using optional
hardware.
The Nextiva HDR 1800 should only be operated in a clean, dry environment.
The operating temperature is 32 to 104°F (0 to 40°C), with maximum humidity at 0 to 95%
relative, non-condensing at 104°F (40°C).
Only use the recommend power cable for powering the Nextiva HDR 1800.
Do not install the Nextiva HDR 1800 in an enclosed cabinet or other small area without
ventilation.

Verint Video Intelligence Solutions v
Preface
The Nextiva® High Definition Receiver (HDRTM) 1800 User Guide presents information and
procedures on installing, configuring, and using the HDR 1800.
Audience
This guide has been prepared for the following audience:
Managers
IT system administrators
Engineers
Technicians
Contacting Verint
Verint® Systems is a leading provider of Actionable Intelligence® solutions for enterprise
workforce optimization and security intelligence. Our solutions help government and enterprises
make sense of the vast information they collect in order to achieve their performance and security
goals. Today our solutions are used by more than 10,000 organizations in 150 countries. Verint is
headquartered in Melville, New York, with offices worldwide and 2500 dedicated professionals
around the globe. You can read about Verint Video Solutions and get marketing material and
product information at www.verint.com/videosolutions.
To contact us for sales, pricing and general inquiries:
The Americas:
Email: [e-mail]
Telephone: [phone] for Nextiva VMS and Nextiva Intelligent Edge Devices
Telephone: [phone] for Nextiva embedded DVRs
Europe, the Middle East, or Africa:
Email: marketing.em[email protected]
Telephone: [phone]
Asia Pacific:
Email: [e-mail]
Telephone: + 852 2797 5678

Contacting Service and Support
www.verint.com/video_solutions
vi
Contacting Service and Support
To request the latest versions of firmware and software or to download other product-related
documents, you need access to the Verint Video Intelligence Solutions partner extranet. To
register, go to https://ve5.verint.com.
If you encounter any type of problem after reading this guide, contact your local distributor or Verint
representative. For the main service and support page on the Verint web page, visit
www.verint.com/videoservice. For assistance, use our online web form at http://verint.com/
video_solutions/info/57008 or contact the customer service team:
Related Documentation
The following documentations contain related information:
Nextiva HDR 1800 Quick Install Guide
Nextiva Administrator Guide, version 6.1
Nextiva Third-Party PTZ Camera and CCTV Keyboard Integration Guide, version 6.1
Download the documentation at www.verint.com/manuals. Download the latest firmware from the
extranet: https://ve5.verint.com.
Send your questions or comments on the current document, or any other Nextiva user
documentation, to our documentation feedback team at document[email protected].
Location Telephone E-mail Opening Hours
USA and
Canada 1-888-747-6246 [email protected] 8:00 am to 8:00 pm (EST) Monday
to Friday
Central and
Latin America [phone] [e-mail]
Europe,
Middle East,
and Africa
[phone] customersupport.emea@verint.c
om 8:30 am to 5:30 pm (GMT) Monday
to Friday
[phone] mobilesuppor[email protected]m
(Transit applications only)
Asia/Pacific Hong Kong: +852 2797
5678
Singapore: [phone]
[e-mail] 9:00 am to 6:30
pm
(Monday to
Thursday);
9:00 am to 5:30
pm (Friday)

Verint Video Intelligence Solutions vii
Summary of Changes
This section lists technical updates and new material added to the Nextiva HDR 1800 User Guide.
Revision 2 — October 2010
This is the second edition of the Nextiva HDR 1800 User Guide.
Revision 1 — April 2010
This is the first edition of the Nextiva HDR 1800 User Guide.
Features
High-definition video decoder/receiver for use with Nextiva Virtual Matrix
H.264/MPEG-4/MJPEG video decoding at up to 1920x1080 screen resolution
Includes three video outputs: DVI, VGA (RGB), and BNC (Composite)
Fully configurable in Nextiva VMS 6.1, including full integration with Nextiva S1800e
encoders and Nextiva S5000 IP cameras with H.264 video compression technology.
Supports all third-party cameras and CCTV Keyboards supported by Nextiva VMS
Includes two serial ports: RS-232 and RS-422

Chapter
Overview of the HDR 1800
The Nextiva® High Definition Receiver (HDRTM) 1800 is a powerful enterprise-class, H.264
enabled video decoder/receiver designed for large-scale, geographically distributed
operations. The HDRTM 1800 combine excellent performance, high-defnition technology,
and H.264 video decompression to enhance the functionality and versatility of Nextiva
Virtual Matrix implementations.
The following topics are discussed:
Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Monitor Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Frame Rate and Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware Overview
www.verint.com/video_solutions
2
Hardware Overview
The HDR 1800 integrates seamlessly with Nextiva Virtual Matrix, which routes video to computers,
video walls, and monitors across local and wide area networks (LANs/WANs). With Nextiva Virtual
Matrix, authorized personnel can view live and recorded high-definition video on digital monitors,
create custom video walls, control PTZ cameras, assign cameras to monitors on demand, and
replay alarm-based video at multiple locations simultaneously.
The HDR 1800 is ideal for video surveillance applications that call for high-defnition video to be
displayed at multiple locations for building situational awareness and a coordinated response.
Compatible with today's advanced video technologies, the HDR 1800 offers the fexibility to
decode compression formats from H.264 to MPEG-4 to MJPEG and use a wide range of monitors
including DVI, VGA, and traditional CCTV monitors.
The HDR 1800 is also fully integrated with Nextiva Video Management System (VMS) and Nextiva
intelligent edge devices, including the state-of-the-art S1800e encoders and S5000 high-definition
IP cameras with H.264 video compression technology. In addition, the HDR 1800 supports all
third-party cameras and CCTV Keyboards supported by Nextiva VMS.
The HDR 1800 includes the following components:
One Power/Status LED
Power button
19V DC +/-5% power receptacle
One BNC connector for composite video (NTSC/PAL)
One Digital DVI-D connector (with HDMI support using an HDMI male to DVI male connector
- not provided)
One VGA (RGB) connector
One RS-232 (DB9) serial port for CCTV keyboard connection
One RS-422 (DB9) serial port for CCTV keyboard connection
Two RJ-45 (Ethernet 10/100/1000 Base-T) network connectors
Four USB 2.0 ports
One Line-out, 1/8in (3.5mm) stereo jack for connecting external audio equipment
One Mic-in, 1/8in (3.5mm) stereo jack
CAUTION: The Nextiva HDR 1800 is enclosed in a non-weatherproof casing and should be
placed in a location that is not exposed to the outdoor environment.
For the HDR 1800, the following two figures represent the front and rear views of the unit.

Overview of the HDR 1800
Chapter 1
Verint Video Intelligence Solutions 3
Figure 1.1: HDR 1800 Front View
Figure 1.2: HDR 1800 Rear View
Product Dimensions and Weight
The HDR 1800 has the following dimensions:
11W ×7.5D ×1.7H in. (280W ×190D ×44H mm)
5.7lb (2.6Kg)
POWER
HDR 1800
High-Definition Receiver
Nextiva 

Power LED
GND +19V DC
POWER
TV-OUT
COM2
(RS-422)
COM1
(RS-232)
DVI-D
VGA LAN1
USB1-2 LAN2
USB3-4
LINE-OUT
MIC-IN
19V DC +/-5% power receptacle
RS-232 Input
USB Ports
Power
button
RS-422 Input
Network
Connectors (RJ-45)
VGA Connector
BNC Connector Line-out
Mic-in
DVI-D
Connector

Monitor Configuration
www.verint.com/video_solutions
4
Monitor Configuration
You can connect either one monitor (Single monitor configuration) or two monitors (Dual monitor
configuration) to the HDR 1800. In a Dual monitor configuration, the first monitor in the
configuration must be connected to the DVI-D connector on the HDR 1800; the second monitor
can be connected to either the VGA or BNC connectors.
NOTE: In the Dual monitor configuration, the total number of video tiles on both monitors
cannot exceed 18 tiles.
The following table lists the monitor configuration settings for the HDR 1800.
Connector Type Tile Layout
Options
Maximum Screen
Resolution
Single Monitor DVI-D
VGA
BNC
1x1 (1 tile)
2x2 (4 tiles)
3x2 (6 tiles)
3x3 (9 tiles)
4x3 (12 tiles)
4x4 (16 tiles)
DVI-D: Up to 1920x1200
VGA: Up to 1920x1200
BNC: 480/576 lines (NTSC/PAL)a
a.For DVI and VGA monitors, the HDR 1800 automatically adjusts the screen resolution to the best
available setting on the monitor (up to a maximum of 1920x1200).
Dual Monitor:
Monitor 1 DVI-D 1x1 (1 tile)
2x2 (4 tiles)
3x2 (6 tiles)
3x3 (9 tiles)
4x3 (12 tiles)
4x4 (16 tiles)
DVI-D: Up to 1920x1200
VGA: Up to 1920x1200
BNC: 480/576 lines (NTSC/PAL)
Monitor 2 VGA or BNC

Overview of the HDR 1800
Chapter 1
Verint Video Intelligence Solutions 5
Frame Rate and Performance
The HDR 1800 supports H.264, MPEG-4, MJPEG video decoding at up to 1920x1080 screen
resolution. In general, the performance for displaying video on monitors varies depending on the
tile layout, screen resolution, compression mode, and bitrate. The following table lists
performance values for the maximum frame rate:
NOTE: The performance values listed below are provided for reference only.
Compression Mode
Tile Layout MPEG-4 H.264
1 tile 1920×1080 at 30 fps 1920×1080 at 30 fps
6 tiles 4CIF at 30 fps 4CIF at 30 fps
9 tiles 4CIF at 30 fps 2CIF at 30 fps
16 tiles 2CIF at 30 fps CIF at 30 fps
18 tiles CIF at 30 fps CIF at 15 fps

Chapter
Installing the HDR 1800
This chapter focuses on the physical installation of the HDR 1800. Network and other
physical settings for the HDR 1800 are configured in Nextiva Video Management System
(VMS); for more information, see Chapter 3, “Configuring the HDR 1800”.
The following topics are discussed:
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installing the HDR 1800. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Connecting the HDR 1800. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Powering On the HDR 1800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Package Contents
www.verint.com/video_solutions
8
Package Contents
CAUTION: The HDR 1800 is enclosed in a non-weatherproof steel casing and should only be
placed in an indoor environment.
Each installation kit comes with the following:
One HDR 1800 featuring H.264 technology
One set of rack-mount brackets
One set of wall-mount brackets
Six screws (Philips M4 ×6mm pan head)
Four bumpons
One AC100-240V 90W/+19V power adaptor
One Nextiva HDR 1800 Quick Installation Guide

Installing the HDR 1800
Chapter 2
Verint Video Intelligence Solutions 9
Installing the HDR 1800
This section explains how to install an HDR 1800. To ensure that the HDR 1800 functions properly,
consider the following:
Verify the outlet where you will connect the HDR 1800 for proper polarity. Use a standard
outlet only.
Use a surge protection device to minimize the risk of damage to the HDR 1800 in surge-
prone environments.
Do not install the HDR 1800 in an enclosed cabinet or other small, unventilated area. The
HDR 1800 can be mounted above other devices, as long as there is adequate ventilation
surrounding the rack.
Verify the dimensions of the shelf or surface to ensure that the HDR 1800 fits. The HDR
1800 is 11 inches wide by 7.5 inches deep by 1.7 inches high (280mm ×190mm ×44mm).
NOTE: This equipment must be used in compliance with local laws and regulations.
The following installation options are available:
Installing the HDR 1800 on a desktop or flat surface (see page 9)
Installing the HDR 1800 on a rack (see page 9)
Mounting the HDR 1800 on a wall (see page 9)
To install the HDR 1800 on a flat surface:
1. Remove any debris and dust from the surface as well as the surrounding area.
2. Attach the four bumpons (provided) to each corner of the HDR 1800 using the provided
screws.
3. Place the unit on the flat surface.
4. Ensure that you have access to both the front and rear of the unit and that the fan airflow is
not blocked.
To install the HDR 1800 on a rack:
1. Align the rack- mount brackets with the holes on the side of the HDR 1800.

Installing the HDR 1800
www.verint.com/video_solutions
10
2. Screw the rack-mount brackets to the HDR 1800 using 12 in-lb (1.35 N-m) force with 6
screws (provided).
3. Slide the unit into the 1U mounting space in the rack cabinet and ensure that the fan airflow
is not blocked.
4. Secure the unit to the rack cabinet using the screws supplied with the rack.
To mount the HDR 1800 on a wall:
1. Align the wall-mount brackets with the holes on the bottom of the HDR 1800.
