Verizon Smart-Cell User manual

Smart-Cell Repeater
User Manual
33 dBm
Febuary, 2015
Version 1.1

Verizon User Manual
Smart-Cell Repeater
2
- INDEX -
1. INTRODUCTION.......................................................................................................................... 4
1.1. Warning....................................................................................................................................................................................4
1.1.1 FCC Warning Statements ....................................................................................................................................... 4
1.2. GST Smart-Cell Repeater Advantages........................................................................................................................5
1.3. Repeater Operation ............................................................................................................................................................ 5
1.4. Abbreviation........................................................................................................................................................................... 7
2. SYSTEM CONFIGURATION........................................................................................................ 8
2.1. Smart-Cell Repeater Service Network Configuration .........................................................................................8
2.2. System Design and Operation ......................................................................................................................................9
2.2.1. System Design ............................................................................................................................................................ 9
2.2.2. Downlink/ Uplink Path ..........................................................................................................................................10
2.2.3. 700MHz Frequency Selection ............................................................................................................................11
2.2.4. 800MHz Frequency Selection ............................................................................................................................11
2.2.5. 850MHz Frequency Selection ............................................................................................................................12
2.2.6. 1900MHz Frequency Selection..........................................................................................................................12
2.2.7. 2100MHz Frequency Selection..........................................................................................................................13
3. SYSTEM SPECIFICATIONS........................................................................................................14
3.1. RF Performance ..................................................................................................................................................................14
3.2. System Specifications.......................................................................................................................................................15
3.3. Electrical and Environmental Specifications ..........................................................................................................16
3.4. Functions ...............................................................................................................................................................................16
4. SETUP..........................................................................................................................................18
4.1. Equipment Needed for Repeater Setup .................................................................................................................18
4.1.1. Check points before turning on the Repeater ..........................................................................................18
4.1.2. Open for Service......................................................................................................................................................19
4.1.3. Signal Strength LED Check .................................................................................................................................20
4.2. Setting up the Repeater .................................................................................................................................................21

Verizon User Manual
Smart-Cell Repeater
3
4.2.1. Quick GUI/Configuration .....................................................................................................................................21
4.2.2. Quick Setup................................................................................................................................................................21
4.3. Web UI Ranges Table.......................................................................................................................................................22
4.4. Troubleshooting..................................................................................................................................................................23
4.4.1. Simple Troubleshooting Method .....................................................................................................................23
4.4.2. Alarm Information...................................................................................................................................................23
4.4.3. Troubleshooting Guide Related to RF............................................................................................................27
4.4.4. Troubleshooting Guide Related to NMS ......................................................................................................30

Verizon User Manual
Smart-Cell Repeater
4
1. INTRODUCTION
Smart-Cell is a repeater, which has been designed to improve signals in blanket/shadow
areas inside of buildings to transmit Verizon’s signals at 700MHz, 850MHz, 1900MHz, and
2100MHz frequencies. User may choose filtering configuration according to the specific
site circumstances.
1.1. Warning
1.1.1 FCC Warning Statements
1) FCC Part 15.19 :
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
2) FCC Part 15.105 :
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the

Verizon User Manual
Smart-Cell Repeater
5
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
3) FCC Part 15.21 :
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
4) RF Exposure :
This equipment is not enclosing antenna and not demand specific vendor of
antennas. Use an antenna as operator’s guidance. But, the antennas must be
installed such that a minimum separation distance of at least 130cm is maintained
between the radiator (antenna) and all persons at all times. This device must not be
co-located or operating in conjunction with any other antenna or transmitter.
1.2. GST Smart-Cell Repeater Advantages
It provides selectable RF power levels for any wireless technology / band.
It has individual monitoring multiple technology.
FPGA digital filtering provides optimized RF performance.
It allows modification of technology via customer interface.
It is easily installed.
Frequency is easy to add / delete / change.
It has scalable single and multi-service design.
Customer data service is improved by adding 4G (LTE ).
It meets all Verizon’s technology requirements.
It guarantees 5 year warranty for all individual components.
Its modular design is a customer friendly and efficient.
1.3. Repeater Operation
Simple replacing of the amplifier unit allows to change service. Smart-Cell repeater
provides services at 700MHz, 800MHz, 850MHz, 1900MHz, and 2100MHz. One PSU
supplies electricity to maximum 4 amplifier units

Verizon User Manual
Smart-Cell Repeater
6
2.1. Certification panel & Warning Label
Figure 1. Panel & Label

Verizon User Manual
Smart-Cell Repeater
7
1.4. Abbreviation
DFM
Digital Filter Module
PSU
Power Supply Unit
ALC
Auto Level Control
SNMP
Simple Network Management Protocol
AOC
Auto Oscillation Check
Caution: Risk of explosion if battery on the controller board is replaced by an
incorrect type.

Verizon User Manual
Smart-Cell Repeater
8
2. SYSTEM CONFIGURATION
2.2. Smart-Cell Repeater Service Network Configuration
Smart-Cell RF Repeater is designed for improving coverage and capacity of Verizon’s LTE
& CDMA services nationwide. The repeater can provide coverage for all troubled areas
such as suburban, shadow areas, backside of mountains, urban and metropolitan
locations.
GST products are easy to install, have remote status monitoring and control functions
(NMS System) via wired line and wireless modems.
<Figure 1> In-building Repeater Service Organization

Verizon User Manual
Smart-Cell Repeater
9
2.3. System Design and Operation
2.3.1. System Design
<Figure 2> Smart-Cell Repeater Front Design
NO.
PART
NO.
PART
1
SNMP
10
WAN 1
2
FEU (Cavity Filter) , optional
11
WAN 2
3
Service Unit #1
12
Modem Connector
4
Service Unit #2
13
Donor Port
5
Service Unit #3
14
Coverage Port
6
Service Unit #4
15
Status LED (RUN/Alarm/Shutdown)
7
CLI
16
Input / Output LED
8
UPS
17
Release Button
9
LAN

Verizon User Manual
Smart-Cell Repeater
10
<Figure 3> Repeater Port Design (Rear View)
NO.
PORT
NO.
PORT
1
Main FAN
4
DC 12V output (for EMB)
2
PSU FAN
5
Power Cable
3
Main Switch
2.3.2. Downlink/ Uplink Path
The Smart-Cell repeater improves service in the 700MHz, 800MHz, 850MHz, 1900MHz
and 2100MHz frequency bands. User may select frequency band according to the site
peculiarities. After receiving a weak signal from donor antenna, the repeater improves
and sends securely isolated signal out to service antenna.
Amplifier unit is designed for correspondent operation with digital filter module (DFM).
The AMP unit consists of a down and up converters, cavity filter and power amplifier
(PAU).
In Downlink Path, a weak RF signal is received from Donor Antenna. Being converted
from RF to IF signal, it is transferred to the DFM, where after digitalizing by DA
converter, signal is filtered by FPGA. After filtering digital, signal is converted into
analog RF signal with modulator. Transmit to amplifier. Desirable signal is amplified and
outputted through Service Antenna. Uplink path works vice versa.
1
2
3
5
4

Verizon User Manual
Smart-Cell Repeater
11
<Figure 4> Smart-Cell Repeater Block Diagram
2.3.3. 700MHz Frequency Selection
<Figure 5> Smart-Cell Repeater 700 Block Diagram
700MHz Amp Unit provides a service that meets the 3GPP2 LTE standard. Support up to
two non-contiguous blocks. And each block has the minimum 5MHz bandwidth.
2.3.4. 800MHz Frequency Selection
<Figure 6> Smart-Cell Repeater 800 Block Diagram
800MHz Amp Unit has service Cellular 1FA and provides LTE 5MHz (25RB) by default.
ADC
DFM

Verizon User Manual
Smart-Cell Repeater
12
On / Off control of the service Block is possible. Each block‘s bandwidth are as follows.
(CDMA[UL] –1.25MHz, LTE[UL] –4.505MHz, CDMA[DL] –1.25MHz, LTE[DL] –4.505MHz)
2.3.5. 850MHz Frequency Selection

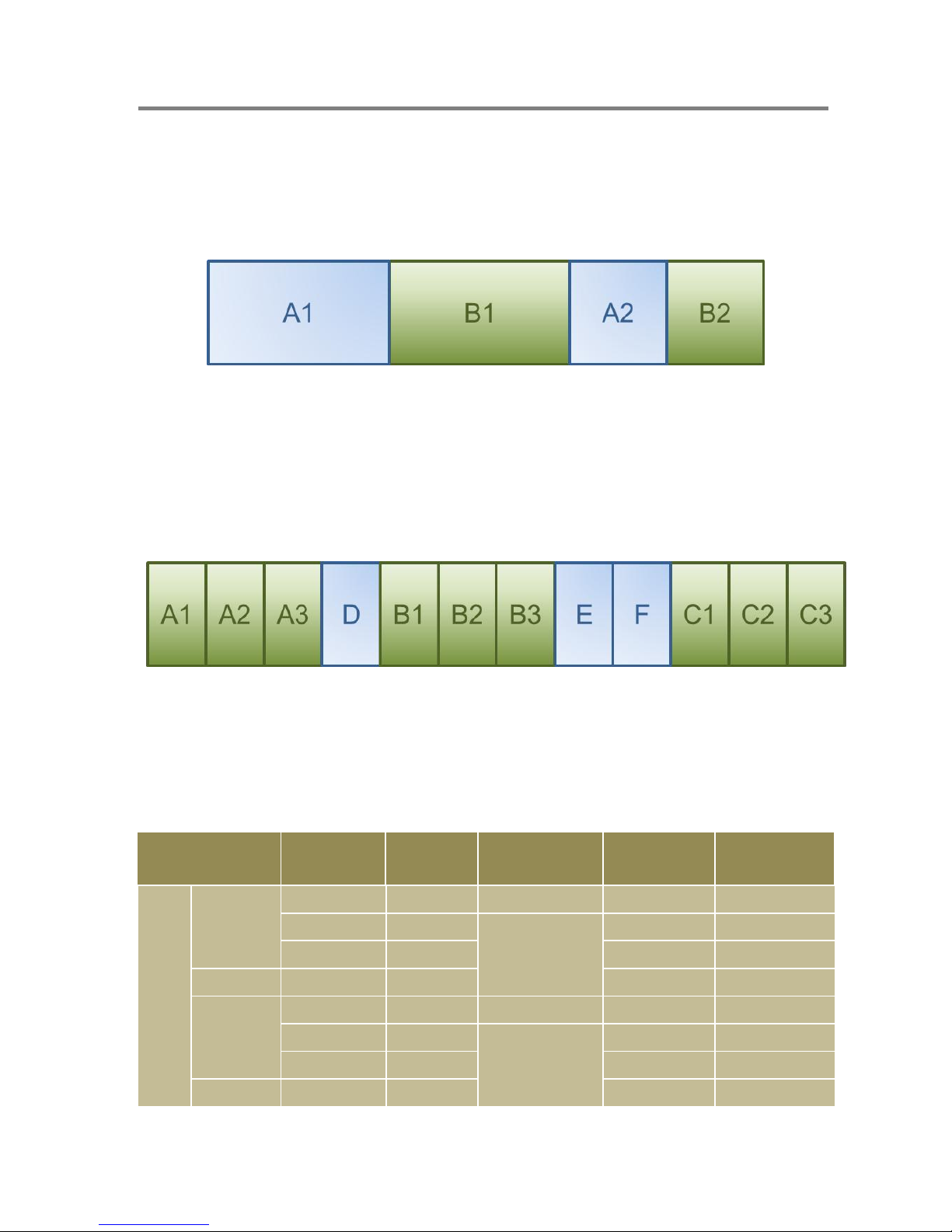

<Figure 7> Smart-Cell Repeater 850 Block Diagram
850MHz Cellular service provides by default, and supports up to two non-contiguous
blocks. Each block‘s bandwidth are as follows, and it is possible to choose any
combination of any band. (A1 - 11MHz, B1 - 10MHz, A2 - 1.5MHz, B2 - 2.5MHz.)
2.3.6. 1900MHz Frequency Selection
<Figure 8> 1900MHz Band Frequency
1900MHz AMP Unit is basically complied with PCS Band block, where maximum three
non-contiguous filtering configurations are available. Each sub block is adjustable per
1.25MHz bandwidth step up to 20MHz. Following table shows user selectable channel
numbers.
BAND
DL CENTER
[MHz]
CHANNEL
BAND
DL CENTER
[MHz]
CHANNEL
A
A1
1931.25
25
guard
1965
700
1932.5
50
E
1966.25
725
1933.75
75
1967.5
750
guard
1935
100
1968.75
775
A2
1936.25
125
guard
1970
800
1937.5
150
F
1971.25
825
1938.75
175
1972.5
850
guard
1940
200
1973.75
875

Verizon User Manual
Smart-Cell Repeater
13
A3
1941.25
225
guard
1975
900
1942.5
250
C
C1
1976.25
925
1943.75
275
1977.5
950
guard
1945
300
1978.75
975
D
1946.25
325
guard
1980
1000
1947.5
350
C2
1981.25
1025
1948.75
375
1982.5
1050
guard
1950
400
1983.75
1075
B
B1
1951.25
425
guard
1985
1100
1952.5
450
C3
1986.25
1125
1953.75
475
1987.5
1150
guard
1955
500
1988.75
1175
B2
1956.25
525
1957.5
550
1958.75
575
guard
1960
600
B3
1961.25
625
1962.5
650
1963.75
675
2.3.7. 2100MHz Frequency Selection
<Figure 7> 2100MHz Band Frequency
2100 Amp Unit has basically satisfies the CDMA standard, and supports non-contiguous
2 block. If you select “contiguous button”, Web UI has select the contiguous F band.
And you don’t select “Contiguous button”, Web UI has select the each band of F1 and
F2. Frequency range of each band as follows.
BAND
Downlink
Uplink
Start
Stop
Start
Stop
F
F1
2145.15
2149.85
1745.15
1749.85
guard
-
-
-
-
F2
2150.15
2154.85
1750.15
1754.85
F1
F2

Verizon User Manual
Smart-Cell Repeater
14
3. SYSTEM SPECIFICATIONS
3.1. RF Performance
Item
Specification
Remark
Frequency
700MHz
DL : 728.5MHz ~ 739.5MHz
746MHz ~ 756MHz
UL : 698.5MHz ~ 709.5MHz
777MHz ~ 787MHz
10MHz + 10MHz
800MHz
DL : 862MHz ~ 863.8MHz
864MHz ~ 868.6MHz
UL : 817MHz ~ 818.8MHz
819MHz ~ 823.6MHz
1.8MHz + 4.8MHz
850MHz
DL : 869MHz ~ 894MHz
UL : 824MHz ~ 849MHz
25MHz
1900MHz
DL : 1930MHz ~ 1990MHz
UL : 1850MHz ~ 1910MHz
60MHz
2100MHz
DL : 2145MHz ~ 2155MHz
UL : 1745MHz ~ 1755MHz
10MHz
Maximum Input Power
-27dBm
Output Power (ANT Port)
+33dBm / 2W Total

Verizon User Manual
Smart-Cell Repeater
15
3.2. System Specifications
Parameter
Specification
Remark
Gain
Range
60dB ~ 90dB
Adjust Step
±0.5dB
Adjust Accuracy
±1dB
Flatness
700MHz
< 3.0dBp-p
800MHz
850MHz
1900MHz
2100MHz
< 5.0dBp-p
Propagation Delay
≤ 6us
VSWR
1.7 : 1
Noise Figure
Max Gain
< 7dB
ACP
750MHz
45dBc @±5MHz/10MHz
800MHz
> 45 dBc ±750KHz
>50dBc@±1.98KHz
CDMA
45dBc @±5MHz/10MHz
LTE
850MHz
> 45 dBc ±885KHz
>52dBc@±1.98KHz
<-13dBm@Fc±2.25MHz (RBW: 1MHz)
1900MHz
> 45 dBc ±750KHz
>52dBc@±1.98KHz
<-13dBm@Fc±2.25MHz (RBW: 1MHz)
2100MHz
45dBc @±5MHz/10MHz
Roll off
700MHz
±1MHz
＞45dBc
800MHz
±1MHz
＞45dBc
850MHz
±1MHz
＞45dBc
±250kHz
＞30dBc
1900MHz
±1MHz
＞50dBc
2100MHz
±1MHz
＞40dBc
Characteristic Impedance
50Ω

Verizon User Manual
Smart-Cell Repeater
16
3.3. Electrical and Environmental Specifications
Item
Specification
Remark
RF Connector
N-Type Female
Donor & Server ANT Port
AC Supply
AC 110V 60Hz 3.0A
Out Dimension
3.1” x 15.5” x 7.7”
AMP unit
19” x 19” x 7.9”
System (Rack mount)
Weight
13lbs
700 unit
11.5lbs
850 unit
11.5lbs
1900 unit
10lbs
2100 unit
23
19” rack + NMS + PSU
(except AMP units and FEU)
Operation Temperature
-10℃~ +50℃
Convection cooling
Humidity
5% ~ 95%
Non-condensing
Vibration Resistance
1G, 10~150Hz
0.1 Octaves/min
MTBF
50,000 hours
3.4. Functions
Parameter
Specification
Gain Control
• Adjustable DL and UL Gain range 60dB ~ 90dB.
• Display default Gain and current Gain function
ALC
Auto Limit
Control
• To limit output powers as far as default range.
• Used for DAS configuration and when oscillation/isolation is a concern.
• Automatic Gain decrement when output power of repeater is higher than
default level.
• Automatic Gain recovery when output power of repeater is reduced.
• Shutdown when output power is higher than default level in the minimum gain.
• Automatic Recovery Algorithm conversion after shutdown status.
Band Select
• 700MHz : Lower A(5MHz)/Lower B(5MHz)/Upper C(10MHz)
• 850MHz : A1(11MHz)/B1(10MHz)/A2(1.5MHz)/B2(2.5MHz)
•1900MHz : 1.25MHz ~ 20MHz/1.25MHz step

Verizon User Manual
Smart-Cell Repeater
17
• 2100MHz: 5MHz/10MHz
Power
Monitoring
• Monitoring repeater’s output level.
Oscillation Check
• Isolation Check in initial set up or Reset.
• When Oscillation occurred, repeater attempts to stabilize Isolation through Gain
control function.
• Shutdown repeater when oscillation still occurs in the minimum Gain.
• Automatic Recovery Algorithm conversion after shutdown status.
Automatic
Recovery
• When repeater is shutdown, it periodically recovers output power of repeater
then monitors alarming.
Security
• Support HTTPS for Web Browser security.
• User authentication through User ID and Password.
AOC
Auto Oscillation
Check Function
• AOC Use for prevented oscillation
VSWR
Monitoring
• Monitoring VSWR of Service ANT Port.
• Reporting VSWR Alarm and Shutdown when the rate is 3:1.
DHCP Client
• Automatic IP assignment.
DHCP Server
• Server function for automatic IP assignment.
Web GUI
• Remote and local user browser support through Web Browser.
SNMP Agent
• NMS report via SNMPv2 Trap.
LED Display
• LED displays power and operation status on front side of repeater system.
• Input and Output signal levels are verified by LED bars.
AOC on
Isolation Detect
< Isolation Limit
ALC Attenuation
+5dB
Isolation Detect
< Isolation Limit-4
ALC Attenuation
+1dB
No
Yes
ALC Attenuation
≥30dB Shutdown
Yes
Yes
No
Isolation Detect
> Isolation Limit-3
ALC Attenuation-1dB
Yes
No
No

Verizon User Manual
Smart-Cell Repeater
18
4. SETUP
4.1. Equipment Needed for Repeater Setup
Parameter
Item
Quantity
Remark
Major Component
Smart-Cell Repeater
1 EA
Provided by GST
Additional
Components
WALL Mounting Bracket
CD which contains User Manual
V.1.0 and Installation Guide V.1.0
Ethernet Cable 6.6ft (2m)
Ground Cable 6.6ft (2m)
Ground Sems Screw M4 x 8mm
Bracket Sems Screw M6 x 10mm
Lag Screw 12.7mm x 50.8mm
FEU-AMP unit cable
FEU-Wall Bracket cable
1 EA
1 EA
1 EA
1 EA
4 EA
4 EA
4 EA
8 EA
2 EA
Provided by GST
Antenna
Donor ANT
Server ANT
1 EA
1 EA
Not Included
RF Cable
Antenna connection Cable
TBD
Not Included
Testing and
Measuring Equipment
Spectrum Analyzer
1 EA
Not Included
4.1.1. Check points before turning on the Repeater
1) System Power Check
①AC electrical power to the repeater should be 110V, input electricity only after
power verification.
2) Input RF Signal Range
①Optimal input RSSI into the repeater is -57dBm ~ -27dBm for
700MHz/850MHz/1900MHz/2100MHz. User should verify input condition of
Donor ANT. If the input RSSI exceeds -27dBm, then external attenuators should
be used.

Verizon User Manual
Smart-Cell Repeater
19
3) Isolation check between DONOR/SERVEICE ANT
①Isolation condition of this equipment is 105dBc (Gain+15dB). User should check
its condition before installation.
4.1.2. Open for Service
1) Check points before open:
①Verification of system installation status :
Electricity, In/Out antennas, cable connection, and equipment mount status.
②Verification of system accessories :
User should check all necessary accessories.
③Check receipt signal level :
Installer should check whether environmental conditions are in accordance
with system specification to ensure that system operation will be optimized.
2) Check points after open:
①Check external LED
RUN: Green light ON (Off: all lights off)
ALARM: Green light in normal status, Red light in alarming
SHUT DOWN: Green light in normal status, Red light in Shutdown status

Verizon User Manual
Smart-Cell Repeater
20
4.1.3. Signal Strength LED Check
Number of LED bars
Input Signal Level
Output Power Signal Level
LED 1 bar
Less than -86dBm
Less than +5dBm
LED 2 bars
-85dBm ~ -79dBm
+6dBm ~ +10dBm
LED 3 bars
-78dBm ~ -72dBm
+11dBm ~ +15dBm
LED 4 bars
-71dBm ~ -65dBm
+16dBm ~ +20dBm
LED 5 bars
More than -64dBm
More than +21dBm
<Figure 9> Modular Repeater Front LED
