Verkada SV21 User manual
Document
Document Details
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
V1.0 (20221101)
(V1.0 first published 20221101)
Firmware
Firmware version can be verified on
Verkada Command command.verkada.com.
2
Introduction
What’s in the box
What you’ll need
●A working internet connection
●A smartphone or laptop
●A #2 Phillips screwdriver or
power drill with a #2 Phillips driver bit
●1/4 inch (6.5mm) drill bit for wall anchors
●1/8 inch (3mm) drill bit for pilot holes
●A shielded Cat5 or Cat6 Ethernet cable
with a .2‘’-.25” outside diameter (5-6.5mm)
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
Environmental Sensor
3

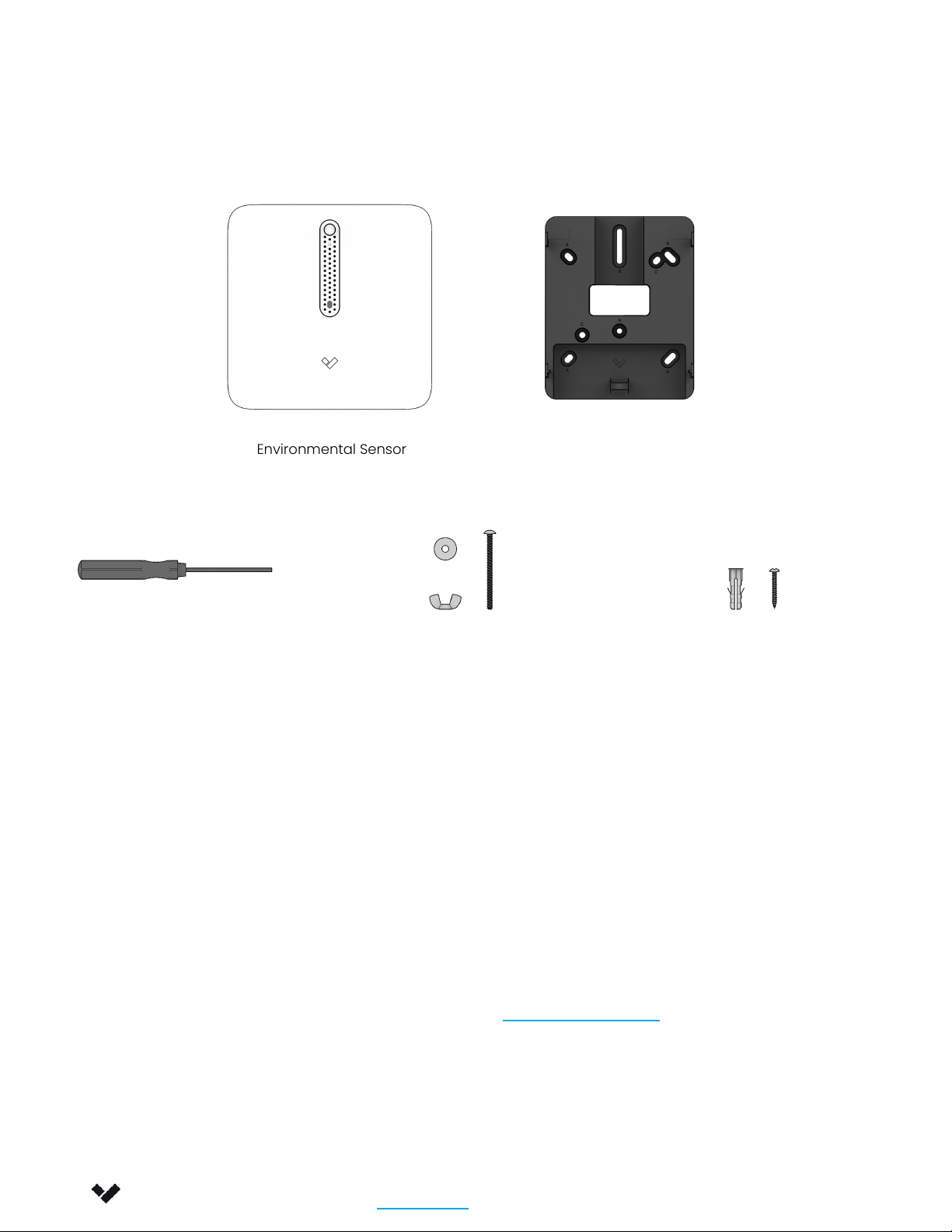

Mount Plate
(Attached to sensor)
3 M4 x 50mm Machine Screws,
Wing Nuts, and Washers
4 M4 x 25mm PH2 Wall
Screws, and Wall Anchors
Connect
For easy registration and setup, scan
the QR code on the product.
If you prefer to manually register your
product, please proceed to:
verkada.com/start
T10 Security Torx Screwdriver
Introduction
Overview
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
LED
4
LED Behavior
Solid Orange
Sensor is on and booting up
Flashing Orange
Sensor is updating firmware
Flashing White
Sensor is recording data, but
cannot reach the cloud
Solid White
Sensor is running, connected,
and recording data

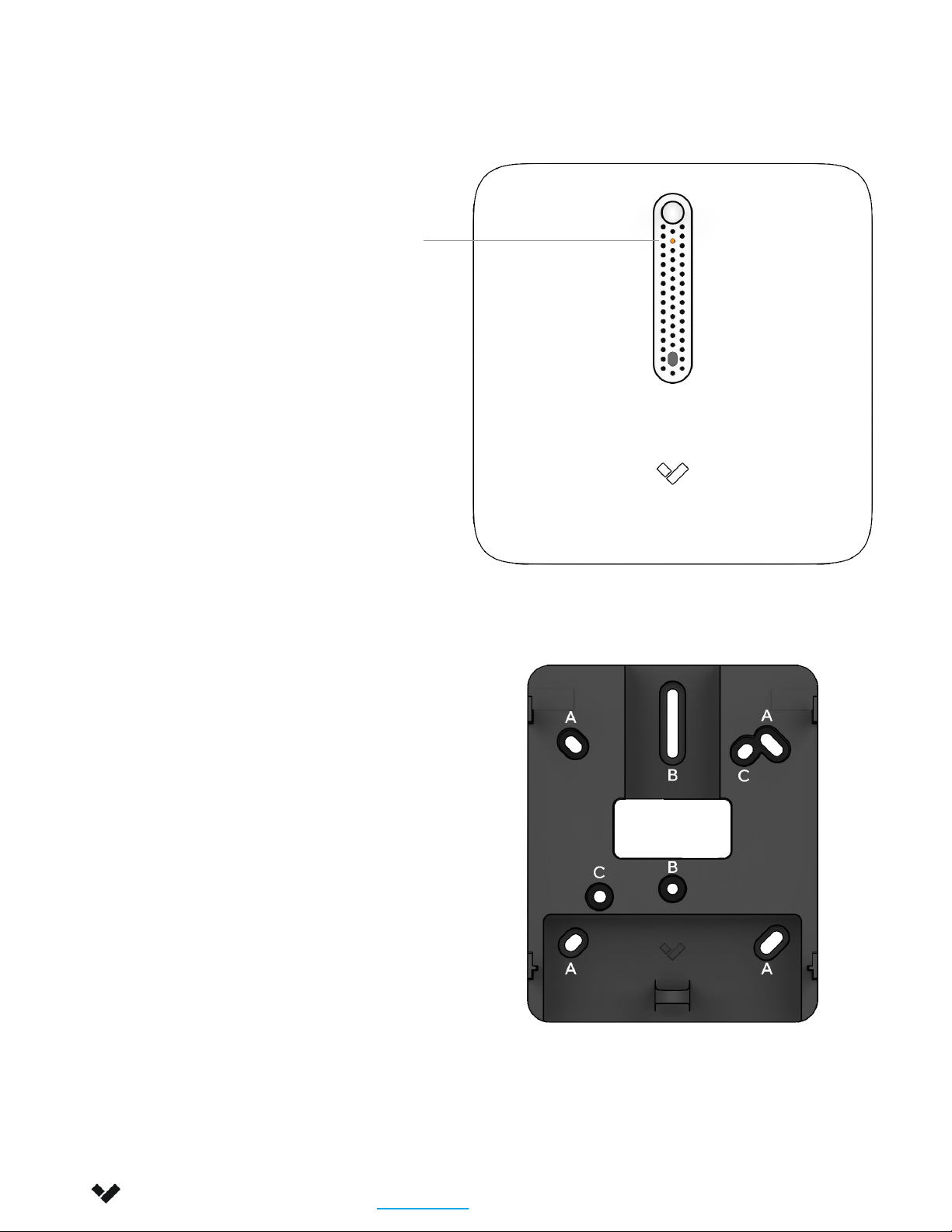

Mount plate details
Use the mount plate as a
template and mark the
correct hole pattern.
A Wall mount
B Single gang junction box
European junction box
3.5’’ Round junction box
C 4’’ Round junction box
Installation

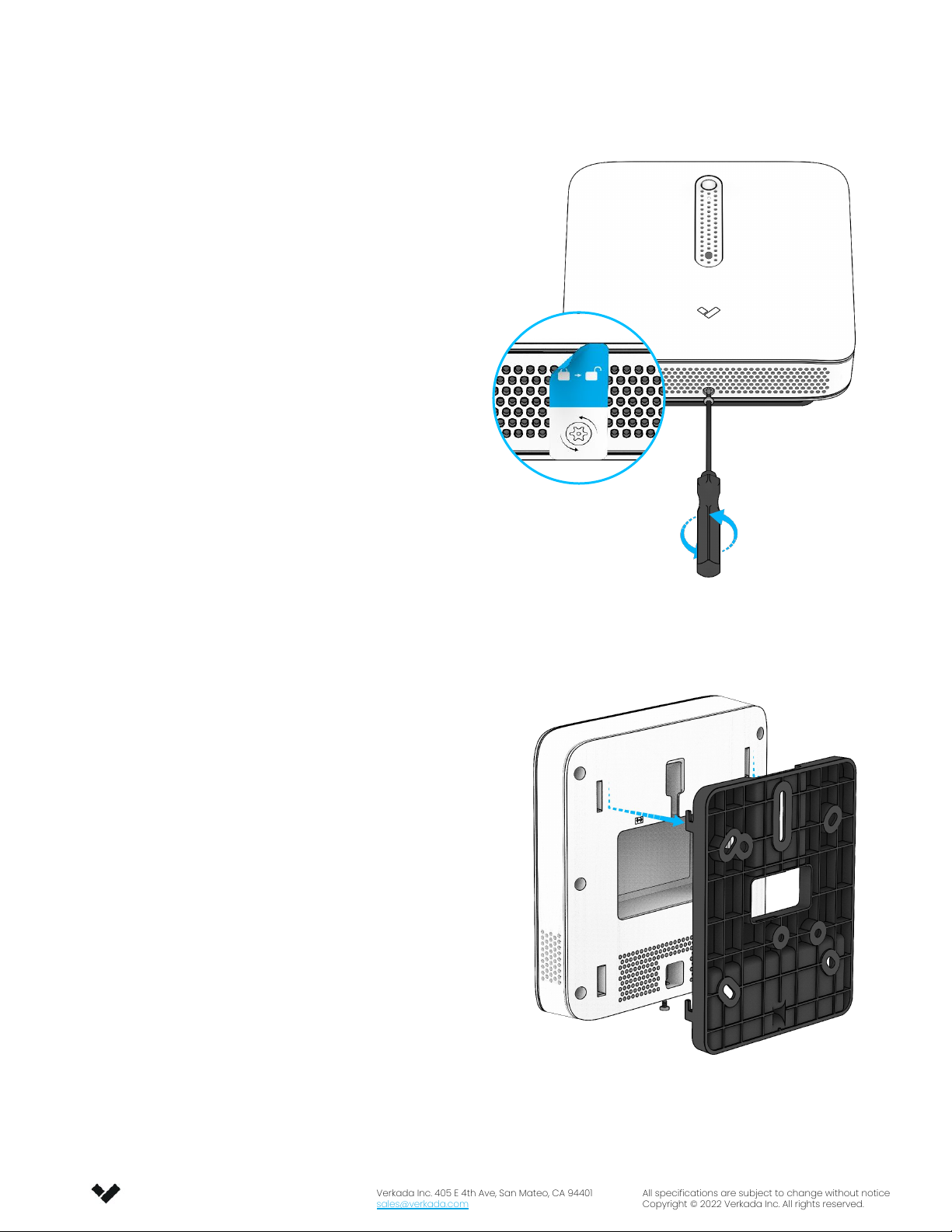

Remove mount plate
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
6
Remove sticker.
Use the provided T10 Torx security torx
screwdriver to loosen the security screw.
Unhook the mount plate.
Installation
Connect
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
7
For easy registration and setup, scan
the QR code on the product.
If you prefer to manually register your
product, please proceed to:
verkada.com/start
Connect the Ethernet cable
to the RJ45 connector.
Installation
Mounting
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
8

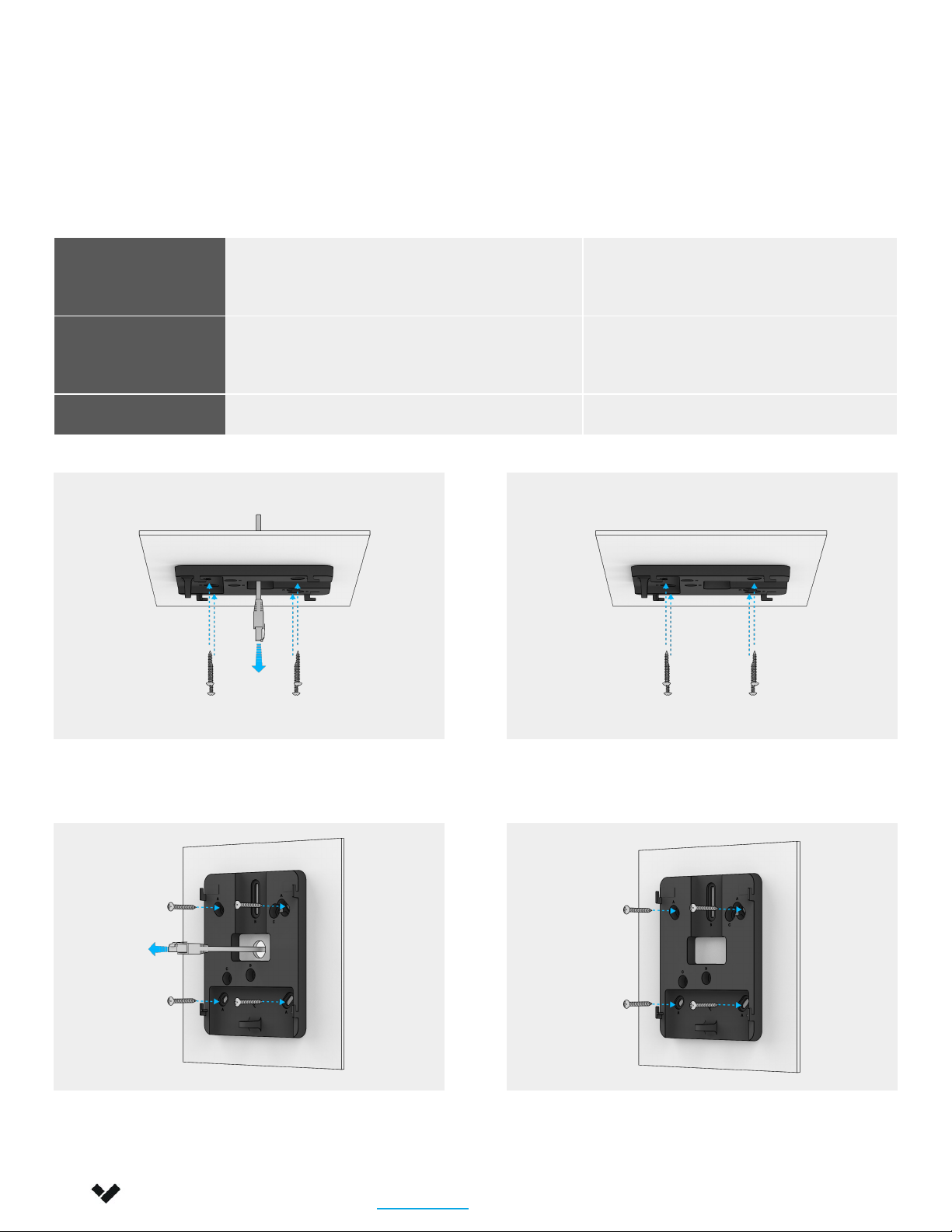

Mounting options overview
Depending on what data you are looking to gather, there are different ideal mounting options.
CO₂ Monitoring Wall mounting, between 3-6 ft from
floor.
Keep sensor at least 5 ft away
from any doors or operable
windows.
Vape Detection
Ceiling mounting, no more than 8-9 ft
from the ground. If the height is
increased, detection will decrease.
If placed in a bathroom, 1 sensor
per 2 stalls is recommended.
Other Ceiling mounting recommended.
Ceiling mounting option 1:
Cable exit through surface
Ceiling mounting option 2:
Cable exit along surface
Wall mounting option 1:
Cable exit through surface
Wall mounting option 2:
Cable exit along surface
Installation
Ceiling mounting option 1: Cable exit through surface
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
9
Please note: This method routes the
Ethernet cable through the mounting
surface.
For a solid material like wood or
metal, drill 1/8 inch pilot holes.
Drive the mounting screws
directly into the pilot holes.
For drywall, plaster or masonry,
separate wall anchors may be
required.
Plug in the the Ethernet cable.
Installation
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
10

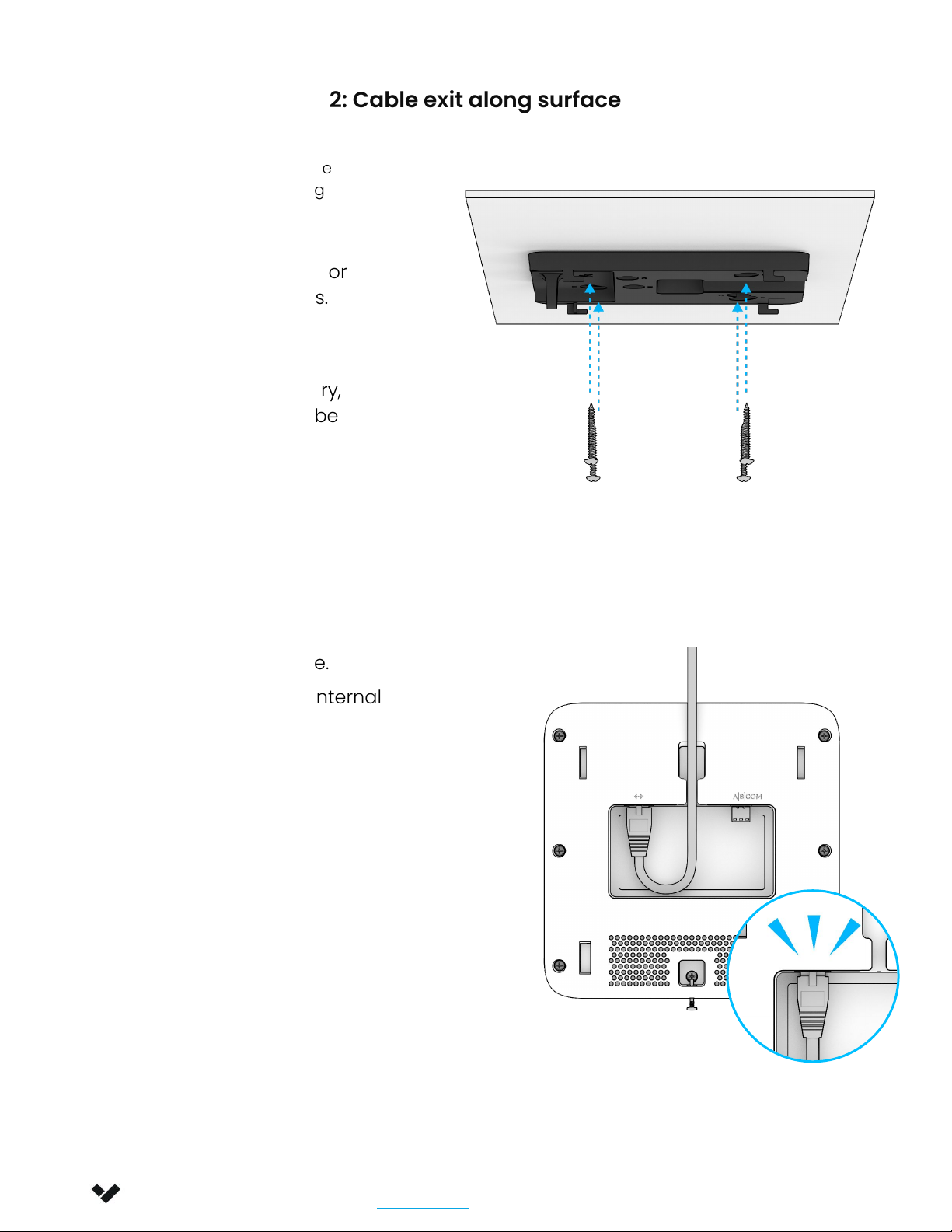

Ceiling mounting option 2: Cable exit along surface
Please note: This method routes the
Ethernet cable along the mounting
surface.
For a solid material like wood or
metal, drill 1/8 inch pilot holes.
Drive the mounting screws
directly into the pilot holes.
For drywall, plaster or masonry,
separate wall anchors may be
required.
Plug in the the Ethernet cable.
Loop the cable through the internal
cord management feature.
Installation
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © 2022 Verkada Inc. All rights reserved.
11

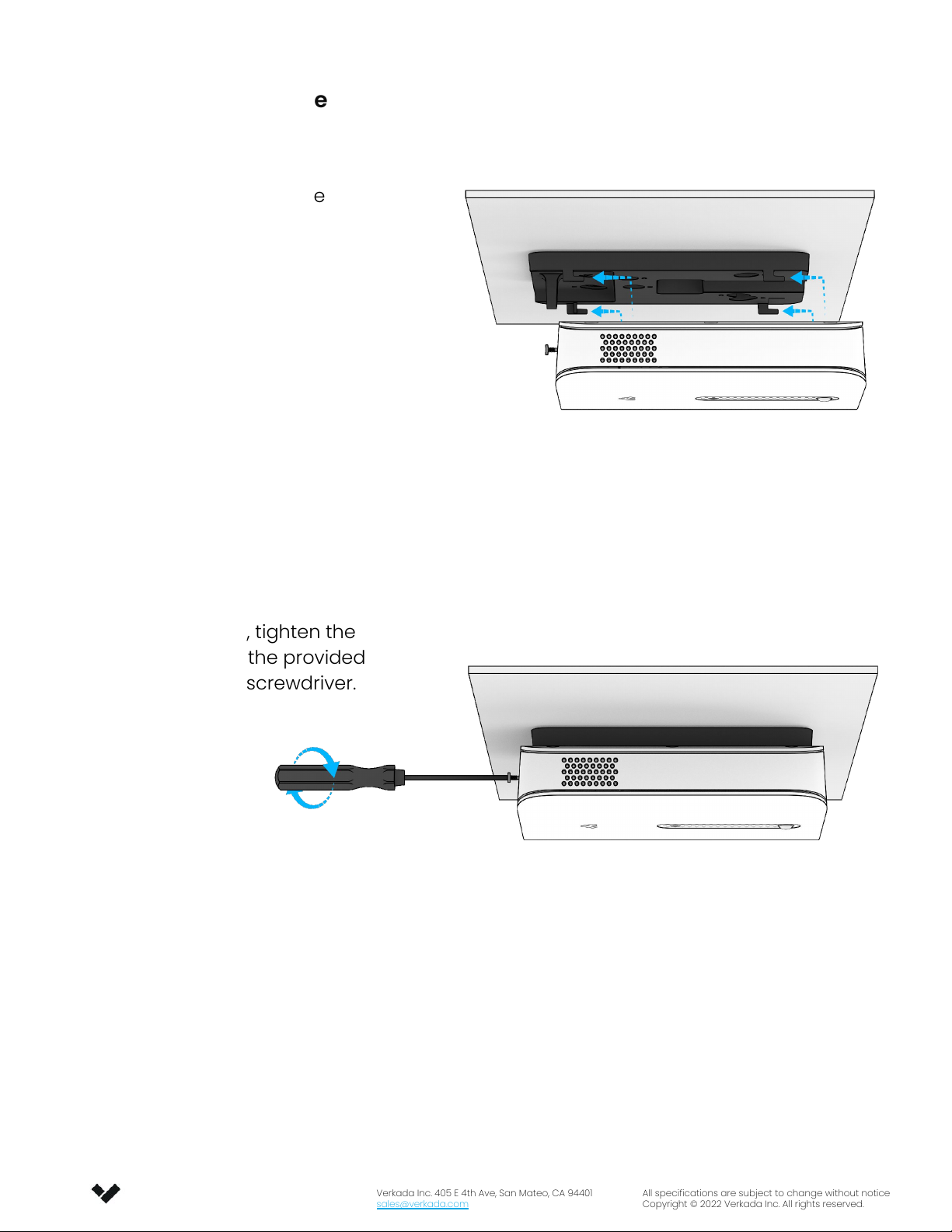

Ceiling mounting secure
Place the sensor onto the
mount plate and engage the
hooks to secure.
To secure the sensor, tighten the
security screw using the provided
T10 Torx security torx screwdriver.
Installation
Wall mounting option 1: Cable exit through surface
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
12
Please note: This method routes the
Ethernet cable through the mounting
surface.
For a solid material like wood or
metal, drill 1/8 inch pilot holes.
Drive the mounting screws
directly into the pilot holes.
For drywall, plaster or masonry,
separate wall anchors may be
required.
Plug in the the Ethernet cable.
Installation
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
13

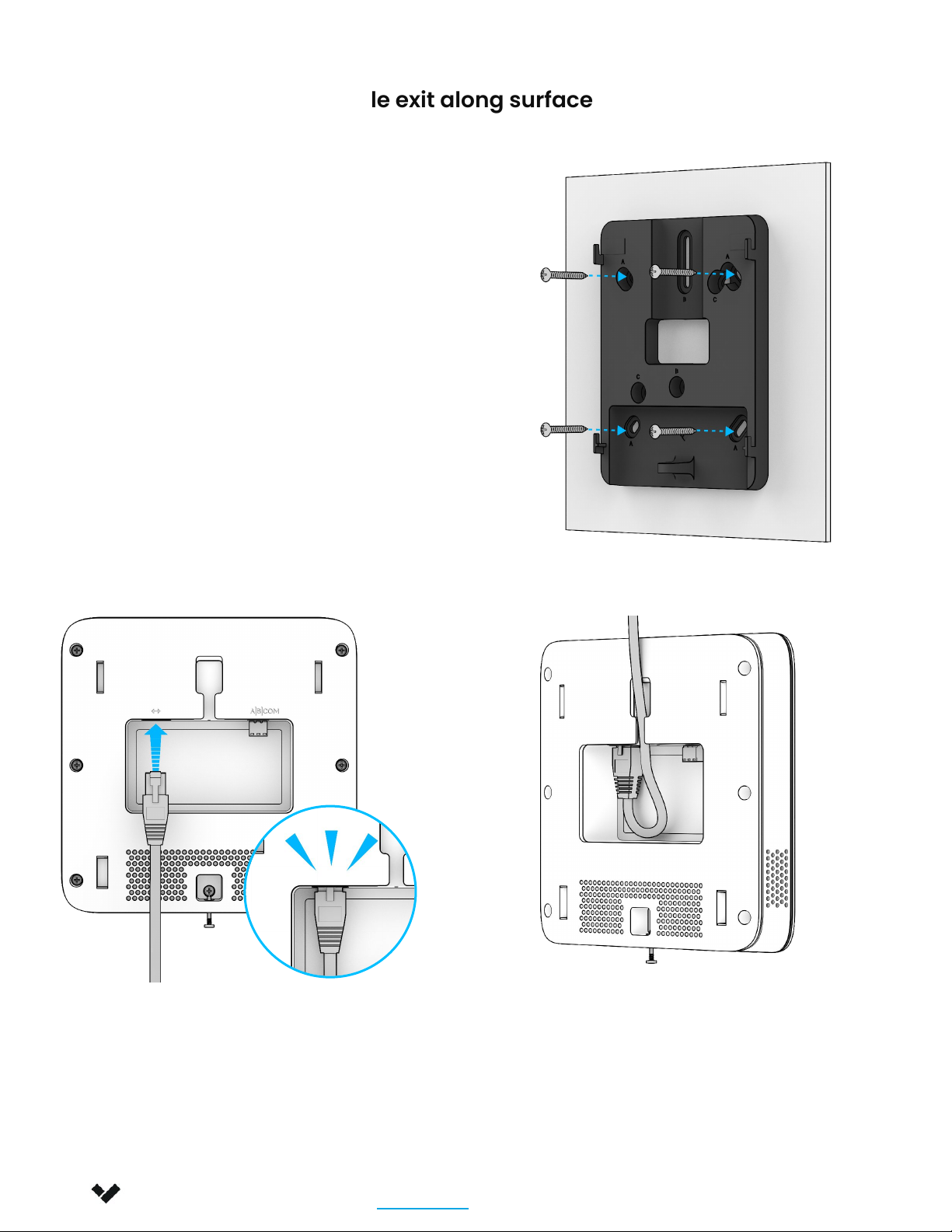

Wall mounting option 2: Cable exit along surface
Please note: This method routes the
Ethernet cable along the mounting
surface.
For a solid material like wood or
metal, drill 1/8 inch pilot holes.
Drive the mounting screws
directly into the pilot holes.
For drywall, plaster or masonry,
separate wall anchors may be
required.
Plug in the the Ethernet cable. If you are routing the cable along the
wall, loop the cable through the
internal cord management feature.
Installation
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
14
Wall mounting secure
Place the sensor onto the
mount plate and engage
the hooks to secure.
To secure the sensor, tighten the
security screw using the provided
T10 Torx security torx screwdriver.
Make sure to mount the sensor with
the V logo pointing down, as shown.
Important
