Vermason TB-7510 Installation and operating instructions

TB-7510 Page 1 of 2 © 2014 VERMASON
UNIT C, 4TH DIMENSION, FOURTH AVENUE, LETCHWORTH, HERTS, SG6 2TD UK
Phone: [phone] • E-mail: [e-mail], Internet: Vermason.co.uk
Vacuum Cleaner and Blower
Installation, Operation and Maintenance
Description
Compact lightweight blower / vacuum cleaner designed
for precise removal and collection of dry dust particles
and debris from electrostatic static sensitive devices
(ESDS). The conductive nozzles drain-off any static
build-up to earth.
In order to comply with EN61340-5 recommendations
for working in an ESD protected area (EPA), the
appliance housing, nozzles, hose, shoulder strap, cable
and accessories are fully conductive. The vacuum
cleaner can retain dust and fine dry particles as small
as 0,3 micron, the vacuum cleaner is fitted with a
double-layer paper filter bag and an electro-static
charged micro-motor filter.
“Tools intended for use within the EPA [ESD protected
area] shall, as far as is practicable, be so constructed
that they do not generate or hold an electrostatic charge
….All tools and machinery, for example electrical,
mechanical or pneumatic, shall be so constructed that
any non-insulating part of the tool or machine which
may touch an ESDS [ESD sensitive items] shall be at
EPA ground potential.” [EN 61340-5-1 clause 5.2.10
Tools, machinery, dispensers and test equipment]
The appliance can also be converted in seconds into
a powerful blower for dust removal in area’s otherwise
not accessible - the blower’s air-current is cfc-free and
contains no oil or water residue.
The appliance is constructed to safety class II: Double
insulated design in compliance with CE standards.
- Durable and compact design
- Motor has thermal protection with RFI/EMC filter
- Hose assembly extends to 130cm
- Includes hard crevice and soft rubber nozzle
- 1.2 l filter bag
- Advanced 5 stage filtration system
March 2014

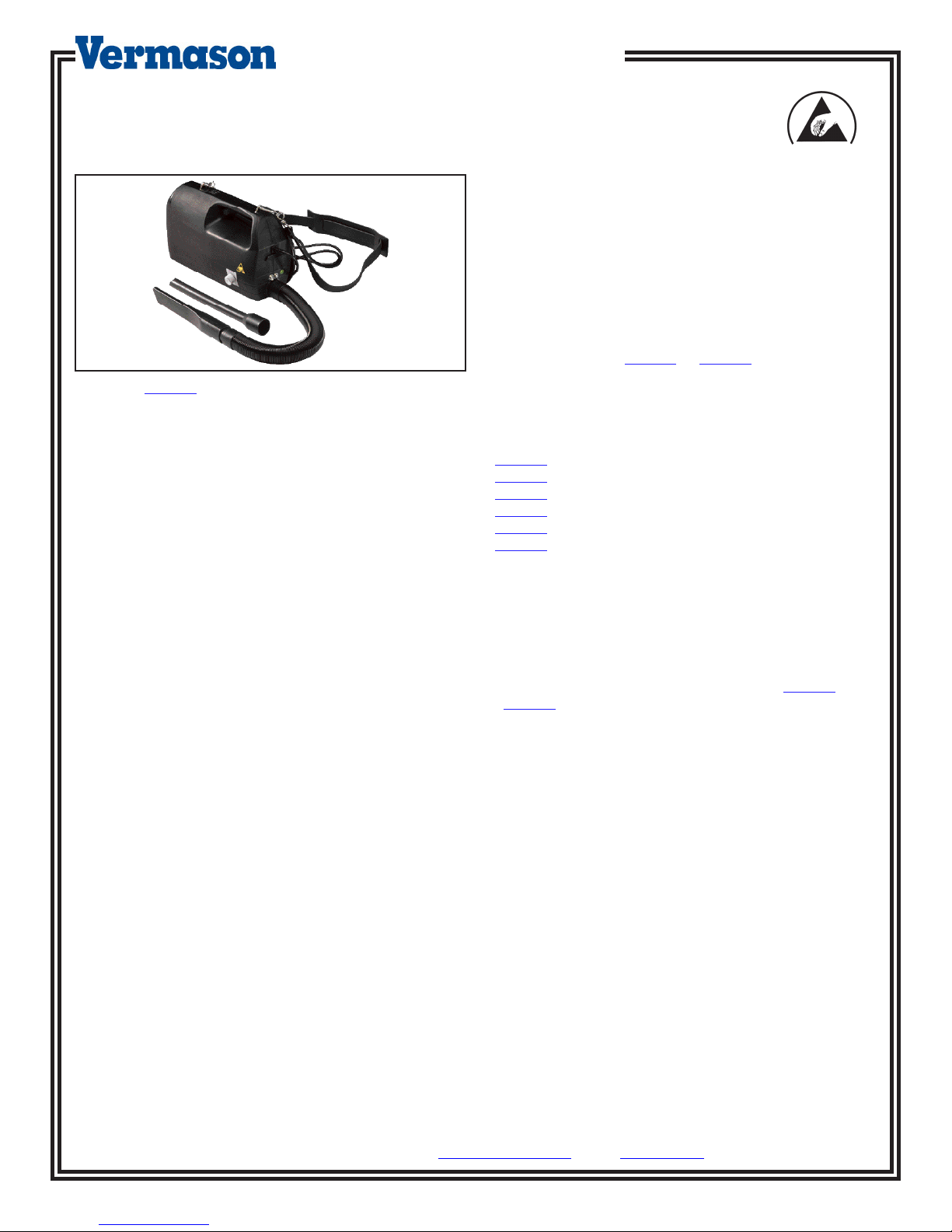

Figure 1. 231700 Vacuum Cleaner
TECHNICAL BULLETIN TB-7510
- 3m long power cord
- Conductive carry strap
- Input power supply voltage: 220-240 volts
- Made in the Netherlands
Inspection
Remove the vacuum cleaner from the carton and
inspect for shipping damages.
Each unit should include the following:
1 Vacuum Cleaner (231700 or 231710)
1 1.3m Hose
2 Nozzles
1 Carrying Strap
Optional Accessories:
- 231725: Replacement Bags, Pack of 10
- 231705: Carry Bag
- 231726: Long soft rubber nozzle with mini crevice tool
- 231727: Long soft rubber nozzle
- 231728: Long soft rubber nozzle with brush head
- 231729: Replacement micromotorfilter
Operating instructions
1. Push hose end into suction opening
2. Press the suction nozzle onto the free suction
hose-end
3. Place rocker switch in off position
4. Set electronic control to medium power (231700,
231710)
5. Insert the plug into the electrical supply and start
appliance, pressing on-off switch to “on” position.
If there is substantial loss of vacuum or blow-pressure,
take the following steps:
6. Remove appliance from the EPA
7. Check whether nozzle or suction-hose have become
blocked
8. Switch off appliance and disconnect plug from
electrical supply
9. Lift metal bottom lock and remove housing’s front
cover
10. Remove and replace the spent paper filter bag
11. Replace electrostatic micro-motor filter.
Note: This appliance is equipped with a thermal
protection device. To protect the motor from
overheating, it will switch off automatically if there is an

TB-7510 Page 2 of 2 © 2014 VERMASON
UNIT C, 4TH DIMENSION, FOURTH AVENUE, LETCHWORTH, HERTS, SG6 2TD UK
Phone: [phone] • E-mail: [e-mail], Internet: Vermason.co.uk
inadequate air supply. To enable a restart, check filters,
bags, nozzle and hose for blockages. On the 231700,
231710 version, reduce the power setting. When the
motor has cooled down, the appliance should restart
after 15-20 minutes.
Safety points
When cleaning this equipment, ensure it is switched-off
and no longer connected to the power supply.
Ensure any object to be cleaned, is itself
connected to earth in accordance with EN 61340-5
recommendations. Always use the on-off rocker switch
to turn the appliance on or off.
This appliance is made for indoor use only, it must be
stored in a dry place and should not be operated under
wet conditions such as wet floors or wet surfaces. Never
touch the appliance or the plug with wet hands.
This appliance is not designed, nor suitable, to collect
liquids, nor health endangering dust such as asbestos
or tropical wood sawdust.
Do not pull the cord to unplug it, do not use the cord to
carry or pull the appliance, keep the cord away from hot
surfaces. Never use the appliance if the cord or plug
are damaged. Never use the appliance if the suction is
blocked or with completely restricted vacuum flow or air
exit.
Do not operate the vacuum cleaner near flammable or
combustible liquids or fumes, do not collect anything
that is hot, smoking or burning with the cleaner. Do not
pick-up burning cigarettes, hot ashes or matches.
Use safety glasses when the application is in blow
mode, never blow in corners or in the direction of sharp
objects such as staples, paperclips, drawing-pins,
needles, pins and glass fragments. Never use the
appliance without the filter bag and motor filter in place.
Never re-use spent filter bags.
Limited Warranty
Vermason expressly warrants that for a period of one (1) year
from the date of purchase, Vermason Vacuum Cleaners will be
free of defects in material (parts) and workmanship (labour).
Within the warranty period, a unit will be tested, repaired or
replaced at Vermason’s option, free of charge. Call Customer
Service at 0044 (0) 1462 672005 for a Return Material
Authorisation (RMA) and for proper shipping instructions and
address. Any unit under warranty should be shipped prepaid
to the Vermason factory. You should include a copy of your
original packing slip, invoice, or other proof of purchase date.
Warranty repairs will take approximately two weeks.
If your unit is out of warranty, Vermason will quote repair
charges necessary to bring your unit to factory standards.
Call Customer Service at 0044 (0) 1462 672005 for a Return
Material Authorisation (RMA) and proper shipping instructions
and address.
Warranty Exclusions
THE FOREGOING EXPRESS WARRANTY IS MADE IN LIEU
OF ALL OTHER PRODUCT WARRANTIES, EXPRESSED AND
IMPLIED, INCLUDING MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE WHICH ARE SPECIFICALLY
DISCLAIMED. The express warranty will not apply to defects or
damage due to accidents, neglect, misuse, alterations, operator
error, or failure to properly maintain, clean or repair products.
Limit of liability
In no event will Vermason or any seller be responsible or liable
for any injury, loss or damage, direct or consequential, arising
out of the use of or the inability to use the product. Before using,
users shall determine the suitability of the product for their
intended use, and users assume all risk and liability whatsoever
in connection therewith.
