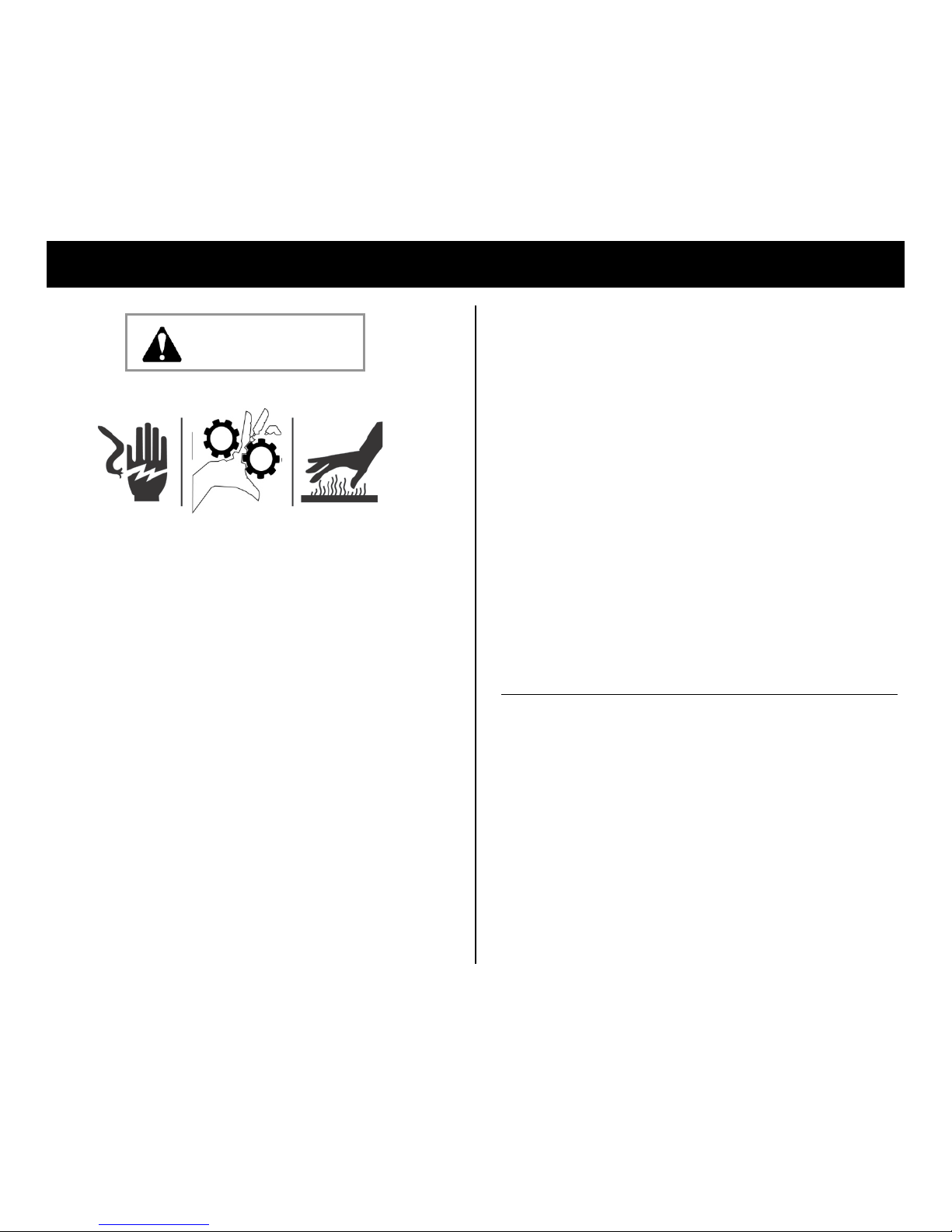

Owner’s Manual
VersaCarpet™VC700 Carpet and Upholstery Cleaner
LEGEND BRANDS, INC.
15180 Josh Wilson Road ■Burlington, WA 98233
800-932-3030 ■http://VersaCleanSystems.com
Patents: http://www.LBpatents.com
READ AND SAVE THESE INSTRUCTIONS
Read and understand manual before operating.
WARNING! Do not alter or modify your VersaCarpet
in any way. Use only replacement parts authorized
by Legend Brands. Modifications or use of unap-
proved parts could create a hazard and will void
your warranty. Contact your local authorized distrib-
utor for assistance.
WARNING! Electric shock hazard, rotating head, hot
surface hazards. Unplug unit before opening cover
for cleaning or servicing.
WARNING! Unit must be grounded.
•Keep motor and wiring dry. Keep out of standing wa-
ter and do not use in area likely to be subject to wa-
ter intrusion. Do not expose to rain, water or snow.
•Insert three-prong plugs on power cords into a GFCI
outlet. Do not use adapter. Never cut off third
prongs.
FIRE HAZARD
•Keep away from open flames and heat sources.
•Do not use or store where vapors from gasoline, sol-
vents, thinners or other flammable materials may be
present.
WARNING! Unplug unit before cleaning or servicing.
•Turn off unit and unplug before lifting.
•Handle the unit carefully. Always operate the unit on
a stable, level surface. Do not drop, throw, or place
where it could fall. Rough treatment can damage the
unit, and may create a hazardous condition or void
the warranty.
•Inspect the power cords before use. If cord is dam-
aged, do not use. Always grasp the plug (not the
cord) to unplug.
•Use only with cords supplied with the unit, or 12
gauge (or larger) cords.
•The unit must be plugged into two 15 amp
115V/60 Hz circuits.
•Do not attempt to repair the unit. For Authorized
Service Centers, call VersaClean Service at 800-
932-3030.
BEFORE YOU BEGIN
Warranty registration
Visit warranty.VersaCleanSystems.com to register your
purchase. Registration allows us to better assist you with
using, maintaining or servicing your equipment and to
contact you in case we have important safety information
concerning your product. If you determine service is re-
quired, have your equipment model, serial number and
original proof of purchase available and call your distrib-
utor for assistance with obtaining a return material au-
thorization (RMA).
WARNING

VISIT WWW.VERSACLEANSYSTEMS.COM FOR DETAILED INSTRUCTIONS
49-090A VC700 2013-07 2 Legend Brands, Inc.

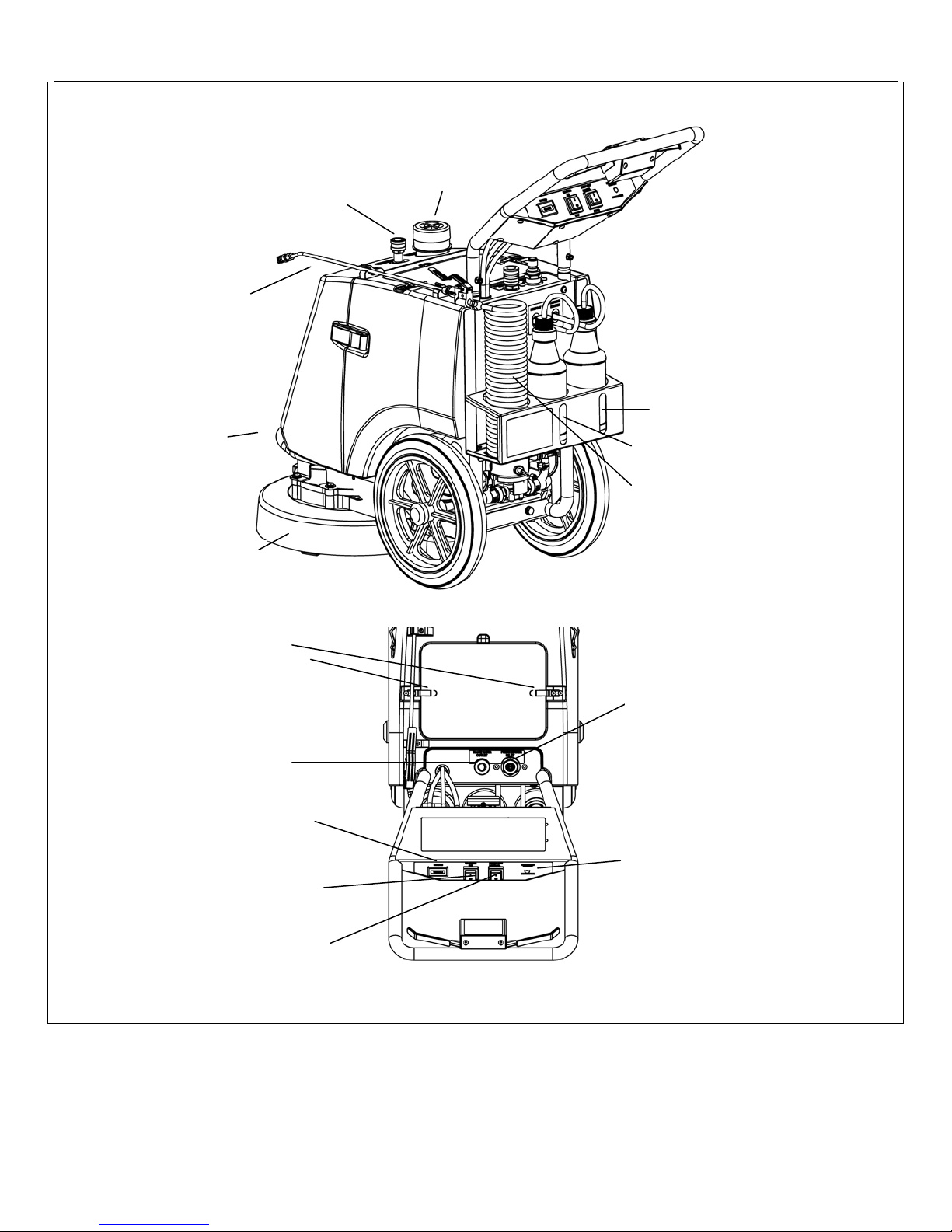

CONTROLS AND COMPONENTS
Solution prespray
wand. Keep clipped in
place when not in use.
Rotary head solution
sight window.
Solution spray wand hose coil.
Prespray and/or upholstery
solution sight window
WARNING: Moving parts.
Keep hands and feet clear.
Front lift handle.
ACCESSORY PORTS
1. High pressure water outlet
2. Vacuum inlet (keep covered
when not in use.)


Solution
control lever
Rotary head
control lever
Separate circuit indicator
light. Glows green when unit
is properly connected to two
15 amp circuits.
Vacuum switch
Pumpout switch
Waste water
outlet
Fresh water inlet
Hour meter
Waste tank
clear window
release clamps

VISIT WWW.VERSACLEANSYSTEMS.COM FOR DETAILED INSTRUCTIONS
49-090A VC700 2013-07 3 Legend Brands, Inc.

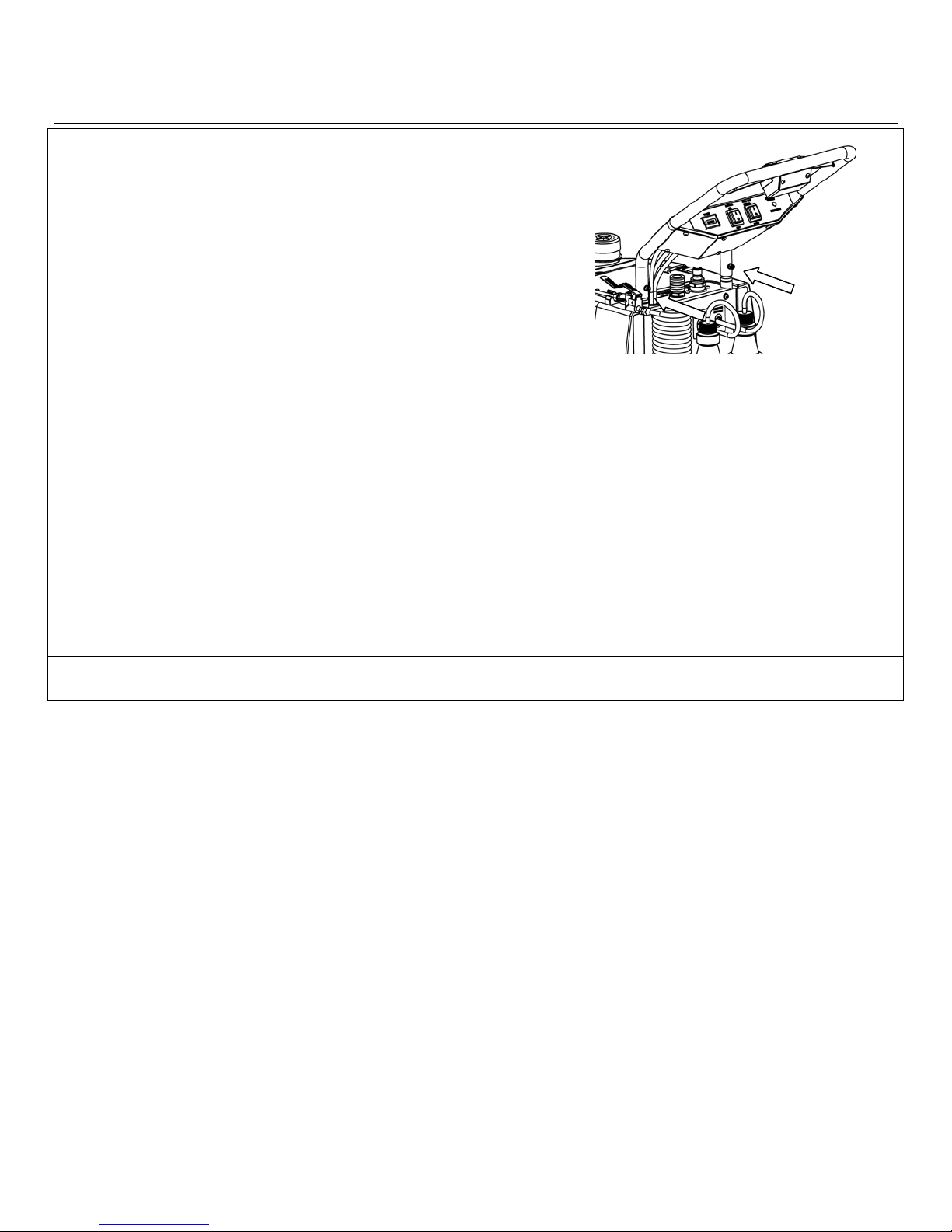

BEFORE FIRST USE
TOOLS REQUIRED: 3 mm hex drive bit, 10 mm wrench,
1. Install handle Using drive and wrench, remove two bolts from
posts. Insert tubes over posts and line up the holes. With tubes in posi-
tion, reinsert two bolts supplied into either the upper or lower holes and
tighten until they are snug. For operator comfort, handle may be fixed
in one of two positions.
After handle is installed, tuck excess cords into top panel.
NOTE: Locate the Accessory/Spare Parts Kit in product packag-
ing. It contains two sets of impellers and gaskets for servicing
pumpout pump. Set aside for future use.
2. Flush system lines. Unit may contain residual antifreeze
from the factory. Flush internal lines with fresh water prior to use.
DO NOT drain used antifreeze on the ground or into storm drains. Dis-
pose of antifreeze only in an approved location. Observe local, state,
and federal laws when disposing antifreeze.
A. Flush cleaning head solution lines. Set
unit up for operation (see “Setup for Cleaning
below), except leave cleaning solution intake
tubes disconnected and direct pumpout dis-
charge hose into a bucket or suitable drain. Op-
erate unit for a few minutes on a hard, water-
proof surface until discharge runs clear.
B. Flush accessory solution line.Set unit up
for accessory operation (see “Cleaning with Ac-
cessory Tool/Upholstery Tool” below). Place
accessory tool end in a bucket of clean water
and operate the VC700 until discharge runs
clear.
THE VC700 IS NOW READY FOR CONNECTING WATER SUPPLY.
Handle may
be installed
in high or
low position.

VISIT WWW.VERSACLEANSYSTEMS.COM FOR DETAILED INSTRUCTIONS
49-090A VC700 2013-07 4 Legend Brands, Inc.

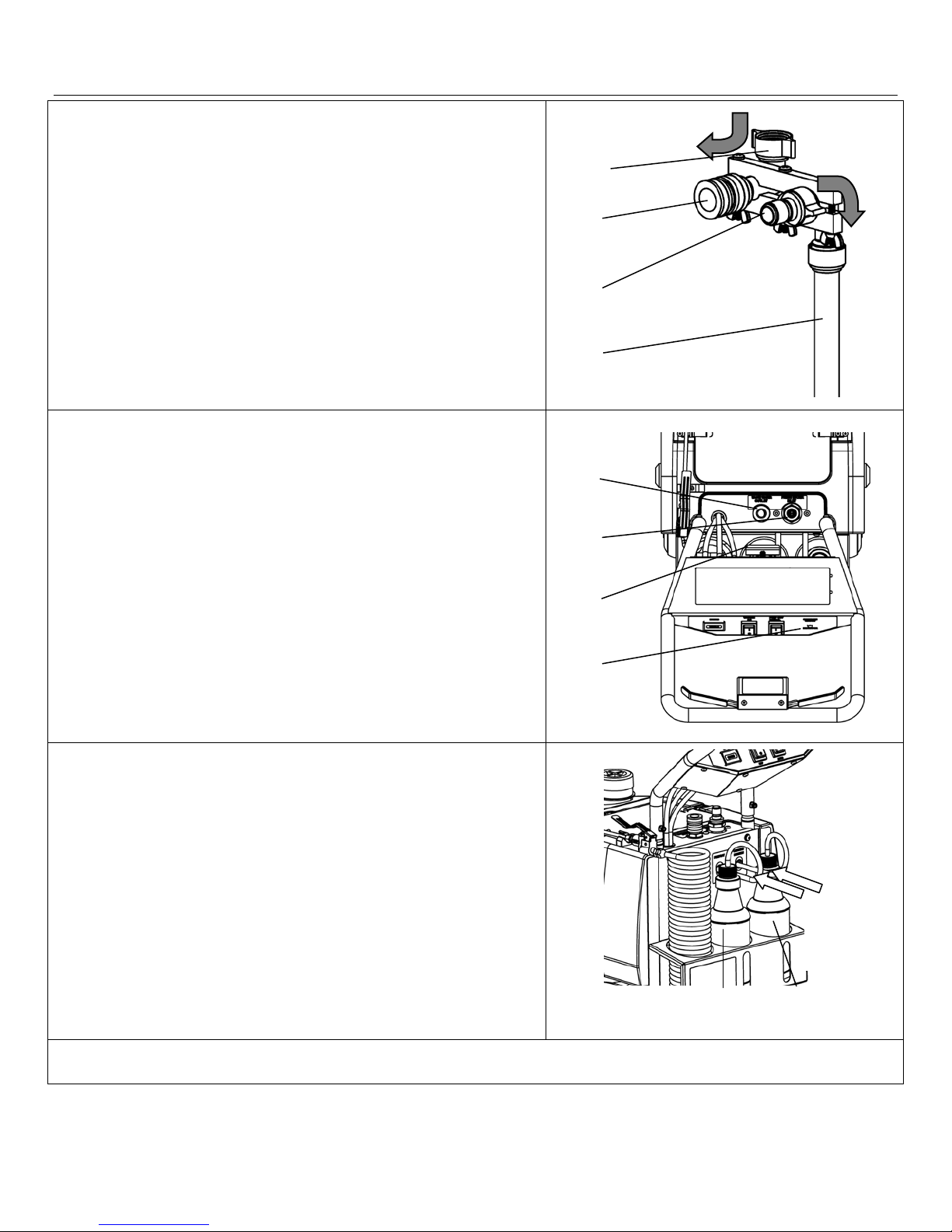

SETUP FOR CARPET CLEANING
Attach FAUCET MOUNTING KIT to water supply and
drain Use supplied faucet adaptor kit as necessary to fit coupler to
faucet.

Connect fresh water coupling to faucet. Use sup-
plied faucet adaptor kit as necessary to fit coupler to faucet.

Connect fresh water coupling to supply hose.
For best cleaning results, use hot water.

Attach waste water hose to waste coupling.

Direct drain tube into drain.

Connect waste water drain hose to waste wa-
ter outlet.

Connect water supply to fresh water inlet.

Connect power cords Sockets are located under the bot-
tom of the control panel. Rotate plug lock to secure plugs. Plug each
cord into a 15 amp circuit.

Separate Circuit Indicator light will glow green when
unit is properly connected to two 15 amp circuits.

Turn on water supply and check for leaks.
Install cleaning solution bottles and
insert feed tubes
Place Step 1 Prespray bottle into left pocket and insert Prespray
tube. Secure tube with cap.
Step 2/3 Rinse Extract bottle into right pocket and insert Rinse Ex-
tract feed tube into bottle. Secure tube with cap.
NOTICE: This equipment is for use with VersaCarpet and
VersaGreen products only. Use with other products will reduce
cleaning performance and may damage the equipment and will
void the warranty.
Open tank lid, place one defoamer pellet in filter
cage. Replace lid and secure with clamps.
THE VC700 IS NOW READY FOR CARPET CLEANING USE.
Step 1
Prespray
Step 2/3 Rinse
Extract
Insert
feed
tubes as
shown.








Waste water
to drain.
Fresh water
to VC700

VISIT WWW.VERSACLEANSYSTEMS.COM FOR DETAILED INSTRUCTIONS
49-090A VC700 2013-07 5 Legend Brands, Inc.
CONTROLS
•Prespray wand. Squeeze lever to release solution. Wand is pressurized by water supply.
•Control rotary head with left hand lever. Grip handle firmly before squeezing lever.
•Control solution flow with right hand lever. Release handle to stop flow.
•To manually pump out tank, press and hold pumpout switch to “Manual” position. Re-
lease switch to return to “Auto” mode. Use manual pumpout if excessive foaming occurs and at the end of
the job to ensure tank is empty.
To use unit with hand tool or wand, first remove cap from the accessory vacuum inlet and insert vacu-
um adapter tube. Now attach tool to accessory vacuum inlet and accessory high pressure water outlet .
CLEANING PROCEDURES
CARPET
NORMAL SOILS
1. Prespray with VersaCarpet
Step 1. See label for dwell time.
2. Rinse extract with
VersaCarpet Step 2.
3. Dry with suitable airmovers to
ensure rapid drying.
CARPET
HEAVY SOILS
1. Prespray with VersaCarpet
Step 1 HD. See label for dwell time.
2. Dry agitate. Operate VC700
rotary head over carpet with no solu-
tion or vacuum applied.
3. Rinse extractwith
VersaCarpet Step 3
4. Dry with suitable airmovers to
ensure rapid drying.
UPHOLSTERY
1. Prespray with VersaCarpet
Step 1. See label for dwell time.
2. Rinse extract with
VersaCarpet Step 3 using hand tool
attached to VC700.
3. Dry Place suitable airmovers to
ensure rapid drying.
READ CHEMICAL PRODUCT LABELS FOR DETAILED INSTRUCTIONS.
TRANSPORTATION AND STORAGE
NOTICE: Handle the unit carefully. Do not drop, throw, or place the unit where it could fall. Rough treatment can damage
this equipment and may create a hazardous condition or void warranty.
•When repositioning unit, tilt unit back to lift vacuum head 1 to 2 in. above floor to protect rotary head,
•Store and transport securely to avoid any damaging impact to internal parts.
•Secure during transport to prevent sliding and possible injury to vehicle occupants.
•Protect from freezing.

VISIT WWW.VERSACLEANSYSTEMS.COM FOR DETAILED INSTRUCTIONS
49-090A VC700 2013-07 6 Legend Brands, Inc.
MAINTENANCE
Important: Do not tip unit on its back, or oil may leak.
Before each use
Inspect the electrical cord for damage. Look for fraying, cuts, etc. Replace the cord if you
find any damage. Use replacement part no. 30-099.
Inspect hoses, water lines and seals. Replace as needed.
Inspect vacuum shoes and gasket. Scratches, gouges and snags can be removed with a
flat file. Replace shoe and gasket when grooves in shoe are no longer visible.
After each use
Flush out tank and rinse basket clean. Disconnect solution feed tubes and remove bottles.
Attach a vacuum hose to the accessory port, place the other end in a bucket of clean water
and extract until pumpout hose discharge runs clear. Be sure to orient basket with hole facing
the pipe opening when replacing.
Inspect and clean in-tank filters. Remove from tank and rinse clean. Wipe out tank interior
with damp cloth and reinstall filters. Be sure to orient bottom tank filter horizontally and ensure
that it is firmly in place.
Rinse off extraction head and accessory tools with clear water.
Lift off solution inlet cover and rinse clean. Remove any debris from stem and cover and
wipe clean. After cleaning, reinsert carefully, ensuring stem is properly seated and the cover is
pressed down tightly.
Flush out solution lines. Remove solution feed tubes from bottles and place ends in a cup of
plain warm water. Switch unit on and operate solution control lever and prespray wand until
lines are flushed.
Wipe off feet and rotary head
with a damp cloth.
Monthly
Inspect tank cover seal for tears or rips. Replace if needed.
To maintain appearance, wipe interior and exterior surfaces with a damp cloth. For deep
cleaning and a lasting, protective shine, use an automotive interior cleaner.
Check gearcase oil levels. Remove vented gear case plug. While looking into vent plug
hole, tilt unit back to allow the rotary head to be turned. Turn the head until the vent plug hole
is visibly aligned with the hole in the gear web. Now place the unit flat of the floor or table and
insert a screwdriver or similar tool to gauge the oil level. If the oil level is less than 1/8 inch,
add Sapphire Scientific gear oil (part number 13-053). Do not overfill. Reinstall vent plug when
finished.
As needed
WARNING: If a high-pitch vacuum motor sound is heard, TURN UNIT OFF IMMEDIATELY.
Use manual pumpout feature to empty the tank, remove the cover and inspect all three filters.
Clean as necessary.
If poor pumpout performance is observed (i.e., waste tank fills quickly) or if the vacuum mo-
tor shut-off is triggered frequently (signaled by a high-pitch vacuum mo-tor sound), inspect
pumpout impeller and in tank filter. Rinse filter to clear out debris accumulation. If impeller is
pitted, cracked or bent, replace impeller and gasket. See Service Manual.
If excessive consumption of Step 2/3 chemical observed, disassemble and clean inline
filters, valves and orifices. See Service Manual.
NOTE: More frequent cleaning and/or replacement may be required in hard water areas.
See Service Manual.
If blower makes excessive noise, bearings or brushes may be worn out. See Service Man-
ual.
Every 50 hours
of use Clean pump check valve and basin. See Service Manual.
Every 500 hours
of use
Inspect vacuum blower motor brushes. Replace if needed. See Service Manual.

VISIT WWW.VERSACLEANSYSTEMS.COM FOR DETAILED INSTRUCTIONS
49-090A VC700 2013-07 7 Legend Brands, Inc.
Every 1000
hours of use Inspect pumpout motor brushes. Replace if needed. See Service Manual.
SEE SERVICE MANUAL FOR DETAILED INSTRUCTIONS
SPECIFICATIONS
Name VersaCarpet VC700
Dimensions (W × H × D)
16.0 × 38.3 × 41.7 in.
40.6 × 69.9 × 105.8 cm
Weight 125 lbs. | 56.7 kg
Amps
11.0/8.5 amps
Circuit 1/Circuit 2
Power 115V/60Hz
Vacuum blower
1350W/105CFM/106 in. H
2
O
Specifications are subject to change without notice. Some values
may be approximate.
ACCESSORIES INCLUDED WITH THE VERSACLEAN
67-052 - Duffle Bag with roller wheels
67-049 - Belt Clip Tool Holding System
61-986 - Vacuum Adapter Tube
30-099 - (2) 12awg Extension Cords
67-048 - Soft Jaw Pliers
68-213 - Faucet Adapter Kit
69-532 - Hose/Power Cord Assembly
76-530 - 1 package (4) defoamer pellets
FOR PARTS AND SERVICE CALL YOUR LOCAL
DISTRIBUTOR or Legend Brands at 800-932-3030.

VISIT WWW.VERSACLEANSYSTEMS.COM FOR DETAILED INSTRUCTIONS
49-090A VC700 2013-07 8 Legend Brands, Inc.
VERSACLEAN LIMITED WARRANTY
VersaCarpet VC700 Carpet Cleaning Tool
What Does This Warranty Cover?
This warranty is provided to the original purchaser only.
How Long Does This Warranty Last?
We limit all implied warranties to
•One (1) year from the date of purchase on parts and labor;
•Lifetime on frame and rotomolded components
What Legend Brands Will Do:
If a defect in materials or workmanship occurs within the warranty period, Legend Brands at its election will repair or replace the de-
fective part at no charge.
What This Warranty Does Not Cover:
This warranty does not cover or apply to defects due directly or indirectly to misuse, abuse, disassembly, alteration, corrosive chemi-
cals, improper voltage, fire, flood, negligence, accident, improperly or incorrectly performed maintenance or repair, or failure to per-
form necessary or recommended maintenance or repair (see your Owner’s Manual) or if the use of this product is not in compliance
with the instructions and specifications for its use. This warranty does not cover pumpout impellers, fittings, cords, switches, valves,
hoses or rubber parts.
OTHER THAN THE WARRANTIES PROVIDED HEREIN, LEGEND BRANDS MAKES NO EXPRESS OR IMPLIED,
ORAL OR WRITTEN WARRANTIES WITH RESPECT TO THIS PRODUCT OR WORKMANSHIP AND ALL WAR-
RANTIES IMPLIED BY LAW INCLUDING ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS WARRANTY. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitations may not apply to you. WE SHALL IN NO EVENT BE LIABLE FOR
DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSE-
QUENTIAL DAMAGES ARISING FROM USE OF OUR PRODUCTS. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
How Do I Get Service?
In order to be eligible for service under this warranty you MUST do the following: (a) visit warranty.VersaCleanSystems.com and
register your purchase to ensure you receive any important product releases; (b) write or call for a return material authorization
(RMA); and (c) have the serial number and original proof of purchase available. Contact us at:
Legend Brands, Inc.
15180 Josh Wilson Road
Burlington, WA 98233
360-932-3030
We will inspect the product without charge and contact you within 72 hours of our receipt of the product to give you the results of our
inspection. If our inspection uncovers a defect we will repair or replace the product, at our election. If the product is returned to us on
or before ninety (90) days from the date of purchase, we will pay for the cost of shipping it to Legend Brands and the cost to return it
to you. If the product is returned to us after the expiration of ninety (90) days from the date of purchase, all shipping costs shall be
paid by the purchaser.
If it is determined that there is no defect in the product, or that the defect resulted from causes not within the scope of our warranty,
then the product will be repaired or replaced only at your request and at your expense and you must bear all shipping costs.
How Does State Law Apply?
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
