Vertex R22.3 Operation instructions

R22.3 RECUMBENT ASSEMBLE
INSTRUCTION

2015/3/9V1.1+V1.1
1
INDEX
1. PART LIST....................................................................................................................2
2. SCREW BAG................................................................................................................3
3. ASSEMBLE STEPS......................................................................................................4
4. The operation instruction of electronic meter..............................................................11
4.1. Electronic meter structure................................................................................12
5. Display page introduction ...........................................................................................15
5.1. Simple user interface：....................................................................................15
5.2. Startup page.....................................................................................................15
5.3. Resident area...................................................................................................15
5.4. Standby page...................................................................................................16
5.5. Program control set page.................................................................................16
5.6. Exercise storage device optional page (running and fitness with the exercise
record device).............................................................................................................17
5.7. Pages of the exercise ......................................................................................19
5.8. Exercise Course Page .....................................................................................25
6. Heart Detection Introduction.......................................................................................26
6.1. Heart Rate Sensor System ..............................................................................26
6.2. Regional heart rate exercise............................................................................27
7. Sports and fitness program.........................................................................................28
7.1. Overview of sports and fitness program...........................................................28
7.2. Overview of sports and fitness program...........................................................28
8. Program Set ...............................................................................................................36
8.1. Enter and Exit Engineer Mode.........................................................................36
8.2. Setting Metric or Imperial system Units............................................................36
8.3. Time zone setting.............................................................................................37
8.4. Language.........................................................................................................37
8.5. Setting Metric or Imperial system Units............................................................37
8.6. Machine information.........................................................................................37
8.7. Wi-fi setting......................................................................................................38
8.8. Power setting...................................................................................................38
8.9. Update for the software....................................................................................38
8.10. Value Setting................................................................................................39
8.11. Debug Log....................................................................................................39
8.12. TV Setting.....................................................................................................39
8.13. Others...........................................................................................................40

2015/3/9V1.1+V1.1
2
1. PART LIST
ITME
Description
Qty
ITEM
Description
Qty
A
frame
1
H
Computer decorative cover front
1
B
Control tube
1
I
Stuff holder
1
C
Computer
1
J
Flask holder
1
D
Seat
1
K
Lower seat cover
1
E
Handrail tube
1
L
Screw head cover
2
F
Control tube decorative cover
1
M
Screw bag
1
G
Lower computer decorative cover
1
N
Power wire
1

2015/3/9V1.1+V1.1
3
2. SCREW BAG
ITME
Description
Qty
ITEM
Description
Qty
K01
Cks hex screw M8xP1.25x25
4
K12
Cks hex screw M8xP1.25x25 stainless
steel
4
K02
Spring washer M8
4
K13
Spring washer M8 stainless steel
4
K03
Washer Φ8xΦ20x2.0t
4
K14
Washer Φ8xΦ16x1.5t stainless steel
4
K04
Truss cross screw M5xP0.8x12
2
K15
Round head cross screw NO.10-32
UNFX20mm stainless steel(with inner
toothed washer)
4
K05
Truss cross self-tapping screw Φ4x12
1
K16
Truss cross self-tapping screw Φ4x12
stainless steel
1
K06
Truss cross screw M5xP0.8x10
4
K17
Cable transferring head_PAL(M)to
Fhead(F)
1

2015/3/9V1.1+V1.1
4
K07
Truss cross self-tapping screwΦ4x12
3
K18
L shaped hex wrench+cross screwdriver
6x40x120mm(cross)
1
K08
Truss cross screw M4xP0.7x12
2
K19
Truss cross screw M5xP0.8x12
2
K09
Cks hex screw M8xP1.25x15 stainless
steel
4
K20
Truss cross self-tapping screw Φ4x10
2
K10
Spring washer M8 stainless steel
4
K21
Washer Φ4xΦ12x1.0t
1
K11
Washer Φ8xΦ16x1.5t stainless steel
4
3. ASSEMBLE STEPS
STEP 1 ASSEMBLE FRAME AND CONTROL TUBE
Make wire of frame(A) through control tube(B) and tighten control tube(B) on frame(A) with
cks hex screw(K01), spring washer(K02) and washer(K03).

2015/3/9V1.1+V1.1
5
STEP 2 ASSEMBLE CONTROL TUBE AND COTNROL TUBE
DECORATIVE COVER
Tighten control tube decorative cover(F) with truss cross screw(K04) and truss cross
self-tapping screw(K04) as figure showing, then cover screw head cover (L).

2015/3/9V1.1+V1.1
6
STEP 3 ASSEMBLE CONTROL TUBE AND COMPUTER
Connecting the wires of computer(C) and control tube(B) and tighten with truss cross
screw(K06) as figure showing, when assemble, please confirm that it has be locked to
avoid the computer releasing and damaging.
Caution:
: Lower control wire
: Network connecting wire lower
: TV cable lower
: Hand grip pulse wire middle
: Hand grip instant key connecting wire middle

2015/3/9V1.1+V1.1
7
When assemble handle bar and computer, maybe need you sit down and confirm
if there is iron tube upon you to avoid the hurt that hitting on the tube.
When assemble, please aim at the hole and confirm the way of computer.
The wires matched with computer must match with computer's hole to avoid
breaking the wire and cause short circuit.
When assemble, it need two or more than two people at least. One holds the
computer and the other connects the wires and tighten it.
STEP 4 ASSEMBLE COMPUTER DEOCRATIVE COVER, FLASK
HOLDER AND COMPUTER CONTROL TUBE
Tighten computer decorative cover front(H) on control tube with truss cross screw(K19) as
below figure showing, and fix the stuff holder(I) with truss cross self-tapping screw(K20),
then tighten flask holder(J) on control tube with truss cross screw(K08). At last, fix lower
: Hand grip instant key connecting wire upper
: Hand grip instant key connecting wire upper
: Hand grip pulse wire upper
: Control wire upper
: Hand grip pulse wire upper
: Networking connecting wire upper
: TV cable

2015/3/9V1.1+V1.1
8
computer decorative cover (G) on computer with truss cross screw(K07).
STEP 5 ASSEMBLE HANDRAIL AND SEAT
Tighten seat(D) and handrail tube(E) with stainless steel cks hex screw(K09) & spring
washer(K10), washer(K11).

2015/3/9V1.1+V1.1
9
STEP 6 ASSEMBLE FRAME AND SEAT
Insert hand grip pulse wire of seat handle bar into the socket of frame slipping rail, then
tighten seat(D) with stainless steel cks hex screw(K12) & spring washer(K13), washer(K14)
as figure showing.

2015/3/9V1.1+V1.1
10
Caution:
When assemble, it need two or more than two people at least. One holds the seat
and the other connects the wires and tighten it.
STEP 7 ASSEMBLE LOWER SEAT COVER AND FRAME
Tighten lower seat cover(K) with stainless steel round head cross s crew [ with inner
toothed washer(K15)] and truss cross self-tapping screw(K16) , washer (K21)as figure
showing, and the assembly finished.

2015/3/9V1.1+V1.1
11
4. The operation instruction of electronic meter
This machine can provide a simple and easily operated electronic meter. Users can input
personal data by the electronic meter and set each exercise target.
D

2015/3/9V1.1+V1.1
12
4.1. Electronic meter structure
A1
Information
condition
display
area
Display each condition information before
exercise, during exercise and after exercise.

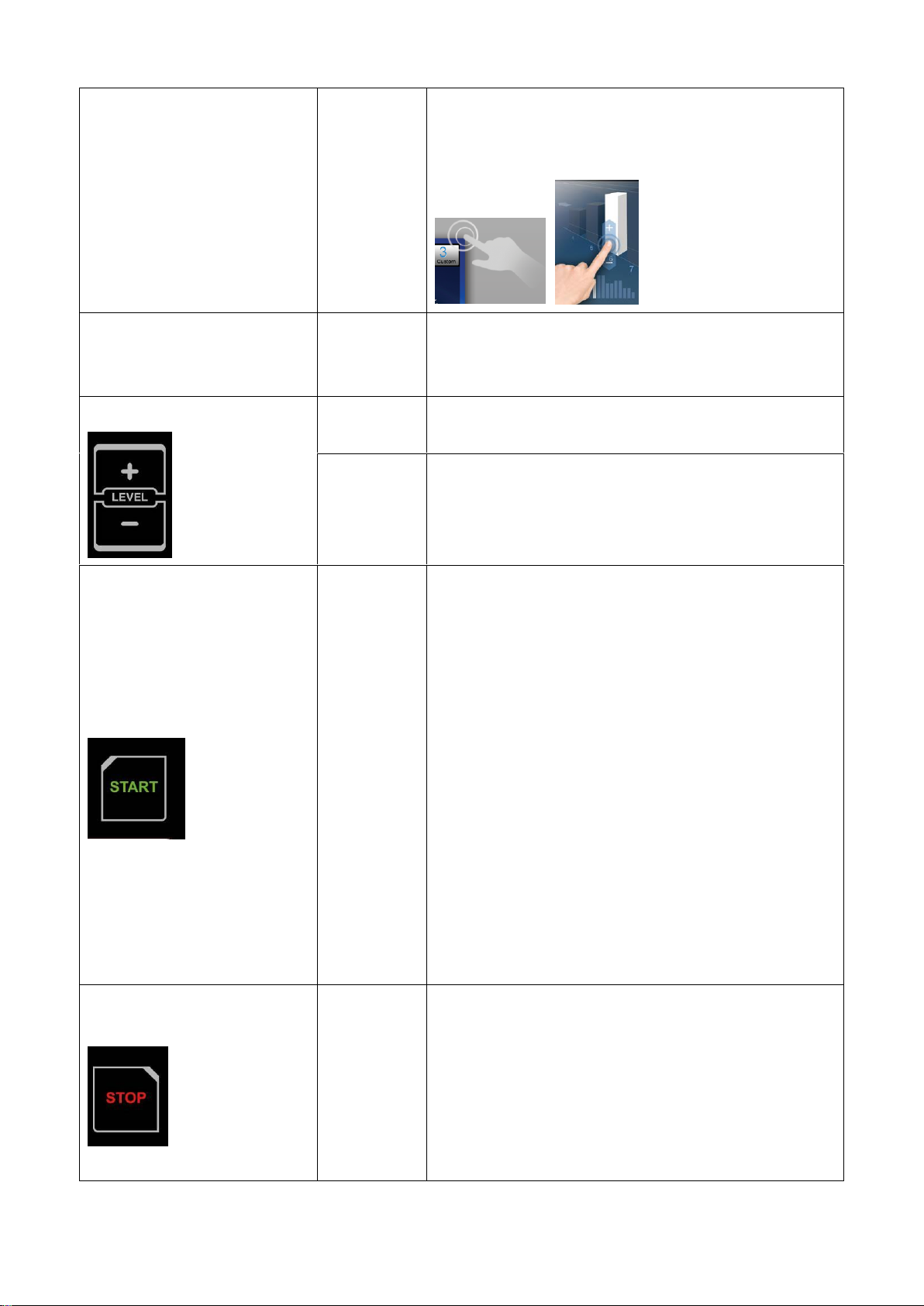

A2
Touch
The screen area has touch function. On the

2015/3/9V1.1+V1.1
13
operation
area
screen, there are operation keys for each page.
Except for pressing once, part keys support long
time pressing, finger drag and rotating.
A3
display
area
Display multiplayer picture
B1
Resistance
increase
Press the button to increase the resistance.
Scope value: 1~40 LEVEL
Resistance
decrease
Press the button to decrease the resistance.
Scope value: 1~40 LEVEL
B2
Start
(1)If press the key at any time, the program
setting can be skipped to directly enter the
optional page of exercise storage device with
default value before exercise.
(2) If the electronic meter is in the optional page
of exercise storage device and if press this key, it
can enter exercise page.
(3) If the electronic meter is in pause status and
if press this key, it can cancel pause and return
to exercise status, The speed can return to the
previous value and the lifting can continue the
unfinished target value.
(4) If the electronic meter is in course page for
exercise ending and if press this key, the
electronic meter can return to standby page.
B3
Stop
(1) If the electronic meter is in log in page and if
(1) If the electronic meter is in setting page and if
press this key, the electronic meter can return to
standby page.
(2) If the electronic meter is in optional page of
exercise storage device and if press this key, the
electronic machine can return to standby page.

2015/3/9V1.1+V1.1
14
(3) If the electronic is in exercise status or in
pause status and if press this key, this exercise
can be ended directly and enter exercise course
report.
B4
Fan
Press this button to turn on/off the fan during
exercise. The fan has high/low speed 2 section.
B5
Pause
Press this button to enter into pause state during
exercise.
Under pause state, press this button to return to
exercise mode.
Under warm up or cool down statue, press this
button to skip.
C1
The fixed
hook with
IPod wires
When IPod connection wires are not used, twine
them as U shape and hang them on the hook.
C2
USB
(1) This holes can be used for Andriod device
charging and the output power supply is 5V/1A.
(2) This holes can be used for software updating
and maintenance.
C3
Earphone
This hole can connect 3.5mm voice output
device, such as earphone.
C4
IPod
connecting
wire
This wire can connect iOS device through the
electronic meter and the following functions can
be used:
Charging function,
Reading the sound source and video inside the
device.
Nike+ function.
D
The air
outlet
holes of
fan
The air outlet angle can be adjusted by hand.

2015/3/9V1.1+V1.1
15
5. Display page introduction
5.1. Simple user interface：
The simple and obvious buttons and icons will assist users to operate as the users
wish to finish all settings and the control during exercise.
UI design of the electronic meter comes from our long term experience in fitness
equipment field, the special new technical function and users’ angle. The designed
operation environment is the fittest.
5.2. Startup page
This electronic meter isAndriod system and the loading picture can be displayed during
startup. The total loading time of the system is about 35s.
5.3. Resident area
There is a commonly existed status column at the Top right of the picture to assist users to
make an inspection at any time.
Wi_fi signal intensity
It is used for confirming the online quality of wireless network of the electronic
meter.
The online status of local area network:

2015/3/9V1.1+V1.1
16
It is used for confirming the online quality of local area network of the electronic
meter.
Language switch section
To switch the words on the screen for the users, and after choosing the language,
the system will switch automatically. During the switch, other keys are invalid.
※This language switching is real-time. When the electronic meter is turned on, the
system language can return to the default automatically which can be set under the
engineering mode.
※Resident area only display at the standby page under the non-exercise status.
5.4. Standby page
Choose Quick start or other program control in this page. Go back to this page whenever
the exercise is over.
5.4.1. Date, time and address of the system will be shown in the page center.
5.4.2. Bottom of the page is menu area of program control, total 2 pages. Change to
the next page in the method of left or right sliding. Some program control has
sub-stage. Pop-up sub-menu after pressing program control title.
5.5. Program control set page

2015/3/9V1.1+V1.1
17
5.5.1. Choose any program control in standby page, apart from Quick start, and then
enter into the set page of the program control.
5.5.2. Input the age, weight, gender…of the user in specific program control, to be
substituted into the computational formula of the SPC.
5.5.3. After the set is finished, press start key, then enter into storage device ahead
the exercise, choose the page.
5.6. Exercise storage device optional page (running and fitness with the
exercise record device)
5.6.1. Quick start or any program control can enter the page ahead the exercise.
Press OK Go or START key to enter into exercise. Press Home key or Stop key,
you can cancel it and return to standby page.
5.6.2. The page is set for the purpose that the user can choose whether to keep pace
with the following 3 exercise record devices:
CSAFE:
A set of exercise management system developed by FitLinxx is one of the
specifications widely accepted by fitness industry. The gym shall add FitLinxx
memberships and server appliance shall be installed. Use RJ45 network cable to
achieve the online and data synchronism with electronic meter. Exercise value of
fitness equipment that uses CSAFE function can be accumulated.
ANT+:
A set of exercise management system developed by Dynastream is wireless
transmission communication technology. The user shall be equipped with the
device that has ANT+ launcher established inside, such as the sport watch of

2015/3/9V1.1+V1.1
18
Garmin, FR60, Forerunner 210/310/610/910XT…or supporting smart phone, such
as HTC Rhyme、Samsung S4、Sony Z1…
Step.1 Approach the receiver inside the electronic meter by wireless induction to
conduct the pairing of devices
Step.2 Choose the pattern of ANT+ in this page, confirm the online and data
synchronism. Value between the watch (outdoor) and electronic meter (indoor)
can be accumulated.
Nike Plus：
For a set of exercise management system developed by Nike, the user shall be
equipped with Apple device that has Nike+iPod receiver established inside, such
as iPod touch 4, Nano 6, and iPhone 4.
Step.1 Connect with Apple device by iPod transmission line established inside the
electronic meter.
Step.2 Choose the pattern of Nike+ in this page to confirm the online and data
synchronism. The value can be stored inApple device in the following exercise.

2015/3/9V1.1+V1.1
19
Why are the Apple device that has Nike+iPod receiver established inside and software
designed?
iPod nano, Software version 1.2 or more advanced version
iPod touch, Software version 5.1.1 or more advanced version
iPhone 3GS~ iPhone 4, Software version iOS 5.1.1 or more advanced version
5.7. Pages of the exercise
5.7.1. Enter the page of the exercise by the mode of Quick start or program control,
and there are five areas, A/B/C/D/E.
5.7.2. Instruction of display areas
A-1 area:
The information area of motion state can display five common states of motion,
A-1
B
C
D
E
A-2
