Liebert® CRV CRC30 and CRC60
User Manual (Original Instructions)
30 kW and 60 kW, 50 Hz, Chilled Water Cooling System

Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual
Technical Support Site
If you encounter any installation or operational issues with your product, check the pertinent section of this
manual to see if the issue can be resolved by following outlined procedures.
Visit https://www.vertiv.com/en-emea/support/ for additional assistance.
The information contained in this document is subject to change without notice
and may not be suitable for all applications. While every precaution has been
taken to ensure the accuracy and completeness of this document, Vertiv
assumes no responsibility and disclaims all liability for damages result from
use of this information or for any errors or omissions.
Refer to local regulations and building codes relating to the application,
installation, and operation of this product. The consulting engineer, installer,
and/or end user is responsible for compliance with all applicable laws and
regulations relation to the application, installation, and operation of this
product.
The products covered by this instruction manual are manufactured and/or sold
by Vertiv. This document is the property of Vertiv and contains confidential
and proprietary information owned by Vertiv. Any copying, use, or disclosure of
it without the written permission of Vertiv is strictly prohibited.
Names of companies and products are trademarks or registered trademarks of
the respective companies. Any questions regarding usage of trademark names
should be directed to the original manufacturer.
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

TABLE OF CONTENTS
1 Important Safety Instructions 1
2 Product Overview 3
2.1 Model Nomenclature 3
2.2 Name Plate and Components 4
2.3 Component Location 6
2.4 Accessories 9
2.5 System Data 10
3 Pre-installation Preparation 13
3.1 Tools Required 13
3.2 Dimensions and Weights 14
3.3 Clearance Requirements 14
3.4 Inspecting the Unit 15
3.5 Moving the Packaged Unit 15
3.6 Unpacking the Unit 16
3.7 Removing the Unit from the Pallet 17
3.8 Location of the Main Grounding Point 19
4 Installing in Enclosure Row 21
4.1 Leveling the Unit 21
4.2 Combining the Unit with Adjacent Cabinets 21
4.3 Removing the Feet and Fixing the Unit (Optional) 22
4.4 Installing Top Frame and Front Frame (Optional) 23
4.4.1 Installing the Top Frame without the Front Frame 23
4.4.2 Installing the Top Frame and the Front Frame 25
5 Piping Connections 29
5.1 General Arrangement 29
5.2 Connecting Water Inlet and Outlet Pipes 31
5.2.1 Releasing Pre-charged Nitrogen 31
5.2.2 Top Connection 33
5.2.3 Bottom Connection 34
5.3 Connecting Condensate Drainage Pipes 36
5.3.1 Top Connection 36
5.3.2 Bottom Connection 36
5.4 Connecting Water Supply for Humidifier (Only for CRC30) 37
5.4.1 Top Connection 37
5.4.2 Bottom Connection 38
6 Electrical Connections 39
6.1 Connecting Power Supply Cable 39
6.1.1 Connecting Power Supply Cable for CRC30 40
i
Vertiv™Liebert®CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

6.1.2 Connecting Power Supply Cable for CRC60 40
6.2 Connecting Communications Cables 41
6.2.1 General Arrangement 41
6.2.2 Connecting the Unity Card 42
6.2.3 Connecting for Teamwork 42
6.2.4 Connecting the Water Leakage Sensor (Optional) 44
6.2.5 Connecting the Remote On/Off Device (Optional) 45
6.2.6 Connecting Remote Temperature Sensors (Optional) 45
6.2.7 Connecting the Static Pressure Sensor (Customer-Supplied) 45
7 Start-up 47
7.1 Commissioning 47
7.2 Start-up 48
7.2.1 First Start-up (or After Long Standstill) 48
7.2.2 Automatic Restart 49
8 HMI Display 51
8.1 Appearance 51
8.2 Main Functions 52
8.2.1 Home Page 52
8.2.2 Control Mode 54
8.3 Menu Structure and Parameters 54
8.4 Alarm Information 54
8.5 Teamwork Control 55
9 Maintenance 57
9.1 Maintenance Schedule 57
9.2 Facility Fluid and Piping 58
9.3 Glycol Solution 58
9.4 Spare Parts 59
9.5 Air Filters 59
9.6 Condensate Drain and Condensate Pump 59
9.7 Fan 61
9.8 Electric Heater (Only for CRC30) 62
9.9 Humidifier (Only for CRC30) 63
9.10 Dismantling the unit 64
9.11 Troubleshooting 65
10 Appendices 67
Appendix A: Menu Structure 67
Appendix B: Alarm Table 71
Appendix C: Hydraulic Schematic 73
Appendix D: Conformity to EU Directives 74
Appendix E: Technical Support and Contacts 75
ii
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

1 Important Safety Instructions
NOTE: Before moving, installing or servicing this unit, please read the Safety Instructions sheet provided as a
separate document shipped with the unit.
1 Important Safety Instructions 1
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

1 Important Safety Instructions
2
This page intentionally left blank
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

2 Product Overview
The Vertiv™ Liebert® CRV CRC30 and CRC60 chilled water cooling units are specifically created and designed for small to
medium data centers, computer rooms, equipment rooms, and similar high heat density environments.
2.1 Model Nomenclature
The following tables describe the model number for the Vertiv™ Liebert® CRV CRC30 and CRC60 cooling units.
Model Number
1 2 3 4 5 6 7 8 9 10 11 12
C R C 3 0 5 - P D 2 0 A
Table 2.1 CRC30 Model Number Example
Digit Variable Description
1
2
C
R
Vertiv™ Liebert® CRV
3 C Chilled water
4
5
30, 60 Model number
6 2, 5
2: 230 V, 1-phase, 50 Hz, CE
5: 400 V, 3-phase, 50 Hz, CE
7 - Separator
8 0, P
0: Cooling only
P: Reheat and humidifier
9 D Dual power supply
10 2 Heat exchanging medium
11 0 Free digit
12 A- Z Revision
Table 2.2 CRC30 and CRC60 Model Number Digit Definitions
2 Product Overview 3
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

2.2 Name Plate and Components
Figure 2.1 Vertiv™ Liebert® CRV CRC30 and CRC60 Name Plate Location
Item Description
1 Front door
2 Name plate on the side cover of the electrical box 2
2 Product Overview
4
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Figure 2.2 Vertiv™ Liebert® CRV CRC30 Name Plate Information
Figure 2.3 Vertiv™ Liebert® CRV CRC60 Name Plate Information
2 Product Overview 5
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

2.3 Component Location
Figure 2.4 Vertiv™ Liebert® CRV CRC30 Component Location (Front View)
Item Description Item Description
1 Left side panel 10 Filter
2 HMI display 11 Rear door
3 Front door 12 Chilled water inlet connection
4 Fan 13 Chilled water outlet connection
5 Bottom panel 14 Humidifier water supply inlet connection
6 Electric heater 15 Condensate drain pump outlet connection
2 Product Overview
6
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Item Description Item Description
7 Lower condensate drain pan 16 Top panel
8 Flow meter 17 Heat exchanger
9 Right side panel 18 Upper condensate drain pan
Figure 2.5 Vertiv™ Liebert® CRV CRC30 Component Location (Rear View)
Item Description Item Description
1 Rear door 5 Front door
2 Condensate pump 6 Electrical box 1 (main circuit breaker)
3 Humidifier 7 Electrical box 2
4 Three-way valve
2 Product Overview 7
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

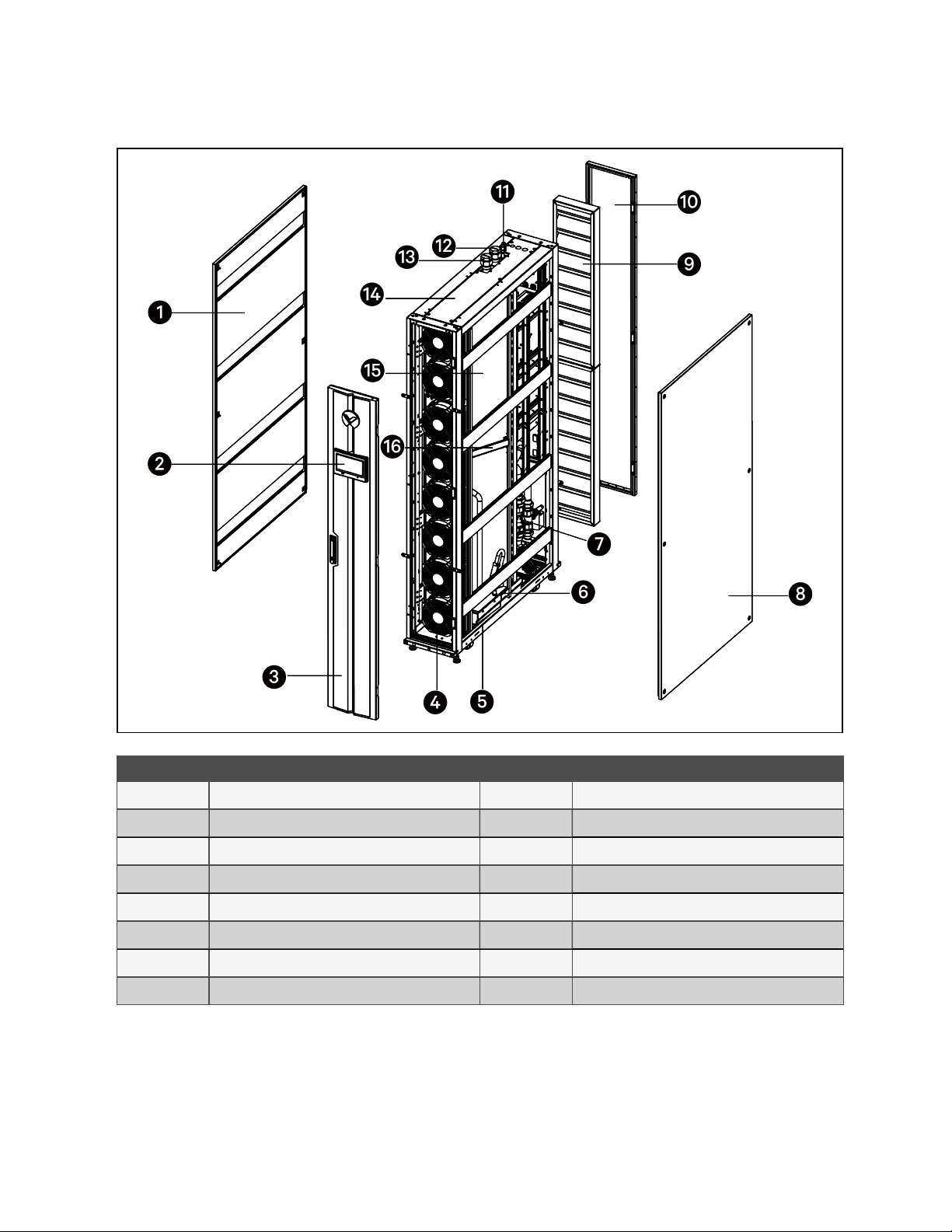

Figure 2.6 Vertiv™ Liebert® CRV CRC60 Component Location (Front View)
Item Description Item Description
1 Left side panel 9 Filter
2 HMI display 10 Rear door
3 Front door 11 Condensate drain pump outlet connection
4 Fan 12 Chilled water inlet connection
5 Bottom panel 13 Chilled water outlet connection
6 Lower condensate drain pan 14 Top panel
7 Flow meter 15 Heat exchanger
8 Right side panel 16 Upper condensate drain pan
2 Product Overview
8
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Figure 2.7 Vertiv™ Liebert® CRV CRC60 Component Location (Rear View)
Item Description Item Description
1 Rear door 4 Front door
2 Condensate pump 5 Electrical box 1 (main circuit breaker)
3 Three-way valve 6 Electrical box 2
2.4 Accessories
The accessories provided with the unit are listed in the table below.
Component Quantity Unit Model
Remote temperature sensor 1 CRC30, CRC60
Data cable 2 CRC30, CRC60
M5 × 12 cross countersunk head screw 5 CRC30, CRC60
Tie wrap 10 CRC30, CRC60
Water leakage detection sensor 1 CRC30, CRC60
2 Product Overview 9
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Component Quantity Unit Model
Water leakage detection sensor bracket 1 CRC30, CRC60
Cable for water leakage detection sensor 1 CRC30, CRC60
Plastic plug head 4 CRC30, CRC60
M12 × 30 hexagon bolt 8 CRC30, CRC60
Brass connector for drainage 1 CRC30, CRC60
Brass connector for humidifier 1 CRC30
Drainage hose 1 CRC30, CRC60
Electrical schematic diagram 1 CRC30, CRC60
Hose clamp 1 CRC30, CRC60
Baying bracket 8 CRC30, CRC60
Ramp 2 CRC30, CRC60
User manual 1 CRC30, CRC60
2.5 System Data
Parameter CRC30 CRC60
Width mm (in.) 300 (11.8) 300 (11.8)
Input power 400 V, 3-phase, 50 Hz 230 V, 1-phase, 50 Hz
Total airflow m3/h (CFM) Rated value: 5100 (3001.7)
Maximum value: 5900 (3473)
Rated value:7700 (4532)
Maximum value:7700 (4532)
Input power consumption without heater and
humidifier kW
Rated value: 1.06
Maximum value: 1.68
Rated value:1.9
Maximum value:1.9
Number of fans 7 8
Heating capacity kW 3 -
Humidification capacity kg/h (lb/h) 2 (4.4) -
Condensate pump capacity L/min @ 5 m 3.5 3.5
Air filtration efficiency G4 G4
Table 2.3 Technical Specifications
Parameter CRC30 CRC60
Return-air condition 35 °C (95 °F) DB, 24% RH, 10 °C (50 °F) EWT, 5.5
°C (10 °F) Water Rise
38 °C (100 °F) DB, 24% RH, 15 °C (59 °F) EWT, 5.5
°C (10 °F) Water Rise
Net total capacity kW
Rated value: 27.3
Maximum value: 30.2
Rated value: 39.5
Maximum value: 39.5
Net sensible capacity kW Rated value: 27.3 Rated value: 39.5
Table 2.4 Performance Data
2 Product Overview
10
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Parameter CRC30 CRC60
Maximum value: 30.2 Maximum value: 39.5
Pressure drop kPa (psig)
Rated value: 70 (10)
Maximum value: 90 (13)
Rated value: 78 (11.3)
Maximum value: 78 (11.3)
Water flow volume L/s (GPM)
Rated value: 1.26 (19.97)
Maximum value: 1.41 (22.35)
Rated value: 1.83 (29)
Maximum value: 1.83 (29)
Rated airflow m3/h (CFM)
Rated value: 5100 (3001.7)
Maximum value: 5900 (3473)
Rated value: 7700(4532)
Maximum value: 7700(4532)
Table 2.4 Performance Data (continued)
Parameter Design Condition (Minimum) Design Condition (Maximum)
Unit entering air
Temperature °C (°F) 18 (64.4) 45 (113)
Relative humidity 15% 60%
Storage conditions Temperature °C (°F) -40 (-40) 70 (158)
Power supply tolerances
Voltage ± 10%
Frequency ± 2 Hz
Table 2.5 Operating Limits
NOTE: The operating limits refer to new units and those that have been correctly installed and serviced.
Model Fan Speed
Average Sound Pressure
Level dB(A)
Location
1/3 Octave Band Center
Freq 50 Hz 63 Hz 80 Hz 100 Hz 125 Hz 160 Hz 200 Hz 250 Hz
Sound Pressure
Level dB(A)
dB dB dB dB dB dB dB dB
CRC60 100% 80.6
Front 83.3 28.8 32.7 36.5 41.1 46 50.3 54.2 57.2
Right 78 25.9 32.1 37.9 42.5 50.5 51.3 53.2 55.5
Left 78.3 26.8 29.7 38 47.6 50 49.2 53.8 53.5
CRC30 100% 76.5
Front 78.9 23.4 25.4 32.7 37.8 40.3 45.4 50.2 55.6
Right 74.5 22.3 25.8 38.1 37.8 42.8 46.9 48.9 52
Left 74.4 22.6 24 39.2 42 43.2 47.1 50.6 53.7
CRC30 89% 73.2
Front 75.6 22.5 23.4 31.1 35.6 38.3 42.1 48.5 54.5
Right 71.1 22.2 24.4 32.2 34.3 40.7 43.9 46.9 50.8
Left 71.5 26.8 23.6 33.1 39.2 41 44.7 48.2 52.9
Table 2.6 Sound Level
2 Product Overview 11
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Model Fan
Speed
Average Sound
Pressure
Level dB(A)
Location
1/3 Octave Band Center
Freq
315
Hz
400
Hz
500
Hz
630
Hz
800
Hz
1
kHz
1.25
kHz
1.6
kHz
Sound Pressure
Level dB(A)
dB dB dB dB dB dB dB dB
CRC60 100% 80.6
Front 83.3 62.2 71.3 83 69.8 67.7 73.9 72.7 75.1
Right 78 59.4 66.3 75.9 66.6 66.1 71.4 69 71.8
Left 78.3 59.9 67.4 76 69.2 66.1 70.4 69 72
CRC30 100% 76.5
Front 78.9 61.9 70.2 67.9 65.6 68.8 69.5 72.6 73.9
Right 74.5 57.4 69.3 66.6 63.9 66.3 65.2 67.5 69.4
Left 74.4 58.4 68 66.1 63.1 65.8 65 67.6 68.7
CRC30 89% 73.2
Front 75.6 61.2 68.3 62.9 63.2 67.6 66.4 68.8 68.8
Right 71.1 56.5 64.7 60.2 61.6 66 62 64.9 64.3
Left 71.5 58 66.9 61.4 61 65.6 61.9 64.7 64
Model Fan Speed
Average Sound
Pressure
Level dB(A)
Location
1/3 Octave Band Center
Freq 2 kHz 2.5 kHz 3.15 kHz 4 kHz 5 kHz 6.3 kHz 8 kHz 10 kHz
Sound Pressure
Level dB(A)
dB dB dB dB dB dB dB dB
CRC60 100% 80.6
Front 83.3 75 75.9 73.9 71.9 69.6 67.3 63.6 58.7
Right 78 70.3 71.1 68.1 65.3 63.5 59.7 55.7 50
Left 78.3 70.7 71.7 68.8 65.9 63.6 60.1 55.3 49.5
CRC30 100% 76.5
Front 78.9 71.9 73.8 71.3 69.5 66.3 64.4 60.6 56.3
Right 74.5 66.7 68.1 65.1 62 59.7 56.2 51.9 46.8
Left 74.4 67.3 69.1 65.8 62.4 62 56.1 51.3 45.5
CRC30 89% 73.2
Front 75.6 69.3 71.2 67.9 65.8 62.4 60.4 56.4 52.2
Right 71.1 63.9 64.8 61.9 58.3 55.9 52.4 48.1 42.8
Left 71.5 64.2 65.4 62.5 58.7 55.9 52.3 47.3 41.5
NOTE: The sound level is measured in free field at three locations, each of which is 1 m (3.3 ft) high and 2 m (6.6 ft)
away from the air conditioner, with fans in operation.
2 Product Overview
12
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

3 Pre-installation Preparation
WARNING! Risk of top-heavy unit falling over. Improper handling can cause equipment damage, injury or
death. Read all of the following instructions and verify that all lifting and moving equipment is rated for the
weight of the unit before attempting to move, lift, remove packaging from or prepare the unit for installation.
CAUTION: Risk of contact with sharp edges, splinters, and exposed fasteners. Can cause injury. Only
properly trained and qualified personnel wearing appropriate, OSHA-approved PPE should attempt to move,
lift, remove packaging from or prepare the unit for installation.
NOTICE
Risk of passageway interference. Can cause unit and/or structure damage. The unit may be too large to fit
through a passageway while on or off the skid. Measure the unit and passageway dimensions, and refer to the
installation plans prior to moving the unit to verify clearances.
NOTICE
Risk of damage from forklift. Can cause unit damage. Keep tines of the forklift level and at a height suitable to
fit below the skid and/or unit to prevent exterior and/or underside damage.
NOTICE
Risk of improper storage. Keep the unit upright, indoors and protected from dampness, freezing temperatures
and contact damage.
NOTICE
Risk of a leaking coil due to freezing during improper storage. Can cause equipment and serious building
damage.
3.1 Tools Required
The following tools are required for the installation. These tools are not provided with the unit.
Electric hand drill Adjustable wrench
Slotted screwdriver Cross head screwdriver
Stepladder Forklift
Level Wire cutting pliers
Claw hammer Diagonal cutting pliers
Insulating shoes Antistatic gloves
Electrician knife Cable ties
Insulating tape Insulating gloves
Table 3.1 Tools Required
3 Pre-installation Preparation 13
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Crimping pliers Heat shrinkable tube
Insulated torque wrench Torque screwdriver
Multimeter Clip-on ammeter
Table 3.1 Tools Required (continued)
3.2 Dimensions and Weights
Figure 3.1 Unit Dimension
Model Unit Dimensions (Wide x Depth x Height) mm
(in.)
Shipping Dimensions (Wide x Depth x Height) mm
(in.)
Net Weight kg
(lb)
Shipping Weight kg
(lb)
CRC30 300 × 1132 × 2000 (11.8 × 44.6 × 78.7) 776 × 1276 × 2228 (30.6 × 50.2 × 87.1) 242 (533.5) 322 (709.9)
CRC60 300 × 1132 × 2000 (11.8 × 44.6 × 78.7) 776 × 1276 × 2228 (30.6 × 50.2 × 87.1) 235 (518) 315 (694.5)
3.3 Clearance Requirements
Leave enough space for installation, maintenance, and repair. The clearance required for accessing and maintaining the
unit is shown in the figure below.
NOTE: 915 mm (36 in.) distance should be reserved in front of the front door and the rear door for maintenance and
repair purposes.
3 Pre-installation Preparation
14
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Figure 3.2 Vertiv™ Liebert® CRV CRC30 and CRC60 Clearance Requirements Unit mm (in.)
3.4 Inspecting the Unit
Upon arrival of the unit and before unpacking:
•Verify that the labeled equipment matches the bill of lading.
•Inspect that there are no visible or concealed damages on the package.
•Check that the tilt monitor indicator on the package is not red. If it becomes red, tipping has occurred.
Report damage immediately to the carrier and file a damage claim with a copy sent to Vertiv™ or to your sales
representative.
3.5 Moving the Packaged Unit
Transport the unit with a forklift. When using the forklift:
•Make sure the fork length is suitable for the width of the pallet.
•Do not tilt the unit more than 20 degrees in any direction to prevent the unit from falling over.
•Refer to the following figure for the location of the center of gravity.
3 Pre-installation Preparation 15
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual

Figure 3.3 Center of Gravity
Center of Gravity X Y Z
CRC30 and CRC60 150 ± 50 mm (5.9 ± 2 in.) 550 ± 50 mm (21.7 ± 2 in.) 970 ± 100 mm (38.2 ± 3.9 in.)
3.6 Unpacking the Unit
To unpack the unit:
1. Pull straight the latches on the wooden box using a claw hammer.
2. Remove the side wooden panels. And then remove the top wooden panel and the cushioning from the top of the
unit.
3. Remove the starch wrap that attach the ramp to the unit. Remove the ramp and set it aside until needed for
moving the unit. Remove the bag around the unit.
3 Pre-installation Preparation
16
Vertiv™ Liebert® CRV CRC30 and CRC60 Chilled Water Cooling System User Manual
