VES eView User manual

VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
Issue Date: 10/16/2009
eView Installation Manual

VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
Revision History
Revision Date Status Description
E01.00 08/26/2008 Initial release Modify original from parent company.
E01.01 09/08/2008 internal edits Added part number to manual. Change name of remote annunciator from “VES Information
Display” to “eView””. Change contact information from “Central Time” to “Eastern Standard
Time”. Global change of eLITE to Elite Panel. Remove reference to eView without a control
keyswitch. Remove reference to items included with the eView packaging. Global change
from DIL to DIP. Add US units of measurement to metric. Add reference for configuring with
Loop Explorer and eSP Discovery. Change from Syncro and Syncro AS to eLAN and Elite.
Update VES part numbering. Increased font-size of title and centered image on front-cover.
E01.02 09/16/2008 Internal edits Added RMA and warranty return process in Introduction, Section 1. Added “location security”
to step one of “To complete the installation:”, Installation, Section 3. Identify correct values for
Specifications, Appendix A. Added step#2 to Installation, Section 3, “Remove AC and battery
power to the eLAN or Elite Panel”.
E01.03 11/20/2008 Content changes
under UL project
08CA27859.
Removed VESNet, eNET and firmware reference from first paragraph of Section 2,
Overview. Re-drafted this paragraph to include reference to the buzzer annunciation and
silence, the front-panel controls, the use of level 2 and the RS485 connection. Added low
temperature, high temperature and relative humidity to the Operating Environment section of
Appendix A, Specifications.
Changed document revision on all footers from E01.02 to E01.03.
E01.04 01/14/2009 Content changes
under UL project
08CA27859.
Added maximum input rating of 24 VDC @ 110 mA to Appendix A, Specifications, Electrical.
Changed the range of wire sizes from “18 through 24 AWG” to “14 through 24 AWG” on page
10 of 16 in Section 3, Installation, Before You Begin. This change was performed to be
consistent with terminal block information provided in Appendix A, Specifications Electrical.
Replaced VES logo header on cover. Corrected header spacing. Removed page count from
back cover. Page count changed from 17 to 16. Changed inconsistent header spacing to
consistent spacing throughout document. Corrected spelling.
Changed the document revision on all footers from E01.03 to E01.04.
E01.06 02/05/2009 Non-content
changes
Updated photo on front cover and in Section 1, Introduction. Changed dimensions from
metric to US standard in Section 3, Installation, Mounting. Replaced VES logo on legal page.
E01.06 10/16/2009 Non-content
changes
Added RS panel illustration to Section 3, Installation.

VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
Underwriters Laboratories (UL)
File number (S 8485)
Fire Alarm Equipment
VES, LCC
NFPA
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Installation Manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense. Any changes or modifications not expressly approved by VES, LCC could void the user’s
authority to operate this equipment under the rules and regulations of the FCC.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
All other product or service names are the property of their respective owners.
VES is a registered trademark of VES, LLC.
Copyright 2009 by VES, LLC
All rights reserved
©

Contents
i
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
Section 1
Introduction
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Writing styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
If You Need Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Contacting VES Tech Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
RMA Returns Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Warranty Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Advanced Replacements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Suspect-Product Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Return Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Section 2
Overview
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Section 3
Installation
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

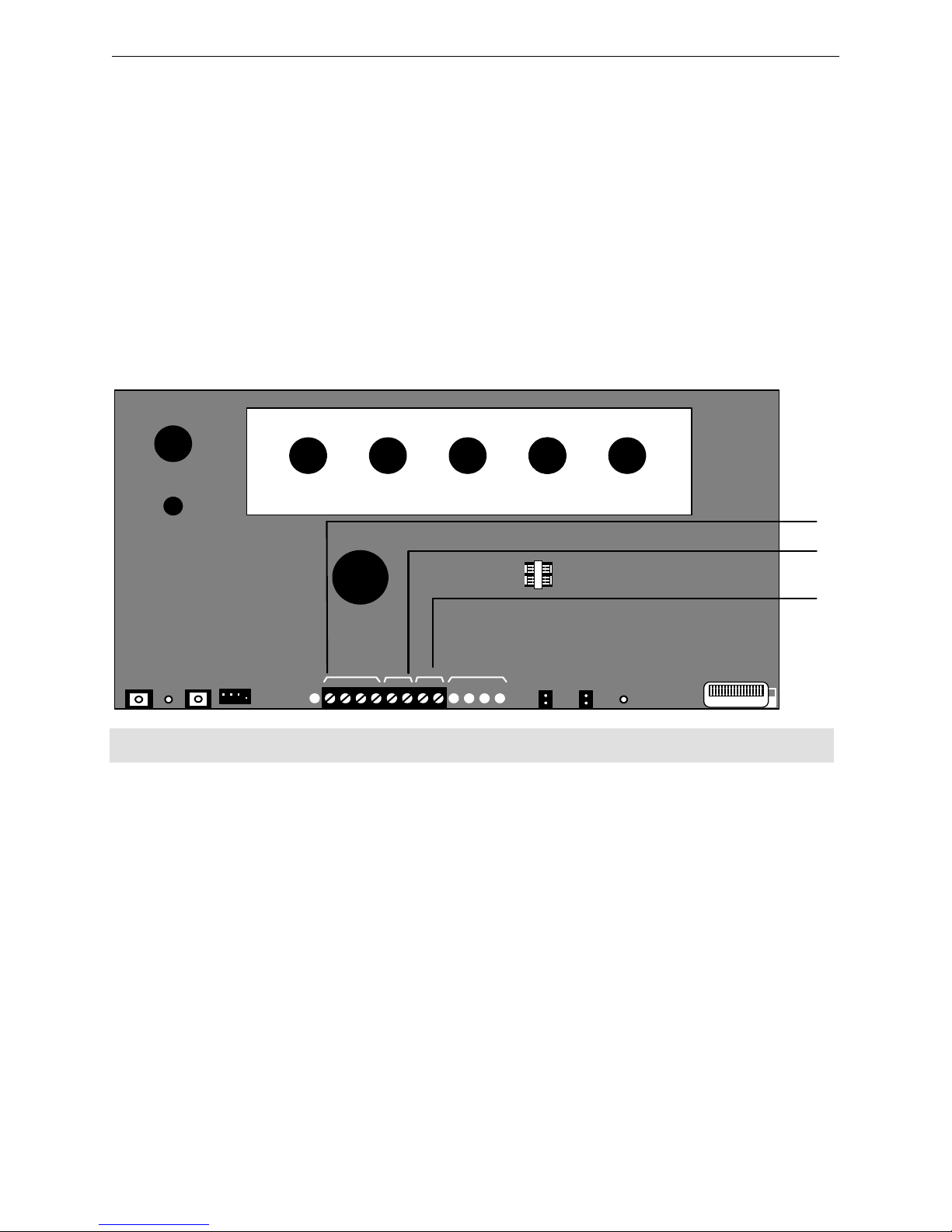

Connecting the Circuit Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Data Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Connecting to the eLAN or Elite Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting to the eLAN-RS or Elite-RS Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting to the eView . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Testing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Processor and Watchdog Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Contents
ii
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
Appendix A
Specifications
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Contents
iii
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
This page intentionally left blank.

Introduction 1
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
1 of 16
This manual describes the installation of eView, VF1172-00 and trim ring kit VF1173-00.
This section describes:
• Using This Manual
• Related Documentation
• Document Conventions
• If You Need Help
• Contacting VES For Repair
The figure below illustrates the front-panel of the eView, VF1172-00:
Figure 1-1
eView Front-Panel
Specify Trim Ring Kit VF1173-00 for recessed-wall-mounting of the eView.
Section 1
Introduction

Introduction 1
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
2 of 16
Using This Manual
The following sections provide instructions for installing, testing and troubleshooting the eView:
Related Documentation
The following documents shall be used to provide additional information for installing the eView:
• eLAN H Installation Manual With Releasing VF1615-00, Rev.E05.XX
• eLAN A Installation Manual With Releasing VF1635-00, Rev.E02.XX
• Elite H Installation Manual, VF3515-00, Rev.E02.XX
• Elite A Installation Manual, VF3514-00, Rev.E02.XX
• eMatrix Installation Manual VF3513-00, Rev.E01.XX
Document Conventions
This document contains conventions for part numbers and writing style.
Part Numbers
Part numbers are provided in Section 1 and Appendix B of this manual. Refer to Appendix B, Equipment List for a
complete list of part numbers required for completing this installation.
Writing styles
Before you begin using this installation manual, familiarize yourself with the following stylistic conventions:
Section 1 Introduction provides document conventions, the technical help-line, repair and return
information.
Section 2 Overview provides a summary features of the eView.
Section 3 Installation describes how to install, configure and troubleshoot the eView.
Appendix A Specifications provides operating characteristics of the eView.
Bold type Indicates text that you must type exactly as it appears or indicates a default value.
Italic type Denotes a displayed variable, a variable that you must type, or is used for emphasis.
Courier font Indicates text displayed on a computer screen.

Introduction 1
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
3 of 16
If You Need Help
If you need technical support contact VES at (800) 274 - 9514 or email [e-mail].
VES technical support is available Monday through Friday, 8:00 AM to 6:00 PM, Eastern Standard Time.
Contacting VES Tech Support
On-site technicians familiar with the product issue should contact VES Tech Support and include the:
• Product part number
• Purchase order or VES order number
• Product serial number
• Current function of the product
• Expected function of the product
• Installation of the product
RMA Returns Required
A Return Material Authorization (RMA) must be assigned to all products returning to VES. VES Tech Support will
assign an RMA to a returning product after recording information collected from the on-site technician. VES cannot
not accept product-returns that do not include an accompanying RMA number.
An RMA number is assigned when:
• A product issue is acknowledged by a VES Tech Support representative
• A product was damaged during shipping
• An order was placed using an incorrect part number *
• An order was placed using an incorrect part quantity *
• An order is no longer required *
* Restocking fees may apply.
Warranty Returns
VES Tech Support can replace a defective product when the original purchase is within the warranty period defined
in the sales contract. Check your sales-contract for more information or contact your VES sales representative about
the warranty period described in your sales-contract.
Warranty products that have been placed in service will be repaired or replaced by VES.
Warranty products that have not been placed in service will be returned to VES stock and an equivalent credit will be
provided to the contractor.

Introduction 1
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
4 of 16
Advanced Replacements
Suspect-products that fail to operate in the field can be replaced quickly using the advanced replacement process.
The advanced replacement process is available to all contractors who maintain an acceptable line of credit with VES.
Initiate the advanced replacement process by requesting an RMA number from a VES Tech Support representative.
Advanced replacements can be shipped to your location when the suspect-product is covered under warranty and
when a replacement product is in stock. All advanced replacement products are shipped UPS ground.
Expedited Replacements
Advanced replacements can be expedited at the request of the contractor. Shipping costs associated with this
process are the responsibility of the contractor.
Returning Products
Suspect products returning to VES using the advanced replacement process must be received 30 days from the RMA
issue-date. Contractors can be billed for returning products received following this 30 day period.
Suspect-Product Testing
Suspect-products returned to VES are tested to confirm operating failures experienced in the field.
If the suspect-product is found to be functional, contractors must absorb the following expenses:
• Shipping of the advanced replacement product
• Return-shipping of the suspect-product
• Cost of the advanced replacement product
Product Return Address
Prominently display the RMA number on all packages sent to VES for return.
Ship all return products to:
Attention: RMA # _____________
VES, LLC
620 Allendale Road, Suite 175
King of Prussia, PA. 19406

Introduction 1
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
5 of 16
This page intentionally left blank.

Overview 2
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
6 of 16
The eView provides annunciation and control while operating on the COMMS ( + , - ) terminals of the eLAN and
Elite Panel. The COMMS ( +, - ) terminals provide an RS485 communication path to devices such as the VES eView.

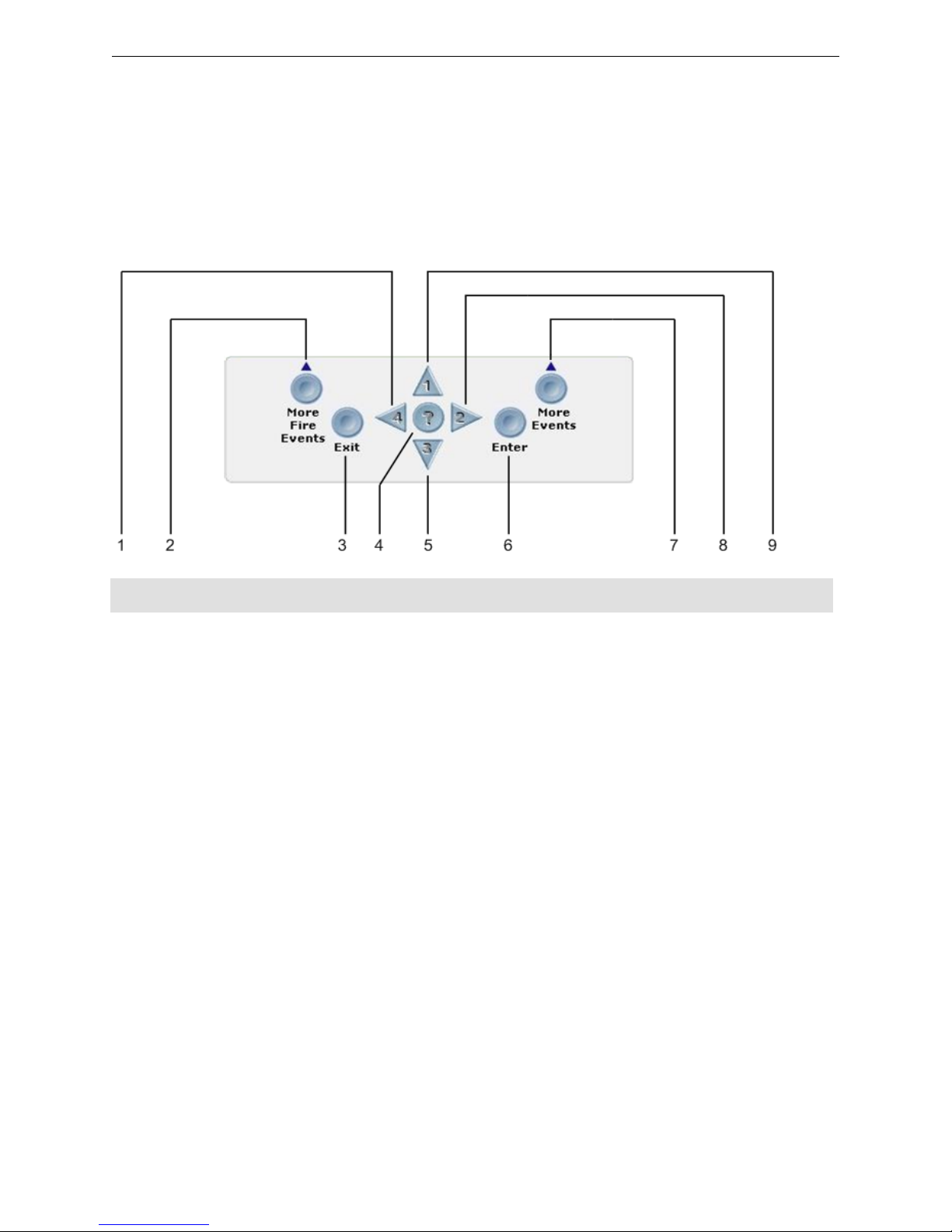

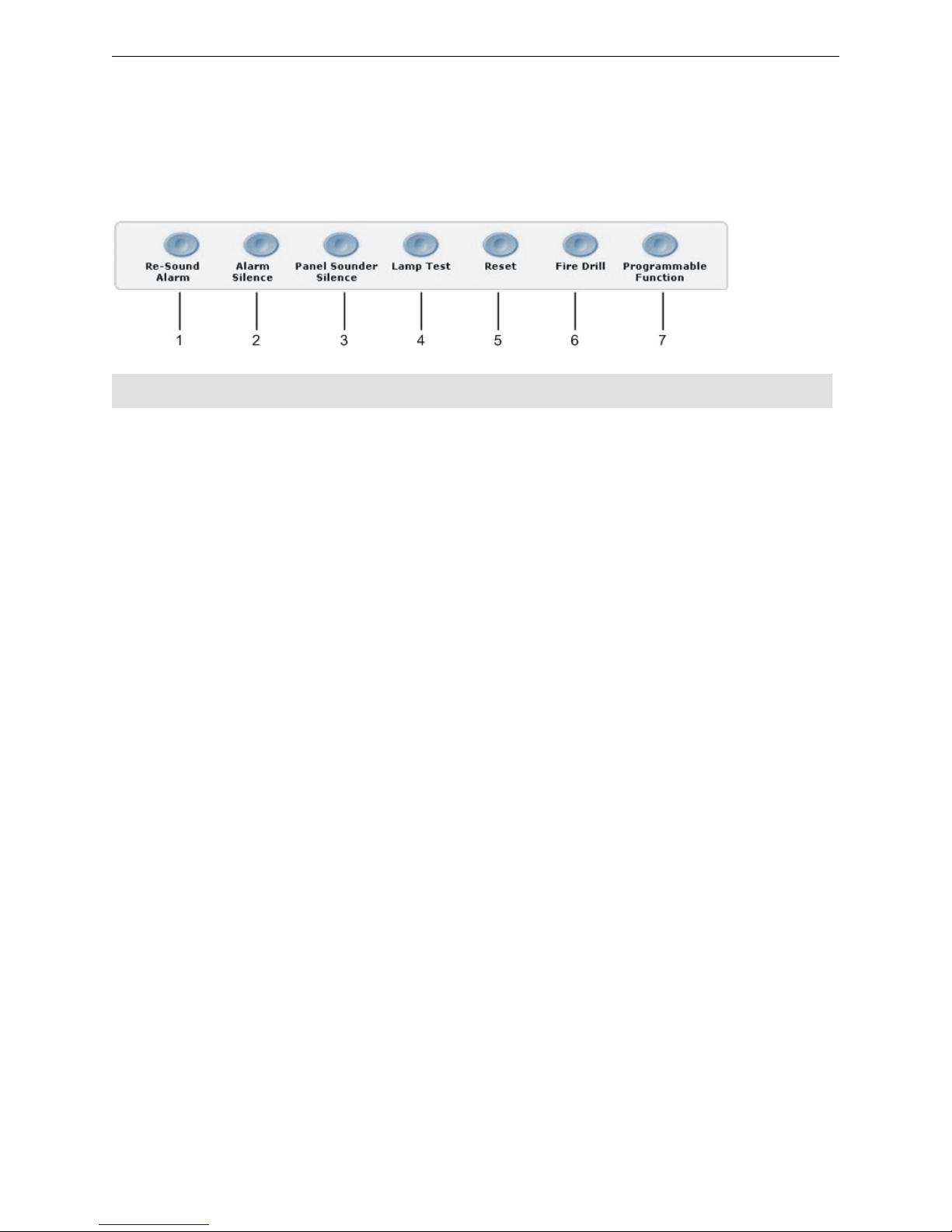

Front-panel controls and indicators of the eView are identical to those provided on the eLAN and Elite Panel.
Operate Access Level 2 on the eView exactly as performed on the eLAN and Elite Panel.
The RS485 communication path does not support the simultaneous operation of Level 2 on multiple eViews.
Operate Level 2 on one eView at a time when multiple eViews are connected on the RS485 communication path.
The buzzer of the eView can annunciate and silence in unison with the eLAN and the Elite Panel. The buzzer can also
annunciate or silence locally using the front-panel controls of the eView.
Controls and Indicators
The figure below illustrates controls and indicators of the VES eView:
Figure 2-1
Controls and Indicators
Key Description
1LCD display
2Left-panel-indicators
3Upper-control-pad
4Lower-control-pad
5Right-panel-indicators
6Access level keyswitch
24513
13:30 Friday 12 May 2008
AUTO CONFIGURED PANEL
USE ARROW KEYS TO ENABLE PANEL
PRESS ? FOR HELP
Enable
Access
6
Section 2
Overview

Overview 2
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
7 of 16
Controls
The VES eView contains upper-panel and lower-panel control-pads.
Upper-Control-Pad
The figure below illustrates the eView upper-control-pad:
Figure 2-2
Upper-Control-Pad
Key Name Description
1Central keypad number four Navigates menu selections to the left.
2More Fire Events Displays the number of alarms present on the
eView and overrides the display provided by menu navigation.
3Exit Cancels the current menu selection.
4Central keypad question mark Provides a “help screen” for the current menu display and also dis-
plays status. For example, recommendations are displayed during
alarm or fault conditions. If a menu function is accessed then help
relating to that function will be displayed.
5Central keypad number three Navigates menu selections down.
6Enter Enables the menu selection.
7More Events Displays the number of events present and overrides menu naviga-
tion. Provides event status for Fire, Pre-Alarm, Trouble,
Disablements and Other.
8Central keypad number two Navigates menu selections to the right.
9Central keypad number one Navigates menu selections up.

Overview 2
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
8 of 16
Lower-Control-Pad
The figure below illustrates the eView lower-control-pad:
Figure 2-3
Lower-Control-Pad
Key Name Description
1Re-Sound Alarm Re-sounds the alarm in Access Level 2 when sounders are muted with the
Alarm Silence button.
2Alarm Silence Silences NACs connected to the eView after receiving authorization
through Access Level 2.
3Panel Sounder
Silence
Mutes the internal buzzer of the eView. No other sounder outputs are
affected by this operation.
4Lamp Test Tests front-panel indicators and the internal buzzer by illuminating all LEDs
while darkening the front-panel display and sounding the buzzer.
5Reset Resets latching inputs such as fire and pre-alarm events after receiving
authorization through Access Level 2. Fault events are non-latching inputs
and cannot be cleared by the Reset button. Non-latching inputs are cleared
when faults are cleared.
6Fire Drill Provides a fire drill for the eView after receiving authorization through
Access Level 2. During the drill:
• The “On Test” LED illuminates continuously
• The “Fire” LEDs blink
• The internal buzzer sounds intermittently
• The display provides the message,
“FIRE DRILL:FIRE DRILL ZONE 00*
To stop the fire drill:
1 Press 4 to display the “SET ACCESS LEVEL 2 MENU”.
2 Provide Access Level 2 authorization.
3 Press Reset or Fire Drill on the lower-control-pad.
7Programmable
Function
Activates inputs, outputs or actions defined in the configuration when in
Access Level 2.

Overview 2
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
9 of 16
Indicators
The VES eView contains left and right panel-indicators.
Left-Panel-Indicators
The figure below illustrates left-panel-indicators:
Figure 2-4
Left-Panel-Indicators
Right Panel Indicators
The figure below illustrates right panel indicators:
Figure 2-5
Right Panel Indicators
Key LED Color
1Fire, NAC Output State
- Flashing = NACs Activated
- ON Continuous = NACs silenced
- OFF = Panel and NACs Reset
Red
2Fire, NAC Output State
- Flashing = NACs Activated
- ON Continuous = NACs silenced
- OFF = Panel and NACs Reset
Red
3AC Power On Green
4Pre Alarm Yellow
5Fire Output Active Red
6On Test Yellow
7Panel Sounder Silenced Yellow
8Delay Active Yellow
9More Events Yellow
10 Point Bypassed Yellow
1
2
3
4
5
6
7
8
1
0
9
Key Description Color
1General Trouble Yellow
2Power Trouble Yellow
3System Trouble Yellow
4NAC Trouble Yellow
5Supervisory Alarm Yellow
1
4
5
2
3

Installation 3
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
10 of 16
This section provides instructions for connecting cables, mounting and testing the eView.
To complete the installation:
Install this product in accordance with NFPA 72, the National Electrical Code and all local codes.
Before You Begin
Before you begin the installation, take a few minutes to review the installation information, gather the required items,
and complete the tasks listed below to make the installation as quick and easy as possible.
Acquire the following items that are not included with the eView, but may be required for the installation:
Mounting
Determine the best location for the eView before mounting it. Surface mounting devices should be mounted on a dry,
flat surface. Position the device for mounting so that it is at eye height and level.
Secure the eView to a mounting location using four-screws that are 1/64” in diameter.
The eView should not be mounted in the proximity of heat sources or placed inside enclosures that do not have ade-
quate ventilation.
Cables should be connected using suitable cable connections. If additional cable entry points are required, all debris
caused by drilling of additional cable entries must be cleared before power is applied.
1 Notify the monitoring center and local security that the eLAN or Elite Panel will be temporarily out of service
when installing the eView.
2 Remove the eView from its packaging and check its contents.
3 Mount the eView and connect cabling for power and communication.
4 Applying power to the eView.
5 Configure the eView using eSP Discovery when networking eLAN Panels on the VESNet or configure the
eView using Loop Explorer when networking Elite Panels on the eNet.
Item Quantity Description
Communication Cabling 1 Specify required lengths of 14 through 24 AWG.
Power Cabling 1 Specify required lengths of 14 through 24 AWG.
Ground Strap 1 A ground strap is required for handling circuit boards.
The ground strap is not provided in the packaging of the eView.
Section 3
Installation

Installation 3
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
11 of 16
Figure 3-1 illustrates surface and flush-mounting positions of the eView:
Figure 3-1
Mounting Positions
Connecting the Circuit Board
Terminate all wiring connections at the single row of terminals located along the bottom of the eView circuit board.
Shielded fire alarm cable such as FP200 and metal-cable-connectors must be used for all connections. The resistance
of any conductor of the data cable must not exceed 25 ohms. The shield of the cable must be connected securely to
the enclosure and to the metal-cable-connector.
Wiring
Wiring should enter the cabinet at the knockouts provided at the back and top of the enclosure. Wiring must not cross
the front of the eView circuit board. Wiring must be dressed away from the eView circuit board when cabling enters
the enclosure at locations other than the knockouts.
Data Termination
Up to 15 devices can be connected to an eLAN or Elite Panel. In and out terminals for data and 24V DC are
provided on each device. All devices are supplied with a push-on-jumper at position J3 on the left of the PCB. This
jumper connects a terminating resistor which needs to be in place for the last device on the data-line.
Remove all jumpers except the last device on the data-line if more than one device is connected.
If there is only one device connected then the jumper should be left in place.
The COMMS LED will flash quickly when a device is communicating with the eLAN or Elite Panel.
The COMMS LED will not illuminate when a device is disconnected on the eLAN or Elite Panel.
Secure the eView to a flat
surface using suitable wall
mounting hardware.

Installation 3
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
12 of 16
Connecting to the eLAN or Elite Panel
Figure 3-2 illustrates connections to the eLAN or Elite Panel:
Figure 3-2
eLAN or Elite Panel Connections
Connecting to the eLAN-RS or Elite-RS Panel
Figure 3-3 illustrates connections to the eLAN-RS or Elite-RS Panel:
Figure 3-3
eLAN-RS or Elite-RS Panel Connections
TO DISPLAY
WARNING!
DO NOT PLUG OR UNPLUG RIBBON CABLES WHILE
BOARD IS POWERED.
STATIC SENSITIVE CIRCUITS. OBSERVE STATIC
HANDLING PROCEDURES AT ALL TIMES
REMOTE PSU
BATTERY DISCONNECT
BATTERY LOW
AC POWER FAILURE
GROUND FAULT
CHARGER TROUBLE
24VDC
- - + +
l
l+
l
FIRE
ROUTING
+
-
TROUBLE
ROUTING
PROGRAMMABLE
OUTPUT
COMMS
l+
AUX
24V
l+
NETWORK
IN
l+l +
ADDITIONAL
I/O BOARDS
+
-
+
-
1.
TBL
3.
INT
4.
CNT
5. SIL
6.
PR1
7.
PR2
REMOT
E
CONTRO
L
REMOTE
CONTROL
AND AUX.
INPUT
0
V
1. TBL
2. RES
3. INT
4. CNT
5. SIL
0V
6. PR1
7. PR2
8. PR3
NETWORK
OUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
+ -
OUT
- +
OUT
- + NC C NO
OUT
- +
- +
IN
- +
LOOP 4
OUT IN
- +
- +
IN
- +
LOOP 3
OUT IN
- +
- +
IN
- +
LOOP 2
OUT IN
- +
- +
IN
- +
LOOP 1
OUT IN
- +
- + NC C NO
TROUBLEFIRE 1
NC C NO
FIRE 2
NC C NO
SUPERVISORY
NC C NO
AUXILARY
NC C NO NAC 1
+ -
NAC 2
+ -
NAC 3
+ -
NAC 4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
A
B
C
D
Key Description
AConnects to COMM IN
+ terminal of eView.
BConnects to COMM IN
- terminal of eView.
CConnects to IN 24V
terminal of eView.
DConnects to IN 0V
terminal of eView.
P2R
P2T
L2R
More Events
General
Disablement
General Trouble
Power Trouble
Supervisory
24V OUT AUX 24V
+ -
+ - NC C NO
TROUBLE
NC C NO
FIRE
NC C NO
SUPERVISORYNAC 1 NAC2
+ - + -
NET OUT NET IN
+ - + -
COMMS
+ -
SLC1 OUT SLC1 IN
+ - + -
SLC2 OUT SLC2 IN
+ - + -
1
2
3
4?
8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
38 39 40 41
A
B
C
D
Key Description
AConnects to IN 24V
terminal of eView.
BConnects to IN 0V
terminal of eView.
CConnects to COMM IN
+ terminal of eView.
DConnects to COMM IN
- terminal of eView.

Installation 3
VES, LLC
eView Installation Manual VF3510-00, Revision E01.06
13 of 16
Connecting to the eView
The eView provides connections for RS485 communication and 24 VDC power.
To provide these connections on the eView:
Figure 3-4 below illustrates eView terminal connections on the Control Unit Board:
Figure 3-1
Device Connections
1Remove four screws from the front-panel of the eView.
2 Remove the rear cover.
3 Connect RS485 communication to the terminals of COMM1.
4 Connect 24 VDC power to terminals of 0V and +24V.
Key Name Description
1COMM1 Input terminals for RS485 serial bus communication.
20V Negative power terminal ( - ) for 24 VDC return.
3+24V Positive power terminal (+) for 24 VDC.
K6017 ISS.04
SERIAL NUMBER
COMMS
ACTIVE
FIT JUMPER
FOR END OF LINE
COMM1
COMM2
ADDRESSRESET
S1
PF
COMM2
COMM1 +24V
0V
RESET W/DOG
S579US -113290-401234
ON KS
1
2
3
- + - + - + - +
