Vessel Ion Bazooka BBZ-E Manual

your solution partner Instruction Manual
Thank you for purchasing our Stat Clean No. BBZ-E.
Read this instruction manual before use. Keep it in a safe handy place for future reference.
Table of Contents ■For Your Safety·······························P.2
■Product Features ···························P.3
■Production Specifications·············P.4
■External View··································P.5
■Performance ···································P.6
■Installation ······································P.7
■Operation ········································P.8
■Maintenance ···································P.10
■Troubleshooting·····························P.13
■Storage············································P.14
■
W
arrant
y
··········································P.16

■For Your Safety
Safety Precautions
●Carefully read these Safety Precautions before use. Observe the precautions indicated herein to
ensure safety.
●Safety precautions in this instruction manual are categorized into two types by the degree of
danger associated with each on the followings. Based on danger analyses performed by Vessel,
all precautions in this instruction manual are of the CAUTION level.
●If the equipment is used in a manner not specified by the manufacturer, the protection provided
by the equipment may be impaired.
WARNING Indicates that improper handling can lead to serious injury or even death.
CAUTION Indicates that improper handling can lead to minor injury and property
damage.
This symbol indicates a WARNING or CAUTION.
This symbol indicates a prohibited action.
This symbol indicates a mandatory required action
CAUTIONS
ROHIBITED
Do not use BBZ-E in environments that require explosion-proofing. BBZ-E
is not of explosion-proof construction, therefore explosion or fire may
occur.
ROHIBITED Do not use BBZ-E in flammable atmospheres. The corona discharge can
act as an ignition source and cause an explosion or fire.
ROHIBITED Do not use BBZ-E in environments subjected to sharp temperature
fluctuations or dewing. This kind of environment can lead to breakdown.
DO NOT WET
Do not use BBZ-E in highly damp places or anywhere it may be wet by
water, oil, solvent or other liquid. Contact with moisture can result in
electric shock or breakdown.
PROHIBITED Do not use BBZ-E for anything other than static erasure or dust removal.
PROHIBITED
Do not use BBZ-E with power supplies of ratings not specified in the
specifications. Inappropriate power supplies can result in fire and electric
shock.
PROHIBITED Do not install, use or service BBZ-E until having understood the
information in this instruction manual.
REMEMBER Keep this instruction manual in a safe handy place for future reference.
CAUTION Vessel assumes no responsibility whatsoever for consequences arising
from the use of this product.
PROHIBITED Never look Into high luminance light beam with your naked eye.
2

3
■Product Features
Special Features
The BBZ-E is the high-performance ionizer that is focused on the noise reduction, the expansion of
the static eliminating area and the durability.
* Corona Discharge AC type
AC corona discharge performance won't dirt the needle nor the Ion balance off.
High frequency voltage transformer produces ion in its high performance without ion re-uniting loss.
* Silent Nozzle
The BBZ-E is an e
xcellent noise reduction model. It is about 10 db lower noise compared to
conventional model with the standard nozzle.
* High Luminance LED Beam Built-in
This high luminance LED beam makes it easy to check fine dusts stained on the surface of the articles.
* LED Display
Both sides of Handle Grip display "ON" LED and "ALARM" LED for clear checking by left or right handed.
･Working "ON" display :Working "ON" Green LED at Power Switch
･High Voltage Warning :RED H.V. LED blinks when High Voltage Alarming is found in the power
supply and output shuts down by the built-in transformer.
* Compact and Light Weight
High Voltage power supply cable is not necessary. High Frequency Voltage Transformer is built in for
safety, this compact design secures high performance of using this gun pin-pointedly over the required
spot. Power source should be DC24 Voltage. Supply to this main body should be given by attached
power supply adapter.
* Long power cable
The attached power adapter has a 5m cable. Good handleability.
* Maintenance
Replacement of the electrode could be easily done with Electrode needle replacement
screwdriver (separately sold).
* Environmentally Friendly
Compliant with RoHS standards.
* EMI Countermeasures
Lower noise performance won't merely influence other electronic devices.
* CE Compliance
The BBZ-E has been tested and approved under CE directive, EN61000--6-4, 6-2.
Uses
Use the BBZ-E to blow away stubborn dust that adheres because of static electricity or to remove
static electricity as a preventative measure against dust accumulation.

4
■Product Specifications
Ion Bazooka Static Eraser Gun
Model ：No. BBZ-E
Ion generation method ：High voltage AC corona discharge
Impressed voltage ：about AC2.0kV
Input voltage ：DC24V ±5%
Power consumption ：74mA (TYP．)
Dimensions ：W132 x H152 x D36(mm)
Weight ：198g
Air consumption ：0.1~0.6MPa
Air consumption ：194L/min (at 0.3MPa)
Ozone generation ：0.05ppm or less (Measured at 50mm)
Warning output ：High voltage alarm (Red LED)
Protective function ：High-voltage output shut down function (overload detection）
Working ambient
temperature / humidity
：5~40˚C 35～65%RH (No dewing)
Distance from target area ：50 mm ~ （Installation location: Non-dangerous indoor location）
Static electricity removal time ：Refer to the items in the capabilities chart.
Ion balance ：Within±10V (At 0.3MPa and 150mm)
Material Casing：ABS
Hook：SUS
Electrode Needle Pole：Tungsten
Accessories ：Instruction Manual、AC Adapter
AC Adapter No.AD24-ITB-E
Rated input voltage ：AC100V-240V(50/60Hz) 0.4A（TYP.）
Rated output voltage ：DC24V 0.75A
Working ambient
temperature / humidity
：0～40℃ 5～95%RH（No dewing）
Cable length ：DC output cable: 5 m , AC input cable:1.8m
Weight ：240g (without AC input cable)
*The measurement values were obtained using the VESSEL measurement environment, so error could
be induced depending on the operation environment.

External View
No.BBZ-E
No.AD24-ITB-E
5

Performance
EFFICIENCY DATA
Air Pressure (MPa) 0.1 0.2 0.3 0.4 0.5 0.6
Air consumption (L/min) 84 140 194 236 298 344
Ion Balance (V) -2.1 -2.3 -2.1 -1.8 -2.1 -1.4
+ Decay Time (s) 1.5 0.9 0.7 0.6 0.6 0.6
- Decay Time (s) 1.6 0.9 0.7 0.6 0.6 0.5
Noise (dB) 65.2 72.4 77.3 80.5 83.2 85.5
*The measurement values were obtained using the VESSEL measurement environment, so error
could be induced depending on the operation environment.
*The values of Ion balance and decay time are measured at 150mm distance from the nozzle to
Charge plate monitor
*Noise is measured at 1m distance from the nozzle.
Installation
CAUTIONS IN INSTALLATION
REMEMBER Use only the included power supply adapter. Use of other adapters may results
in fire, electric shock and static electricity removal trouble.
REMEMBER Uses an air hose of sufficient withstand pressure performance.
Air hoses of insufficient withstand pressure will rupture and leak air.
REMEMBER Please connect the plug to the power outlet with a ground terminal.
Using the BBZ-E ungrounded runs the risk of electric shock.
REMEMBER
Install the BBZ-E in the below environment.
Adverse environments cause product deterioration and breakdown.
Humidity: 20~80%RH (No dewing) Temperature: 0~50˚C
PROHIBITED
Do not use the BBZ-E in the below environments. Adverse environments
cause product deterioration and breakdown, as well as personal accidents.
Where explosion-proofing is required, where found flammable atmospheres,
high temperature and high humidity, or sharp temperature fluctuations, where
dewing occurs, where possibly wet by water, oil or solvent
PROHIBITED Do not pull excessively on the tube. Abusive handling can damage the gun and
internally disconnect the power cable and air hose.
6

Installation
Installation Site
Select a location that is suitable for work and near to an air source and 100-240V AC supply.
Air tube
Use an air tube (ODφ6 mm x IDφ4 mm) with sufficient withstand pressure.

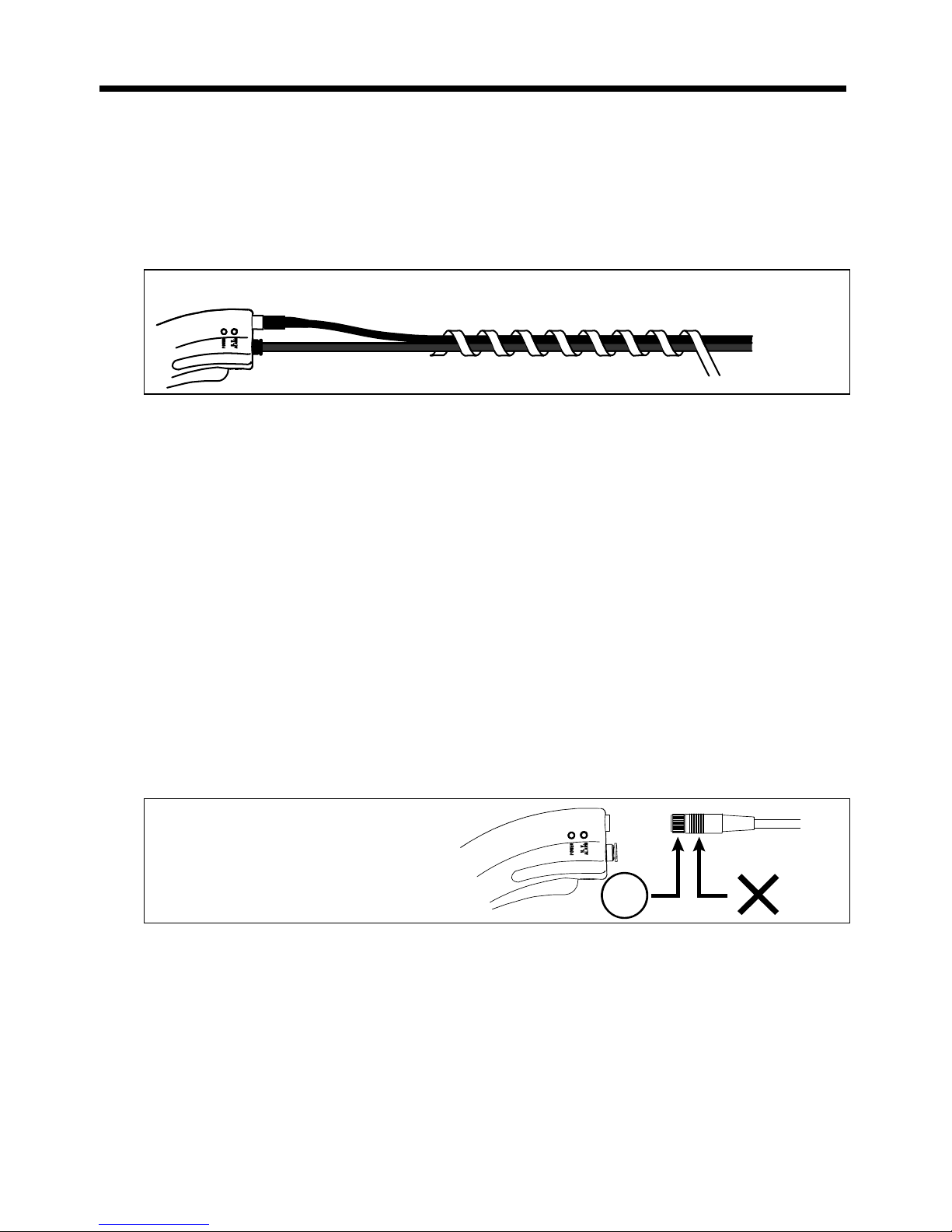

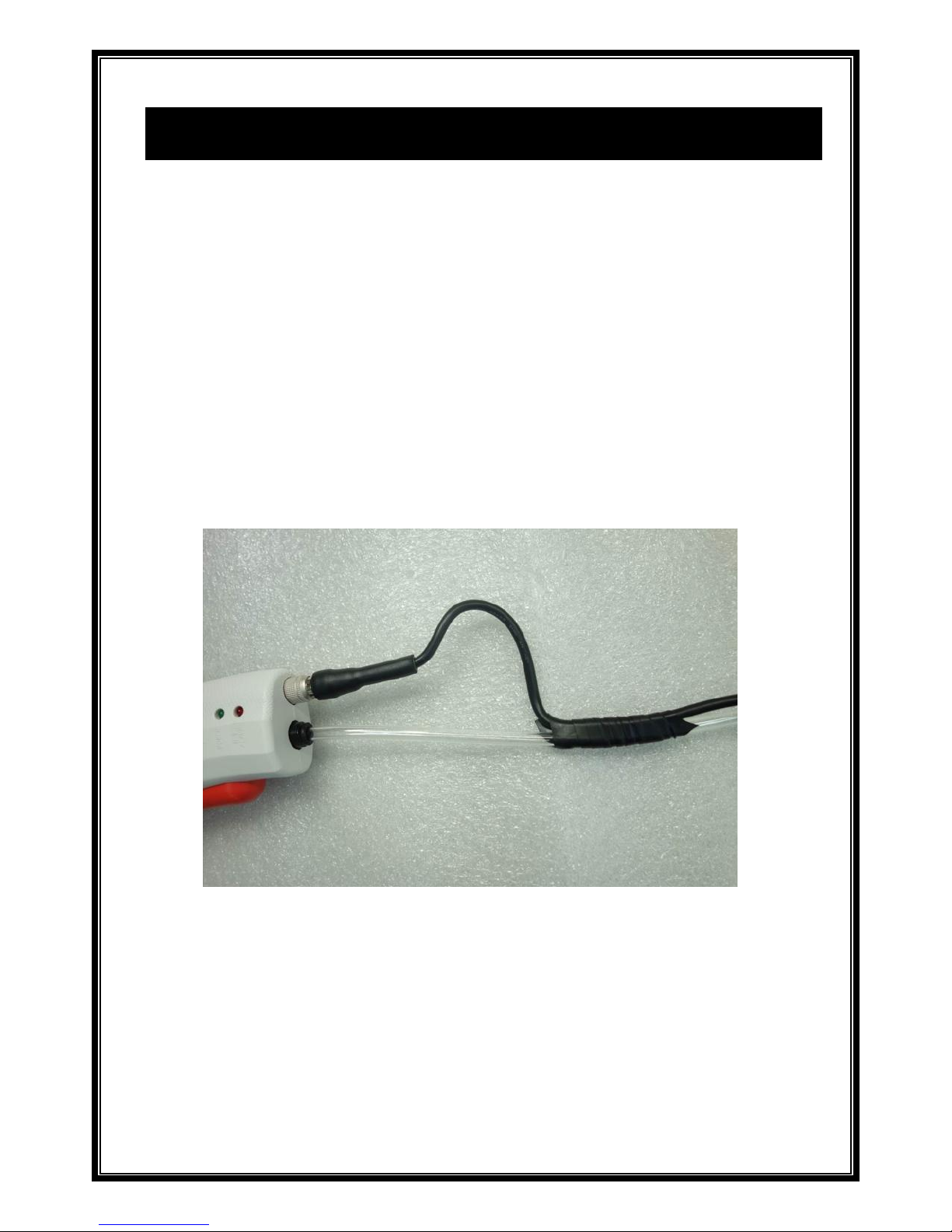

Please bundle Air tube and Power adapter cord with tape.
Air supply
Remove all impurities with a mist separator (0.3μm). Remove all moisture with an air dryer.
Supply air at a temperature of 0～40˚C.
Power adapter
Use the attached power adapter. Use with other adapter can lead to breakdown. The attached
adapter is specifically designed for use with the BBZ-E. Do not use the adapter for any other
purpose than to supply power to the BBZ-E.
Connector
Align the pin positions on the connector and the BBZ-E, and plug in firmly.
Turn the metal ring to be fixed the connector.
Please tighten the ring with sufficient force, to prevent loose.
Always turn the connector with the
metal ring.
Turning the part of the rubber may
cause failure.
Ground
Please connect the plug to the power outlet with a ground terminal.
Before Use Checks
Before use, check the BBZ-E, air tube and power adapter for trouble.
Make sure there is no damage, loose screws, disconnected hosing, loose connectors, etc.
7

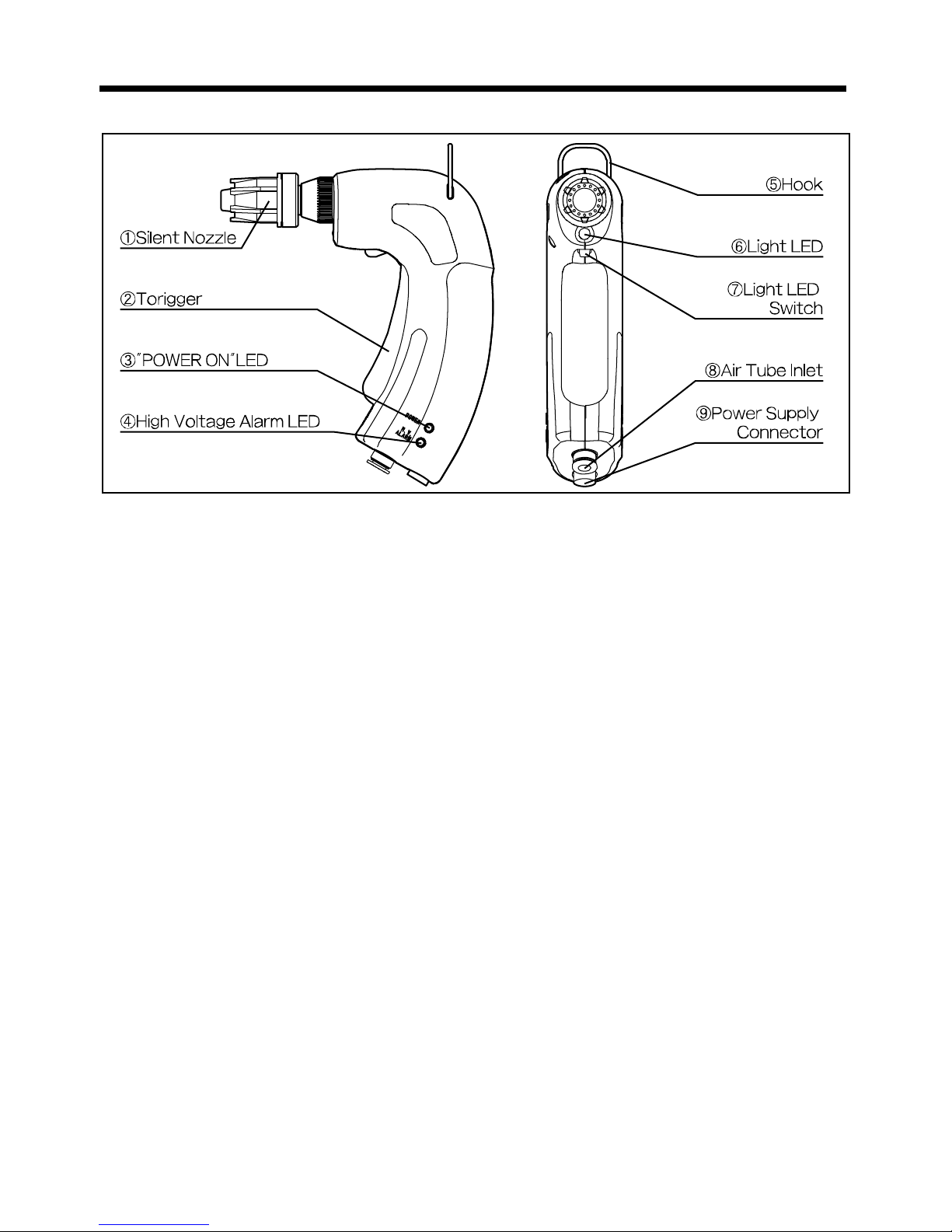

Operation
①Silent Nozzle Air blow point part.
②Trigger Pulling Trigger for airblow / static bustering gets started.
③"POWER ON" LED Lights up while the trigger pulled and static bustering.
④High Voltage Alarm LED H.V. ALARM LED lights while high voltage alarm.
⑤Hook To hang on this gun while not in use.
⑥Light LED Switch To be used at ON/OFF with Light LED
⑦Light LED To check if the dust and foreign article stained and / or remained.
⑧Air Tube Inlet Air Tube connecting (Out dia. 6mm x Inner dia. 4mm)
⑨Power Supply Connector Power Inlet fitting for attached power supply adapter (AD24-ITB-E)
8

Operation
CAUTIONS IN OPERATION
PROHIBITED Do not use the BBZ-E for anything other than static erasure or dust removal.
REMEMBER If noticing anything strange, stop using the BBZ-E immediately.
REMEMBER Supply clean dry air. Improper air quality can lead to BBZ-E deterioration and
work contamination.
REMEMBER After cleaning the electrode wire, attach the nozzle. If the BBZ-E is used
without the nozzle, the electrode wire may fly off under the air pressure.
PROHIBITED
Do not remodel or disassemble the BBZ-E. The BBZ-E contains high voltage
parts.
PROHIBITED Do not drop the BBZ-E or otherwise subject to harsh impacts.
PROHIBITED Do not pull excessively on the tube. Abusive handling can damage the gun
and internally disconnect the power cable and air hose.
PROHIBITED Do the damage the hose or cabling.
Keep the hose and cabling away from sources of heat.
REMEMBER Before leaving the workplace, return the gun to the specified place.
REMEMBER Do not use BBZ-E if it has a defect.
OPERATION
1. Confirm that the air tube is connected correctly.
2. Plug the power adapter into a 100V-240V AC power outlet.
3. Connect the Power supply connector with BBZ-E correctly.
4. Regulate air pressure to 0.1~0.6 MPa from the pressure regulator. (0.4 MPa recommended)
5. Pull the trigger to blow ion air from the nozzle.
Blow air towards the statically charged work or dust covered work.
6. Release the Trigger when static elimination and dusting out have been completed.
7. Hang the BBZ-E in the specified place with the hook on its body.
9

Maintenance
CAUTIONS IN MAINTENANCE
DO NOT
DISASSEMBLE
Do not perform any maintenance on the BBZ-E except for the electrode wire.
REMEMBER
Before cleaning the electrode wire, shut OFF power and unplug the adapter
from its electrical outlet. Shut off air supply at the source and disconnect the
air hose.
PROHIBITED Do not wipe the BBZ-E with detergent or solvent. Substances of the sort can
cause cracking and result in electric shock or breakdown.
DO NOT WET
Do not wet the BBZ-E. Contact with moisture can result in electric shock or
breakdown.
1. How to Clean the BBZ-E Casing
Remove the dirt over the BBZ-E with soft and dried cloth.
Never use alcohol and/or thinner solvent and detergent.

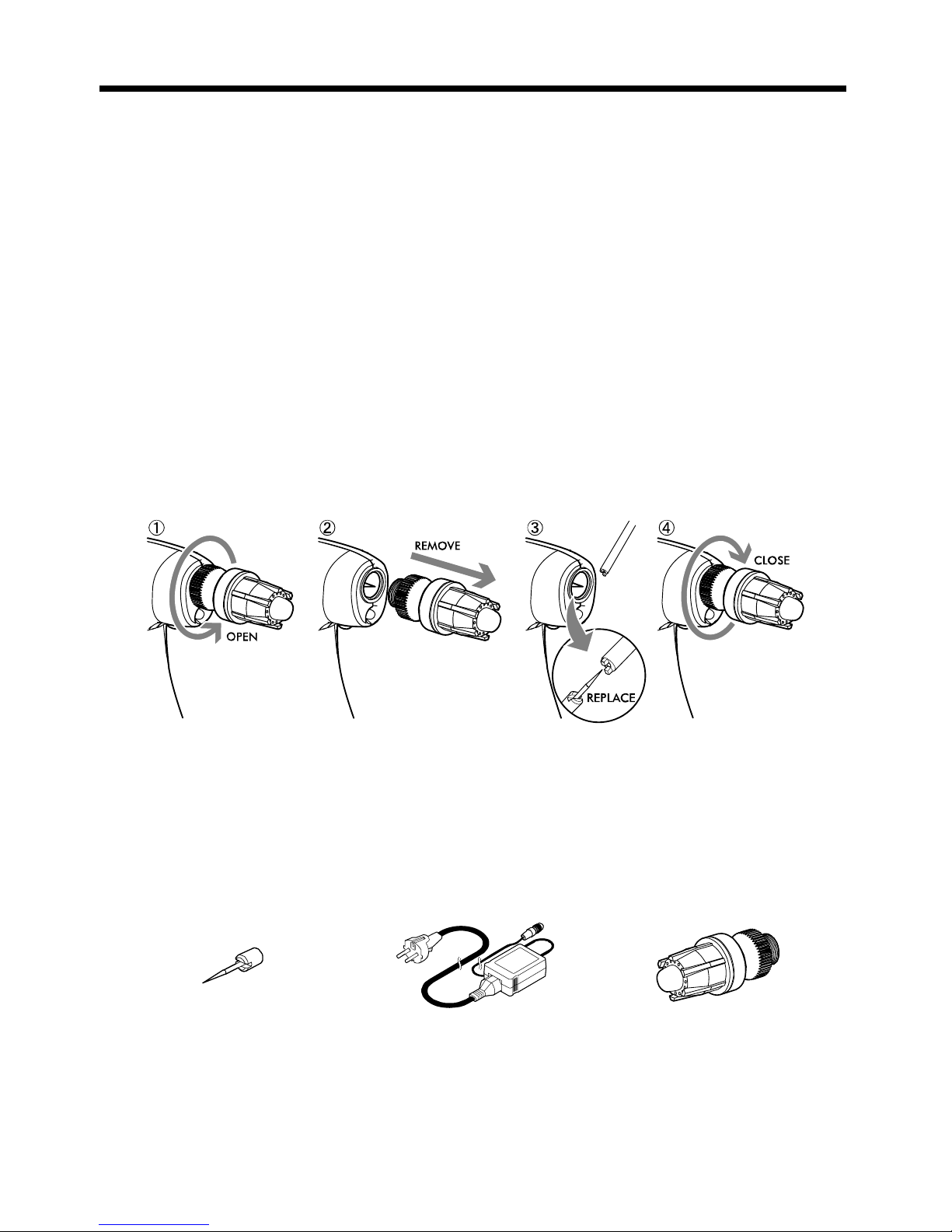

2. How to Clean the Electrode Needle
Electrode cleaning should be practiced after power supply adaptor pulled off electric concent.
Cleaning order
1-2. Remove the Nozzle.
3. Clean the point of the needle with cotton stick.
i
f it is heavily contaminated or dirty over the surface, use a few drops of alcohol.
Place the Nozzle back
4. Mount the Nozzle firmly.
If it is too tightly fastened, it may damage or break itself,
but if it is not well fastened this nozzle may pop out due to its air blow power.
10

Maintenance
3. How to Replace the Electrode Needle
Electrode needle replacement is made with Electrode needle replacement screwdriver G-7DR
(separately sold) only.
Pull off power supply adapter first before the cleaning of Electrode needle.
Replacement Order:
1-2. Remove the Nozzle.
3. Release the screw with Electrode needle replacement screwdriver.
Change it with new needle (G-7H) and fasten firmly with the same screwdriver.
Place the Nozzle back.
4. Mount the Nozzle firmly.
If it is too tightly fastened, it may damage or break itself,
but if it is not well fastened this nozzle may pop out due to its air blow power.
4. Static Erasing Capacity Check
Measure ion balance and charge voltage dampening time using a charge plate monitor.
Reference: IEC61340-5-1-2, EOS/ESD S3.1
5.Replaceable Parts
Electrode Needle G-7H
Transformer with Robotic Cable
(AC Adapter)
AD24-ITB-E
Silent Nozzle
BB-Z-SN
11

Maintenance

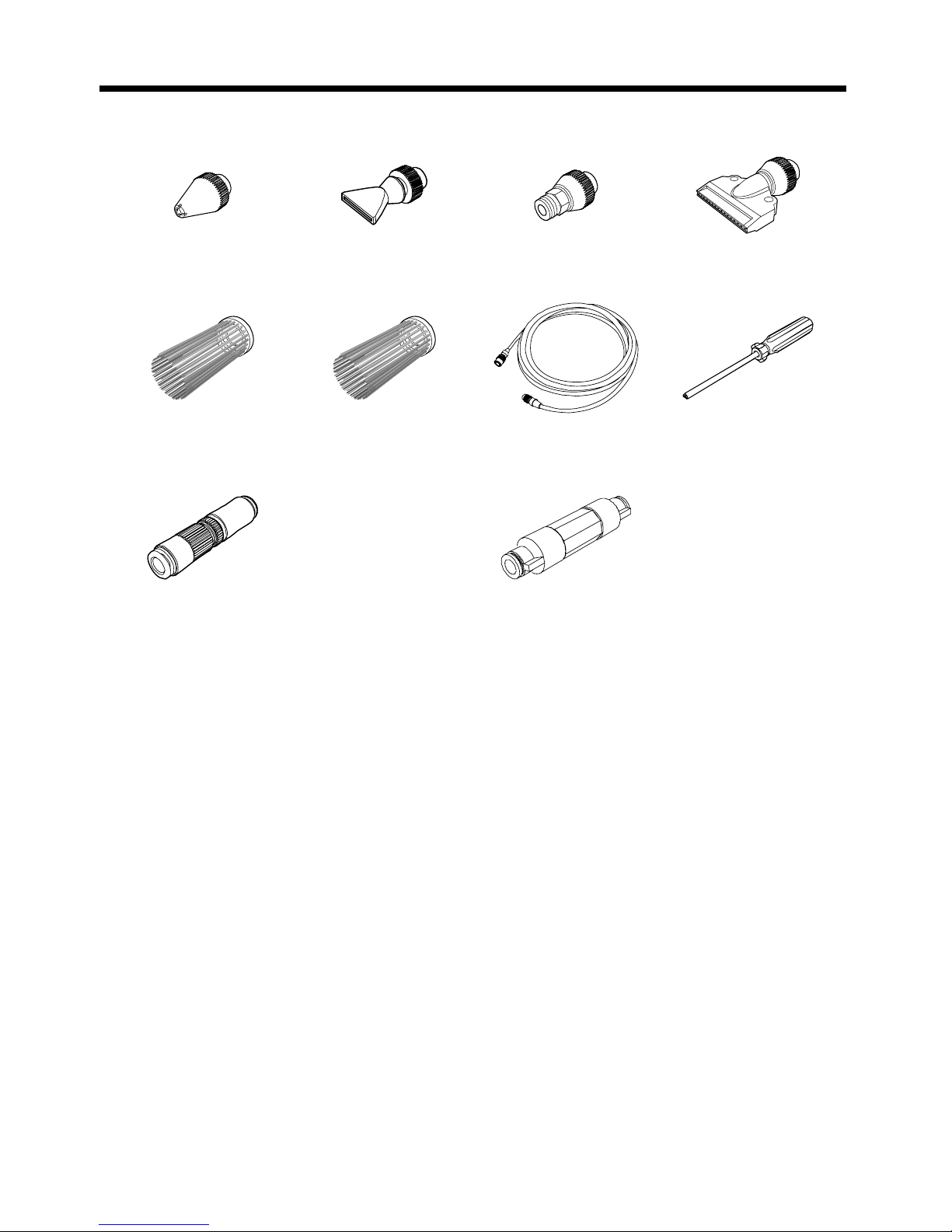

6.Optional Parts
Standard Nozzle
G-7SN
Flare Nozzle
N-2FN
Consent Nozzle
N-2TN
Silent Nozzle
N-2WN
Brush
G-7B (60mm)
Brush
G-7B (60mm)
Relay Cable
BB-ZC5
Electrode needle
replacement
screwdriver
G-7DR
Speed Controller
G-7SC
Micro Filter
G-7F
12

Troubleshooting
CAUTIONS IN TROUBLESHOOTING
PROHIBITED
Do not use the BBZ-E in the following situations. Use can result in fire or
electric shock.
*If the power cable is damaged or hot
*If the BBZ-E has been damaged because of dropping or shock.
UNPLUG
POWER CABLE
Unplug Power cable if BBZ-E has adefect.
DO NOT
DISASSEMBLE
Do not disassemble the BBZ-E.
Using the BBZ-E when in anything but proper working condition can cause product damage or
personal accident.
Therefore, promptly request servicing if trouble occurs. For servicing, contact the place of purchase.
13

Storage
CAUTIONS IN STORAGE
PROHIBITED
Do not store the BBZ-E in the following places.
Adverse environments can cause product breakdown.
●Where exposed to marked vibrations or shock
●Where temperature and humidity are outside specified ranges
●Where dewing occurs
●Where temperature fluctuates sharply
●
Where there is the possibility of ignition or explosion of flammable solvents, dust, etc.
●Where there is heavy dust or smoke
●Where possibly wet by water, oil , chemicals, etc.
●Where strong electric or magnetic fields are generated
In the following cases, contact the place of purchase for servicing.
Do not service BBZ-E yourself as this can be dangerous.
* If the power lamp does not light when the trigger is pulled.
* If the power cable is excessively hot
* If the power supply adapter is excessively hot
* If BBZ-E emits strange noises or vibrates during use
* If sparks are seen coming from electrode wire tips (In normal operation, sparks are not seen.)
14

15

LIMITED WARRANTY:
VESSEL expressly warrants that for a period of one (1) year from the date of purchase, VESSEL static
erasers will be free of defects in material (parts) and workmanship (labour). Within the warranty period,
Defects occurring will be repaired or products will be replaced at VESSEL's option and expense, if VESSEL
receives notice during the warranty period. Defective products must be returned to VESSEL Osaka Japan with
proof of purchase date. And if your unit is out of warranty, VESSEL will quote repair charges necessary to ship
your unit freight prepaid to where you have originally purchased.
WARRANTY EXCLUSIONS:
THE FOREGOING EXPRESS WARRANTY IS MADE IN LIEU OF ALL OTHER PRODUCT WARRANTIES,
EXPRESSED AND IMPLIED, INCLUDING FITNESS AND MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE WHICH ARE SPECIFICALLY DISCLAIMED.
The express warranty will not apply to defects or damage due to accidents, neglect, misuse, alterations,
operator error, or failure to properly maintain, clean, or repair products.
LIMIT OF LIABILITY:
This electronic static eraser use high voltage corona discharge and should not be used in or near
flammable or explosive environments. In no event will VESSEL or any seller is responsible or liable for
any injury, loss or damage, direct or consequential, whether based in tort or contract arising out of the
use of or the inability to use the product. Fulfillment of VESSEL's warranty obligations will be
Customer's exclusive remedy and VESSEL's and Seller's limit of liability for any breach of warranty or
otherwise. Before using this unit, users shall determine the suitability of the product for their intended
use, and users assume all risk and liability whatsoever in connection therewith.
Model BBZ-E
Warranty (1) year from the date of purchase
Name
Address
Customer
Tel. No.
Dealer Name/Address/Tel. No.
Manufactured by:
17-25, Fukae-Kita 2-chome,
Higashinari-ku, Osaka 537-0001 Japan
Tel : [phone] Fax : [phone]
E-mail : [email protected]
URL : http://www.vessel.jp
Product of Japan
11100300.003
16

Advice to use the BBZ-E for a long time
Before starting using the BBZ-E, band the air hose and the power cable
together with the provided “self-fusion butyl rubber tape”, by bowing the
power cable as shown in the photograph below.
It can prevent the air hose and the power cable from scattering, and it
can also improve durability of the power cable.
Making an extra space by bowing the power cable reduces the load on
the connector and the connecting area.
3 sheets of tape are enclosed. You may band other areas of these cables
with the remaining 2 pieces, taking into consideration the actual work
and/or wiring.
The tape should be prepared by the user if additionally needed. The
provided sheet is made by cutting the following tape to 105 mm in
length each.
<Recommended article>
Self-fusion butyl rubber tape No.15 made by NITTO DENKO
[Size: thickness x width x length] 0.5 mm x 19 mm x 10 m
