Vesta Skyra User manual

Skyra
Clear Ice Maker
INSTRUCTION MANUAL

1
Introduction
Thank you for choosing our Skyra clear ice maker! This brand-new product is
designed to bulk produce clear ice in standard shapes, perfect for bars, hotels and
other businesses serving cold drinks. Compared with regular non-clear ice makers
and traditional clear ice-producing processes, the Skyra ice maker has the following
advantages:
Produce clear ice that is denser and melts more slowly than cloudy ice.
Directly form clear ice in standard shapes without cutting.
One-button automatic production of clear ice for simple operation.
Solve long-term needs for clear ice and reduce cost.
Our clear ice maker is built with a stylish look and stunning performance, having
passed rigorous safety and performance testing. Please feel free to use it and enjoy
your clear ice!

2
Contents
Important Safety Instructions .................................................................. 3
Product Structure .................................................................................... 8
Specifications ........................................................................................ 10
Product Features................................................................................... 11
Operation Instructions ........................................................................... 13
Before using................................................................................... 13
How to make clear ice.................................................................... 15
How to use Freeze mode............................................................... 20
Care and Maintenance.......................................................................... 22
Troubleshooting..................................................................................... 23

3
Important Safety Instructions
Only the power supply specified on the machine nameplate can be used with this
machine.
Outlet for this machine must meet the national laws and regulations and must
be reliably grounded with leakage protection.
Wear gloves when performing maintenance on the motor and the cooling system
inside the machine.
Do not insert a screwdriver or other device into the protective grilles, where there
are heat exchange vents, evaporators, etc.
Do not touch live parts with wet hands or bare feet.
Do not block the heat exchange vents of the compressor or evaporator to ensure
the normal operation of the machine.
When opening or closing the lid, always hold the lid to avoid getting your hands
caught.
Do not place non-food items in the machine except the accessories that come
with the machine.
Only trained operators are allowed to use this machine.
The installation, repair or maintenance of this machine must be carried out by
professional and qualified personnel.
The machine is not intended for use by children, persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge.
The machine should be properly managed to ensure that children will not play
with or around it.
If the power supply device of the machine fails, contact professional personnel
certified by the manufacturer to replace it to avoid safety accidents.
It is prohibited to modify or remove the provided safety devices (protective

4
grilles, hazard labels, etc.) and the manufacturer is not responsible for the
consequences of violating this instruction.
In the event of a fire, use a carbon dioxide fire extinguisher instead of water, and
cool the motor room as soon as possible.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use other electrical appliances in the machine, unless they are
recommended by the manufacturer.
Refrigerants and blowing agents are flammable and should only be disposed of
by qualified personnel and institutions.
If the power cord is damaged, it must be replaced by the manufacturer, service
agent, or qualified personnel.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this machine.
Keep clear of obstructions to all ventilation openings of the machine.
Before performing any operation, unplug the power cord and ensure that the
operator can check from any direction that the power cord is disconnected.
The A-weighted emission sound pressure level is below 70 dB(A).
The climatic class numbers marked on the machine nameplate indicate:
- Maximum ambient temperature for appliances with climatic class 0, 1, 2, 3, 4, 6,
or 8 in the test room: 89.6°F±0.6°F.
- Maximum ambient temperature for appliances with climatic class 5 or 7 in the
test room: 109.4°F±0.6°F.
Warning: risk of fire / flammable materials

5
Package and Transportation
Packed in wood crates, the machine should be transported with appropriate
equipment, do not move it with bare hands.
When using a lifting system, such as forklifts or pallets, pay special attention to
balance and prevent tipping.
Normally, the machine should be fixed on wooden pallets to ensure safety
during transportation and storage.
Warning signs should be printed on the package to remind users to follow the
instructions and ensure the machine will not be damaged during loading,
unloading, and transportation.
Fragile Upward Do not flip Keep dry
Stacking limit
When storing or moving the machine, the maximum stack is two units, unless
otherwise specified on the label.
Since the center of gravity of the machine does not coincide with the geometric
center, be careful not to tilt the machine during handling.
Unpacking
Please use tools for unpacking the wood crate. After the unpacking, if any
damage is found, please inform the carrier immediately.
Installation
Install and place the machine securely on a stable and level surface.

6
When handling, do not push or pull the machine to avoid tipping over or
damaging the parts.
Do not place any objects on the machine, as it is open from the top.
The machine should be placed in a well-ventilated place, and away from heat
and ignition sources.
The minimum clearance ≥100mm/3.9" should be kept between the
surrounding of the machine and the wall or objects to ensure good operation
performance, ventilation and maintainability.
Before connecting to the power supply, make sure that the voltage and
frequency are consistent with the machine nameplate. A variation of +/-10% of
the normal voltage is allowed, and the machine should be connected to an
effective ground connection.
Storage
Turn off the power and unplug the machine
Empty the compartment and clean it
Keep the lid slightly open to ensure ventilation and avoid mildew or odors
Disposal
Temporary storage of special wastes may be permitted before disposal or final
disposal.
In all cases, the applicable environmental laws of the user's country must be
complied with.
Correct disposal of this product

7
This marking indicates that this product should not be
disposed of with other household wastes throughout the EU.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems
or contact the retailer where the product was purchased. They
can take this product for environmentally safe recycling.

8
Product Structure
①
②
③
⑤
⑥
⑦
④

9
①Lid ②Control panel ③Universal wheels ④Hinge ⑤Power port
⑥Drain pipe ⑦Inlet pipe ⑧Ice mold tray ⑨Ice mold ⑩Overflow hole
⑦
+
⑧：
⑨
⑧⑩

10
Specifications
Model
Skyra (Double tray)
Power supply
220-240V~50Hz
110-120V~60Hz
Ice-making power
480 W
500 W
Ice-detaching power
2700 W
2800 W
Exterior material
Stainless steel SUS201 with brushed finishes
Interior material
Stainless steel SUS304
Exterior dimensions 34.3" × 29.7" × 33.7" (870 × 755 × 856 mm)
Interior dimensions
29.5" × 15.0" × 17.8" (750 × 382 × 452 mm)
Ice-making time 24~28 h
(Ambient temperature, water temperature ≤77°F)
Tray number
2
Tray material
Stainless steel SUS304
Ice mold material
Food-grade silicone
Ice-making capacity
(Ice molds are customizable)
2 trays of ice cubes: 30+30
2 trays of ice spheres: 16+16
2 trays of ice bars: 24+24
2 trays of ice diamonds: 30+30
Ice size
Ice cube: 2.2 x 2.2 x 2.2 in (55 × 55 × 55 mm)
Ice sphere: Φ 3 in (Φ 75 mm)
Ice bar: 1.5 x 1.5 x 4 in (38 × 38 × 102 mm)
Ice diamond: Φ2.4 x 2.2 in (Φ 60 × 55 mm)
Weight
242.5 lb / 110 kg (cube molds included)
253.5 lb / 115 kg (sphere molds included)
246.9 lb / 112 kg (bar molds included)
257.9 lb / 117 kg (diamond mold included)
Temperature display unit
°F / °C
Ice storage mode
temperature
30.2°F (-1°C)
Freeze mode temperature
5°F (-15°C)
Working conditions
Temp: 41-90°F (5-32°C), humidity: ≤85%

11
Product Features
Control panel:
No.
Part
Description
1 Power
--- Connect to the power supply, and the display will show "OFF". Press
the "Power" button, and the machine will enter standby mode,
showing “ON”.
--- In standby mode or during operation, pressing the power button
can return to power saving mode.
2 Ice
--- In standby mode, press the “Ice” button, and the indicator will light
up, and the ice-making process will start:
1) Water filling: display shows ICE1, and the first indicator light of
the progress bar flashes;
2) Water heating: display shows ICE2, and the second indicator
light of the progress bar flashes;
3) Ice making: display shows ICE3 and ice-making time alternately,
and the third indicator light of the progress bar flashes;
4) Ice making: display shows ICE4, and the indicator of “Detach”
lights up and the fourth indicator light of the progress bar
flashes;
5) Completion: display shows the compartment temperature, and
the progress bar fully lights up.
①
②
③
④
⑤
⑦
⑧
⑥

12
--- In standby mode, long press the “Ice” button for about 3 seconds
until the indicator lights up, the water filling process will be skipped. If
the initial water temperature is above 20°C, the water heating process
will be skipped, and directly enter ice making process.
3 Detach
--- During ice-making and in the unlocked state, pressing “Detach”
button can enter ice-detaching mode in advance.
--- In ice-storage status, press “Detach”, the machine will enter ice-
detaching mode, and the indicator will turn on. When the ice-
detaching is completed, the indicator will turn off and the display will
show the temperature in the compartment.
4 Freeze
--- In standby mode, press the “Freeze” button, the indicator will turn
on and the machine will enter freeze mode, with the display showing
the compartment temperature.
--- In standby mode, long press the button for about 3 seconds, then
all lights of the progress bar will light up, and can re-enter ice storage
status, in which the display will show the compartment temperature.
5 Stop/Drain
--- During all working processes, pressing “Stop/Drain” will stop the
task.
--- In standby mode, press and hold the “Stop/Drain” button for about
3 seconds to start the drainage process. The digital display will show
"dr." Once the water has been completely drained, press the
“Stop/Drain" button again to stop the drainage.
6 Lock
After entering the Ice making process, the operation interface will be
locked. If you need to perform other operations (such as ice-detaching
or stopping the machine), you need to long press the "Ice" and
"Detach" buttons for a few seconds to unlock. After unlocking, the
machine will beep and the display will show "Unlo".
7
Ice-making
progress bar
Shows the ice-making progress. After ice-detaching, the whole
progress bar will light up.
8 Display
Shows ice-making stages, ice-making time, and compartment
temperatures.

13
Operation Instructions
Before using
1. Place the machine on a flat and stable surface, and allow a distance of ≥
100mm/3.9" between the machine and the walls or objects to ensure good ventilation.
2. Connect the inlet pipe of the machine to the water supply and the drain pipe to the
drainage system.(To clean the machine and drain the water, press and hold the "Stop"
button for about 3 seconds, and make sure that the machine inlet pipe is connected
to the tap and the tap is on).
Note:
①The water pressure must be between 0.02 MPa (0.2 bar) and 0.8 MPa (8 bar). If the water
pressure exceeds 0.78MPa(8bar), an appropriate pressure relief valve should be used. After
connecting the water supply, keep the tap on.
②It is not recommended to use distilled water as the water source because it can affect
the transparency of the ice. It is recommended to use mineral water or filtered tap water.
3. Identify the water inlet pipe

14
4. Install the inlet pipe
5. Schematic diagram after installation
Note: The drain pipe is a corrugated hose about 1 meter long and should be placed into
the drainage system. The drain pipe should not be placed higher than the water outlet.
The water inlet pipe is a 1/2" internal tooth pipe about 1.2 meters long, which
should be connected to the 1/2" external tooth faucet or connecting pipe.
This end is
connected to
the water
This end is
connected to the
machine
Inlet pipe
Drain pipe

15
How to make clear ice
1. Fit the two halves of the molds together with the tongue and groove, and place
them correctly in the tray. The ice mold color should be the same with the tray
color tag, and the molds should be placed in the correct direction.
Note: When placing the ice molds, please choose the tray with color tag that have the
same color as the ice molds.
Tong ue Groove
Tray color tag Ice mold

16
Ice cube: The ice cube molds and the tray color tag are gray. Each tray can hold
30 molds and the placement direction is shown as follows:
Ice sphere: The ice sphere molds and the tray color tag are green. Each tray can
hold 16 molds and the placement direction is shown as follows:
Ice bar:The ice bar molds and the tray color tag are black. Each tray can hold 24
molds and the placement direction is shown as follows:

17

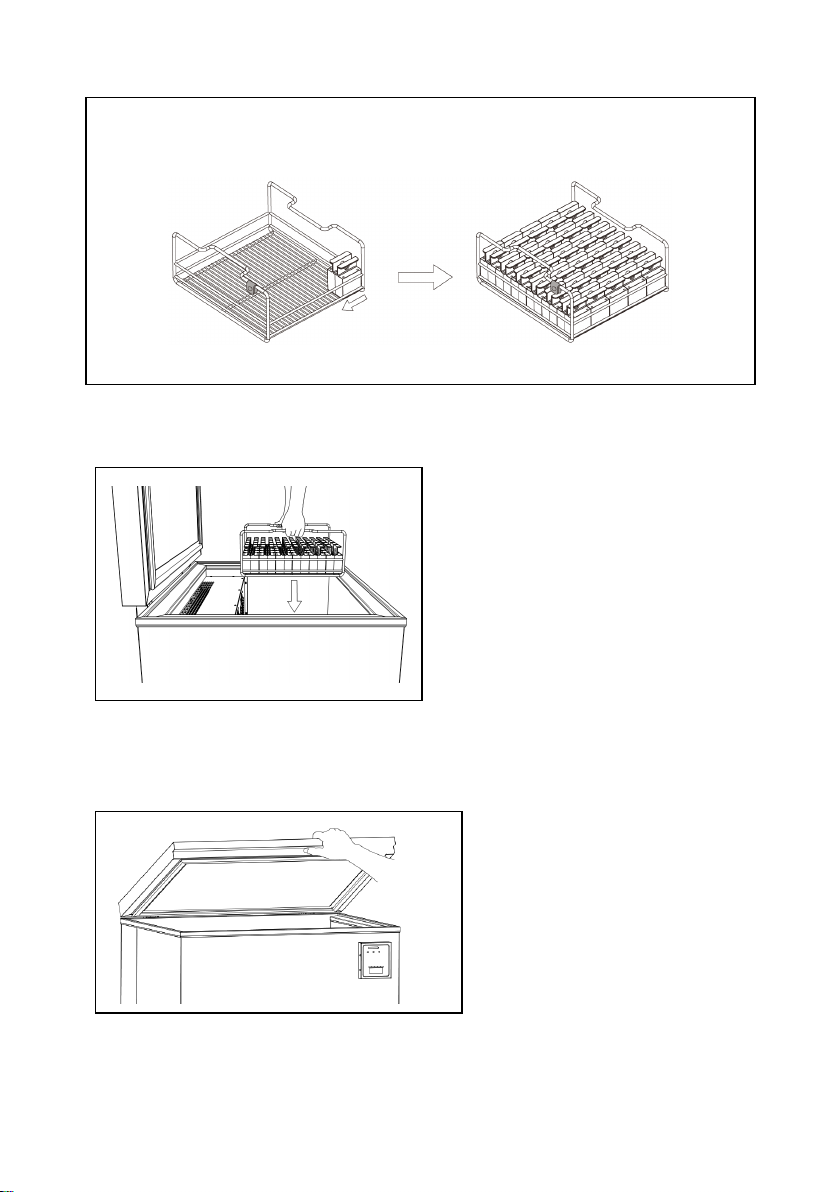

2. Place the tray with the molds on the support blocks in the machine.
3. Close the lid.
Note: When opening or closing the lid, always hold it with your hand to avoid injury.
4. Connect to the power supply, and the display will show "OFF". Press the "Power"
Ice diamond: The ice diamond molds and the tray color tag are purple. Each tray
can hold 30 molds and the placement direction is shown as follows:

18
button, and the machine will enter standby mode.
5. Press the "Ice" button, the indicator light will turn on, and the machine will start
to work:
①The machine is first filled with water, the display shows “ICE1”, and the first
indicator light of the progress bar flashes;
②When the water-filling is complete, the first indicator light of the progress bar
will keep on, and the machine will start heating the water (to about 68°F/20℃).
The display will show “ICE2”, and the second light will flash. If the initial water
temperature is above 68°F/20℃, the machine will skip the heating process;
③When the water-heating is complete, the second light of the progress bar will
keep on, and the machine will start making ice. The display will show “ICE3” and
ice-making time alternately. Meanwhile, the third light of the progress bar will
flash;
④When the ice-making is complete, the third light of the progress bar will keep on,
and the machine will start detaching ice. The indicator of “Detach” will light up,
the display will show "ICE4", and the fourth light of the progress bar will flash;
⑤When the ice-detaching is complete, the “Ice” and the “Detach” indicators will be
off, and the fourth and fifth lights of the progress bar will keep on. (All the lights
of the progress bar will be on when the entire ice making process is complete.)
Note: ①If for some reason, the machine cannot automatically fill with water, you can manually
add water to the MAX line, and do not exceed the entire overflow hole. It is not recommended
to use pure water. Filtered water or mineral water is recommended.
②If you want to detach the ice in advance during ice-making process, first unlock the machine
by pressing the “Ice” and “Detach” buttons simultaneously for several seconds. Then press
"Detach" and the machine will start detaching ice.
6. When the whole process is complete, all lights on the progress bar will be on,
and the machine will make three beeps. The indicators of “Ice” and “Detach” will
be off, the display will show the compartment temperature, and the machine
will enter ice storage mode.

19
Note:
①After entering ice storage mode, if the machine stops (possibly caused by
accidentally pressing "Stop/Drain" or "Power"), press and hold the "Freeze" button
for about 3 seconds, and the machine will re-enter the ice storage mode.
②In ice storage mode, the last digit on the display indicates the temperature unit. "C"
represents Celsius, and "F" represents Fahrenheit. To switch the temperature unit,
please follow these steps: First, press the "Stop/Drain" button to return to standby
mode. Next, press and hold both the "Freeze" and "Stop/Drain" buttons for about
3 seconds to complete the unit switch. Lastly, press and hold the "Freeze" button
for about 3 seconds to re-enter the ice storage mode.
7. To remove the ice immediately after ice detaching, there are two ways. When
there is enough operating space, we recommend Method 1. If not, use Method
2.
Method 1: Remove the tray, put it aside for 15 minutes. Insert a spade between the molds
to separate them from each other, and then you can take them out one by one.
Method 2: Remove the ice molds from the tray in the compartment. Insert a spade into
between the molds to separate them from each other, and then you can take them out
one by one.
8. If the machine has been in the ice storage mode for more than 4 hours, you can
directly pull out the ice molds without using the spade.
Method 1:
Insert the spade between
the molds to separate them.
