Vestil STOR-96-G-W-1RH User manual

STOR-96 and 912-G-W-1RH 1217 OWNER’S
MANUAL
VESTIL MANUFACTURING CORP.
2999 N. Wayne St., Angola, IN 46703
Ph: 260-665-7586 · Fax: [phone]
E-mail: [e-mail] · Website: www.vestil.com
STORAGE SHED MODELS:STOR-96-G-W-1RH &STOR-912-G-W-1RH
Introduction………………………. ……………….… 1
Assembly Instructions STOR-96-G-W-1RH.…….. 2-5
Assembly Instructions STOR-912-G-W-1RH…...… 6-12
STOR-96-G-W-1RH Exploded Parts Diagram & parts List….…… 13
STOR-912-G-W-1RH Exploded Parts Diagram & Parts List……..... 14
Limited warranty....................................................................................... 15
IMPORTANT NOTES,WARNINGS AND SAFETY INSTRUCTIONS
Ensure that all employees understand and follow these instructions.
Failure to read and understand this owner’s manual before using or
servicing constitutes a misuse of the product. All persons who will
install, use, or care for this product must be familiar with this material.
oEnsure that all information / safety / warning labels stay in place and are
legible.
Do not perform any modifications to the unit without the manufacturer’s
approval. Failure to receive authorization for changes to the equipment
could void the warranty.
Maintenance and repairs are to be done only by personnel qualified to
perform the required work. Consideration will not be given for warranty
repair charges without prior written authorization by the manufacturer.
STOR-96-G-W-1RH
RECEIVING INSTRUCTIONS
It is possible that this product
could incur damage during
transit.
Inspect the unit closely when
it arrives. If you see evidence
of damage or rough handling to
either the packaging or to the
product when it is being
unloaded, immediately make a
note of it on the Bill Of Lading!
It is important that you
remove the product’s packaging
upon its arrival to ensure that
there is no concealed damage
or to enable a timely claim with
the carrier for freight damage.
Also verify that the product
and its specifications are as
ordered.
TOOLS REQUIRED
-7/16” socket or wrench
-1/2” socket or wrench
-5/16” nut driver for drill
-Level
-Eye/Hand protection advised
Note – At least two people
required to assemble this
product; three suggested
STOR-912-G-W-1RH
Copyright 2016Vestil Mfg. Co. Page 1 of 15

STOR-96 and 912-G-W-1RH 0116
Copyright 2016Vestil Mfg. Co. Page 2 of 15
ASSEMBLY INSTRUCTIONS
Review the bill of materials located on page 13. Unpack all materials and verify quantities before starting.
Consult the factory in the event there are any questions or problems at the time of installation, or for
information regarding optional features not covered by the owner’s manual.
---------------------------------------------------------------------------------------
SINGLE STORAGE UNIT MODEL STOR-96-G-W-1RH

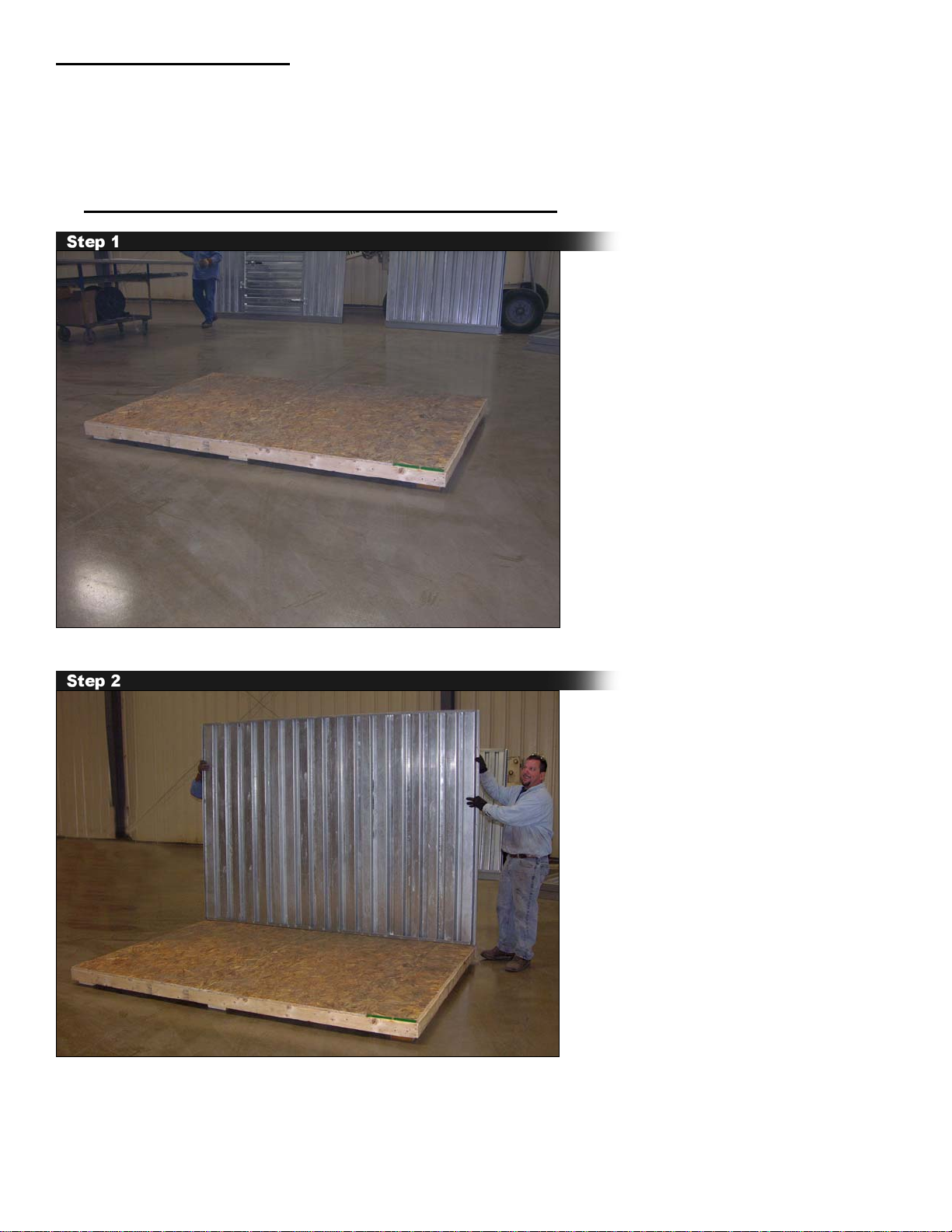

Place wooden floor on clean and level surface.
Position back wall as shown above.

STOR-96 and 912-G-W-1RH 0116

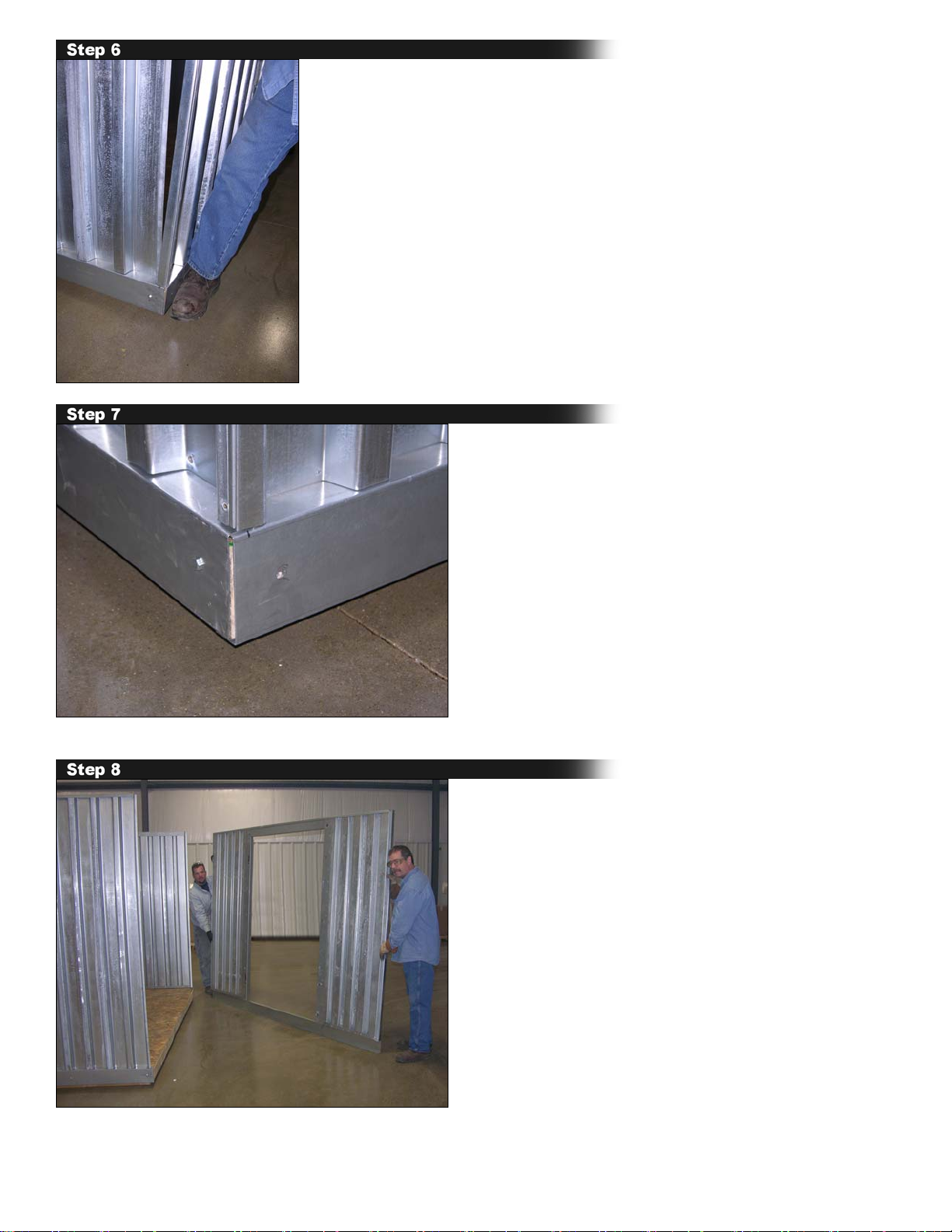

Install one side wall by inserting into the lockstrip just installed on the back wall vertical end.
Copyright 2016Vestil Mfg. Co. Page 3 of 15

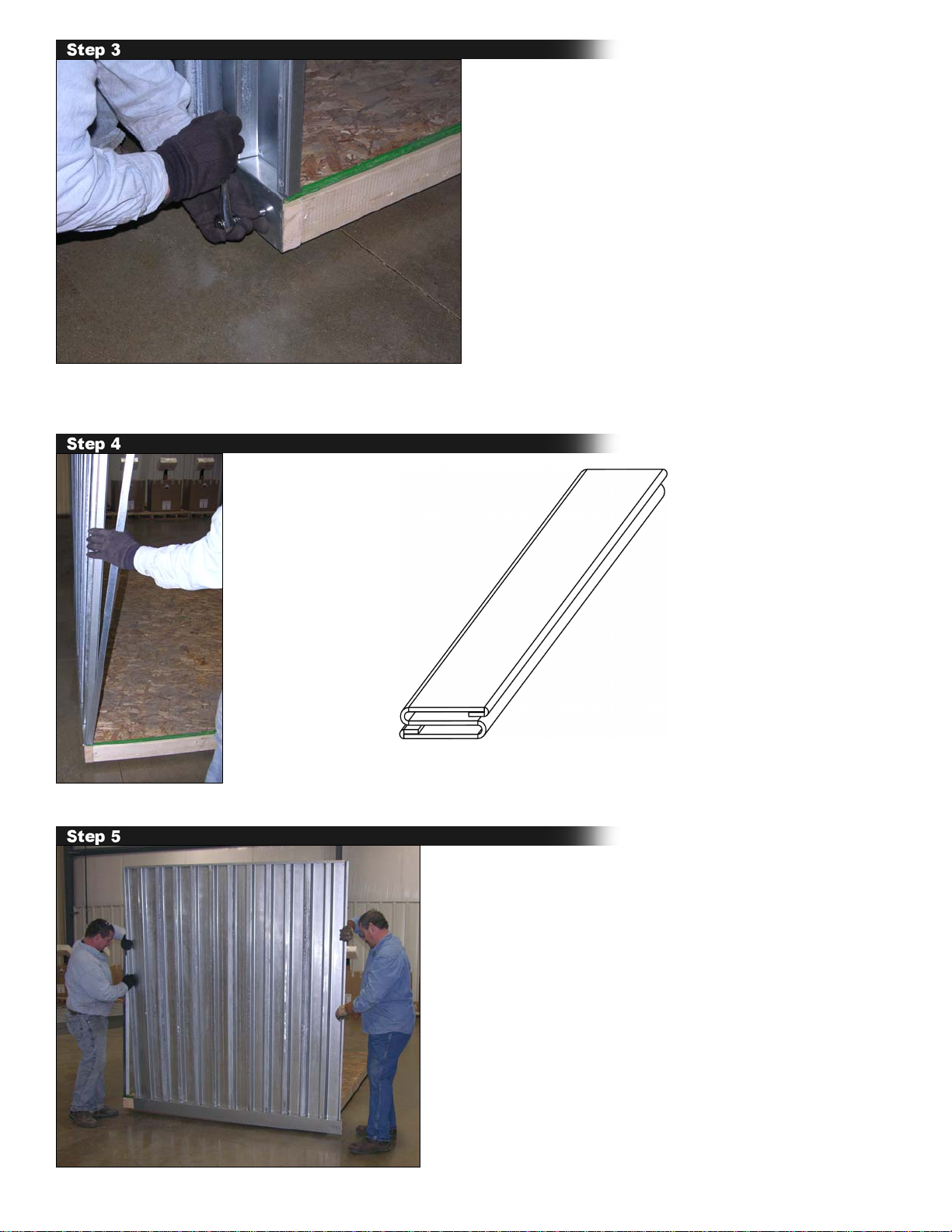

Secure back wall to the wooden floor using the ¼” X 2” lag bolts into the 5 predrilled holes. Continue holding
back wall until at least two walls are connected together and lagged to the wooden floor.
Install lockstrip to both vertical ends of back wall.
Lock strip

STOR-96 and 912-G-W-1RH 0116
Copyright 2016Vestil Mfg. Co. Page 4 of 15

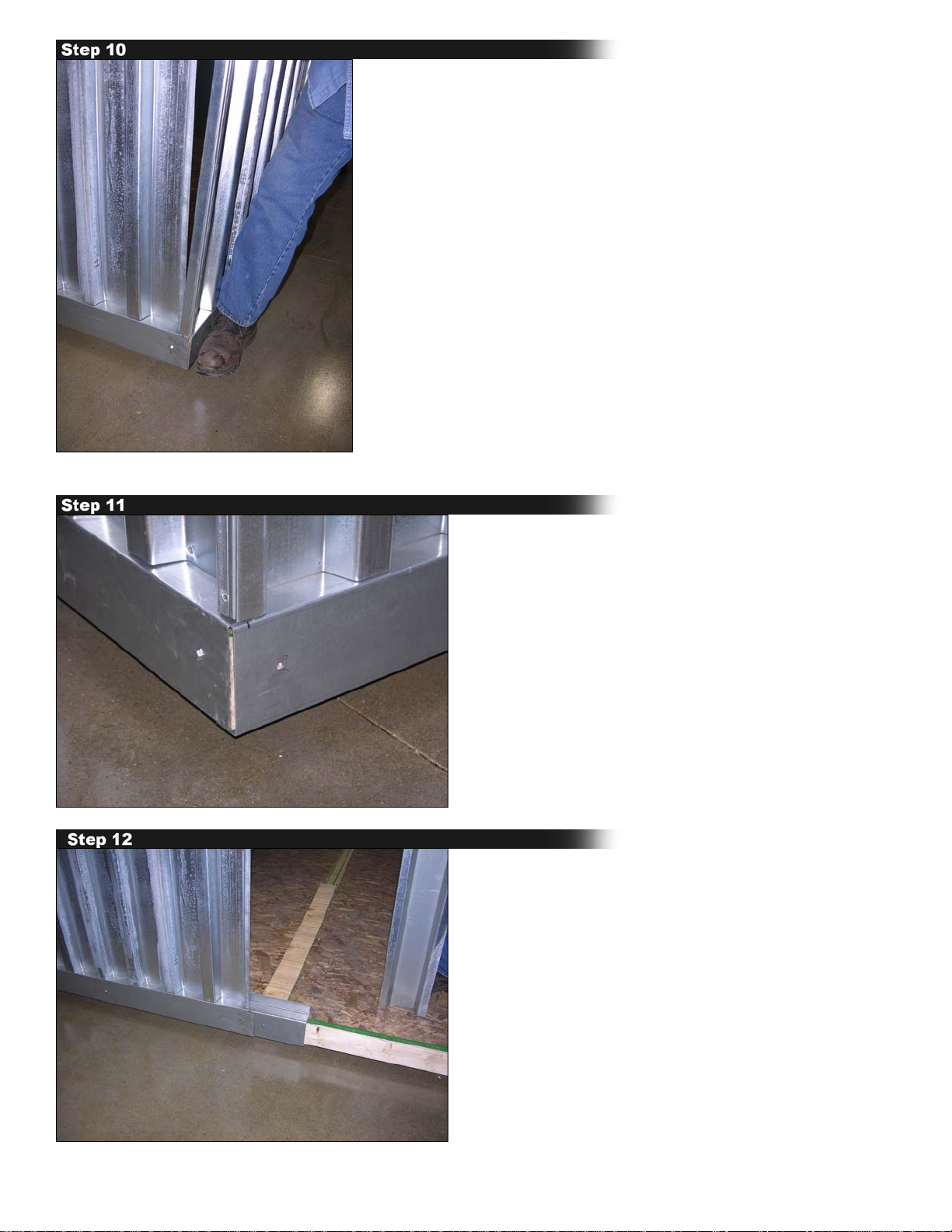

Install 2nd side wall using foot to hold bottom of wall while inserting into lockstrip.
Secure both side walls to the wooden floor using ¼” X 2” lag bolts into the 5 predrilled holes located at the
bottom of each side wall.
Install lockstrips (2) on side walls;then insert front wall with door assembly into lockstrips (door not shown
in photo above).Install lag bolts, ¼” X 2” lag bolts, utilizing the 5 predrilled holes to secure front wall to the
wooden floor.

STOR-96 and 912-G-W-1RH 0116
Copyright 2016Vestil Mfg. Co. Page 5 of 15
Place roof on top of the storage unit walls and simply pull it down into the channels until it bottoms out.
Secure roof to the front and back walls with 8pc 1” long self-tapping screws. (4 pcs. per wall) These holes are
not predrilled. Space screws evenly across both walls.
Fully assembled STOR-96-G-W-1RH

Using 20pc of 2” long wood screws fasten down the spacer strips directly over the 2”X4” joints. Evenly space
wood screws along entire length of spacer strip.
Copyright 2016Vestil Mfg. Co.Page 6of 15
STOR-96 and 912-G-W-1RH 0116
DOUBLE STORAGE UNIT MODEL STOR-912-G-W-1RH

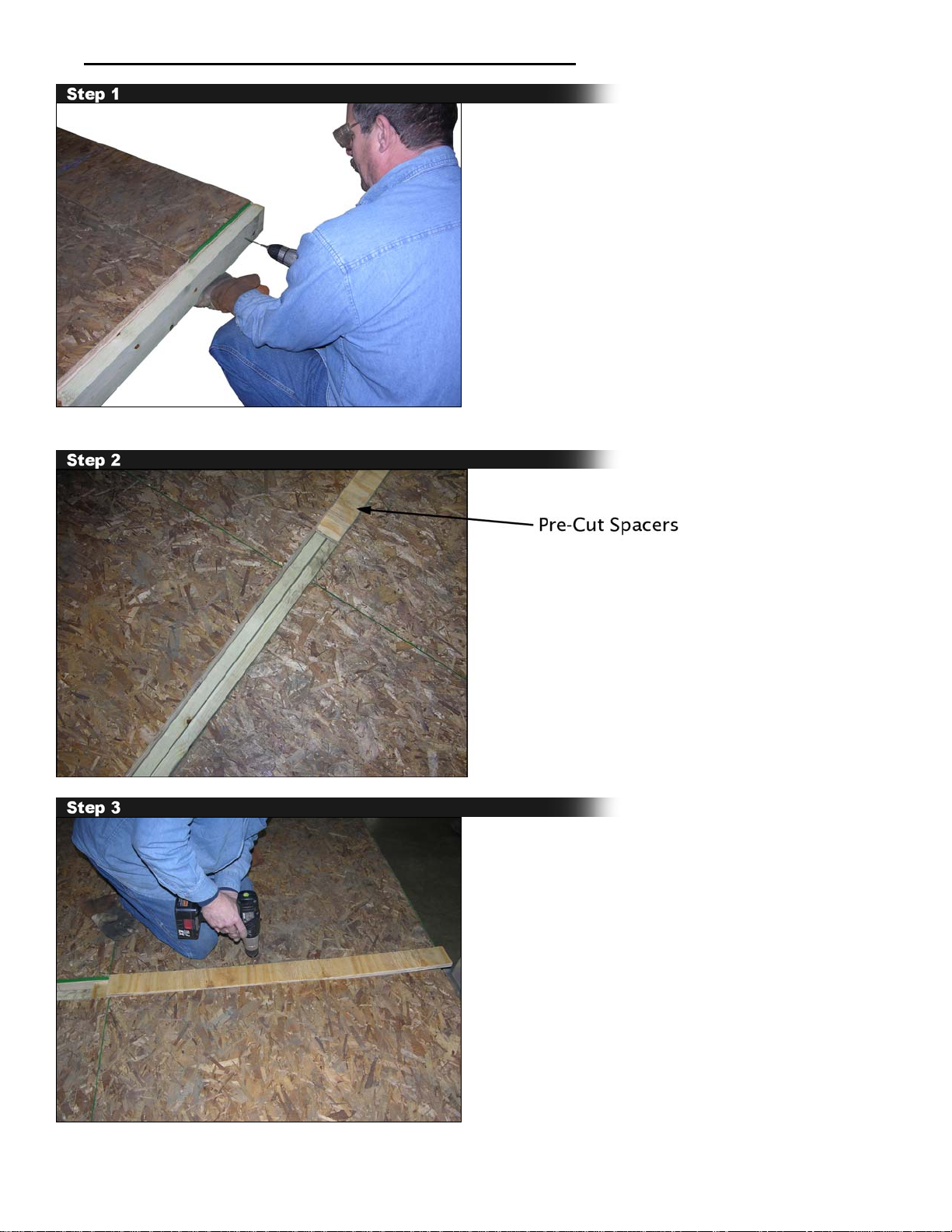

Install joint, 2”x 4”s, to 9 foot side of each wooden floor, ¾” down from top using 6pc – 3” long wood screws,
as evenly spaced as possible per side.

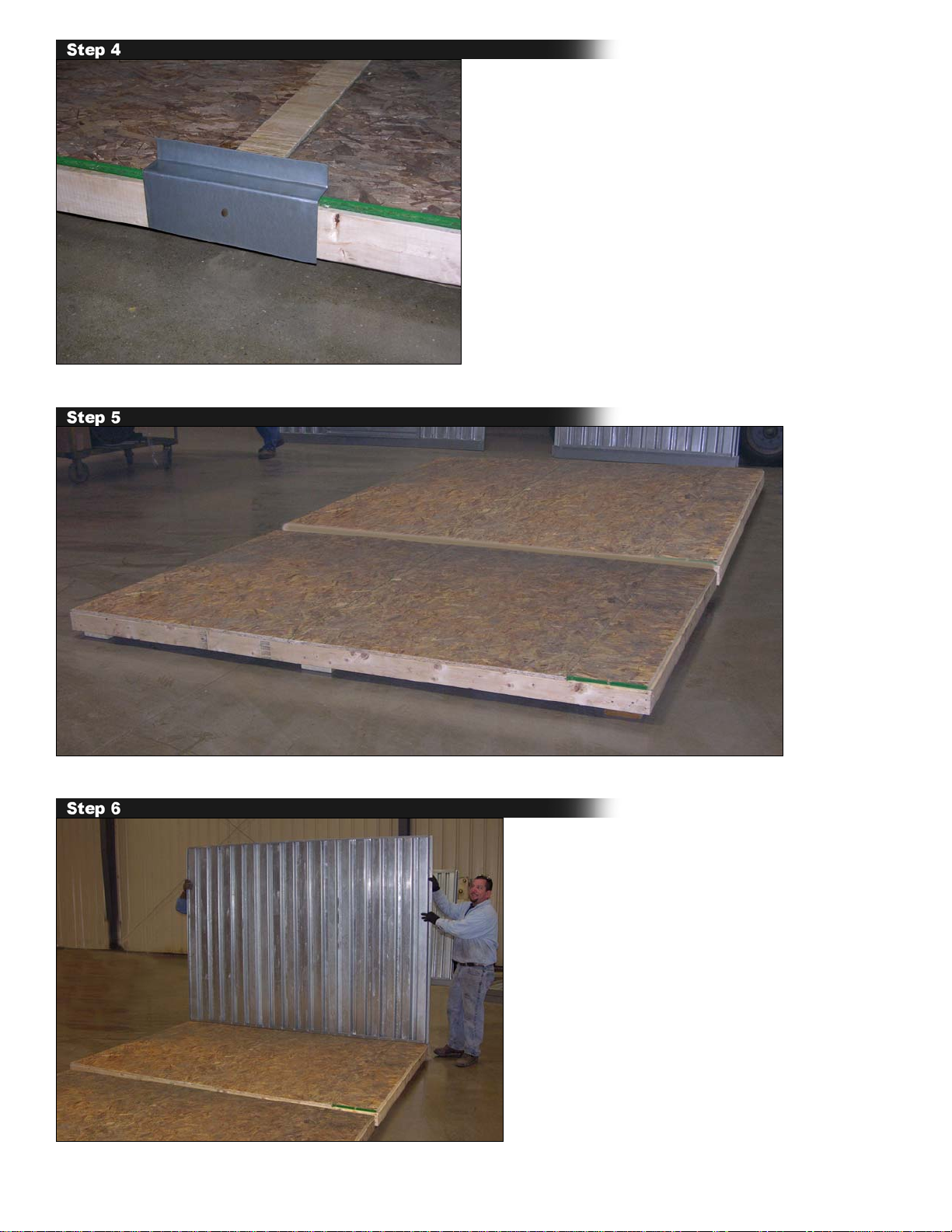

Place wooden floors with 2”X4” joints together on a level surface and position pre-cut spacers as shown.

STOR-96 and 912-G-W-1RH 0116
Copyright 2016Vestil Mfg. Co. Page 7of 15
Install Face Joint to the center fo the two joined wooden floors using 2pc of ¼” X 2” lag bolts – one bolt per
face joint on each side for the wooden floors.
Begin assembly with wooden floors on clean level surface.
Position back wall as shown above.

STOR-96 and 912-G-W-1RH 0116
Copyright 2016Vestil Mfg. Co. Page 8of15
Secure back wall to the wooden floor using ¼”X 2” lag bolts into the 5 predrilled holes. Continue holding back
wall until at least two walls are connected together and lagged to the wooden floor.
Install lockstrip to both vertical ends of back wall.
Install one side wall by inserting into the lockstrip just installed on the back wall vertical end.
Lock strip

STOR-96 and 912-G-W-1RH 0116
Install lockstrip on end of side wall and then install Side Fill Panel, as seen above on right hand side (see step
13 for installation)
Copyright 2016Vestil Mfg. Co. Page 9of15

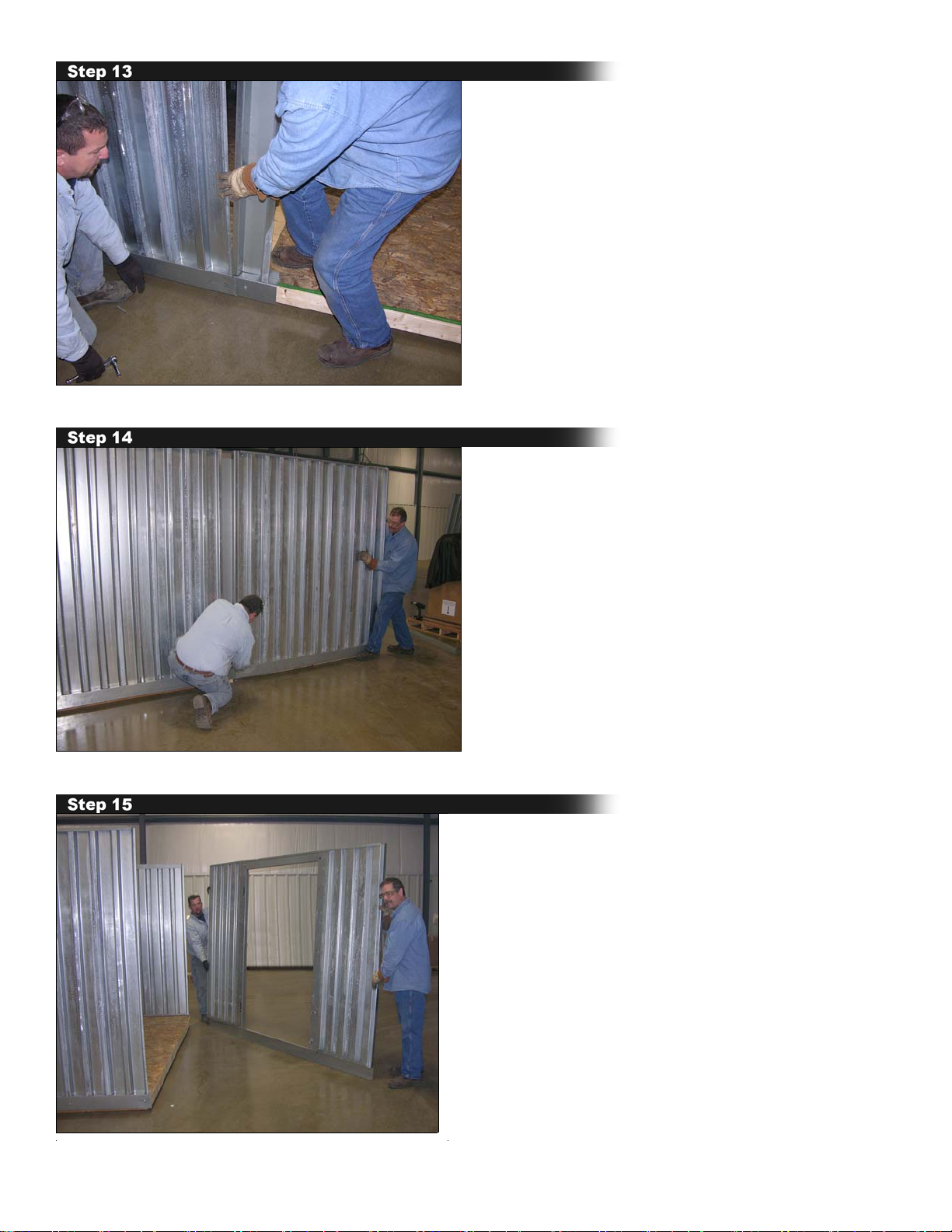

Install 2nd sidewall using foot to hold bottom of the side wall while inserting it into lockstrip on opposite end of
the back wall.
Secure both side walls to the wooden floor using ¼” X 2” lag bolts into the 5 predrilled holes on each side.

STOR-96 and 912-G-W-1RH 0116
Install lockstrips (2) on each side wall;then insert front wall with door assembly into lockstrips (door not shown in
photo above). Install 5pc of ¼”X2”lag bolts into predrilled holes to secure front wall to the wooden floor.
Copyright 2016Vestil Mfg. Co.Page 10of15
Insert Side Fill Panel into lockstrip and add lockstrip to other side of the Side Fill Panel. Repeat this step for other
side of storage unit.
Install next side wall panel. Repeat on other side wall. Then install 10pc ¼”X2” lag bolts to secure walls to
wooden floor. 5 predrilled holes at the bottom of each wall.

STOR-96 and 912-G-W-1RH 0116
Copyright 2016Vestil Mfg. Co. Page 11of15
Place roof on top of the storage unit walls and simply pull it down into the channels until it bottoms out. Repeat
with second roof piece.

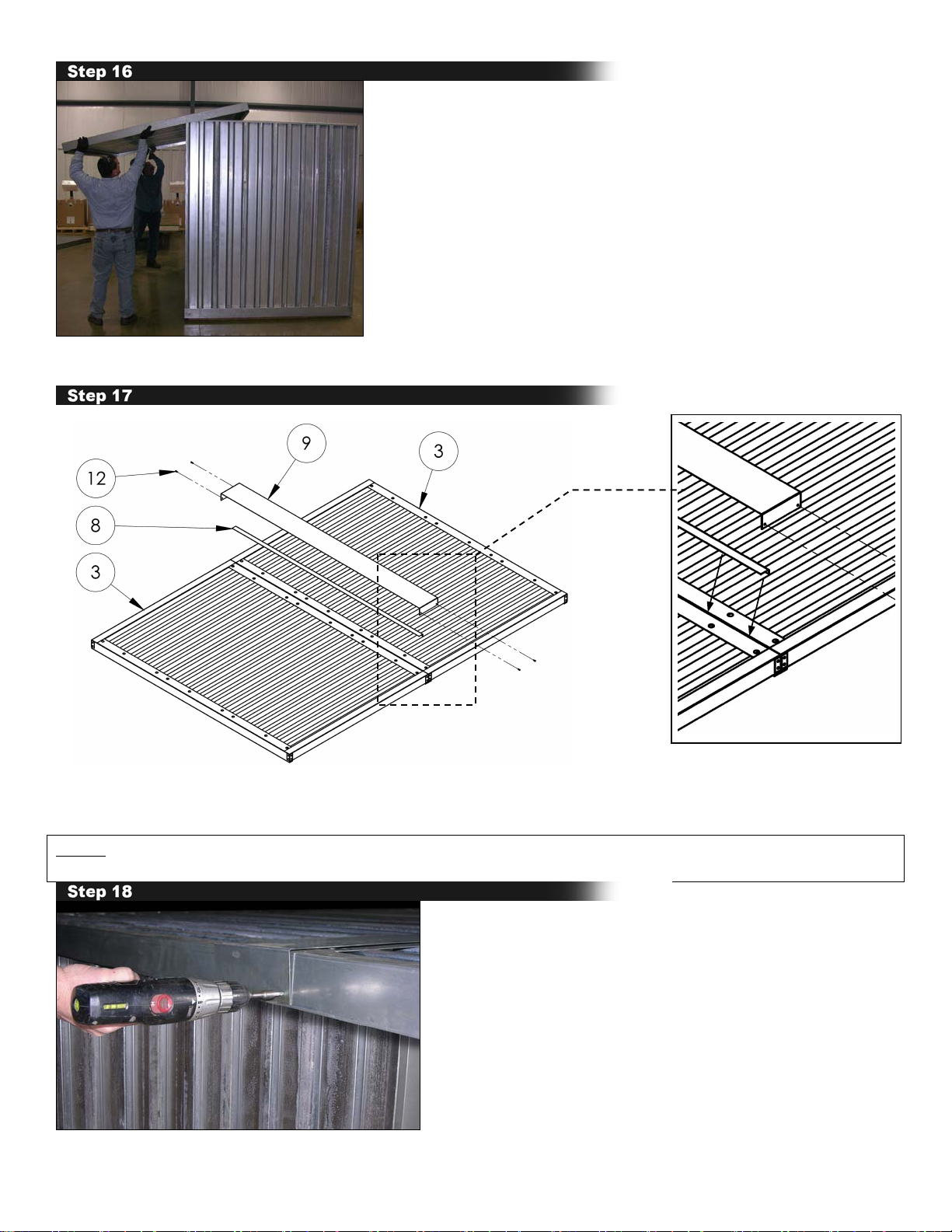

Install the formed roof angle piece (8) between the roof panels (3); then install the roof seam cover plate (12)
on top of the angle piece.
NOTE: Some shed kits will combine parts 8& 9into a single welded cover plate. Insert the projection on the
underside of the welded cover plate into the space between the roof panels.
Secure the roof seam cover plate to roof and walls with 4 self-tapping screws. (2 screws at each end of the cover
plate)

STOR-96 and 912-G-W-1RH 0116
Copyright 2016 Vestil Mfg. Co. Page 12of15
Secure roof to front and back walls with 16pc
1” long self-tapping screws.(4pc per wall) These holes are not predrilled. Space screws evenly.

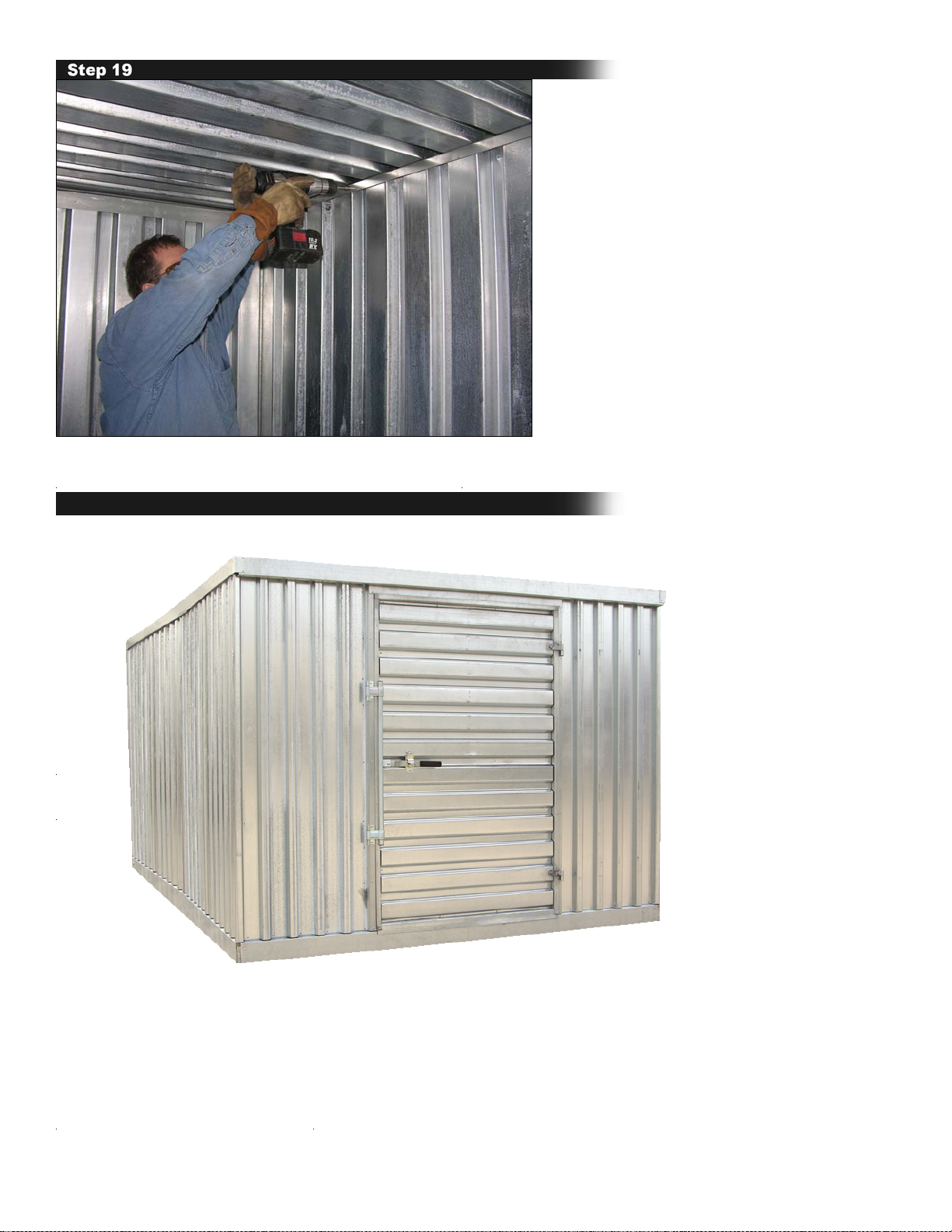

Fully assembled STOR-912-G-W-1RH
The assembly process is now finished:
Step 20

Copyright 2016Vestil Mfg. Co. Page 13of15
STOR-96 and 912-G-W-1RH 0116

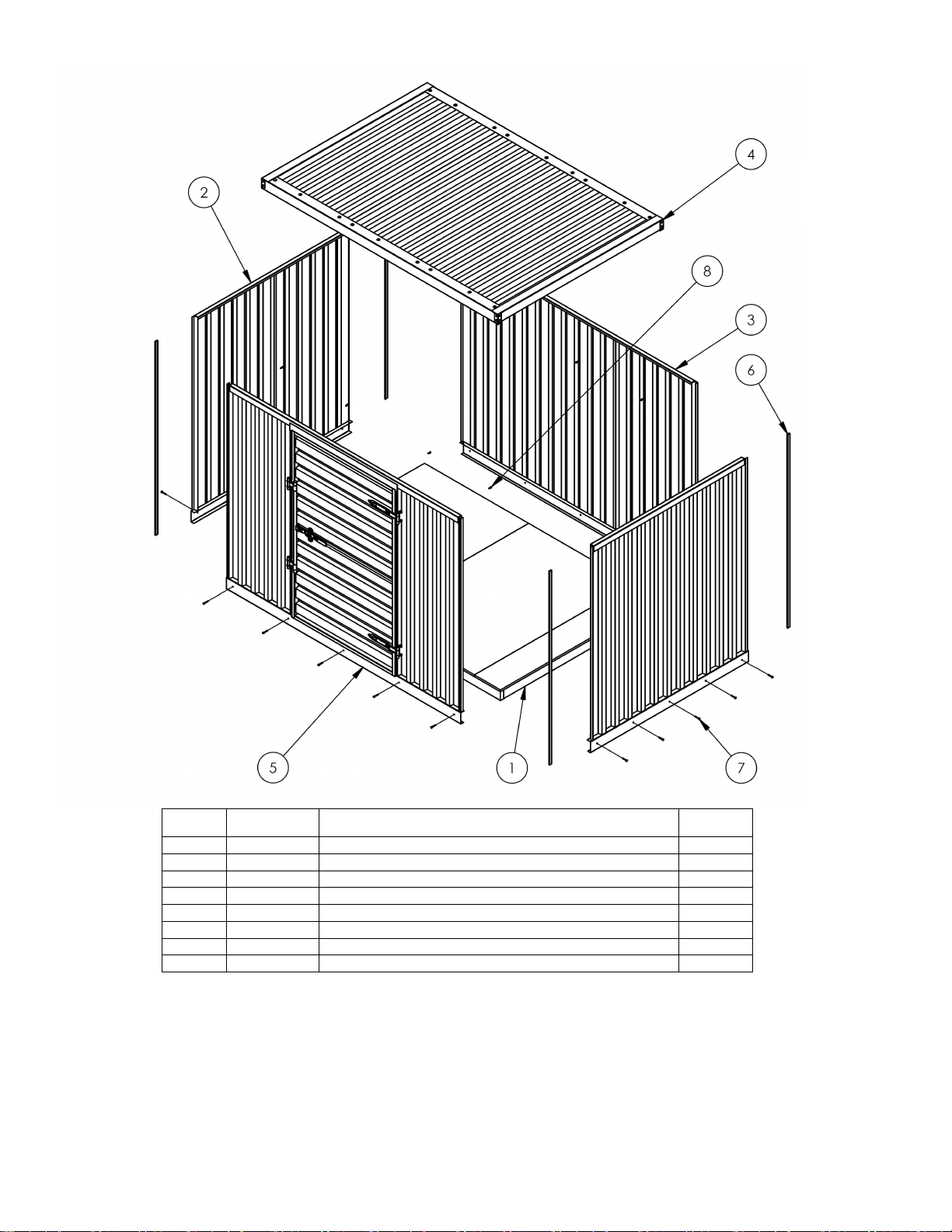

STOR-96-G-W-1RH EXPLODED PARTS DIAGRAM
Item No. Part No. Description Quantity
1 41-514-017 Assembly, wood floor base, single 1
2 41-514-013Weldment, side wall subassembly 2
3 41-514-014Weldment, back wall subassembly 1
4 41-514-016Weldment, roof wall subassembly 1
5 41-514-048 Assembly, front wall 1
6 41-037-003 Lock strip 4
7 22061 20
8 31806 Screw, self-tapping screw 8
Bolt, lag bolt

Copyright 2016Vestil Mfg. Co. Page 14of15
STOR-96 and 912-G-W-1RH 0116
STOR-912-G-W-1RH EXPLODED PARTS DIAGRAM
Item No. Part No. Description Quantity
1 41-514-013 Weldment, side wall subassembly 4
2 41-514-014Weldment, back wall subassembly 1
3 41-514-016Weldment, roof wall subassembly 2
4 41-514-018Assembly, wood floor base, double 1
5 41-514-048 Assembly, front wall 1
6 41-014-032 Frame, side wall connector, formed 2
7 Frame, floor seam cover plate, formed 2
8 41-014-027 Frame, roof seam angle, formed 1
9 41-014-026 Frame, roof seam cover plate, formed 1
10 41-037-003 Lock, corner lock strip, formed 8
11 22061 ¼ in. x 2 in. zinc-plated hex lag bolt 32
12 31806 20
41-014-030
Screw, self-tapping screw
22061
31806

STOR-96 and 912-G-W-1RH 0116
Copyright 2016Vestil Mfg. Co. Page 15 of15
