VETERAN V20L2RS0K1 User manual
1
Pleasereadthecompleteusermanualbeforeuse.
GENERALSAFETYWARNINGSFORTHETOOL
WARNINGReadallsafetywarningsandinstructions.Failure to follow all warnings and instructions
may result in electric shock, fire and/or serious injury.
SAVETHESEINSTRUCTIONSFORFUTUREREFERENCE.
DANGER:Do not allow any liquid to come into contact with the charger. If the battery pack is cracked or damaged in
any other way, do not insert it in the charging base. There is a danger of electric shock or electrocution.
The term “power tool” in this manual refers to the V20L2RS0K1Cordless Recipocating Saw, Battery and Charger.
2
GENERALPOWERTOOLSAFETY,USEANDCARE
Workareasafety
oVisibility is key -- keep work area clean and well lit. Cluttered and dark areas invite accidents.
oProper protective gear (safety goggles/glasses, etc.) is required when using this tool.
oDo not operate in the presence of flammable liquids, gasses, or dust. The operation of power tools creates
sparks which may ignite the dust or fumes, creating a potentially explosive atmosphere.
oAvoid distractions by working at a safe distance from any bystanders, children or pets.
Electricalsafety
oPower tool and battery charger plugs must match the outlet to reduce the risk of electric shock. Never modify
the plug in any way. Unmodified plugs and matching outlets will reduce risk of electric shock.
oAvoid bodily contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
oDo not expose power tools, batteries or charger to rain or wet conditions. Water can irreparably damage the
tool, battery and charger and increases the risk of electric shock.
oDo not abuse the cord. Never use the cord for carrying or pulling/unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
oIf the use of a charger in a damp indoor location is unavoidable, use a ground fault circuit
interrupter/residual current device (GFCI/RCD) protected supply. The use of an GFCI /RCD reduces the risk
ofelectric shock.
Personalsafety
oUse care and caution when operating any power tool. Do not use a power tool while you are under the
influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in
serious personal injury.
oAlways wear eye protection. The use of personal protective equipment such as a dust mask, non-skid safety
shoes, hard hat, or hearing protection used will reduce the risk of personal injuries.
oDress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught in moving parts.
oPrevent unintentional starting. Your finger should remain clear of the operating switch whenever you are not
intentionally using the tool. Ensure the switch is in the off position before connecting to the battery pack,
picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power
tools that have the switch on invites accidents.
oKeep proper footing and balance at all times. This enables better control of the power tool in unexpected
situations. Do not overreach.
oIf devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can reduce dust related hazards.
3
GeneralPowertooluseandcare
oDo not force the power tool. Use the correct power for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
oDo not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
oDisconnect the plug from the power source and/or the battery pack from the power tool before making any
adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk
of starting the power tool accidentally.
oStore power tools out of the reach of children and do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
oMaintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other
condition that may affect the power tools operation. If damaged, have the power tool repaired before use
oKeep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely
to bind and are easier to control.
oUse the power tool, accessories, and tool bits etc. in accordance with these instructions,taking into account
the working conditions and the work to be performed. Use of the power tool for operations different from
intended could result in a hazardous situation.
oEnsure the switch is in the “off” position before inserting battery pack. Inserting the battery pack into power tools
that have the switch in the “on” position can result in an unplanned activation and cause serious injury.
oRecharge only with the charger specified by the manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with another battery pack.
oUse power tools only with specifically designated battery packs. Use of any other battery packs may create a
risk of injury and fire.
oWhen battery packs are not in use, keep them away from other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting
the battery terminals together may cause burns or a fire.
oUnder abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
oDo not store or charge batteries in a location subject to extreme temperatures. Recommended temperature
range for charging is 32 to 113 degrees Fahrenheit. Recommended temperature range for discharge/use is -4
to 140 degrees Fahrenheit.
Service
oHave your power tool serviced by qualified repair person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained
4
SPECIALSAFETYINSTRUCTIONSforLithium‐IonBatteryPacks
oAlways charge the battery when the temperature is between 18-24°C (32°F to 113°F). Do not charge the
battery pack when the temperature is below 0°C (32°F), or above 40°C (113°F) This is important. Failure to
observe this safety rule could cause serious damage to the battery pack.
oThe battery is to be disposed of safely. Do not dispose of the battery pack by incinerating the battery pack .
The battery pack can explode in a fire.
oNever attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks
open or cracks, immediately discontinue its use and do not recharge it.
oDo not store or carry a spare battery pack in a pocket or toolbox or any other place where it may come into
contact with metal objects. The battery pack may be short circuited causing damage to the battery pack,
burns or a fire. If storing or disposing the battery pack, cover the terminals with a heavy insulation tape to
ensure short circuit cannot occur.
oBatteries, when stored for a long period of time, will discharge. If the battery pack has been stored for a long
time, you should charge the battery pack first before using it.
oAllow the battery pack to cool down after charging. Do not place it in a hot environment such as near a fire,
in a metal shed or open trailer left in the sun, etc. The best storage place is one that is cool and dry away
from direct sunlight and excess heat or cold.
oOnly charge the battery with the charger supplied.
oDo not splash or immerse in water or other liquids. This may cause premature cell failure.
oA small leakage of liquid from the battery pack may occur under extreme usage or temperature. This does
not necessarily indicate a failure of the battery pack. However, extra care should be taken during cleanup,
including wearing chemical-resistant rubber gloves, eye protection and other protective garb. The fluid can
damage clothing or skin upon contact. After donning appropriate safety wear, wipe battery with a
disposable dry rag to fully remove fluid and then dispose of rag appropriately.
Iftheoutersealisbrokenandthisleakagecomesintocontactwithyourskin:
Wash the affected area quickly with soap and water.
Neutralise the liquid with a mild acid such as lemon juice or vinegar.
Iftheleakagegetsinyoureyes:
Flush your eyes with clean water for a minimum of 10 minutes and seek immediate medical
attention. Inform the medical staff that the liquid is a 25-35% solution of potassium hydroxide.
IFIRRITATIONPERSISTSORFLUIDISINGESTED,SEEKIMMEDIATEMEDICALATTENTION!
5
EXTRASAFETYREGULATIONSCONCERNINGBATTERYCHARGER
oBefore using the charger, read all the instructions and cautionary markings on the charger and battery pack
as well as the instructions on the battery pack.
oThis model V20L0CH2B1 charger and VETERAN TOOL battery models V20L0BP2B1, V20L0BP4B1 and
V20L0BP5B1 are specifically designed to work together. Do not attempt to charge the battery pack with any
other charger than the one supplied or attempt to use this charger to charge other batteries.
oIf the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
oOnly charge your battery pack indoors as the charger is designed for indoor use only..
oDo not place any object on top of the charger as it could cause overheating. Do not place the charger near any
heat source.
oPull on the plug end of the charger power cord to disconnect it from the outlet. Do not pull on the cord.
oMake sure that the charger cord is positioned where it will not be stepped on, tripped over or otherwise
subjected to damage or stress.
oDo not use an extension cord unless absolutely necessary. The use of an improper extension cord could cause
the risk of fire, electric shock or electrocution.
oDo not use the charger if it has been subjected to a heavy impact, dropped or otherwise damaged in any way.
Take the charger to an authorized service centre for a check or repair.
oDo not disassemble the charger. Take it to an authorized service centre when service or repair is required.
Incorrect re-assembly may result in the risk of fire, electric shock or electrocution.
oTo reduce the risk of an electric shock, unplug the charger from the power supply before attempting to clean
it. Removing the battery pack alone does not reduce the risk.
oThe charger is designed for use from a standard household electrical supply. Do not attempt to connect the
charger to a supply with a different voltage.
oThe charger is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the charger by a person responsible for their safety.
oChildren should be supervised to ensure that they do not play with the charger.
oDo not expose charger to rain or snow.
oDo not mount charger on wall or permanently affix charger to any surface. The charger is intended to use on
a flat, stable surface (i.e. table top, bench top)
oNever attempt to connect two chargers together.
oNever insert any objects into the charger’s air vents. Electric shock or damage to the battery charger may
result.
oDisconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric
shock. Removing the battery pack will not reduce this risk.
oNever recharge a fully charged battery cartridge. Remove battery once fully charged.
oDo not attempt to charge non-rechargeable batteries.
6
SPECIALSAFETYINSTRUCTIONSFORV20L2RS0K1CORDLESSRECIPOCATINGSAW
oHold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may
contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power
tool “live” and could give the operator an electric shock.
oKeep hands away from the sawing range. Do not reach under the workpiece. Contact with the saw blade can
lead to injuries.
oApply the machine to the workpiece only when switched on. Otherwise there is danger of kickback when the
cutting tool jams in the workpiece.
oWhen sawing, the adjustable footplate 2 must always faces against the workpiece. The saw blade can become
wedged and lead to loss of control over the machine.
oWhen the cut is completed, switch off the machine and then pull the saw blade out of the cut only after it has
come to a standstill. In this manner you can avoid kickback and can place down the machine securely.
oUse only undamaged saw blades that are in perfect condition. Bent or dull saw blades can break, negatively
influence the cut, or lead to kickback.
oDo not brake the saw blade to a stop by applying side pressure after switching off. The saw blade can be
damaged, break or cause kickback.
oClamp material well. Do not support the workpiece with your hand or foot. Do not touch objects or the floor
with the saw running. Danger of kickback.
oUse appropriate detectors to determine if utility lines are hidden in the work area or call the local utility
company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can
lead to explosion. Penetrating a water line causes property damage.
oWhen working with the machine, always hold it firmly with both hands and provide for a secure stance. The
power tool is guided more secure with both hands.
oSecure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by
hand.
oAlways wait until the machine has come to a complete stop before placing it down. The tool insert can jam and
lead to loss of control over the power tool.
oDo not open the battery. Danger of short-circuiting.
7
USEANDMAINTENANCEOFV20L2RS0K1CORDLESS
RECIPOCATINGSAW

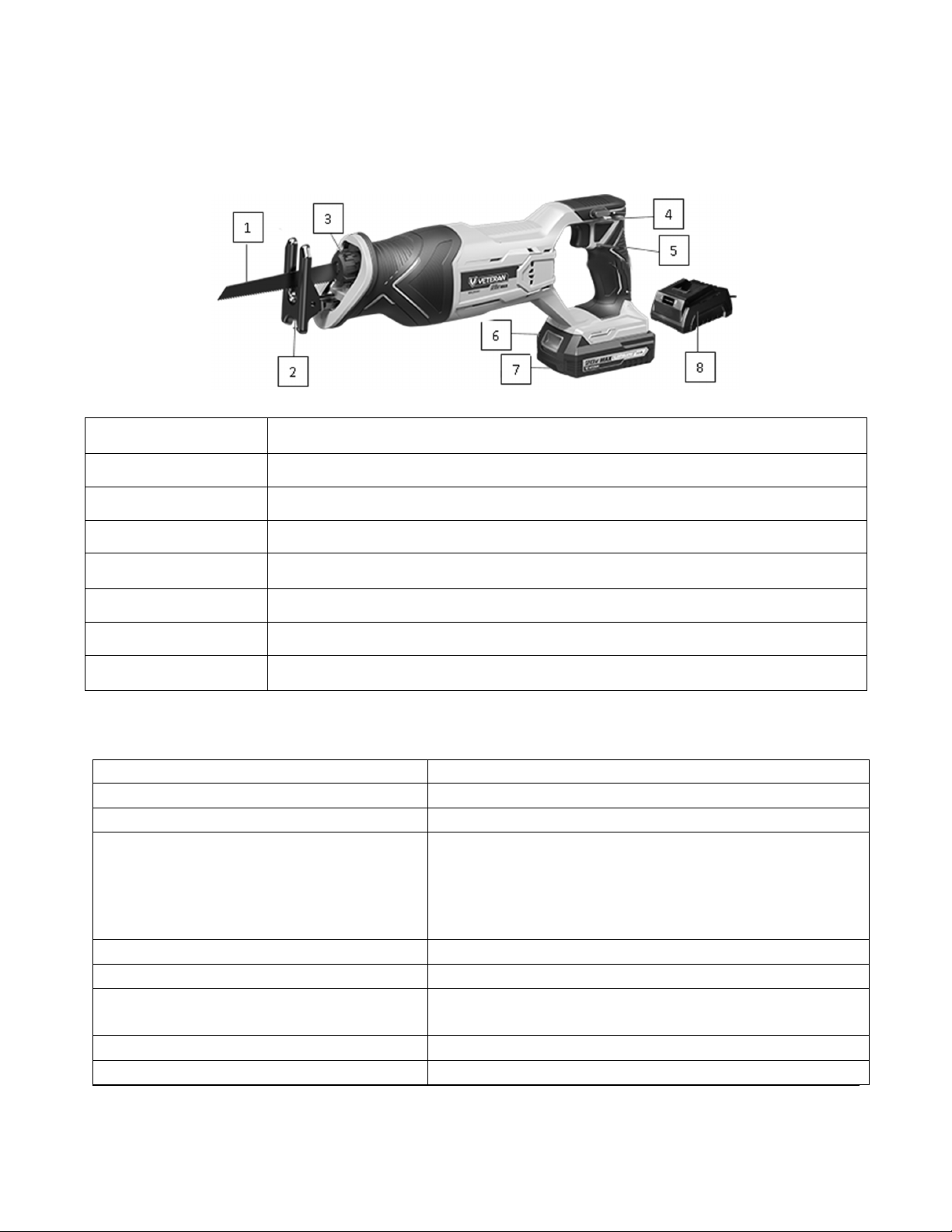

LISTOFMAINPARTS
1Sawblade
2Pivotingbladefoot
3Tool‐freechuck
4Lock‐offbutton
5On/offswitch
6Batteryreleasebutton
7Batterypack
8Charger
TECHNICALSPECIFICATIONS
CordlessReciprocatingSawV20L2RS0K1
Ratedspeed 0‐2800/min
Strokelength 1”
Max.cuttingcapacity3.94”(100mm) inwood
0.32”(8mm) insteel
Battery:V20L0BP2B1Li‐ion2000mAh
Ratedvoltageofbattery20VMAX
Charger:V20L0CH2B1Input:120V~ 60Hz0.5A
Output:20VDC,2.0A
Chargingtime1h
AmbientconditionlimitsFrom40Fto105F
8
BEFOREUSINGTHEEQUIPMENT
Remove any packing material and loose parts from unit.
Check the accessories before use. They should fit with the machine and your purpose.
If the battery is new it should be fully charged before use. Batteries are shipped with only a partial charge.
NOTE:Extendedperiodsofstoragewithoutcharge/dischargecycleswillreducethebatterycapacity.
A new battery or one which has not been used for an extended period achieves full performance only after charging
and discharging cycles. A substantial drop in operating period per charge indicates that the battery is worn out and
must be replaced.
USEOFBATTERYCHARGER
The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a
partial discharge. It is not necessary to run down the battery pack charge before recharging. Remove the battery pack
from the tool when convenient for you and your job. You can “top-off” your battery pack’s charge before starting a big
job or long period of use.
1. Chargingthebattery
This lithium-ion battery pack is shipped partially charged. Before using it the first time, fully charge the battery pack.
A fully discharged battery pack with a temperature between 0℃and 40℃will charge in about 1 hour.

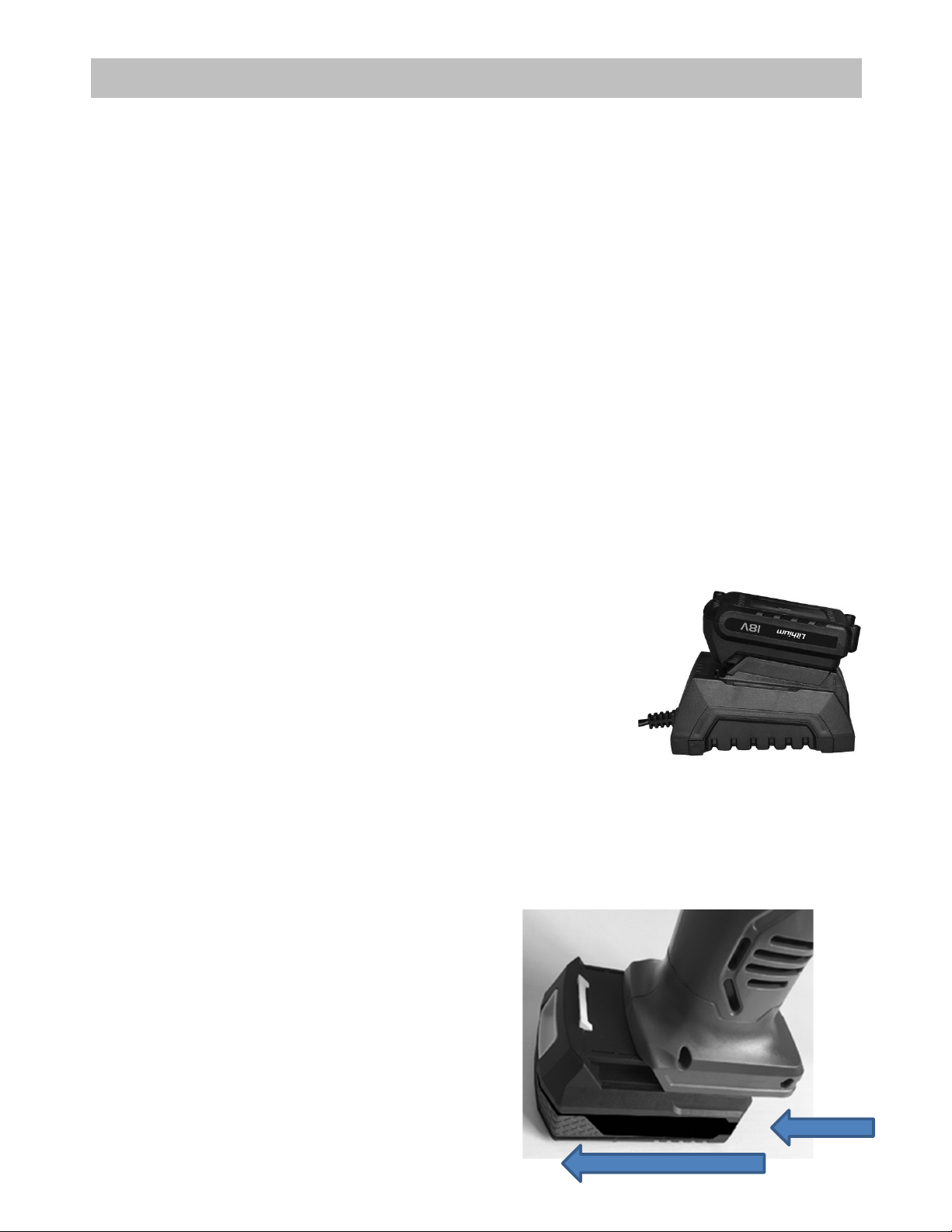

Plug the charger adapter into power source. The green light on the charger
stand will illuminate, indicating the charger is powered.
Slide the battery all the way into the charger until it locks in place with a
click. The red light on the charger will illuminate, indicating that the battery
is charging.
When charging is complete the red light will be replaced by a green light.
NOTE:Batteriesmaybecomewarmwhilecharging.Thisisnormal.Ifitishotaftercontinuoususeinthetool,
allowittocooldowntoroomtemperaturebeforecharging.Thiswillextendthelifeofyourbatteries.
WARNING: Always disconnect the battery pack from the tool before any adjustments or changing accessories.
2. Insertingandremovingrechargeablebattery
Hold the tool with one hand and the battery pack with the other.
To install: push and slide battery pack into battery port,
make sure the release latch on the rear side of the battery
snaps into place and battery is secure before beginning
operation.
To remove: Press the battery release latch and pull the
battery pack out at the same time.
8
REPLACING/INSERTING THE SAW BLADE (Fig.3)
Remove the battery from the socket before carrying out any adjustment, servicing or
maintenance.
When mounting the saw blade, wear protective gloves. Danger of injury when touching the
saw blade. When changing the saw blade, take care that the saw blade holder is free of
material residue, e. g. wood or metal shavings.
Selecting a saw blade
Use only saw blades with single-nose shank. The saw blade should not be longer than
required for the intended cut.
Inserting a saw blade
Rotate the tool-free blade clamp ring anti-clockwise and hold. Insert the blade into the
saw’s blade clamp and make sure that the blade attaches to the blade pin inside the clamp.
Release the blade clamp ring and ensure the blade is locked securely in place.
Check the tight seating of the saw blade. A loose saw blade can fall out and lead to
injuries. For certain work, the saw blade can also be turned through 180° (with the teeth
pointed upwards) and reinserted again.
Removing a saw blade
Rotate the tool-free blade clamp ring anti-clockwise and hold. Pull the blade out and
release the clamp ring.
Fig.3
Operation
Pivoting blade foot
Due to its movability, the adjustable pivoting blade foot adapts to the required angular
position of the surface. It must be held firmly against the material being cut to reduce saw
vibration, blade jumping and blade breakage.
9
Fig.4
If you need to reduce the cutting capacity of your tool (depth of cut), the pivoting foot plate
may be adjusted as follows. Loosen the two securing screws on the underside of the front
housing with a hex key. Slide the pivoting blade foot to the required position. Tighten both
screws and check that the blade foot is firmly latched.
Fig.5
Switching on and off
Depress the On/Off switch to start and release it to stop your tool. Depress the on/off switch
then the lock on button. Your tool is now locked on for continuous use. To switch off your
tool just depress and release the on/off switch.
Controlling the stroke rate
The stroke rate can be set with pressing the ON-OFF switch. Press deeper, the stroke rate
is faster.
Cutting instruction
Plunge cutting
The plunge cutting procedure is only suitable for treating soft materials such as wood,
plaster board or similar! Do not work metal materials with the plunge cutting procedure!
Use only short saw blades for plunge cutting.
Place the machine with the edge of the blade foot onto the workpiece and switch on.
For power tools with stroke speed control, set the maximum stroke speed. Press the
power tool firmly against the workpiece and allow the saw blade to slowly plunge into
the workpiece. As soon as the blade foot fully lays on the surface of the workpiece,
continue sawing alongside the desired cutting line. For certain work, the saw blade
can also be inserted turned through by 180° and the sabre saw can be guided
accordingly in a reversed manner.
Fig.6
10
Wood cutting
For easier control use low speed to start cutting, then increase to the correct speed.
Metal cutting
This saw has different metal cutting capacities depending upon the type of blade being
used and metal being cut. Use a finer blade for ferrous metals and a coarse blade for non-
ferrous metals.
When cutting thin gauge sheet metals, ALWAYS clamp wood on both sides of the sheet.
This will give you a clean cut without excess vibration or tearing of the metal.
DO NOT force the cutting blade. Forcing the blade will reduce blade life and cause the
blade to break.
NOTE: We recommend that you spread a thin film of oil or other coolant along the line of
cut ahead of the saw. This will allow easier operation and help extend blade life. When
cutting aluminium, use kerosene.
Fig.7
WORKING HINTS FOR YOUR RECIPROCATING SAW
1. If your power tool becomes too hot, set the speed to maximum and run no load for 2-
3 minutes to cool the motor.
2. Always ensure the work-piece is firmly held or clamped to prevent movement.
3. The blade guard must be held firmly against the material being cut to reduce saw
vibration, blade jumping and blade breakage.
SERVICE & MAINTENANCE
Remove the battery from the socket before carrying out any adjustment, servicing or
maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place. Keep the motor ventilation slots clean.
Keep all working controls free of dust.
Occasionally you may see sparks through the ventilation slots. This is normal and will
not damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
11
DESCRIPTION OF THE SYMBOLS
Read instructions carefully before any use
Complies with relevant European regulations
The crossed-out wheeled bin symbol indicates that the item should be disposed of
separately from household waste. The item should be handed in for recycling in
accordance with local environmental regulations for waste disposal.
By separating a marked item from household waste, you will help reduce the volume of
waste sent to incinerators or land-fill and minimize any potential negative impact on human
health and the environment.
On battery
Do not expose the battery to water
Do not expose the battery to fire or incinerate
Do not expose the battery to high temperatures (above 40°C/104°F)
On charger
Class II machine – Double insulation – You don’t need any earthed plug.
Use this device indoors only.
Fuse
GENERAL SAFETY WARNINGS FOR THE TOOL
WARNING Read all safety warnings and instructions. Failure to follow all the
warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL THE WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains operated (corded) power tool
or battery operated (cordless) power tool.
Table of contents
