VEVOR CSG2002A User manual

SMOKELESS GRILL
CSG2002A
USER MANUAL
We continue to be committed to provide you tools with competitive price. "Save
Half", "Half Price" or any other similar expressions used by us only represents
an estimate of savings you might benefit from buying certain tools with us
compared to the major top brands and doses not necessarily mean to cover all
categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually saving half in
comparison with the top major brands.

- 1 -
SMOKELESS GRILL
CSG2002A
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appear- ance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS
Thank you using this product. In order to make sure that you can operate
the machine correctly, read this instruction carefully before operation and
keep it properly for future reference. Please be sure to read the
precautions and safety rules in this page to ensure your safe use.
When using electrical appliances, basic safety precautions should always
be followed, including:
1. NEVER IMMERSEthe Main Unit Housing, which contains electrical
components and heating elements, in water. Do not rinse under the tap.
2. TO AVOID ELECTRICAL SHOCK, DO NOT put liquid of any kind into
the Main Unit Housing containing the electrical components.
3. This appliance has a three-prong plug. This plug is intended to fit into a
polarized outlet only one way. DO NOT ATTEMPT to modify the plug in
any way.
4. MAKE SUREthe appliance is plugged into a wall socket.
5. While cooking, the internal temperature
6. of the Unit reaches several hundred degrees Fahrenheit. TO AVOID
PERSONAL INJURY, never place hands inside the Unit unless it is
thoroughly cooled.
7. This appliance is NOT INTENDED FOR USE by persons with reduced
physical, sensory, or mental capabilities or a lack of experience and
knowledge unless they are UNDER THE SUPERVISION of a responsible
person or have been given proper instruction
8. in using the appliance. This appliance is NOT INTENDED FOR USBDy
children.
9. When cooking, DO NOT PLACE the appliance against a wall or against
other appliances. Leave at least 5 in. free space on the back and sides
and above the appliance. Do not place anything on top of the appliance.
10. DO NOT USEthis Unit if the plug, the Power Cable, or the
- 2 -

appliance itself is damaged in any way.
11. DO NOT PLACEThe Unit on stove top surfaces.
12. DO NOT USEoutdoors.
13. If the power cord is damaged, YOU MUST HAVE IT REPLACECby
the manufacturer,
14. its service agent, or a similarly qualified person in order to avoid
hazard.
15. Keep the appliance and its Power Cable OUT OF THE REACH of
children when it is in operation or in the cooling process.
16. KEEP THE POWER CORD AWAfrom hot surfaces. DO NOT
PLUG in the Power Cable or operate the Unit controls with wet hands.
17. NEVER CONNECTthis appliance to an external timer switch or
separate remotecontrol system.
18. A short power-supply cord (or detachable power-supply cord) is
provided to reduce the risk from becoming entangled in or tripping over a
longer cord.NEVER use with an extension cord。
19. DO NOT OPERATBhe appliance on or near combustible materials,
such as tablecloths and curtains.
20. DO NOT USEthe Power Smokeless Grill for any purpose other
than described in this manual.
21. NEVER OPERATEthe appliance unattended.
22. WEAR OVEN MITTavhen handling hot components or touching hot
surfaces
23. Should the Unit emit black smoke, UNPLUG IMMEDIATELYand
wait for smoking to stop before removing oven contents.
24. Always operate the appliance on a horizontal surface that is level,
stable,and noncombustible.
25. This appliance is intended for normal household use only. It is not
intended for use in commercial or retail environments.
-3-

26. If the Power Smokeless Grillis used improperly or for professional
or semiprofessional purposes or if it is not used according to the
instructions in the user manual, the guarantee becomes invalid and the
manufacturer will not be held liable for damages.
27. This appliance complies with all standards regarding
electromagnetic fields. If handled properly and according to the
instructions in this user manual, the appliance is safe to use.
28. Always unplug the appliance after use.
29. Let the appliance cool for approximately 30 mins, before handling,
cleaning, or storing.
30. The glass lid and handle get very hot. Always use oven mitts.
31. Do not place lid on the Unit without the Grill or Griddle Plate.
32. Do not operate Unit without the Grill or Griddle Plate
Waming
For California Residents
This product can expose you to Bisphenol A, which is known to the State
of California to cause birth defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
Electric Power
If the electrical circuit is overloaded with other appliances, your new Unit
may not operate properly. This Unit should be operated on a dedicated
electrical circuit.
Electromagnetic Fields
This appliance complies with all standards regarding electromagnetic
fields. If handled properly and according to the instructions in this user
manual, the appliance is safe to use(based on scientific evidence available
today)
Shut-Off
You can manually shut off the appliance by pressing the Power Button at
any time during cooking.
SAVE THESE INSTRUCTIONS
-4-

PRODUCT PARAMETERS
Circuit Diagram
PRECAUTIONS
Model No. CSG2002A
RATING 120V~ 60Hz
1500W
OPERATING PANEL TOUCHING PANEL
POWER CORD DETCHABLE CORD
TEMPERATURE 200-450︒F( 94-230︒C)
AJDUSTABLE
-5-

Piezasxaccesorios
Glass Lid
Baking Tray
Heating Element Asm
Reflecting Pan
Oil Cellector
Main Body Housing
-6-

ASSEMBLY STEPS
1）The Main Body Housing shell is placed on the flat surface;
2）Pour the appropriate amount of water into the oil receiving tray and put
it into the Main Body Housing；
3）hen put the heat insulation plate into the main Body Housing; note that
the double arrow of the heat insulation plate coincides with the double
arrow of the main Body Housing；
4）Put the heating tube assembly into the main Body Housing correctly；
5）Check the baking tray with both hands, and put it gently into the
machine；
6）Put the food on the plane of the baking tray, cover the glass lid, can
officially start work.
Control Panel
Assembly Drawing
-7-

Operating Instructions
1) After the food is placed in the machine, the random attached socket
socket of the power cord, the right power cord socket of the machine, and
gently inserted;
2) This power supply indicator (POWER INDICATOR) flashes, touch the
power supply switch "POWER", the machine turns on the current, and the
power supply indicator (POWER INDICATOR) is always on; indicating that
the machine has started working;
3) Touch the fan (FAN) button, the fan indicator (FAN INDICATOR) is on;
indicating that the smoking fan is working normally;
4) Light press temperature increase button (ADJUSTING UP) to adjust the
temperature to the appropriate scale, wait for the machine to automatically
bake the food to suit your requirements, press the power switch (POWER
ON / OFF);
-8-

5) The machine stops working, dials the plug, removes the food, and
completes the operation.

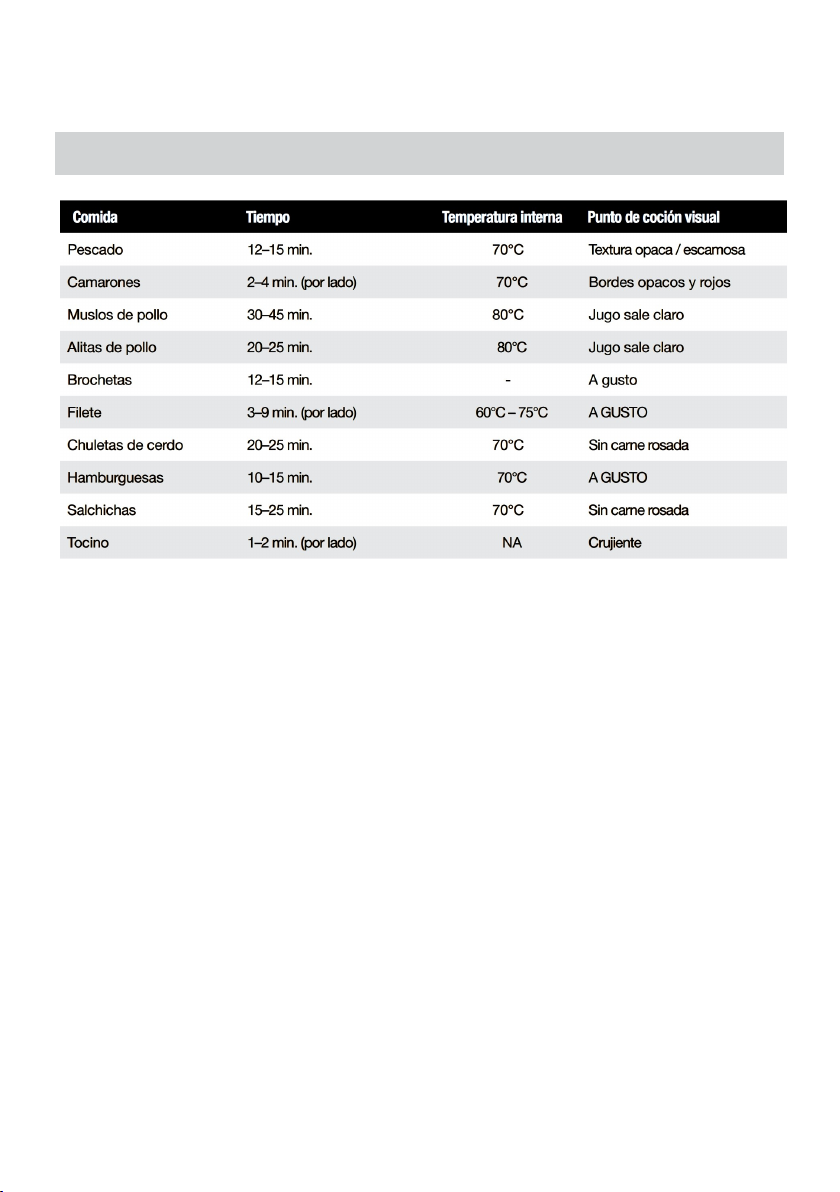

COOKING SUGGESTIONS
1）Use a meat thermometer to check internal meat temperature.
2）Cooking times are suggested and will vary depending on the thickness
of the food
3）emperatura maxima. Sin embargo, es posible que desee reducir la
temperatura para ciertos alimentos. Utilice las bajas temperaturas para
mantener los alimentos calientes una vez cocidos.
-9-

CLEANING AND MAINTENANCE
1）Si esta limpiando a fondo la unidad base con agua y detergentes,
retire el ventilador electrico.
Cuando vuelva a insertar el ventilador; asegurese de insertar la conexion
de dos clavijas en el receptaculo. PRECAUCION: Desenchufe la unidad
antes de quitar el ventilador. Las aspas del ventilador estan afiladas;
tenga cuidado al retirar y volver a coIocar.
（Flip the main body, slide, and remove the fan cover Lift the fan from the
base unit. If it is not easy lifting, you may need to press the tip of the fan to
push it away）
2）To avoid scratching the coating, use only non-metal appliances. Do not
cut food with a sharp dish (such as a fork or knife), which may scratch the
cooking surface.
3）Do not use steel wool or other metal pads. Thick marks may be left.
Always rinse clean and then immediately dry with a soft towel
4）The baking tray and glass lid can be placed in the dishwasher for
cleaning, and other parts do not put in the dishwasher；
5）When not in use for a long time, the power cord should be removed
and the machine cleaned and placed in a ventilated and dry place；
-10-

Technical Support and E-Warranty Certificate
www.vevor.com/support
