SPIT ROTISSERIE
ROASTER GRILL

2
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1)This device may not cause
harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation.
This product is subject to the provision of European Directive
2012/19/EC. The symbol showing a wheelie bin crossed through
indicates that the product requires separate refuse collection in the
European Union. This applies to the product and all accessories
marked with this symbol. Products marked as such may not be
discarded with normal domestic waste, but must be taken to a
collection point for recycling electrical and electronic devices
IMPORTANT SAFEGUARDS
Thank you for using this product. In order to make sure that you can
operate the machine correctly, read this instruction carefully before
operation and keep it properly for future reference. Please be sure to read
the precautions and safety rules in this page to ensure your safe use.
This manual will outline safety warnings and precautions, operating,
maintenance and cleaning. The warnings and instructions reviewed in this
manual cannot cover all possible conditions and situations that may occur.
Caution and common sense are not built into this product, since we believe
that the uses will comply with these codes.
Please read ALL the instructions before using your machine.
1. Make sure the voltage in your outlet is the same as the voltage indicated
on the appliance's rating label.

3
2. Do not let children and minors get close to or touch the machine.
3. Do not touch the hot surface directly with your hands. Always operate
with handle or knob.
4. To prevent electrical shock, do not immerse the cord or plug into water or
other liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning.
Cool the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation.
8. Do not operate the device with damaged cord or plug, malfunction or
with any mechanical damage. Send it to your nearest authorized service
centre for examination and repair (ONLY technicians should open up the
unit).
9. Using any accessories or attachments that are not provided or
recommended by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, unplug it,
clean and cover it and store it in a dry and safe place.
11. Do not leave the power cord hanging over the edge of table or counter
or let it come into contact with any hot surfaces.
12. Do not place the unit on or near hot air, electric burners or heaters.
13. Always switch off the power before plugging in or unplugging. Hold the
plug instead of pulling on the cord.
14. Do not apply this unit to any other purposes than the indicated usage.
15. Do not use it indoor or for commercial purposes.
16. KEEP IT OUT OF CHILDREN'S REACH.
17. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
18. Never leave it unattended while in use.
19. Always check that this machine is plugged into a grounded outlet with
the appropriate electrical supply. Ensure that the wall outlet being used is

4
properly grounded. If not, you must install a grounded outlet. Have the
work performed only by a certified electrician who is properly qualified to
meet local safety and electrical codes.
20. Ensure that the power outlet, plug and cord being used are in good
working condition. Damaged components should be repaired by a certified
electrician who is qualified to meet local safety and electrical codes. Even if
your power cord is functioning properly, keep it away from water and avoid
letting it run over carpets or heating devices.
21. Avoid using it in the presence of flammable liquids, gases, dust or other
explosive situations.
22. Extreme caution must be taken when moving an appliance containing
hot oil or other hot liquids.
23. Do not operate the machine in an appliance garage or under a wall
cabinet. Always unplug the unit from the electrical outlet when storing in an
appliance garage. Otherwise, it would cause a risk of fire, especially if the
machine touches the garage wall or the door touches it as it closes.
24. Type Y attachment: If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the manufacturer or its
service agent.
25. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the machine alone.
Cleaning and user maintenance shall not be made by children without
supervision.
ATTENTION!
This article is intended for outdoor use. Do not use indoors!

5
PRODUCT PARAMETERS
Model No.
Region
Voltage
Power
Plug Type
JY-MY-KYL46DB-120
North
America
AC120
60Hz
52W
American
PLUG
JY-MY-KYL46DB-220
Europe
AC220V
50Hz
52W
Europe
PLUG
JY-MY-KYL46DB-240
Australia
AC240V
50Hz
52W
Australia
PLUG
ATTENTION!
1. The voltage used for this device must be the same as the power supply
voltage.
LOADING CAPACITY
Model No.
Loading Capacity
JY-MY-KYL46DB-120
Max 132 lb (60Kg)
JY-MY-KYL46DB-220
Max 132 lb (60Kg)
JY-MY-KYL46DB-240
Max 132 lb (60Kg)
ATTENTION!
1. Do not exceed the listed weight capacity. Be aware of dynamic loading!
The sudden load movement may briefly create an excess load, causing
product failure.
PRODUCT COMPONENTS
ATTENTION!
1. Check all parts for completeness before beginning assembly.

6
2. To avoid accidents or sharp edges injuries please assemble and use
carefully. For assembly you need a Phillips screwdriver and different screw
wrenches. 2 persons are needed to assemble the product.
No.
Part name
Qty
No.
Part name
Qty
1
Spit bracket
1
8
Right windshield
1
2
Grill
3
9
Support foot
2
3
Spit
1
10
Wheel w/brake
2
4
Locating plate
2
11
Grill body
1
5
Roasting fork
2
12
Wheel w/o brake
2
6
Motor
1
13
Left windshield
1
7
Motor support plate
1
14
Charcoal tray
1
No.
Part name
Qty
No.
Part name
Qty
A
M8*51
4
H
M8
2

7
B
M8*40
4
I
2
C
M8
8
J
2
D
M6*8
13
K
1
E
M6
1
L
1
F
M8*15
4
M
1
G
M8*45
4
N
1
STEP1
Install four casters on the support foot, rotate and tighten them in the direction of the
arrow, and install casters 2 (with brake) on the same support foot.

8

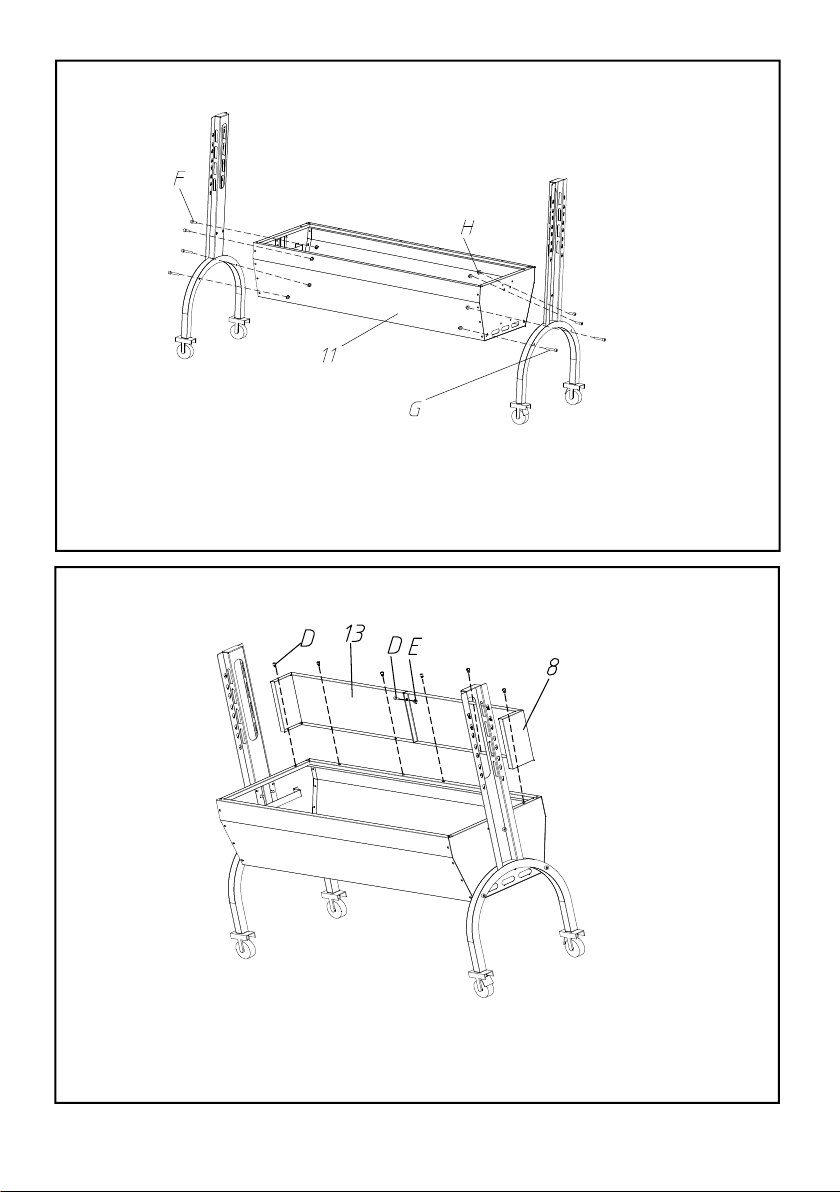

STEP2 F:M8*15-4PCS G:M8*45-4PCS H:M8-8PCS
STEP3 D:M6*8-7PCS E:M6-1PCS
Fix the support foot and grill body with M8*45, M8*15 hexagon screws and M8 flange
nuts .
The left and right windshields and grill body are fixed with M6*8 hexagon screws,
and the left and right windshields are fixed with M6*12 hexagon screws and M6
flange nuts.

9
STEP4
D:M6*8-4PCS
STEP5
The motor support plate is aligned with the support foot hole position, adjusted to
the appropriate height, and fixed with M6*8 hexagon screws. And put the
barbecue fork bracket in the corresponding position of the other support foot.
Place the charcoal tray on the grill body support.

10
STEP6 A:M8*51-4PCS B:M8*40-4PCS C:M8-8PCS
STEP7
Fix the food in the proper position of the barbecue fork as shown
above, and use M8 * 40 to lock the positioning plate and the
baking fork with dished screws, then lock the U-shaped bolts
passing through the positioning plate with M8 butterfly nuts.
Put the food and barbecue fork together on the motor support
plate and spit bracket.

11

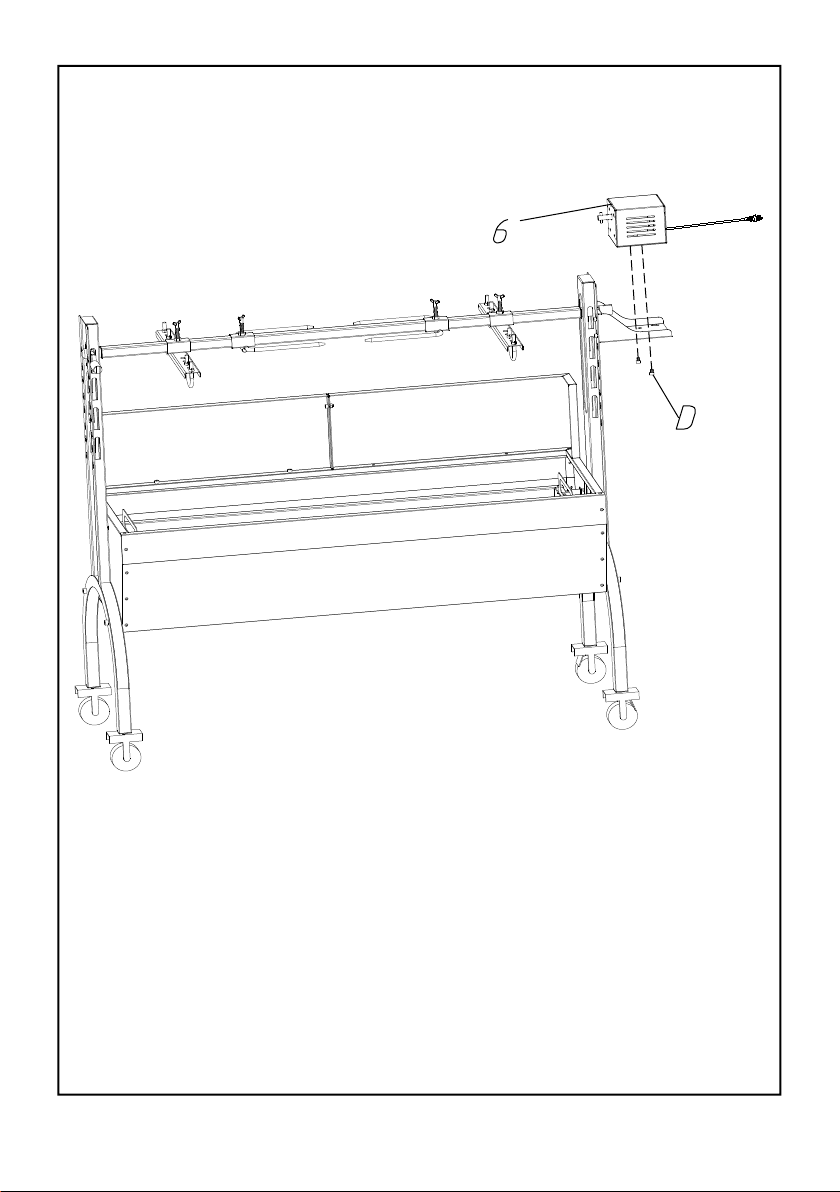

STEP8 D:M6*8-2PCS
Place the motor on the motor support plate and lock it with M6*8
hexagon screws. The installation is complete. Put charcoal on
the charcoal tray, ignition, can roast sheep and other large
pieces of food.

12
STEP9
The grills are placed on the grill body to roast meat and other
food at the same time.
Simultaneous grilling
and rotating barbecue
motor mounting position.

13
OPERATING INSTRUCTIONS
Before using the appliance for the first time, peel off any promotional
materials and packaging materials, and check that the cooking plates are
clean and free of dust. If necessary, wipe them over with a damp cloth.
Spread over with an absorbent kitchen towel and wipe off any excess oil.
When your product is heated for the first time, it may emit slight smoke or
odor, which is normal for many heating appliances, and will not affect the
safety of your appliance.
1. Place the machine on a clean, dry, level surface near a plug base outlet.
2. Distribute the solid firelighters in the center of the fire box.
3. Stack up the charcoal in a pyramid above the firelighters.
4. Light the solid firelighters with a match.
5. Grease the grill with some vegetable oil and start grilling.
6. Only place food on the grill after the fuel is covered with an ash layer.
7. Plug the cord into the wall outlet.
8. Use the ventilation slider to control the amount of air supplied to fuel
from the bottom.(Only applicable for appliance with ventilation slider)
ATTENTION!
1. Do not move while the appliance is hot.
2. Due to safety reasons do not use this appliance with liquid fuels.
3. We strongly recommend that the bbq rotisserie grill shall be heated up
and the fuel kept red-hot for at least 30 min prior to the first cooking;
4. Do not leave the appliance unattended during use.
5. Do not use the appliance near flammable objects (keep at a safe
distance, at least 3 meters).
6. Do not leave the appliance unattended during use.
7. Do not cook before the fuel has a coating of ash.
8. If the motor is suddenly stuck, abnormal noise, smoke and other
undesirable phenomena are found during the barbecue process,
immediately cut off the power supply, and restart it after the maintenance is
completed.
9. Always turn the rotisserie motor to “OFF” before opening the grill.

14
WARNING! This product rotisserie grill will become very hot, do
not move it during operation.
WARNING! Keep children and pets away.
WARNING! In case of the danger of carbon monoxide poisoning, do not
use the product rotisserie grill indoors.
WARNING! Do not use the barbecue in a confined and/or habitable space
e.g. houses, tents, caravans, motor homes, boats.
WARNING! Remove all packaging materials and keep them for future
use.Packaging materials are not a toy.
WARNING! Don't let children play with the packaging materials. If they
swallow the packaging materials, they will suffocate!
ATTENTION! Always wear gloves when adjusting the grill, the handles of
the grill can become very hot during the grilling process.
IMPORTANT! Do not pour water into the appliance while it is still hot.
IMPORTANT! Close the ventilation slider to extinguish the appliance.
(Only applicable for appliance with ventilation slider)
COOKING TIPS & HINTS
1. Always wash your hands before and after handling uncooked meat and
before eating.
2. Always keep raw meat away from cooked meat and other foods.
3. Before cooking, ensure grill surfaces and tools are clean and free of old
food residues.
4. DO NOT use the same utensils to handle cooked and uncooked foods.
5. Ensure all meat is cooked thoroughly before eating.
CAUTION:
1. Eating raw or under cooked meat will cause food poisoning (e.g.
bacteria strains such as Escherichia coli).
2. To reduce the risk of under cooked meat, cut the meat to ensure it is
fully cooked.
3. If the meat is fully cooked, its juice should be clear and there should be
no pink / red juice or traces of meat color.

15
4. Cooking larger pieces of meat and joints is recommended before finally
cooking on the grill.
5. After cooking on your grill always clean the cooking surfaces and
utensils.
CLEAING MAINTENANCE AND STORAGE
1. For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry
with a clean lint free cotton cloth.
2. Window cleaning liquid or a similar cleaning liquid can be used to clean
the surface.
3. Always unplug the machine before storage.
4. Always make sure the machine is cool and dry before string.
5. Store the appliance in a dry and clean area.
Made in China

Support and E-Warranty Certificate https://www.vevor.com/support
