ELECTRIC CERAMIC HOB
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

1
MODEL: LT4-77
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Specification of
Ceramic Hob

2
CONTENTS
·Model and parameters……………………………….…..……..……........2
·Important safety instructions……………………………….…..……..……3
·Installation ….........................................................................................4
·Connection to power supply………………………………..…….….…….6
·Diagram of the radiant hob………………………………………...….……7
·Instruction for use……………………………………………………….…..7
·Safety …………………………………………………………………………9
·Use of containers ……………………………………………….……..……10
·Cleaning and maintenance …………………….………….…….….………11
MODEL AND PARAMETERS
Notice:the ceramic plate is hot after cooking, please do not touch!
WARNING
• Repair of any faults in your cooktop must be carried out only by an
Authorized Repair Service technician, otherwise the guarantee is not valid.
• The technical details and identification of the appliance are shown on the
specification plate. Consult this plate before proceeding with electrical
connection.
• Electrical connection must be carried out by a certified specialist familiar
Model
LT4-77
Voltage/Frequency
220-240V / 60Hz
Power (total)
6000W
Control mode
Touch
Built in size
560x490 mm
Product size
590x520 mm

3
with official regulations.
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions carefully before using this cooktop.
Using kitchen appliances, basic safety precautions must be followed,
including the following:
•This appliance must be properly installed and grounded by a qualified
technician. Only connect to a properly grounded outlet. See electric
preparation and connection instructions in the Installation Instructions.
•Type Y attachment: If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
•Do not repair or replace any part of the cooktop unless specifically
recommended. Refer service only to an authorized service center.
•Do not allow children to use this appliance unless closely supervised by
an adult(Note: This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children
without supervision).
•Do not store flammable materials in or near the cooktop
•Never use the cooktop to warm or heat a room.
•For personal safety, wear proper clothing.
•Use proper pan size. This appliance is equipped with one or more surface
units of different sizes. Select pans with having flat bottoms large enough
to cover the surface unit heating element. The use of undersized pans will
expose a portion of the heating element to direct contact and may result in
ignition of clothing. Proper coverage of pots and pans to burner will also
improve efficiency.
•Glazed cooking utensils. Only certain types of glass, glass/ceramic,

4
ceramic, earthenware, or other glazed pots and pans are suitable for
range-top service due to the sudden change in temperature, which may
result in breakage.
•Do not soak removable heating elements. Heating elements should never
be immersed in water.
•Do not cook on a broken cooktop. Contact a qualified technician
immediately.
•Clean cooktop with caution. Be careful to avoid steam burns if a wet
sponge or cloth is used to wipe spills on a hot cooking area. Some cleaners
can produce noxious fumes if applied to a hot surface.
SAVE THESE INSTRUCTIONS
INSTALLATION
1. Cut a hole in the worktop of the dimension shown in the diagram below A
minimum of 50mm space should be left around the hole The worktop
should be at least 30mm thick and made of heat resistant material.

5
2. It is essential that the Radiant Cooktop is well ventilated and that the air
intake and exit are not blocked.
Make sure the cooktop is correctly installed as shown in Figure 2.
For safety the gap between the hob and any cupboard above it should be
at least 760mm.
WARNING
(1). The Radiant cooktop must be installed by a properly qualified person
We have our own qualified installers Never try to install the appliance
yourself.
(2).The Radiant cooktop must not be installed above refrigerators freezers,
dishwashers or tumble dryers.
(3).The wall and the area above the cooktop should be able to withstand
heat.

6
Connection to power supply:
If the cable is damaged or needs or needs replacing this should be done by
an after sales technician using the proper tools so as to avoid any
accidents.
The installer must ensure that the correct electrical connection has been
made and that it complies with safety regulations
The cable must not be bent or compressed
The cable must be checked regularly and only replaced by a properly
qualified person.
Electric ceramic stove failure:
No heating for 2 minutes after the gear is selected, an "E4" fault will be
displayed.
Customer Service Email: CustomerSer[email protected]
(Please send relevant videos and pictures to our email address, and attach
your Amazon order number. After confirming the problem, we will definitely
give you a satisfactory solution.)
Diagram of the radiant hob
Schematic diagram of the control panel
Instructions for Use
Operating the device

7
Place suitable cookware onto the cooker plate,The operation of all zones is
the same.
Caution! Make no hot pots or pans on the keypad!

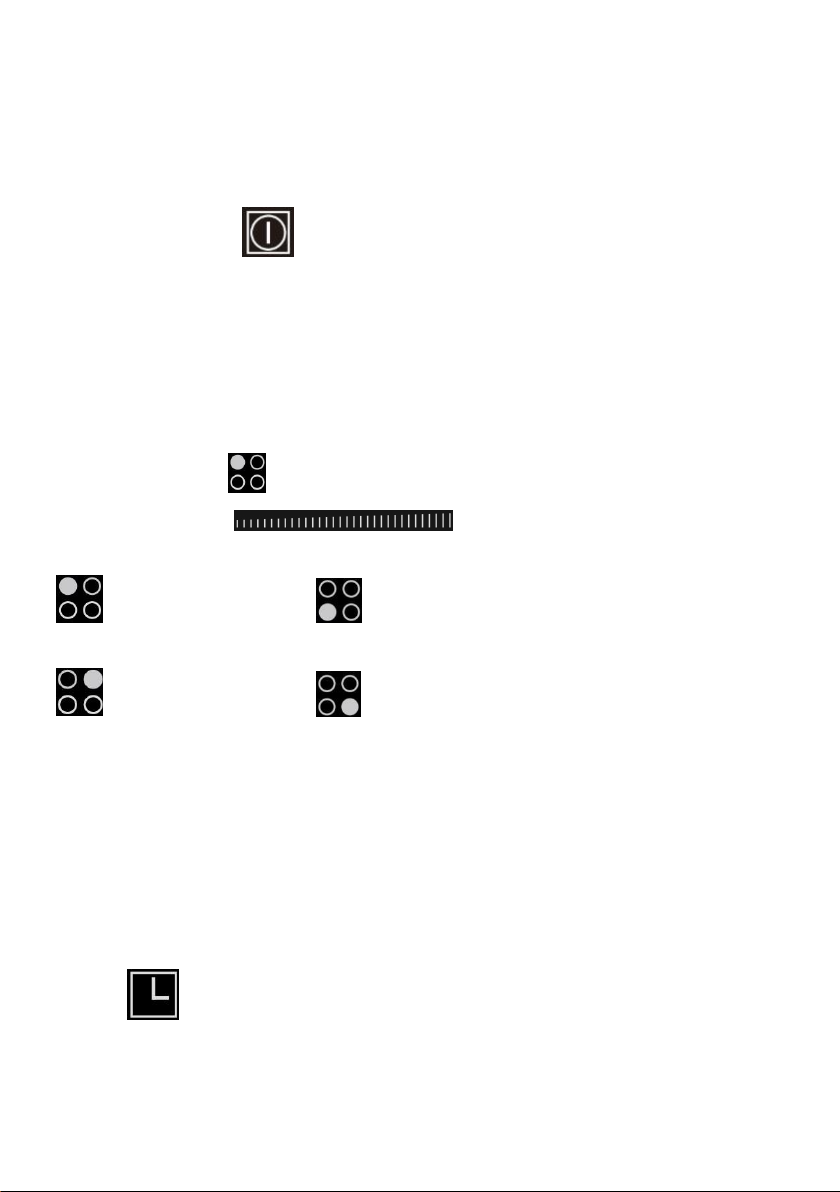

Stand-By-Modus
Press the On / Off button. You will hear a beep and see flashing lines on
the display. If you have not selected a program within about 2 minutes, the
unit will return to standby.
Power
Press the button for the required cooking zone.
You can slide the to change the power levels of
the relevant cooking zone.The operation of zones is the same.
up to max. 1200 W, up to max. 1800 W.
up to max. 1800 W, up to max. 1200 W.
Residual heat indicator
When the hob has been operating for some time, there will be some
residual heat.
The residual heat indicator warns for each cooking zone separately with
"H" symbol.
Timer

8
After you have selected the cooking zone, please press the timer key
.
Timer confirmation:
The default ones place time LED is flashing. With sliding the
to set time of the ones place. Press the
again, the tens place time LED is flashing. With sliding the
to set time of the tens place. ( Timer max. 99 min.)
After 5 seconds no number level key be pressed, the time will start timing
and the display will indicate the countdown time until to “00”. If the two
zones have been set different time, the display will indicate the two setting
times one by one.
Timer cancellation：
By pressing onto timer key choose the zone you want to cancel the timer.
Then slide the setting time to be “00”, and the timer function will be
cancelled. Or you can cancel the two zones timer together by pressing
for three seconds.
Key Lock (Childlock)
To ensure the safety of children, the ceramic hob is fitted with an interlock
device. To lock: hold down the “Inter lock” key for 3 seconds; the hob then
goes into “Interlock” mode, the timer shows “L0” and the rest of the keys
are disabled. To unlock hold down the lock key for 3 seconds and the hob
will return to normal working.

9
Pause
Touch this button, the hob will stop working, touch again, t will be back to
previous status
SAFETY
Safety systems
In order to protect the electronics from overheating if the control unit
detects excessive heat it will switch off the hotplate closest to the sensors
and the letter H will appear on the display. This hotplate can be activated
when the temperature of the electronic unit returns to normal.
Each hotplate is equipped with an interior temperature limiter that switches
off the hotplate if the radiant surface is heated excessively.
If any cracks appear in the radiant surface, immediately disconnect it from
the mains. Do not use any part of the cooktop until a new radiant surface
has been fitted.
AutomaticThe hob will automatically switch off when you did not set
cooking time, forgot to switch off the hob, and did not operate the hob for
two hours.
USE OF CONTAINERS
Most stainless steel, enamel, iron, STAINLESS STEEL
ceramic and copper pans can be ENAMEL
used on radiant cooktops. CERAMIC

10
COPPER
Aluminum pans are not
recommended as
they may stain the surface,
unless they have stainless
steel encapsulated bottoms.
Hotplates should not be switched
on without a pan on top. The base
of the pan should be flat and dry.
Pans that have been used on gas
cookers are not normally completely
flat and absorb heat badly.
Make sure that the diameter of the
pan is at least that of the hotplate.
Avoid dragging pans over the radiant glass
surface, as it may get scratched.
Always lift the pan.
Never use tin foil or plastic containers. They may

11
melt and fuse permanently with the radiant glass
surface.

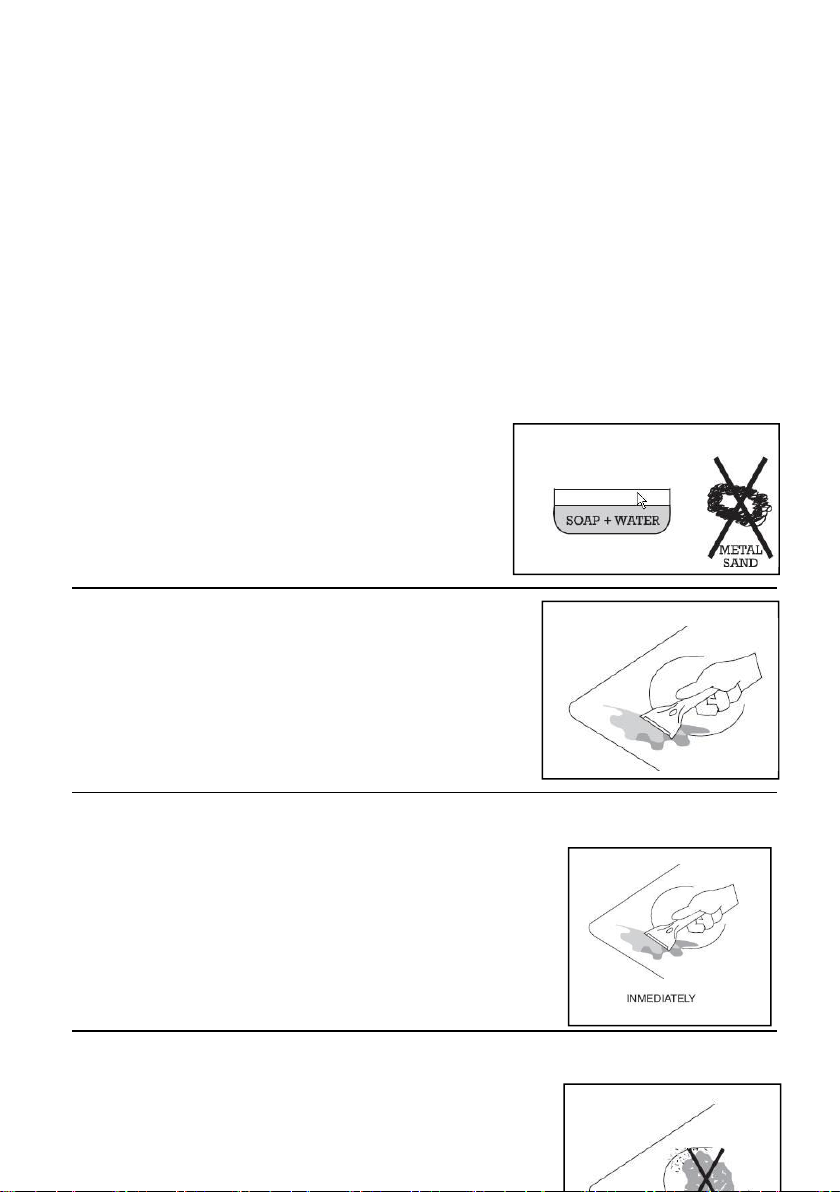

CLEANING
IMPORTANT: If the radiant glass surface breaks or you notice cracks in it,
disconnect the equipment. Call your Repair Service Technician.
Clean the radiant glass surface frequently,
when it is cool. Never use abrasive
products or pads. Clean with a damp cloth
and soapy water.
Once a week, clean thoroughly with
specific products that preserve and protect
radiant cooktops hobs. Scrape off stuck on
stuck dirt with a scraper
If sugar (or sugary matter) or plastic is
accidentally burnt on the cooktop, remove
at once with the scraper while still hot.
Otherwise it may leave a permanent mark.
Do not use the cooktop as a work surface.

12
Be particularly careful with dirt or dust from
vegetables, cleaning powders, etc. which
may scratch the surface when pans are slid
over it.
