TRANSFORMER
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

MODEL: HPN-120GK2301 HPN-200GK2302 HPN-300GK2303
HPN-600GK2306
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
TRANSFORMER

AFETY INFORMATION
IMPORTANT SAFETY INFORMATION TO REDUCE RISK OF FIRE OR
INJURY
Do not install within 10 feet ( 3 m ) of a pool , spa or fountain .
For use with low voltage outdoor landscape lighting systems only .There
are no serviceable parts inside the power supply unit .
DO NOT DISASSEMBLE .
Do not submerge transformer .
Do not connect two or more transformers in parallel.
Do not use it with a dimmer.
Plug the power supply unit directly into a GFCI wet location outlet .
Do not use an extension cord.
WARNING :
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the users authority to operate the
equipment .
Note :
This equipment has been tested and found to comply with the limits for a
Class B digital device,pursuant to part 15 of the FCC Rules.These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.This equipment generates,uses and can radiate
radio frequency energy and,if not installed and used in accordance with the
instructions,may cause harmful interference to radio communications.
However there is no guarantee that interference will not occur in a
particular installation.If this equipment does cause harmful interference to
radio or television reception,which can be determined by turning the
equipment off and on the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna. increase the separation
between the equipment and receiver .
Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.

Consult the dealer or an experienced radio
Pre-installation
WARNING :
Use only CSA or UL approved low-voltage cable . Failure to use at least 16
gauge minimum cable or install it as directed in these instructions may
result in Risk of Fire or Electric Shock . Using large cable will ensure
maximum light output .
TECHNICAL PARAMETER
Model
HPN-120GK2301
HPN-200GK2302
HPN-300GK2303
HPN-600GK2306
Input
120VAC, 60Hz,
1.14A
120VAC, 60Hz,
1.8A
120VAC, 60Hz,
2.68A
120VAC, 60Hz,
5.45A
output
12VAC/10A（MAX)
12VAC/16.7A
(MAX)
12VAC/25A~14VA
C/21.4A (MAX)
12VAC/50A~14VA
C/42.8A (MAX)
Power
120 W
200 W
300 W
600 W
Note: The transformer has three sets of outputs, with each set of
power accounting for one-third of the total power.
For example:The total power is 120W, and each output cannot exceed
40W, The total power is 200W, and each output cannot exceed 66W, The
total power is 300W, and each output cannot exceed 100W.The total power
is 600W, and each output cannot exceed 200W.

TOOLS REQUIRED
HARDWARE INCLUDED
Part
Description
Quantity
A
Transformer
1
B
Photocell
1
C
Mounting Template
1
NOTE: Hardware not shown to actual size.

INSTALLATION
1、Preparing the Cable
Being careful when splitting NOT to expose the copper wire, remove the
landscape wire insulation 1/2 in. from both wires and twist ends.
2、Connecting the Cable to the Transformer
Lay the transformer on a flat, stable surface and insert the stripped end of
one wire under the terminal clamping plate “COM”. Repeat this
procedure for clamping plate “12V” or “14V”.
NOTE: Gently pull on the landscape wire to verify if the connection is
strong.
3、Placing Your Fixtures and Routing the Cable
Lay your fixtures (not included) out where you want to locate them. Be sure
they do not exceed the rating of the transformer. Route the low voltage

cable to the fixtures. If there is extra cable, coil after the last fixture.
WARNING: Risk of Fire
Be sure to leave a minimum of 10 feet (3m) of wire between the power
pack and first fixture.
4、Attaching Your Fixtures
Turn the transformer on. Attach your fixtures to the cable using cable
connectors as shown. Place one connector on each side of the cable, then
press together to lock. Prongs will pierce the cable to make contact and
your fixtures should light up. Turn the transformer on. Attach your fixtures
to the cable using the cable connectors as shown. Press the connector
tight onto the cable until the prongs pierce the cable insulation. The fixture
should light on.

5、Mounting the Transformer
To mount directly to a wall surface use the included screws as shown,
suitable for mounting within 39 in. to 59 in. (1 m to 1.5 m) of the ground.
When installing the screws, the spacing between the .Hang the transformer
(A) onto the screws .

6、Mounting the Photocell
Mount the photocell (B) bracket on a wall or other solid surface . Snap the
sensor into the bracket. Route or coil the excess wire to protect it from lawn
mowers, trimmers, etc.
Avoid pointing the sensor at nighttime light sources such as windows,
porch lights, and street lights.

Placing the sensor in areas receiving less sunlight at dusk (east side
of house, behind trees and bushes, under a deck) will have the transformer
come on earlier in the evening. Mounting the photocell in brighter locations
will have the transformer come on when it has become darker out. The
location, position and orientation of the photocell can be adjusted until the
transformer turns on at the desired light level.
If the wires to the photocell are cut or broken, the photocell can be replaced.
Unscrew the photocell connector cover from the transformer and pull the
bi-pin connector out of the mating socket.
The replacement part is inserted into the socket and the cap is screwed
back onto the socket to provide a water tight connection.
Note that the bi-pin connector is polarized and can be inserted into the
socket only one way.
Replacement photocell is available in the store.
7、Protecting or Hiding the Cable
Once all fixtures are in place and you are satisfied with their
locations, the cable may be covered with mulch or buried up to
6 in. (15 cm) deep. Leave about 12 in. (30 cm) of cable after the
last fixture.
WARNING: Risk of Fire
Do not coil cable around transformer. Total bulb wattages must not exceed
the maximum power of transformer.

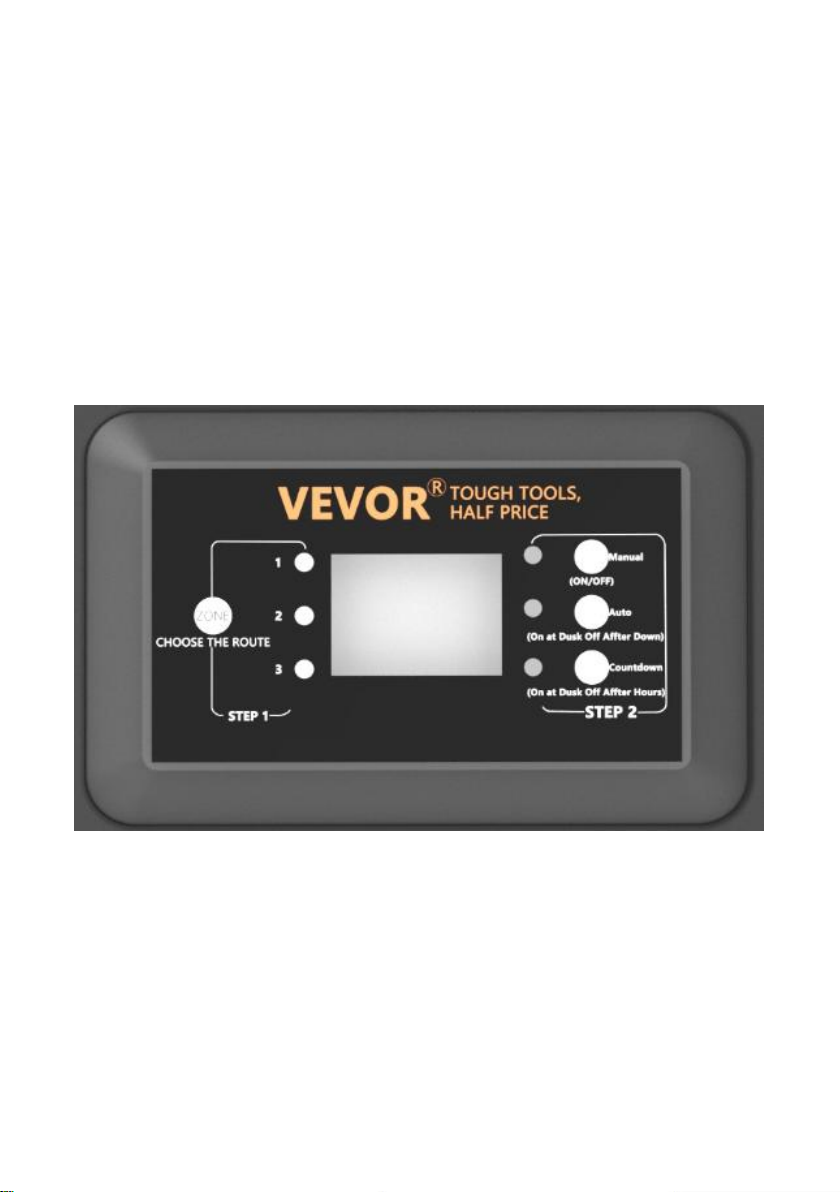

OPERATION
1、Operating in Manual Mode
This setting allows you to immediately turn the lights on and turn them off
when you no longer need them
a ) STEP1 Press ZONE Select the line that needs to be manually set (a
total of 3 lines). Each time you press ZONE, the indicator light will cycle on,
and the corresponding line indicator light will illuminate to indicate that the
line is selected.
b ) STEP2 Press MANUAL The MANUAL mode is now activated

2、Setting PHOTOCELL AUTO ON / OFF
This setting allows the photocell to turn the lights on at dusk and off at
dawn
a ) STEP1 Press ZONE Select the line that needs to be manually set (a
total of 3 lines). Each time you press ZONE, the indicator light will cycle on,
and the corresponding line indicator light will illuminate to indicate that the
line is selected.
b ) STEP2 Press AUTO until the AUTO LED indicator is lit . The
PHOTOCELL AUTO ON / OFF mode is now activated . The digit display
shows AU.

3、Setting PHOTOCELL ON / TIME OFF
This setting allows the photocell to turn the lights on and you set the time
they go off
a ) STEP1 Press ZONE Select the line that needs to be manually set (a
total of 3 lines). Each time you press ZONE, the indicator light will cycle on,
and the corresponding line indicator light will illuminate to indicate that the
line is selected.
b ) STEP2 Press COUNTDOWN until the COUNTDOWN LED indicator is
lit The COUNTDOWN mode is now activated .
c ) Press COUNTDOWN to select the time, with a time step of 1H and a
maximum setting of 12H.
NOTE:
When encountering a sudden power outage and power is restored, the
transformer will repeat the previous settings. If changes are needed, you
will need to manually reset the desired mode.

TROUBLESHOOTING
NOTE:
The buttons in the red box are three circuit protectors, corresponding to 1,
2, and 3 from bottom to top.
When the button protrudes, it represents the corresponding output
overload protection. After adjusting the load, press the corresponding
button to reset.
Made In China
