DIRECT-VENT FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
CD32M 32" DV Fireplace with Fan
CD32M-1 32" DV Fireplace
CD32M-2 32" DV Fireplace with Fan & Door Switch
CD36M-A 36" DV Fireplace with Fan
CD36M-A1 36" DV Fireplace
CD36M-A2 36" DV Fireplace with Fan & Door Switch
CD42M-A 42" DV Fireplace with Fan
CD42M-A2 42" DV Fireplace with Fan & Door Switch

www.desatech.com 111916-01F
2
WARNING: Improper installation, adjustment, altera-
tion, service or maintenance can cause injury or prop-
erty damage. Refer to this manual for correct installation
and operational procedures. For assistance or addi-
tional information consult a qualified installer, service
agency or the gas supplier.
WARNING: This direct-vent gas fireplace is intended for
use with natural or propane/LP gas only. Do not attempt
to burn any solid fuels in this appliance.
This fireplace is manufactured for Stylecrest Inc. under
the Vexar brand name by DESA.
This fireplace may be installed as an OEM installation
in a manufactured (mobile) home and must be installed
in accordance with the manufacturers instructions and
the Manufactured Home Construction and Safety Stan-
dard, Title 24 CFR, Part 3280 in the United States or the
Mobile Home Standard, CAN/CSA Z240 MH Series, in
Canada. This fireplace is only for use with the type(s)
of gas indicated on the rating plate. A conversion kit is
supplied with the fireplace.
SAVE THIS BOOK
This book is valuable. In addition to instructing you on how to install and
maintain your appliance, it also contains information that will enable you to
obtain replacement parts or optional accessory items when needed. Keep
it with your other important papers.
TABLE OF CONTENTS
Introduction .......................................................... 3
Selecting Location ............................................... 3
Pre-Installation Preparation .................................. 4
Installation ........................................................... 7
Burner Flame Adjustment .................................. 13
Operating Fireplace ........................................... 14
Converting Fireplace From
Natural Gas To Propane/LP Gas .................. 15
Troubleshooting ................................................. 17
Illustrated Parts Breakdown and Parts List ....... 18
Specifications .................................................... 22
Wiring Diagram .................................................. 22
Accessory and Replacement Parts ................... 23

www.desatech.com
111916-01F 3
INTRODUCTION
WARNING: This product con-
tains and/or generates chemicals
known to the State of California
to cause cancer or birth defects
or other reproductive harm.
Models CD32M series, CD36M-A series and
CD42M-A series are heat circulating grav-
ity direct-vent fireplaces with sealed combustion
chamber. These fireplaces use millivolt gas control
valve and millivolt ignition system.
These fireplaces are convertible with the standard
setup as natural gas. Conversion may be performed
by the O.E.M. mobile home builder or by a quali-
fied service person on-site. If you are uncertain as
to what gas your unit is equipped for, please check
the rating plate located inside of the appliance
opening or consult your mobile home supplier or
your local distributor of DESA/Vexar products.
NOTICE: Check local building
codes for area requirements be-
fore installing this appliance.
BEFORE YOU BEGIN
Before beginning the installation of your appli-
ance, read these instructions through completely.
This DESA/Vexar fireplace and its components are
safe when installed according to this installation
manual and operated as recommended. Unless
you use DESA/Vexar components designed and
tested for this fireplace system, YOU MAY CAUSE
A SAFETY HAZARD!
The DESA/Vexar warranty will be voided by, and
DESA/Vexar disclaims any responsibility for the
following actions:
A) Modification to the fireplace, components,
doors, blower, fans or vent system.
B) Use of any component part not manufactured or
approved by DESA/Vexar in combination with
a DESA/Vexar fireplace system.
Proper installation is the most important step in
ensuring safe and continuous operation of the
fireplace. Consult the local building codes as to the
particular requirements concerned with the instal-
lation of all factory built fireplaces. This fireplace,
when installed, must be electrically grounded in
accordance with local codes or in the absence of
local codes, with the National Electrical Code,
ANSI/NFPA 70 or the Canadian Electrical Code,
CSA C22.1.
The installation must conform with local codes or,
in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1 or the Canadian Installa-
tion Code, CAN/CGA B149. This appliance com-
plies with ANSI Z21.88-1998 and CSA 2.33-M98
as a VENTED GAS FIREPLACE HEATER.
SELECTING LOCATION
To determine the safest and most efficient loca-
tion for your fireplace, consider the following
guidelines:
1. The location must allow for proper clearances
(see Figure 1).
2. Consider a location where the fireplace would
not be affected by drafts, air conditioning
ducts, windows or doors.
3. A location that avoids the cutting of joists or roof
rafters makes ventilation installation easier.
In selecting a location, the following precautions
must be observed:
• Do not connect this appliance to a chimney
system used for solid fuel burning fireplace.
• Due to high temperatures, do not locate this
appliance in high traffic areas or near furniture
and draperies.
• Never obstruct the openings of the appliance
or flow of ventilation air. Keep the control
compartments accessible.

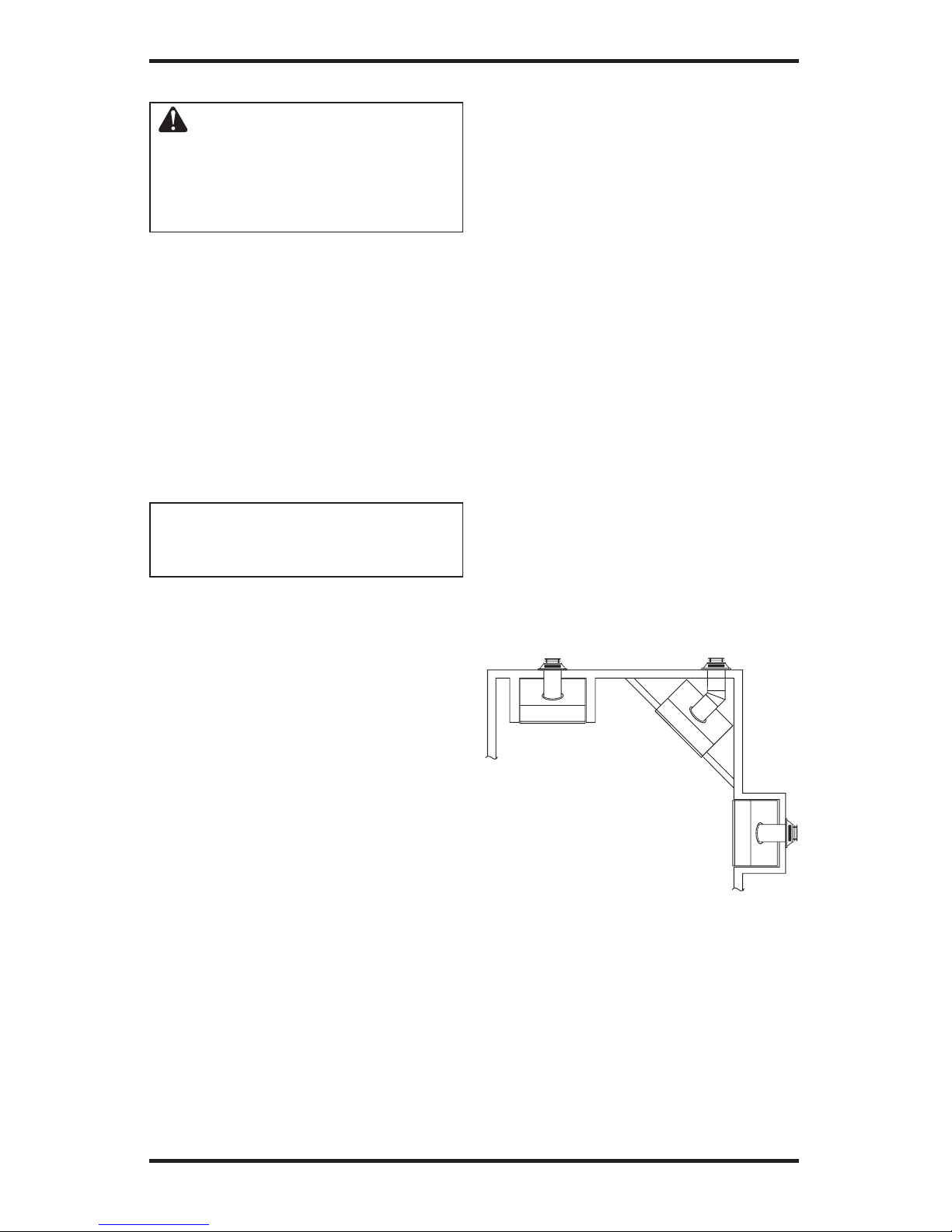

Figure 1 - Common Fireplace Locations
FULL
PROJECTION CORNER
INSTALLATION
FLUSH
INSTALLATION
Flush installation is recommended where living
space is limited.
Projected installation may be ideal for a new
addition to an existing finished wall.
Corner installation makes use of a space that may
not normally be used and provides a wider and
more efficient range for radiant heat transfer.

www.desatech.com 111916-01F
4
SELECTING LOCATION
Continued
• Do not locate appliance close to where gasoline
or other flammable liquids may be stored. The
appliance must be kept clear and free from
combustible materials.
• Do not use this appliance if any part has been
under water. Immediately contact a local service
technician to examine the appliance and to re-
place any part(s) of the control ignition system
and other related components that have been
submerged under water.
PRE-INSTALLATION
PREPARATION
CAUTION: Do not block
required air spaces with insula-
tion or any other material. Do not
obstruct the effective opening
of the appliance with any type
of facing material.
CLEARANCES TO COMBUSTIBLES
Minimum clearances to combustibles for the
fireplace are:
• Back and Sides of Fireplace . . . . . . . . . . . . 0"
• Floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0"
• Perpendicular Wall . . . . . . . . . . . . . . . . . . . 6"
• Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36"
• Top of Standoffs . . . . . . . . . . . . . . . . . . . . . 0"
MANTEL CLEARANCES
Woodwork, such as wood trims, mantles and other
combustible materials should be placed within the
required clearance specified in Figure 2.
Figure 2 - Mantel Clearances
C
B
A
D
E
F
G
Top of Louver Opening
3
2
1
4
5
6
7
Wall
Mantel
Depth
Mantel From Top
of Opening
(1) 14" (A) 16"
(2) 12" (B) 14"
(3) 10" (C) 12"
(4) 8" (D) 10"
(5) 6" (E) 8"
(6) 4" (F) 6"
(7) 2" (G) 4"

www.desatech.com
111916-01F 5

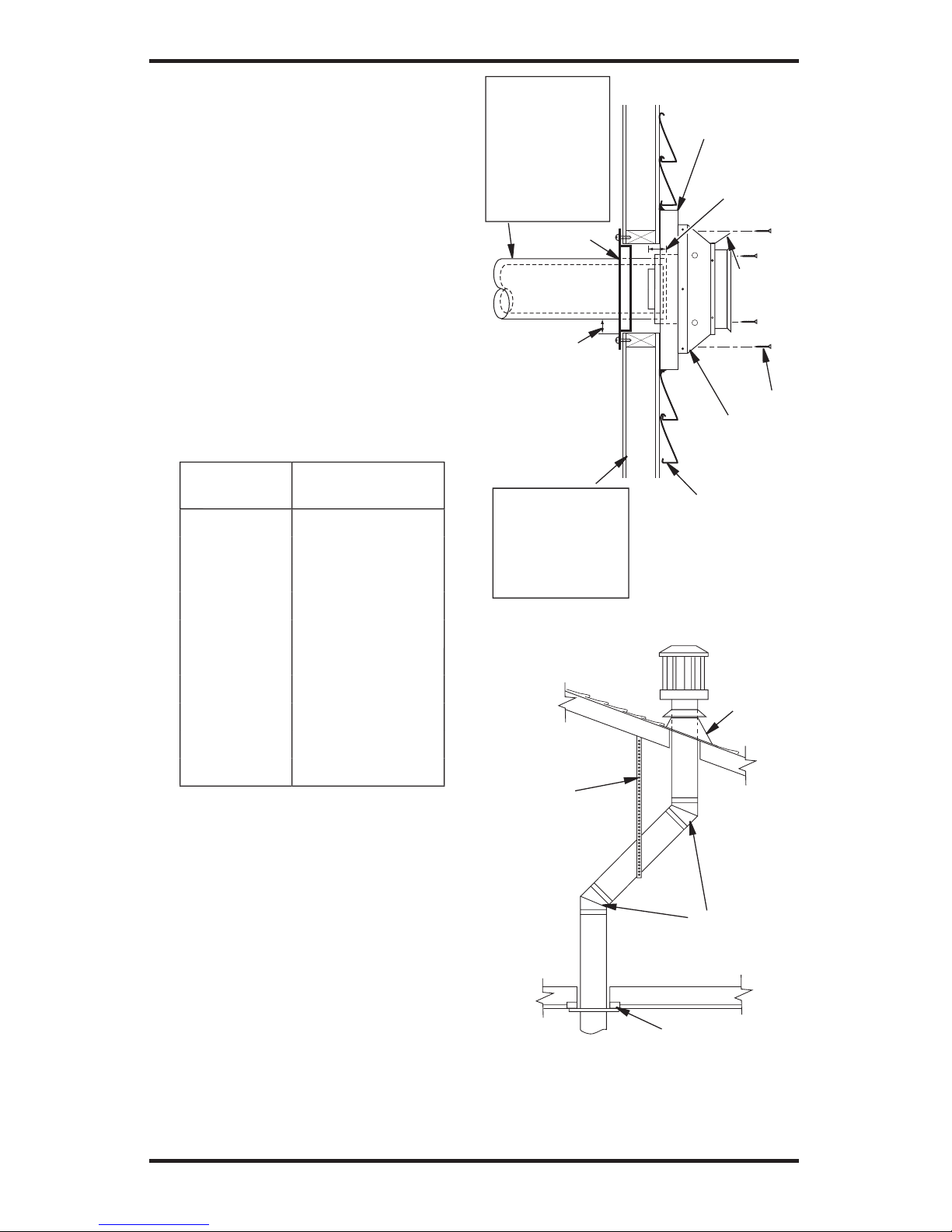

VENT TERMINATION CLEARANCES
The final position of your fireplace depends on
the location of the vent termination in relation to
the clearances that must be observed as shown in
Figure 5 on page 6.
The vent system serves as the “chimney” as well
as the combustion air supply (air intake). The
horizontal run must have a rise of 1/4" (.6 cm) for
every 12" (30.48 cm) of horizontal run towards the
termination. The maximum horizontal run depends
on the vertical rise from the fireplace adapter collar
to the vent termination (see table below).
VERTICAL HORIZONTAL
0 to 1 ft (30.48 cm)
1 ft (30.48 cm) to 4 ft (121.92 cm)
2 ft (60.96 cm) to 8 ft (243.84 cm)
3 ft (91.44 cm) to 12 ft (365.76 cm)
4 ft (121.92 cm) to 16 ft (487.68 cm)
5 ft (152.40 cm) to 15 ft (457.20 cm)
6 ft (182.88 cm) to 14 ft (426.72 cm)
7 ft (213.36 cm) to 13 ft (396.24 cm)
8 ft (243.84 cm) to 12 ft (365.76 cm)
WARNING: Never allow the
vent to run downward as this
may cause excessive tempera-
tures which could cause a fire.
WARNING: Horizontal sec-
tions of this vent system require
a minimum clearance of 2" from
the top of the pipe and 1" mini-
mum to the sides and bottom.
Vertical sections of this system
require a minimum of 1" clear-
ance to combustible materials
on all sides of the pipe.
PRE-INSTALLATION
PREPARATION
Continued

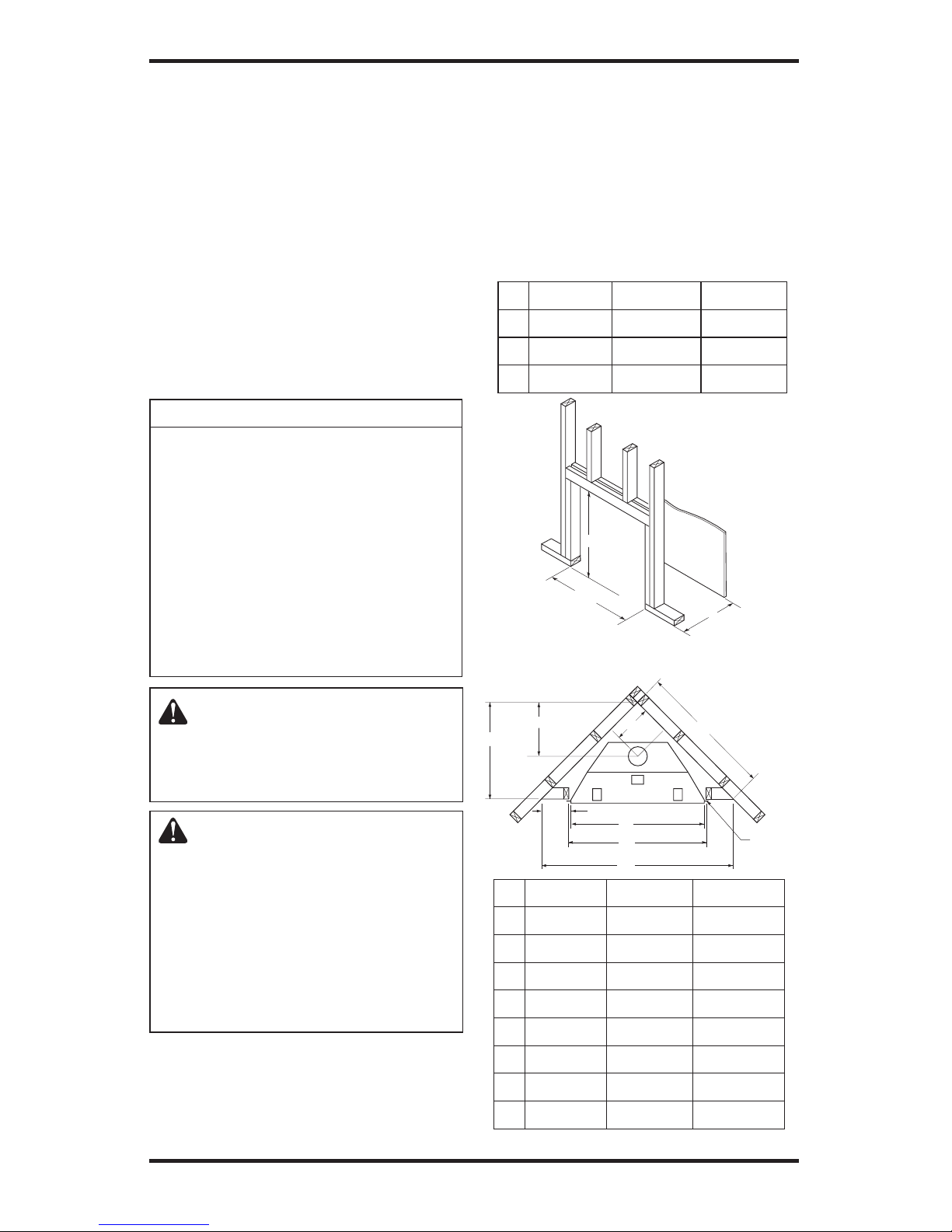

CD32M CD36M-A CD42M-A
A 32 3/8" 36 1/8" 40 1/8"
B 34 5/8" 41 1/4" 48 1/4"
C 19" 23 1/2" 25 5/8"
Figure 3 - Framing Dimension
Figure 4 - Corner Installation
A
B
E
F
G
H
DC
Nailing Tabs
B
A
C
CD32M CD36M-A CD42M-A
A 28 1/2" 35 3/4" 41 5/8"
B 13 5/8" 15" 21 5/8"
C 39 3/8" 49 5/8" 58 1/2"
D 9 1/2" 10 3/8" 13 1/2"
E 9 7/8" 13 3/4" 16 3/4"
F 34 1/2" 41 1/8" 48"
G 35 1/2" 42 1/8" 48 1/4"
H 54 3/8" 68 1/4" 81 1/2"
FRAMING
Once the final location has been determined, ob-
serving height clearances for vent termination, you
may construct framing using dimensions shown in
Figures 3 and 4, depending on your installation.
If the appliance is to be installed directly on carpet-
ing, tile (other than ceramic) or any combustible
material other than wood flooring, the appliance
must be installed on a metal or wood panel extend-
ing the full width and depth of the appliance.

www.desatech.com 111916-01F
6
Fixed
Closed Openable Fixed
Closed
Openable
V
V
V
V
VV
V
V
X
X
VX
G
G
J
F
B
B
K
N
H
I
A
N
E
L
D
B
M
A
C
B
V
V
A
G
G
B
TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
A = clearance above grade, veranda, porch, deck, or balcony
[*12 inches (30.5cm) minimum]
B = clearance to window or door that may be opened
[12 inches (30.5cm) minimum]
C = clearance to permanently closed window [minimum 12 inches
(30.5cm) recommended to prevent condensation on window]
D = vertical clearance to ventilated soffit located above the terminal
within a horizontal distance of 24 inches (61cm) from the
center-line of the terminal [18 inches (45.7cm) minimum]
E = clearance to unventilated soffit [12 inches (30.5cm) minimum]
F = clearance to outside corner (see below)
G = clearance to inside corner (see below)
H = *not to be installed above a meter/regulator assembly within
36 inches (91.4cm) horizontally from the center-line of the regulator
I = clearance to service regulator vent outlet [*72 inches (182.9cm)
minimum]
J = clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other fireplace [*12 inches (30.5cm)
minimum]
K = clearance to a mechanical air supply inlet [*72 inches (182.9cm)
minimum]
L = † clearance above paved side-walk or a paved driveway located on
public property [*84 inches (213.4cm) minimum]
M = clearance under veranda, porch, deck [*12 inches (30.5cm) minimum ‡]
N = clearance above a roof shall extend a minimum of 24 inches (61cm)
above the highest point when it passes through the roof surface and
any other obstruction within a horizontal distance of 18 inches (45.7cm)
† vent shall not terminate directly above a side-walk or paved driveway which is located between two
single family dwellings and serves both dwellings*
‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor*
* as specified in CAN/SGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. installation follow
the current National Fuel Gas Code, ANSI Z223.1
Note: Local codes or regulations may require different clearances
A = 6" (15.2cm)
Inside Corner
V
B
E
V
B = 6" (15.2cm)
C = Maximum depth of 48" (121.9cm) for
recessed location
D = Minimum width for back wall of
recessed location -
Combustible - 38" (96.5cm)
Noncombustible - 24" (61cm)
E = Clearance from corner in
recessed location-
Combustible - 6" (15.2cm)
Noncombustible - 2" (5.1cm)
Outside Corner Recessed Location
G
H
G = Combustible 24" (61cm)
Noncombustible 18" (45.7cm)
Balcony with No Side Wall
V
J
Combustible &
Noncombustible
H = 24" (61cm)
J = 20" (50.8cm)
Balcony with Perpendicular Side Wall
C
D
C
Termination Clearances for Buildings with Combustible and Noncombustible Exteriors
Figure 5 - Minimum Clearances for Vent Terminations
PRE-INSTALLATION PREPARATION
Continued

www.desatech.com
111916-01F 7
INSTALLATION
WARNING: Read all instruc-
tions completely and thoroughly
before attempting installation.
Failure to do so could result in
serious injury, property dam-
age or loss of life. Operation of
improperly installed and main-
tained venting system could
result in serious injury, property
damage or loss of life.
NOTICE: Failure to follow these in-
structions will void the warranty.
VENTING INSTALLATION
PRECAUTIONS
Consult local building codes before beginning the
installation. The installer must make sure to select
the proper vent system for installation. Before
installing vent kit, the installer must read this
fireplace manual and vent kit instructions.
Only a qualified service person should install
venting system. The installer must follow these
safety rules:
• Wear gloves and safety glasses for protection
• Use extreme caution when using ladders or
when on roof tops
• Be aware of electrical wiring locations in walls
and ceilings
The following actions will void the warranty on
your venting system:
• Installation of any damaged venting component
• Unauthorized modification of the venting system
• Installation of any component part not manu-
factured or approved by DESA
• Installation other than as instructed by these
instructions
WARNING: This gas fireplace
and vent assembly must be
vented directly to the outside. The
venting system must NEVER be
attached to a chimney serving a
separate solid fuel burning appli-
ance. Each gas appliance must
use a separate vent system. Do
not use common vent systems.
WARNING: Horizontal sec-
tions of this vent system require
a minimum clearance of 2" from
the top of the pipe and 1" mini-
mum to the sides and bottom.
Vertical sections of this system
require a minimum of 1" clear-
ance to combustible materials
on all sides of the pipe.
VENTING INSTALLATION
1. Install elbow to fireplace collar adapter located
on back of the unit at a 45° angle. Slide elbow
over collar and twist to lock. Check to insure
proper connection (see Figure 6).
2. Continue to install remainder of pipe for
desired installation. Make sure each section
is twist-locked securely.
3. When installation of vent pipe is complete, in
stall vent termination. Depending on the loca-
tion of your fireplace, you will vent vertically
or horizontally.
4. Allow 1" of pipe to protrude from internal
wall, depending on wall thickness. See
Figure 7, page 8.
5. For horizontal installation, an optional siding
standoff may be installed between the vent cap
and the exterior wall. Secure horizontal vent cap
to standoff. Secure standoff/vent cap assembly
to wall (see Figure 7, page 8). Do not seal termi-
nation to vent pipe. The vent termination must
be removable for service pipe inspection.
Figure 6 - Venting Installation
Female
Locking Lugs Male
Locking Lugs
Vertical Flue
Restrictor
(For Vertical
Venting
Application)

www.desatech.com 111916-01F
8
Figure 7 - Vent Termination (Horizontal)
Direct-Vent Pipe
CD32M and
CD36M-A
4 1/4" Inner and
7 1/4" Outer
CD42M-A
5" Inner and 8"
Outer
Wall Firestop
Maintain 1"
Minimum
Air Space
Around Outer
Pipe when
Penetrating a
Wall
Horizontal
Termination
(Vent Cap)
Screws
Exterior Wall
with Vinyl
Siding
Deflector
Shield
Minimum Pipe
Overlap 1 1/4"
Siding Standoff
(Optional)
Framed Openings
CD32M and
CD36M-A
10" x 10"
CD42M-A
10 3/4" x 10 3/4"
6. For vertical installation, a vertical termination is
available. Also for vertical venting application,
install vertical flue restrictor into inner collar of
fireplace as shown in Figure 6, page 7.
When installing a length of pipe for vertical
termination that is over 3 ft., support the pipe
every 3 ft. using metal wall straps. Vertical to
horizontal pipe must be kept at a 1 ft. to 4 ft. ratio
with a maximum run of no more than 20 ft.
If an offset is necessary in the attic to avoid
obstruction, it is important to support the
vent pipe every 3 ft. to avoid excessive
stress on the elbows and possible separation
(see Figure 8).
Clearances must be maintained between the roof
and the termination. Refer to chart below.
Roof Pitch Minimum Height
Above Roof
Flat - 7/12 1 ft. (30.48 cm)
7/12 - 8/12 11/2 ft. (45.72 cm)
8/12 - 9/12 2 ft (60.96 cm)
9/12 - 10/12 21/2 ft (76.20 cm)
10/12 - 11/12 4 ft (121.92 cm)
11/12 - 14/12 5 ft (152.40 cm)
14/12 - 16/12 6 ft (182.88 cm)
16/12 - 18/12 7 ft (213.36 cm)
18/12 - 20/12 71/2 ft (228.60 cm)
20/12 - 21/12 8 ft (243.84 cm)
INSTALLATION
Continued
Figure 8 - Vertical Termination with
Offset and Wall Strap
Wall Strap
Roof
Flashing
45° Elbows
Ceiling Firestop

www.desatech.com
111916-01F 9
INSTALLATION
Continued

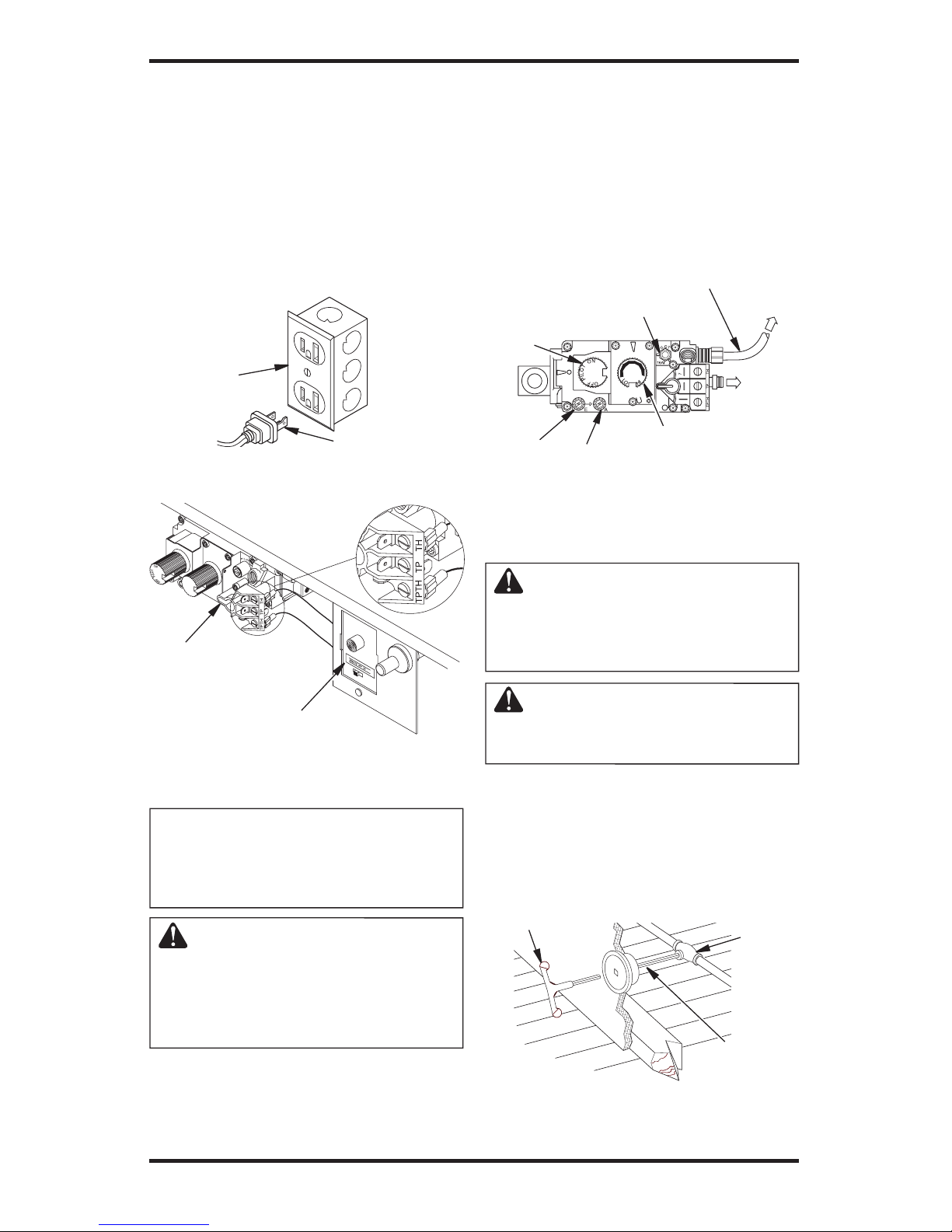

ELECTRICAL HOOKUP AND
REMOTE RECEIVER DIAGRAM
An outlet box with two receptacles (see Figure 9) has
been supplied for your convenience and is located
inside on the lower right side of the fireplace.
The remote control receiver is factory wired and
connected to the convertible gas valve as shown
in Figure 10.
Figure 9 - Duplex Outlet
Three-prong Plug
Figure 10 - Remote Control Receiver
Outlet Box
Remote
Control
Receiver
Convertible
Gas Valve
GAS SUPPLY TESTING
NOTICE: This section is in-
tended as a guide for qualified
technicians installing gas to the
appliance.
WARNING: Do not connect
appliance before pressure test-
ing gas piping. Damage to gas
valve may result and an unsafe
condition may be created.
The appliance and its individual shutoff valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas sup-
ply piping system by closing its individual shutoff
valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than
1/2 psig (3.5 kPa).
The gas control valve is secured underneath the
firebox. Two 1/8" ports are provided on the gas
control valve for pressure test gauge connections
(see Figure 11).
Figure 11 - Gas Control Valve
ON/OFF
Knob
Pilot Adjustment
Inlet
Pressure Outlet
Pressure
Flame
Adjustment Knob
Pilot Gas Line
Do Not Kink To Pilot
Burner
To Main
Burner
GAS LINE HOOK-UP
WARNING: Gas line hook-
up should be done by your gas
supplier or a qualified service
person.
WARNING: Before you pro-
ceed, make sure your gas supply
is OFF.
An equipment shutoff valve has been included in
the fireplace's gas supply system. However, con-
sider installing an extra shutoff valve outside the
applianceʼs enclosure (check local codes), where
it can be accessed more conveniently with a key
through a wall as shown in Figure 12.
Figure 12- Typical Exterior Wall Gas
Shutoff Installation
Key
Extension
Shutoff
Valve

www.desatech.com 111916-01F
10

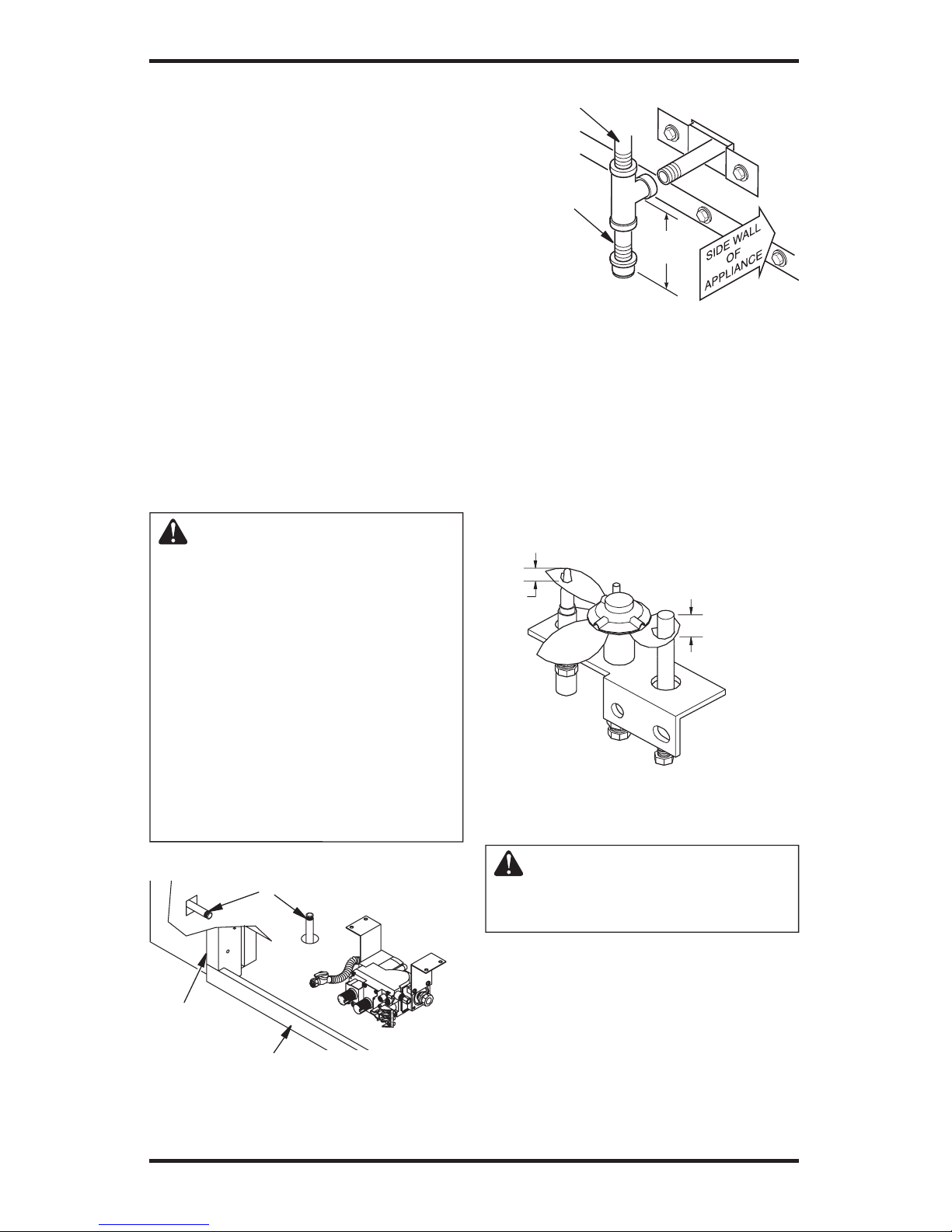

In conformance with local codes, route a 1/2"
NPT gas line towards the appliance coming in
from either the left or right side of the fireplace
(see Figure 13).
Install a sediment trap between the incoming gas
line and the gas control box (see Figure 14). The
sediment trap should extend down a minimum of
3" (7.62 cm) beyond the center of the pipe.
When routing gas line through conduit sleeve,
make sure to repack insulation to fill gaps between
gas line and conduit sleeve. Compounds used on
threaded joints of gas piping shall be resistant to
the action of propane or natural gas. Compounds
should be applied lightly to ensure excess sealant
does not enter the gas line.
Complete your gas line installation by connect-
ing the incoming gas line to the flexible gas
line. Secure tightly with a wrench but do not
over-tighten.
WARNING: All gas piping
and connections must be tested
for leaks after the installation is
completed.
Never use an open flame to
check for a leak. After ensuring
that the gas valve is open ap-
ply commercial leak detection
fluid to all gas joints. Bubbles
forming show a leak. Correct all
leaks at once.
Do not operate any appliance if
a leak is detected.
INSTALLATION
Continued
Figure 13 - Gas Line Routing
Gas Routing
(Right Side Not Shown)
Side of
Fireplace
Front Face
Figure 14 - Sediment Trap
Sediment Trap
(Not Supplied)
Incoming 1/2" Gas Line
Permitted By Local Codes
3" Min.
(7.6 cm)
PILOT ADJUSTMENT
The pilot or electrode assembly is factory preset
for the proper flame height. Alterations to these
settings may have occurred during shipping and
handling. If this is the case, some minor readjust-
ments may be necessary and should be done by a
qualified service technician. The proper settings
for the thermopile height should be at a distance
of 3/8" (.95 cm) to 1/2" (1.27 cm) from the pilot
flame as shown in Figure 15.
Figure 15 - Pilot Assembly
1/8"
(0.3cm) 3/8" - 1/2"
(.95cm-1.3cm)
REMOVING GLASS PANEL
CAUTION: Before you pro-
ceed, make sure your gas control
valve is in the OFF position.
1. To remove louvers, pull both spring latches
(located in each end of louver) toward center
of appliance at the same time until disengaged
from locating holes. Repeat for bottom end
spring latches (see Figure 16, page 11).
2. Remove screen rod by removing rod loop
from glass door center bracket. Slide screen
rod either to the left or right of fireplace until
one end is free to completely remove screen
from fireplace.

www.desatech.com
111916-01F 11
INSTALLATION
Continued
3. Undo latches located on top and bottom of
firebox (see Figure 17). Carefully swing door
to the left. The glass door is securely mounted
to the firebox with 5 screws.
Figure 16 - Removing Louvers
Figure 17 - Spring Latches
Glass
Locating
Holes
Spring
Latch
Bottom Louver
Open
Close
INSTALLING LOG SET
Each log is marked with a number in the following
diagram. These numbers will help in identify-
ing the logs when installed. It is very important
to install these logs exactly as instructed. Do
not modify logs. Only use logs supplied with
fireplace.
Models CD32M and CD36M-A Series
1. Place log #1 (back log) on top of grate as
shown in Figure 18 for the CD36M-A Series.
Log #1 will go in front of the metal partition
on grate (see Figure 18). Make sure notches
in bottom of log fit over grate.
2. Place log #2 (large front log) over pins on grate
(see Figure 19).
3. Place log #3 (c-shaped crossover log) onto rear
and front logs as shown in Figure 20. Make
sure it is seated properly on the smooth surface
on front log and on the pin on back log.
4. Place log #4 (small round log) on pin on right
side of front log (see Figure 21).
Figure 18 - Installing Log #1
(CD36M-A Series Shown)
Figure 19 - Installing Log #2
(CD36M-A Series Shown)
1
2
CD32M
Log #1
Placement
3
Figure 20 - Installing Log #3
(CD36M-A Series Shown)
4
Figure 21 - Installing Log #4
(CD36M-A Series Shown)

www.desatech.com 111916-01F
12

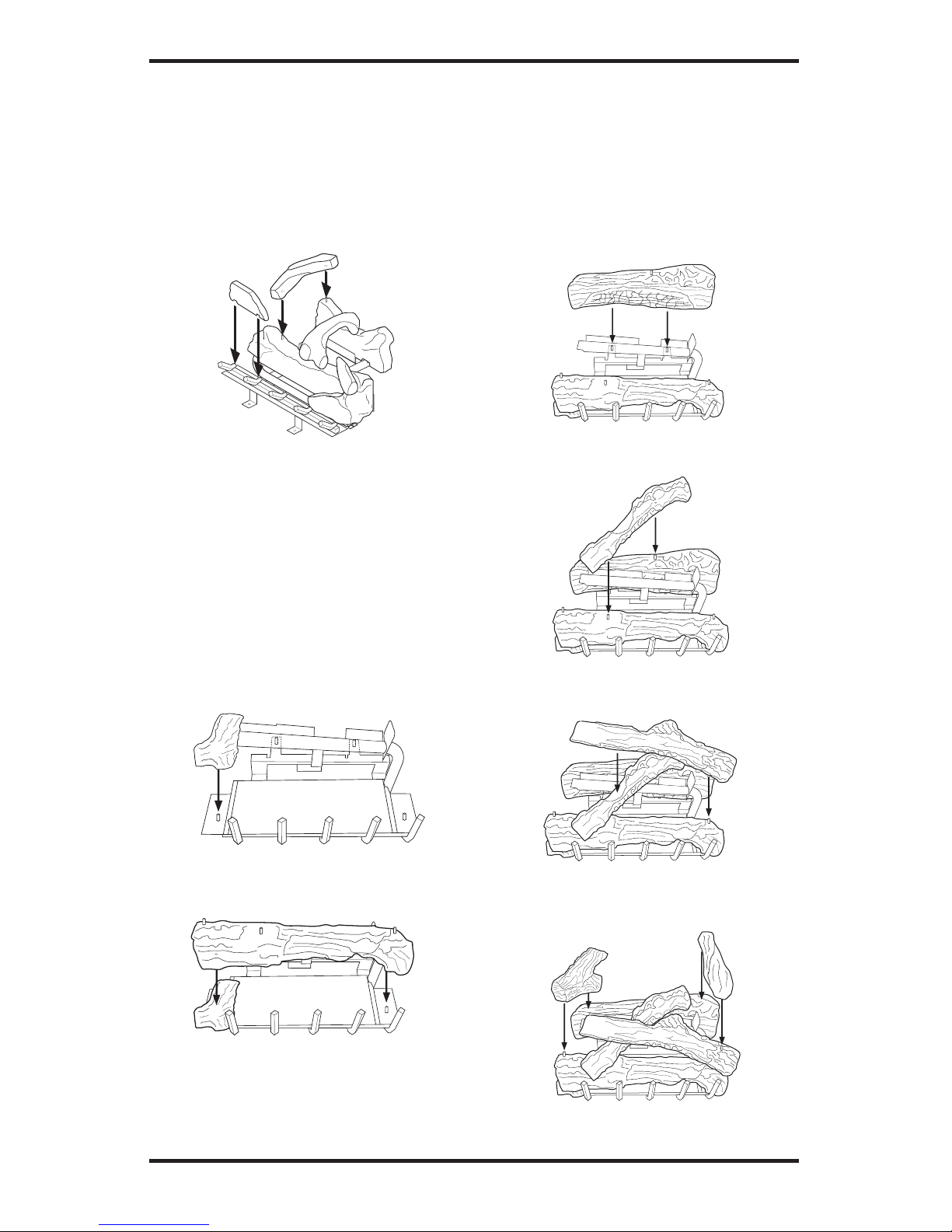

5. Place log #5 (small front log) onto the front
left part of grate making sure notches fit over
prongs of grate (see Figure 22).
6. Place log #6 onto two pins on left side of back
and front logs (see Figure 22).
INSTALLATION
Continued
5
6
Figure 22 - Installing Logs #5 and #6
(CD36M-A Series Shown)
Model CD42M-A Series
1. Place log #1 (small base log) onto pin on left
side of grate extension (see Figure 23).
2. Rest left side of log #2 (front log) on top of
log #1 and right side onto pin located on right
side of grate extension (see Figure 24).
3. Place log #3 (rear log) onto pins on rear of
grate (see Figure 25).
4. Place log #4 (crossover log) onto pins from
both logs #2 and #3 (see Figure 26).
Figure 23 - Installing Log #1, Model
CD42M-A
Figure 24 - Installing Log #2, Model
CD42M-A
Figure 25 - Installing Log #3, Model
CD42M-A
1
1
2
3
Figure 26 - Installing Log #4, Model
CD42M-A
Figure 27 - Installing Log #5, Model
CD42M-A
Figure 28 - Installing Logs #6 and #7,
Model CD42M-A
5
6
7
4
5. Place log #5 (top log) onto right pin of front log
(#2) and smooth surface of rear log (#3). Make
sure it is seated properly (see Figure 27).
6. Place log #6 (left log) on left pin of front log
(#2) and smooth surface of rear log (#3). Make
sure it is seated properly (see Figure 28).
7. Place log #7 (right log) on right pin of top
log (#5). Make sure it is seated properly (see
Figure 28).

www.desatech.com
111916-01F 13
Lava Rock and Ember Material
1. For all models, place lava rock along sides and
front of firebox bottom in areas that are visible. It
is not necessary to use all lava rock provided.
NOTICE: Do not put lava rock
on or under burner. Placing
lava rock on burner could cause
performance problems.
2. Pull ember material apart into pieces no larger
than a dime. Place loosely and directly onto
exposed section of front burner and along space
between burner and grate prongs. These will cre-
ate glowing ember appearance as flame touches
ember material. Do not block air slots by using
too much ember material in one area. It is not
necessary to use all ember material provided.
3. When lava rock and ember material are in
place, close and latch glass door and secure
louvers in place.
WARNING: The glass door
must be securely in place before
operating fireplace. Do not oper-
ate fireplace if glass is missing
or broken.
DECORATIVE FACING
Any noncombustible material may be used as fac-
ing (glass, tile, brick, etc.) as long as the proper
clearances are observed (see Clearances to Com-
bustibles, page 4). Louvered openings must not
be obstructed and upper and lower panels must
remain accessible for service. Use only heat-re-
sistant, noncombustible mortar or adhesive when
securing decorative facing materials.
FACE EXTENSION FOR MODEL
CD32M ONLY
Model CD32M comes equipped with a front face
extension. The front face extension would add
3 1/2" to the width and 3/4" to the height of the
fireplace face.
To install face extension:
1. Remove existing screws from front face as-
sembly as shown in Figure 29.
2. Align holes on top face extension with holes on
top side of front face assembly and secure with
screws previously removed (see Figure 29).
INSTALLATION
Continued
3. Align holes on right face extension with holes
on right side of front face assembly and secure
with screws previously removed (see Figure
29). Do the same for left side.
4. Secure top face extension with left and right
face extensions with two sheet metal screws
(see Figure 29).
Figure 29 - Front Face Extension, Model
CD32M Only
BURNER FLAME
ADJUSTMENT
The burner flame adjustment (shutter opening) has
been factory preset (for natural gas) to the proper
air-to-gas ratio. This ratio results in an even, clean
burning flame across the burner (see Figure 30).
Figure 30 - Burner Flame Patterns
CORRECT
INCORRECT
CLOSE
SHUTTER
INCORRECT
OPEN
SHUTTER
Short, Sharp, Blowing Flame
Long, Blue Flame with Yellow Tips
Long, Uneven, Yellow Flame
Side Face
Extensions
Top Face
Extension

www.desatech.com 111916-01F
14
If adjustment is necessary, you can restore the
proper flame setting by loosening the air shutter
screw and rotating the air shutter until proper
setting is achieved (see Figure 31). The correct
shutter openings are as follows:
BURNER FLAME
ADJUSTMENT
Continued
Tube Burner Pan Burner
Model Natural Propane/
LP
Natural Propane/
LP
CD32M 0.188" Max. — —
CD36M-A 0.188" Max — —
CD42M-A 0.188" 0.313" 0.188" 0.500"
WARNING: Improper installa-
tion, adjustment, alteration, ser-
vice or maintenance can cause
injury or property damage. Refer
to this manual for assistance.
Consult a qualified installer for
additional information.
Figure 31 - Air Shutter Adjustments
Manifold
Air Shutter
Opening
Firebox
Bottom
Burner
Gas Line
Burner Pan
Burner
Tube
Adjustment Screw
Adjustment
Screw
Manifold
Air Shutter
Opening
Burner
Gas Line
Firebox
Bottom
OPERATING FIREPLACE
OPERATION GUIDELINES
• When used for the first time, the fireplace may
emit a slight odor for about 16 to 24 hours. This
is normal and is due to the “curing” of the logs
and the “burn-in” of internal paint and lubricant
used in the manufacturing process.
• Keep compartments, logs, burners and area sur-
rounding logs clean by vacuuming and brushing
at least twice a year or as necessary.
• Turn off gas and remote switch before servicing
appliance. Any safety screen or guard removed
for servicing the fireplace must be replaced
prior to operation.
• Have a qualified agency periodically inspect
vent system at the start of each heating season
for any obstruction which will hinder its normal
operation. Never obstruct the flow of combus-
tion and ventilation air. Keep the front of the
fireplace clear of all obstacles and materials.
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
a fire or explosion may result
causing property damage, per-
sonal injury or loss of life.
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the floor because some gas is heavier than
air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighborʼs phone. Follow the gas
supplierʼs instructions.
• If you cannot reach your gas supplier, call
the fire department.
C. Use only your hand to push in control knob.
Never use tools. If the knob will not push
in or slide by hand, donʼt try to repair it,
call a qualified service technician. Force
or attempted repair may result in a fire or
explosion.

www.desatech.com
111916-01F 15
D. Do not use this appliance if any part has been
under water. Immediately call a qualified
service technician to inspect the appliance and
to replace any part of the control system and
any gas control which has been under water.
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information above
before proceeding.
2. Set the “HI-LO” knob to the lowest setting.
3. Turn off all electrical power to the appliance.
4. Open control access panel.
5. Push in gas control knob slightly and turn
clockwise to “OFF”.
6. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the floor.
If you smell gas, STOP! Follow “B” in the
safety information above. If you donʼt smell
gas, go to the next step.
7. The pilot is located by the main burner.
8. Turn knob on gas control counterclockwise
to “PILOT”.
9. Push in the control knob all the way and hold
in. Immediately light the pilot by pressing the
red ignitor button until a flame appears. Con-
tinue to hold the control knob in for about one
(1) minute after the pilot is lit. Release knob
and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
• If knob does not pop out when released, stop
and call service technician or gas supplier.
• If the pilot will not stay lit after several tries,
turn gas control knob to “OFF” and call
your service technician or gas supplier.
10. Turn gas control knob counterclockwise
to “ON”. Knob can be turned to “ON”
only if the control knob is popped out.
11. Set “HI-LO” knob to desired setting.
12. Turn on all electric power to the appliance.
Note: It is recommended that you maintain the
gas control knob in the full OFF position during
lengthy periods of seasonal non-usage.
OPERATING FIREPLACE
Continued

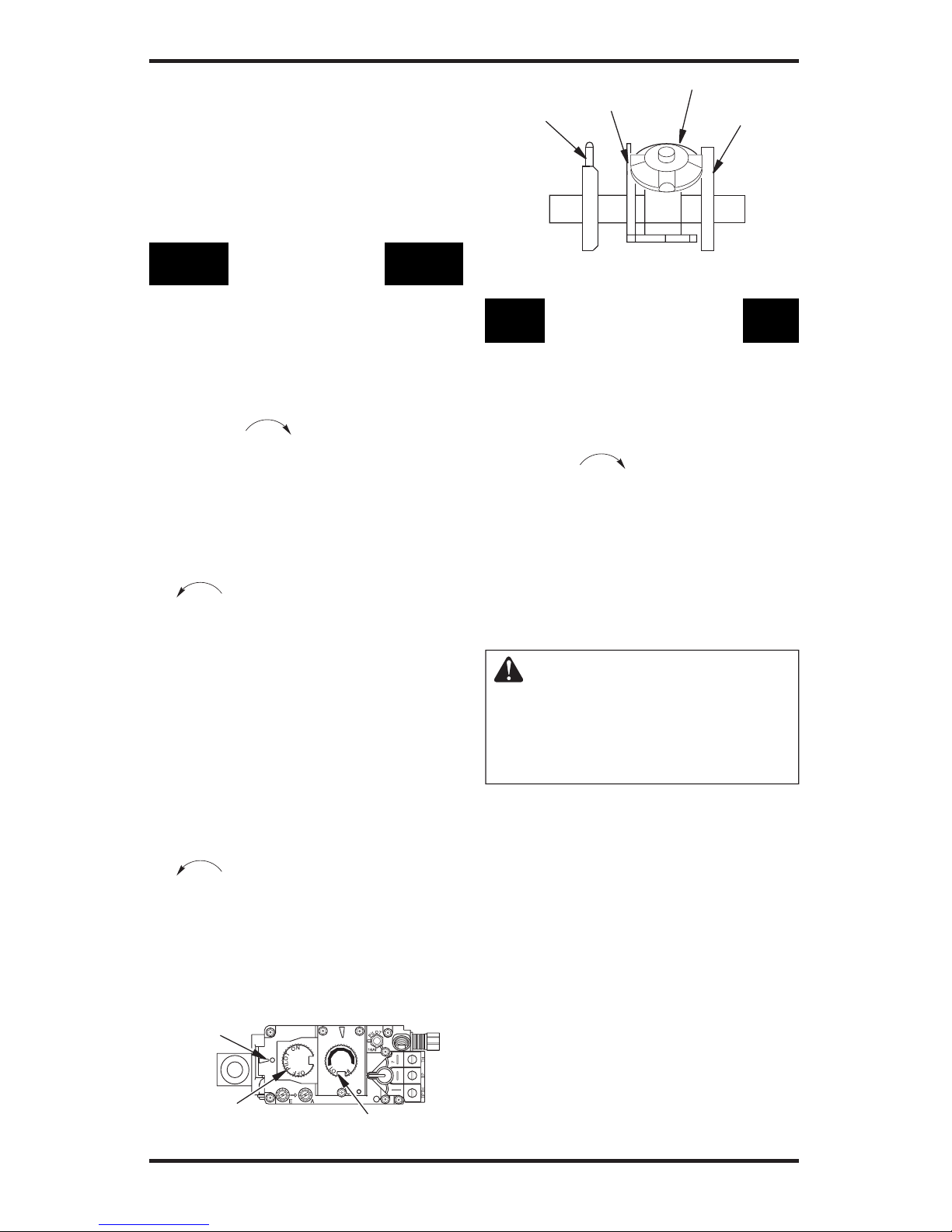

Figure 32 - Control Knob in Pilot Position
Figure 33 - Pilot
Thermocouple
Pilot Burner
Piezo
Ignitor Thermopile
Position
Indicator
Gas Control
Knob HI/LO Knob
TO TURN OFF GAS
TO APPLIANCE
1. Turn off the wall switch.
2. Turn off all electric power to the appliance
if service is to be performed.
3. Remove control access panel.
4. Push in gas control knob slightly and turn
clockwise to “OFF”. Do not force.
5. Replace control access panel.
CONVERTING FIREPLACE
FROM NATURAL GAS TO
PROPANE/LP GAS
The conversion kit is packaged with the unit.
Please check the contents before beginning
this conversion.
WARNING: Before proceed-
ing, make sure the gas control
valve is in the OFF position and
all electrical power to the appli-
ance is turned off.
CONVERTING PILOT
1. Wait five (5) minutes to clear out any gas. Smell
for any gas odor, especially near the floor. If any
gas odor is present, STOP! See For Your Safety
Read Before Lighting on page 14.
2. Locate the latch on the louver assembly.
Remove top and bottom louvers by pulling
the spring latches toward the center of the
fireplace simultaneously until they are disen-
gaged from the locating holes.
3. Undo latches located on top and bottom of fire-
box and swing door to the fully open position.
4. Carefully remove log set and ember material from
burner and place them aside in a safe place.
5. Replace main burner orifice with burner orifice
included in conversion kit (Model CD42M-A
series contains two burner orifices).

www.desatech.com 111916-01F
16
Figure 34 - Converting Pilot
Pilot Hood
Pilot Orifice
Barrel Clip
5/32" Allen
Wrench
Pilot Bracket
6. Locate air shutter at end of burner manifold (end
of tube burner for CD42M series). Loosen screw
and adjust air shutter to proper setting (see Burner
Flame Adjustment, page 13). Retighten screw.
7. Remove pilot hood by pulling up until it
disengages from barrel. Do not remove the
retainer clip (see Figure 34).
8. Remove pilot orifice from inside barrel using
a 5/32" allen wrench to unscrew the orifice.
9. Replace pilot orifice with LP orifice supplied
with this kit. The number 30 is stamped on the
sleeve for identification. Insert small end of
new pilot orifice into barrel and thread until
tight with the allen wrench.
10. Line up notch on pilot hood to the positioning tab
on barrel receiver and snap back into position.
IMPORTANT: Be careful not to bend or kink the
aluminum tubing during conversion. Make sure
the pilot hood and orifice are properly mated and
aligned after finishing this conversion.
Figure 36- Installing New Parts for Gas
Control Valve Conversion
HI
LO
O
F
F
P
I
L
O
T
O
N
Mounting
Screws
Rubber
Gasket
Identification
Label
3. Install the identification label enclosed with
gas valve regulator to the valve body where
it can easily be seen (see Figure 36).
WARNING: The conversion kit
must be installed by a qualified
service technician in accordance
with the manufacturers instruc-
tions and all applicable codes
and requirements of the authority
having jurisdiction. If any informa-
tion is these instructions is not fol-
lowed correctly, a fire, explosion
or production of carbon monoxide
may result causing property dam-
age, personal injury or loss of life.
The qualified service technician is
responsible for the proper instal-
lation of this conversion kit.
CONVERTING FIREPLACE
FROM NATURAL GAS TO
PROPANE/LP GAS
Continued
CONVERTING CONTROL VALVE
Convert the gas control valve by swapping out the
valve regulator portion of the gas valve.
1. Using a TORX T20 or a slotted screwdriver,
remove and discard the three mounting
screws, pressure regulator tower and dia-
phragm/spring components (see Figure 35).
2. Insure that the rubber gasket is properly
positioned on the new pressure regulator
assembly. Install new pressure regulator as-
sembly to valve using new mounting screws
supplied with kit. Tighten screws securely
(approximately 25 in/lb). See Figure 36.
HI
LO
O
F
F
P
I
L
O
T
O
N
Figure 35- Removing Parts for Gas
Control Valve Conversion
Diaphragm/
Spring
Components
Mounting
Screws
Pressure
Regulator
Tower

www.desatech.com
111916-01F 17
TROUBLESHOOTING
WARNING: Turn off heater and let cool before servicing. Only a
qualified service person should service and repair heater.
WARNING: Turn off heater and let cool before servicing. Only a
qualified service person should service and repair heater.
OBSERVED PROBLEM
Pilot will not stay lit
Pilot lit but no flame on burner
Frequent pilot outage
POSSIBLE CAUSE
1. Defective thermocouple
1. Remote or wires defective
2. Thermopile not generating
sufficient milivoltage
3. Plugged burner orifice
1. Pilot flame may be too low
or blowing (high) causing
safety pilot to “drop out”
REMEDY
1. Check pilot flame. It must
impinge on thermocouple
2. Clean or adjust pilot for maxi-
mum flame impingement on
thermocouple
3. Ensure the connection be-
tween valve and thermocouple
are tight and secure
4. Check thermocouple with
millivolt meter. Take reading
at thermocouple terminals of
gas valve with remote control
off. It should read 18 millivolts
minimum. Replace faulty ther-
mocouple if reading is below
specified minimum
1. Check remote wires for proper
connections. Place jumper
wire across terminals at re-
mote control. If burner comes
on, replace remote. If okay,
place jumper wire across
remote control at valve. If
burner comes on, wires are
faulty or connections are bad
2. Check thermopile with mil-
livolt meter. Take reading at
thermopile terminals of gas
valve with remote control off.
It should read 325 millivolts
minimum. Replace thermopile
if reading is below specified
minimum
3. Check burner orifice for stop-
page and remove
1. Clean and/or adjust pilot flame
for maximum flame impinge-
ment on thermocouple

www.desatech.com 111916-01F
18
6
7
19
18
10
12
23
24
34
2
11
17
8
21-2
21-6
21-4
21-5
21-3
21-1
1
13 9
16
3
14
4
20
15
5
15
42
40
35
36
22 37
39
38
25
41
26
30
27
28
29
33
31
32

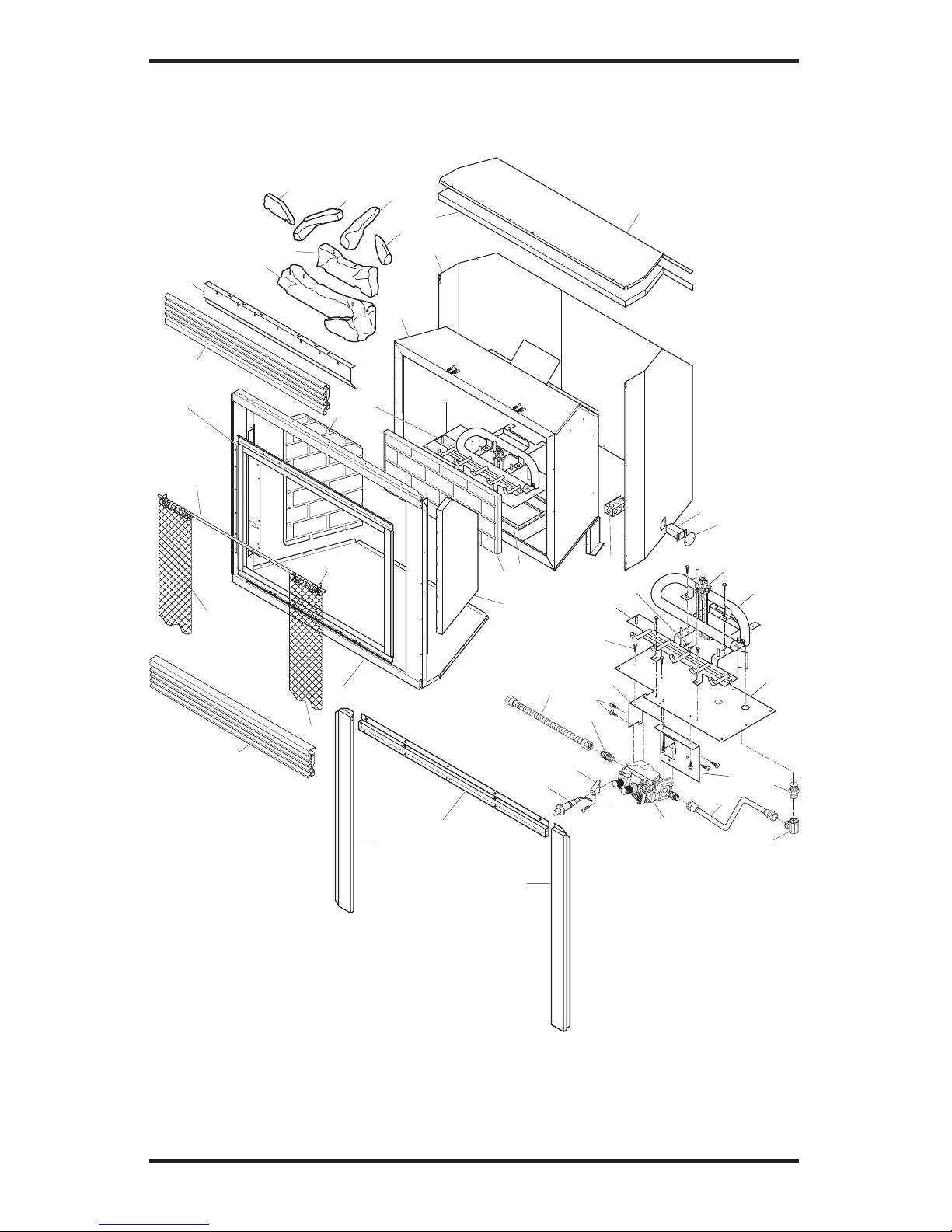

ILLUSTRATED PARTS BREAKDOWN
MODELS CD32M AND CD36M-A SERIES

www.desatech.com
111916-01F 19
KEY PART NUMBER
NO. CD32M CD36M-A DESCRIPTION QTY.
1 ** ** Firebox Assembly 1
2 ** ** Face Weldment 1
3 108892-01 108010-01 Door Assembly 1
4 108903-01 108011-01 Top Panel Assy Louver 1
5 108903-02 108011-02 Bottom Panel Assy Louver 1
6 ** ** Fireplace Top 1
7 ** ** Fireplace Top Insulation 1
8 ** ** Fireplace Surround 1
9 108885-01 108074-01 Burner Assembly 1
10 108890-01 108076-01 Burner Base Gasket 1
11 108897-01 110991-01 Rear Refractory† 1
12 108901-01 110990-01 Right Refractory† 1
13 108901-02 110989-01 Left Refractory† 1
14 11418 11418 Push-On Nut 2
15 108440-01 12105 Screen 2
16 108455-02 13113 Screen Rod 1
17 ** ** Electrical Duct Assy 1
18 ** ** Gas Knock-Out Cover 2
19 ** ** Gas Conduit Assy 1
20 109082-03 109082-01 Heat Shield 1
21 109022-01 109006-01 Log Set 1
21-1 109403-01 110182-01 Front Log (Log 1) 1
21-2 109404-01 109007-01 Rear Log (Log 2) 1
21-3 109407-01 109009-01 Base Log (Log 3) 1
21-4 109406-01 109008-01 Crossover Log (Log 4) 1
21-5 109405-01 107348-01 Left Top Log (Log 5) 1
21-6 109408-01 107347-01 Right Top Log (Log 6) 1
22 11102 11102 Screw #8-32 x 3/8 PPH Zinc 2
23 11105 11105 Screw #10 x 1/2 Zinc 9
24 11179 11179 Screw #10-24 x 1/4 Zinc 4
25 11237 11237 Screw Trilab M4 x 8mm 1
26 14389 14389 HI-LO Sit Valve (Nat Gas) 1
27 14492 14492 Piezo Ignitor 1
28 14500 14500 Brass Fitting 2
29 14253 14253 Flexible Connector 1
30 14511 14511 Ignitor Bracket 1
31 14528 14528 Brass Elbow Fitting 1
32 104506-25 14496 Orifice 1
33 104509-02 14576 Aluminum Tubing Assy 1
34 26808 26808 Valve Bracket 1
35 26827 26827 Switch Bracket 1
36 108886-01 108077-01 Grate Base 1
37 108891-01 104504-03 Burner Tube 1
38 108084-02 108084-02 Pilot Assembly (Nat Gas) 1
39 ** ** Burner Base Assembly 1
40 109699-01 — Right Face Extension 1
41 109699-02 — Left Face Extension 1
42 109700-01 — Top Face Extension 1
PARTS AVAILABLE NOT SHOWN
25487 25487 Lava Rock 1
110251-01 110251-01 Micro Switch Assembly 1
27253 27253 Notice Label 1
109896-01 112033-01 Gas Conversion Kit 1
PARTS LIST
MODELS CD32M AND CD36M-A SERIES
** Not a field replaceable part. † Optional - See page 23.

www.desatech.com 111916-01F
20

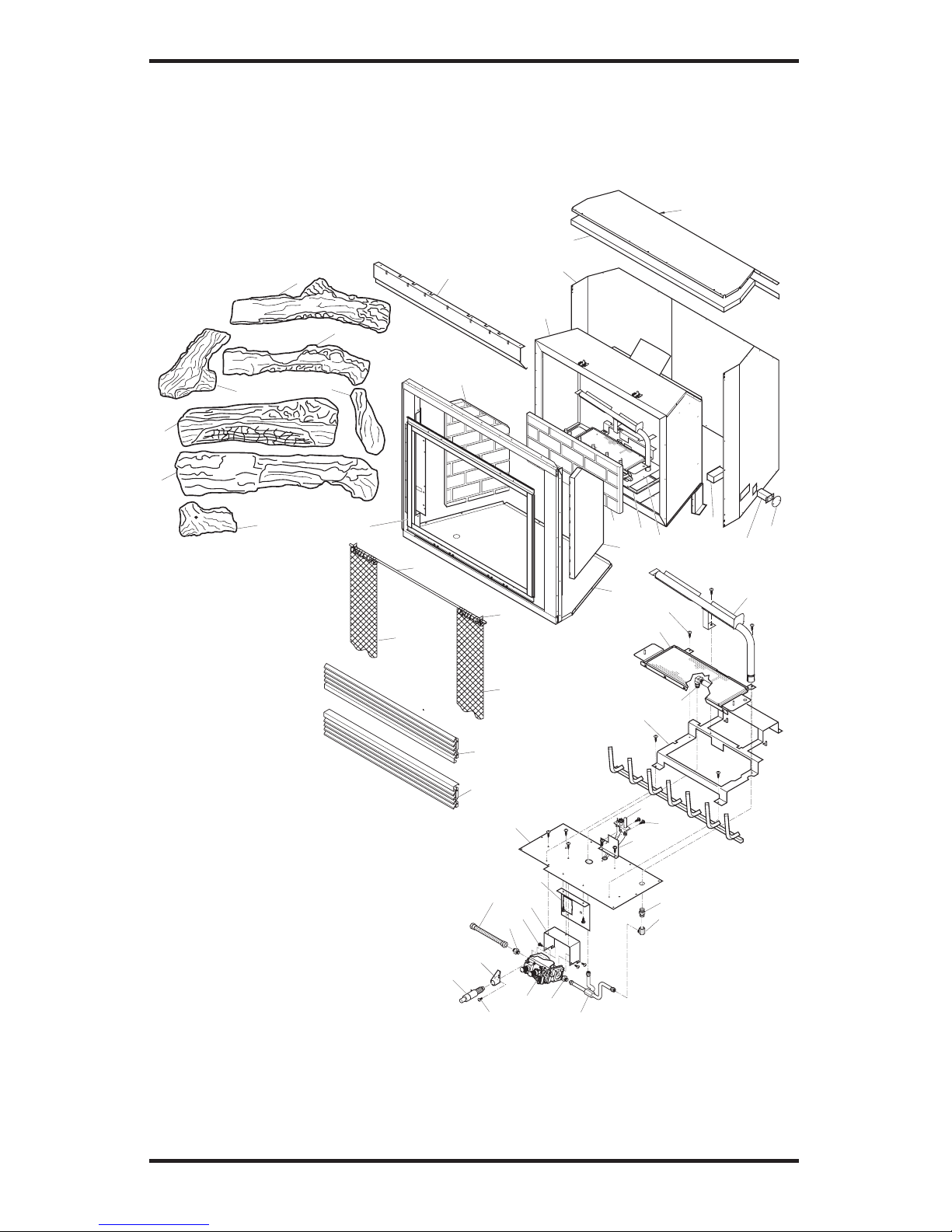

ILLUSTRATED PARTS BREAKDOWN
MODEL CD42M-A
37
23
41
42
38
22
39
32
31
33
28
26
25
29
24
34
35
40
36
30
27
28
6
7
19
18
10
12
2
11 17
8
20
1
4
13
16
3
14
15
5
15
9
212
21-3
21-6 21-7
21-5
21-4
21-1
