Viadrus G 300 Specification sheet

BOILER OPERATION AND INSTALLATION
MANUAL
VIADRUS G 300
Date of revision 8/2007

Table of contents: page
1. Boiler use and advantages....................................................................................................................................3
2. Boiler VIADRUS G 300 technical data............................................................................................................4
3. Description..........................................................................................................................................................5
3.1. Boiler construction...................................................................................................................................... 5
3.2. Electrical diagrams....................................................................................................................................... 6
4. Positioning and installation................................................................................................................................10
4.1. Boiler standing in boiler room ................................................................................................................... 10
4.2. Directives and regulations......................................................................................................................... 11
5. Order, delivery and assembly............................................................................................................................12
5.1. Order .......................................................................................................................................................... 12
5.2. Delivery and accessories............................................................................................................................ 12
5.3. Assembly process...................................................................................................................................... 12
6. Commissioning ..................................................................................................................................................12
6.1. Checking activities before initiation ......................................................................................................... 12
6.2. Boiler conversion from „ liquid fuels“ to „ gas fuels“ and back............................................................... 13
7. Boiler operation by user....................................................................................................................................13
8. Maintenance.......................................................................................................................................................14
9. Instructions for product disposal after its service life ........................................................................................15
10. Failures and their elimination ........................................................................................................................15
2

Dear customer
we thank you that you decided to purchase VIADRUS G 300 boiler thus showing your confidence in
company of ŽDB GROUP a.s., VIADRUS Heating technique plant.
For you to get used to operating your new product correctly from the start please read carefully this
manual instructing you how to use the product (first of all chapter No.7 - Boiler operation by user). Please
follow the information stated in further text and also the Regulation No.91/93 Coll.. issued by Czech Labour
Safety Office for ensuring the labour safety in law-pressure boiler rooms; this will guarantee a long-time and
failure-free boiler operation to both your and our satisfaction.
Order: Order specification code (type designation)
G 300 X X X X
The way of delivery:
S : compound/ assembled state
R : decomposed/disassembled
state
Type of regulation:
4: Electropanel – basic
design
6: Electropanel - fixed
OS 06
Type of burner:
0: no burner
1: with burner
In the order it is necessary to specify the data according to the order
specification code
Number of sections :
5: 5 sections
6: 6 sections
7: 7 sections
8: 8 sections
9: 9 sections
10: 10 sections
11: 11 sections
12: 12 sections
13: 13 sections
14: 14 sections
1. Boiler use and advantages
Cast-iron sectional warm-water boiler VIADRUS G 300 is designed for heating the heat carrying substance
(water) by the thermal energy which it gets from gas or liquid fuels burning process while using the appropriate
pressure burners. These burners must correspond to :
ČSN 07 5800:1990 Burners for gas and liquid fuels
ČSN 07 5806:1986 Burners for gas fuels
ČSN 07 5853:1990 Burners for liquid fuels.
The boiler is made exclusively for law-pressure warm-water systems of central heating with maximum
working temperature of the heat-carrying substance (water) up to 115 °C, at the maximum working
overpressure of 4 bar and for burning the fuels as follows:
- gas fuels - natural gas
- liquid fuels - furnace oil extra light (TOEL)
The boiler body is tested by applying the test overpressure of 8 bar.
The boiler advantages are as follows:
1. Long service life of the cast-iron boiler body
2. A highly economical operation . The efficiency of combustion higher than 90,5 % for all kinds of fuels
and in the whole performance range.
3. At request delivery including the burner.
4. A modern design.
5. A fully automated two-stage operation at the recommended types of burners.
6. Operation signalling, possibly the signals used for transfer into a superior control system and the boiler
failures. Possibility to operate the boiler through a superior automatics or space temperature sensor.
7. At request there can be ordered the regulation elements designed for heat carrying substance(water)
temperature up to 115°C (as standard they are delivered up to the temperature of 95 °C).
8. Possibility of boilers concatenation.
9. Delivery in either an assembled or disassembled condition at customer ´s request
10. Depending on boiler room layout there can be designed opening of sealing and burner plate either to the
left or right hand side.
11. Easily accessible sight glass and the probe for overpressure measuring in the combustion chamber .
12. In combination with recommended burners (see chapter„Boiler technical parameters“) spares of
environment because the combustion results meet in the whole performance line the rigid environmental
standards and regulations.
3

2. Boiler VIADRUS G 300 technical data
Table No.1 Boiler thermo-technical parameters
fuel efficiency : natural gas 33,99 MJ/kg furnace oil extra light (TOEL) 42,65 MJ/kg
Boiler size - number of
sections
ks 5 6 7 8 9 10 11 12 13 14
Rated thermal output kW 103 126 149 172 195 218 241 264 287 310
Rated thermal input kW 113,2 138,5 163,7 189 214,3 239,6 264,8 290,1 315,4 340,7
Efficiency % 90,5
Fuels consumption
natural gas m3/h 11,5 14,1 16,7 19,3 21,9 24,5 27,1 29,7 32,2 34,9
furnace oil extra light (TOEL) kg/h dle výrobce burneru
Boiler water volume l 56,4 65,4 74,4 83,4 92,4 101,4 110,4 119,4 128,4 137,4
Max. working water overpressure bar 4
Max. operating temperature of
heating water
°C 95 (115)
Combustion gas technical data
Necessary draught mbar 0,05
Max. overpressure in
combustion chamber
mbar 2
Combustion gas temperature °C 185
Combustion gas mass
- gas fuel ; 9,5% CO2 kg/h 191 233 276 318 361 403 446 488 531 574
- liquid fuel ; 13%CO2 kg/h 172 210 248 287 325 363 402 440 478 517
Dimensions
combustion space volume dm381,79 100,73 119,68 138,62 157,56 176,51 195,45 214,39 233,33 252,27
Heat-delivery surface m25,48 6,75 8,02 9,29 10,56 11,83 13,10 14,37 15,64 16,91
combustion space depth mm 475 585 698 805 915 1025 1135 1245 1355 1465
min. length of burner orifice mm 125 160
max. burner orifice at the
combustion space
mm 50
orifice for burner φ*) mm 150 165
boiler width mm 752
boiler height mm 1386
boiler depth A mm 899 119 1339 1559 1779
outlet orifice φmm 225
heat carrying substance
connection φ
mm 80
Boiler mass kg 505 585 665 745 825 905 985 1065 1145 1225
*) requirement for other orificeφ– please state in order (at request )
Tab. No.2 Recommended types of burners
Boiler size - number
of sections pc 5 6 7 8 9 10 11 12 13 14
Rated thermal output kW 103 126 149 172 195 218 241 264 287 310
Recommended burners for gas fuels combustion
WEISHAUPT WG 20 N/1 - A WG 30 N/1 - C WG 40 N/1-A
INTERCAL SGN 44/2 SGN 55/2 SGN 66/2 SGN 77/2-350
BENTONE BG 300-2, M BG 400-2, M BG 450-2, M
PBS TřebíčAPH-M 02 PZN,PPN APH-M 04 PZN,PZ,PPN
RIELLO GULLIVER BS 3D GULLIVER BS 4D RS 28 TC RS 38 TC
Recommended burners for liquid fuels combustion
WEISHAUPT WL 20-A WL 30 - C WL 40 Z-A
INTERCAL SL 44/2 SL 55/2 SL 66/2 SL 77/2
BENTONE B 20K-2 B 30 - 2 B 40 - 2
PBS TřebíčAOH – M 02 PN AOH – M 04 PN
RIELLO GULLIVER RG 3D GULLIVER RG 4D RL 28 TC RL 38 TC
UNIGAS LO 140 LO 200 LO 400 LO 400
When using other than recommended burners the manufacturer doesn’t guarantee the stated parameters
achievement.
4

3. Description
3.1. Boiler construction
The boiler body (Fig. No.1) consists of sections assembled by means of forced-on insertions and is secured
by anchor bolts. Boiler has a three-draught construction and the sections create the combustion space and the
convection part, inside then the boiler water space. The tightness of boiler gas combustion space is guaranteed
by boiler cement applied to sections seating faces and to circumference of individual section joints.
On the front section there are fixed sealing and burner plates that either can be opened to right or left hand
side according to boiler room layout. This must correspond with screw suspensions positioning (lugs).
The openings G 2"in the front section are closed with plugs G 2". The upper plug has a boring G 1/2“ for
the basin of regulation and safety thermostat. In the left upper riser of the section there are two openings G
1/2" for thermometer and pressure gauge sensors.
The input and output of a heat carrying substance is situated at the rear part of boiler and it is carried out with
flanges and a mouthpiece DN 80. At the lower flange with a mouthpiece there is positioned the filling &
discharging cock. In the opening for heat carrying substance input (under the flange) there is positioned a
restrictive insertion (5 – 10 sections and 11 – 14 sections), which streamlines the water flow in boiler.
The combustion gases from the boiler are led/ taken away through a flue orifice with an explosion shutter
which at the same time serves as a small cleaning cover. At the flue orifice there are measuring points for
temperature and combustion gases analysis.
The boiler body is fully insulated by plates made of mineral insulation . The steel shell of boiler is surface
treated by comaxite paint. In the upper front part of boiler there is positioned the electro-panel with regulation,
safety and control elements.

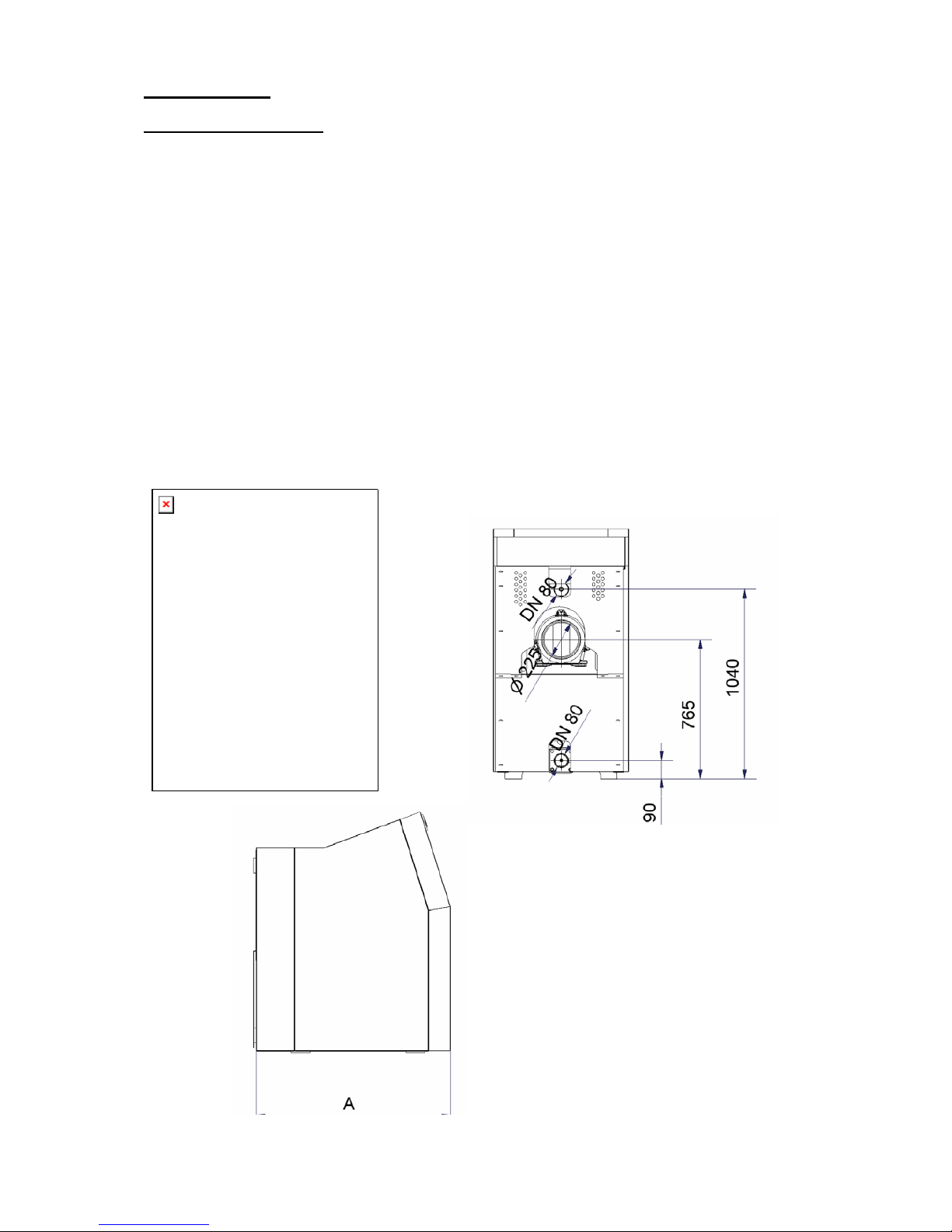

Fig. No.1 Boiler assembly
5

3.2. Electrical diagrams
Conductor colour: GNYE green- yellow BK black RD dark red
Legend: F1 fuse 6,3 A S1 Main switch H1 Boiler under voltage signalling Z1 Suppression component BT1 Safety thermostat PS1 Water pressure manostat H2 Safety thermostat signalling K1 Eternal operation relay
COVER OF ELEKTROPANEL
BT2 Service thermostat X10 Burner connector H3 Burner defect signalling H4 Burner 2nd stage working signalling
MPH1 Service hours gauge for 1st burner stage
MPH2 Service hours gauge for 2nd burner stage BT3 Thermostat for 2nd burner stage X20 Burner connector
NOTE: Water pressure manostat (PS1)only in design for MORA company, in case it is used reconnect the conductor BT1:14 from terminal X1:8 to X1:9. The outside control relay 24AVC(K1) only in design for SLANT/FIN firm; in case it isn’t used reconnect the conductor X10: T1 from terminal X1:12 to X1:13.
Fig. No.2 Elementary wiring diagram for electro-panel connection
6

K1
relay
24
VAC
A1
Outside
control
X20
Burner
connector
X10
Burner
connector
NOTE: Water pressure manostat (PS1) only in design for MORA company, in case it is used reconnect the conductor BT1:14 from terminal X1:8 to X1:9. – conductor nr.18. The outside control relay 24AVC(K1) only in design for SLANT/FIN firm; in case it isn’t used reconnect the conductor X10: T1 from terminal X1:12 to X1:13.
PS1
Water
pressure
manostat
Z1
Suppression component
Cover of elektropanel
Fig. No.3/1 Electro-panel wiring diagram
7

running hours counter
MPH1
Service hours gauge for
1st burner stage
MPH2
Service hours gauge for
2nd burner stage
F1
fuse 6,3 A
BT3
Thermostat for
2nd burner stage
H4
Burner 2nd
stage
working
signalling
BT1
Safety thermostat
H3
Burner
defect
signalling
H2
Safety thermostat
signalling
S1
Main switch
H1
Boiler under
voltage
signalling
BT2
Service thermostat
network module
COVER
Fig. No.3/1 Electro-panel wiring diagram
8

Note 1) bypass pump controlled by a thermostat
BOILER REGULATION
master control
boiler burner
failure
Boiler bypass
pump
boiler circulation
pump
RJ
protected input
1 NPE 50 Hz 230 V/16 A
boiler main switch
Fig. No.4 RZ 20 Regulation wiring diagram (OS 06)
9

4. Positioning and installation
4.1. Boiler standing in boiler room
The boiler is designed for positioning in closed
areas with aggressiveness degree between a little up
to moderately aggressive and in terms of
electrotechnic regulations in a common
environment (ČSN 33 2000 – 7
– 701:1997). It agrees with the use in rooms
separated from housing room itself (Declaration
91/93 Coll.., ČSN 07 0703:1986 Gas boilers).
Boiler noise level does not exceed the maximum
level of LA= 75 dB(A) - (the real value depends
on the type of used burner : for recommended
types it ranges between 60 – 70 dB).
The boiler must be positioned on a fireproof pad
or a sustaining wall approx. 50 mm high. In front
of boiler there must be left a free handling area
minimum for the boiler depth + 500 mm, from one
side 600 mm (access to the back).
When positioning the boiler there must be
respected the layout requirements of selected
type of burner (gas inlet and others.)
L of boiler + min. 500
*) It is necessary to respect the
selected type of burner layout
requirements ( gas inlet , burner
length etc.)
Fig. No.5 Boilers positioning in boiler room
For safety reasons at the installation there must be observed the distance of 200 mm from flammable
substances (ČSN 06 1008:1997 – Fire safety of local appliances and heat sources). For easily flammable
substances it means those that are quickly self-burning also after removing the source of inflammation (like tar
paper, cardboard, asphalt and tar paper, wood and hardboards , plastic substances, flooring) the distance gets
doubled. A safe distance must be doubled also in case that the building material flammability degree hasn’t been
proved.
In case that there is a danger of a temporary intrusion of combustible vapours or gases into the boiler room or
at the works at which there temporarily occurs the fire & explosion danger (gluing the flooring, coats with
combustible paints ) the boiler must be put out of operation in time and before the works commencement.
Warning:
No subjects made of flammable substances (see Fig. No.5) are allowed to be put on the boiler and within a
distance smaller than the safety distance.
Filling the heating system with water. The heating system must be thoroughly flushed out so that all
impurities that could be deposited in distribution system and radiators are washed out because otherwise they
could damage the pump. Water for filling the boiler and heating system must be clear and colourless , with no
suspended substances, oil or chemically aggressive substances. The circulation and filling water parameters must
correspond to:
Tab. No.3 The highest permissible values of heating water according to ČSN 07 7401:1992
hardness (mmol/l) 1
Ca2+ (mmol/l) 0,3
Total Fe + Mn concentration (mg/l) 3*
*recommended value
In case that the water hardness is unsuitable it must be adjusted. Not even heating the water with higher
hardness several times will prevent the soils precipitation on the boiler body walls. Precipitation of 1 mm calcite at
a given point will reduce the passage of heat from metal to water by 10%.
During the heating season it is necessary to keep a constant heating water volume in the heating system and be
particular about venting the heating system. Water from boiler and heating system must never be discharged or
taken for use except for inevitable cases like repairs etc. By discharging the heating water and filling the system
with new water the danger of corrosion and scaling is increased. In case that it is necessary to replenish water in
heating system, we only refill it in a cold boiler, otherwise the sections could crack.
10

Tab. No. 4 Flammability degrees of building materials and products
Flammability degree of
building materials and
products
The building materials and products ranged in flammability degree
( selection of ČSN 73 0823: 1984)
A– fireproof Granite, sandstone, concretes, bricks, ceramic tiles, mortars, fire protection plasters ,….
B–flammable with difficulties akumin, izumin, heraklit, lignos, plates and a basaltic felts, plates of glass fibres ,.....
C1– hardly flammable Beech wood, oak wood, hobres board, plywood, , werzalit, umakart, sirkolit,....
C2– mediumly flammable Pinewood, larch wood, spruce wood, chipboard and a cork slabs, rubber floorings, .......
C3– easily flammable Bitumen felt, fibreboards, cellulose materials, polyurethane, polystyrene, polyethylene, PVC, .
4.2. Directives and regulations
The boiler is allowed to be installed by a company with a valid authorization to do installations and
maintenance at the gas appliances. A project must be elaborated for the installation according to valid
regulations.
a ) to the heating system
ČSN 06 0310 : 2006 Central heating, design and assembly
ČSN 06 0830 : 2006 Interlocking plant for central heating and TUV heating
ČSN 07 7401 :1992 Water and steam for thermal energy equipment with steam working pressure up to 8 MPa
b) to gas distribution
ČSN EN 1775 : 1999 Gas supply–pipelines inside the buildings- the maximum operating overpressure
lower than 5 bar.
ČSN 38 6413 : 1990 Gas mains and law and medium pressure connections
ČSN 07 0703 : 1986 Gas boiler rooms
ČSN 38 6405 : 1988 Gas equipment. Operation principles.
ČSN 38 6420 : 1983 Industrial gas conduits.
Act No.222/94 Coll.. of conditions for business and state administration execution in energy branches and of
the state energetic inspection
Declaration No. 91/93 Coll.. of Czech Labour Safety Office for ensuring the labour safety in law-pressure
boiler rooms.
c ) to a liquid fuel distribution
ČSN 65 0201:1992 Flammable liquids. Workshops and storerooms.
Decl. MV ČR No.35/77 on fire safety when storing and using the furnace oil
PO 1410/65 z 1. 3. 1966 a temporary directive for heating by furnace oil and fuel oil in view of fire
protection
d ) to electricity network
ČSN 33 2180 : 1980 Connection of electrical instruments and appliances .
ČSN 33 2000-3: 1995 Elecrotechnic regulations. Electrical installation. Section 3 : Basic characteristics
determination .
ČSN 33 2000-7-701:1997 Electrotechnic regulations - electrical installation- Section 7 : single-purpose
equipment and in special buildings
ČSN 33 2130 : 1985 Electrotechnic regulations. Internal electricity distribution.
ČSN IEC 446 : 1989 Electrotechnic regulations. Marking the conductors with colours or numerals.
Implementing regulations.
ČSN 33 0165 : 1992 Electrotechnic regulations. Marking the conductors with colours or numerals.
Implementing regulations.
ČSN 33 2350 : 1983 Regulations pro electrical equipments in aggravated climatic conditions.
ČSN 34 0350 : 1965 Electrotechnic regulations. Regulations for floating supplies and cord conduits .
ČSN 33 1500 : 1991 Electrical equipments revision
ČSN EN 60 335 – 1 : 1997 Safety of electrical household appliances and similar purposes Section 1 –
General requirements .
If the selected burner is without a main switch it is necessary according to ČSN 07 5801:1990 - Burners for gas
fuels – to install the main switch within the burner reach . The protection must be carried our according to the
burner manufacturer ´s instructions. .
e ) to the chimney
ČSN 73 4210 : 1989 Chimneys and smoke-flues execution and fuel consumers connection
ČSN 73 4201 : 1989 Chimneys and smoke-flues design
11

The connection must carried out only if approved by a chimney organization wand must meet all provisions of
these standards. The chimney must be resistant to combustion gases condensate, otherwise it might be seriously
damaged.
f ) with regard to fire regulations
ČSN 06 1008 : 1997 Fire safety of heat installations .
ČSN 73 0823 : 1984 Fire technical substances characteristics. Flammability degrees of building materials.
5. Order, delivery and assembly
5.1. Order
In an order it is necessary to specify following items :
1. Boiler size
2. Demands on elements delivered at request .
5.2. Delivery and accessories
Standard :
•In decomposed condition ( individual sections on the pallet ,the boiler fitting and accessories in a transport
package)
•Casing/ jacket including insulation in a cardboard cover
•Blank flange for burner (necessary openings for used type of burner are only made during the assembly)
•Electro-panel - basic design
•Business technical documentation
At request :
•in assembled condition - the boiler body with mounted fitting on the pallet, protected by a foil, accessories
stored in boiler. Jacket, including insulation in a cardboard cover.
•delivery with a recommended burner ( see tab. No.2 )
•flange for burner φ150 mm (φ140 mm, φ165 mm) with connection openings according to the ordered burner
•possibility to deliver the burners
•regulation elements design for output temperature up to 115 °C.
5.3. Assembly process
The assembly process is stated in „ VIADRUS G 300 boiler assembly manual “
6. Commissioning
Putting the boiler into operation, setting the heat output and any intervention into the electrical part of
boiler or connection of further control elements can only be done by service organization authorized to do
the service works and an authorized firm for servicing the burner being operated.
1. Burner installation and assembly, its adjustment and putting the boiler with a burner into operation must be
confided to the care of a burner supplier ´s service firm . The service firm will give the user a training in
operation and provide him with burner use manual and guarantee plus after-guarantee repairs.
2. Before putting the boiler into operation a record must be made in Inspection book.
6.1. Checking activities before initiation
Before putting the boiler into operation it is necessary to check:
a) filling the heating system with water (thermo-manometer check ) and tightness of the system
b) setting the boiler thermostat stage II. (rated power/ nominal output) to 60 - 90 oC (within the range 60 - 115 °C
in case that the boiler is operated above 95°C).
c) opening all slide-valves and valves between the boiler and heating system
d) opening the fuel inlet
e) inlet pressure of fuel before entering the boiler according to the burner documentation
12

f) connection to the electricity network 230V/380V 50 Hz/TN-S
g) connection to the chimney (the necessary chimney draught is 0,5 mbar).
h) max. overpressure in combustion chamber is 2 mbar. The probe positioned on burner plate serves for
overpressure measuring in combustion chamber.
Setting the regulation elements:
-regulation thermostat stage I. (reduced output) – permanently set by manufacturer to 95°C
-safety thermostat - permanently set by manufacturer to 105°C (to 120°C in case that the boiler is operated
above 95 °C)
6.2. Boiler conversion from „ liquid fuels“ to „ gas fuels“ and back
The boiler conversion from „ liquid fuels“ to „ gas fuels“ and back doesn’t require any adaptations apart from
the burner and adequate flange exchange for a burner. Before the conversion we recommend to check the body, the
combustion gases routes and their thorough cleaning.
This conversion (burner exchange ) will only be required by a customer at a contractual service firm –
organization entitled to be engaged in this activity.
7. Boiler operation by user
The boiler works automatically according to the regulation elements setting and users only do the following
operating activities that they are obliged to familiarize with before putting the boiler into operation as follows:
1. Switching on and switching off the boiler by means of network switch on the boiler electro-panel.
2. Setting and checking the required heating water temperature within 60 – 95°C limits (to be set on115 °C in
case that the boiler is operated above 95°C ).
3. Unblocking the safety thermostat. In case that the boiler is switched off by a safety thermostat, the signal lamp
on electro-panel is alight thus signalling that the temperature has been exceeded. The user can unblock the
thermostat by means of the pushbutton "unblocking" at the safety thermostat positioned at the rear panel of
control box.
4. ressure check in heating system
7.2. Electropanel – basic design
Electro-panel consists of basic parts as follows:
-electro-panel itself with network module
-capillary pressure gauge
-capillary thermometer
-service thermostat stage I
-service thermostat stage II
-safety thermostat
- running hours counters stage I. and II.
-burner operation control lamps stage I. and II.
-"failure" control lamps – safety thermostat
switching
-connecting terminal block
1 Main switch
2 Signalling of operation stage II.
3 Service thermostat stage I.
4 Safety thermostat
5 Service thermostat stage II.
6 Running hours counter stage I. and II.
7 Thermomanometer
8 Blind flanges
9 Fuse 10 A
10 Burner failure signalling
11 Heating water temperature exceeded – signalling
13

„ The Operation and installation manual is a part of delivery in case that a equithermal regulation
is required “.
IMPORTANT WARNINGS :
1. The boiler after initiation works automatically. It only can be operated by adult persons familiar with
this manual and the burner operation manual.
2. The boiler must be operated according to the manual and related standards.
3. The air of combustion must not contain a high moisture and dustiness. If their occurrence cannot be
excluded in the environment related to the boiler location there must be brought the air of combustion into the
boiler room directly from outdoor environment .
4. The boiler room must be kept in a clean and dust-free condition. From the boiler room area there must be
excluded all sources of pollution and during the works (insulation works, boiler room cleaning) that cause the
dustiness the boiler must be put out of operation. Even a partial burner clogging with dirt devalues the
combustion process and endangers an economical and reliable boiler operation.
5. To prevent the boiler from retting followed by low-temperature corrosion at the places where a more
permanent run at lower temperatures can be expected (transition periods, at the heating system with a large
heating water volume, law-temperature regime etc.) it is necessary to ensure that the return water temperature
does not drop below 50 °C. The best way is the creation of boiler own circuit .
6. Adjustment of burner stage I. (reduced output ) must be done with regard to the combustion gases temperature
in a way making sure that it doesn’t drop below 130°C.
7. Water from boiler and heating system should never be taken for use neither discharged apart from the
indispensable cases like system repairs. The water discharge increases the corrosion and scale formation
danger. If it is necessary to refill water always chemically treated in heating system then we only refill the
cold boiler in order to avoid the boiler sections breaking.
8. If there occurs the boiler failure condition, the lamp signalling the burner failure lights up at the boiler
electro-panel. In case of electricity outage the burner is switched off and after voltage recovery in el. network
there will automatically run a new burner start.
9. The burner operation failures are in detail described in burners operation manual , including the ways of their
elimination and they must be followed.
10. In case of a long-term shut-down of a boiler this boiler must be disconnected from el. network.
11. In case that there occurs the danger of flammable vapours or gases development and their intrusion into
the boiler room , or at the works where there temporarily occurs the fire or explosion danger (gluing the
flooring, painting with flammable paints ), the boiler in time and before works initiation must be put out
of operation.
12. No objects made of combustibles are allowed to be put on boiler and within a distance lower than a
safety distance from the boiler.
13. The user is obliged to confide the commissioning, regular maintenance and failures elimination only to
the care of a professional contractual service accredited by ŽDB GROUP a.s. Bohumín, the boilers
manufacturer, Heating technique plant VIADRUS, otherwise the boiler proper function guarantee
doesn’t apply. “VIADRUS G 300 boiler quality and completeness certificate “after having been filled in
by contractual service organization serves as the “ Guarantee certificate“.
14. On the boiler there must be carried out once a year a regular maintenance according to the next chapter.
If you fail to meet these conditions you cannot requisite the guarantee repairs.
The list of contractual service organizations is appended separately.
8. Maintenance
All interventions are only allowed to be done by contractual service organization trained by the
manufacturer.
1. Disconnect the boiler from the el. network.
2. Close the fuel inlet to the burner.
3. Open the burner plate with a burner and the sealing plate.
4. Check the degree of boiler convection surface clogging and by using a brush eliminate the impurities from
heat- exchange surfaces of convection part of boiler and the combustion space. The remnants after cleaning must
be removed both from the combustion space and from the outlet orifice after the small cleaning cover - the
explosion shutter disassembly . The explosion shutter and the springs must not be manipulated.
5. Check the burner orifice clogging. If the burner orifice is dirty it must be cleaned according to the burner
manufacturer ´s instructions.
14

6. A careful closing of the burner plate with the burner , the sealing plate and all small covers – check their
tightness.
7. Mount the holder with explosion shutter.
8. Open the fuel supply; connection to el.network and boiler start-up.
9. Check the tightness of fuel supply to the burner .
10. Setting and adjusting of boiler heat output.
9. Instructions for product disposal after its service life
With regard to the fact that the product is constructed of common metal materials the individual parts are
recommended to be disposed of as follows:
-exchanger (grey cast-iron), through a firm dealing with waste salvage and disposal
-piping, jacketing, through a firm dealing with waste salvage and disposal
-other metal parts, through a firm dealing with waste salvage and disposal
-insulation material ROTAFLEX into the common waste
We recommend to dispose of boiler cover in the way as follows :
- plastic foil , cardboard cover and wooden pallet into the common waste
- metal tightening tape , through a firm dealing with waste salvage and disposal
In case that the product has lost its manufacture qualities there can be taken advantage of a repeated
product take-off ( if it is introduced) in case of originator ´s statement saying that this is the waste and it will
be handled according to the legislation valid in the particular country.
10. Failures and their elimination
-the failures elimination can only be done by a trained contractual service organization and this organization will
make an entry in the guarantee certificate supplement
-in case that there is repeatedly blocked the safety thermostat it is also necessary to call a contractual
service worker
-the burners operation failures are in detail described in Burners operation manual , including the ways
of failures elimination and they must be followed.
11. Guarantee and liability for defects
ŽDB GROUP a.s., VIADRUS heating technique plant gives a guarantee:
–at boilers for 24 months from the date when the product was sold to an end user
–at boiler body 5 years from the date the product was dispatched from manufacturing plant
For the guarantee validity the manufacturer requires:
–in terms of Act No.222/94 Coll. „ On entrepreneurship and state administration execution conditions in
certified branches and on State energy inspection” Regulation No.91/93 Coll. issued by „Czech Labour
Safety Office for ensuring the labour safety in law-pressure boiler rooms “ and ČSN 38 6405, ČSN EN
1775 to inspect regularly the boiler. The inspections can only be done by an authorized organization
(contractual service), accredited by ŽDB GROUP a.s. Bohumín, VIADRUS Heating technique plant and the
manufacturer of the burner being operated.
–To document all records of carried out guarantee and after-guarantee repairs and regular annual boiler
inspections in the guarantee certificate supplement which belongs to the boiler revision book.
The guarantee doesn’t apply to:
- failures caused by a wrong assembly and wrong product operation
-product damage caused by transport or other mechanical damage
-failures caused by improper storage
Every failures notification must be done immediately after having found the failures and always in writing.
When the above instructions aren’t followed the guarantees provided by manufacturer will not be
recognized.
The manufacturer reserves the right to changes made within the product innovation that needn’t be
included in this manual.
15

For size 11 – 14 sections
For size 5 – 10 sections
16

1 – jacket front section
2 – front section
3 – central section
4 – rear section
5 – boiler insertion
6 – anchor bolt
7 – plug with external thread
8 – thermomanometer clack valve
9 – sealing plate
10 – insul. adapting piece
11 – burner plate
12 – insul. adapting piece
13 – draw-off orifice
14 – explosion shutter - small cover
15 – 2x reservoir
16 – sealing
17 – heating water flange cover
18 – mica little window
19 – mica small window sealing
20 – heating water and drilled water flange
44 – electro-panel console
21 – restrictive insertion
22 – flange for burner 150
23 – electro-panel
24 – thermomanometer
25 – blind flange large
26 – drain cock
27 – small valve
28 – rear lower jacket part
29 – rear jacket part insulation
30 – rear upper jacket
31 – upper jacket part insulation
32 – side jacket part
33 – insul. of jacket side part
34 – upper jacket part
35 – upper jacket part insulation
36 – cons. with cable trough
37 – left section console
38 – section console
39 – jacket side part
40 – side jacket part insulation
41 – front side jacket part
42 – upper front jacket part
43 – upper jacket part insulation
45 – running hours counter
46 – connecting console
47 – network module
Fig. No. 6 Boiler assembly
17

Information for customer
Packaging edentification
PE Plastic sacks, folie, corrugaled board, iron and plastic fix line
Assessment reference
Identification od principál materials used. Paper, Polyethylene, iron, wood
Part 1: Summary of assessment
Standard/Report Assessment requirement Claim Note
1.1 Prevention by source
reduction
YES
1.2 Heavy metals and ensure below maximum permitted levels for
components
(CR 13695-1:2000)
YES
1.3 Other noxious/hazardous
substances
ensure in compliance with
(CR 13695-2:2002, EN 13428:2000) YES
2Reuse ensure reusability in all terms of the
standard for the functional packaging unit
(EN 13429:2000)
NO
3.1 Recovery by material
recycling
ensure recyclability in all term sof the
standard for the functional packaging unit
(EN 13430:2000)
YES
3.2 Recovery in the form of
energy
ensure that calorific gain is achievable for
the functional packaging unit (EN
13431:2000)
YES Iron - NO
3.3 Recovery by composting ensure compost ability in all terms of the
standard for the functional packaging unit
(EN 13432:2000)
NO
NOTE Conformity with EN 13427 requires affirmative responses to sections 1.1; 1.2; 1.3 and to at least one of
3.1; 3.2; 3.3. In addition, where a claim of reuse is made section 2 should also record affirmative
responses.
Part 2: Statement of conformity
In the light of the assessment results recorded in part I above, this packaging is claimed to comply with the
requirements of EN 13427:2000.
18

19

20
ŽDB GROUP a.s., závod Topenářská technika VIADRUS
