Viali VGGDW60W User manual

Freestanding Dishwasher
Instruction Manual
12 MONTH WARRANTY

1
Contents
Safety Information and Warnings 2
Quick Operation Guide 5
Appliance Guide 6
Installation Instructions 8
Prior to First Use 12
Detergent 15
Loading the Dishwasher 18
Starting a Wash Cycle 24
Care and Maintenance 28
Troubleshooting 32
Technical Specifications 35

2
Safety Information and Warnings
IMPORTANT to get the best performance from your dishwasher read all
instructions before using the appliance for the first time.
Read this instruction manual thoroughly before first use, even if you are
familiar with this type of product. We have provided many important safety
statements in this manual concerning the use of this appliance. Always read
and observe all safety statements. They reduce the risk of fire, electric shock
and injury when correctly adhered to.
Keep the instruction manual in a safe place for future reference, along with
the purchase receipt. If applicable, pass these instructions on to the next
owner of the appliance.
This appliance is intended to be used in household and similar applications such as:
-Staff kitchen areas in shops, offices and other working environments.
-Farm houses
-Clients in hotels, motels and other residential type environments
-Bed and breakfast type environments.
Pay particular attention to safety messages that follow the words WARNING
or IMPORTANT. These words are used to alert you to a potential hazard that
can seriously injure you and others.
The instructions will tell you how to reduce the chance of injury and let
you know what can happen if the instructions are not followed.
WARNING means that failure to read this safety statement may result
in extensive product damage or serious personal injury.
IMPORTANT means that failure to read this safety statement may result in
minor or moderate personal injury, property or equipment damage.
We assume no liability for any eventual damages caused by misuse of the
appliance or non- compliance with the instructions in this manual.

3
WARNING when using your dishwasher, follow the precautions listed below:
Proper Use
Do not abuse, sit or stand on the door or dish rack of the dishwasher.
Do not touch the heating element during or immediately after use.
Do not operate your dishwasher unless all enclosure panels are properly
in place. Open the door very carefully if the dishwasher is operating;
there is a risk of water escaping the unit.
Do not place any heavy objects
When loading items to be washed, locate sharp items so that they are not
likely to damage the door seal. WARNING: KNIVES AND OTHER UTENSILS
MUST BE LOADED IN THE BASKET WITH THEIR POINTS DOWN OR PLACED
IN A HORIZONTAL POSITION.
When using your dishwasher you should prevent plastic items from
coming into contact with the heating element. (This is only applicable to
machines with a visual heating element)
Check that the detergent compartment is empty after completion of the
wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic items not marked; check the manufacturer’s
recommendations.
Use only detergent and rinse additives designed for an automatic
dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your
dishwasher. Keep these products out of reach of children.
Keep children away from detergent and rinse aid. Keep children away
from the open door of the dishwasher; there could still be detergent
present.

4
This appliance is not intended for use by children or persons with
reduced physical, sensory or mental capabilities or lack of experience or
knowledge; unless they have been given instructions and/or supervision
by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with
the appliance.
WARNING: SOME DISHWASHER DETERGENTS ARE STRONGLY ALKALINE,
THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED, AVOID ONTACT
WITH SKIN AND EYES AND KEEP CHILDREN AWAY FROM THE DISHWASHER
WHEN THE DOOR IS OPEN.
The door should not be left open as this could increase risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or a similarly qualified person in order to avoid a hazard.
Remove the door to the washing compartment when removing an old
dishwasher from service or discarding of it.
Please dispose of packing materials correctly.
Use the dishwasher only for its intended function.
During installation, the power supply must not be excessively or
dangerously bent or flattened. Do not tamper with controls.
If the appliance is installed on a carpet floor, take care that openings in
its base are not obstructed.
The appliance is to be connected to the water mains using new hose sets.
Old hose sets should not be re used.
The maximum number of place settings to be washed is 12.
The maximum permissible inlet water pressure is 1Mpa.
The minimum permissible inlet water pressure is 0.04Mpa.

5

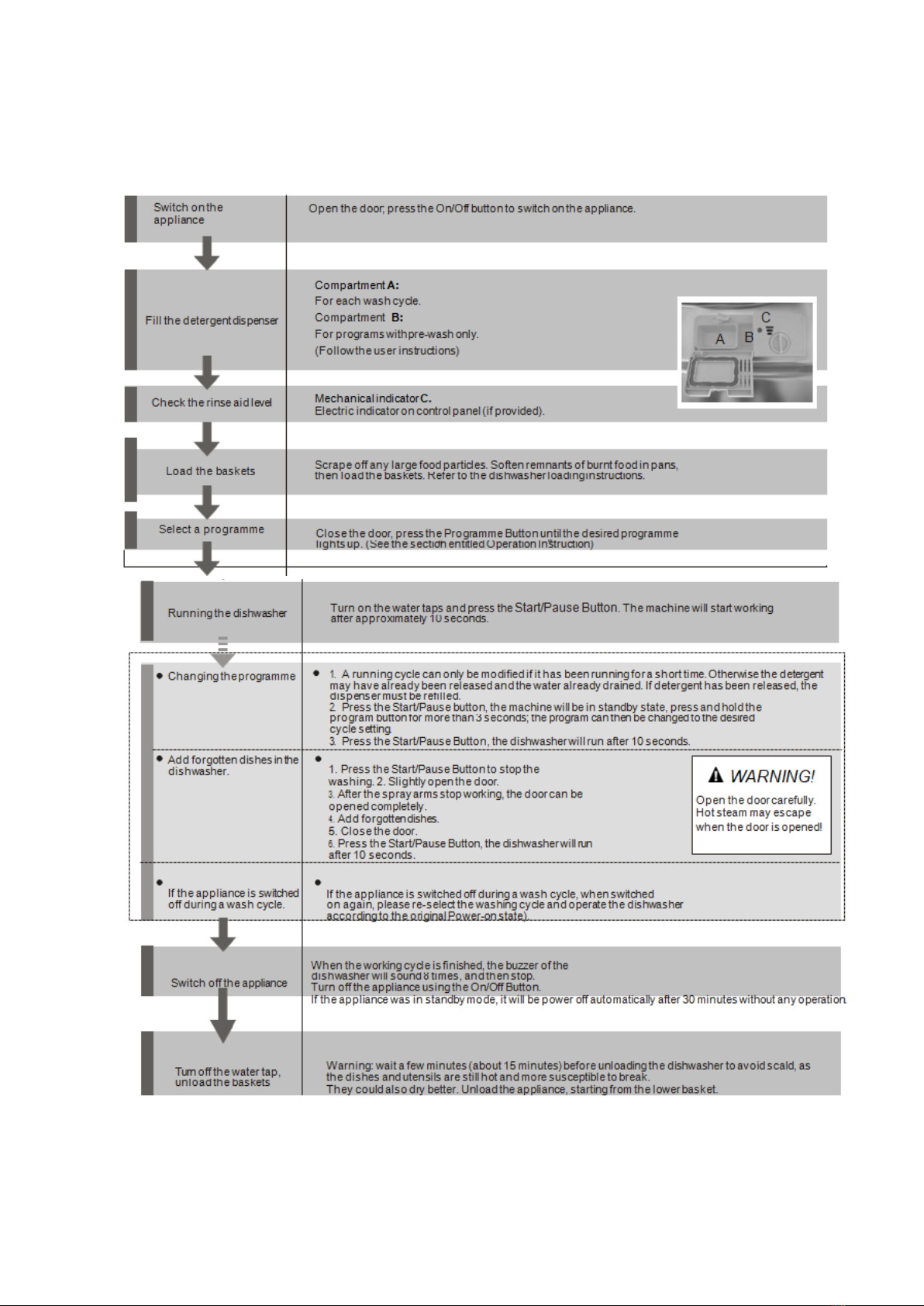

Quick Operation Guide

6
Appliance Guide

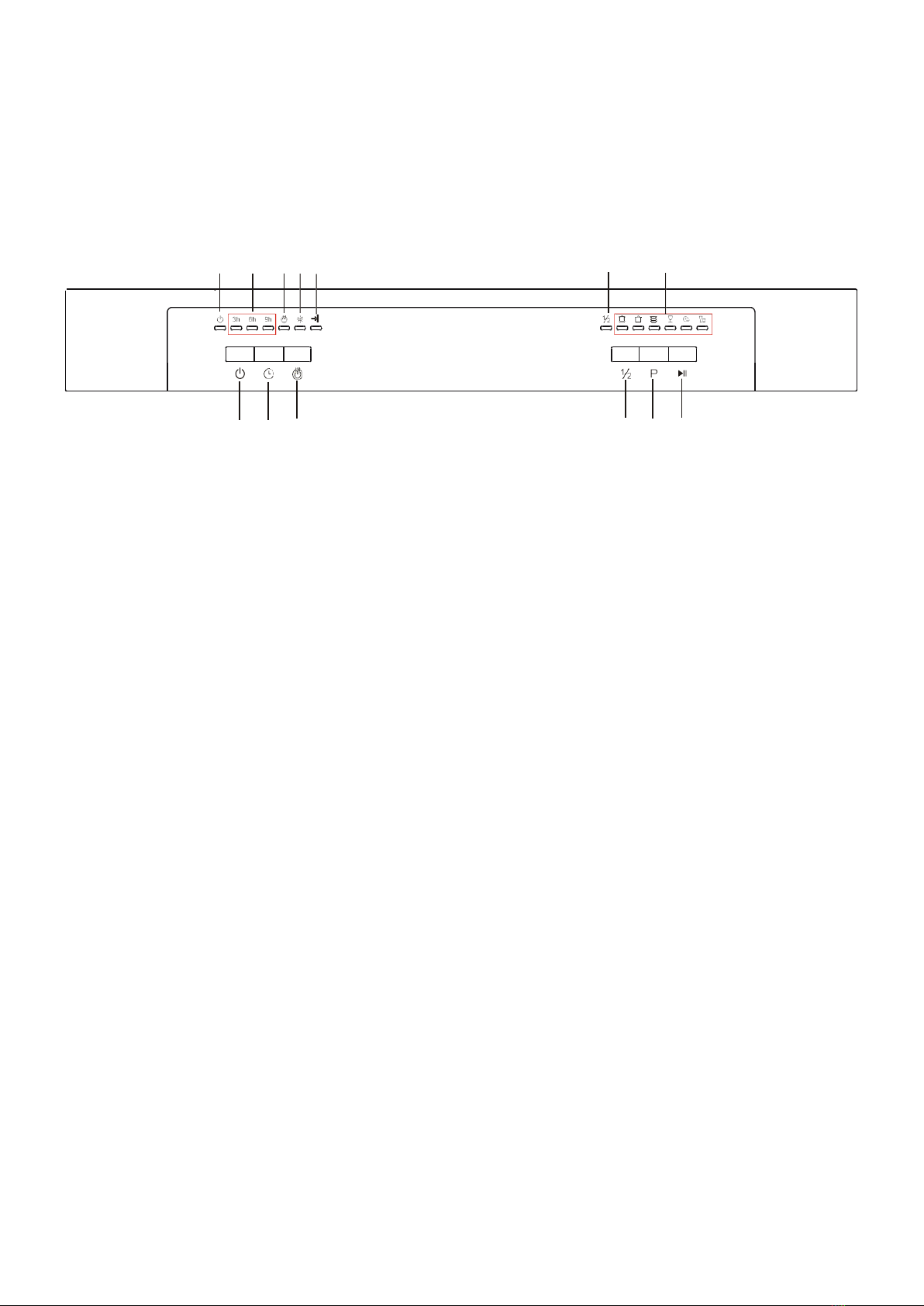

Control Panel
4 5 6 7 8 12 13
1 2 3 9 10 11
1. On/Off Button. To turn on/off the power supply.
2. Delay Button. To add delay time.
3. Extra Drying Button. To select extra drying function. (Extra drying function can
only be used with Intensive, Heavy, Normal, Glass and 90min).
4. Power Indicator. Indicates when machine is powered on.
5. Delay indicators. To show the delay time.
6. Extra drying indicators. Indicates when Extra Drying Function is in progress.
7. Rinse Aid Indicator. Indicates when the dispenser needs to be refilled.
8. Program Ending Lights. Indicates completion of a washing program.
9. Half Load Functions Button. (Only to use with approximately 6 place settings or
less. Can only be used with Intensive, Heavy, Normal, Glass and 90min).
10. Program Button. To select the appropriate program.
11. Start/Pause. To start the selected washing program or pause the washing
program when the machine is operating.
12. Half Load Indicator. Indicates when half load function is selected.
13. Program Indicators. Indicates the program selected.

7
Dishwasher Features
Front View Back View
1. Upper basket 5. Cup Shelf 9. Drain Pipe
2. Inner Pipe 6. Spray Arms
3. Lower basket 7. Filter Assembly
4. Dispenser 8. Inlet Pipe Connector

8
Installation Instructions
Positioning the Appliance
Position the appliance in the desired location. The back should rest against
the wall behind it, and the sides, along the adjacent cabinets or walls, see
below for measurements and required space. The dishwasher is equipped
with water supply and drain hoses that can be positioned either to the
right or the left sides to facilitate proper installation.
Leveling the Appliance
Once the appliance is positioned for leveling,
the height of the dishwasher may be altered via
adjustment of the screwing level of the feet. In
any case, the appliance should not be inclined
more than 2 degrees.
Power Connection
WARNING For personal safety:
DO NOT USE AN EXTENSION CORD OR AND ADAPTER PLUG WITH APPLIANCE.
DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE
EARTHING CONNECTION FROM THE POWER CORD.
Electrical Requirements
Please look at the rating label to know the rating voltage and connect
the dishwasher to the appropriate power supply. Ensure the power
circuit has a minimum of a 10amp fuse or circuit breaker.

9
Grounding Instructions
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce
the risk of electric shock by providing a path of least resistance for the electric current. This
appliance is equipped with a cord featuring an equipment- earthing conductor and an earthing
plug. The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local standards and requirements.
WARNING
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether
the appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit
Water Connection
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and
make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of
time, let the water run to make sure that the water is clear. This precaution
is necessary to avoid the risk of the water inlet being blocked and
damaging the appliance.

10
Drain Hose Connection
Insert the drain hose into a drain pipe with a diameter of 40mm, or let
it run into the sink, making sure to avoid bending or crimping it. The
top of the hose must be less than 1000mm.
How to Drain Excess Water from Hoses
If the sink is 1000mm high from the floor, the excess water in hoses
cannot be drained directly into the sink. It will be necessary to drain excess
water from hoses into a bowl or suitable container that is held outside and
lower than the sink.
Water Outlet (Drain Hose)
Connect the water drain hose. The drain hose must be correctly fitted
to avoid water leaks. Ensure that the water inlet hose is not kinked or
squashed. Drill out drain pipe spigot to 13mm diameter prior to fitting
drain hose.

11
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the
dishwasher could be reduced.
Syphon Connection
The waste connection must be at a height of between 40cm (minimum) and
100cm (maximum) from the bottom of the dish. The water drain hose
should be fixed by a hose clip.

12
Prior to First Use
The following things should be checked before starting the dishwasher.
The dishwasher is level and fixed properly.
The inlet valve is open.
There is no leakage at the connections of the hoses.
The power cord is not trapped or squashed.
The appliance is plugged in and the power is switched on.
The inlet and drain hoses are not kinked or squashed.
All packing materials and printings should be taken out from the dishwasher.
IMPORTANT After installation, please make sure to keep this instruction manual. The
content of this manual is very helpful to the users.
Before using the appliance for the first time:
Fill the rinse aid dispenser.
Fill the detergent dispenser.

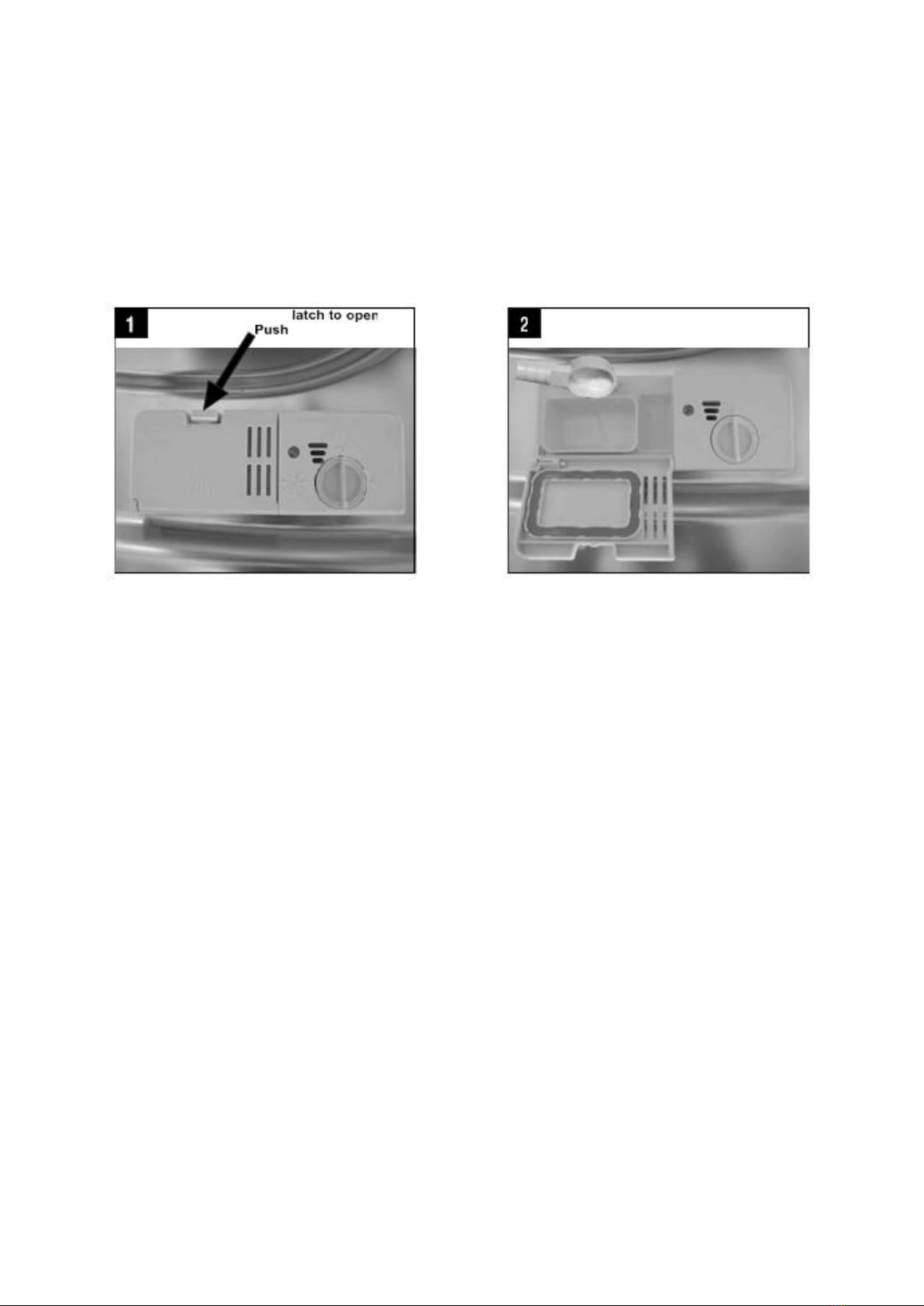

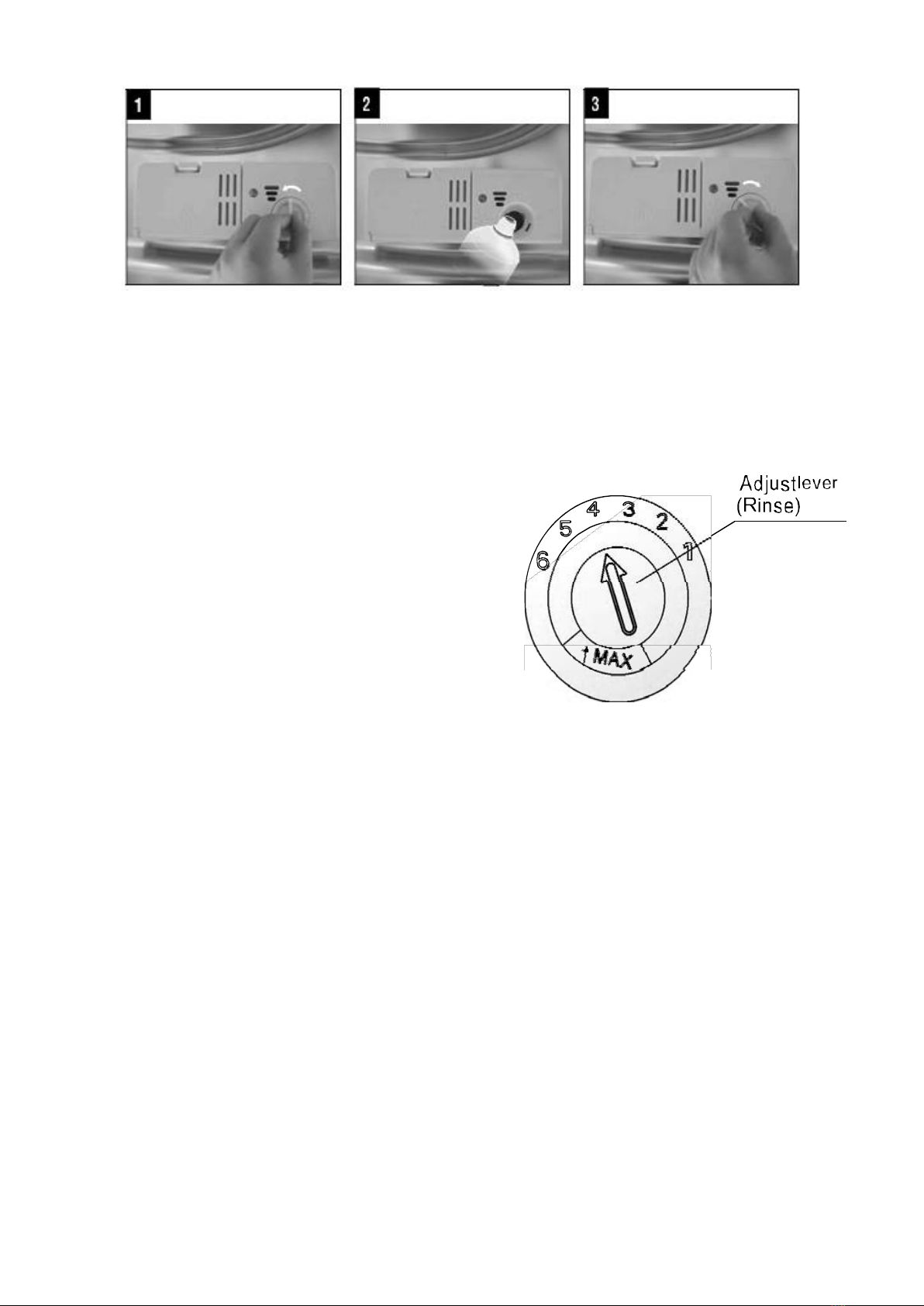

Fill the Rinse Aid Dispenser
The rinse aid is released during the final rinse to prevent water from
forming droplets on your dishes, which can leave spots and streaks. It also
improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside
the door next to the detergent dispenser. To fill the dispenser, open the cap
and pour the rinse aid into the dispenser until the level indicator turns
completely black. The volume of the rinse aid container is about 110ml.
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough
rinsing, and spot and streak free drying.

13
IMPORTANT only use branded rinse aid in the dishwasher. Never fill the
rinse aid dispenser with any other substances (e.g. Dishwasher cleaning
agent, liquid detergent). This will damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can estimate
the amount from the color of the optical level indicator “C” located next to
the cap. When the rinse-aid container is full, the whole indicator will be
dark. As the rinse-aid diminishes, the size of the dark dot will decrease.
You should never let the rinse aid level fall below ¼ full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level
indicator changes, as illustrated below.
How to fill the Rinse Aid Dispenser
1. To open the dispenser, turn the cap to the ‘open’ (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with ‘open’ arrow turning it to the ‘closed’ (right)
arrow.

14
IMPORTANT Clean up any rinse aid spilt while filling with an absorbent cloth
to avoid excessive foaming during the next wash. Don't forget to replace the
cap before you close dishwasher door.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six settings.
Always start with the dispenser set on
"4". If spots and poor drying are a
problem, increase the amount of rinse
aid dispensed by removing the
dispenser lid and rotating the dial to
"5". If the dishes are still not drying
properly, or showing spots, adjust the
dial until dishes are spot-free. The
recommended setting is "4". (Factory
value is "4".)
IMPORTANT Increase the dose if there are drops of water or lime spots on
the dishes after washing. Reduce it if there are sticky whitish stains on your
dishes or a bluish film on glassware or knife blades.

15
Detergent
Detergents have chemical ingredients that crush and remove dirt. Most of the commercial quality
detergents are suitable for this purpose.
There are 3 types of detergents,
1. With phosphate and with chlorine.
2. With phosphate and without chlorine.
3. Without phosphate and without chlorine.
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when the
hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard
water often white spots appear on dishes and glasses. In this case please add more detergent to
reach better results. Detergents without chlorine only bleach a little. Strong and coloured spots
will not be removed completely. In this case please choose a program with a higher temperature.
Concentrated Detergent
Based on their chemical composition, detergents can be split in two basic types:
Conventional, alkaline detergents with caustic components.
Low alkaline concentrated detergents with natural enzymes.
The use of “normal” washing programs in combination with concentrated detergent reduces
pollution and is good for your dishes; these wash programs are specifically matched to the dirt-
dissolving properties of the enzymes of the concentrated detergent. For this reason “normal”
wash programs in which concentrated detergents are used can achieve the same results that can
otherwise only be achieved using “intensive” programs.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some detergent
tablets cannot dissolve and develop their full cleaning power during short programs. Therefore
please use long programs when using detergent tablets, to ensure the complete removal of
detergent residuals.

16
Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than
conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal
wash load. More heavily soiled items need more detergent. Always add the detergent just before
starting the dishwasher, otherwise it could get damp and will not dissolve properly.
IMPORTANT
If the lid is closed: press release button. The lid will spring open.
Always add the detergent just before starting each wash cycle.
Only use branded detergent and rinse aid in the dishwasher.
WARNING Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and
dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

17
Filling the Detergent Dispenser
Fill the detergent dispenser with detergent. The marking indicates the dosing
levels, as illustrated below:
1. Place main wash cycle detergent in area A. “MIN” means approximately 20g of detergent.
2. Place pre-wash cycle detergent in area B. Approximately 5g of detergent.
3. Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
Please observe the manufacturers dosing and storage recommendations as stated on the
detergent packaging.
IMPORTANT
The information about the amount of detergent for the single
program please refer to the Wash Cycle Table.
Please be aware, that according to the level of soiling and the
specific hardness of water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.

18
Loading the Dishwasher
Recommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further
information from the detergent manufacturers.
For more delicate items, select a program with as low temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
Not Suitable for the
Dishwasher
Cutlery with wooden, horn china
or mother-of-pearl handles.
Plastic items which are not
heat resistant.
Older cutlery with glued parts
which are not temperature
resistant.
Bonded cutlery items or dishes.
Pewter or cooper items.
Crystal glass.
Steel items subject to rusting.
Wooden platters.
Items made from synthetic fibres.
Limited Suitability for the
Dishwasher
Some types of
glasses can
become dull after a
large number of
washes.
Silver and
aluminum parts
have a tendency to
discolour during
washing
Glazed patterns
may fade if
machine washed
frequently.
Before and After Loading the Dishwasher Baskets
For best performance of the dishwasher, follow these loading
guidelines. Features and appearance of baskets and cutlery baskets
may vary from your model.
Scrape off any large amounts of leftover food. Soften remnants of burnt
food in pans. It is not necessary to rinse the dishes under running water.

19
Place objects in the dishwasher in following way:
1. Items such as cups, glasses, pots/pans, etc. should be faced downwards.
2. Curved items or ones with recesses should be loaded aslant so that water can run
off.
3. All utensils are stacked securely and cannot tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during
washing.
IMPORTANT Very small items should not be washed in the dishwasher as they could easily fall out
of the basket.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter
dishware such as glasses, coffee and tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
Please do not overload your dishwasher. This is important for
good results and for reasonable consumption of energy.
