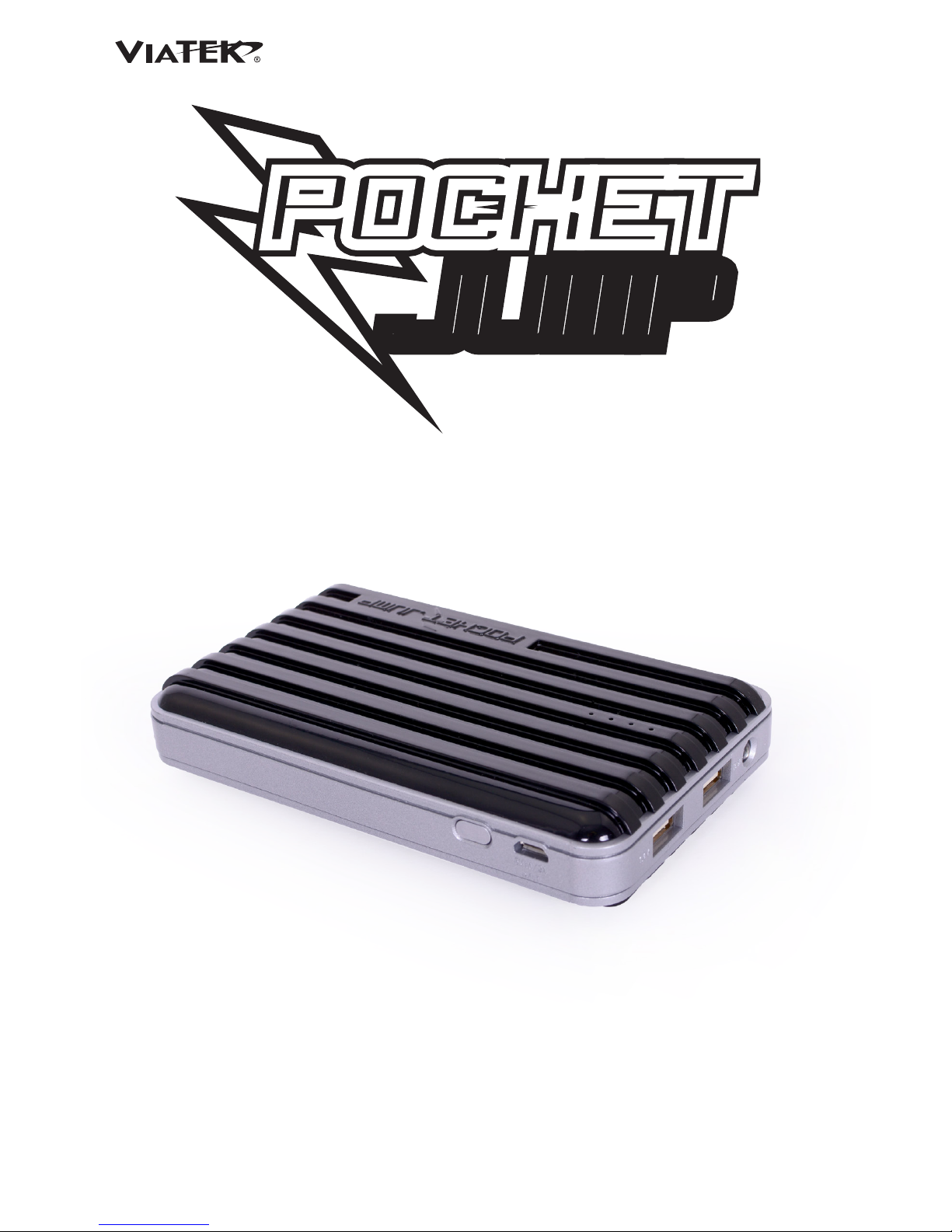

Viatek MJ10 User manual

JUMPJUMP
EMERGENCY VEHICLE JUMP STARTER
& PORTABLE POWER BANK
POCKETPOCKETPOCKET
®
JUMPJUMP
EMERGENCY VEHICLE JUMP STARTER
& PORTABLE POWER BANK
POCKETPOCKET
®
JUMP
Instructions for Use
Model MJ10
Includes Pocket Jump, cigarette lighter adapter, and USB charging cord
BUYPOCKETJUMP.COM

Fully Charge Pocket Jump Before First Use
Batteries naturally discharge when not in use, so it is highly recommended to fully charge the device before rst
use. Check the capacity by pressing the capacity indicator button. If all 4 capacity indicator LEDs light up, then
your Pocket Jump is ready to jump your vehicle. If not all capacity indicator LEDs light up, follow the instructions
under the "Charging the Pocket Jump" section until the Pocket Jump is at full capacity. When not used regularly, we
recommend a routine charge to full capacity once every 30-45 days.
Jumping Your Vehicle
NOTE: Before use, make sure all of your vehicle's electrical accessories are turned off. The Pocket Jump must
be fully charged to jump your vehicle. If your vehicle has not been started for an extended period of time and the
battery is dead, it is likely that the battery is fully discharged and will not be able to be charged using Pocket Jump.
Step 1: Test the Battery. Without connecting it to the Pocket Jump, insert the cigarette lighter
connector end of the cigarette lighter adapter into the cigarette lighter socket of your vehicle.
Turn the key in the ignition to the accessory position, usually one-quarter turn of the key (for a
vehicle with push-button start, push the start button without engaging the brake). If the power
indicator LED lights up, continue. If not, your vehicle's battery may be damaged and unable to
charge.
Step 2: Test Electrical System. Leaving the adapter plugged into your vehicle, turn on the
headlights. Leave them on for 10-15 seconds. Turn them o. If the power indicator LED stays
on, move to Step 3. If the LED turns o, your vehicle's electrical system may be damaged and
professional help may be needed.
Step 3: Charging the Vehicle. Plug the cigarette lighter adapter's DC connector into the
Pocket Jump's DC/car port. Pocket Jump will turn on automatically (capacity indicator LEDs
will illuminate). The power indicator LED on the adapter will stay on, indicating power is owing
from the Pocket Jump into your vehicle. Wait 20 minutes. After 20 minutes have passed,
disconnect the Pocket Jump from the vehicle. Disconnect the adapter from the DC/car port
and Pocket Jump will shut o automatically in about 30 seconds.
Step 4: Start the Vehicle. Start your vehicle without pumping the gas. Pumping the gas could
cause engine ooding and prevent the vehicle from starting.
Charging Your Portable Devices
Plug your portable electronic device into either of the USB ports using your device's USB
cord. Pocket Jump will turn on automatically (capacity indicator LEDs will illuminate) and begin
charging your device. If it does not, press the capacity indicator button to begin charging. If
charging two devices at once, connect the device with the greater battery capacity to the 2.1A
USB port (Ex: Charging a tablet and mobile phone, charge the tablet via the 2.1A USB port) for
best results. Consult your device's user manual for battery capacity/charge rate.
AUTO-SHUTOFF FEATURE: Pocket Jump will automatically shut o in about 30 seconds
once all portable devices are disconnected.
Charging the Pocket Jump
Charge your Pocket Jump via USB power source with the included USB cord. Connect the
micro USB end to the Pocket Jump's micro USB port. Then, plug the cord into a USB power
source, such as a USB power port on a computer or a USB wall adapter (not included; many
devices such as smart phones and tablets come with USB wall adapters). The charge indicator
LEDs will start blinking and display the battery level. A full charge takes approximately 4-6
hours. Once the Pocket Jump is fully charged, the charge indicator LEDs will stop blinking
and display a full battery level (all 4 LEDs will light up). Disconnect the Pocket Jump and it will
automatically shut o in about 30 seconds. DO NOT charge the Pocket Jump for more than
6 hours. It is not recommended to use the Pocket Jump to charge electronic devices while the
Pocket Jump unit itself is being charged.
IF YOU HAVE RECENTLY USED THE POCKET JUMP TO JUMP START YOUR VEHICLE: Wait until your vehicle is operating
and running smoothly before charging the Pocket Jump via USB adapter in your vehicle. Do not leave the Pocket Jump
plugged in to be charged by your vehicle while the vehicle is not running, as this may drain your vehicle's battery.
Press the capacity indicator button at any time to check the battery level. If the charge is at full
capacity, all 4 capacity indicator LEDs will light up. If they do not, the Pocket Jump is not fully
charged and must be charged before being used to jump start a vehicle. It does not need to
be at full capacity to charge a portable electronic device. Pocket Jump will automatically turn
on when it detects a connection to either the 2.1A or 1.0A USB port or to the cigarette lighter
adapter and will automatically shut o in about 30 seconds once disconnected from either.

Parts Diagram
Capacity Indicator LEDs
Micro USB Port
(charge in)
DC/Car Port
(in back, not shown)
Capacity Indicator
Button 1.0A USB Port
LED Flashlight
To turn the ashlight on or o, hold down the capacity indicator button for 5 seconds.
Storing
Disconnect all cords from the Pocket Jump to store. You can store your Pocket Jump in your
glove box, console, or trunk. We recommend you do not store the Pocket Jump plugged
in. Store in temperatures of -10°F to +110°F. If temperatures in the vehicle exceed this, we
recommend removing the Pocket Jump.
Cigarette Lighter Adapter
Cigarette Lighter
Connector
DC Connector
USB Cord
USBMicro USB
2.1A USB Port
LED
Flashlight
Power
Indicator
LED

Read Instructions
Before Operating MADE IN
CHINA
© 2016 VIATEK CONSUMER PRODUCTS GROUP, INC. All specifications are subject to change without notice.All rights reserved.
For customer service call 888.7.VIATEK (+1.423.402.9010 for outside the United States) or visit us online at viatekproducts.com
Pour le service a la clientele appelez le 888.7.VIATEK (+1.423.402.9010 a l'extérieur des États-Unis) ou visitez viatekproducts.com
Para servicio al consumidor llame al 888.7.VIATEK (fuera de Estados Unidos marque +1.423.402.9010) o visite viatekproducts.com
PATENT PENDING
REV-Model No.
DO NOT DISPOSE OF BATTERIES IN FIRE. ALWAYS DISPOSE OF BATTERIES PER LOCAL & FEDERAL GUIDELINES
Follow Us
Like Us
Viatek Site
Viatek Consumer Products Group, Inc. 6011 Century Oaks Dr. Chattanooga, TN 37416
MJ10 011916
USE ONLY AS DIRECTED. DO NOT DISCARD IN FIRE.
ALWAYS DISPOSE OF BATTERIES PER LOCAL & FEDERAL GUIDELINES.
KEEP OUT OF REACH OF CHILDREN. AVOID EXCESSIVE HEAT EXPOSURE.
CAPACITY: 10,000mAh INPUT: 5V 1A
USB OUTPUT: 5V 2.1A DC OUTPUT: 12V 1.5A
Pocket Jump is designed for 4, 6, or 8 cylinder gas powered cars, light trucks, SUVs, and hybrids that use
a 12 volt electrical system. Pocket Jump WILL NOT provide ample energy to bring a defective battery back
up to a usable level. The testing procedure, where you simply insert the cigarette lighter adapter into your
power port accessory (cigarette lighter socket), is designed to tell you if your vehicle battery will or can
accept the charge before you begin the process. If the power indicator LED does not light up, your Pocket
Jump will not work to charge your battery and your vehicle needs professional servicing and/or possible
battery replacement.
Problem
The power indicator LED does
not illuminate when plugged
into the cigarette lighter
socket.
The power indicator LED does
not stay illuminated when
headlights are turned on.
The vehicle will not start after
battery is charged for the full
20 minutes.
Possible Cause
The cigarette lighter adapter is not fully inserted into the
cigarette lighter socket of the operating vehicle.
Vehicle battery may be damaged. Seek professional help.
The cigarette lighter adapter is not fully inserted into the
cigarette lighter socket of the operating vehicle.
Key is not turned to the accessory position.
Vehicle's electrical system may be damaged. Seek
professional help.
The battery in this vehicle is fully discharged or shorted
internally and must be replaced.
There is not sucient electric power in the battery to start
the engine.
Vehicle system plug is not properly inserted in the
cigarette lighter socket.
Troubleshooting
