Mopar 82212423AB User manual

1
REMOTESTART
RAM
Jun21,2010K6861080
4280312

2
CALLOUTDESCRIPTIONQUANTITY
1HoodSwitchHarness1
2WirelessIgnitionModule(WIN)1
3FOBIK2
4WINAntenna1
5HoodLatchAssembly1
6ZipTies10
CAUTION:
XBMremotestartcanONLYbeinstalledonvehiclesthathavethefollowingfactoryoptions:AutomaticTrans
mission,RemoteKeylessEntryandImmobilizer.
WinFobikbasedvehicles,thesalescodemustbeaddedtothedatabaseandtheRestoreVehicleConfiguration
(usingadiagnosticscantool)mustbeperformedpriortoinstallingthenewWINmodule.Failuretodosowill
rendertheWINmodule’sremotestartfunctioninoperative.
Thetechnicianshouldwait1/2hourbetweenaddingXBMsalescodeinDealerConnectbeforeinstallingtheWIN
module&restoringvehicleconfiguration.Intheinterim,thetechniciancaninstallallothercomponentsexcept
theWINmodule.
NOTE:Priortoinstallation,obtainthefourdigitPINfromthedealership'spartsdepartment.
RESTOREVEHICLECONFIGURATION
NOTE:ThewiTECHsoftwarelevelmustbeatthelatestreleasetoperformthisprocedure.
1.VINmustbeupdatedwiththesalescodeoftheaddedaccessoryinordertoenablesystemfunctionality.Usingthe
DealerCONNECTwebsiteandthewiTECHdiagnosticapplication,completethevehicleconfiguration.
2.Logontohttps://dealerconnect.chrysler.com.
3.Inthe"VehicleOption"screenunderthe"GlobalClaimsSystem"categoryinthe"Service"tab,enterthevehicle
VIN,fourdigitpinnumberobtainedfromthedealershippartsdepartmentandaddsalescode(s)notedbelowasa
"DealerInstalledOption".
XBM(REMOTESTART)
4.ConfirmthatthenewsalescodehasbeensuccessfullyaddedtotheVIN.
5.WiththewiTECHdiagnosticapplication,performthefollowingstepsformtheInitialStartUpScreen:
•Selectthe"DIAGNOSTICPROCEDURES"tab
•Highlight"RESTOREVEHICLECONFIGURATION"
•Selectthe"RunDiagnostic"button
•Select"CONTINUE"
•VerifythatthevehicleVINnumberiscorrect
•Onceverified,selectthe"CorrectVIN"button
•NoteOnScreeninstructionsandselectthe"Close"button
Jun21,2010K6861080
4280312

3
HOODSWITCHANDHARNESSINSTALLATION
1.Disconnectandisolatethenegativebatterycable.
Ifequippedwithanauxiliarybattery,disconnect
andisolatetheauxiliarybattery'snegativecable
aswell.

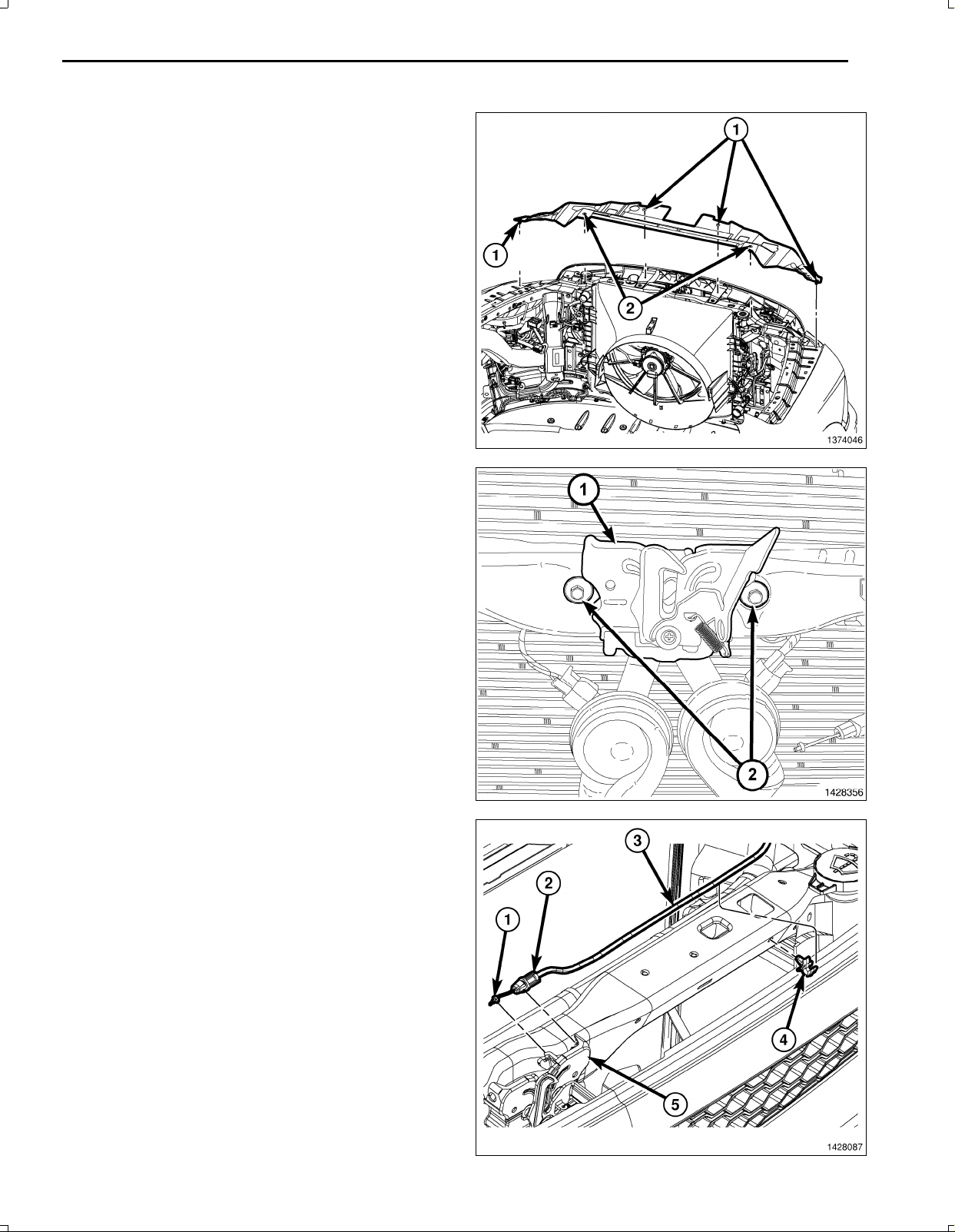

NOTE:Engineremovedfromgraphicforclarity.
2.Removethepushpinretainers(2)andtheupperra
diatorseal/shroud(1).
3.Usingagreasepencilorequivalent,marktheposition
ofthehoodlatch(1)ontheupperradiatorcrossmem
ber.
4.Removethetwobolts(3)thatsecurethehoodlatch
totheupperradiatorcrossmember.
5.Disconnectthehoodlatchcable(1)fromthehood
latch(5)andremovethelatch.
Jun21,2010K6861080
4280312

4

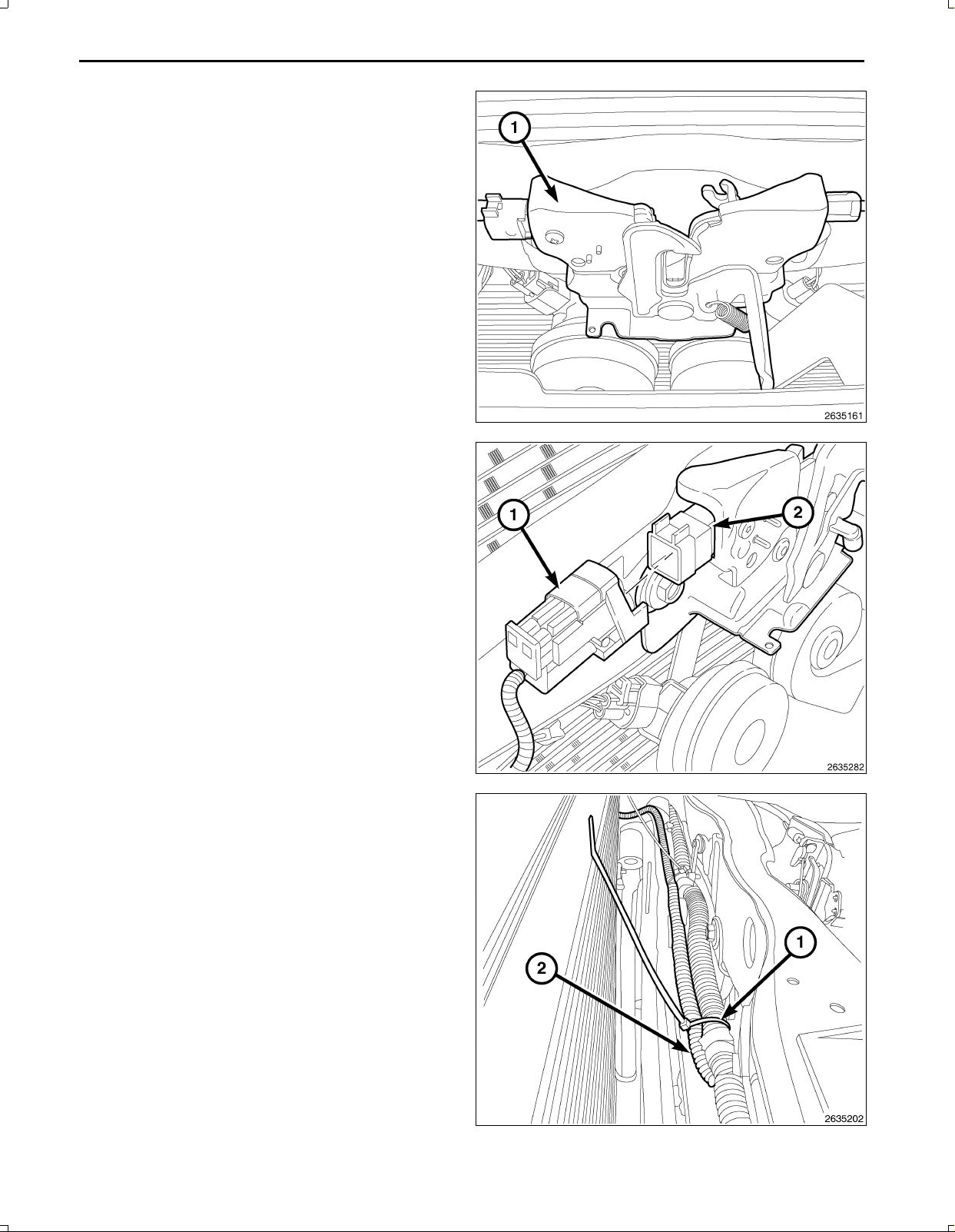

6.Connectthehoodlatchcabletothehoodlatchassem
bly(1).
7.Positionthehoodlatchassembly(1)totheupperra
diatorcrossmemberandlooselyinstallthetwobolts
thatsecurethelatchtothecrossmember.
8.Alignthehoodlatchassembly(1)totheupperradiator
crossmemberusingthereferencemarksmadeduring
theremovalprocedureandtightentheboltsto11N∙m
(8ft.lbs.).
NOTE:Theremaybeanususedfactoryinstalled
hoodswitchharnesstapedbackontheexisting
vehicleharnesslocatedbehindtheradiatorjust
belowtheupperradiatorcrossmember.Ifpresent,
detachit,routeitundertheradiatorcrossmember
throughtothehoodlatchassemblyandconnect.
Ifthefactoryhoodswitchharnessisnotpresent,
followsteps932.
9.Usingthesuppliedwiringharnessinthekit,connect
thehoodswitchharness(1)tothehoodlatchassem
bly(2).
10.Routethehoodswitchharness(2)undertheupper
radiatorcrossmembertowardstheleftsideoftheve
hicle.
11.Securethehoodswitchharness(2)asnecessaryto
theexistingvehicleharnessusingthetiestraps(1)in
cludedinthekit.
Jun21,2010K6861080
4280312

5

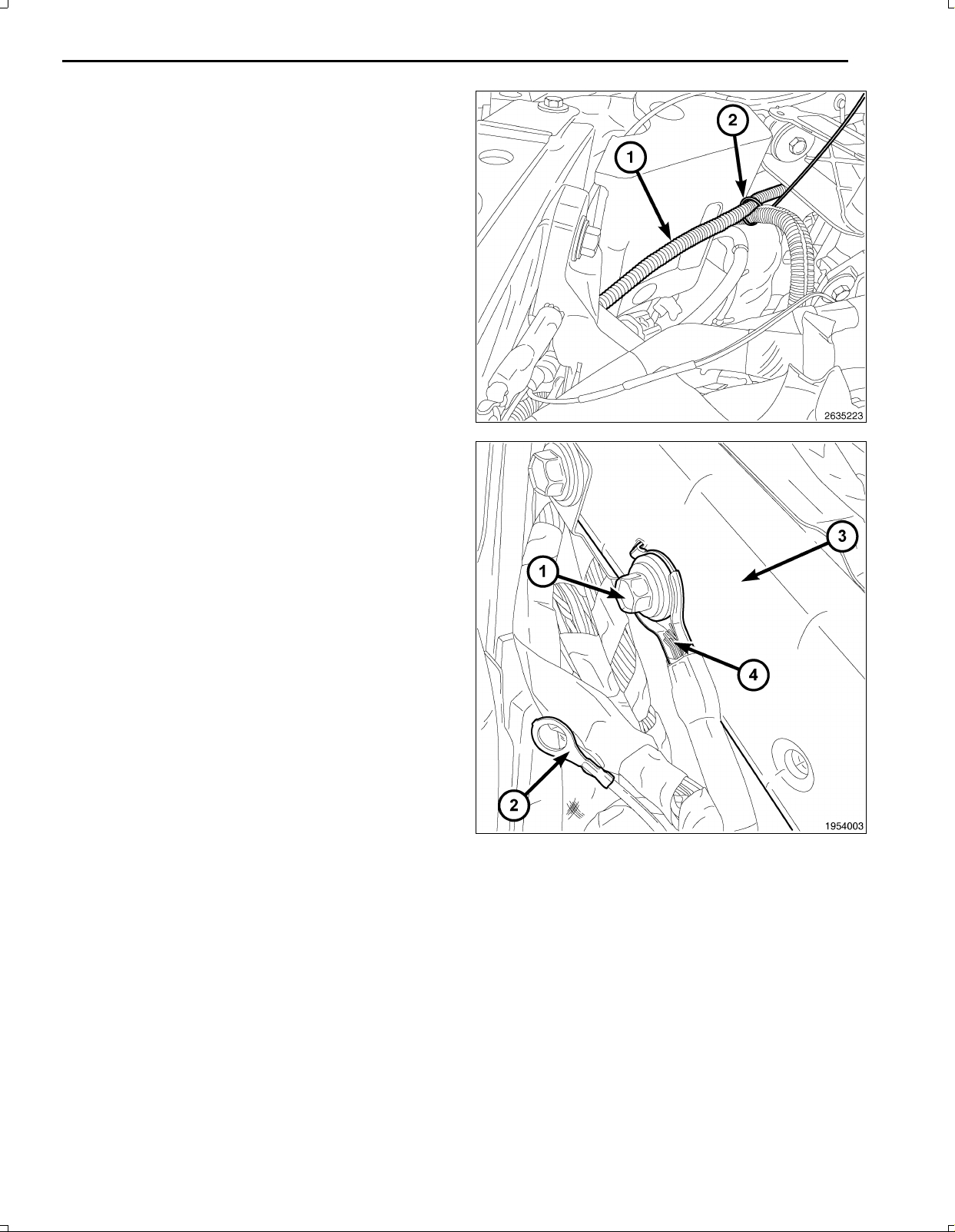

12.Routethehoodswitchharness(1)undertheradiator
mountingbrackettowardstheinnerleftfender.
Securethehoodswitchharness(2)asnecessaryto
theexistingvehicleharnessusingthetiestraps(1)
includedinthekit.
13.Removethegroundretainer(1)fromtheinnerleft
fender(3).
Jun21,2010K6861080
4280312

6

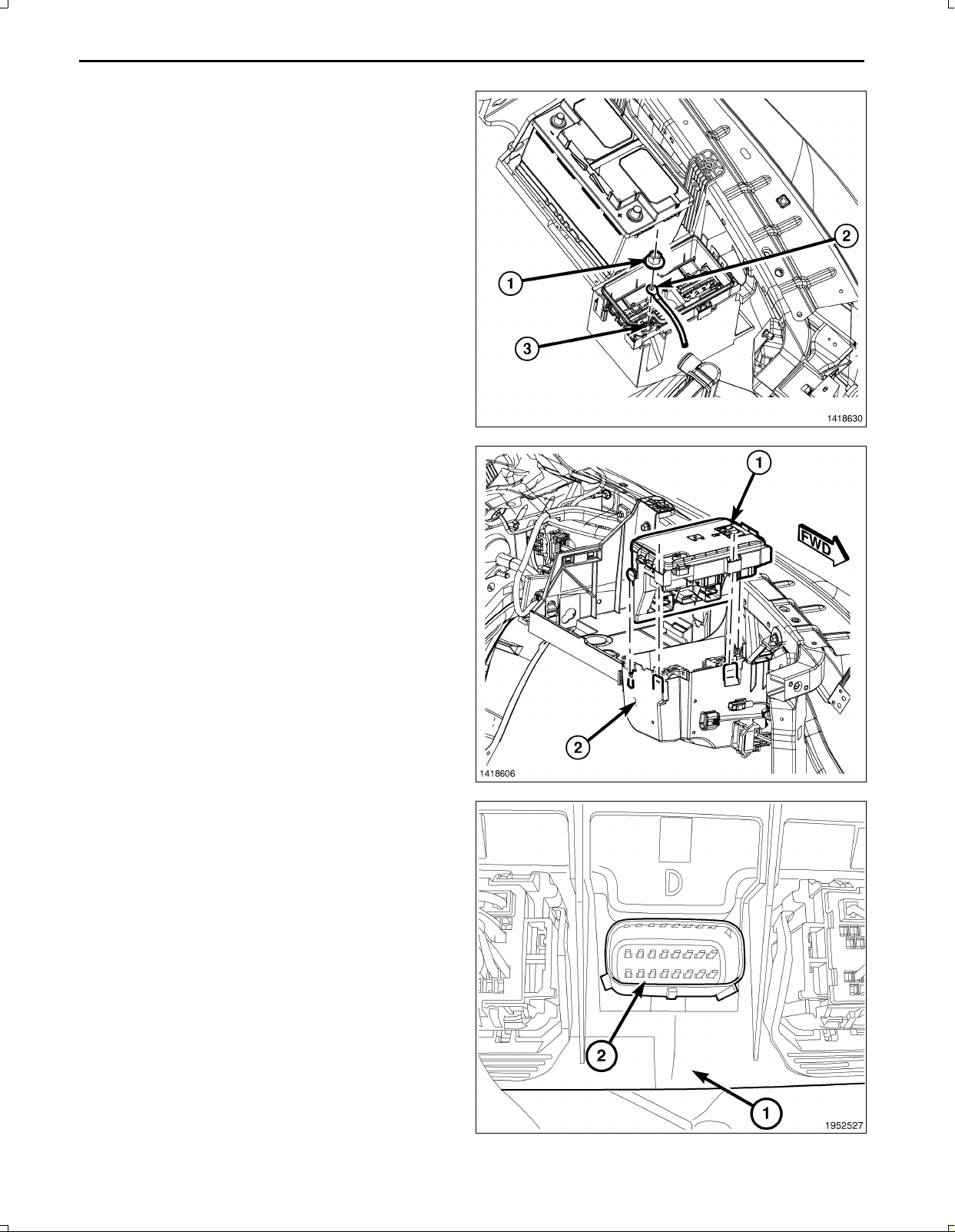

14.RemovetheB+terminalnut(1)fromtheTotallyInte
gratedPowerModule(3)(TIPM)B+terminal.Remove
theB+cable(2)fromtheTIPM.
15.Usingasuitableflatbladetool,disengagetheTIPM
upperretainingtabsfromthebatterytraybracket.
16.GrasptheTIPM(1)androtatetheassemblyuptofree
itfromitsmountingbracket(3).Positiontheassem
blyupsidedowntoaccesstheelectricalconnectors
locatedonthebottomoftheunit.
17.DisconnecttheconnectorC4,letterDlabeledonthe
bottomoftheTIPM.Releasebydepressingthelock
ingtabandrotatingtheconnectorarmoutboard,until
theconnectorisfreefromtheTIPMassembly(1).Be
certaintopulltheconnectorstraightoff.
Jun21,2010K6861080
4280312

7
18.RoutethepigtailwiresdowntheharnesstotheTIPM
andsecurewherenecessary.
19.Removethe“SecondaryLock”fromtherearofthe
connector.
20.Removetheweathersealfromtherearoftheconnec
tor.
21.Removethefrontportionoftheconnectorfromthe
connectorhousing.Thisportionoftheconnector
alignstheterminalsproperlywithintheconnector
housing.
Jun21,2010K6861080
4280312

8
22.Locateterminal3(G70circuit)slot/cavity(3)ofthe
connectorhousing'smatingside.
23.RoutethePurple/Whitewire(1)fromthehoodswitch
harnessthroughthesecondarylock,throughthe
weathersealandintotheterminal3(G70circuit)slot
oftheconnectorhousing'swiringside.
24.Reinstallthefrontportionoftheconnector,making
surethatallterminalsareseatedcorrectlyandarein
therightdirection.Reinstalltheweathersealandthe
secondarylock.
NOTE:TotallyIntegratedpowermoduleelectricalcon
nectorsarecolorcodedtoeaselocationreference.
25.Connecttheelectricalconnectorbypushingstraight
onandrotatingtheconnectorarminboard,untilthe
connectorisfirmlylockedinplaceontheTIPMas
sembly.
26.TurntheTIPMsothattheconnectorsideisfacing
down.InstalltheassemblyontotheTIPMbatterytray
bracketmakingsuretolineupthelowerretainingtab
withtheretainingslotinthetray.
27.PushtheTIPM(1)downwardtolocktheupperretain
ingclipsintothebracket(2).
Jun21,2010K6861080
4280312

9
28.InstalltheB+terminalcable(2)andnut(1)ontheB+
terminaloftheTIPM(3).
29.Fromthetopofthemountingbracket,pressthe
switchdownwardintothemountingholeuntilthe
integralswitchlatchtabslockitintoplace.
30.Installthegroundfromthepigtailharness(2),tothe
fenderunderthebodyground(4).
Jun21,2010K6861080
4280312

10

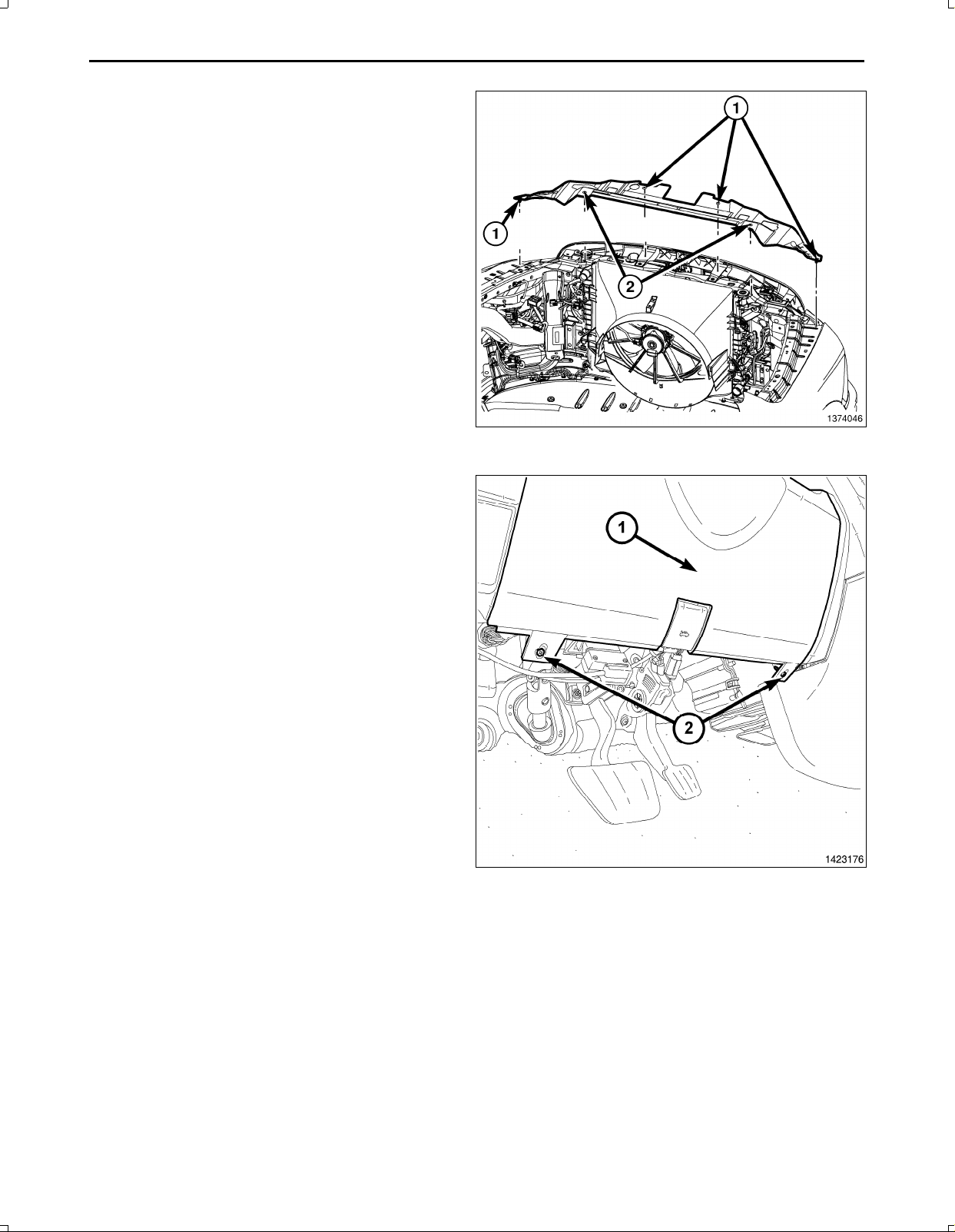

NOTE:Engineremovedfromgraphicforclarity.
31.Installthepushpinretainers(2)andtheupperradiator
seal/shroud(1).
32.Connectthenegativebatterycable.
WIRELESSIGNITIONMODULE(WIN)MODULEREMOVAL
1.UsingatrimstickC4755orequivalent,disengagethe
retainerclipthatsecuresthehoodreleasetothesteer
ingcolumnopeningcover,andremovethehoodre
leasehandlefromthecover.
2.Removethetwofasteners(2)thatsecurethebottom
ofthesteeringcolumnopeningcover(1)totheinstru
mentpanel.
Jun21,2010K6861080
4280312

11
3.RemovetheDataLinkConnector(3)fromthesteering
columnopeningcover(2)bypressinginthetabs(1)
andpushingtheconnectorthroughtheopeningonthe
backsideofthecover.
4.UsingatrimstickC4755orequivalent,releasethe
retainerclipsthatsecurethesteeringcolumnopen
ingcover(1)totheinstrumentpanelandremovethe
cover.
Jun21,2010K6861080
4280312

12

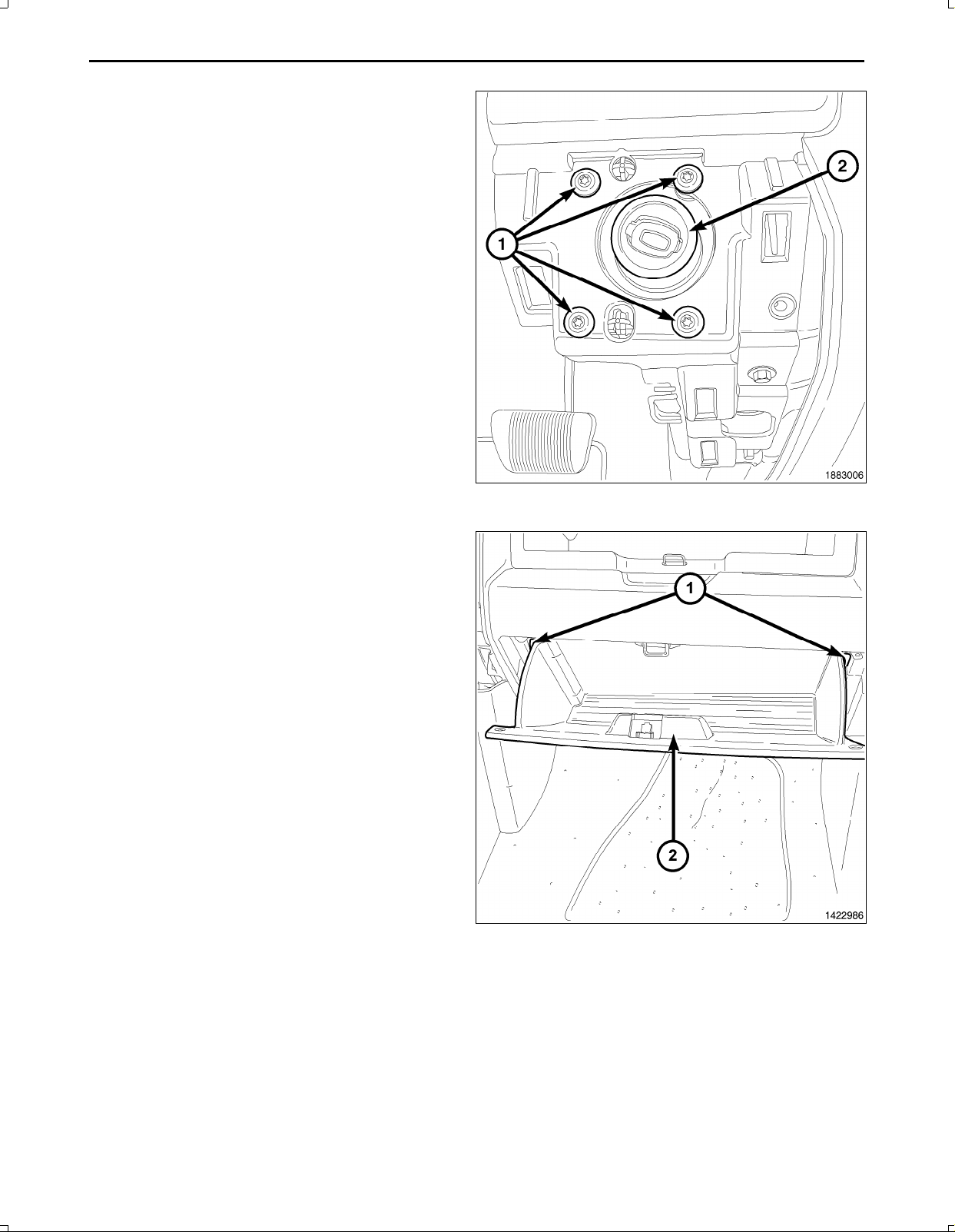

5.RemovethefourWINretainers(1).
6.DisconnecttheWINelectricalconnector.
7.RemovetheWINfromtheinstrumentpanelopening.
REMOTESTARTANTENNAINSTALLATION
1.Opentheglovebox(2).
2.Releasethetwogloveboxstops(1)andlowerthe
glovebox(2)downwardpastthestops.
Jun21,2010K6861080
4280312

13
3.Disengagethegloveboxhinges(1)fromtheinstru
mentpanelandremovetheglovebox(2).
4.Throughthegloveboxopeningremovestoragebin
fastener(2)locatedatthebackofthestoragebin(1).
Jun21,2010K6861080
4280312

14

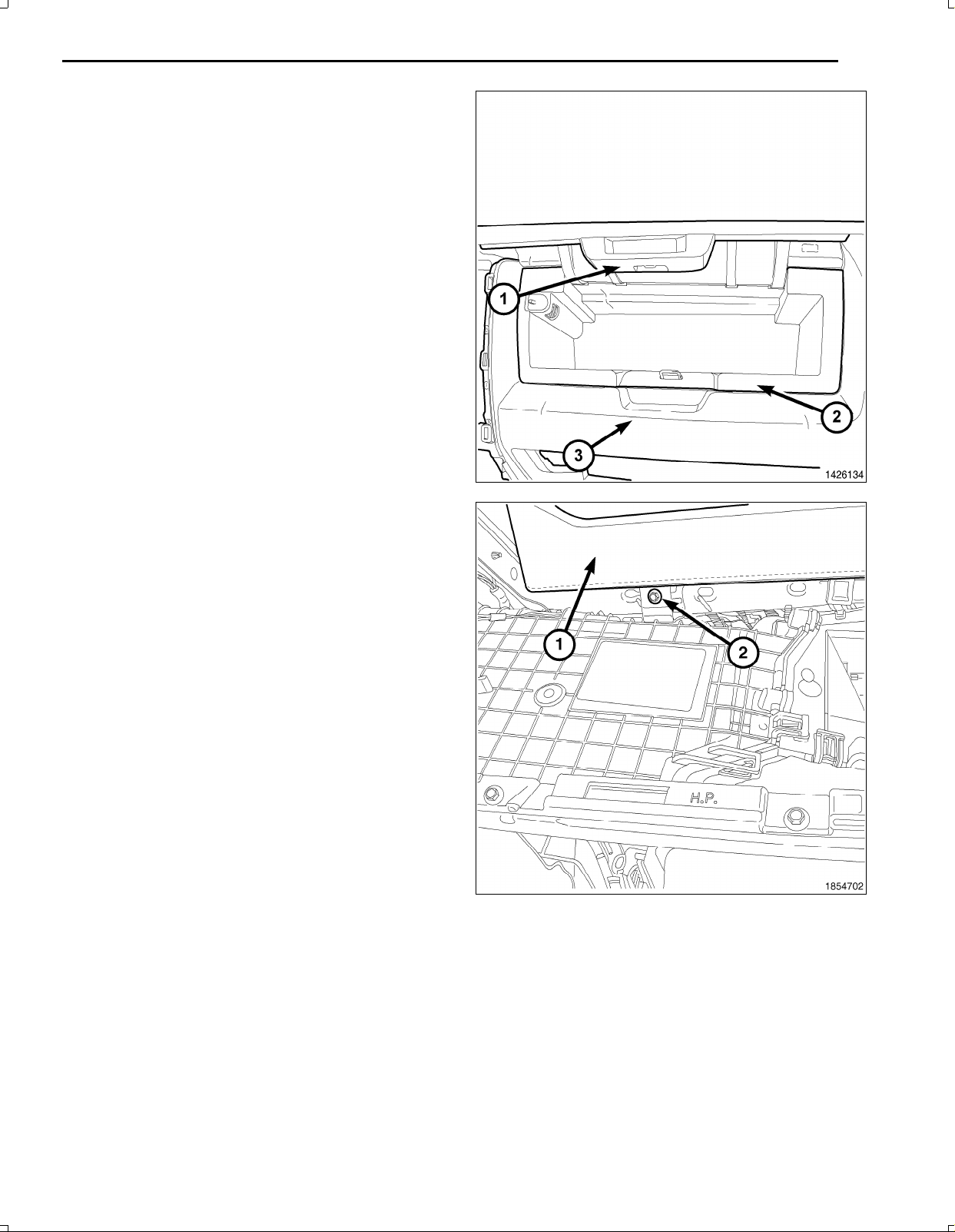

5.Openstoragebindoor(1).
6.Disengagetheretainerclipsthatsecurethestorage
bin(2)totheinstrumentpanel(3).
7.Partialremovethestoragebinanddisconnectthe
storagebinlightelectricalconnector.
8.Removestoragebin(2)fromvehicle.
NOTE:TheWINantennaislocatedbehindtheleftside
ofthestoragebin.
9.InserttherightsideoftheWINantennamodulefirst,
thenpushfirmlyontheleftsidetoengageholdingclip
(2).
10.SecuretheWINantennaconnectorendtoastiffwire.
11.Routetheantennawirebehindtheradiotowardthe
drivessideofthevehicle.
Jun21,2010K6861080
4280312

15
12.Partialinstallthestoragebinandconnectthestorage
binlightelectricalconnector.
13.Engagethestoragebinretainerclipsandfullyseatthe
storagebin(2)totheinstrumentpanel(3).
14.Closestoragebindoor(1).
15.Throughthegloveboxopeninginstallthestoragebin
fastener(2)atrearofstoragebin(1).
Jun21,2010K6861080
4280312

16
16.Engagethehinges(1)oftheglovebox(2)tothein
strumentpanel.
17.Pressdownwardonthebackedgeoftheglovebox
(2)andraisethegloveboxpastthetwostops(1).
18.Closetheglovebox.
Jun21,2010K6861080
4280312

17

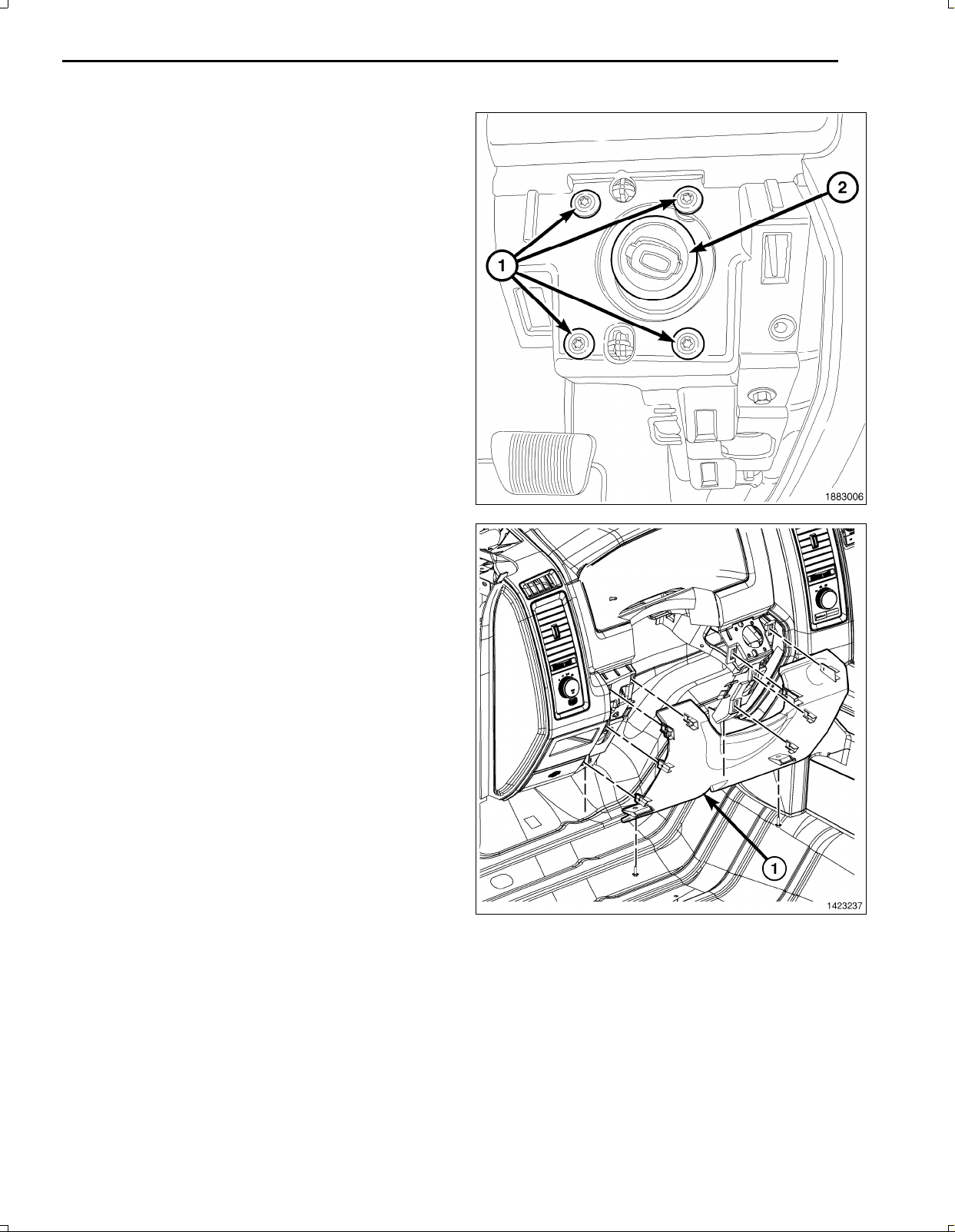

WINMODULEINSTALLATION
1.ConnecttheWINelectricalconnector.
2.ConnecttheantennaconnectortotheWIN.
3.InstalltheWIN(2)intothetoinstrumentpanel.
4.Positionthesteeringcolumnopeningcover(2)tothe
instrumentpanelandfullyengagetheretainerclipsto
theinstrumentpanel.
Jun21,2010K6861080
4280312

18
5.InstalltheDataLinkConnector(3)tothesteering
columnopeningcover(2)bypushingtheconnector
throughtheopeningonthebacksideofthecover
andfullyengagingthelocktabs(1)oftheconnector.
6.Installthetwofasteners(2)thatsecurethesteering
columnopeningcover(1)totheinstrumentpanel.
7.Positionthehoodreleasehandleontothecolumn
openingcoverandfullyengagetheretainerclipthat
securesthehoodreleasehandletothesteering
columnopeningcover.
8.Connectthenegativebatterycable.
PROGRAMMINGTHEWIN
CAUTION:Readallnotesandcautionsforprogrammingprocedures.
NOTE:HavethevehiclePINreadilyavailablebeforerunningtheroutine
CAUTION:IfthePCMandWINarereplacedatthesametime,thePCMMUSTbeprogrammedbeforetheWIN.
1.Connectabatterychargertothevehicle.
2.WiththewiTECHdiagnosticapplication,performthefollowingsteps:
•Select"WIRELESSCONTROLMODULE(WCM)"
•Selectthe"MISCELLANEOUSFUNCTIONS"tab
•Highlight"WINREPLACED"
•Selectthe"StartMiscFunction"button
Jun21,2010K6861080
4280312

19
•Select"NEXT"
•EnterthePINwhenprompted.
•Select"NEXT"
•VerifythatthePINnumberiscorrect
•Onceverifiedselect"NEXT"
•Select"NEXT"
•NoteOnScreeninstructionsandselectthe"FINISH"button
•Cycleignitionkeyafterthesuccessfulroutinecompletion.
PROGRAMMINGIGNITIONKEYSTOTHEWIN
CAUTION:Readallnotesandcautionsforprogrammingprocedures.
NOTE:HavethevehiclePINreadilyavailablebeforerunningtheroutine
1.Connectabatterychargertothevehicle.
2.WiththewiTECHdiagnosticapplication,performthefollowingsteps:
•Select"WIRELESSCONTROLMODULE(WCM)"
•Selectthe"MISCELLANEOUSFUNCTIONS"tab
•Highlight"PROGAMMINGIGNITIONKEYSORKEYFOBS"
•Select"NEXT"
•EnterthePINwhenprompted.
•Select"NEXT"
•VerifythatthePINnumberiscorrect
•Onceverifiedselect"NEXT"
•NoteOnScreeninstructionsandselectthe"FINISH"button
•Cycleignitionkeyafterthesuccessfulroutinecompletion.
NOTE:IftheoriginalkeysdonotsuccessfullyprogramtothenewWINaftertheproperproceduresarefollowed
correctly,programmingnewkeyswillbenecessary.
NOTE:AmaximumofeightkeyscanbelearnedbytheWIN.OnceakeyislearnedbyaWIN,thatkeyhasac
quiredtheSecretKeyforthatWINandcannotbetransferredtoanyothervehicle.
ECURESET
NOTE:ThewiTECHsoftwarelevelmustbeatthelatestreleasetoperformthisprocedure.
CAUTION:Readallnotesandcautionsforprogrammingprocedures.
1.Connectabatterychargertothevehicle.
2.WiththewiTECHdiagnosticapplication,performthefollowingsteps:
•Select"WIRELESSCONTROLMODULE(WCM)"
•Selectthe"MISCELLANEOUSFUNCTIONS"tab
•Highlight"RESETECU"
•NoteOnScreeninstructionsandselectthe"NEXT"button
•Select"FINISH"
WINDOWCALIBRATION
NOTE:Vehiclesequippedwiththeautoupfeaturemusthavethewindowscalibratedafterabatterydisconnect.
NOTE:Thedoormustbecompletelyclosedwhenstartingthisstep.
1.Sitinthedriverseatandclosethedoor.
2.Lowerthewindowpartofthewaydown.
3.Runthewindowtothefulluppositionandcontinuetoholdtheswitchforanadditionaltwoseconds.
4.Runthewindowtothefulldownpositionandcontinuetoholdtheswitchforanadditionaltwoseconds.
5.Raisethewindowtothefullupposition.
6.Repeatthestepsfortheremainingwindows.
Jun21,2010K6861080
4280312

20
UPDATEPRESSURETHRESHOLDS
NOTE:ThewiTECHsoftwarelevelmustbeatthelatestreleasetoperformthisprocedure.
NOTE:ThevehiclemustbedrivenbeforetheTPMSlightwillturnoff.
CAUTION:Readallnotesandcautionsforprogrammingprocedures.
NOTE:HavethevehiclePINreadilyavailablebeforerunningtheroutine
1.Connectabatterychargertothevehicle.
2.WiththewiTECHdiagnosticapplication,performthefollowingsteps:
•Selectthe"TIPMCGW"
•Selectthe"MISCELLANEOUSFUNCTIONS"tab
•Highlightandselect"UPDATEPRESSURETHRESHOLDS"
•NoteOnScreeninstructionsandselectthe"NEXT"button
•Verifycurrentsettings,selectthe"NEXT"buttontochangesettings
•Select"NEXT"
•EnterthePINwhenprompted.
•Select"NEXT"
•VerifythatthePINnumberiscorrect
•Onceverified,select"NEXT"
•Select"NEXT"
•WaitfortheWCM/WINtoupdateit'sconfiguration
•OncetheWCM/WINconfigurationiscomplete,select"NEXT"
•NoteOnScreeninstructionsandselectthe"FINISH"button
TEMPORARYREMOTESTARTDISABLE
NOTE:ThewiTECHsoftwarelevelmustbeatthelatestreleasetoperformthisprocedure.
CAUTION:Readallnotesandcautionsforprogrammingprocedures.
1.Connectabatterychargertothevehicle.
2.WiththewiTECHdiagnosticapplication,performthefollowingsteps:
•Selectthe"TIPMCGW"
•Selectthe"MISCELLANEOUSFUNCTIONS"tab
•Highlightandselect"TEMPORARYREMOTESTARTDISABLE"
•NoteOnScreeninstructionsandselectthe"NEXT"button
•Selectthe"DISABLE"buttontoactivatetheremotestartfunction
•Select"YES"toresetthemoduleandexittheroutine,select"NO"totogglethevalueback
•Select"FINISH"
CLEARALLDTC'S
NOTE:ThewiTECHdiagnosticapplicationisthepreferredmethodforclearingallDTC's.
NOTE:ThewiTECHsoftwarelevelmustbeatthelatestreleasetoperformthisprocedure.
ACTIVATETHEREMOTESTART
Toactivatetheremotestartthevehiclemusthavebeendrivenatleast35MPH.
Withthevehicleoff,andthedoorsclosedandlocked,verifytheremotestartisfunctioningproperly.
Jun21,2010K6861080
4280312
