Viavito PT100X User manual

Owner’s Manual.
Folding Pool
Table
PT100X
www.viavito.com
Manual version: 2.1

02
Congratulations
on purchasing your
very own PT100X
Folding Pool Table
Manual Contents.
www.viavito.com
You have chosen a high-quality, safe and
innovative product, and we are certain
it will keep you entertained for hours.
Please take the time to read this owner’s
manual as it will help you to get the most
out of your new product.
For more information, or if you require
any assistance please email us at
[e-mail]
Safety Information 03
Table Assembly 04/10
Contents Checklist 04
Assembly Diagram 05
Assembly Instructions 06/07
Folding & Storage Instructions 08/10
Customer Support 11/12
Contact Information 11
Manufacturer's Warranty 12
Technical Information 13/14
Exploded Diagram 13
Parts List 14

Safety Information.
• Please read all the instructions carefully
before using this product.
• Retain this manual for future reference.
• The specications of this product may
vary slightly from the illustrations and
are subject to change without notice.
IMPORTANT SAFETY NOTICE:
note the following precautions
before using the product.
01 Assemble the product exactly as per
the instructions in this manual, using
only the supplied tools to assemble it.
02 Check all the screws, nuts and other
connections before using the table
for the rst time and ensure that it
has been built correctly and is safe
to be used.
03 Set up the product in a dry, level place
and keep it away from moisture and
water.
04 DO NOT use aggressive cleaning
products such as detergents. To clean
the product only use a clean cloth.
05 This product is for home use only.
If used outside, please store indoors
after use.
Please do view our assembly guide
video on YouTube whilst you set up
the table. It’s sure to help make the
process clearer.
https://youtu.be/Ivm-kA5VwoA
03
www.viavito.com

#1
#4 #5 #5A #6
#9
#15
#12
#2
#7
#13
#10
#16
#3
#8
#14
#11
Main
Frame
Leg A/B
2 pcs
Leg A/B
2 pcs
5/16” Handle
Bolt 4 pcs
Billiard Balls 1 set
Leg
Panel A 2 pcs
5/16” * 1-1/2”
Bolt 4 pcs
Cue Sticks
2 pcs
Leg Panel B
1 pc
3/16” * 1-3/2”
Bolt 12 pcs
Triangle 1 pc
Allen Key
1 pc
5/16” Washer
8 pcs
Brush 1 pc
Nut
12 pcs
3/16” Washer
12 pcs
Chalks
2 pcs
  
04
Table Assembly.
www.viavito.com

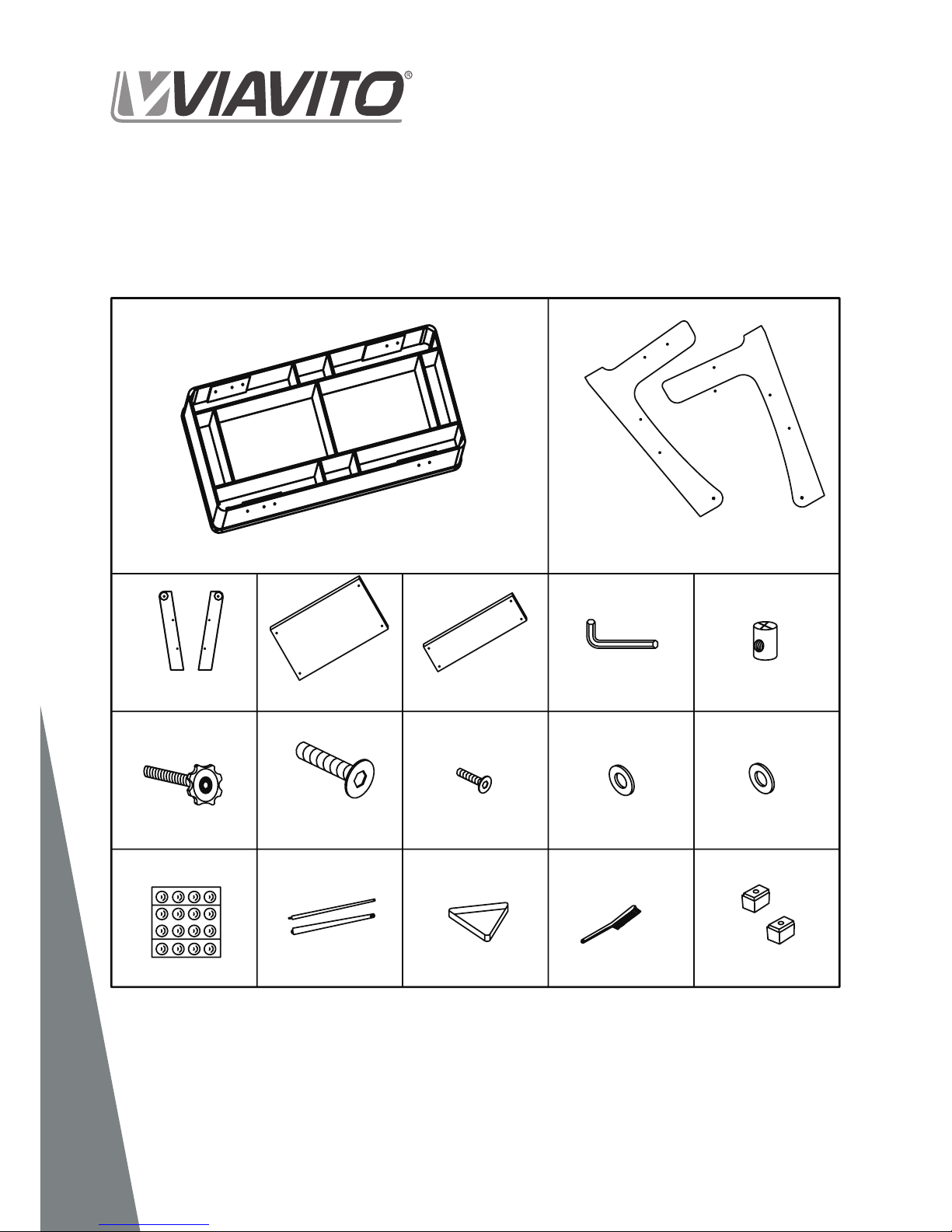

Contents Checklist Make sure you have the following parts:

#2A
#2B
#5
#4
#3A
#3B
#10
#8
#10
#7
#10
#8
#10
#7
#11
#9
#9
#11
#9
#11
#11
#9
#6
#6
#6 #6 #6
#4
05
Assembly Diagram
Note: It requires two adults to assemble this table.
Please do view our assembly guide video on YouTube whilst you set up the table. It’s
sure to help make the process clearer.
https://youtu.be/Ivm-kA5VwoA
www.viavito.com

06 www.viavito.com
Assembly Instructions
Step Two.
01 Attach legs 3A and 3B to the main
frame using a handle bolt (#7), a
bolt (#8) and two washers (#10) for
each leg. The curved end of each leg
should be against the table with the
curved side facing inwards. The metal
studs should face the inside of the ta-
ble and the flat end of the leg should
be in the air. Screw in the handle
bolts and bolts loosely so that they
hold the legs, but do not overtighten
them yet.
02 Attach one leg panel (#4) to the legs
you just attached using 4 bolts (#9),
4 washers (#11) and 4 nuts (#6). Push
the nuts (#6) into the holes on the at
side, lining them up so they will take
the bolts. Attach the leg panel with the
nuts facing into the table, tightening
the bolts (#9) with the Allen key.
03 Now tighten the bolts (#8) that you
loosely attached in the rst part of
Step Two with the Allen key, and
tighten the handle bolts (#7) with your
hands.
Step One.
01 Lay the box on the floor and lift
off the lid. The table will be upside
down.
02 Remove the cues, instruction manual
and box of accessories, keeping the
main frame in the inner packaging
for now.
03 Tilt the table up and remove the rest
of the assembly contents, such as the
legs and leg panels.
04 Open the accessories box and remove
the bags of nuts, bolts and washers.
Check against the contents checklist
on page 4 that all the necessary parts
are present before continuing with the
assembly process.

07
www.viavito.com
Step Four.
01 This step requires two adults. Lift the
table clean o the ground, turn it
around so the legs point down, then
place it down on the oor. Do not
lean it on its legs as this can damage
them. Now the table is ready, it’s time
to play!
Please do view our assembly guide video
on YouTube whilst you set up the table.
It’s sure to help make the process clearer.
https://youtu.be/Ivm-kA5VwoA
Step Three.
01 Attach legs 2A and 2B to the main
frame using handle bolt (#7), a bolt
(#8) and two washers (#10) for each
leg. The horizontal part of the legs
should point towards the outside of
the table, with the metal studs facing
the inside. Attach the leg using the two
innermost holes, leaving the third one
closest to the end of the table free. As
before, only screw the bolts in loosely.
02 Attach the two remaining leg panels
(#4 & #5) to the legs using the bolts
(#9), washers (#11) and nuts (#6) as
before. The thicker leg panel (#4)
goes on the vertical part of the legs,
closest to the table, with the logo
upside down and facing outwards.
The thinner leg panel (#5) goes on
the horizontal part of the legs, further
away from the table, with the logo
facing downwards and on the outside
edge. Screw all bolts in loosely.
03 Once all the panels are in place,
tighten all the bolts (#8 & #9) with the
Allen key and the handle bolts (#7)
with your hands.

08 www.viavito.com
Folding & Storage Instructions
Note: It is recommended that two adults fold this table.
Step One.

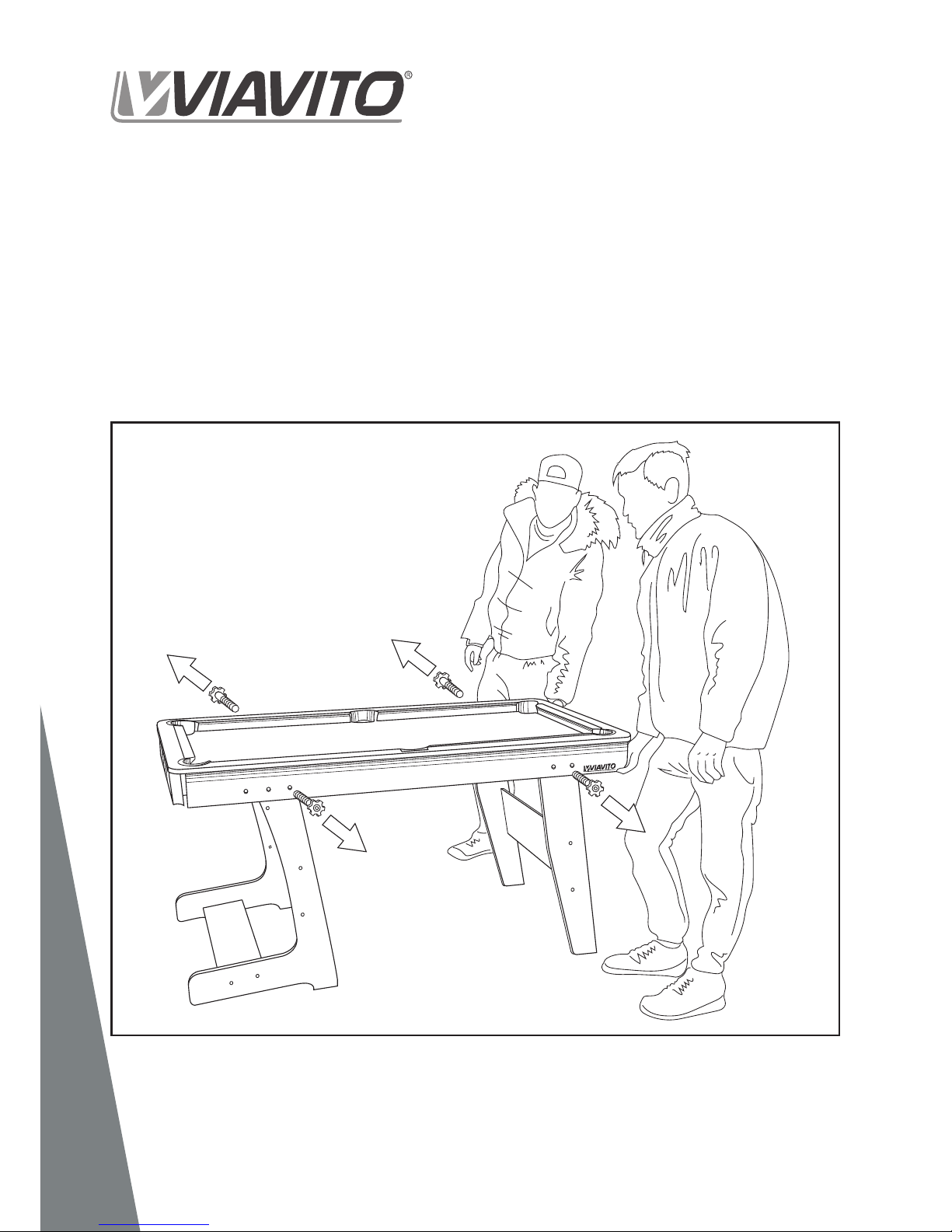

01 Remove the bolt (#7) from each leg as per the diagram below. There are 4 in total
to remove.

09
www.viavito.com
Step Two.
01 Supporting the table on each side, carefully lift it up into the vertical position.

10 www.viavito.com
Step Three.

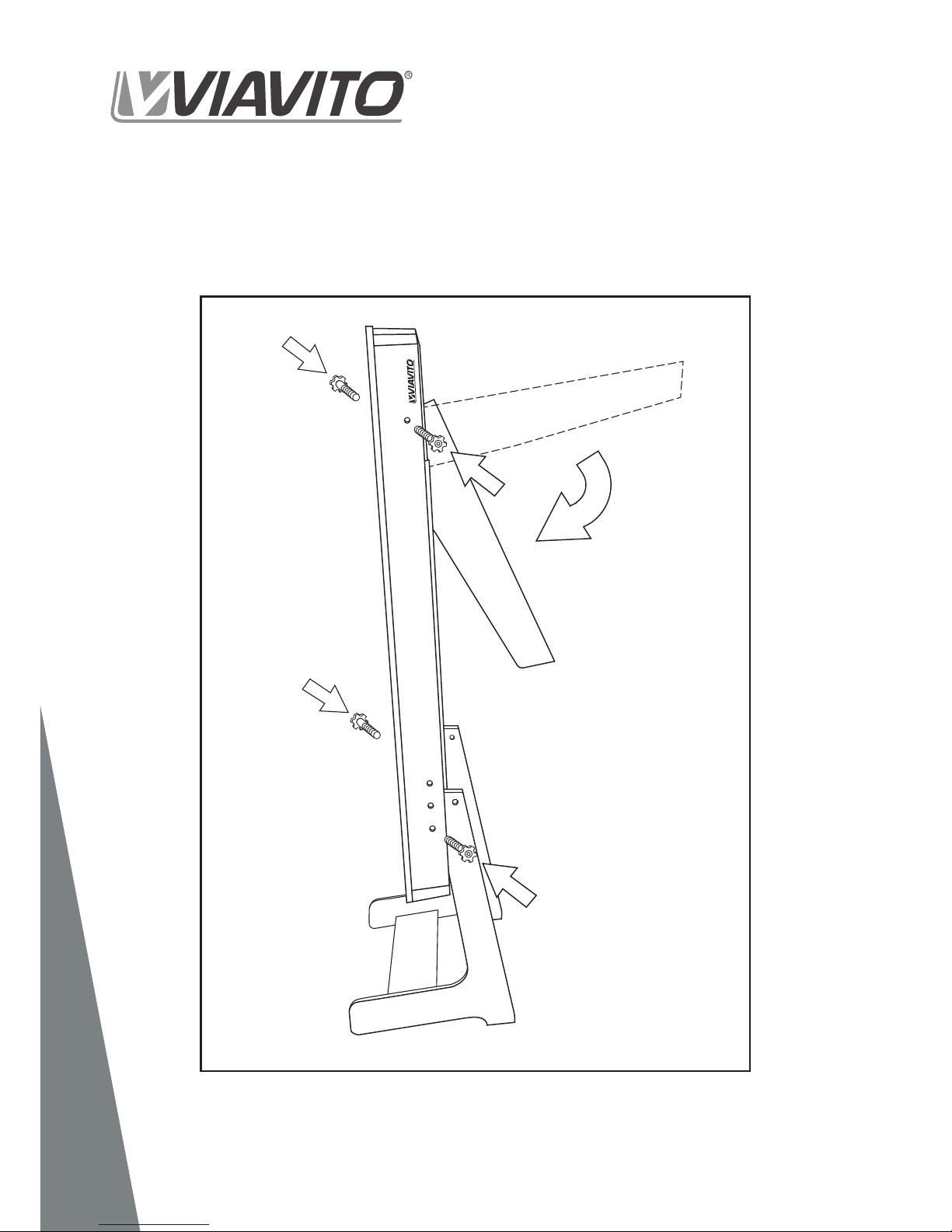

01 Once the table is in the vertical position, fold the top legs down into the body of the
table. Then secure the table by reinserting the 4 bolts (#7) through the sides and legs.

11
www.viavito.com
Customer Support.
Should you require any assistance
regarding this product please gather
the following information and then
contact us using the details below:
• Original purchase date
• Place of purchase
• Information about the place and
conditions of use
• Precise description of the issue
or defect.
IMPORTANT!! - Please retain your
sales receipt, Viavito Customer Care
may request proof of purchase to
validate eligibility for warranty service.
Warranty cover starts from the date
shown on the proof of purchase.
The best way to contact us is via the
website: www.viavito.com
Viavito Ltd
Sabichi House
5 Wadsworth Road
Perivale, Middlesex
UB6 7JD
Email: [e-mail]
Contact Information
https://www.facebook.com/MyViavito
https://plus.google.com/+Viavito
https://twitter.com/MyViavito

12 www.viavito.com
Viavito ltd warrants this product to
be free of defects of material and
workmanship, under normal use and
conditions, for a period of 6 months
from the date of the original purchase.
Terms.
This warranty extends only to the original
purchaser and is not transferable.
The warranty does not cover:
01 Normal wear and tear
02 Any changes to upgrade this product
from its normal state or use other than
as described in the user manual
03 Damage resulting from:
a) Transport
b) Abuse, misuse, failure to follow
instructions or improper or
abnormal use
c) Non-home use - including commercial,
professional, or rental purposes
d) Repairs not provided by Viavito ltd
e) Accidents, lightning, water, re,
or any other causes beyond the
control of Viavito
f) Improper location including, but not
limited to, humid, dusty, or outdoor
environments.
Viavito is not responsible or liable for
direct, indirect, or consequential losses
arising out of or in connection with the use
of this product or damages with respect
to any loss of property, revenue, prots,
enjoyment or use, nor for any costs of
removal or installation of this product.
This warranty covers products purchased
as new inside the United Kingdom.
In the event of the table requiring a repair,
this may need to be performed at
a Viavito authorised repair centre.
Manufacturer's Warranty

#1
#7
#7
#8
#8
#10
#10
#3
#3
#4
#4
#6
#6
#6
#2
#2
#9
#9
#9
#11
#11
#11
#5
13
www.viavito.com
Technical Information.

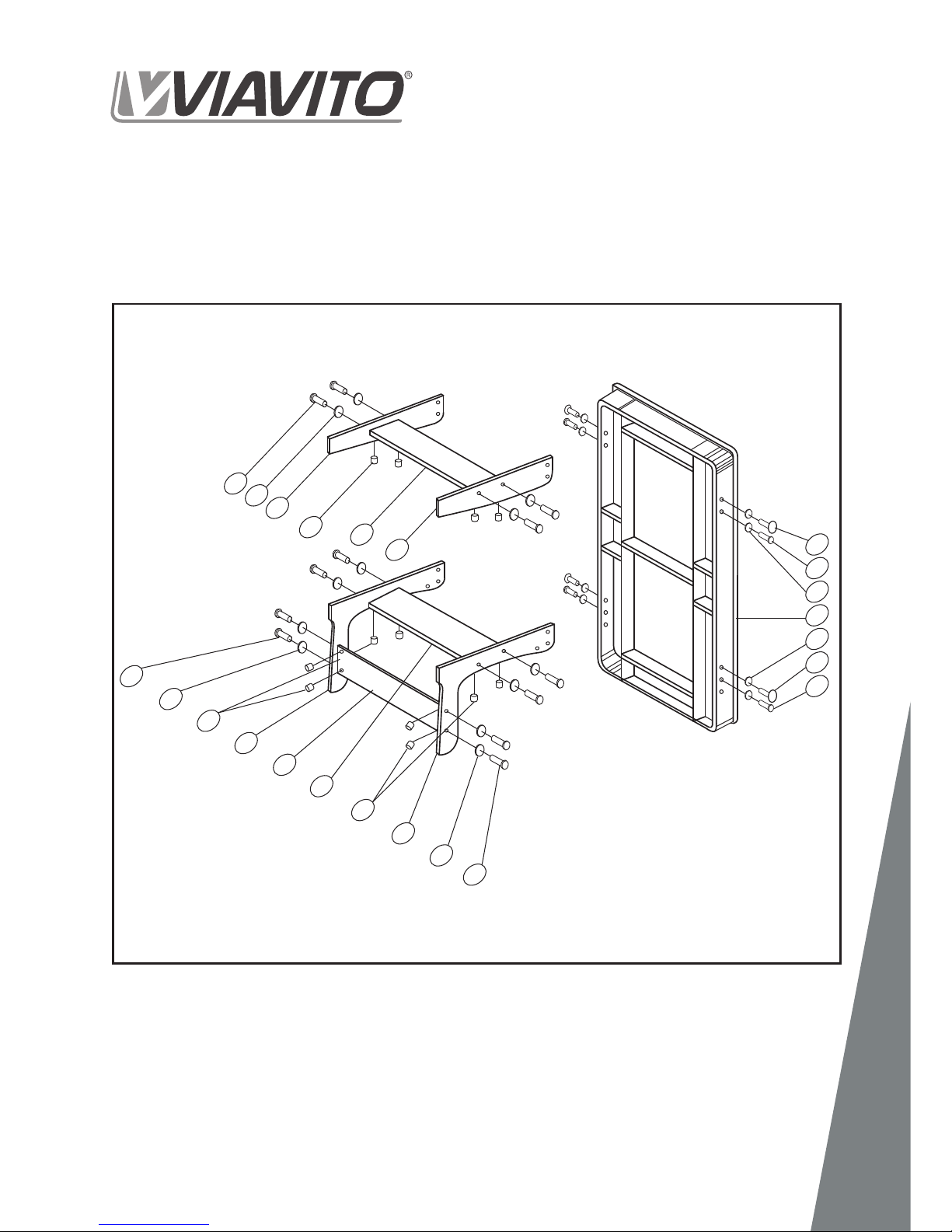

Exploded Diagram

14
www.viavito.com
No. DESCRIPTION Q’TY
#1 Main Frame 1 PCS
#2 Leg A / B 2 PCS
#3 Leg A / B 2 PCS
#4 Leg Panel A 2 PCS
#5 Leg Panel B 1 PCS
#5A Allen Key 1 PCS
#6 Nut 12 PCS
#7 Handle Bolt 4 PCS
#8 Bolt 4 PCS
#9 Bolt 12 PCS
#10 Washer 8 PCS
#11 Washer 12 PCS
#12 Billiard Balls 1 SET
#13 Cue Stick 2 PCS
#14 Triangle 1 PCS
#15 Brush 1 PCS
#16 Chalk 2 PCS
Parts List
